最近看到以前的代码，想到了attention，趁着代码还在就来整理一下。

文章目录

[Squeeze-and-Excitation Networks](https://arxiv.org/abs/1709.01507)
[Concurrent Spatial and Channel ‘Squeeze &Excitation’ in Fully Convolutional Networks](https://arxiv.org/abs/1803.02579)
[CBAM: Convolutional Block Attention Module](https://arxiv.org/abs/1807.06521)

Squeeze-and-Excitation Networks

这是最有名的SEnet（也就是channel attention）, 感兴趣的可以看论文

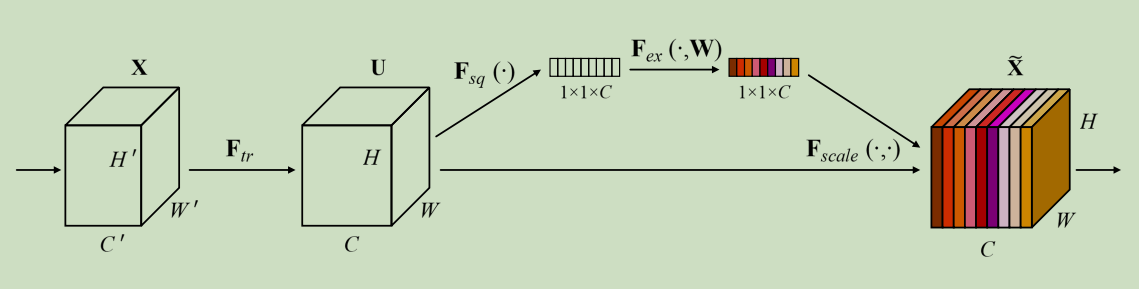

看图：

这里用到的操作：全局平均池化（将W X H X C的特征变成1 X 1 X C ），全连接FC（两层，用两个FC层比用一个FC层的好处：具有更多非线性，可以更好拟合通道间复杂的相关性；极大的减少了参数量和计算量。缺点：不能保持spatial information），最后进行点乘，这个attention在很多网络结构都有了，例如Resnet
代码实现如下（python，超清晰明了简洁）：

from torch import nn
import torch
class SELayer(nn.Module):def __init__(self, channel, reduction=16):super(SELayer, self).__init__()self.avg_pool = nn.AdaptiveAvgPool2d(1)self.fc = nn.Sequential(nn.Linear(channel, channel // reduction, bias=False),nn.ReLU(inplace=True),nn.Linear(channel // reduction, channel, bias=False),nn.Sigmoid())def forward(self, x):b, c, _, _ = x.size() # b为batchy = self.avg_pool(x).view(b, c)y = self.fc(y).view(b, c, 1, 1)#return x * y.expand_as(x)return torch.mul(x,y)

Concurrent Spatial and Channel ‘Squeeze &Excitation’ in Fully Convolutional Networks

这是scSEnet,也就是把spatia和channel两种attention合并，下面把我ppt内容贴上来，感兴趣的可以仔细看论文

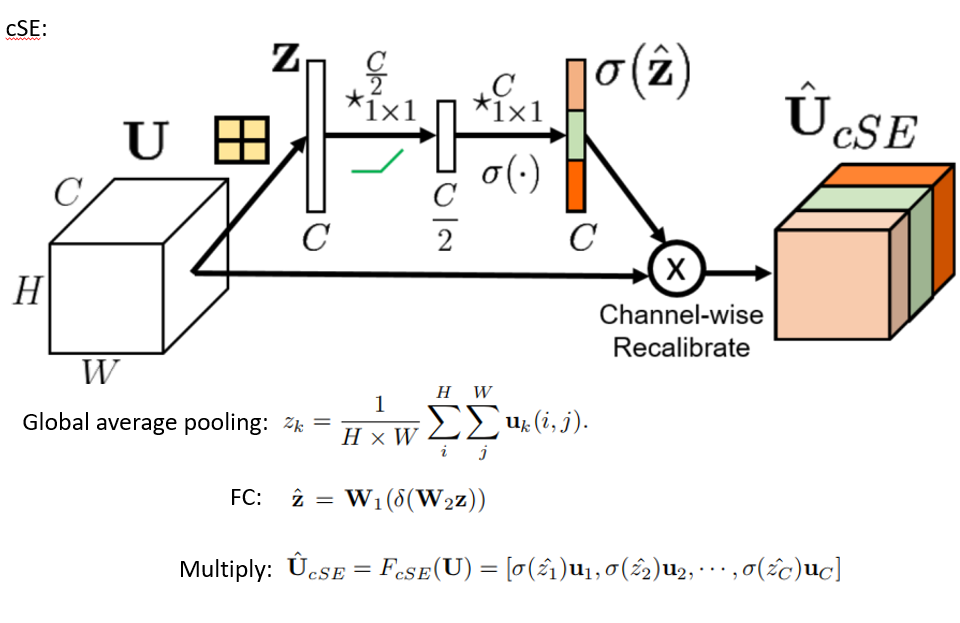

上面这张图就是channel attention ，和上一篇一样

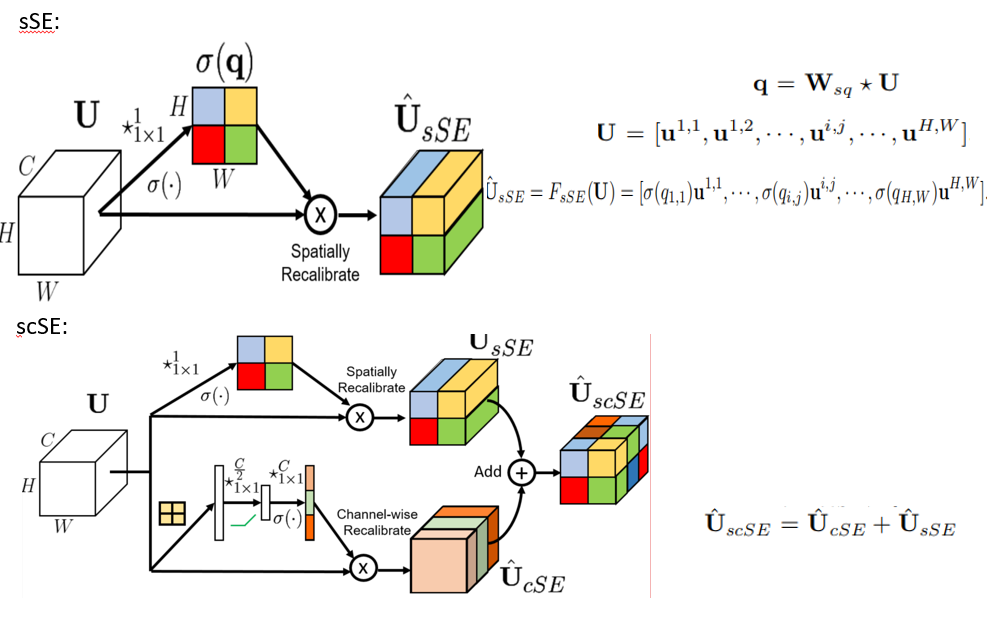

这张图加了一个spatial attention, 至于操作呢，很简单粗暴，用1*1卷积直接把channel变为1,（也就是降维，将W X H X C的特征变成 W X H X 1 ），最后也是点乘
最最后把两个attention 对应相加
代码实现如下（python，超清晰明了简洁）：

import torch
import torch.nn as nn
class SCSEBlock(nn.Module):def __init__(self, channel, reduction=16):super(SCSEBlock, self).__init__()self.avg_pool = nn.AdaptiveAvgPool2d(1)self.channel_excitation = nn.Sequential(nn.Linear(channel, int(channel//reduction)),nn.ReLU(inplace=True),nn.Linear(int(channel//reduction), channel),nn.Sigmoid())self.spatial_se = nn.Sequential(nn.Conv2d(channel, 1, kernel_size=1,stride=1, padding=0),nn.Sigmoid())def forward(self, x):bahs, chs, _, _ = x.size()# Returns a new tensor with the same data as the self tensor but of a different size.chn_se = self.avg_pool(x).view(bahs, chs)chn_se = self.channel_excitation(chn_se).view(bahs, chs, 1, 1)chn_se = torch.mul(x, chn_se)spa_se = self.spatial_se(x)spa_se = torch.mul(x, spa_se)return torch.add(chn_se, 1, spa_se)

CBAM: Convolutional Block Attention Module

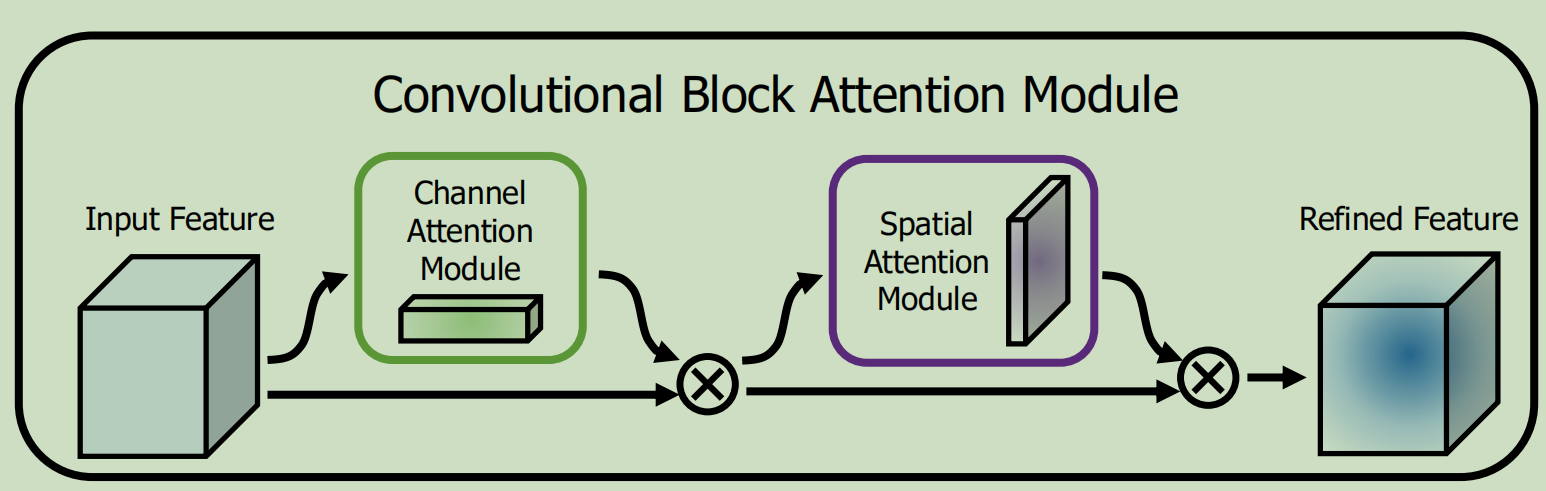

这个题目已经告诉你了，它叫CBAM，直接上图吧，感兴趣的可以仔细看论文

看到这个图，是不是觉得就是SCSE 呢，怎么还可以发论文呢，人家有其他创新啦

对的就是你看到的，它在channel attention，spatial attention上分别动了手脚，用了两种不同的pooling，感兴趣的可以仔细看论文。
代码实现如下（python，超清晰明了简洁）：

import torch
import torch.nn as nn
class CBAMBlock(nn.Module):def __init__(self, channel, reduction=16):super(CBAMBlock, self).__init__()self.avg_pool = nn.AdaptiveAvgPool2d(1)self.max_pool = nn.AdaptiveMaxPool2d(1)self.channel_excitation = nn.Sequential(nn.Linear(channel,int(channel//reduction),bias=False),nn.ReLU(inplace=True),nn.Linear(int(channel//reduction),channel,bias=False),)self.sigmoid = nn.Sigmoid()self.spatial_excitation = nn.Sequential(nn.Conv2d(2, 1, kernel_size=7,stride=1, padding=3, bias=False),)def forward(self, x):bahs, chs, _, _ = x.size()# Returns a new tensor with the same data as the self tensor but of a different size.chn_avg = self.avg_pool(x).view(bahs, chs)chn_avg = self.channel_excitation(chn_avg).view(bahs, chs, 1, 1)chn_max = self.max_pool(x).view(bahs, chs)chn_max = self.channel_excitation(chn_max).view(bahs, chs, 1, 1)chn_add=chn_avg+chn_maxchn_add=self.sigmoid(chn_add)chn_cbam = torch.mul(x, chn_add)avg_out = torch.mean(chn_cbam, dim=1, keepdim=True)max_out, _ = torch.max(chn_cbam, dim=1, keepdim=True)cat = torch.cat([avg_out, max_out], dim=1)spa_add = self.spatial_excitation(cat)spa_add=self.sigmoid(spa_add)spa_cbam = torch.mul(chn_cbam, spa_add)return spa_cbam
