shufflenetv1

知识的搬运工又来了
论文地址：shufflenetv1论文地址
ShuffleNet: An Extremely Efficient Convolutional Neural Network for Mobile Devices。
shufflenet是一篇关于降低深度学习计算量的论文，其可以运行在手机等移动设备端，发表在了CVPR2018上

摘要

此论文是一篇效率很高的cnn框架，可以运行在移动设备端，（例如，10-150 MFLOPs）而设计的，该结构利用分组逐点卷积（pointwise group convolution）和通道重排（channel shuffle）两种新的运算方法，ShuffleNet比AlexNet实现了约13倍的实际加速

介绍

我们会发现，例如在Xception和ResNeXt，由于运算代价高昂的11卷积，在极小的网络中效率变得非常低，于是就采用了分组逐点卷积来降低11卷积的计算复杂度。为了克服分组卷积带来的副作用，我们提出了一种新的通道重排操作来帮助信息在特征通道间流动。

创新点

1.设置了分组卷积的通道重排
2.设置了shuffleNet单元

通道重排

在这里插入图片描述

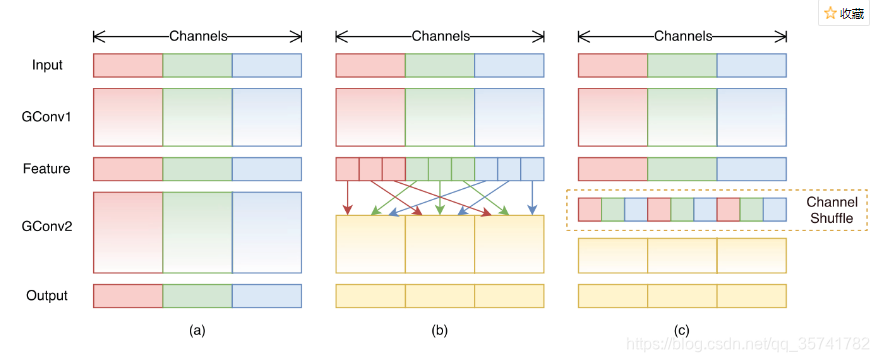

上图中，a是常规的分组卷积，但是其存在的问题是当分组比较多时，各个通道的信息就被隔离开来，此属性会阻塞通道组之间的信息流并削弱表征能力，所以我们做出了b方式的改进，将分组卷积卷积好的特征图进行通道重排，就是将分组后的特征图分成若干份，然后随机按照某一规则进行组合，组合好之后送入到下一次的卷积中，c是b的美观版本。

shuffleNet单元

在这里插入图片描述

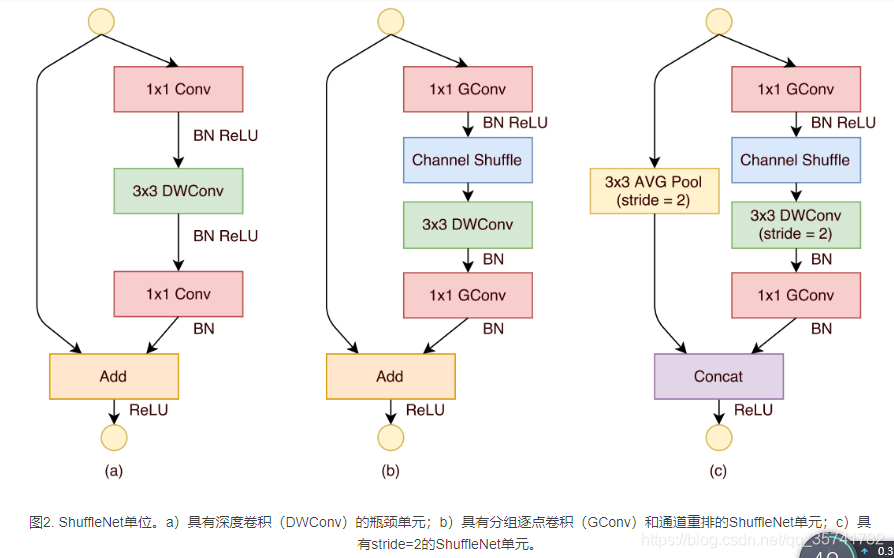

利用通道重排设计出一种专门为小型网络设计的单元块，图中a图是一种由dw卷积的残差瓶颈结构，首先进行了11卷积+BN+RELU，然后进行33dw卷积，BN+relu，最后连接了11卷积+BN，再最后接了残差连接进行了Add操作。
b：是我们设计出的string==1的shufflenet单元，首先进行了11的Gconv(分组卷积)，然后接了通道重排，然后是33dw卷积，但是后边我们并没有接relu，最后再add操作。
c：我们设计出了string==2的shufflenet单元，其在残差边上使用了33的平均池化，注意最后是concat操作，而不是add操作，这样可以不增加计算量的前提下扩大特征维度，（add是通道数值相加，concat是通道堆叠）

模型总体结构

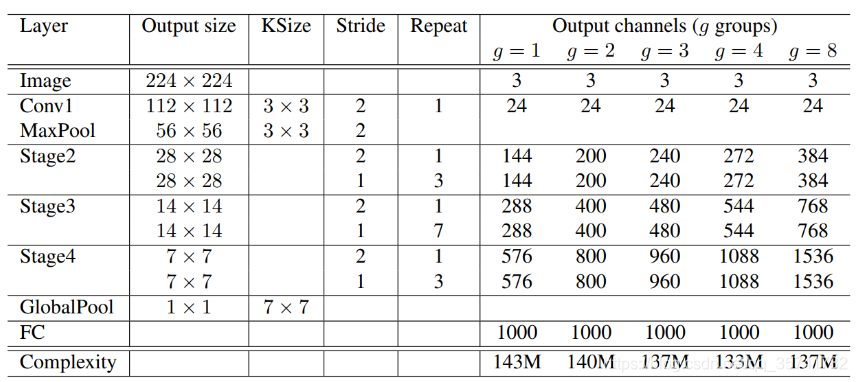

在这里插入图片描述

代码

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.autograd import Variable
from collections import OrderedDict
from torch.nn import initdef conv3x3(in_channels, out_channels, stride=1, padding=1, bias=True, groups=1):    """3x3 convolution with padding"""return nn.Conv2d(in_channels, out_channels, kernel_size=3, stride=stride,padding=padding,bias=bias,groups=groups)def conv1x1(in_channels, out_channels, groups=1):"""1x1 convolution with padding- Normal pointwise convolution When groups == 1- Grouped pointwise convolution when groups > 1"""return nn.Conv2d(in_channels, out_channels, kernel_size=1, groups=groups,stride=1)def channel_shuffle(x, groups):batchsize, num_channels, height, width = x.data.size()channels_per_group = num_channels // groups# groups是分的组数# reshapex = x.view(batchsize, groups, channels_per_group, height, width)# transpose# - contiguous() required if transpose() is used before view().#   See https://github.com/pytorch/pytorch/issues/764x = torch.transpose(x, 1, 2).contiguous()# flattenx = x.view(batchsize, -1, height, width)return xclass ShuffleUnit(nn.Module):def __init__(self, in_channels, out_channels, groups=3,grouped_conv=True, combine='add'):super(ShuffleUnit, self).__init__()self.in_channels = in_channelsself.out_channels = out_channelsself.grouped_conv = grouped_convself.combine = combineself.groups = groupsself.bottleneck_channels = self.out_channels // 4# define the type of ShuffleUnitif self.combine == 'add':# ShuffleUnit Figure 2bself.depthwise_stride = 1self._combine_func = self._addelif self.combine == 'concat':# ShuffleUnit Figure 2cself.depthwise_stride = 2self._combine_func = self._concat# ensure output of concat has the same channels as # original output channels.self.out_channels -= self.in_channelselse:raise ValueError("Cannot combine tensors with \"{}\"" \"Only \"add\" and \"concat\" are" \"supported".format(self.combine))# Use a 1x1 grouped or non-grouped convolution to reduce input channels# to bottleneck channels, as in a ResNet bottleneck module.# NOTE: Do not use group convolution for the first conv1x1 in Stage 2.self.first_1x1_groups = self.groups if grouped_conv else 1self.g_conv_1x1_compress = self._make_grouped_conv1x1(self.in_channels,self.bottleneck_channels,self.first_1x1_groups,batch_norm=True,relu=True)# 3x3 depthwise convolution followed by batch normalizationself.depthwise_conv3x3 = conv3x3(self.bottleneck_channels, self.bottleneck_channels,stride=self.depthwise_stride, groups=self.bottleneck_channels)self.bn_after_depthwise = nn.BatchNorm2d(self.bottleneck_channels)# Use 1x1 grouped convolution to expand from # bottleneck_channels to out_channelsself.g_conv_1x1_expand = self._make_grouped_conv1x1(self.bottleneck_channels,self.out_channels,self.groups,batch_norm=True,relu=False)@staticmethoddef _add(x, out):# residual connectionreturn x + out@staticmethoddef _concat(x, out):# concatenate along channel axisreturn torch.cat((x, out), 1)def _make_grouped_conv1x1(self, in_channels, out_channels, groups,batch_norm=True, relu=False):modules = OrderedDict()conv = conv1x1(in_channels, out_channels, groups=groups)modules['conv1x1'] = convif batch_norm:modules['batch_norm'] = nn.BatchNorm2d(out_channels)if relu:modules['relu'] = nn.ReLU()if len(modules) > 1:return nn.Sequential(modules)else:return convdef forward(self, x):# save for combining later with outputresidual = xif self.combine == 'concat':residual = F.avg_pool2d(residual, kernel_size=3, stride=2, padding=1)out = self.g_conv_1x1_compress(x)out = channel_shuffle(out, self.groups)out = self.depthwise_conv3x3(out)out = self.bn_after_depthwise(out)out = self.g_conv_1x1_expand(out)out = self._combine_func(residual, out)return F.relu(out)class ShuffleNet(nn.Module):"""ShuffleNet implementation."""def __init__(self, groups=3, in_channels=3, num_classes=1000):"""ShuffleNet constructor.Arguments:groups (int, optional): number of groups to be used in grouped 1x1 convolutions in each ShuffleUnit. Default is 3 for bestperformance according to original paper.in_channels (int, optional): number of channels in the input tensor.Default is 3 for RGB image inputs.num_classes (int, optional): number of classes to predict. Defaultis 1000 for ImageNet."""super(ShuffleNet, self).__init__()self.groups = groupsself.stage_repeats = [3, 7, 3]self.in_channels =  in_channelsself.num_classes = num_classes# index 0 is invalid and should never be called.# only used for indexing convenience.if groups == 1:self.stage_out_channels = [-1, 24, 144, 288, 567]elif groups == 2:self.stage_out_channels = [-1, 24, 200, 400, 800]elif groups == 3:self.stage_out_channels = [-1, 24, 240, 480, 960]elif groups == 4:self.stage_out_channels = [-1, 24, 272, 544, 1088]elif groups == 8:self.stage_out_channels = [-1, 24, 384, 768, 1536]else:raise ValueError("""{} groups is not supported for1x1 Grouped Convolutions""".format(num_groups))# Stage 1 always has 24 output channelsself.conv1 = conv3x3(self.in_channels,self.stage_out_channels[1], # stage 1stride=2)self.maxpool = nn.MaxPool2d(kernel_size=3, stride=2, padding=1)# Stage 2self.stage2 = self._make_stage(2)# Stage 3self.stage3 = self._make_stage(3)# Stage 4self.stage4 = self._make_stage(4)# Global pooling:# Undefined as PyTorch's functional API can be used for on-the-fly# shape inference if input size is not ImageNet's 224x224# Fully-connected classification layernum_inputs = self.stage_out_channels[-1]self.fc = nn.Linear(num_inputs, self.num_classes)self.init_params()def init_params(self):for m in self.modules():if isinstance(m, nn.Conv2d):init.kaiming_normal(m.weight, mode='fan_out')if m.bias is not None:init.constant(m.bias, 0)elif isinstance(m, nn.BatchNorm2d):init.constant(m.weight, 1)init.constant(m.bias, 0)elif isinstance(m, nn.Linear):init.normal(m.weight, std=0.001)if m.bias is not None:init.constant(m.bias, 0)def _make_stage(self, stage):modules = OrderedDict()stage_name = "ShuffleUnit_Stage{}".format(stage)# First ShuffleUnit in the stage# 1. non-grouped 1x1 convolution (i.e. pointwise convolution)#   is used in Stage 2. Group convolutions used everywhere else.grouped_conv = stage > 2# 2. concatenation unit is always used.first_module = ShuffleUnit(self.stage_out_channels[stage-1],self.stage_out_channels[stage],groups=self.groups,grouped_conv=grouped_conv,combine='concat')modules[stage_name+"_0"] = first_module# add more ShuffleUnits depending on pre-defined number of repeatsfor i in range(self.stage_repeats[stage-2]):name = stage_name + "_{}".format(i+1)module = ShuffleUnit(self.stage_out_channels[stage],self.stage_out_channels[stage],groups=self.groups,grouped_conv=True,combine='add')modules[name] = modulereturn nn.Sequential(modules)def forward(self, x):x = self.conv1(x)x = self.maxpool(x)x = self.stage2(x)x = self.stage3(x)x = self.stage4(x)# global average pooling layerx = F.avg_pool2d(x, x.data.size()[-2:])# flatten for input to fully-connected layerx = x.view(x.size(0), -1)x = self.fc(x)return F.log_softmax(x, dim=1)if __name__ == "__main__":model = ShuffleNet()

代码来源

最后总结

为了评估分组逐点卷积的重要性，我们比较了具有相同复杂度的ShuffleNet模型，其组数从1到8不等。如果组数等于1，则不涉及分组逐点卷积，则ShuffleNet单元成为一个“Xception-like”结构。为了更好地理解，我们还将网络的宽度扩展到3种不同的复杂性，并分别比较它们的分类性能。结果如表2所示。

在这里插入图片描述

表2. 分类误差VS组数g（较小的数字代表更好的性能）
从结果中我们可以看出，有分组卷积（g>1）的模型始终比没有分组逐点卷积（g=1）的模型表现得更好，较小的模型往往从分组中获益更多。
表2还显示，对于某些模型（(如ShuffleNet 0.5×），当组数变得相对较大时（例如g=8），分类分数饱和甚至下降。随着组数的增加（因此特征图的范围更广），每个卷积滤波器的输入通道变得更少，这可能会损害表示能力。有趣的是，我们也注意到，对于如ShuffleNet 0.25×这样较小的模型，**较大的组数往往会得到更好的一致性结果，这表明更宽的特征图为较小的模型带来了更多的好处。**我们在每次卷积之后都添加了一个批归一化层，使端到端的训练更加容易。**由于ShuffleNet的高效设计，我们可以在给定的计算预算下使用更多的通道，从而通常可以获得更好的性能。**浅模型仍然是明显好于相应的MobileNet，这意味着ShuffleNet的有效性主要是高效结构的结果，而不是深度。**根据经验，g=3通常在准确性和实际推理时间之间有一个适当的平衡。shufflenet比mobilenet效果要好
