关于如何用docker部署 GVM-11，先给出一个 shell 脚本，然后给出踩坑过程：
#/bin/bash
################ README INFO #####################
### Purpose: Deploy GVM-11 for docker ###
### Made By: PomanTeng ###
### E-mail: 1807479153@qq.com ###
### WeChat: 1807479153 ###
### Version Identification Number:V0.00 ###
### Procedure Identification Number:20200927 ###
##################################################
yum list installed | grep docker
yum -y update
yum install -y yum-utils device-mapper-persistent-data lvm2
# yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum list docker-ce --showduplicates | sort -r
yum install -y -q docker-ce
systemctl start docker
systemctl enable docker
docker --version
docker info
docker version
ls -F /etc/docker/
tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors": ["https://w54a9p8i.mirror.aliyuncs.com"]
}
EOF
systemctl daemon-reload
systemctl restart docker
docker version
curl -L "https://github.com/docker/compose/releases/download/1.27.4/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose
ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose
docker-compose --version
docker-compose -f docker-compose.yml -f nvt-sync.yml -f cert-sync.yml -f scap-sync.yml up
#浏览器访问 http://localhost:8080 即可抵达 GVM 的 Web UI
#官方项目地址 https://github.com/admirito/gvm-containers
部署Docker：
[googlebigtable@localhost Downloads]$ sudo su
[root@localhost Downloads]# yum list installed | grep docker
[root@localhost Downloads]# yum -y update
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirrors.aliyun.com
* extras: mirrors.aliyun.com
* updates: mirrors.aliyun.com
No packages marked for update
[root@localhost Downloads]#
[root@localhost Downloads]# yum install -y yum-utils device-mapper-persistent-data lvm2
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirrors.aliyun.com
* extras: mirrors.aliyun.com
* updates: mirrors.aliyun.com
Package yum-utils-1.1.31-54.el7_8.noarch already installed and latest version
Package device-mapper-persistent-data-0.8.5-2.el7.x86_64 already installed and latest version
Package 7:lvm2-2.02.186-7.el7_8.2.x86_64 already installed and latest version
Nothing to do
[root@localhost Downloads]#
[root@localhost Downloads]# yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
Loaded plugins: fastestmirror, langpacks
adding repo from: https://download.docker.com/linux/centos/docker-ce.repo
grabbing file https://download.docker.com/linux/centos/docker-ce.repo to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo
[root@localhost Downloads]# yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Loaded plugins: fastestmirror, langpacks
adding repo from: http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
grabbing file http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo
[root@localhost Downloads]# yum list docker-ce --showduplicates | sort -r
* updates: mirrors.aliyun.com
Loading mirror speeds from cached hostfile
Loaded plugins: fastestmirror, langpacks
* extras: mirrors.aliyun.com
docker-ce.x86_64 3:19.03.9-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.8-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.7-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.6-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.5-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.4-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.3-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.2-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.1-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.13-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.12-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.11-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.10-3.el7 docker-ce-stable
docker-ce.x86_64 3:19.03.0-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.9-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.8-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.7-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.6-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.5-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.4-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.3-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.2-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.1-3.el7 docker-ce-stable
docker-ce.x86_64 3:18.09.0-3.el7 docker-ce-stable
docker-ce.x86_64 18.06.3.ce-3.el7 docker-ce-stable
docker-ce.x86_64 18.06.2.ce-3.el7 docker-ce-stable
docker-ce.x86_64 18.06.1.ce-3.el7 docker-ce-stable
docker-ce.x86_64 18.06.0.ce-3.el7 docker-ce-stable
docker-ce.x86_64 18.03.1.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 18.03.0.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.12.1.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.12.0.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.09.1.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.09.0.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.06.2.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.06.1.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.06.0.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.03.3.ce-1.el7 docker-ce-stable
docker-ce.x86_64 17.03.2.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.03.1.ce-1.el7.centos docker-ce-stable
docker-ce.x86_64 17.03.0.ce-1.el7.centos docker-ce-stable
* base: mirrors.aliyun.com
Available Packages
[root@localhost Downloads]#
[root@localhost Downloads]# yum install -y -q docker-ce
warning: /var/cache/yum/x86_64/7/docker-ce-stable/packages/docker-ce-19.03.13-3.el7.x86_64.rpm: Header V4 RSA/SHA512 Signature, key ID 621e9f35: NOKEY
Public key for docker-ce-19.03.13-3.el7.x86_64.rpm is not installed
Importing GPG key 0x621E9F35:
Userid : "Docker Release (CE rpm) <docker@docker.com>"
Fingerprint: 060a 61c5 1b55 8a7f 742b 77aa c52f eb6b 621e 9f35
From : https://mirrors.aliyun.com/docker-ce/linux/centos/gpg
setsebool: SELinux is disabled.
[root@localhost Downloads]#
[root@localhost Downloads]# systemctl start docker
[root@localhost Downloads]# systemctl enable docker
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
[root@localhost Downloads]# docker --version
Docker version 19.03.13, build 4484c46d9d
[root@localhost Downloads]# docker info
Client:
Debug Mode: false
Server:
Containers: 0
Running: 0
Paused: 0
Stopped: 0
Images: 0
Server Version: 19.03.13
Storage Driver: overlay2
Backing Filesystem: xfs
Supports d_type: true
Native Overlay Diff: true
Logging Driver: json-file
Cgroup Driver: cgroupfs
Plugins:
Volume: local
Network: bridge host ipvlan macvlan null overlay
Log: awslogs fluentd gcplogs gelf journald json-file local logentries splunk syslog
Swarm: inactive
Runtimes: runc
Default Runtime: runc
Init Binary: docker-init
containerd version: 8fba4e9a7d01810a393d5d25a3621dc101981175
runc version: dc9208a3303feef5b3839f4323d9beb36df0a9dd
init version: fec3683
Security Options:
seccomp
Profile: default
Kernel Version: 3.10.0-1127.19.1.el7.x86_64
Operating System: CentOS Linux 7 (Core)
OSType: linux
Architecture: x86_64
CPUs: 4
Total Memory: 3.682GiB
Name: localhost.localdomain
ID: FMRF:UBUS:VXE5:X2HI:S7GY:RF4G:RVXV:7G2L:RRXZ:BPM7:KZEJ:WDDC
Docker Root Dir: /var/lib/docker
Debug Mode: false
Registry: https://index.docker.io/v1/
Labels:
Experimental: false
Insecure Registries:
127.0.0.0/8
Live Restore Enabled: false
[root@localhost Downloads]#
[root@localhost Downloads]# docker version
Client: Docker Engine - Community
Version: 19.03.13
API version: 1.40
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:03:45 2020
OS/Arch: linux/amd64
Experimental: false
Server: Docker Engine - Community
Engine:
Version: 19.03.13
API version: 1.40 (minimum version 1.12)
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:02:21 2020
OS/Arch: linux/amd64
Experimental: false
containerd:
Version: 1.3.7
GitCommit: 8fba4e9a7d01810a393d5d25a3621dc101981175
runc:
Version: 1.0.0-rc10
GitCommit: dc9208a3303feef5b3839f4323d9beb36df0a9dd
docker-init:
Version: 0.18.0
GitCommit: fec3683
[root@localhost Downloads]#
[root@localhost Downloads]# ls -F /etc/docker/
key.json
[root@localhost Downloads]# tee /etc/docker/daemon.json <<-'EOF'
> {
> "registry-mirrors": ["https://w54a9p8i.mirror.aliyuncs.com"]
> }
> EOF
{
"registry-mirrors": ["https://w54a9p8i.mirror.aliyuncs.com"]
}
[root@localhost Downloads]# systemctl daemon-reload
[root@localhost Downloads]# systemctl restart docker
[root@localhost Downloads]# docker version
Client: Docker Engine - Community
Version: 19.03.13
API version: 1.40
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:03:45 2020
OS/Arch: linux/amd64
Experimental: false
Server: Docker Engine - Community
Engine:
Version: 19.03.13
API version: 1.40 (minimum version 1.12)
Go version: go1.13.15
Git commit: 4484c46d9d
Built: Wed Sep 16 17:02:21 2020
OS/Arch: linux/amd64
Experimental: false
containerd:
Version: 1.3.7
GitCommit: 8fba4e9a7d01810a393d5d25a3621dc101981175
runc:
Version: 1.0.0-rc10
GitCommit: dc9208a3303feef5b3839f4323d9beb36df0a9dd
docker-init:
Version: 0.18.0
GitCommit: fec3683
[root@localhost Downloads]#
官方推荐的docker安装方式：
https://github.com/admirito/gvm-containers
[root@localhost Downloads]# git clone https://github.com/admirito/gvm-containers.git
Cloning into 'gvm-containers'...
remote: Enumerating objects: 42, done.
remote: Counting objects: 100% (42/42), done.
remote: Compressing objects: 100% (33/33), done.
remote: Total 183 (delta 17), reused 25 (delta 9), pack-reused 141
Receiving objects: 100% (183/183), 41.06 KiB | 0 bytes/s, done.
Resolving deltas: 100% (87/87), done.
[root@localhost Downloads]# ls -F
epel-release-latest-7.noarch.rpm gvm-containers/ VMwareTools-10.3.10-13959562.tar.gz
google-chrome-stable_current_x86_64.rpm initCentOS7aliYUM.sh* vmware-tools-distrib/
[root@localhost Downloads]# cd gvm-containers/
[root@localhost gvm-containers]# ls -F
cert-sync.yml chart/ docker-compose.yml gsad/ gvmd/ gvm-postgres/ nvt-sync.yml openvas/ README.org scap-sync.yml
[root@localhost gvm-containers]#
[root@localhost gvm-containers]# curl -L "https://github.com/docker/compose/releases/download/1.27.4/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 651 100 651 0 0 1146 0 --:--:-- --:--:-- --:--:-- 1146
100 11.6M 100 11.6M 0 0 51494 0 0:03:57 0:03:57 --:--:-- 57622
[root@localhost gvm-containers]# chmod +x /usr/local/bin/docker-compose
[root@localhost gvm-containers]# ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose
[root@localhost gvm-containers]# docker-compose --version
docker-compose version 1.27.4, build 40524192
[root@localhost gvm-containers]# docker-compose -f docker-compose.yml -f nvt-sync.yml -f cert-sync.yml -f scap-sync.yml up

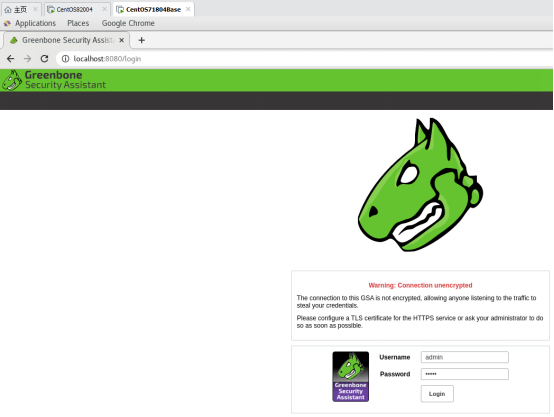

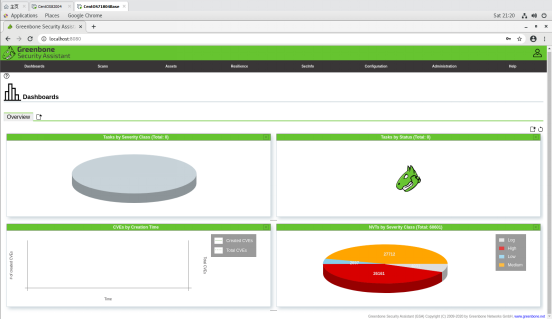

待与德国服务器同步对比库成功后，在浏览器执行 http://localhost:8080/
我当前是以交互模式运行docker的，如果是在生产环境中，建议用守护进程的方式运行docker 镜像及对应的docker容器。
