两个栈实现一个队列
- 1.主要思想
- 2.结构设计
- 3.基本操作
- (1)初始化
- (2)入栈
- (3)获取栈顶第一个元素的值,但不删除
- (4)获取栈顶第一个元素的值并删除
- (5)判空
- (6)判满
- (7)获取队列有效元素个数
- (8)清空
- (9)销毁
- 4.完整代码
1.主要思想
栈的特点:先进后出。队列的特点:先进先出。
我们在用两个队列实现栈的时候是用顺序队列。
2.结构设计
既然是用两个队列实现栈的操作,所以定义的结构体中的成员就是两个队列。
typedef struct
{SqQueue q1;SqQueue q2;
}TQStack, *PTQStack;
3.基本操作
- 我们要实现的是一个栈,所以所有的操作都是基于栈的基础上,栈有什么操作,我们实现的就有什么操作。
- 我们用两个队列实现栈的操作中,队列的所有操作是给定的,在我们实现栈的过程中,只需要调用其函数即可(见顺序队列)。
(1)初始化
void my_InitStack(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return;Init_Queue(&ptq->q1);Init_Queue(&ptq->q2);
}
(2)入栈
哪个队列不空就入哪个队列。
bool my_Push(PTQStack ptq, int val)
{assert(ptq != NULL);if (ptq == NULL)return false;if (!IsEmpty(&ptq->q1)){return Push(&ptq->q1,val);}else{return Push(&ptq->q2, val);}
}
(3)获取栈顶第一个元素的值,但不删除

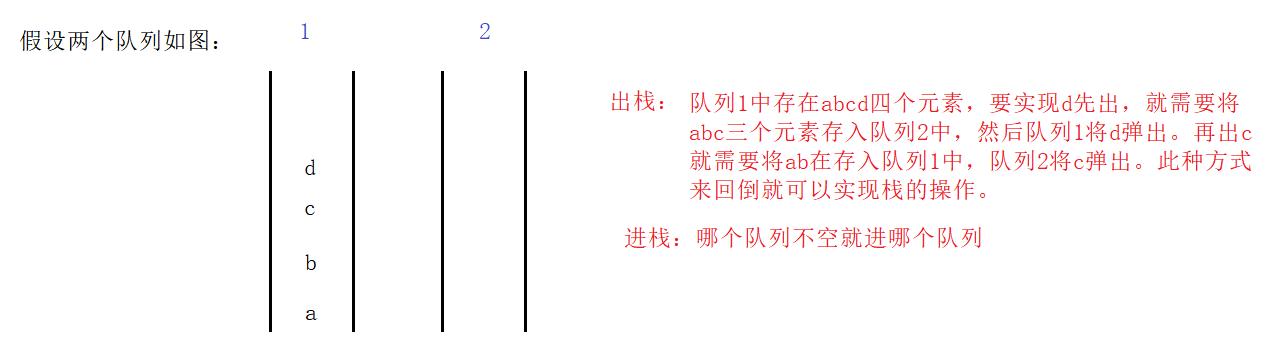

栈顶的元素就是队列尾的元素,要将队列尾部的元素得到,就需要将其他元素一次存放进另一个队列中保存。
bool my_GetTop(PTQStack ptq, int* rtval)
{assert(ptq != NULL && rtval != NULL);if (ptq == NULL || rtval == NULL)return false;if (!IsEmpty(&ptq->q1))//如果q1不空,就将q1中的元素只留一个,其他的都存入q2中。最后一个数就是栈顶元素;{while (Get_length(&ptq->q1) > 1){int tmp = 0;Pop(&ptq->q1, &tmp);Push(&ptq->q2, tmp);}return Get_top(&ptq->q1, rtval);}else{while (Get_length(&ptq->q2) > 1){int tmp = 0;Pop(&ptq->q2, &tmp);Push(&ptq->q1, tmp);}return Get_top(&ptq->q2, rtval);}
}
(4)获取栈顶第一个元素的值并删除
bool my_Pop(PTQStack ptq, int* rtval)
{assert(ptq != NULL && rtval != NULL);if (ptq == NULL || rtval == NULL)return false;if (!IsEmpty(&ptq->q1)){while (Get_length(&ptq->q1) > 1){int tmp = 0;Pop(&ptq->q1, &tmp);Push(&ptq->q2, tmp);}return Pop(&ptq->q1, rtval);}else{while (Get_length(&ptq->q2) > 1){int tmp = 0;Pop(&ptq->q2, &tmp);Push(&ptq->q1, tmp);}return Pop(&ptq->q2, rtval);}
}
(5)判空
bool my_IsEmpty(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return false;return IsEmpty(&ptq->q2)&& IsEmpty(&ptq->q1);
}
(6)判满
我们在入队是时,是向栈1中入的,如果栈1满了,再向栈2中入就堵住下一个要出的元素了,所以在判满时,只需要判断栈1满不满即可。
bool my_IsFull(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return false;if (!IsEmpty(&ptq->q1)){return(IsFull(&ptq->q1));}else{return(IsFull(&ptq->q2));}
}
(7)获取队列有效元素个数
int my_Get_length(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return -1;if (!IsEmpty(&ptq->q1)) { return Get_length(&ptq->q1);}return Get_length(&ptq->q2);
}
(8)清空
void my_Clear(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return;Clear(&ptq->q2);Clear(&ptq->q1);
}
(9)销毁
void my_Destroy(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return;Destroy(&ptq->q2);Destroy(&ptq->q1);
}
4.完整代码
#include<stdio.h>
#include<stdlib.h>
#include<assert.h>typedef struct
{SqQueue q1;SqQueue q2;
}TQStack, *PTQStack;void my_InitStack(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return;Init_Queue(&ptq->q1);Init_Queue(&ptq->q2);
}//入栈
bool my_Push(PTQStack ptq, int val)
{assert(ptq != NULL);if (ptq == NULL)return false;if (!IsEmpty(&ptq->q1)){return Push(&ptq->q1,val);}else{return Push(&ptq->q2, val);}
}//判满
bool my_IsFull(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return false;if (!IsEmpty(&ptq->q1)){return(IsFull(&ptq->q1));}else{return(IsFull(&ptq->q2));}
}//判空
bool my_IsEmpty(PTQStack ptq)
{return IsEmpty(&ptq->q2)&& IsEmpty(&ptq->q1);
}//获取栈首的值
bool my_GetTop(PTQStack ptq, int* rtval)
{assert(ptq != NULL && rtval != NULL);if (ptq == NULL || rtval == NULL)return false;if (!IsEmpty(&ptq->q1)){while (Get_length(&ptq->q1) > 1){int tmp = 0;Pop(&ptq->q1, &tmp);Push(&ptq->q2, tmp);}return Get_top(&ptq->q1, rtval);}else{while (Get_length(&ptq->q2) > 1){int tmp = 0;Pop(&ptq->q2, &tmp);Push(&ptq->q1, tmp);}return Get_top(&ptq->q2, rtval);}
}//出栈
bool my_Pop(PTQStack ptq, int* rtval)
{assert(ptq != NULL && rtval != NULL);if (ptq == NULL || rtval == NULL)return false;if (!IsEmpty(&ptq->q1)){while (Get_length(&ptq->q1) > 1){int tmp = 0;Pop(&ptq->q1, &tmp);Push(&ptq->q2, tmp);}return Pop(&ptq->q1, rtval);}else{while (Get_length(&ptq->q2) > 1){int tmp = 0;Pop(&ptq->q2, &tmp);Push(&ptq->q1, tmp);}return Pop(&ptq->q2, rtval);}
}//获取有效长度
int my_Get_length(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return -1;if (!IsEmpty(&ptq->q1)) { return Get_length(&ptq->q1);}return Get_length(&ptq->q2);
}//清空
void my_Clear(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return;Clear(&ptq->q2);Clear(&ptq->q1);
}//销毁
void my_Destroy(PTQStack ptq)
{assert(ptq != NULL);if (ptq == NULL)return;Destroy(&ptq->q2);Destroy(&ptq->q1);
}
运行结果:
