万向锁的来源

简单而言，万向锁就是由于物体在进行旋转时（前提是通过欧拉角进行旋转），当旋转到某个特定角度会导致两个旋转轴处于同一个平面，导致旋转不能到达自己的预期效果，产生这种现象的原因是因为轴与轴之间存在父子关系。

视频展示链接：https://www.bilibili.com/video/av76536794/

Unity中最简单的万向锁

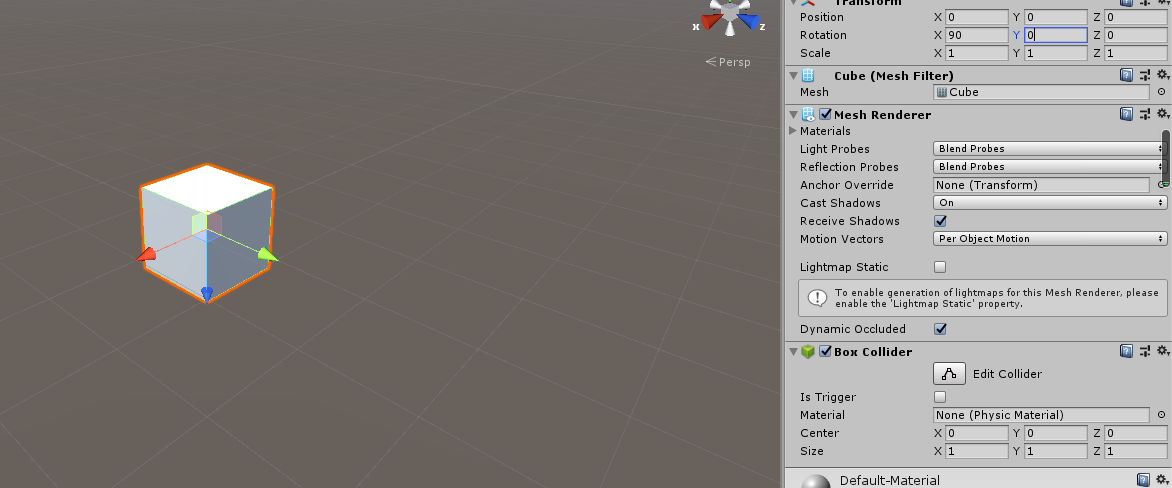

将x轴设为90度，旋转y轴和旋转z轴有相同效果

UE4最简单万向锁

将y轴设为90度，旋转x轴和旋转z轴有相同效果

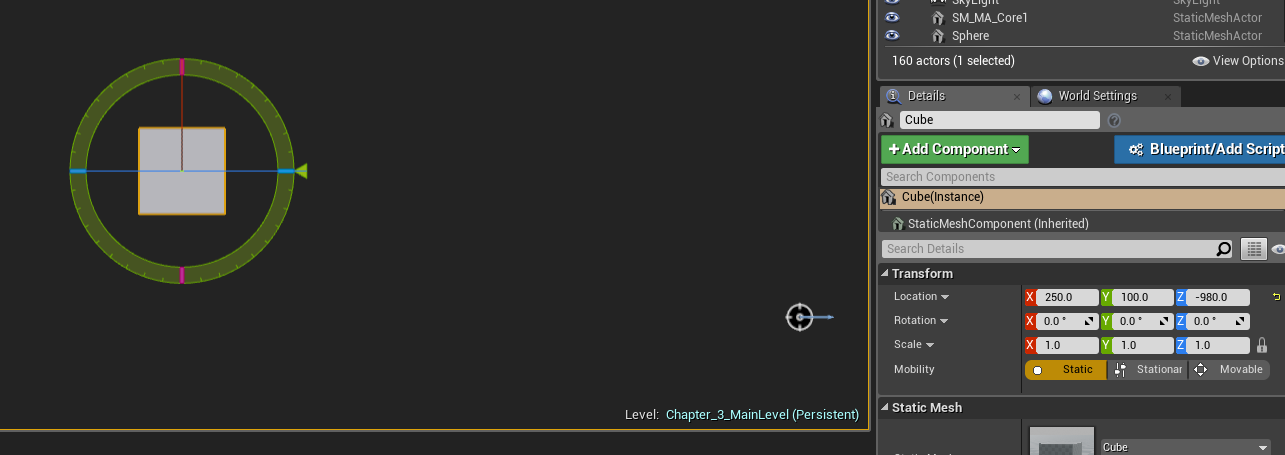

旋转角度为0时：

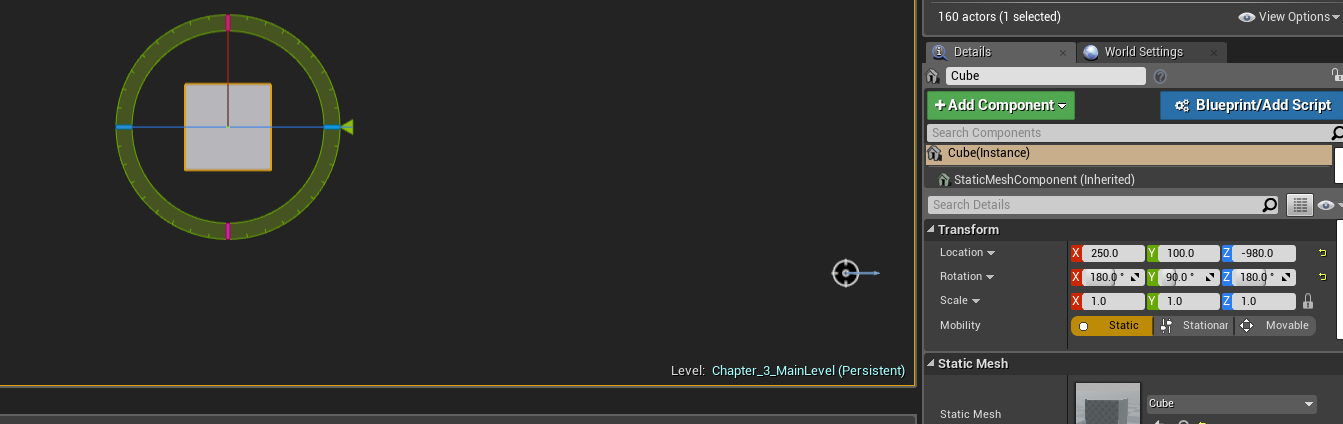

绕y轴旋转90度时：

x轴和z轴的值都奇怪的变成了180度，或者当y轴设为90度时，旋转x轴和z轴效果相同，

解决方案

1 使用x轴旋转代替y轴旋转，首先将z值设置为90度，然后旋转x轴即可产生绕y轴旋转的效果
不过此方案只适用于比较规则的物体，如长方体，正方体
2 使用四元数旋转来代替欧拉角

四元数与欧拉角之间的转换

四元数的定义

四元数与欧拉角的转换

下面展示使用UE4，通过四元数处理物体旋转的代码：

// An highlighted block
// Fill out your copyright notice in the Description page of Project Settings.#pragma once#include "CoreMinimal.h"
#include "Kismet/BlueprintFunctionLibrary.h"
#include "RotationByQuaternion.generated.h"/*** */
UCLASS()
class TWODTEST_API URotationByQuaternion : public UBlueprintFunctionLibrary
{GENERATED_BODY()UFUNCTION(BlueprintCallable, meta = (DisplayName = "Euler To Quaternion", keywords = "rotation,quaterion"), Category = "Quaternion Rotation")static FQuat Euler_To_Quaternion(FRotator Current_Rotation);UFUNCTION(BlueprintCallable, meta = (DisplayName = "Set World Rotation", keywords = "rotation,quaterion"), Category = "Quaternion Rotation")static void SetWorldRotationQuat(USceneComponent *SceneComponent, const FQuat &Target_Rotation);UFUNCTION(BlueprintCallable, meta = (DisplayName = "Set Relative Rotation", keywords = "rotation,quaterion"), Category = "Quaternion Rotation")static void SetRelativeRotationQuat(USceneComponent *SceneComponent, const FQuat &Target_Rotation);UFUNCTION(BlueprintCallable, meta = (DisplayName = "AddLocalRotationQuat", keywords = "rotation,quaterion"), Category = "Quaternion Rotation")static void AddLocalRotationQuat(USceneComponent *SceneComponent,const FQuat &DeltaRotation);};

// An highlighted block
// Fill out your copyright notice in the Description page of Project Settings.#include "RotationByQuaternion.h"
#include "Math/Quat.h"FQuat URotationByQuaternion::Euler_To_Quaternion(FRotator Current_Rotation)
{FQuat q;float yaw = Current_Rotation.Yaw*PI / 180;float roll = Current_Rotation.Roll*PI / 180;float pitch = Current_Rotation.Pitch*PI / 180;double cy = cos(yaw*0.5);double sy = sin(yaw*0.5);double cr = cos(roll*0.5);double sr = sin(roll*0.5);double cp = cos(pitch*0.5);double sp = sin(pitch*0.5);q.W = cy * cr*cp + sy * sr*sp;q.X = cy * sr*cp - sy * cr*sp;q.Y = cy * cr*sp + sy * sr*cp;q.Z = sy * cr*cp - cy * sr*sp;return  q;
}void URotationByQuaternion::SetWorldRotationQuat(USceneComponent * SceneComponent, const FQuat & Target_Rotation)
{if (SceneComponent){SceneComponent->SetWorldRotation(Target_Rotation);}
}void URotationByQuaternion::SetRelativeRotationQuat(USceneComponent * SceneComponent, const FQuat & Target_Rotation)
{if (SceneComponent){SceneComponent->SetRelativeRotation(Target_Rotation);}
}void URotationByQuaternion::AddLocalRotationQuat(USceneComponent * SceneComponent, const FQuat & DeltaRotation)
{if (SceneComponent){SceneComponent->AddLocalRotation(DeltaRotation);}
}

参考链接

https://blog.csdn.net/AndrewFan/article/details/60981437
https://blog.csdn.net/u012700322/article/details/52252305
