这篇文章主要记录mptcp在mininet上的仿真实验。mininet中的网络实验，数据包走的是内核协议栈。这样得出的结果，好处就是实际网络协议栈的性能。缺点就是，要验证新的想法，需要修改内核协议栈。而且关于内核中的数据，比如tcp的拥塞窗口数据，可以参考[4,5]，能否用在mptcp上就不知道了。
步骤：
1安装mptcp协议栈，参考[1]
2安装mininet。
3运行柯志亨老师的拓补脚本[2],mptcp-simple1-test-yes.py，启动iperf软件，可以测量节点间的带宽。
4在运行iperf的时候，采用xterm启动了两个控制台，xterm h1 h2。但是要抓包，需要另启动一个h1的控制台。
5在xterm h1 启动后，在控制台输入抓包包命令：tcpdump -XX -n -i h1-eth0 -w /yourpath/mptcp.pcap
下面是我在wireshark中打开的mptcp.pcap的截图，可以看到，网络层使用的协议栈是mptcp，这对于上层应用是透明的。
关于mptcp的研究，目前处于停滞阶段，现在起步，别说肉了，连汤都喝不到了。能发文章的点，早就被聪明人发完了。盛宴已过，入行需谨慎。打算选题mptcp的同学可以到知网上去看看在这个方向下毕业的博士，发了几篇文章，什么层次的文章，花了几年毕业的。这是我入门时候写记录，现在回顾（2020.11.18），我也没发出什么关于mptcp的论文，这个论断依然成立。遇见什么问题，就不要私信或者QQ问我了！
my self builf topology
The mininet topology python scripts that I use during the experiment have uploaded to[3]. Here I will show two disjoint paths.
multihomed-4h.py
#!/usr/bin/python
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.cli import CLI
from mininet.link import TCLink
import time
##https://serverfault.com/questions/417885/configure-gateway-for-two-nics-through-static-routeing
# ____h2____
# / \
# h1 h3
# \___h4_____/
#
max_queue_size = 100
net = Mininet( cleanup=True )
h1 = net.addHost('h1',ip='10.0.1.1')
h2 = net.addHost('h2',ip='10.0.1.2')
h3 = net.addHost('h3',ip='10.0.2.2')
h4 = net.addHost('h4',ip='10.0.3.2')
c0 = net.addController( 'c0' )
net.addLink(h1,h2,intfName1='h1-eth0',intfName2='h2-eth0', cls=TCLink , bw=2, delay='10ms', max_queue_size=max_queue_size)
net.addLink(h2,h3,intfName1='h2-eth1',intfName2='h3-eth0', cls=TCLink , bw=2, delay='10ms', max_queue_size=max_queue_size)
net.addLink(h1,h4,intfName1='h1-eth1',intfName2='h4-eth0', cls=TCLink , bw=2, delay='30ms', max_queue_size=max_queue_size)
net.addLink(h4,h3,intfName1='h4-eth1',intfName2='h3-eth1', cls=TCLink , bw=2, delay='30ms', max_queue_size=max_queue_size)
net.build()
h1.setIP('10.0.1.1', intf='h1-eth0')
h1.cmd("ifconfig h1-eth0 10.0.1.1 netmask 255.255.255.0")h1.setIP('10.0.3.1', intf='h1-eth1')
h1.cmd("ifconfig h1-eth1 10.0.3.1 netmask 255.255.255.0")h1.cmd("ip route flush all proto static scope global")
h1.cmd("ip route add 10.0.1.1/24 dev h1-eth0 table 5000")
h1.cmd("ip route add default via 10.0.1.2 dev h1-eth0 table 5000")h1.cmd("ip route add 10.0.3.1/24 dev h1-eth1 table 5001")
h1.cmd("ip route add default via 10.0.3.2 dev h1-eth1 table 5001")
h1.cmd("ip rule add from 10.0.1.1 table 5000")
h1.cmd("ip rule add from 10.0.3.1 table 5001")
h1.cmd("route add default gw 10.0.1.2 dev h1-eth0")h2.setIP('10.0.1.2', intf='h2-eth0')
h2.setIP('10.0.2.1', intf='h2-eth1')
h2.cmd("ifconfig h2-eth0 10.0.1.2/24")
h2.cmd("ifconfig h2-eth1 10.0.2.1/24")
h2.cmd("ip route add 10.0.2.0/24 via 10.0.2.2")
h2.cmd("ip route add 10.0.1.0/24 via 10.0.1.1")
h2.cmd("echo 1 > /proc/sys/net/ipv4/ip_forward")h4.setIP('10.0.3.2', intf='h4-eth0')
h4.setIP('10.0.4.1', intf='h4-eth1')
h4.cmd("ifconfig h4-eth0 10.0.3.2/24")
h4.cmd("ifconfig h4-eth1 10.0.4.1/24")
h4.cmd("ip route add 10.0.4.0 dev h4-eth1") #via 10.0.4.2
h4.cmd("ip route add 10.0.3.0 via 10.0.3.1")h4.cmd("echo 1 > /proc/sys/net/ipv4/ip_forward")h3.setIP('10.0.2.2', intf='h3-eth0')
h3.cmd("ifconfig h3-eth0 10.0.2.2 netmask 255.255.255.0")
h3.setIP('10.0.4.2', intf='h3-eth1')
h3.cmd("ifconfig h3-eth1 10.0.4.2 netmask 255.255.255.0")h3.cmd("ip route flush all proto static scope global")
h3.cmd("ip route add 10.0.2.2/24 dev h3-eth0 table 5000")
h3.cmd("ip route add default via 10.0.2.1 dev h3-eth0 table 5000")h3.cmd("ip route add 10.0.4.2/24 dev h3-eth1 table 5001")
h3.cmd("ip route add default via 10.0.4.1 dev h3-eth1 table 5001")
h3.cmd("ip rule add from 10.0.2.2 table 5000")
h3.cmd("ip rule add from 10.0.4.2 table 5001")net.start()
time.sleep(1)
CLI(net)
net.stop()

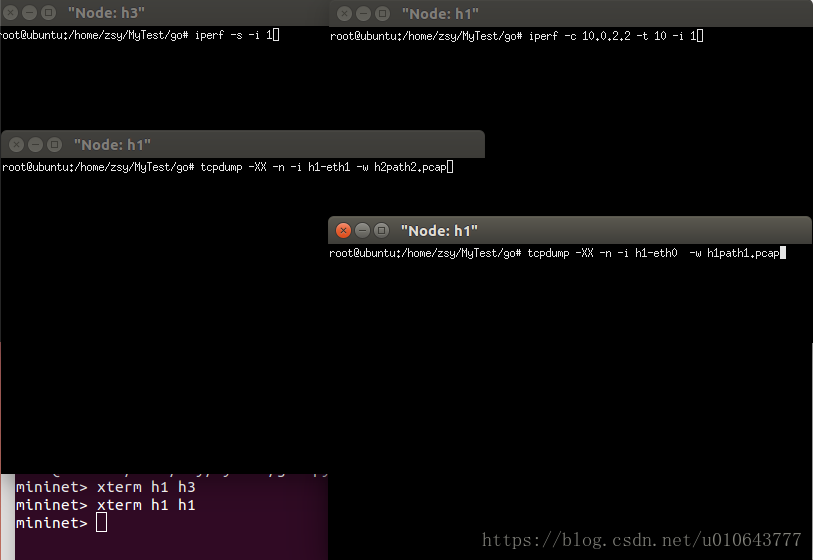

The tips to run this script:
1 python multihomed-4h.py
2 xterm h1 h3
3 xrerm h1 h2
And the packets captured results:
[1]mptcp install
[2]mptcp-topology
[3]mininet-topology
[4]tcpprobe, observe the TCP flow with kprobes
[5]PROPORTIONAL RATE REDUCTION FOR TCP
