IPQ4019 IPQ4029 ,802.11AC 2x2 2.4G&5G
2x2 2.4Ghz&5G
IPQ5018, 802.11ax,wifi 6e,QCN9074,
2X2 2.4G support 2x WiFi 6E Card support BT5.1
MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IQCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGW
With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.
In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:sales3@wallystech.com
DR5018
https://www.wallystech.com/Routerboard/DR5018-wifi6-Qualcomm-IPQ5018-2T2R-2.5G-ETH-port-802.11AX-MU-MIMO-OFDMA-supporting-QCN9074-wifi-card.html
Dual-core ARM 64bit A53@1.0GHz Processor
512MB DDRL3L System Memory
4MB NOR Flash, 128MB NAND Flash
2x2 On-board 2.4GHz radio,up to 573Mbps physical Data Rate
Support BT5.1
M.2 Card Slot for 5G (QUECTEL RM 500Q-GL) ;
M.2 Card Slot for QCN9074 WIFI 6E Card
| Absolute Maximum Rating |
| Parameter | Rating | Unit |
| Supply Voltage | 12 | V |
| Operating Temperature Range | -40 to +70 | ºC |
| Storage Temperature Range | -45 to +105 | ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) | % |
| Hardware Specifications |
| Symbol | Parameter |
| CPU | Qualcomm-Atheros IPQ5018 |
| CPU Frequency | Dual-core ARM 64 bit A53 @1.0 GHz processor |
| System Memory | 512MB DDR3L 16-bit interface with 32-bit memory bus design |
| Ethernet Port | 4 x 1Gbps Ethernet Ports or 1 x 1Gbps Ethernet Port & Poe |
| NGFF Slot | M.2 Card Slot for 5G (QUECTEL RM 500Q-GL) ;M.2 Card Slot for QCN9074 WIFI 6E Card |
| EMMC | 4G/8G(optional) |
| USB /header | 1x USB 3.0 Port |
| POE | NA |
| DC Jack | 12V power supply |
| LED header | LED for power ,Wifi strength |
| Serial Port | support |
| Wireless | On-board 2x22.4GHz MU-MIMO OFDMA 802.11b/802.11g/802.11n/802.11ax,max 23dBm per chain 2x IPEX Connectors |
| Bluetooth | BT5.1 |
| Nor Flash | 8MB |
| Nand Flash | 128 MB |
| DDR | 512MB |
| Dimension | 170mm x 120mm x 15mm |
DR40X9
https://www.wallystech.com/Routerboard/DR40X9-Qualcomm-IPQ-4019-4029-DUAL-BAND-802.11AC-WAVE2-MU-MIMO-ONBOARD-WIFI-RADIO-EMBEDDED-BOARD-supporting-LTE.html
https://www.youtube.com/watch?v=6A9pKXP_lBM
Featuring with industrial-grade IPQ4019/IPQ4029 chipset
Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module
Support 4.940GHz to 5.825GHz Frequency Range
Support 2.400GHz to 2.482GHz
Support 2 x 5G MMCX Connectors and 2x2.4G MMCX
Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth
Support 11ABGN/AC
Support fixed data rate
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

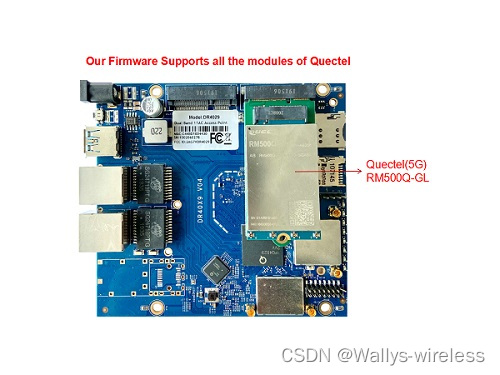

Our Firmware supports all the modules of Quectel
| Absolute Maximum Rating |
| Parameter | Rating | Unit |
| Supply Voltage | 24V~48 | V |
| Operating Temperature Range | -40 to +70 | ºC |
| Storage Temperature Range | -45 to +105 | ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) | % |
| Storage Humidity Range | 0 to +90 (non-condensing) | % |
| Hardware Specifications |
| Symbol | Parameter |
| CPU | IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz） |
| Antenna Connector | 2 x 5G MMCX connectors;2x2.4G MMCX |
| 10/100/1000Mbps Gigabit Ethernet | 2xRJ45 |
| SFP connector | 1xSFP fiber module connector (optional) |
| 3G/4G connector | 1xminipcie 3G/4G connector support with two sim card |
| USB connector | 1xUSB 3.0 connector |
| POE | 24V~48V passive POE |
| DC Jack | 24V~48V power supply |
| ROHS Compliance | YES |
| Dimension | 115mm x 105mm x 16mm |
| Max Power | 48.1V x 0.180A= 8.658W |
| Nor Flash | 2MB~32MB |
| Nand Flash | 128MB |
| DDR | 256MB~512MB |
