黑苹果 macOS 10.14 编译 obs-studio 22.0.3

article/2025/9/20 11:40:41

01 安装 brew

/usr/bin/ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"

这个安装过程会要求回车2次，同时安装Xcode Command Line Tools
执行过程如下:


softdeMac:~ soft$ /usr/bin/ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"
==> This script will install:
/usr/local/bin/brew
/usr/local/share/doc/homebrew
/usr/local/share/man/man1/brew.1
/usr/local/share/zsh/site-functions/_brew
/usr/local/etc/bash_completion.d/brew
/usr/local/Homebrew
==> The following new directories will be created:
/usr/local/bin
/usr/local/etc
/usr/local/include
/usr/local/lib
/usr/local/sbin
/usr/local/share
/usr/local/var
/usr/local/opt
/usr/local/share/zsh
/usr/local/share/zsh/site-functions
/usr/local/var/homebrew
/usr/local/var/homebrew/linked
/usr/local/Cellar
/usr/local/Caskroom
/usr/local/Homebrew
/usr/local/Frameworks
==> The Xcode Command Line Tools will be installed.Press RETURN to continue or any other key to abort
==> /usr/bin/sudo /bin/mkdir -p /usr/local/bin /usr/local/etc /usr/local/include /usr/local/lib /usr/local/sbin /usr/local/share /usr/local/var /usr/local/opt /usr/local/share/zsh /usr/local/share/zsh/site-functions /usr/local/var/homebrew /usr/local/var/homebrew/linked /usr/local/Cellar /usr/local/Caskroom /usr/local/Homebrew /usr/local/Frameworks
Password:
==> /usr/bin/sudo /bin/chmod g+rwx /usr/local/bin /usr/local/etc /usr/local/include /usr/local/lib /usr/local/sbin /usr/local/share /usr/local/var /usr/local/opt /usr/local/share/zsh /usr/local/share/zsh/site-functions /usr/local/var/homebrew /usr/local/var/homebrew/linked /usr/local/Cellar /usr/local/Caskroom /usr/local/Homebrew /usr/local/Frameworks
==> /usr/bin/sudo /bin/chmod 755 /usr/local/share/zsh /usr/local/share/zsh/site-functions
==> /usr/bin/sudo /usr/sbin/chown soft /usr/local/bin /usr/local/etc /usr/local/include /usr/local/lib /usr/local/sbin /usr/local/share /usr/local/var /usr/local/opt /usr/local/share/zsh /usr/local/share/zsh/site-functions /usr/local/var/homebrew /usr/local/var/homebrew/linked /usr/local/Cellar /usr/local/Caskroom /usr/local/Homebrew /usr/local/Frameworks
==> /usr/bin/sudo /usr/bin/chgrp admin /usr/local/bin /usr/local/etc /usr/local/include /usr/local/lib /usr/local/sbin /usr/local/share /usr/local/var /usr/local/opt /usr/local/share/zsh /usr/local/share/zsh/site-functions /usr/local/var/homebrew /usr/local/var/homebrew/linked /usr/local/Cellar /usr/local/Caskroom /usr/local/Homebrew /usr/local/Frameworks
==> /usr/bin/sudo /bin/mkdir -p /Users/soft/Library/Caches/Homebrew
==> /usr/bin/sudo /bin/chmod g+rwx /Users/soft/Library/Caches/Homebrew
==> /usr/bin/sudo /usr/sbin/chown soft /Users/soft/Library/Caches/Homebrew
==> /usr/bin/sudo /bin/mkdir -p /Library/Caches/Homebrew
==> /usr/bin/sudo /bin/chmod g+rwx /Library/Caches/Homebrew
==> /usr/bin/sudo /usr/sbin/chown soft /Library/Caches/Homebrew
==> Searching online for the Command Line Tools
==> /usr/bin/sudo /usr/bin/touch /tmp/.com.apple.dt.CommandLineTools.installondemand.in-progress
==> Installing Command Line Tools (macOS Mojave version 10.14) for Xcode-10.0
==> /usr/bin/sudo /usr/sbin/softwareupdate -i Command\ Line\ Tools\ (macOS\ Mojave\ version\ 10.14)\ for\ Xcode-10.0
Software Update ToolDownloaded Command Line Tools (macOS Mojave version 10.14) for Xcode
Installing Command Line Tools (macOS Mojave version 10.14) for Xcode
Done with Command Line Tools (macOS Mojave version 10.14) for Xcode
Done.
==> /usr/bin/sudo /bin/rm -f /tmp/.com.apple.dt.CommandLineTools.installondemand.in-progress
==> /usr/bin/sudo /usr/bin/xcode-select --switch /Library/Developer/CommandLineTools
==> Downloading and installing Homebrew...
remote: Enumerating objects: 1, done.
remote: Counting objects: 100% (1/1), done.
remote: Total 113116 (delta 0), reused 1 (delta 0), pack-reused 113115
Receiving objects: 100% (113116/113116), 26.02 MiB | 3.63 MiB/s, done.
Resolving deltas: 100% (82735/82735), done.
From https://github.com/Homebrew/brew* [new branch]          master     -> origin/master* [new tag]             0.1        -> 0.1
......* [new tag]             1.7.7      -> 1.7.7
HEAD is now at fdd8e9b7c Merge pull request #5148 from MikeMcQuaid/travis-only-macos
==> Homebrew is run entirely by unpaid volunteers. Please consider donating:https://github.com/Homebrew/brew#donations
==> Tapping homebrew/core
Cloning into '/usr/local/Homebrew/Library/Taps/homebrew/homebrew-core'...
remote: Enumerating objects: 4856, done.
remote: Counting objects: 100% (4856/4856), done.
remote: Compressing objects: 100% (4653/4653), done.
remote: Total 4856 (delta 56), reused 324 (delta 13), pack-reused 0
Receiving objects: 100% (4856/4856), 4.04 MiB | 1.49 MiB/s, done.
Resolving deltas: 100% (56/56), done.
Checking out files: 100% (4873/4873), done.
Tapped 2 commands and 4642 formulae (4,898 files, 12.6MB).
==> Migrating /Library/Caches/Homebrew to /Users/soft/Library/Caches/Homebrew...
==> Deleting /Library/Caches/Homebrew...
Already up-to-date.
==> Installation successful!==> Homebrew has enabled anonymous aggregate formulae and cask analytics.
Read the analytics documentation (and how to opt-out) here:https://docs.brew.sh/Analytics.html==> Homebrew is run entirely by unpaid volunteers. Please consider donating:https://github.com/Homebrew/brew#donations
==> Next steps:
- Run `brew help` to get started
- Further documentation: https://docs.brew.sh

02 安装xcode

xcode需要在苹果商店现在，需要有个一苹果商店的账号(Apple ID).这个账号可以免费注册。

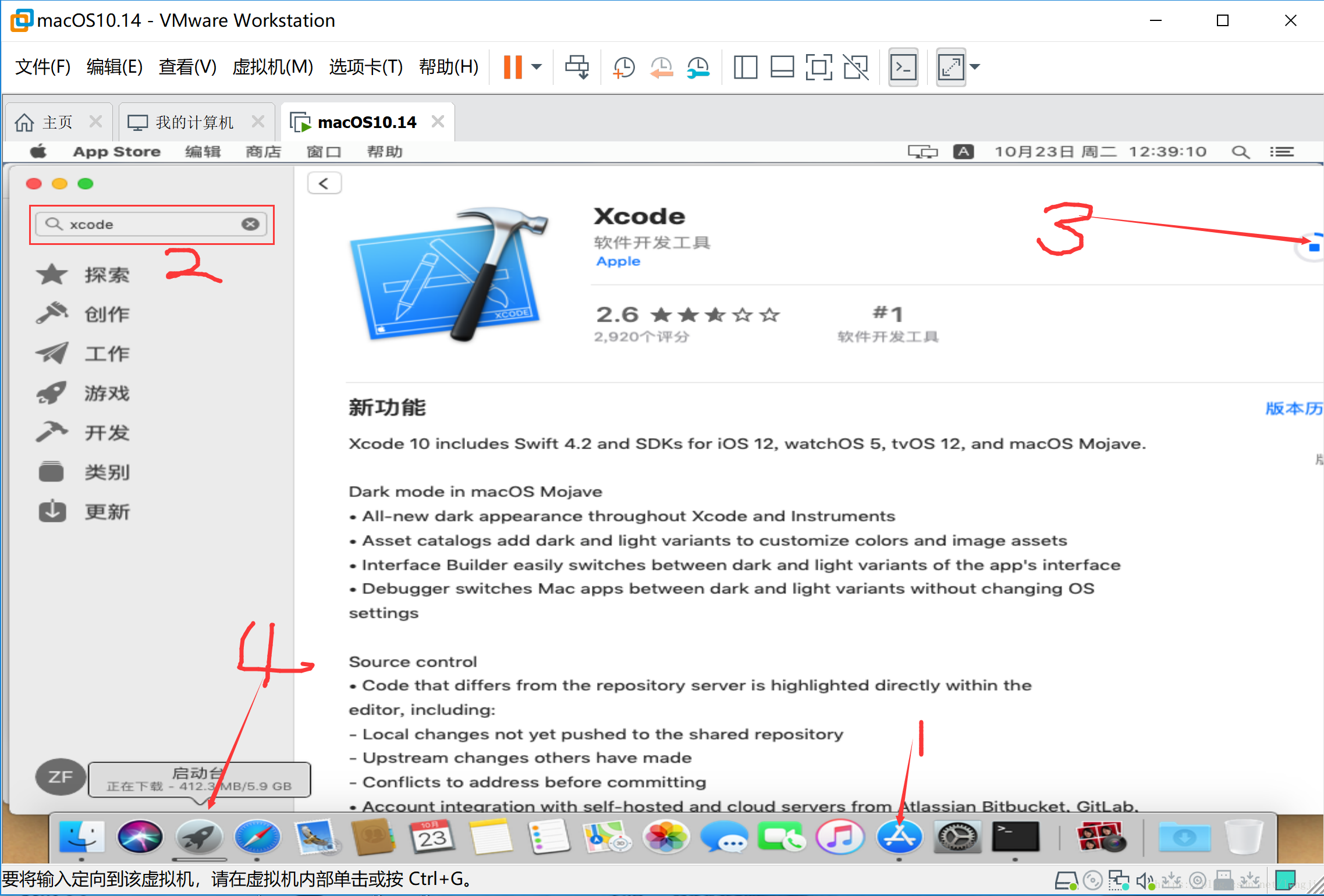

在点击苹果商店，在搜索栏搜索xcode，点击获取/安装，开始下载，可看到下载进度。下载完成，会自动安装。
下载xcode

下载完成后，安装

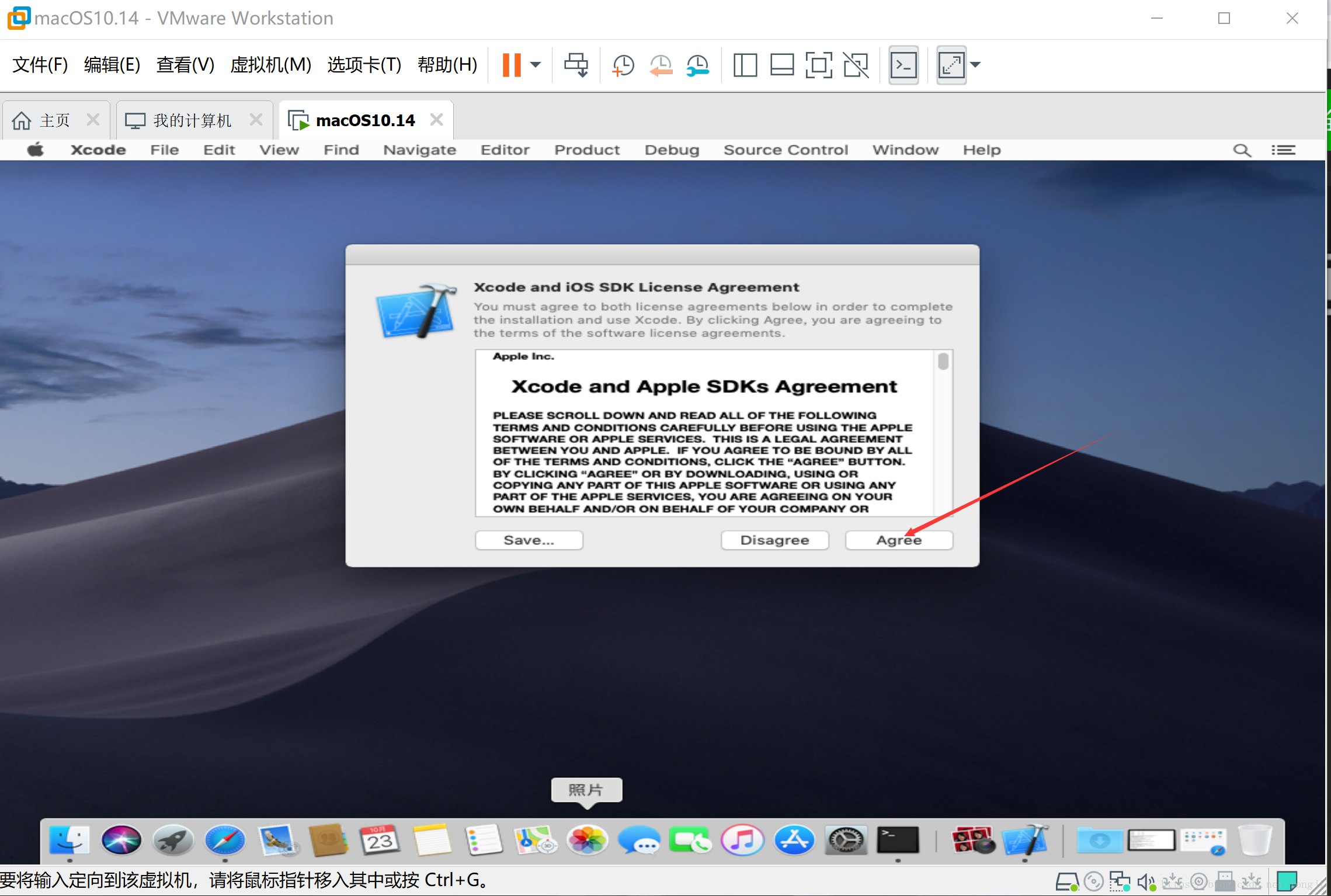

xcode sdk install

安装完成后，记得输入切换指令

sudo xcode-select --switch /Applications/Xcode.app/

03 安装必要软件

安装git wget cmake make FFmpeg x264

brew install git wget cmake make FFmpeg x264
brew install qt

安装好qt后，根据提示配置qt path路径

echo 'export PATH="/usr/local/opt/qt/bin:$PATH"' >> ~/.bash_profile
softdeMac:obs-studio soft$ source ~/.bash_profile

安装cmake-gui

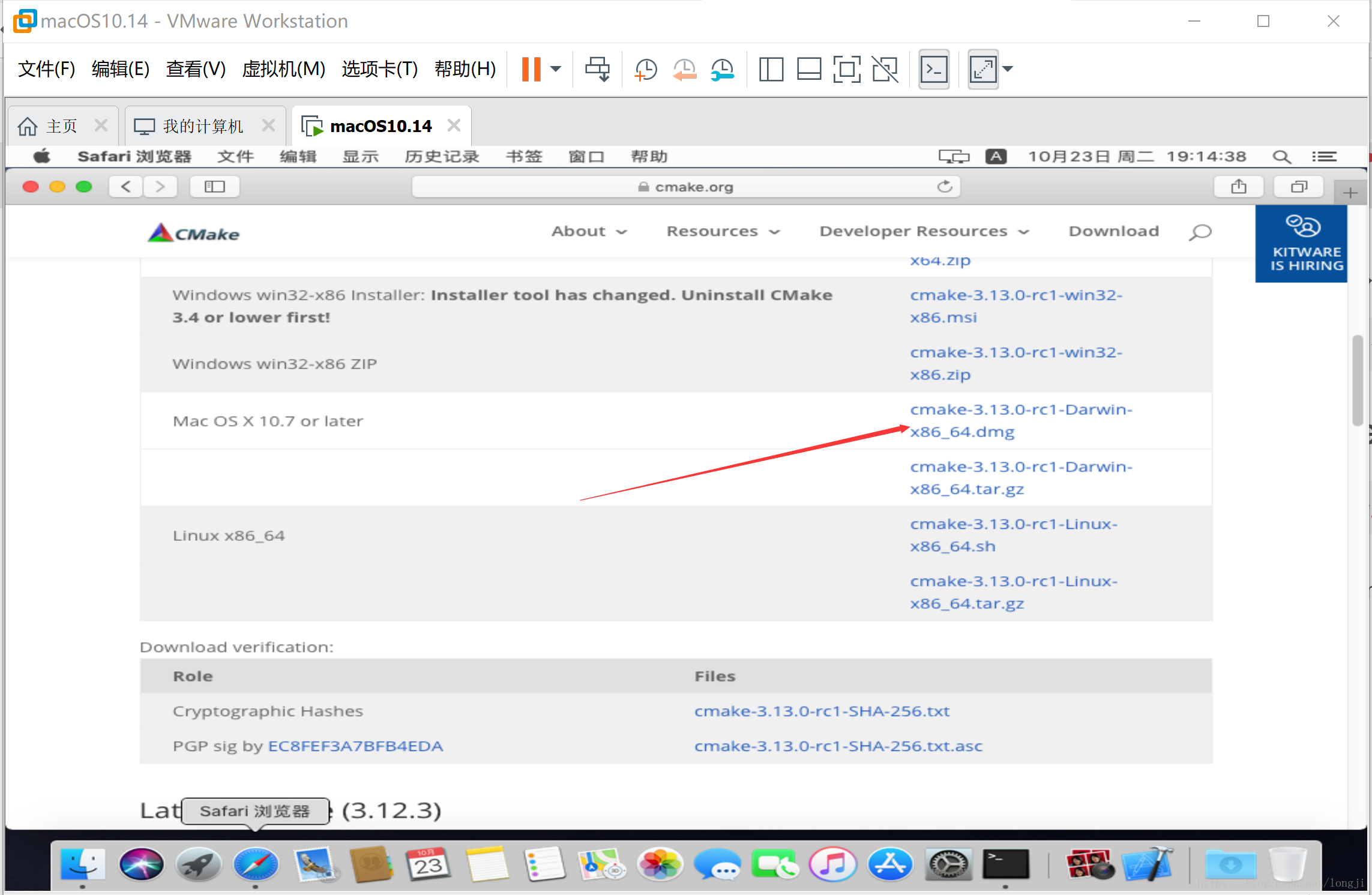

cmake-gui 安装，从cmake.org下载安装mac版本
下载最新链接 https://cmake.org/files/v3.13/cmake-3.13.0-rc1-Darwin-x86_64.dmg
cmake-gui

04 下载obs-studio代码

mkdir git
cd git
git clone --recursive https://github.com/obsproject/obs-studio.git
cd obs-studio

05 编译obs-studio 22.0.3

05.01 切换稳定版本 22.0.3

cd obs-studio
git checkout -b b22.03. 22.03

05.02 配置cmake-gui

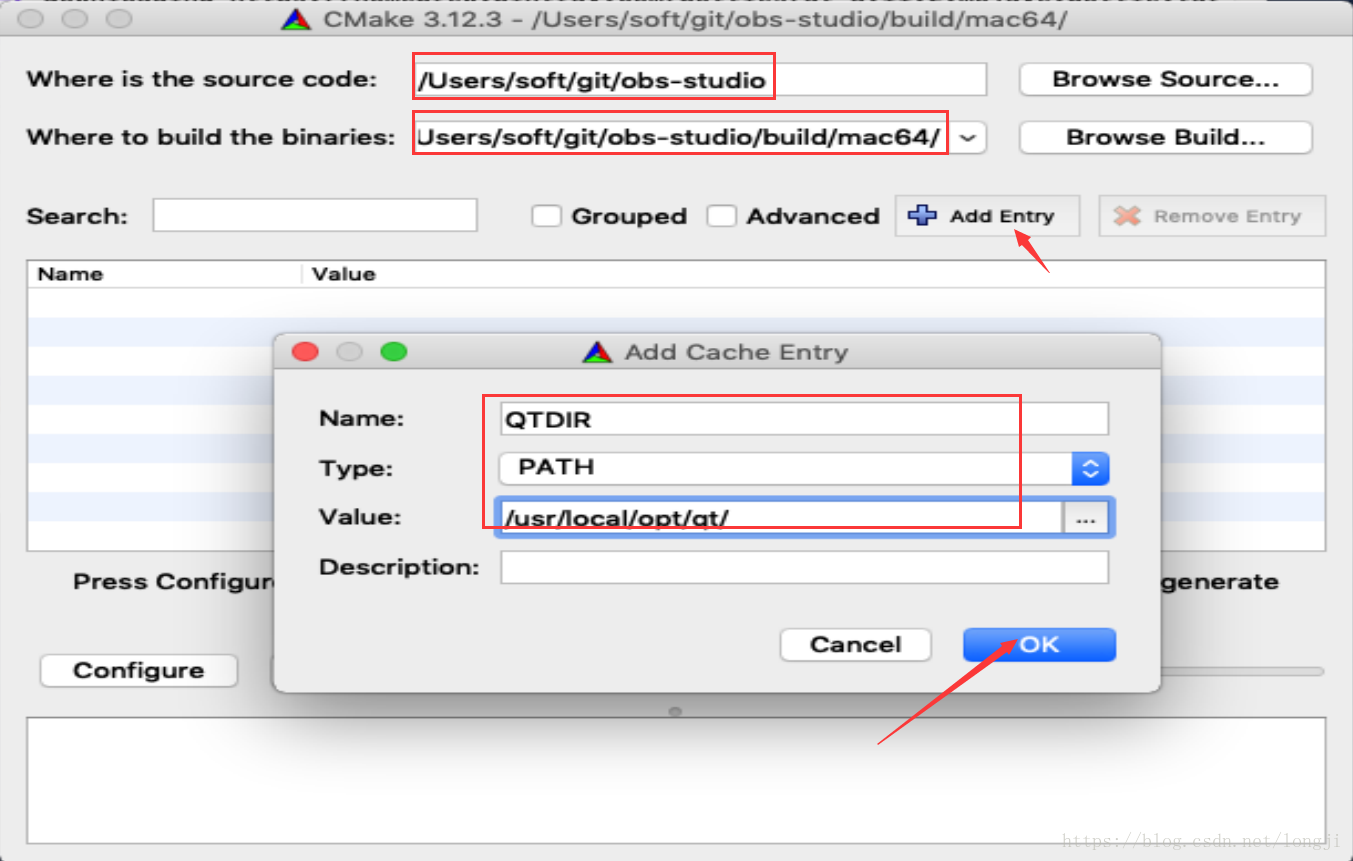

配置路径，设置QTDIR=/usr/local/opt/qt/ ,这个路径安装好qt是有提示的。
cmake path qtdir

点击配置
cmake configure

配置编译工具
cmake configure

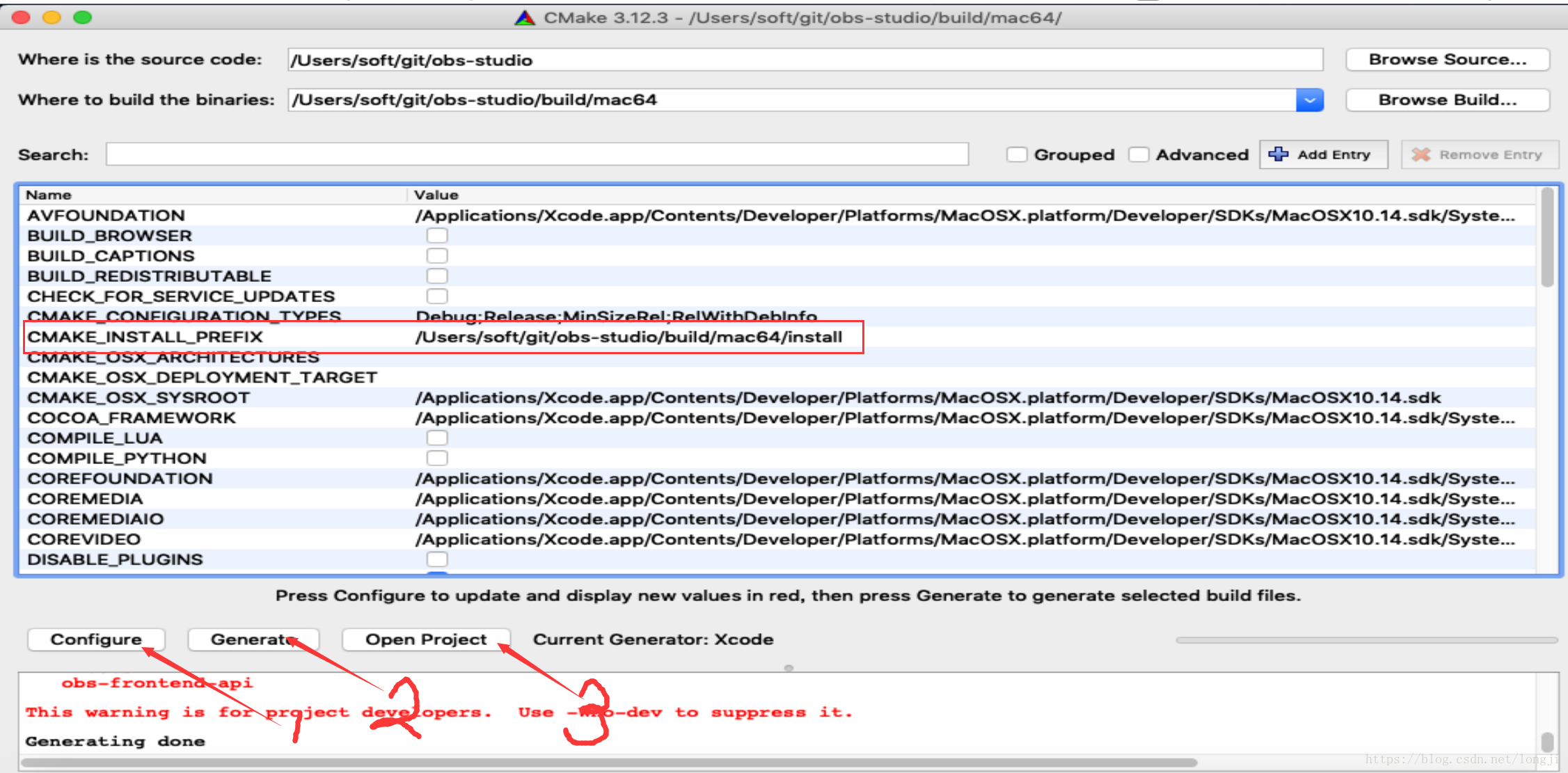

设置CMAKE_INSTALL_PREFIX,打开xcode

CMAKE_INSTALL_PREFIX=/Users/soft/git/obs-studio/build/mac64/install
cmake configure

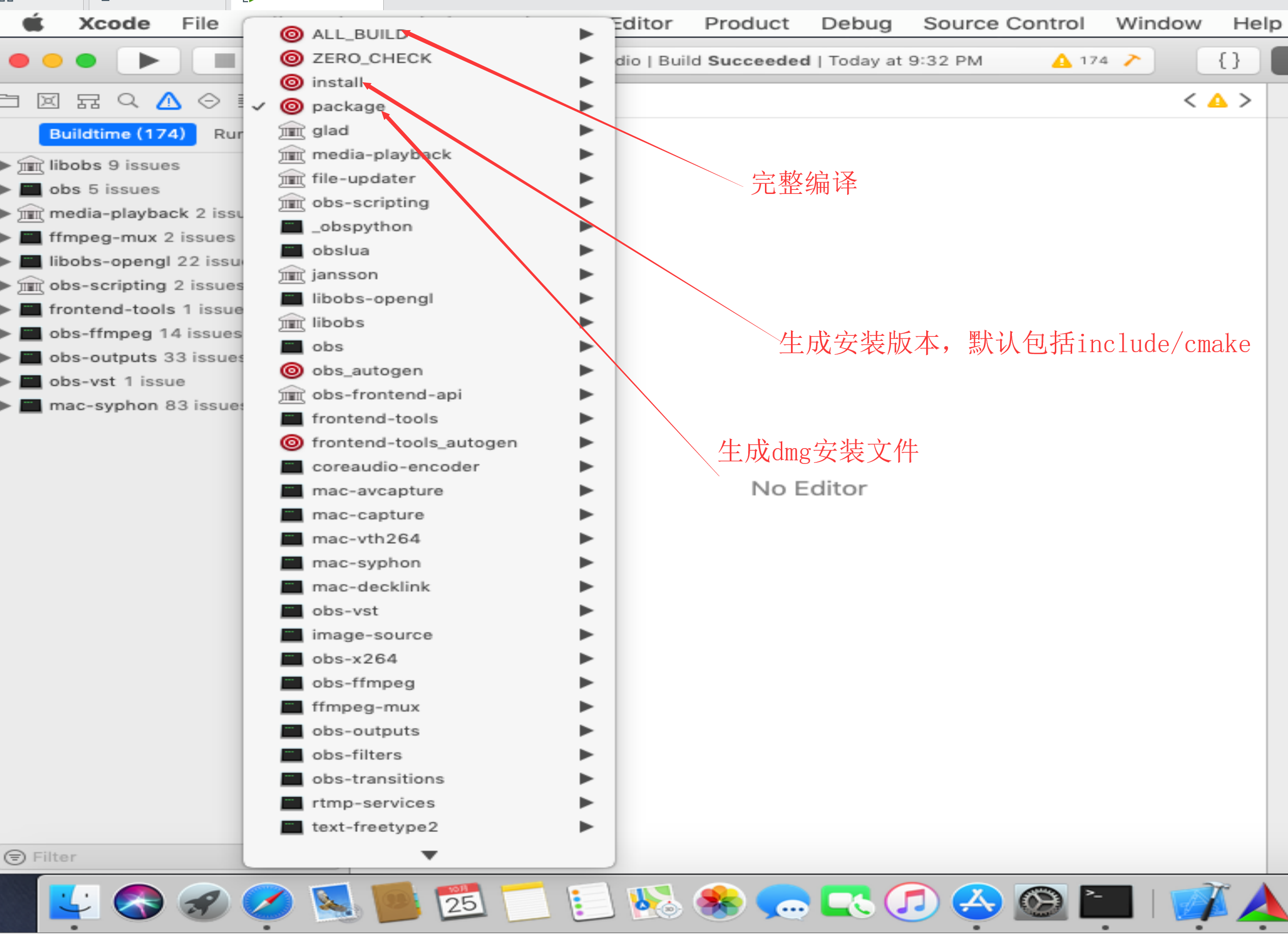

05.03 编译obs-studio 22.0.3

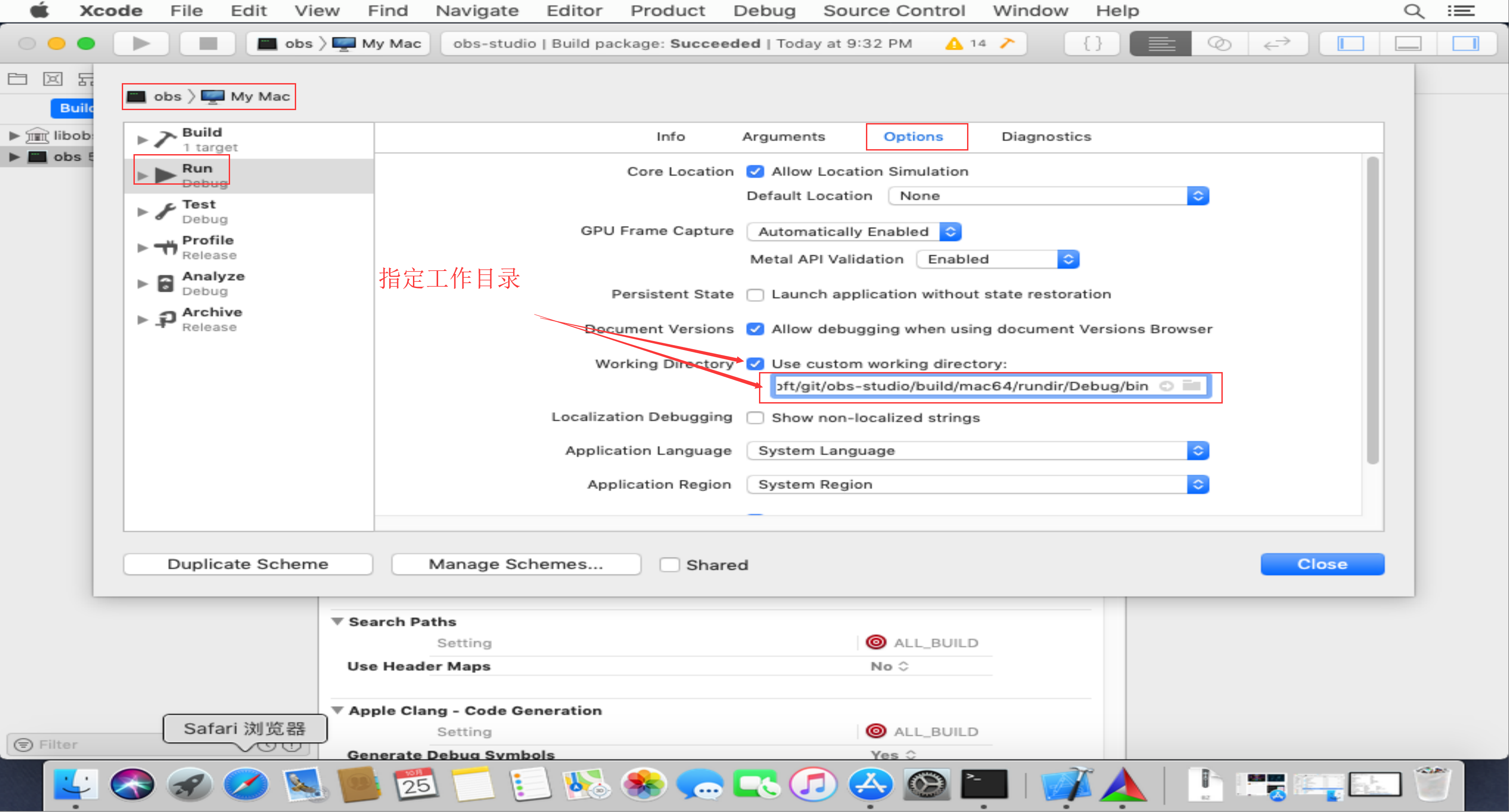

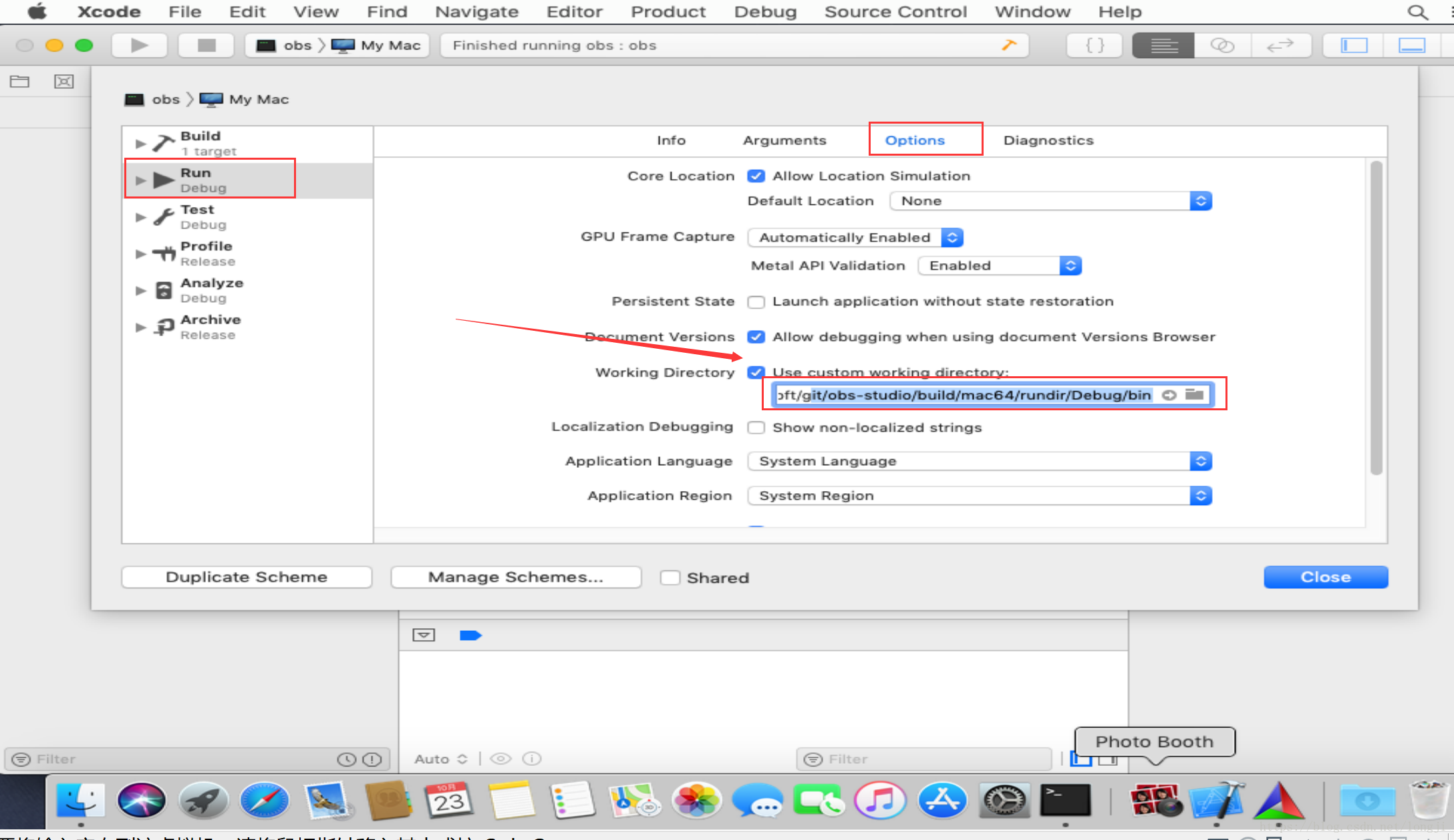

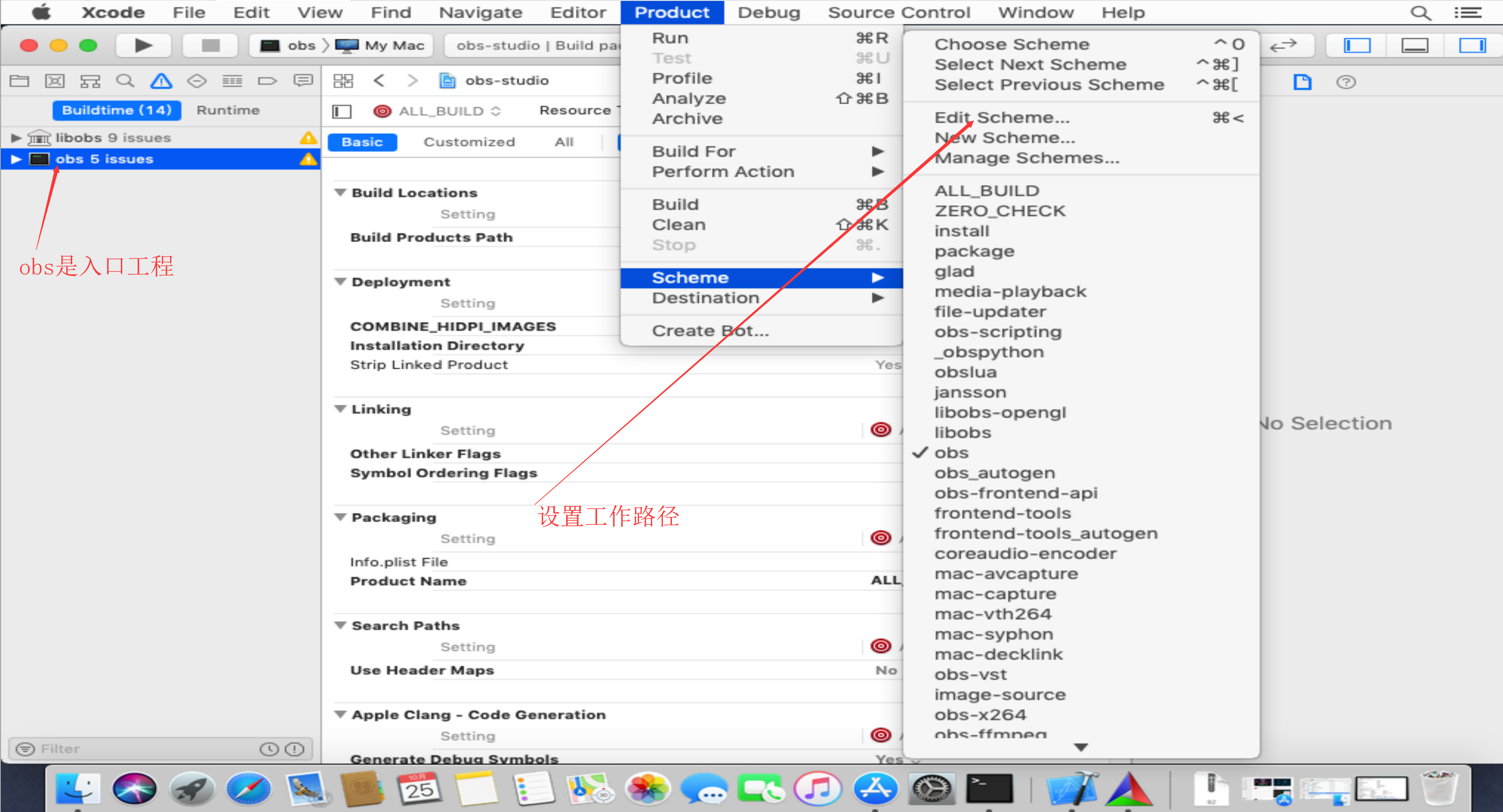

设置 Scheme 的工作路径
Use custom working directory=/Users/soft/git/obs-studio/build/mac64/rundir/Debug/bin

cmake configure cmake configure

05.04 运行调试

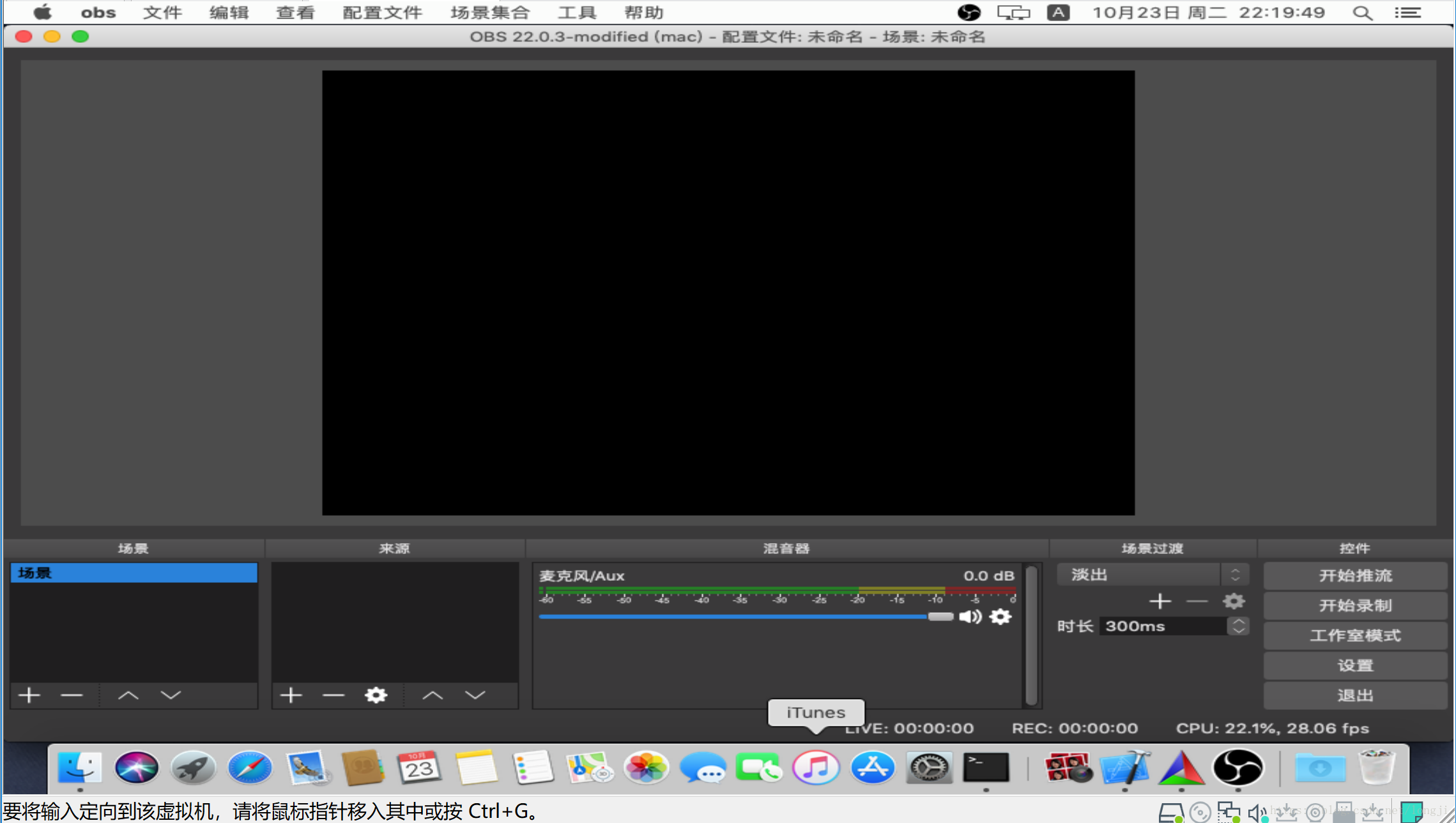

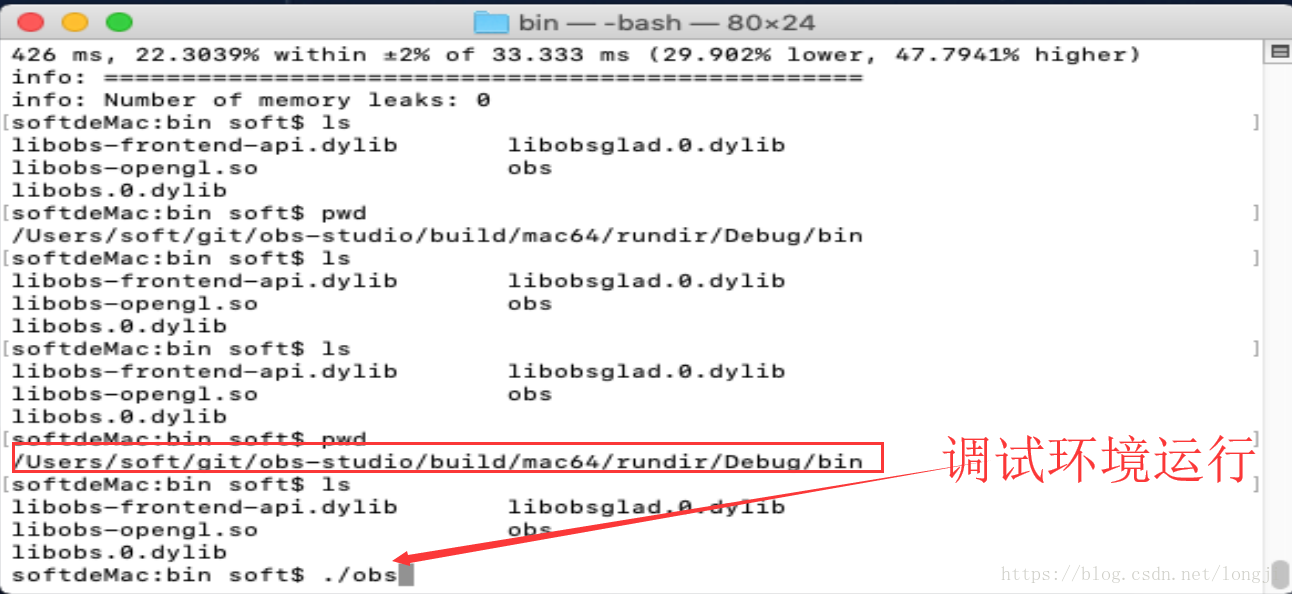

调试运行 调试运行效果 调试环境命令行运行

06 obs-studio 完整配置

05 只是最小可运行环境。根据cmake-gui的提示，可以看到，还需要很多依赖包，说着说obs-studio还支持很多扩展。比如:

softdeMac:~ soft$ brew install MbedTls lua python swig speexdsp luajit freetype dbus
Updating Homebrew...
==> Downloading https://homebrew.bintray.com/bottles/mbedtls-2.13.0.mojave.bottl
######################################################################## 100.0%
==> Pouring mbedtls-2.13.0.mojave.bottle.tar.gz
?  /usr/local/Cellar/mbedtls/2.13.0: 136 files, 3.4MB
==> Downloading https://homebrew.bintray.com/bottles/lua-5.3.5_1.mojave.bottle.t
######################################################################## 100.0%
==> Pouring lua-5.3.5_1.mojave.bottle.tar.gz
==> Caveats
You may also want luarocks:brew install luarocks
==> Summary
?  /usr/local/Cellar/lua/5.3.5_1: 28 files, 274.5KB
==> Installing dependencies for python: gdbm, readline and sqlite
==> Installing python dependency: gdbm
==> Downloading https://homebrew.bintray.com/bottles/gdbm-1.18.mojave.bottle.tar
######################################################################## 100.0%
==> Pouring gdbm-1.18.mojave.bottle.tar.gz
?  /usr/local/Cellar/gdbm/1.18: 20 files, 588.7KB
==> Installing python dependency: readline
==> Downloading https://homebrew.bintray.com/bottles/readline-7.0.5.mojave.bottl
######################################################################## 100.0%
==> Pouring readline-7.0.5.mojave.bottle.tar.gz
==> Caveats
readline is keg-only, which means it was not symlinked into /usr/local,
because macOS provides the BSD libedit library, which shadows libreadline.
In order to prevent conflicts when programs look for libreadline we are
defaulting this GNU Readline installation to keg-only.For compilers to find readline you may need to set:export LDFLAGS="-L/usr/local/opt/readline/lib"export CPPFLAGS="-I/usr/local/opt/readline/include"==> Summary
?  /usr/local/Cellar/readline/7.0.5: 46 files, 1.5MB
==> Installing python dependency: sqlite
==> Downloading https://homebrew.bintray.com/bottles/sqlite-3.25.2.mojave.bottle
######################################################################## 100.0%
==> Pouring sqlite-3.25.2.mojave.bottle.tar.gz
==> Caveats
sqlite is keg-only, which means it was not symlinked into /usr/local,
because macOS provides an older sqlite3.If you need to have sqlite first in your PATH run:echo 'export PATH="/usr/local/opt/sqlite/bin:$PATH"' >> ~/.bash_profileFor compilers to find sqlite you may need to set:export LDFLAGS="-L/usr/local/opt/sqlite/lib"export CPPFLAGS="-I/usr/local/opt/sqlite/include"==> Summary
?  /usr/local/Cellar/sqlite/3.25.2: 11 files, 3.7MB
==> Installing python
==> Downloading https://homebrew.bintray.com/bottles/python-3.7.0.mojave.bottle.
######################################################################## 100.0%
==> Pouring python-3.7.0.mojave.bottle.6.tar.gz
==> /usr/local/Cellar/python/3.7.0/bin/python3 -s setup.py --no-user-cfg install --force --verbose --install-scripts=/usr/local/Cellar/python/
==> /usr/local/Cellar/python/3.7.0/bin/python3 -s setup.py --no-user-cfg install --force --verbose --install-scripts=/usr/local/Cellar/python/
==> /usr/local/Cellar/python/3.7.0/bin/python3 -s setup.py --no-user-cfg install --force --verbose --install-scripts=/usr/local/Cellar/python/
==> Caveats
Python has been installed as/usr/local/bin/python3Unversioned symlinks `python`, `python-config`, `pip` etc. pointing to
`python3`, `python3-config`, `pip3` etc., respectively, have been installed into/usr/local/opt/python/libexec/binIf you need Homebrew's Python 2.7 runbrew install python@2Pip, setuptools, and wheel have been installed. To update them runpip3 install --upgrade pip setuptools wheelYou can install Python packages withpip3 install <package>
They will install into the site-package directory/usr/local/lib/python3.7/site-packagesSee: https://docs.brew.sh/Homebrew-and-Python
==> Summary
?  /usr/local/Cellar/python/3.7.0: 4,781 files, 102MB
==> Installing dependencies for swig: pcre
==> Installing swig dependency: pcre
==> Downloading https://homebrew.bintray.com/bottles/pcre-8.42.mojave.bottle.tar
######################################################################## 100.0%
==> Pouring pcre-8.42.mojave.bottle.tar.gz
?  /usr/local/Cellar/pcre/8.42: 204 files, 5.5MB
==> Installing swig
==> Downloading https://homebrew.bintray.com/bottles/swig-3.0.12.mojave.bottle.t
######################################################################## 100.0%
==> Pouring swig-3.0.12.mojave.bottle.tar.gz
?  /usr/local/Cellar/swig/3.0.12: 755 files, 5.5MB
==> Downloading https://homebrew.bintray.com/bottles/speexdsp-1.2rc3.mojave.bott
######################################################################## 100.0%
==> Pouring speexdsp-1.2rc3.mojave.bottle.tar.gz
?  /usr/local/Cellar/speexdsp/1.2rc3: 19 files, 616.2KB
==> Caveats
==> lua
You may also want luarocks:brew install luarocks
==> readline
readline is keg-only, which means it was not symlinked into /usr/local,
because macOS provides the BSD libedit library, which shadows libreadline.
In order to prevent conflicts when programs look for libreadline we are
defaulting this GNU Readline installation to keg-only.For compilers to find readline you may need to set:export LDFLAGS="-L/usr/local/opt/readline/lib"export CPPFLAGS="-I/usr/local/opt/readline/include"==> sqlite
sqlite is keg-only, which means it was not symlinked into /usr/local,
because macOS provides an older sqlite3.If you need to have sqlite first in your PATH run:echo 'export PATH="/usr/local/opt/sqlite/bin:$PATH"' >> ~/.bash_profileFor compilers to find sqlite you may need to set:export LDFLAGS="-L/usr/local/opt/sqlite/lib"export CPPFLAGS="-I/usr/local/opt/sqlite/include"==> python
Python has been installed as/usr/local/bin/python3Unversioned symlinks `python`, `python-config`, `pip` etc. pointing to
`python3`, `python3-config`, `pip3` etc., respectively, have been installed into/usr/local/opt/python/libexec/binIf you need Homebrew's Python 2.7 runbrew install python@2Pip, setuptools, and wheel have been installed. To update them runpip3 install --upgrade pip setuptools wheelYou can install Python packages withpip3 install <package>
They will install into the site-package directory/usr/local/lib/python3.7/site-packagesSee: https://docs.brew.sh/Homebrew-and-Python
==> Downloading https://homebrew.bintray.com/bottles/luajit-2.0.5.mojave.bottle.1.tar.gz
######################################################################## 100.0%
==> Pouring luajit-2.0.5.mojave.bottle.1.tar.gz
?  /usr/local/Cellar/luajit/2.0.5: 31 files, 1.9MB==> Installing dependencies for freetype: libpng
==> Installing freetype dependency: libpng
==> Downloading https://homebrew.bintray.com/bottles/libpng-1.6.35.mojave.bottle
######################################################################## 100.0%
==> Pouring libpng-1.6.35.mojave.bottle.tar.gz
?  /usr/local/Cellar/libpng/1.6.35: 26 files, 1.2MB
==> Installing freetype
==> Downloading https://homebrew.bintray.com/bottles/freetype-2.9.1.mojave.bottl
######################################################################## 100.0%
==> Pouring freetype-2.9.1.mojave.bottle.tar.gz
?  /usr/local/Cellar/freetype/2.9.1: 60 files, 2.6MB==> Downloading https://homebrew.bintray.com/bottles/dbus-1.12.10.mojave.bottle.
######################################################################## 100.0%
==> Pouring dbus-1.12.10.mojave.bottle.tar.gz
==> /usr/local/Cellar/dbus/1.12.10/bin/dbus-uuidgen --ensure=/usr/local/var/lib/
==> Caveats
To have launchd start dbus now and restart at login:brew services start dbus
==> Summary
?  /usr/local/Cellar/dbus/1.12.10: 76 files, 2MB

browser是指基础了cef，需要单独下载。
Sparkle也需要单独下载。

cef 比较特殊，制作安装包时需要单独处理。本实验先不包含cef。

Sparkle下载地址:
https://github.com/sparkle-project/Sparkle/releases/download/1.20.0/Sparkle-1.20.0.tar.bz2
加压后到~/Sparkle-1.20.0/

编译运行./obs
提示:

[softdeMac:bin soft$ ./obs
dyld: Library not loaded: @rpath/Sparkle.framework/Versions/A/SparkleReferenced from: /Users/soft/git/obs-studio/build/mac64/rundir/Release/bin/./obsReason: image not found
Abort trap: 6

这是说明需要把Sparkle依赖拷贝到obs目录下。
我们只要把依赖拷贝到obs-studio源码下面的additional_install_files目录的应用版本下即可。
根据不同macOS的版本和Debug/Release版本。
32位系统对应exec32/exec32d/exec32r。
64位系统对应exec64/exec64d/exec64r。
exec64对应Release版本。
exec64d对应Debug版本。
把需要的依赖拷贝到对应的execXX目录即可。

cd ~/git/obs-studio/additional_install_files/exec64/
# cd ~/git/obs-studio/additional_install_files/exec64d/
# cd ~/git/obs-studio/additional_install_files/exec64r/cp /usr/local/opt/qt/lib/QtWidgets.framework/QtWidgets ./QtWidgets
cp /usr/local/opt/qt/lib/QtCore.framework/QtCore ./QtCore
cp /usr/local/opt/qt/lib/QtGui.framework/QtGui ./QtGui
cp /usr/local/opt/qt/lib/QtMacExtras.framework/QtMacExtras ./QtMacExtras
cp /usr/local/opt/ffmpeg/lib/libavcodec.58.dylib ./libavcodec.58.dylib
cp /usr/local/opt/ffmpeg/lib/libavformat.58.dylib ./libavformat.58.dylib
cp /usr/local/opt/ffmpeg/lib/libavutil.56.dylib ./libavutil.56.dylib
cp /usr/lib/libcurl.4.dylib ./libcurl.4.dylib
chmod 644 Qt*cp -r /usr/local/opt/qt/plugins/platforms ./
cp -r /usr/local/opt/qt/plugins/styles ./
# 需要特别注意，当勾选Sparkle时，可能会引起调试异常
cp -r ~/Sparkle-1.20.0/Sparkle.framework ./

主要项目作用：
工程项目

设置工作目录
设置工作目录1

设置工作路/~/git/obs-studio/build/mac64/rundir/Debug/bin/
设置工作目录2

07 注意事项

07.01 勾选Sparkle项目时，可能引起xcode调试异常

不影响实际运行./obs方式运行，和打包后正常运行。仅仅调试时异常。
调试异常

07.02 package项目调整

默认打包不能再非开发环境使用

直接通过package项目生成的dmg包。不能在非开发环境运行。
1 依赖包不全
2 动态库的引用路径需要进行处理。

需要参考如下文件:
cmake/osxbundle/fixup_bundle.sh
cmake/osxbundle/Info.plist
cmake/osxbundle/obs.icns
cmake/osxbundle/obslaunch.sh
cmake/Modules/ObsHelpers.cmake

另外也可以参考CI目录下面和mac相关的脚本。

A:查找依赖
查找依赖的方法，主要是制作安装包，在非开发环境运行:./obs
根据提示，逐个查找依赖，拷贝到对应的目录。
~/git/obs-studio/additional_install_files/exec64/
~/git/obs-studio/additional_install_files/exec64d/
~/git/obs-studio/additional_install_files/exec64r/

B:修改相对路径@rpath
主要方法是使用 otool 查看相对路径，使用install_name_tool 修改二进制和动态库的引用路径。
根据如下两个文件，可知，只要调用了fixup_bundle.sh。即可解决相对路径问题。
cmake/Modules/ObsHelpers.cmake
cmake/osxbundle/fixup_bundle.sh
修改ObsHelpers.cmake代码：

	install(CODE"if(DEFINED ENV{FIXUP_BUNDLE})execute_process(COMMAND \"${CMAKE_SOURCE_DIR}/cmake/osxbundle/fixup_bundle.sh\" . bin WORKING_DIRECTORY \"\${CMAKE_INSTALL_PREFIX}\")endif()")

改为

	install(CODE"execute_process(COMMAND \"${CMAKE_SOURCE_DIR}/cmake/osxbundle/fixup_bundle.sh\" . bin WORKING_DIRECTORY \"\${CMAKE_INSTALL_PREFIX}\")")

并且cmake-gui中 不勾选 USE_LIBC++选项。
不勾选USE_LIBC++

07.03 取消安装包中的cmake/include目录

默认install目录包含cmake和include目录。我们制作dmg安装包时，时不需要这两个目录的。
在cmake 中去掉对应的install语句即可。


http://chatgpt.dhexx.cn/article/3i65nKJF.shtml

相关文章

xps文件服务器端,黑苹果从入门到精通 篇七：XPS 9360完美黑果实战

xps文件服务器端,黑苹果从入门到精通 篇七：XPS 9360完美黑果实战

黑苹果从入门到精通 篇七：XPS 9360完美黑果实战 2019-07-11 22:11:24 240点赞 2161收藏 253评论 追加修改(2019-12-23 19:39:18): 触控板问题就是I2C驱动没成功，可以用sudo kextcache -i /也可以用kext Utility，如果这样还不行，说明I2C有问题 追加修改(2019-10-27 20:30:43…
阅读更多...
黑苹果自带的svn使用方法

黑苹果自带的svn使用方法

黑苹果系统作为很多没有mac电脑的朋友带来了一丝安慰&#xff0c;虽然各种问题不断&#xff0c;比如之前老是黑屏等。 后来发现是没有设置电脑不休眠的缘故 今天要配置下svn,查完资料简单配置了下&#xff0c;然后将远程服务器上的文档拉到了本地&#xff0c;步骤倒是蛮简单&…
阅读更多...
黑苹果登录apple id_充分利用Apple登录功能

黑苹果登录apple id_充分利用Apple登录功能

黑苹果登录apple id 充分利用Apple登录功能 (Get the most out of Sign in with Apple) 🗂WWDC2020 | Session : 10173 | Category : Privacy and Security 🗂WWDC2020| 会议：10173 | 分类：隐私和安全 🔗 https://developer.apple.com/videos/play/wwdc2020/10173/ �…
阅读更多...
IMEI与IMSI

IMEI与IMSI

为什么80%的码农都做不了架构师&#xff1f;>>> IMEI&#xff08;国际移动设备识别码&#xff09; 国际移动设备识别码&#xff08;International Mobile Equipment Identity&#xff0c;IMEI&#xff09;&#xff0c;即通常所说的手机序列号、手机“串号”&#x…
阅读更多...
确定手机imsi号码的方法

确定手机imsi号码的方法

目录 1. Imsi概述... 1 2. 获得imsi的两种方法... 2 2.1 读卡器读出sim卡上imsi 2 2.2 利用wireshark获得imsi 2 2.3 wireshark获得imsi的具体过程... 2 2.3.1 拷贝抓包服务器软件rpcapd到fcs的服务器linux目录/usr/bin下... 2…
阅读更多...
物联网从业者必须知道的知识：IMSI号介绍与解析

物联网从业者必须知道的知识：IMSI号介绍与解析

物联网项目都会使用物联网卡&#xff0c;物联网卡有一个参数&#xff1a;国际移动用户识别码&#xff0c;即 IMSI &#xff08;International Mobile Subscriber Identification Number&#xff09;&#xff0c;这个参数也有一定的学问&#xff0c;利用得好&#xff0c;可以使项…
阅读更多...
根据IMSI区别运营商

根据IMSI区别运营商

根据IMSI区别运营商 IMSI说明MNC 和 各个运营商的对照表 (持续更新) IMSI说明 国际移动用户识别码即IMSI&#xff08;International Mobile Subscriber Identity&#xff09;&#xff0c;它是在公众陆地移动电话网&#xff08;PLMN&#xff09;中用于唯一识别移动用户的一个号…
阅读更多...
IMSI与MSISDN

IMSI与MSISDN

IMSI IMSI全名叫国际移动用户识别码&#xff08;International Mobile Subscriber Identification Number&#xff09;是区别移动用户的标志&#xff0c;储存在SIM卡的EF-IMSI文件中&#xff0c;可用于区别移动用户的有效信息。简单地理解就是&#xff0c;IMSI是SIM卡的id号码…
阅读更多...
什么是IMIS过滤？IMSI过滤解决方案

什么是IMIS过滤？IMSI过滤解决方案

一、什么是IMSI&#xff1f; IMSI&#xff0c;国际移动用户识别码&#xff0c;对于识别运营商网络上的用户至关重要。它是分配给手机或移动设备以在 GMS 或 UTMS网络上进行标识的唯一编号。通常&#xff0c; IMSI 号码存储在移动设备的 SIM卡上&#xff0c;并根据需要发送到网络…
阅读更多...
Taylor’s Formula - 泰勒公式

Taylor’s Formula - 泰勒公式

Taylor’s Formula - 泰勒公式 泰勒公式应用于数学、物理领域&#xff0c;是一个用函数在某点的信息描述其附近取值的公式。如果函数足够平滑的话&#xff0c;在已知函数在某一点的各阶导数值的情况之下&#xff0c;泰勒公式可以用这些导数值做系数构建一个多项式来近似函数在这…
阅读更多...
泰勒公式浅谈原理（转） ----- 深度好文， 一点是如何蕴含整个世界

泰勒公式浅谈原理（转） ----- 深度好文， 一点是如何蕴含整个世界

泰勒公式浅谈原理&#xff08;转&#xff09; 上周写完了《《三体》读后思考-泰勒展开/维度打击/黑暗森林》后收到一些邮件&#xff0c;进一步思考了关于泰勒展开的意义。也许我掌握的那些网络技术比如Linux Netfilter&#xff0c;NAT之类&#xff0c;太过底层太过小众&#xf…
阅读更多...
cos taylor matlab,Taylor Series

cos taylor matlab,Taylor Series

Taylor Series The statements syms x f 1/(5 4*cos(x)); T taylor(f, Order, 8) return T (49*x^6)/131220 (5*x^4)/1458 (2*x^2)/81 1/9 which is all the terms up to, but not including, order eight in the Taylor series for f(x): ∑n0∞(x−a)nf(n)(a)n!. Tech…
阅读更多...
用Python学《微积分B》（Taylor公式与曲线拟合）

用Python学《微积分B》（Taylor公式与曲线拟合）

Taylor公式是微分学部分集大成者&#xff0c;可以说&#xff0c;只有理解了Taylor公式&#xff0c;才能真正感受到微分学方法的神奇与强大。本文主要根据扈志明老师的《微积分B》课程的内容&#xff0c;总结我对Taylor公式的理解。此外&#xff0c;也应用Python求解该部分的课后…
阅读更多...
c语言编程cos怎么用,cos x的taylor公式用c语言如何编程

c语言编程cos怎么用,cos x的taylor公式用c语言如何编程

满意答案 a510628839 2016.03.22 采纳率&#xff1a;49% 等级&#xff1a;9 已帮助&#xff1a;1867人 /* 利用泰勒展式近似求cos(x)的值 */ #include #define E 1e-10//精度要求 int main() { double x; double cos(double x); printf("please input an radian:"…
阅读更多...
3.3 泰勒（Taylor）公式和麦克劳林（Maclaurin）公式

3.3 泰勒（Taylor）公式和麦克劳林（Maclaurin）公式

本篇内容为泰勒公式和麦克劳林公式&#xff0c;主要用于近似计算&#xff0c;还是先搞个引入吧。 引子 f(x)在xx0的邻域内n1阶可导&#xff08;包含xx0&#xff09;。现在用一个n次多项式Pn(x)近似的表示f(x) Pn(x)a0a1(x-x0)a2(x-x0)2…an(x-x0)n Pn(x)的项数越多次数越高则…
阅读更多...
分析5 中值定理与Taylor公式

分析5 中值定理与Taylor公式

中值定理与Taylor公式 Fermat引理&#xff1a;可导的极值点是驻点。Riemann函数的有理点都是它的极大值点&#xff0c;无理点都是极小值点。Rollo中值定理、Lagrange中值定理、Cauchy中值定理。曲线拐点两侧的凸性相反。导函数具有介值性&#xff0c;因此不存在第一类间断点(跳…
阅读更多...
泰勒Taylor公式

泰勒Taylor公式

转载于:https://www.cnblogs.com/bianjing/p/9622234.html
阅读更多...
数分下第11讲（9.5节） 多变量函数的Taylor公式与极值

数分下第11讲（9.5节） 多变量函数的Taylor公式与极值

文章目录 思维导图学习要点考点题型题型1&#xff1a;Taylor展开核心题型2&#xff1a; &#xff01;&#xff01;极值计算核心题型3&#xff1a;&#xff01;&#xff01; 条件极值求解题型4&#xff1a;微分中值定理应用 思维导图 学习要点 ![(https://img-blog.csdnimg.cn/f…
阅读更多...
人工智能数学基础：泰勒（Taylor）公式

人工智能数学基础：泰勒（Taylor）公式

一、引言 对于一些较复杂的函数&#xff0c;为了便于研究&#xff0c;往往希望用一些简单的函数来近似表达&#xff0c;例如&#xff1a; 当x->0时&#xff0c;sinx≈arcsinx≈tanx≈arctanx≈ln(1x)≈ex-1≈x 由于用多项式表示的函数&#xff0c;只要对自变量进行有限次…
阅读更多...
Simulink仿真---Park变换、反Park变换

Simulink仿真---Park变换、反Park变换

1、变换关系 使用park变换将电流 Iα、Iβ 和转子的电角度θ转化为电流 Iq、Id。 公式为&#xff1a; 2、建立模型 添加Park变换子系统&#xff0c;模型如下&#xff1a;&#xff08;从“Simulink”-“User-Defined Function”-“Fcn”处添加函数模块&#xff09; 添加反Park…
阅读更多...
推荐文章

Copyright @ 2022~2023
