前言

在企业网络中，所有设备的流量在转发到其他网络前都会汇聚到核心层，再由核心区设备转发到其他网络，或者转发到外网。因此，在核心层设备负责数据的高速交换时，容易发生拥塞，这时候就需要用到链路聚合技术。

链路聚合是什么？

作用：
链路聚合就是把两台设备之间的多条物理链路聚合在一起，当作一条逻辑链路来使用。这两台设备可以是一对路由器、一对交换机、或者是一台路由器和一台交换机。一条聚合链路可以包含多条成员链路。
实现的条件：
① 每个Eth-Trunk接口下最多可以包含8个成员接口。
② 成员接口不能配置任何业务和静态MAC地址。
③ 成员接口加入Eth-Trunk时，必须为缺省的hybrid类型接口。
④ Eth-Trunk接口不能嵌套，即成员接口不能是Eth-Trunk。
⑤ 一个Eth-Trunk接口中的成员接口必须是同一类型，例如：FE口和GE口不能加入同一个Eth-Trunk接口。
⑥ 一个以太网接口只能加入到一个Eth-Trunk接口，如果需要加入其它Eth-Trunk接口必须退出原来Eth-Trunk接口。
⑦ 可以将不同接口板上的以太网接口加入到同一个Eth-Trunk。
⑧ 如果本地设备使用了Eth-Trunk，与成员接口直连的对端接口也必须捆绑为Eth-Trunk，两端才能正常通信。
⑨ 当成员接口的速率不一致时，实际使用中速率小的接口可能会出现拥塞导致丢包。
⑩ 当成员接口加入Eth-Trunk后，学习MAC地址时，是按照Eth-Trunk学习的，而不是按照成员接口来学习。

二层交换机链路聚合

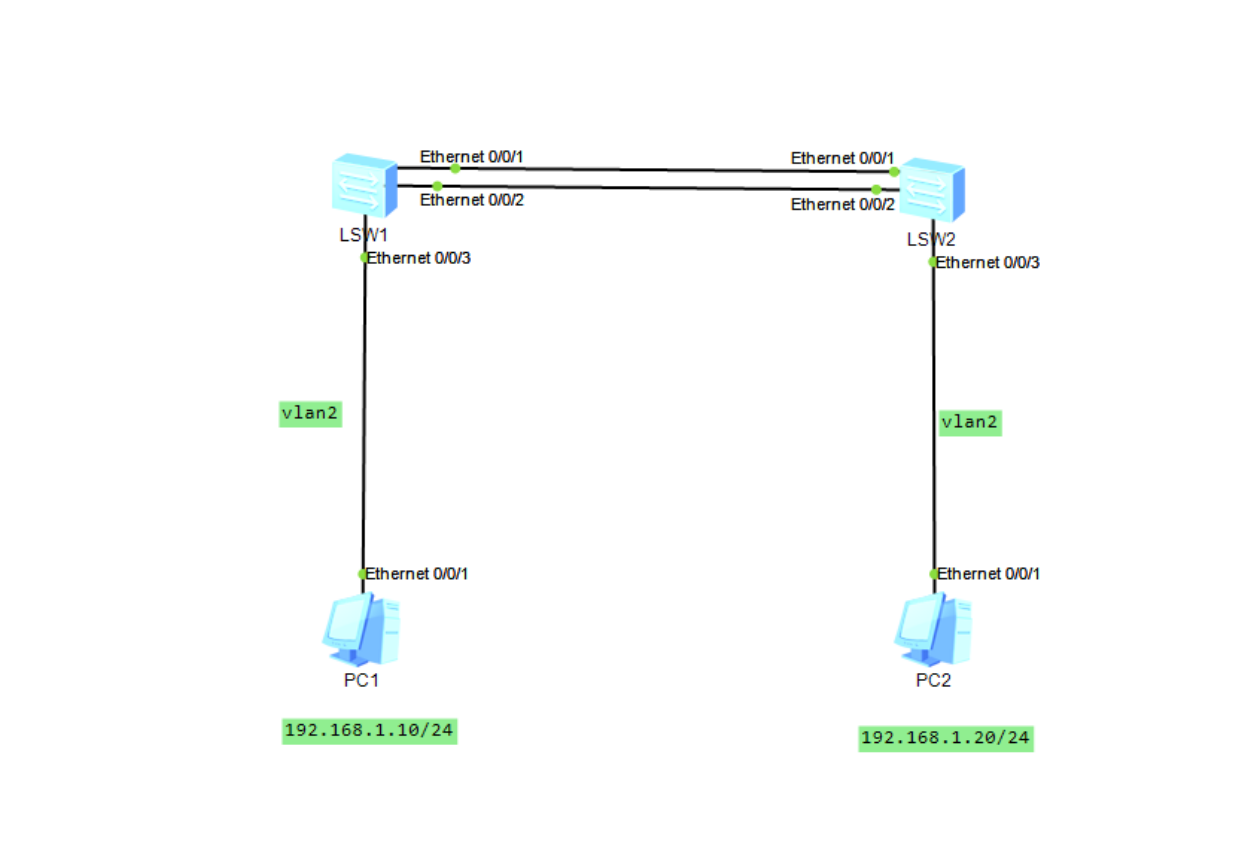

拓扑图
在这里插入图片描述

配置如下

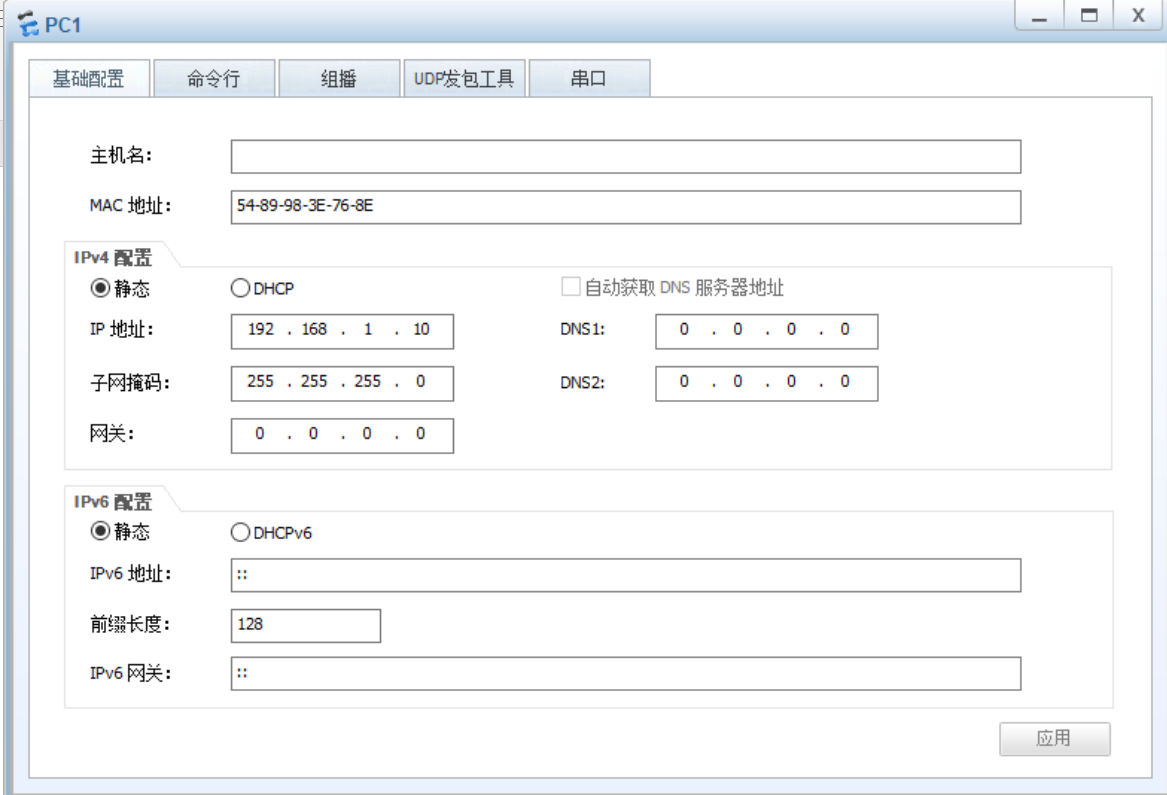

PC1
在这里插入图片描述

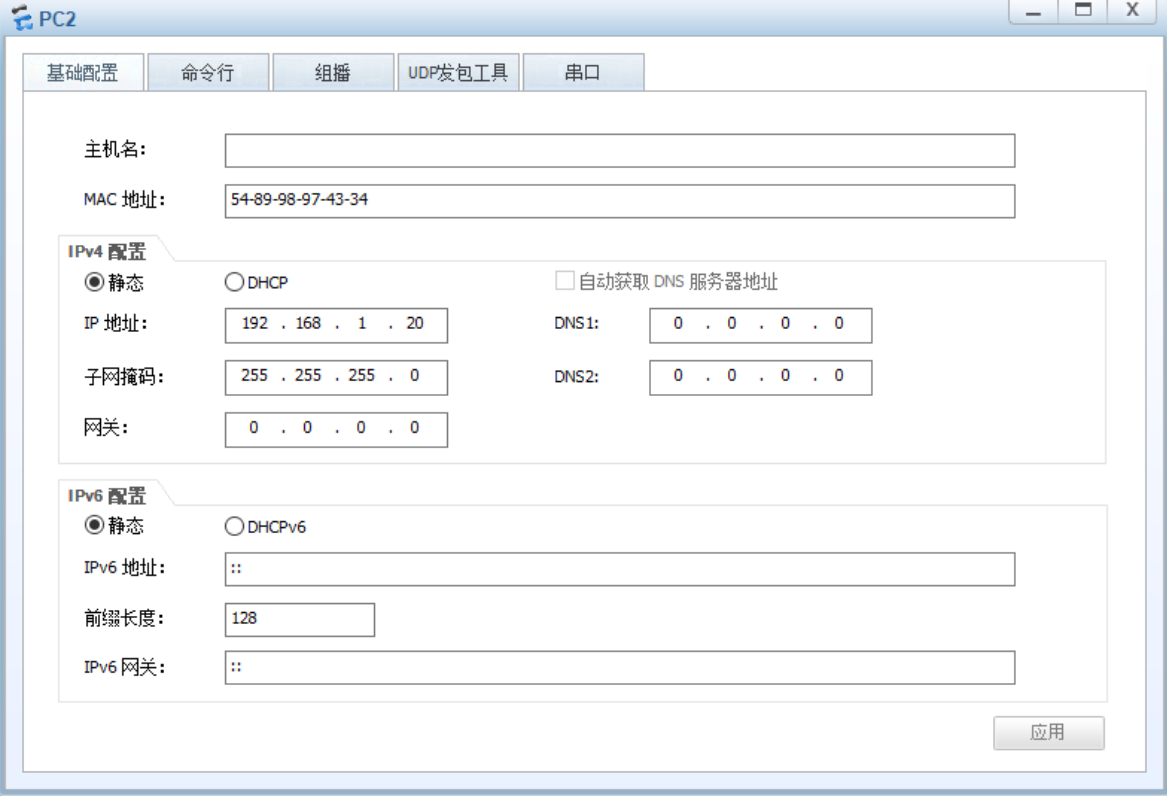

PC2

SW1配置如下：

<Huawei>undo terminal monitor
Info: Current terminal monitor is off.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname SW1
[SW1]user-interface console 0
[SW1-ui-console0]idle-timeout 0 0
[SW1-ui-console0]q
[SW1]vlan 2
[SW1-vlan2]quit
[SW1]int eth-trunk 1
[SW1-Eth-Trunk1]port link-type trunk
[SW1-Eth-Trunk1]port trunk allow-pass vlan all
[SW1-Eth-Trunk1]q
[SW1]int ethernet0/0/1
[SW1-Ethernet0/0/1]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1-Ethernet0/0/1]quit
[SW1]int e0/0/2
[SW1-Ethernet0/0/2]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1]int e0/0/3
[SW1-Ethernet0/0/3]port link-type access
[SW1-Ethernet0/0/3]port default vlan 2
[SW1-Ethernet0/0/3]q

SW2配置如下：

<Huawei>undo terminal monitor
Info: Current terminal monitor is off.
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname SW2
[SW2]user-interface console 0
[SW2-ui-console0]idle-timeout 0 0
[SW2-ui-console0]q
[SW2]int eth-trunk 1
[SW2-Eth-Trunk1]port link-type trunk
[SW2-Eth-Trunk1]port trunk allow-pass vlan all
[SW2-Eth-Trunk1]q
[SW2]int e0/0/1
[SW2-Ethernet0/0/1]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2-Ethernet0/0/1]int e0/0/2
[SW2-Ethernet0/0/2]eth-trunk 1
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2-Ethernet0/0/2]q
[SW2]vlan 2
[SW2-vlan2]int e0/0/3
[SW2-Ethernet0/0/3]port link-type access
[SW2-Ethernet0/0/3]port default vlan 2

测试

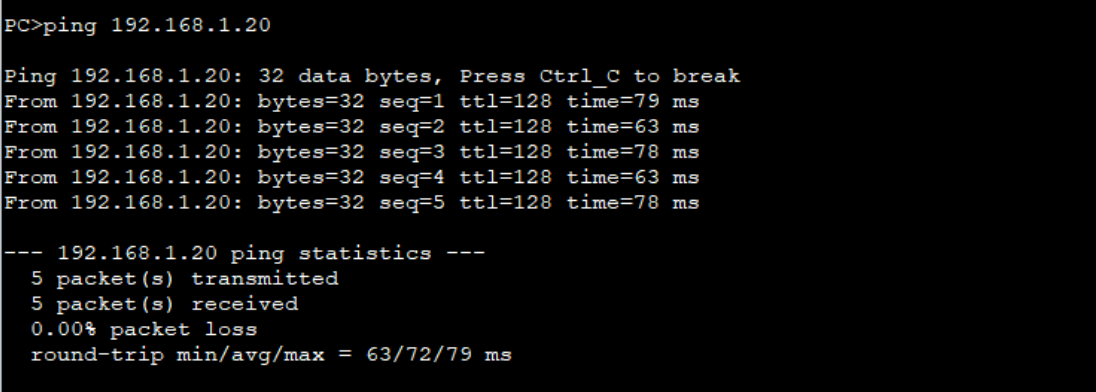

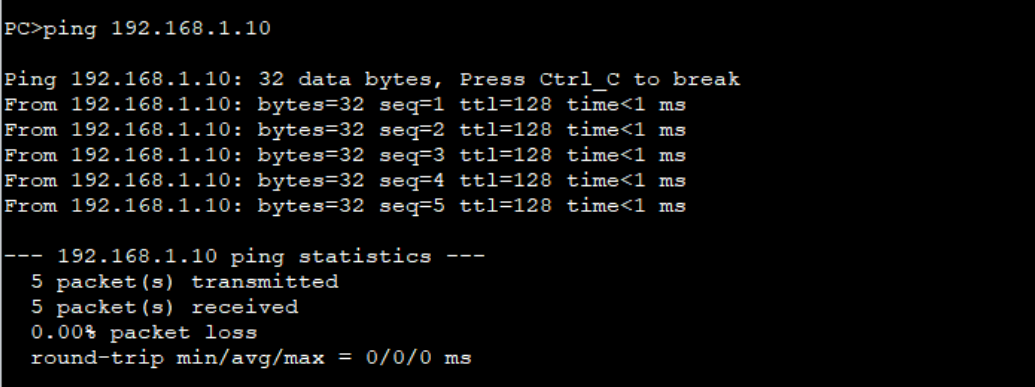

在这里插入图片描述

PC1与PC2完美互通。

三层交换机链路聚合

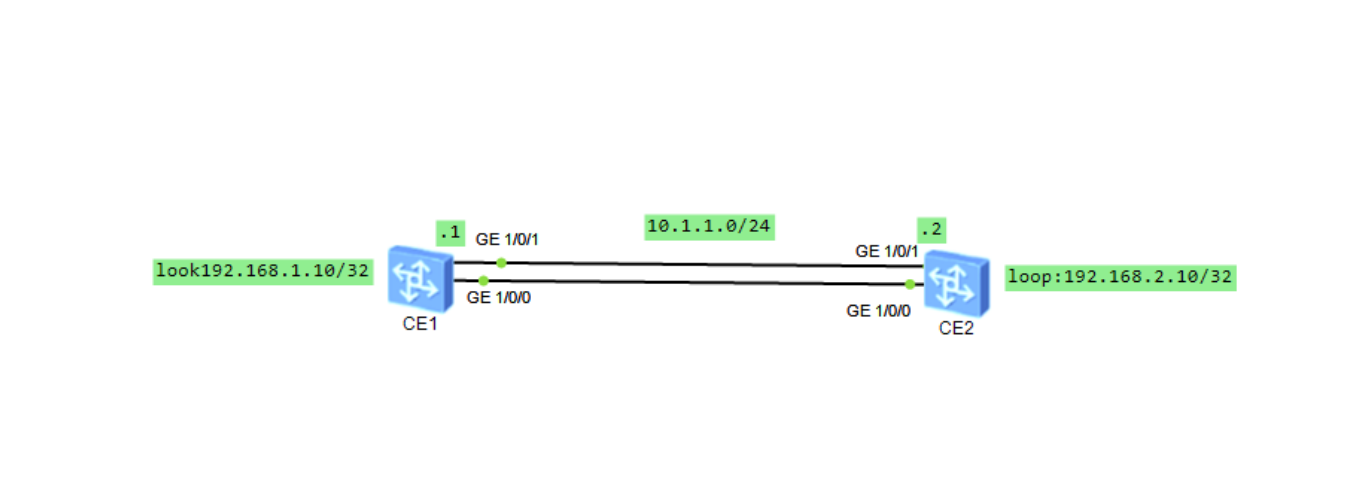

拓扑图

在这里插入图片描述

配置如下
CE1

<HUAWEI>system-view
Enter system view, return user view with return command.
[~HUAWEI]sysname CE1
[*HUAWEI]user-interface console 0
[*HUAWEI-ui-console0]idle-timeout 1440
[*HUAWEI-ui-console0]q
[*HUAWEI]int eth-trunk 1
[*HUAWEI-Eth-Trunk1]undo portswitch
[*HUAWEI-Eth-Trunk1]ip address 10.1.1.1 24
[*HUAWEI-Eth-Trunk1]q
[*HUAWEI]int g1/0/0
[*HUAWEI-GE1/0/0]undo shutdown
[*HUAWEI-GE1/0/0]eth-trunk 1
[*HUAWEI-GE1/0/0]int g1/0/1
[*HUAWEI-GE1/0/1]undo shutdown
[*HUAWEI-GE1/0/1]eth-trunk 1
[*HUAWEI-GE1/0/1]quit
[*HUAWEI]int loop 0
[*HUAWEI-LoopBack0]ip address 192.168.1.10 32
[*HUAWEI-LoopBack0]quit
[*HUAWEI]return
保存
<CE1>system-view
Enter system view, return user view with return command.
[~CE1]ip route-static 192.168.2.10 32 10.1.1.2
[*CE1]q
Warning: Uncommitted configurations found. Are you sure to commit them before ex
iting? [Y(yes)/N(no)/C(cancel)]:y
Warning: The current configuration will be written to the device. Continue? [Y/N
]:y
Now saving the current configuration to the slot 17
Info: Save the configuration successfully.
<CE1>system-view
Enter system view, return user view with return command.
[*CE1]ip route-static 192.168.2.100 32 10.1.1.2

CE2配置如下：

<HUAWEI>undo terminal monitor
Info: Current terminal monitor is off.
<HUAWEI>system-view
Enter system view, return user view with return command.
[~HUAWEI]user-interface console 0
[~HUAWEI-ui-console0]idle-timeout 1440
[*HUAWEI-ui-console0]sysname CE2
[*HUAWEI]int eth-trunk 1
[*HUAWEI-Eth-Trunk1]undo portswitch
[*HUAWEI-Eth-Trunk1]ip address 10.1.1.2 24
[*HUAWEI-Eth-Trunk1]q
[*HUAWEI]int g1/0/0
[*HUAWEI-GE1/0/0]undo shutdown
[*HUAWEI-GE1/0/0]eth-trunk 1
[*HUAWEI-GE1/0/0]int g1/0/1
[*HUAWEI-GE1/0/1]undo shutdown
[*HUAWEI-GE1/0/1]eth-trunk 1
[*HUAWEI-GE1/0/1]quit
[*HUAWEI]int loopback 0
[*HUAWEI-LoopBack0]ip address 192.168.2.100 24
[*HUAWEI-LoopBack0]quit
[*HUAWEI]return
Warning: Uncommitted configurations found. Are you sure to commit them before ex
iting? [Y(yes)/N(no)/C(cancel)]:y
<CE2>system-view
Enter system view, return user view with return command.
[~CE2]ip route-static 192.168.1.10 32 10.1.1.1
[*CE2]q
Warning: Uncommitted configurations found. Are you sure to commit them before ex
iting? [Y(yes)/N(no)/C(cancel)]:y

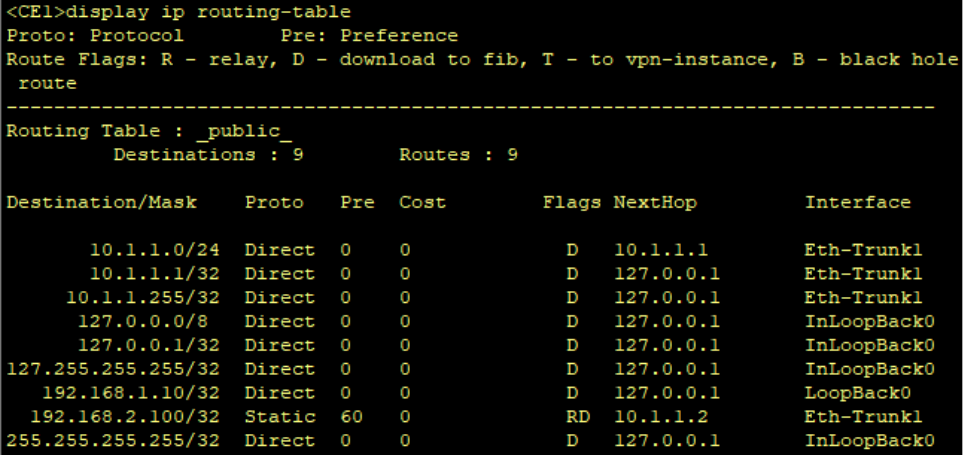

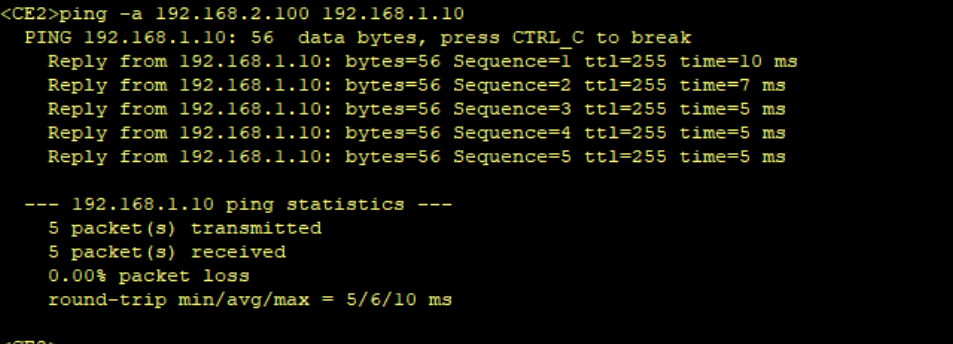

<CE2>
