基于FPGA的SDRAM控制器设计（1）

article/2025/10/26 11:53:06

基于FPGA的SDRAM初始化配置

  • SDRAM简述
  • SDRAM的引脚及作用
  • SDRAM初始化时序控制
  • SDRAM上电时序代码
  • SDRAM测试模块的代码
  • 仿真测试结果
  • 参考文献
  • 总结

SDRAM简述

SDRAM（ Synchronous Dynamic Random Access Memory），同步动态随机存储器。同步是指 Memory 工作需要同步时钟，内部的命令的发送与数据的传输都以它为基准；动态是指存储阵列需要不断的刷新来保证存储的数据不丢失，因为 SDRAM 中存储数据是通过电容来工作的，大家知道电容在自然放置状态是会有放电的，如果电放完了，也就意味着 SDRAM 中的数据丢失了，所以 SDRAM需要在电容的电量放完之前进行刷新；随机是指数据不是线性依次存储，而是自由指定地址进行数据的读写。

SDRAM作为FPGA处理吞吐量较大的数据时必须选择的存储器件，因为FPGA中存储空间有效。例如想存一张1080P的图片，单单靠FPGA本身的M9K或M18K是远远达不到的，所以我们要利用SDRAM作为缓存0。

要想确定这个存储单 元，只需要知道行地址（ row address）和列地址（ col address）与bank地址就可以
了，SDRAM总容量的计算公式如下：
SDRAM 容量 = 数据位宽 x 存储单元数量（行地址 x 列地址 x Bank 数）

SDRAM的引脚及作用

从技术手册中很容易发现，SDRAM的常见的引脚及作用：

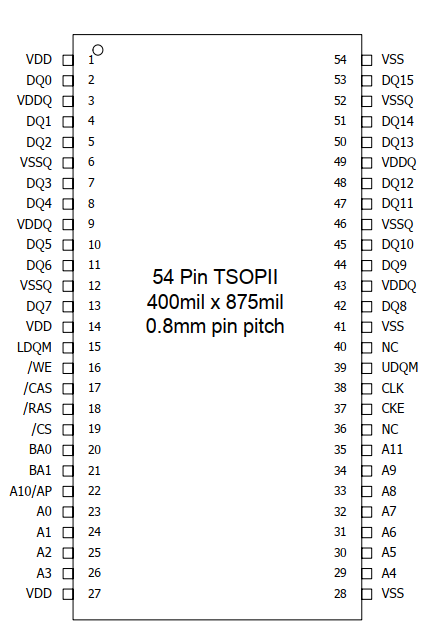

在这里插入图片描述

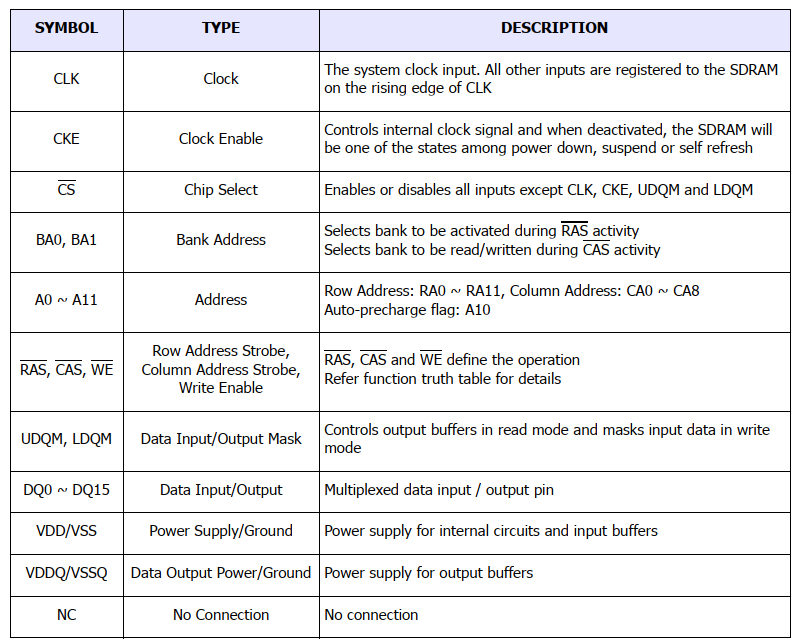

每个引脚的含义如下：

在这里插入图片描述
从上面我们很容易知道SDRAM的外设引脚及每个引脚的作用，这里如果还有不清出的地方可以去查找技术手册，SDRAM的技术手册比较简单。

SDRAM初始化时序控制

这里说明要写一个完整的SDRAM控制器需要五个模块，上电初始化模块、刷新模块、读模块、写模块、仲裁模块。首先能否独立写出SDRAM控制器是作为FPGA是否入门的一个很好的衡量措施。我们首先写SDRAM的初始化控制，这里查找技术手册可以知道，SDRAM上电初始化的空时时序如下：
在这里插入图片描述
这里提醒一定要注意A10，因为该信号可以选择对单个bank操作还是对所有bank操作，而且在后面的读写操作中该信号还有控制状态机跳转的作用。

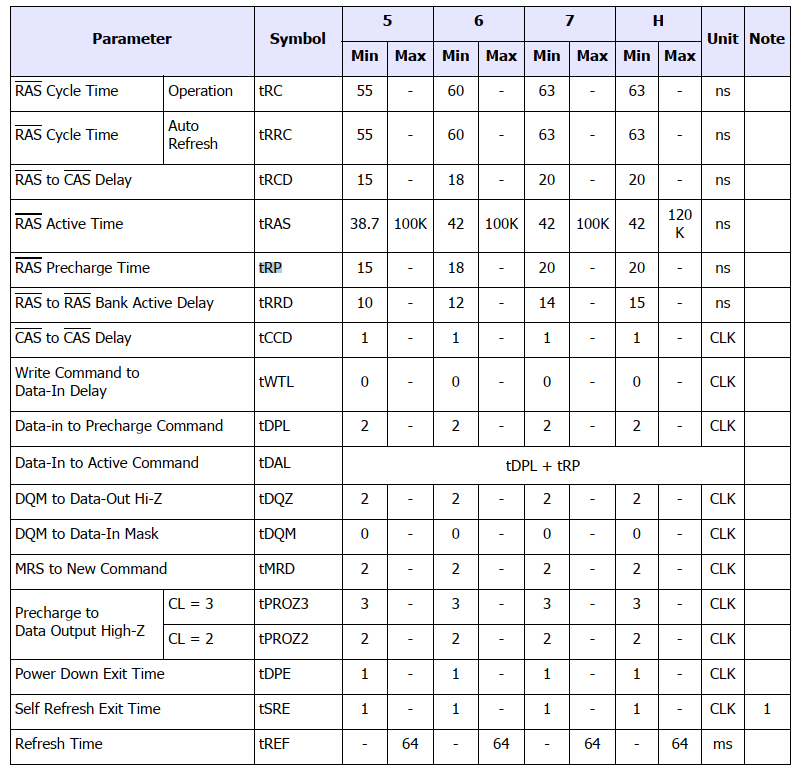

上面时间具体的值也可以查找技术手册：

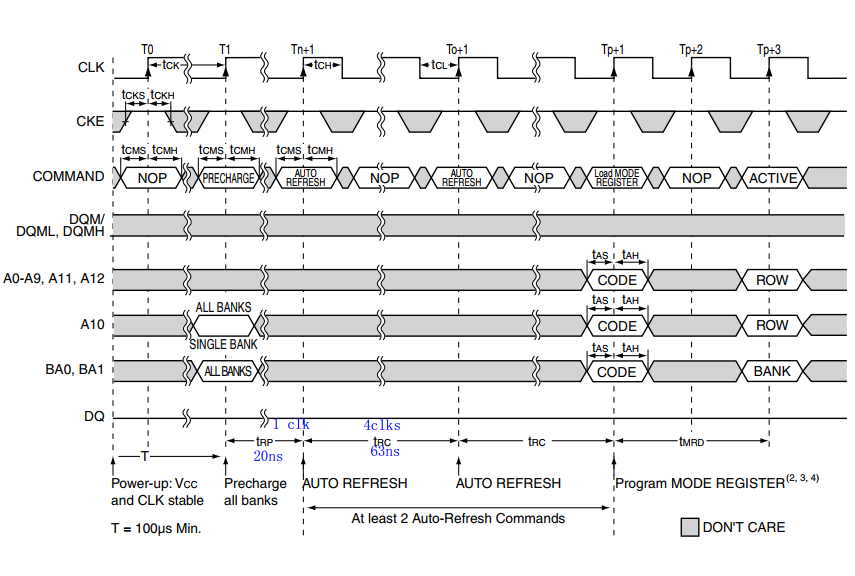

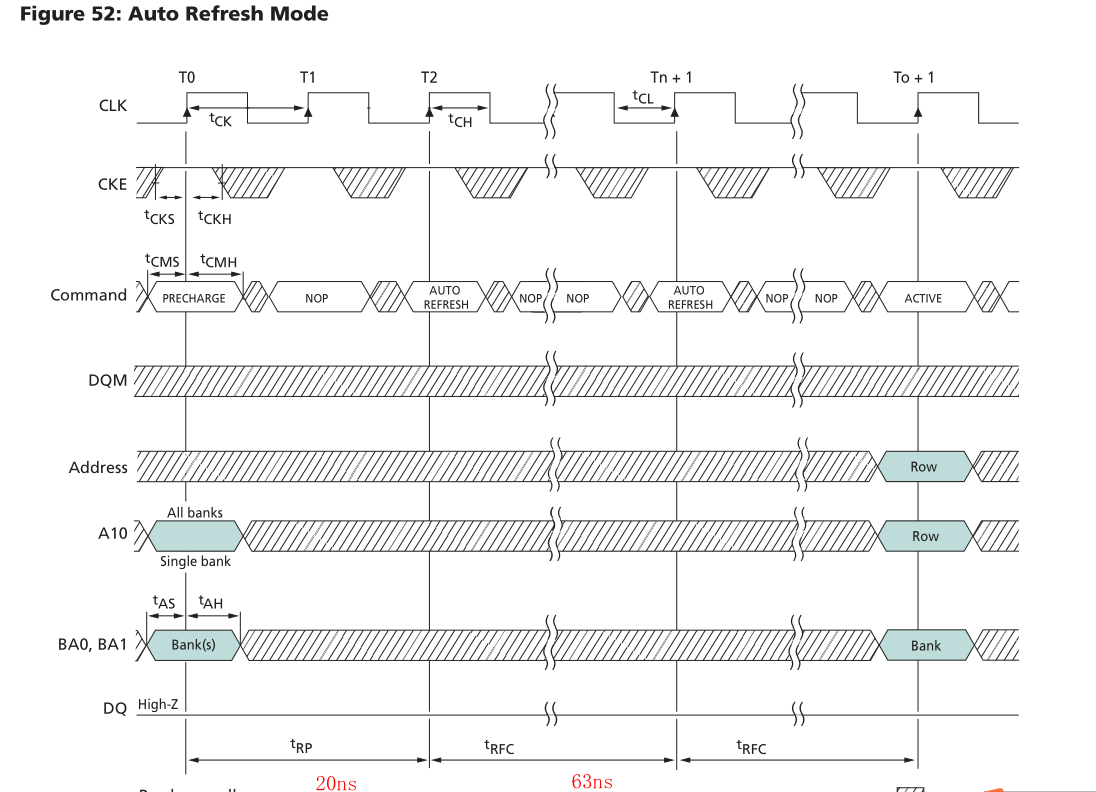

在这里插入图片描述
从图中我们可以看到COMMAND信号，该信号是由sdram的四个控制信号构成，即sdram_cs_n, sdram_ras_n, sdram_cas_n, sdram_we_n，具体每个命令的编码如下：
在这里插入图片描述
从上面的表格中，很容易解析出如下命令：

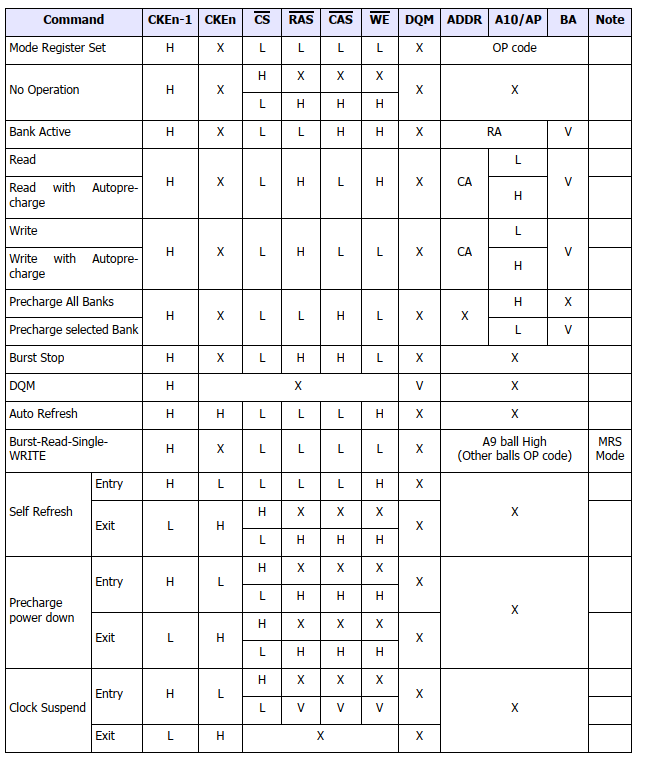

在这里插入图片描述
从SDRAM初始化的时序图中很容易想到利用线性序列机来写，也是很基础的逻辑代码。这里特别注意，在初始化的时候有一个状态是加载模式寄存器，模式寄存器的编码有特定的含义，这里我们从技术手册中找到，如下：

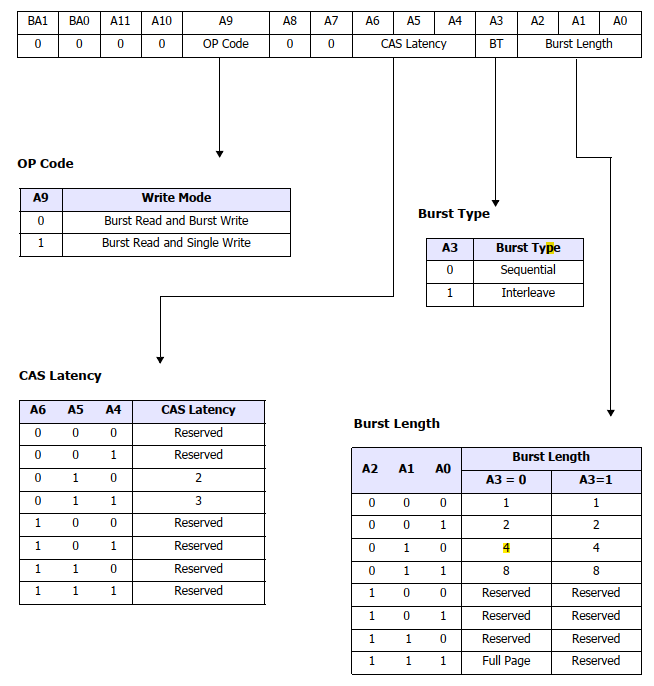

在这里插入图片描述
我们一般选择的模式是4突发，读数据3个时钟延时，Sequential模式，突发读写模式，具体的编码可以去程序中查找。

SDRAM上电时序代码

top模块的代码：

`timescale 1ns / 1ps
// *********************************************************************************
// Project Name : OSXXXX
// Author       : zhangningning
// Email        : nnzhang1996@foxmail.com
// Website      :
// Module Name  : sdram_top.v
// Create Time  : 2020-02-09 17:22:24
// Editor       : sublime text3, tab size (4)
// CopyRight(c) : All Rights Reserved
//
// *********************************************************************************
// Modification History:
// Date             By              Version                 Change Description
// -----------------------------------------------------------------------
// XXXX       zhangningning          1.0                        Original
//
// *********************************************************************************module sdram_top(//System Interfacesinput                   sclk            ,input                   rst_n           ,//SDRAM Interfacesoutput  wire            sdram_clk       ,output  wire            sdram_cke       ,output  wire            sdram_cs_n      ,output  wire            sdram_cas_n     ,output  wire            sdram_ras_n     ,output  wire            sdram_we_n      ,output  wire    [ 1:0]  sdram_bank      ,output  wire    [11:0]  sdram_addr      ,output  wire    [ 1:0]  sdram_dqm       ,inout           [15:0]  sdram_dq
);//========================================================================================\
//**************Define Parameter and  Internal Signals**********************************
//========================================================================================/
//sdram_init
wire                [ 3:0]  init_cmd        ;
wire                [11:0]  init_addr       ;
wire                        init_done       ;//========================================================================================\
//**************     Main      Code        **********************************
//========================================================================================/
assign      sdram_dqm       =       2'b00;
assign      sdram_clk       =       ~sclk;
assign      {sdram_cs_n, sdram_ras_n, sdram_cas_n, sdram_we_n}      =       init_cmd;
assign      sdram_addr      =       init_addr;
assign      sdram_cke       =       1'b1;
assign      sdram_bank      =       2'b00;sdram_init sdram_init_inst(//System Interfaces.sclk                   (sclk                   ),.rst_n                  (rst_n                  ),//SDRAM Interfaces.sdram_cmd              (init_cmd               ),.sdram_addr             (init_addr              ),//Others.init_done              (init_done              )
);endmodule

SDRAM上电初始化的代码：

`timescale 1ns / 1ps
// *********************************************************************************
// Project Name : OSXXXX
// Author       : zhangningning
// Email        : nnzhang1996@foxmail.com
// Website      :
// Module Name  : sdram_init.v
// Create Time  : 2020-02-09 16:20:31
// Editor       : sublime text3, tab size (4)
// CopyRight(c) : All Rights Reserved
//
// *********************************************************************************
// Modification History:
// Date             By              Version                 Change Description
// -----------------------------------------------------------------------
// XXXX       zhangningning          1.0                        Original
//
// *********************************************************************************module sdram_init(//System Interfacesinput                   sclk            ,input                   rst_n           ,//SDRAM Interfacesoutput  reg     [ 3:0]  sdram_cmd       ,output  reg     [11:0]  sdram_addr      ,//Othersoutput  reg             init_done
);//========================================================================================\
//**************Define Parameter and  Internal Signals**********************************
//========================================================================================/
localparam  DELAY_200US =  20000           ;
//SDRAM Command
localparam  NOP         =  4'b0111          ;
localparam  PRE         =  4'b0010          ;
localparam  AREF        =  4'b0001          ;
localparam  MSET        =  4'b0000          ;reg                 [14:0]  cnt_200us       ;
reg                         flag_200us      ;
reg                 [ 4:0]  cnt_cmd         ;//========================================================================================\
//**************     Main      Code        **********************************
//========================================================================================/
always @(posedge sclk or negedge rst_n)if(rst_n == 1'b0)cnt_200us       <=      11'd0;else if(flag_200us == 1'b0)cnt_200us       <=      cnt_200us + 1'b1;elsecnt_200us       <=      cnt_200us;always @(posedge sclk or negedge rst_n)if(rst_n == 1'b0)flag_200us      <=      1'b0;else if(cnt_200us >= DELAY_200US) flag_200us      <=      1'b1;elseflag_200us      <=      flag_200us;always @(posedge sclk or negedge rst_n)if(rst_n == 1'b0)cnt_cmd         <=      5'd0;else if(flag_200us == 1'b1 && cnt_cmd <= 5'd19)cnt_cmd         <=      cnt_cmd + 1'b1;else cnt_cmd         <=      cnt_cmd;always @(posedge sclk or negedge rst_n)if(rst_n == 1'b0)sdram_cmd       <=      NOP;else case(cnt_cmd)1       :   sdram_cmd       <=      PRE;3       :   sdram_cmd       <=      AREF;11      :   sdram_cmd       <=      AREF;19      :   sdram_cmd       <=      MSET;default :   sdram_cmd       <=      NOP;endcasealways @(posedge sclk or negedge rst_n)if(rst_n == 1'b0)sdram_addr      <=      12'b0100_0000_0000;else if(cnt_cmd == 5'd19) sdram_addr      <=      12'b0000_0011_0010;elsesdram_addr      <=      12'b0100_0000_0000;always @(posedge sclk or negedge rst_n)if(rst_n == 1'b0)init_done       <=      1'b0; else if(cnt_cmd > 5'd19) init_done       <=      1'b1;elseinit_done       <=      init_done;endmodule

从上面的代码中不难发现，其实SDRAM的上电初始化代码就是一个线性序列机。

SDRAM测试模块的代码

SDRAM的测试要有仿真模型文件，但是我感觉这个仿真模型的文件在读操作、4突发操作的情况下第4个数据持续时间短，但是现在没把板子带回家没办法验证，但是很容易规避这个问题，就是读出的数据使用SDRAM的时钟来锁存，这个问题等我们到SDRAM读操作的时候具体描述。仿真的顶层测试文件如下：

`timescale 1ns / 1ps
`define CLOCK    10
// *********************************************************************************
// Project Name : OSXXXX
// Author       : zhangningning
// Email        : nnzhang1996@foxmail.com
// Website      :
// Module Name  : sdram_init_tb.v
// Create Time  : 2020-02-09 17:10:08
// Editor       : sublime text3, tab size (4)
// CopyRight(c) : All Rights Reserved
//
// *********************************************************************************
// Modification History:
// Date             By              Version                 Change Description
// -----------------------------------------------------------------------
// XXXX       zhangningning          1.0                        Original
//
// *********************************************************************************module sdram_init_tb;
reg                         sclk            ;
reg                         rst_n           ;
wire                        sdram_clk       ;
wire                        sdram_cke       ;
wire                        sdram_cs_n      ;
wire                        sdram_cas_n     ;
wire                        sdram_ras_n     ;
wire                        sdram_we_n      ;
wire    [ 1:0]              sdram_bank      ;
wire    [11:0]              sdram_addr      ;
wire    [ 1:0]              sdram_dqm       ;
wire    [15:0]              sdram_dq        ;initial beginsclk        =       1'b0;rst_n       <=      1'b0;#(100*`CLOCK);rst_n       <=      1'b1;
end
always  #(`CLOCK/2)     sclk        =       ~sclk;  sdram_top sdram_top_inst(//System Interfaces.sclk                   (sclk                   ),.rst_n                  (rst_n                  ),//SDRAM Interfaces.sdram_clk              (sdram_clk              ),.sdram_cke              (sdram_cke              ),.sdram_cs_n             (sdram_cs_n             ),.sdram_cas_n            (sdram_cas_n            ),.sdram_ras_n            (sdram_ras_n            ),.sdram_we_n             (sdram_we_n             ),.sdram_bank             (sdram_bank             ),.sdram_addr             (sdram_addr             ),.sdram_dqm              (sdram_dqm              ),.sdram_dq               (sdram_dq               )
);defparam        sdram_model_plus_inst.addr_bits =       12;
defparam        sdram_model_plus_inst.data_bits =       16;
defparam        sdram_model_plus_inst.col_bits  =       9;
defparam        sdram_model_plus_inst.mem_sizes =       2*1024*1024;            // 2Msdram_model_plus sdram_model_plus_inst(.Dq                     (sdram_dq               ), .Addr                   (sdram_addr             ), .Ba                     (sdram_bank             ), .Clk                    (sdram_clk              ), .Cke                    (sdram_cke              ), .Cs_n                   (sdram_cs_n             ), .Ras_n                  (sdram_ras_n            ), .Cas_n                  (sdram_cas_n            ), .We_n                   (sdram_we_n             ), .Dqm                    (sdram_dqm              ),.Debug                  (1'b1                   )
);endmodule

SDRAM的仿真模型文件如下：

/***************************************************************************************
作者：	李晟
2003-08-27	V0.1	李晟 添加内存模块倒空功能，在外部需要创建事件：sdram_r ,本SDRAM的内容将会按Bank 顺序damp out 至文件sdram_data.txt 中
×××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××××*/
//2004-03-04	陈乃奎	修改原程序中将BANK的数据转存入TXT文件的格式
//2004-03-16	陈乃奎	修改SDRAM 的初始化数据
//2004/04/06	陈乃奎	将SDRAM的操作命令以字符形式表示，以便用MODELSIM监视
//2004/04/19	陈乃奎	修改参数 parameter tAC  =   8;
//2010/09/17	罗瑶	修改sdram的大小，数据位宽，dqm宽度;
/****************************************************************************************
*
*    File Name:  sdram_model.V
*      Version:  0.0f
*         Date:  July 8th, 1999
*        Model:  BUS Functional
*    Simulator:  Model Technology (PC version 5.2e PE)
*
* Dependencies:  None
*
*       Author:  Son P. Huynh
*        Email:  sphuynh@micron.com
*        Phone:  (208) 368-3825
*      Company:  Micron Technology, Inc.
*        Model:  sdram_model (1Meg x 16 x 4 Banks)
*
*  Description:  64Mb SDRAM Verilog model
*
*   Limitation:  - Doesn't check for 4096 cycle refresh
*
*         Note:  - Set simulator resolution to "ps" accuracy
*                - Set Debug = 0 to disable $display messages
*
*   Disclaimer:  THESE DESIGNS ARE PROVIDED "AS IS" WITH NO WARRANTY
*                WHATSOEVER AND MICRON SPECIFICALLY DISCLAIMS ANY
*                IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR
*                A PARTICULAR PURPOSE, OR AGAINST INFRINGEMENT.
*
*                Copyright ?1998 Micron Semiconductor Products, Inc.
*                All rights researved
*
* Rev   Author          Phone         Date        Changes
* ----  ----------------------------  ----------  ---------------------------------------
* 0.0f  Son Huynh       208-368-3825  07/08/1999  - Fix tWR = 1 Clk + 7.5 ns (Auto)
*       Micron Technology Inc.                    - Fix tWR = 15 ns (Manual)
*                                                 - Fix tRP (Autoprecharge to AutoRefresh)
*
* 0.0a  Son Huynh       208-368-3825  05/13/1998  - First Release (from 64Mb rev 0.0e)
*       Micron Technology Inc.
****************************************************************************************/`timescale 1ns / 100psmodule sdram_model_plus (Dq, Addr, Ba, Clk, Cke, Cs_n, Ras_n, Cas_n, We_n, Dqm,Debug);parameter addr_bits =	11;parameter data_bits = 	32;parameter col_bits  =	8;parameter mem_sizes =	1048576*2-1;//1 Meg inout     [data_bits - 1 : 0] Dq;input     [addr_bits - 1 : 0] Addr;input                 [1 : 0] Ba;input                         Clk;input                         Cke;input                         Cs_n;input                         Ras_n;input                         Cas_n;input                         We_n;input                 [3 : 0] Dqm;          //高低各8bit//added by xzliinput			  Debug;reg       [data_bits - 1 : 0] Bank0 [0 : mem_sizes];//存储器类型数据reg       [data_bits - 1 : 0] Bank1 [0 : mem_sizes];reg       [data_bits - 1 : 0] Bank2 [0 : mem_sizes];reg       [data_bits - 1 : 0] Bank3 [0 : mem_sizes];reg                   [1 : 0] Bank_addr [0 : 3];                // Bank Address Pipelinereg        [col_bits - 1 : 0] Col_addr [0 : 3];                 // Column Address Pipelinereg                   [3 : 0] Command [0 : 3];                  // Command Operation Pipelinereg                   [3 : 0] Dqm_reg0, Dqm_reg1;               // DQM Operation Pipelinereg       [addr_bits - 1 : 0] B0_row_addr, B1_row_addr, B2_row_addr, B3_row_addr;reg       [addr_bits - 1 : 0] Mode_reg;reg       [data_bits - 1 : 0] Dq_reg, Dq_dqm;reg       [col_bits - 1 : 0] Col_temp, Burst_counter;reg                           Act_b0, Act_b1, Act_b2, Act_b3;   // Bank Activatereg                           Pc_b0, Pc_b1, Pc_b2, Pc_b3;       // Bank Prechargereg                   [1 : 0] Bank_precharge     [0 : 3];       // Precharge Commandreg                           A10_precharge      [0 : 3];       // Addr[10] = 1 (All banks)reg                           Auto_precharge     [0 : 3];       // RW AutoPrecharge (Bank)reg                           Read_precharge     [0 : 3];       // R  AutoPrechargereg                           Write_precharge    [0 : 3];       //  W AutoPrechargeinteger                       Count_precharge    [0 : 3];       // RW AutoPrecharge (Counter)reg                           RW_interrupt_read  [0 : 3];       // RW Interrupt Read with Auto Prechargereg                           RW_interrupt_write [0 : 3];       // RW Interrupt Write with Auto Prechargereg                           Data_in_enable;reg                           Data_out_enable;reg                   [1 : 0] Bank, Previous_bank;reg       [addr_bits - 1 : 0] Row;reg        [col_bits - 1 : 0] Col, Col_brst;// Internal system clockreg                           CkeZ, Sys_clk;reg	[21:0]	dd;// Commands Decodewire      Active_enable    = ~Cs_n & ~Ras_n &  Cas_n &  We_n;wire      Aref_enable      = ~Cs_n & ~Ras_n & ~Cas_n &  We_n;wire      Burst_term       = ~Cs_n &  Ras_n &  Cas_n & ~We_n;wire      Mode_reg_enable  = ~Cs_n & ~Ras_n & ~Cas_n & ~We_n;wire      Prech_enable     = ~Cs_n & ~Ras_n &  Cas_n & ~We_n;wire      Read_enable      = ~Cs_n &  Ras_n & ~Cas_n &  We_n;wire      Write_enable     = ~Cs_n &  Ras_n & ~Cas_n & ~We_n;// Burst Length Decodewire      Burst_length_1   = ~Mode_reg[2] & ~Mode_reg[1] & ~Mode_reg[0];wire      Burst_length_2   = ~Mode_reg[2] & ~Mode_reg[1] &  Mode_reg[0];wire      Burst_length_4   = ~Mode_reg[2] &  Mode_reg[1] & ~Mode_reg[0];wire      Burst_length_8   = ~Mode_reg[2] &  Mode_reg[1] &  Mode_reg[0];// CAS Latency Decodewire      Cas_latency_2    = ~Mode_reg[6] &  Mode_reg[5] & ~Mode_reg[4];wire      Cas_latency_3    = ~Mode_reg[6] &  Mode_reg[5] &  Mode_reg[4];// Write Burst Modewire      Write_burst_mode = Mode_reg[9];wire      Debug;		// Debug messages : 1 = On; 0 = Offwire      Dq_chk           = Sys_clk & Data_in_enable;      // Check setup/hold time for DQreg		[31:0]	mem_d;event	sdram_r,sdram_w,compare;assign    Dq               = Dq_reg;                        // DQ buffer// Commands Operation`define   ACT       0`define   NOP       1`define   READ      2`define   READ_A    3`define   WRITE     4`define   WRITE_A   5`define   PRECH     6`define   A_REF     7`define   BST       8`define   LMR       9//    // Timing Parameters for -75 (PC133) and CAS Latency = 2
//    parameter tAC  =   8;	//test 6.5
//    parameter tHZ  =   7.0;
//    parameter tOH  =   2.7;
//    parameter tMRD =   2.0;     // 2 Clk Cycles
//    parameter tRAS =  44.0;
//    parameter tRC  =  66.0;
//    parameter tRCD =  20.0;
//    parameter tRP  =  20.0;
//    parameter tRRD =  15.0;
//    parameter tWRa =   7.5;     // A2 Version - Auto precharge mode only (1 Clk + 7.5 ns)
//    parameter tWRp =  0.0;     // A2 Version - Precharge mode only (15 ns)// Timing Parameters for -7 (PC143) and CAS Latency = 3parameter tAC  =   6.5;	//test 6.5parameter tHZ  =   5.5;parameter tOH  =   2;parameter tMRD =   2.0;     // 2 Clk Cyclesparameter tRAS =  48.0;parameter tRC  =  70.0;parameter tRCD =  20.0;parameter tRP  =  20.0;parameter tRRD =  14.0;parameter tWRa =   7.5;     // A2 Version - Auto precharge mode only (1 Clk + 7.5 ns)parameter tWRp =  0.0;     // A2 Version - Precharge mode only (15 ns)// Timing Check variableinteger   MRD_chk;integer   WR_counter [0 : 3];time      WR_chk [0 : 3];time      RC_chk, RRD_chk;time      RAS_chk0, RAS_chk1, RAS_chk2, RAS_chk3;time      RCD_chk0, RCD_chk1, RCD_chk2, RCD_chk3;time      RP_chk0, RP_chk1, RP_chk2, RP_chk3;integer	test_file;//*****display the command of the sdram**************************************parameter	Mode_Reg_Set	=4'b0000;parameter	Auto_Refresh	=4'b0001;parameter	Row_Active	=4'b0011;parameter	Pre_Charge	=4'b0010;parameter	PreCharge_All	=4'b0010;parameter	Write		=4'b0100;parameter	Write_Pre	=4'b0100;parameter	Read		=4'b0101;parameter	Read_Pre	=4'b0101;parameter	Burst_Stop	=4'b0110;parameter	Nop		=4'b0111;parameter	Dsel		=4'b1111;wire	[3:0]	sdram_control;reg			cke_temp;reg		[8*13:1]	sdram_command;always@(posedge Clk)cke_temp<=Cke;assign	sdram_control={Cs_n,Ras_n,Cas_n,We_n};always@(sdram_control or cke_temp)begincase(sdram_control)Mode_Reg_Set:	sdram_command<="Mode_Reg_Set";Auto_Refresh:	sdram_command<="Auto_Refresh";Row_Active:	sdram_command<="Row_Active";Pre_Charge:	sdram_command<="Pre_Charge";Burst_Stop:	sdram_command<="Burst_Stop";Dsel:		sdram_command<="Dsel";Write:		if(cke_temp==1)sdram_command<="Write";elsesdram_command<="Write_suspend";Read:		if(cke_temp==1)sdram_command<="Read";elsesdram_command<="Read_suspend";Nop:		if(cke_temp==1)sdram_command<="Nop";elsesdram_command<="Self_refresh";default:	sdram_command<="Power_down";endcaseend//*****************************************************initial begin//test_file=$fopen("test_file.txt");endinitial beginDq_reg = {data_bits{1'bz}};{Data_in_enable, Data_out_enable} = 0;{Act_b0, Act_b1, Act_b2, Act_b3} = 4'b0000;{Pc_b0, Pc_b1, Pc_b2, Pc_b3} = 4'b0000;{WR_chk[0], WR_chk[1], WR_chk[2], WR_chk[3]} = 0;{WR_counter[0], WR_counter[1], WR_counter[2], WR_counter[3]} = 0;{RW_interrupt_read[0], RW_interrupt_read[1], RW_interrupt_read[2], RW_interrupt_read[3]} = 0;{RW_interrupt_write[0], RW_interrupt_write[1], RW_interrupt_write[2], RW_interrupt_write[3]} = 0;{MRD_chk, RC_chk, RRD_chk} = 0;{RAS_chk0, RAS_chk1, RAS_chk2, RAS_chk3} = 0;{RCD_chk0, RCD_chk1, RCD_chk2, RCD_chk3} = 0;{RP_chk0, RP_chk1, RP_chk2, RP_chk3} = 0;$timeformat (-9, 0, " ns", 12);//$readmemh("bank0.txt", Bank0);//$readmemh("bank1.txt", Bank1);//$readmemh("bank2.txt", Bank2);//$readmemh("bank3.txt", Bank3);
/*  	for(dd=0;dd<=mem_sizes;dd=dd+1)beginBank0[dd]=dd[data_bits - 1 : 0];Bank1[dd]=dd[data_bits - 1 : 0]+1;Bank2[dd]=dd[data_bits - 1 : 0]+2;Bank3[dd]=dd[data_bits - 1 : 0]+3;end
*/        	initial_sdram(0);endtask	initial_sdram; input		data_sign;reg	[3:0]	data_sign;for(dd=0;dd<=mem_sizes;dd=dd+1)beginmem_d = {data_sign,data_sign,data_sign,data_sign,data_sign,data_sign,data_sign,data_sign};if(data_bits==16)beginBank0[dd]=mem_d[15:0];Bank1[dd]=mem_d[15:0];Bank2[dd]=mem_d[15:0];Bank3[dd]=mem_d[15:0];endelse if(data_bits==32)beginBank0[dd]=mem_d[31:0];Bank1[dd]=mem_d[31:0];Bank2[dd]=mem_d[31:0];Bank3[dd]=mem_d[31:0];endend	endtask// System clock generatoralwaysbegin@(posedge Clk)beginSys_clk = CkeZ;CkeZ = Cke;end@(negedge Clk) beginSys_clk = 1'b0;endendalways @ (posedge Sys_clk) begin// Internal Commamd PipelinedCommand[0] = Command[1];Command[1] = Command[2];Command[2] = Command[3];Command[3] = `NOP;Col_addr[0] = Col_addr[1];Col_addr[1] = Col_addr[2];Col_addr[2] = Col_addr[3];Col_addr[3] = {col_bits{1'b0}};Bank_addr[0] = Bank_addr[1];Bank_addr[1] = Bank_addr[2];Bank_addr[2] = Bank_addr[3];Bank_addr[3] = 2'b0;Bank_precharge[0] = Bank_precharge[1];Bank_precharge[1] = Bank_precharge[2];Bank_precharge[2] = Bank_precharge[3];Bank_precharge[3] = 2'b0;A10_precharge[0] = A10_precharge[1];A10_precharge[1] = A10_precharge[2];A10_precharge[2] = A10_precharge[3];A10_precharge[3] = 1'b0;// Dqm pipeline for ReadDqm_reg0 = Dqm_reg1;Dqm_reg1 = Dqm;// Read or Write with Auto Precharge Counterif (Auto_precharge[0] == 1'b1) beginCount_precharge[0] = Count_precharge[0] + 1;endif (Auto_precharge[1] == 1'b1) beginCount_precharge[1] = Count_precharge[1] + 1;endif (Auto_precharge[2] == 1'b1) beginCount_precharge[2] = Count_precharge[2] + 1;endif (Auto_precharge[3] == 1'b1) beginCount_precharge[3] = Count_precharge[3] + 1;end// tMRD CounterMRD_chk = MRD_chk + 1;// tWR Counter for WriteWR_counter[0] = WR_counter[0] + 1;WR_counter[1] = WR_counter[1] + 1;WR_counter[2] = WR_counter[2] + 1;WR_counter[3] = WR_counter[3] + 1;// Auto Refreshif (Aref_enable == 1'b1) beginif (Debug) $display ("at time %t AREF : Auto Refresh", $time);// Auto Refresh to Auto Refreshif (($time - RC_chk < tRC)&&Debug) begin$display ("at time %t ERROR: tRC violation during Auto Refresh", $time);end// Precharge to Auto Refreshif (($time - RP_chk0 < tRP || $time - RP_chk1 < tRP || $time - RP_chk2 < tRP || $time - RP_chk3 < tRP)&&Debug) begin$display ("at time %t ERROR: tRP violation during Auto Refresh", $time);end// Precharge to Refreshif (Pc_b0 == 1'b0 || Pc_b1 == 1'b0 || Pc_b2 == 1'b0 || Pc_b3 == 1'b0) begin$display ("at time %t ERROR: All banks must be Precharge before Auto Refresh", $time);end// Record Current tRC timeRC_chk = $time;end// Load Mode Registerif (Mode_reg_enable == 1'b1) begin// Decode CAS Latency, Burst Length, Burst Type, and Write Burst Modeif (Pc_b0 == 1'b1 && Pc_b1 == 1'b1 && Pc_b2 == 1'b1 && Pc_b3 == 1'b1) beginMode_reg = Addr;if (Debug) begin$display ("at time %t LMR  : Load Mode Register", $time);// CAS Latencyif (Addr[6 : 4] == 3'b010)$display ("                            CAS Latency      = 2");else if (Addr[6 : 4] == 3'b011)$display ("                            CAS Latency      = 3");else$display ("                            CAS Latency      = Reserved");// Burst Lengthif (Addr[2 : 0] == 3'b000)$display ("                            Burst Length     = 1");else if (Addr[2 : 0] == 3'b001)$display ("                            Burst Length     = 2");else if (Addr[2 : 0] == 3'b010)$display ("                            Burst Length     = 4");else if (Addr[2 : 0] == 3'b011)$display ("                            Burst Length     = 8");else if (Addr[3 : 0] == 4'b0111)$display ("                            Burst Length     = Full");else$display ("                            Burst Length     = Reserved");// Burst Typeif (Addr[3] == 1'b0)$display ("                            Burst Type       = Sequential");else if (Addr[3] == 1'b1)$display ("                            Burst Type       = Interleaved");else$display ("                            Burst Type       = Reserved");// Write Burst Modeif (Addr[9] == 1'b0)$display ("                            Write Burst Mode = Programmed Burst Length");else if (Addr[9] == 1'b1)$display ("                            Write Burst Mode = Single Location Access");else$display ("                            Write Burst Mode = Reserved");endend else begin$display ("at time %t ERROR: all banks must be Precharge before Load Mode Register", $time);end// REF to LMRif ($time - RC_chk < tRC) begin$display ("at time %t ERROR: tRC violation during Load Mode Register", $time);end// LMR to LMRif (MRD_chk < tMRD) begin$display ("at time %t ERROR: tMRD violation during Load Mode Register", $time);endMRD_chk = 0;end// Active Block (Latch Bank Address and Row Address)if (Active_enable == 1'b1) beginif (Ba == 2'b00 && Pc_b0 == 1'b1) begin{Act_b0, Pc_b0} = 2'b10;B0_row_addr = Addr [addr_bits - 1 : 0];RCD_chk0 = $time;RAS_chk0 = $time;if (Debug) $display ("at time %t ACT  : Bank = 0 Row = %d", $time, Addr);// Precharge to Activate Bank 0if ($time - RP_chk0 < tRP) begin$display ("at time %t ERROR: tRP violation during Activate bank 0", $time);endend else if (Ba == 2'b01 && Pc_b1 == 1'b1) begin{Act_b1, Pc_b1} = 2'b10;B1_row_addr = Addr [addr_bits - 1 : 0];RCD_chk1 = $time;RAS_chk1 = $time;if (Debug) $display ("at time %t ACT  : Bank = 1 Row = %d", $time, Addr);// Precharge to Activate Bank 1if ($time - RP_chk1 < tRP) begin$display ("at time %t ERROR: tRP violation during Activate bank 1", $time);endend else if (Ba == 2'b10 && Pc_b2 == 1'b1) begin{Act_b2, Pc_b2} = 2'b10;B2_row_addr = Addr [addr_bits - 1 : 0];RCD_chk2 = $time;RAS_chk2 = $time;if (Debug) $display ("at time %t ACT  : Bank = 2 Row = %d", $time, Addr);// Precharge to Activate Bank 2if ($time - RP_chk2 < tRP) begin$display ("at time %t ERROR: tRP violation during Activate bank 2", $time);endend else if (Ba == 2'b11 && Pc_b3 == 1'b1) begin{Act_b3, Pc_b3} = 2'b10;B3_row_addr = Addr [addr_bits - 1 : 0];RCD_chk3 = $time;RAS_chk3 = $time;if (Debug) $display ("at time %t ACT  : Bank = 3 Row = %d", $time, Addr);// Precharge to Activate Bank 3if ($time - RP_chk3 < tRP) begin$display ("at time %t ERROR: tRP violation during Activate bank 3", $time);endend else if (Ba == 2'b00 && Pc_b0 == 1'b0) begin$display ("at time %t ERROR: Bank 0 is not Precharged.", $time);end else if (Ba == 2'b01 && Pc_b1 == 1'b0) begin$display ("at time %t ERROR: Bank 1 is not Precharged.", $time);end else if (Ba == 2'b10 && Pc_b2 == 1'b0) begin$display ("at time %t ERROR: Bank 2 is not Precharged.", $time);end else if (Ba == 2'b11 && Pc_b3 == 1'b0) begin$display ("at time %t ERROR: Bank 3 is not Precharged.", $time);end// Active Bank A to Active Bank Bif ((Previous_bank != Ba) && ($time - RRD_chk < tRRD)) begin$display ("at time %t ERROR: tRRD violation during Activate bank = %d", $time, Ba);end// Load Mode Register to Activeif (MRD_chk < tMRD ) begin$display ("at time %t ERROR: tMRD violation during Activate bank = %d", $time, Ba);end// Auto Refresh to Activateif (($time - RC_chk < tRC)&&Debug) begin$display ("at time %t ERROR: tRC violation during Activate bank = %d", $time, Ba);end// Record variables for checking violationRRD_chk = $time;Previous_bank = Ba;end// Precharge Blockif (Prech_enable == 1'b1) beginif (Addr[10] == 1'b1) begin{Pc_b0, Pc_b1, Pc_b2, Pc_b3} = 4'b1111;{Act_b0, Act_b1, Act_b2, Act_b3} = 4'b0000;RP_chk0 = $time;RP_chk1 = $time;RP_chk2 = $time;RP_chk3 = $time;if (Debug) $display ("at time %t PRE  : Bank = ALL",$time);// Activate to Precharge all banksif (($time - RAS_chk0 < tRAS) || ($time - RAS_chk1 < tRAS) ||($time - RAS_chk2 < tRAS) || ($time - RAS_chk3 < tRAS)) begin$display ("at time %t ERROR: tRAS violation during Precharge all bank", $time);end// tWR violation check for writeif (($time - WR_chk[0] < tWRp) || ($time - WR_chk[1] < tWRp) ||($time - WR_chk[2] < tWRp) || ($time - WR_chk[3] < tWRp)) begin$display ("at time %t ERROR: tWR violation during Precharge all bank", $time);endend else if (Addr[10] == 1'b0) beginif (Ba == 2'b00) begin{Pc_b0, Act_b0} = 2'b10;RP_chk0 = $time;if (Debug) $display ("at time %t PRE  : Bank = 0",$time);// Activate to Precharge Bank 0if ($time - RAS_chk0 < tRAS) begin$display ("at time %t ERROR: tRAS violation during Precharge bank 0", $time);endend else if (Ba == 2'b01) begin{Pc_b1, Act_b1} = 2'b10;RP_chk1 = $time;if (Debug) $display ("at time %t PRE  : Bank = 1",$time);// Activate to Precharge Bank 1if ($time - RAS_chk1 < tRAS) begin$display ("at time %t ERROR: tRAS violation during Precharge bank 1", $time);endend else if (Ba == 2'b10) begin{Pc_b2, Act_b2} = 2'b10;RP_chk2 = $time;if (Debug) $display ("at time %t PRE  : Bank = 2",$time);// Activate to Precharge Bank 2if ($time - RAS_chk2 < tRAS) begin$display ("at time %t ERROR: tRAS violation during Precharge bank 2", $time);endend else if (Ba == 2'b11) begin{Pc_b3, Act_b3} = 2'b10;RP_chk3 = $time;if (Debug) $display ("at time %t PRE  : Bank = 3",$time);// Activate to Precharge Bank 3if ($time - RAS_chk3 < tRAS) begin$display ("at time %t ERROR: tRAS violation during Precharge bank 3", $time);endend// tWR violation check for writeif ($time - WR_chk[Ba] < tWRp) begin$display ("at time %t ERROR: tWR violation during Precharge bank %d", $time, Ba);endend// Terminate a Write Immediately (if same bank or all banks)if (Data_in_enable == 1'b1 && (Bank == Ba || Addr[10] == 1'b1)) beginData_in_enable = 1'b0;end// Precharge Command Pipeline for Readif (Cas_latency_3 == 1'b1) beginCommand[2] = `PRECH;Bank_precharge[2] = Ba;A10_precharge[2] = Addr[10];end else if (Cas_latency_2 == 1'b1) beginCommand[1] = `PRECH;Bank_precharge[1] = Ba;A10_precharge[1] = Addr[10];endend// Burst terminateif (Burst_term == 1'b1) begin// Terminate a Write Immediatelyif (Data_in_enable == 1'b1) beginData_in_enable = 1'b0;end// Terminate a Read Depend on CAS Latencyif (Cas_latency_3 == 1'b1) beginCommand[2] = `BST;end else if (Cas_latency_2 == 1'b1) beginCommand[1] = `BST;endif (Debug) $display ("at time %t BST  : Burst Terminate",$time);end// Read, Write, Column Latchif (Read_enable == 1'b1 || Write_enable == 1'b1) begin// Check to see if bank is open (ACT)if ((Ba == 2'b00 && Pc_b0 == 1'b1) || (Ba == 2'b01 && Pc_b1 == 1'b1) ||(Ba == 2'b10 && Pc_b2 == 1'b1) || (Ba == 2'b11 && Pc_b3 == 1'b1)) begin$display("at time %t ERROR: Cannot Read or Write - Bank %d is not Activated", $time, Ba);end// Activate to Read or Writeif ((Ba == 2'b00) && ($time - RCD_chk0 < tRCD))$display("at time %t ERROR: tRCD violation during Read or Write to Bank 0", $time);if ((Ba == 2'b01) && ($time - RCD_chk1 < tRCD))$display("at time %t ERROR: tRCD violation during Read or Write to Bank 1", $time);if ((Ba == 2'b10) && ($time - RCD_chk2 < tRCD))$display("at time %t ERROR: tRCD violation during Read or Write to Bank 2", $time);if ((Ba == 2'b11) && ($time - RCD_chk3 < tRCD))$display("at time %t ERROR: tRCD violation during Read or Write to Bank 3", $time);// Read Commandif (Read_enable == 1'b1) begin// CAS Latency pipelineif (Cas_latency_3 == 1'b1) beginif (Addr[10] == 1'b1) beginCommand[2] = `READ_A;end else beginCommand[2] = `READ;endCol_addr[2] = Addr;Bank_addr[2] = Ba;end else if (Cas_latency_2 == 1'b1) beginif (Addr[10] == 1'b1) beginCommand[1] = `READ_A;end else beginCommand[1] = `READ;endCol_addr[1] = Addr;Bank_addr[1] = Ba;end// Read interrupt Write (terminate Write immediately)if (Data_in_enable == 1'b1) beginData_in_enable = 1'b0;end// Write Commandend else if (Write_enable == 1'b1) beginif (Addr[10] == 1'b1) beginCommand[0] = `WRITE_A;end else beginCommand[0] = `WRITE;endCol_addr[0] = Addr;Bank_addr[0] = Ba;// Write interrupt Write (terminate Write immediately)if (Data_in_enable == 1'b1) beginData_in_enable = 1'b0;end// Write interrupt Read (terminate Read immediately)if (Data_out_enable == 1'b1) beginData_out_enable = 1'b0;endend// Interrupting a Write with Autoprechargeif (Auto_precharge[Bank] == 1'b1 && Write_precharge[Bank] == 1'b1) beginRW_interrupt_write[Bank] = 1'b1;if (Debug) $display ("at time %t NOTE : Read/Write Bank %d interrupt Write Bank %d with Autoprecharge", $time, Ba, Bank);end// Interrupting a Read with Autoprechargeif (Auto_precharge[Bank] == 1'b1 && Read_precharge[Bank] == 1'b1) beginRW_interrupt_read[Bank] = 1'b1;if (Debug) $display ("at time %t NOTE : Read/Write Bank %d interrupt Read Bank %d with Autoprecharge", $time, Ba, Bank);end// Read or Write with Auto Prechargeif (Addr[10] == 1'b1) beginAuto_precharge[Ba] = 1'b1;Count_precharge[Ba] = 0;if (Read_enable == 1'b1) beginRead_precharge[Ba] = 1'b1;end else if (Write_enable == 1'b1) beginWrite_precharge[Ba] = 1'b1;endendend//  Read with Auto Precharge Calculation//      The device start internal precharge://          1.  CAS Latency - 1 cycles before last burst//      and 2.  Meet minimum tRAS requirement//       or 3.  Interrupt by a Read or Write (with or without AutoPrecharge)if ((Auto_precharge[0] == 1'b1) && (Read_precharge[0] == 1'b1)) beginif ((($time - RAS_chk0 >= tRAS) &&                                                      // Case 2((Burst_length_1 == 1'b1 && Count_precharge[0] >= 1) ||                             // Case 1(Burst_length_2 == 1'b1 && Count_precharge[0] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge[0] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge[0] >= 8))) ||(RW_interrupt_read[0] == 1'b1)) begin                                              // Case 3Pc_b0 = 1'b1;Act_b0 = 1'b0;RP_chk0 = $time;Auto_precharge[0] = 1'b0;Read_precharge[0] = 1'b0;RW_interrupt_read[0] = 1'b0;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 0", $time);endendif ((Auto_precharge[1] == 1'b1) && (Read_precharge[1] == 1'b1)) beginif ((($time - RAS_chk1 >= tRAS) &&((Burst_length_1 == 1'b1 && Count_precharge[1] >= 1) || (Burst_length_2 == 1'b1 && Count_precharge[1] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge[1] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge[1] >= 8))) ||(RW_interrupt_read[1] == 1'b1)) beginPc_b1 = 1'b1;Act_b1 = 1'b0;RP_chk1 = $time;Auto_precharge[1] = 1'b0;Read_precharge[1] = 1'b0;RW_interrupt_read[1] = 1'b0;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 1", $time);endendif ((Auto_precharge[2] == 1'b1) && (Read_precharge[2] == 1'b1)) beginif ((($time - RAS_chk2 >= tRAS) &&((Burst_length_1 == 1'b1 && Count_precharge[2] >= 1) || (Burst_length_2 == 1'b1 && Count_precharge[2] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge[2] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge[2] >= 8))) ||(RW_interrupt_read[2] == 1'b1)) beginPc_b2 = 1'b1;Act_b2 = 1'b0;RP_chk2 = $time;Auto_precharge[2] = 1'b0;Read_precharge[2] = 1'b0;RW_interrupt_read[2] = 1'b0;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 2", $time);endendif ((Auto_precharge[3] == 1'b1) && (Read_precharge[3] == 1'b1)) beginif ((($time - RAS_chk3 >= tRAS) &&((Burst_length_1 == 1'b1 && Count_precharge[3] >= 1) || (Burst_length_2 == 1'b1 && Count_precharge[3] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge[3] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge[3] >= 8))) ||(RW_interrupt_read[3] == 1'b1)) beginPc_b3 = 1'b1;Act_b3 = 1'b0;RP_chk3 = $time;Auto_precharge[3] = 1'b0;Read_precharge[3] = 1'b0;RW_interrupt_read[3] = 1'b0;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 3", $time);endend// Internal Precharge or Bstif (Command[0] == `PRECH) begin                         // Precharge terminate a read with same bank or all banksif (Bank_precharge[0] == Bank || A10_precharge[0] == 1'b1) beginif (Data_out_enable == 1'b1) beginData_out_enable = 1'b0;endendend else if (Command[0] == `BST) begin                  // BST terminate a read to current bankif (Data_out_enable == 1'b1) beginData_out_enable = 1'b0;endendif (Data_out_enable == 1'b0) beginDq_reg <= #tOH {data_bits{1'bz}};end// Detect Read or Write commandif (Command[0] == `READ || Command[0] == `READ_A) beginBank = Bank_addr[0];Col = Col_addr[0];Col_brst = Col_addr[0];if (Bank_addr[0] == 2'b00) beginRow = B0_row_addr;end else if (Bank_addr[0] == 2'b01) beginRow = B1_row_addr;end else if (Bank_addr[0] == 2'b10) beginRow = B2_row_addr;end else if (Bank_addr[0] == 2'b11) beginRow = B3_row_addr;endBurst_counter = 0;Data_in_enable = 1'b0;Data_out_enable = 1'b1;end else if (Command[0] == `WRITE || Command[0] == `WRITE_A) beginBank = Bank_addr[0];Col = Col_addr[0];Col_brst = Col_addr[0];if (Bank_addr[0] == 2'b00) beginRow = B0_row_addr;end else if (Bank_addr[0] == 2'b01) beginRow = B1_row_addr;end else if (Bank_addr[0] == 2'b10) beginRow = B2_row_addr;end else if (Bank_addr[0] == 2'b11) beginRow = B3_row_addr;endBurst_counter = 0;Data_in_enable = 1'b1;Data_out_enable = 1'b0;end// DQ buffer (Driver/Receiver)if (Data_in_enable == 1'b1) begin                                   // Writing Data to Memory// Array bufferif (Bank == 2'b00) Dq_dqm [data_bits - 1  : 0] = Bank0 [{Row, Col}];if (Bank == 2'b01) Dq_dqm [data_bits - 1  : 0] = Bank1 [{Row, Col}];if (Bank == 2'b10) Dq_dqm [data_bits - 1  : 0] = Bank2 [{Row, Col}];if (Bank == 2'b11) Dq_dqm [data_bits - 1  : 0] = Bank3 [{Row, Col}];// Dqm operationif (Dqm[0] == 1'b0) Dq_dqm [ 7 : 0] = Dq [ 7 : 0];if (Dqm[1] == 1'b0) Dq_dqm [15 : 8] = Dq [15 : 8];//if (Dqm[2] == 1'b0) Dq_dqm [23 : 16] = Dq [23 : 16];// if (Dqm[3] == 1'b0) Dq_dqm [31 : 24] = Dq [31 : 24];// Write to memoryif (Bank == 2'b00) Bank0 [{Row, Col}] = Dq_dqm [data_bits - 1  : 0];if (Bank == 2'b01) Bank1 [{Row, Col}] = Dq_dqm [data_bits - 1  : 0];if (Bank == 2'b10) Bank2 [{Row, Col}] = Dq_dqm [data_bits - 1  : 0];if (Bank == 2'b11) Bank3 [{Row, Col}] = Dq_dqm [data_bits - 1  : 0];if (Bank == 2'b11 && Row==10'h3 && Col[7:4]==4'h4)$display("at time %t WRITE: Bank = %d Row = %d, Col = %d, Data = Hi-Z due to DQM", $time, Bank, Row, Col);//$fdisplay(test_file,"bank:%h	row:%h	col:%h	write:%h",Bank,Row,Col,Dq_dqm);// Output resultif (Dqm == 4'b1111) beginif (Debug) $display("at time %t WRITE: Bank = %d Row = %d, Col = %d, Data = Hi-Z due to DQM", $time, Bank, Row, Col);end else beginif (Debug) $display("at time %t WRITE: Bank = %d Row = %d, Col = %d, Data = %d, Dqm = %b", $time, Bank, Row, Col, Dq_dqm, Dqm);// Record tWR time and reset counterWR_chk [Bank] = $time;WR_counter [Bank] = 0;end// Advance burst counter subroutine#tHZ Burst;end else if (Data_out_enable == 1'b1) begin                         // Reading Data from Memory//$display("%h	,	%h,	%h",Bank0,Row,Col);// Array bufferif (Bank == 2'b00) Dq_dqm [data_bits - 1  : 0] = Bank0 [{Row, Col}];if (Bank == 2'b01) Dq_dqm [data_bits - 1  : 0] = Bank1 [{Row, Col}];if (Bank == 2'b10) Dq_dqm [data_bits - 1  : 0] = Bank2 [{Row, Col}];if (Bank == 2'b11) Dq_dqm [data_bits - 1  : 0] = Bank3 [{Row, Col}];// Dqm operationif (Dqm_reg0[0] == 1'b1) Dq_dqm [ 7 : 0] = 8'bz;if (Dqm_reg0[1] == 1'b1) Dq_dqm [15 : 8] = 8'bz;if (Dqm_reg0[2] == 1'b1) Dq_dqm [23 : 16] = 8'bz;if (Dqm_reg0[3] == 1'b1) Dq_dqm [31 : 24] = 8'bz;// Display resultDq_reg [data_bits - 1  : 0] = #tAC Dq_dqm [data_bits - 1  : 0];if (Dqm_reg0 == 4'b1111) beginif (Debug) $display("at time %t READ : Bank = %d Row = %d, Col = %d, Data = Hi-Z due to DQM", $time, Bank, Row, Col);end else beginif (Debug) $display("at time %t READ : Bank = %d Row = %d, Col = %d, Data = %d, Dqm = %b", $time, Bank, Row, Col, Dq_reg, Dqm_reg0);end// Advance burst counter subroutineBurst;endend//  Write with Auto Precharge Calculation//      The device start internal precharge://          1.  tWR Clock after last burst//      and 2.  Meet minimum tRAS requirement//       or 3.  Interrupt by a Read or Write (with or without AutoPrecharge)always @ (WR_counter[0]) beginif ((Auto_precharge[0] == 1'b1) && (Write_precharge[0] == 1'b1)) beginif ((($time - RAS_chk0 >= tRAS) &&                                                          // Case 2(((Burst_length_1 == 1'b1 || Write_burst_mode == 1'b1) && Count_precharge [0] >= 1) ||   // Case 1(Burst_length_2 == 1'b1 && Count_precharge [0] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge [0] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge [0] >= 8))) ||(RW_interrupt_write[0] == 1'b1 && WR_counter[0] >= 2)) begin                           // Case 3 (stop count when interrupt)Auto_precharge[0] = 1'b0;Write_precharge[0] = 1'b0;RW_interrupt_write[0] = 1'b0;#tWRa;                          // Wait for tWRPc_b0 = 1'b1;Act_b0 = 1'b0;RP_chk0 = $time;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 0", $time);endendendalways @ (WR_counter[1]) beginif ((Auto_precharge[1] == 1'b1) && (Write_precharge[1] == 1'b1)) beginif ((($time - RAS_chk1 >= tRAS) &&(((Burst_length_1 == 1'b1 || Write_burst_mode == 1'b1) && Count_precharge [1] >= 1) || (Burst_length_2 == 1'b1 && Count_precharge [1] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge [1] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge [1] >= 8))) ||(RW_interrupt_write[1] == 1'b1 && WR_counter[1] >= 2)) beginAuto_precharge[1] = 1'b0;Write_precharge[1] = 1'b0;RW_interrupt_write[1] = 1'b0;#tWRa;                          // Wait for tWRPc_b1 = 1'b1;Act_b1 = 1'b0;RP_chk1 = $time;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 1", $time);endendendalways @ (WR_counter[2]) beginif ((Auto_precharge[2] == 1'b1) && (Write_precharge[2] == 1'b1)) beginif ((($time - RAS_chk2 >= tRAS) &&(((Burst_length_1 == 1'b1 || Write_burst_mode == 1'b1) && Count_precharge [2] >= 1) || (Burst_length_2 == 1'b1 && Count_precharge [2] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge [2] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge [2] >= 8))) ||(RW_interrupt_write[2] == 1'b1 && WR_counter[2] >= 2)) beginAuto_precharge[2] = 1'b0;Write_precharge[2] = 1'b0;RW_interrupt_write[2] = 1'b0;#tWRa;                          // Wait for tWRPc_b2 = 1'b1;Act_b2 = 1'b0;RP_chk2 = $time;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 2", $time);endendendalways @ (WR_counter[3]) beginif ((Auto_precharge[3] == 1'b1) && (Write_precharge[3] == 1'b1)) beginif ((($time - RAS_chk3 >= tRAS) &&(((Burst_length_1 == 1'b1 || Write_burst_mode == 1'b1) && Count_precharge [3] >= 1) || (Burst_length_2 == 1'b1 && Count_precharge [3] >= 2) ||(Burst_length_4 == 1'b1 && Count_precharge [3] >= 4) ||(Burst_length_8 == 1'b1 && Count_precharge [3] >= 8))) ||(RW_interrupt_write[3] == 1'b1 && WR_counter[3] >= 2)) beginAuto_precharge[3] = 1'b0;Write_precharge[3] = 1'b0;RW_interrupt_write[3] = 1'b0;#tWRa;                          // Wait for tWRPc_b3 = 1'b1;Act_b3 = 1'b0;RP_chk3 = $time;if (Debug) $display ("at time %t NOTE : Start Internal Auto Precharge for Bank 3", $time);endendendtask Burst;begin// Advance Burst CounterBurst_counter = Burst_counter + 1;// Burst Typeif (Mode_reg[3] == 1'b0) begin                                  // Sequential BurstCol_temp = Col + 1;end else if (Mode_reg[3] == 1'b1) begin                         // Interleaved BurstCol_temp[2] =  Burst_counter[2] ^  Col_brst[2];Col_temp[1] =  Burst_counter[1] ^  Col_brst[1];Col_temp[0] =  Burst_counter[0] ^  Col_brst[0];end// Burst Lengthif (Burst_length_2) begin                                       // Burst Length = 2Col [0] = Col_temp [0];end else if (Burst_length_4) begin                              // Burst Length = 4Col [1 : 0] = Col_temp [1 : 0];end else if (Burst_length_8) begin                              // Burst Length = 8Col [2 : 0] = Col_temp [2 : 0];end else begin                                                  // Burst Length = FULLCol = Col_temp;end// Burst Read Single Write            if (Write_burst_mode == 1'b1) beginData_in_enable = 1'b0;end// Data Counterif (Burst_length_1 == 1'b1) beginif (Burst_counter >= 1) beginData_in_enable = 1'b0;Data_out_enable = 1'b0;endend else if (Burst_length_2 == 1'b1) beginif (Burst_counter >= 2) beginData_in_enable = 1'b0;Data_out_enable = 1'b0;endend else if (Burst_length_4 == 1'b1) beginif (Burst_counter >= 4) beginData_in_enable = 1'b0;Data_out_enable = 1'b0;endend else if (Burst_length_8 == 1'b1) beginif (Burst_counter >= 8) beginData_in_enable = 1'b0;Data_out_enable = 1'b0;endendendendtask//**********************将SDRAM内的数据直接输出到外部文件*******************************///*    integer	sdram_data,ind;always@(sdram_r)beginsdram_data=$fopen("sdram_data.txt");$display("Sdram dampout begin ",sdram_data);
//		   $fdisplay(sdram_data,"Bank0：");for(ind=0;ind<=mem_sizes;ind=ind+1)$fdisplay(sdram_data,"%h	%b",ind,Bank0[ind]);
//		   $fdisplay(sdram_data,"Bank1：");for(ind=0;ind<=mem_sizes;ind=ind+1)$fdisplay(sdram_data,"%h	%b",ind,Bank1[ind]);
//		   $fdisplay(sdram_data,"Bank2：");for(ind=0;ind<=mem_sizes;ind=ind+1)$fdisplay(sdram_data,"%h	%b",ind,Bank2[ind]);
//	           $fdisplay(sdram_data,"Bank3：");for(ind=0;ind<=mem_sizes;ind=ind+1)$fdisplay(sdram_data,"%h	%b",ind,Bank3[ind]);$fclose("sdram_data.txt");        //->compare;end
*/integer	sdram_data,sdram_mem;reg	[23:0]	aa,cc;reg	[18:0]	bb,ee;always@(sdram_r)begin$display("Sdram dampout begin ",$realtime);sdram_data=$fopen("sdram_data.txt");for(aa=0;aa<4*(mem_sizes+1);aa=aa+1)beginbb=aa[18:0];if(aa<=mem_sizes)$fdisplay(sdram_data,"%0d	%0h",aa,Bank0[bb]);else if(aa<=2*mem_sizes+1)$fdisplay(sdram_data,"%0d	%0h",aa,Bank1[bb]);else if(aa<=3*mem_sizes+2)$fdisplay(sdram_data,"%0d	%0h",aa,Bank2[bb]);else$fdisplay(sdram_data,"%0d	%0h",aa,Bank3[bb]);end	    	    	    $fclose("sdram_data.txt"); sdram_mem=$fopen("sdram_mem.txt");for(cc=0;cc<4*(mem_sizes+1);cc=cc+1)beginee=cc[18:0];if(cc<=mem_sizes)$fdisplay(sdram_mem,"%0h",Bank0[ee]);else if(cc<=2*mem_sizes+1)$fdisplay(sdram_mem,"%0h",Bank1[ee]);else if(cc<=3*mem_sizes+2)$fdisplay(sdram_mem,"%0h",Bank2[ee]);else$fdisplay(sdram_mem,"%0h",Bank3[ee]);end	    	    	    $fclose("sdram_mem.txt");        end        //    // Timing Parameters for -75 (PC133) and CAS Latency = 2
//    specify
//        specparam
                    tAH  =  0.8,                                        // Addr, Ba Hold Time
                    tAS  =  1.5,                                        // Addr, Ba Setup Time
                    tCH  =  2.5,                                        // Clock High-Level Width
                    tCL  =  2.5,                                        // Clock Low-Level Width
//                    tCK  = 10.0,                                       // Clock Cycle Time  100mhz
//                    tCK  = 7.5,    					// Clock Cycle Time  133mhz
                    tCK  =  7,                				// Clock Cycle Time  143mhz
                    tDH  =  0.8,                                        // Data-in Hold Time
                    tDS  =  1.5,                                        // Data-in Setup Time
                    tCKH =  0.8,                                        // CKE Hold  Time
                    tCKS =  1.5,                                        // CKE Setup Time
                    tCMH =  0.8,                                        // CS#, RAS#, CAS#, WE#, DQM# Hold  Time
                    tCMS =  1.5;                                        // CS#, RAS#, CAS#, WE#, DQM# Setup Time
//                    tAH  =  1,                                        // Addr, Ba Hold Time
//                    tAS  =  1.5,                                        // Addr, Ba Setup Time
//                    tCH  =  1,                                        // Clock High-Level Width
//                    tCL  =  3,                                        // Clock Low-Level Width
                    tCK  = 10.0,                                       // Clock Cycle Time  100mhz
                    tCK  = 7.5,    					// Clock Cycle Time  133mhz
//                    tCK  =  7,                				// Clock Cycle Time  143mhz
//                    tDH  =  1,                                        // Data-in Hold Time
//                    tDS  =  2,                                        // Data-in Setup Time
//                    tCKH =  1,                                        // CKE Hold  Time
//                    tCKS =  2,                                        // CKE Setup Time
//                    tCMH =  0.8,                                        // CS#, RAS#, CAS#, WE#, DQM# Hold  Time
//                    tCMS =  1.5;                                        // CS#, RAS#, CAS#, WE#, DQM# Setup Time
//        $width    (posedge Clk,           tCH);
//        $width    (negedge Clk,           tCL);
//        $period   (negedge Clk,           tCK);
//        $period   (posedge Clk,           tCK);
//        $setuphold(posedge Clk,    Cke,   tCKS, tCKH);
//        $setuphold(posedge Clk,    Cs_n,  tCMS, tCMH);
//        $setuphold(posedge Clk,    Cas_n, tCMS, tCMH);
//        $setuphold(posedge Clk,    Ras_n, tCMS, tCMH);
//        $setuphold(posedge Clk,    We_n,  tCMS, tCMH);
//        $setuphold(posedge Clk,    Addr,  tAS,  tAH);
//        $setuphold(posedge Clk,    Ba,    tAS,  tAH);
//        $setuphold(posedge Clk,    Dqm,   tCMS, tCMH);
//        $setuphold(posedge Dq_chk, Dq,    tDS,  tDH);
//    endspecifyendmodule

仿真测试结果

这里给出modelsim的仿真结果如下：

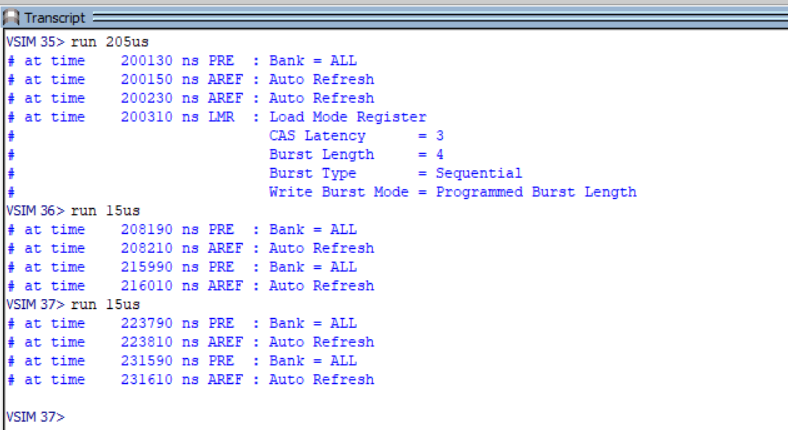

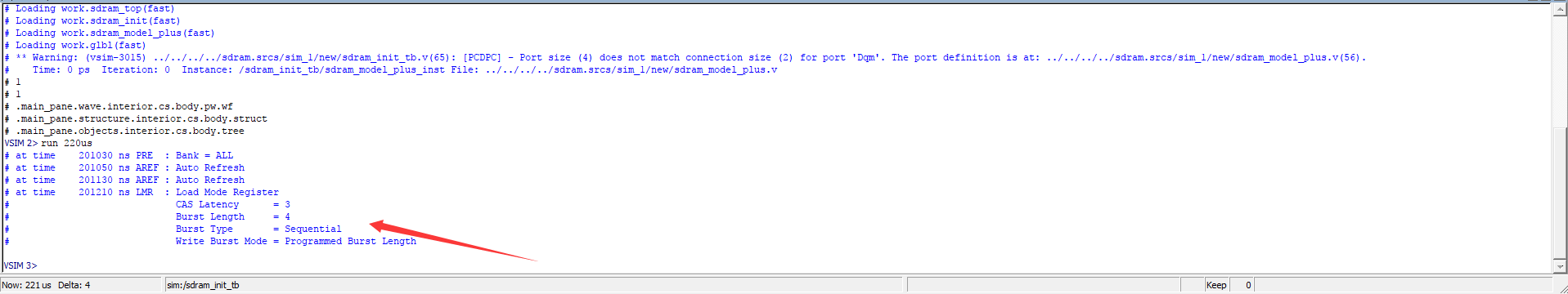

在这里插入图片描述
出现上述结果，说明SDRAM的上电初始化成功，上面也打印出来了配置具体的模式。
接下来我们会写出SDRAM的刷新模块、读写模块。

参考文献

[1] 开源骚客

总结

创作不易，认为文章有帮助的同学们可以关注点赞支持。（工程也都在群中）对文章有什么看法或者需要更近一步交流的同学，可以加入下面的群：
在这里插入图片描述


http://chatgpt.dhexx.cn/article/ZOBFMPCM.shtml

相关文章

FPGA进阶（3）：SDRAM读写控制器的设计与验证

FPGA进阶（3）：SDRAM读写控制器的设计与验证

文章目录 第50讲&#xff1a;SDRAM读写控制器的设计与验证理论部分设计与实现1. sdram_ctrlsdram_initsdram_a_refsdram_writesdram_readsdram_arbitsdram_ctrl 2. sdram_topfifo_ctrlsdram_top 3. uart_sdramuart_rxuart_txfifo_readuart_sdram 第50讲&#xff1a;SDRAM读写控…
阅读更多...
SDRAM

SDRAM

简介、优缺点、历史 1、译为“同步动态随机存取内存”&#xff0c;区别于异步DRAM。SRAM是异步静态存储器。 2、同步(Synchronous)&#xff1a;与通常的异步 DRAM 不同&#xff0c; SDRAM 存在一个同步接口&#xff0c;其工作时钟的时钟频率与对应控制器(CPU/FPGA上的读写控制…
阅读更多...
关于SDRAM存储器

关于SDRAM存储器

一、对SDRAM的初步认识 1.1 什么是SDRAM SDRAM&#xff08;Synchronous Dynamic Random Access Memory&#xff09;&#xff0c;同步动态随机存取存储器。 同步&#xff1a;工作频率与对应控制器的系统时钟频率相同&#xff0c;且内存内部的命令以及数据的传输都以此为基准 …
阅读更多...
内存控制器与SDRAM

内存控制器与SDRAM

内存接口概念&#xff1a; 通常ARM芯片内置的内存很少&#xff0c;要运行Linux&#xff0c;需要扩展内存。ARM9扩展内存使用SDRAM内存&#xff0c;ARM11使用 DDR SDRAM。S3C2440通常外接32位64MBytes的SDRAM&#xff0c;采用两片16位32M的SDRAM芯片&#xff0c;SDRAM芯片通过地…
阅读更多...
SDRAM驱动篇之简易SDRAM控制器的verilog代码实现

SDRAM驱动篇之简易SDRAM控制器的verilog代码实现

在Kevin写的上一篇博文《SDRAM理论篇之基础知识及操作时序》中&#xff0c;已经把SDRAM工作的基本原理和SDRAM初始化、读、写及自动刷新操作的时序讲清楚了&#xff0c;在这一片博文中&#xff0c;Kevin来根据在上一篇博文中分析的思路来把写一个简单的SDRAM控制器。 我们在上一…
阅读更多...
FPGA之SDRAM控制器设计（一）

FPGA之SDRAM控制器设计（一）

MT48LC128M4A2 – 32 Meg x 4 x 4 banks是512M SRAM&#xff0c;总体概述如下图 分别从上电初始化&#xff0c;刷新&#xff0c;写&#xff0c;读四个部分进行设计&#xff0c;此外还包含主控状态机&#xff0c;一个顶层。 1&#xff1a;上电初始化 整体架构&#xff1a;从控…
阅读更多...
内存控制器与SDRAM【赞】

内存控制器与SDRAM【赞】

原文链接&#xff1a;https://blog.csdn.net/qq_31216691/article/details/87115697 内存接口概念&#xff1a; 通常ARM芯片内置的内存很少&#xff0c;要运行Linux&#xff0c;需要扩展内存。ARM9扩展内存使用SDRAM内存&#xff0c;ARM11使用 DDR SDRAM。S3C2440通常外接32位6…
阅读更多...
SDRAM 介绍

SDRAM 介绍

目录 1、名词解释 2、SDRAM 内部结构 3、SDRAM 外部信号描述 4、SDRAM 命令 4.1、COMMAND INHIBIT 4.2、NO OERATION 4.3、ACTIVE 4.4、LOAD MODE REGISTER (LMR) 4.5、READ 4.6、WRITE 4.7、PRECHARGE 4.8、BURST TERMINATE 4.9、REFRESH 4.9.1、AUTO REFRESH …
阅读更多...
SDRAM控制器操作时序

SDRAM控制器操作时序

此为学习http://dengkanwen.com/137.html整理的笔记&#xff0c;侵删&#xff01; SDRAM工作原理 内部的状态跳转图 我们所需关注的几个地方&#xff1a; 1&#xff09;粗黑线表示在该状态下会自动跳转到另一个状态&#xff0c;细黑线表示需要给命令才会跳转。 2&#xff09…
阅读更多...
SDR SDRAM控制器设计

SDR SDRAM控制器设计

目录 前言 1、关于刷新 2、关于数据中心对齐 3、SDRAM芯片手册介绍 3.1SDRAM芯片的管脚 3.2 SDRAM指令集 3.3 模式寄存器 3.4 关于SDRAM上电初始化和装载模式寄存器 3.5 SDRAM刷新时序 3.6 关于写访问 3.7 关于突发访问 4、FPGA工程设计 4.1状态机设计 5、仿真测试…
阅读更多...
【GD32】从零开始学GD32单片机高级篇——外部存储器控制器EXMC详解+SDRAM读写例程

【GD32】从零开始学GD32单片机高级篇——外部存储器控制器EXMC详解+SDRAM读写例程

目录 简介外部设备地址映射NOR和PSRAM的地址映射NAND/PC Card地址映射SDRAM地址映射 NOR/PSRAM控制器接口描述控制时序模式1模式2 NAND Flash或PC Card控制器接口描述控制时序 SDRAM控制器接口描述控制时序突发读操作突发写操作读写FIFO跨边界读写操作低功耗模式自刷新模式掉电…
阅读更多...
初识内存控制器和SDRAM【一文了解】

初识内存控制器和SDRAM【一文了解】

原文链接&#xff1a;https://blog.csdn.net/qq_36243942/article/details/85596249 目录 1.引入内存控制器 2.不同位宽内存设备之间的连接 3.如何确定芯片的访问地址 4.分析读写NOR FLASH的读写时序 5.SDRAM初识 6.编程读/写 SDRAM 附录&#xff1a;源代码 1.引入内存控制器 我…
阅读更多...
存储控制器（SDRAM操作）

存储控制器（SDRAM操作）

什么是存储控制器 2440是32位单片机&#xff0c;进行数据访问时通过32位地址访问。 CPU发出32位地址信号给存储控制器&#xff0c;存储控制器根据地址信号设置片选信号及地址总线&#xff0c;将相应数据通过数据总线传回存储控制器&#xff0c;存储控制器将收到的数据以字节为…
阅读更多...
数字IC实践项目（2）——高速SDRAM控制器的设计与综合（入门级工程项目）

数字IC实践项目（2）——高速SDRAM控制器的设计与综合（入门级工程项目）

数字IC实践项目&#xff08;2&#xff09;—高速SDRAM控制器的设计与综合&#xff08;入门级工程项目&#xff09; 写在前面的话项目简介和学习目的SDRAM简介SDRAM控制器简介完整项目框图SDRAM控制器项目框图SDRAM初始化模块SDRAM自动刷新模块SDRAM写模块SDRAM读模块SDRAM仲裁机…
阅读更多...
SDRAM控制器——仲裁模块的实现

SDRAM控制器——仲裁模块的实现

前面一文中&#xff0c;我们已经对SDRAM的上电初始化、自动刷新以及突发读写进行了学习。 本文跟着大佬学习SDRAM中的仲裁模块。 仲裁机制 仲裁&#xff08;arbit&#xff09;&#xff1a;在FPGA中&#xff0c;当多个source源同时发出请求&#xff0c;容易导致操作冲突&#x…
阅读更多...
SDRAM读写控制器

SDRAM读写控制器

第1节 –作者&#xff1a;小黑同学 本文为明德扬原创及录用文章&#xff0c;转载请注明出处&#xff01; 1.1 总体设计 1.1.1 概述 同步动态随机存取内存&#xff08;synchronous dynamic randon-access menory&#xff0c;简称SDRAM&#xff09;是有一个同步接口的动态随…
阅读更多...
FPGA综合项目——SDRAM控制器

FPGA综合项目——SDRAM控制器

FPGA综合项目——SDRAM控制器 目录 1.整体框架2.串口接收模块3.接收模块测试仿真4.串口发送模块5.发送模块测试仿真6.SDRAM基础学习7.SDRAM顶层模块8.SDRAM初始化模块设计与仿真测试9.自动刷新模块设计与测试10.写模块设计与测试11.读模块设计与仿真测试12.通信处理模块13.顶层…
阅读更多...
细说SDRAM控制器

细说SDRAM控制器

SDRAM的基本概念 SDRAM凭借其极高的性价比&#xff0c;广泛应用于高速数据存储、实时图像处理等设计当中&#xff0c;但是相对于SRAM、FIFO等其他存储器件&#xff0c;SDRAM的控制相对复杂。虽说是复杂&#xff0c;但也不代表没办法实现&#xff0c;仔细梳理一下&#xff0c;发…
阅读更多...
SDRAM控制器

SDRAM控制器

1.SDRAM简介 简介&#xff1a;SDRAM为同步动态随机存储内存&#xff0c;同步指的是时钟与外部输入的时钟保持一致&#xff0c;也就是与外部共用一个时钟&#xff1b;动态指的是每个时间段内&#xff0c;都要进行一次刷新操作&#xff0c;否则里面的数据会丢失&#xff0c;这也…
阅读更多...
FPGA学习历程（四）：SDRAM 控制器（初始化与刷新）

FPGA学习历程（四）：SDRAM 控制器（初始化与刷新）

目录 一、数据手册相关信息1.1 命令真值表1.2 时间参数1.3 模式寄存器配置 二、初始化模块2.1 模块时序图2.2 模块源码2.2.1 sdram_init.v2.2.2 sdram_top.v2.2.3 tb_sdram_top.v 2.3 Modelsim仿真 三、刷新模块3.1 模块时序图3.2 模块源码3.2.1 sdram_aref.v3.2.2 sdram_top.v…
阅读更多...
推荐文章

Copyright @ 2022~2023
