2018华为网络技术大赛复赛

article/2025/8/15 4:18:17

华为网络技术大赛复赛落下帷幕，考完上机ensp配置我已经基本知道结果了，题目真的不难，但是真的需要用心准备，包括前期学习的准备，也包括考试前半个小时准备，我就是那个前期花了很多时间，最后在考试环节出问题的那个人，下面先把题目更新出来，最后再总结下经验。

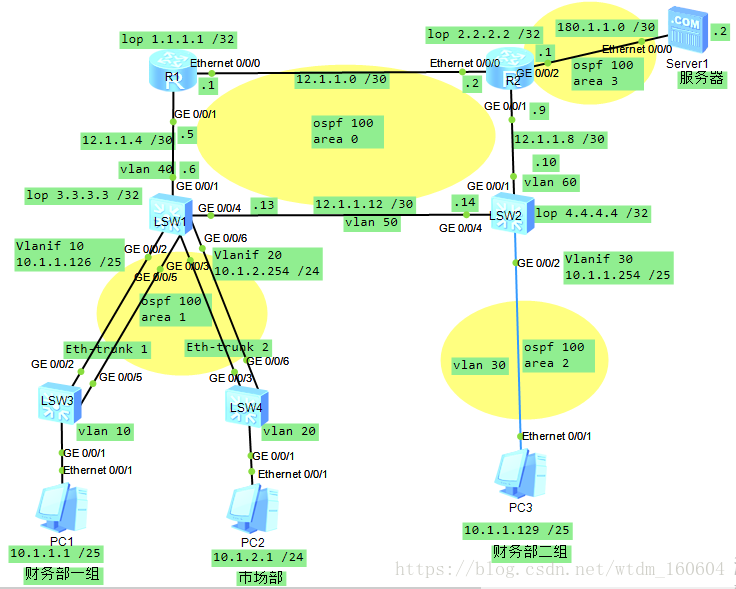

下面是网络拓扑图：

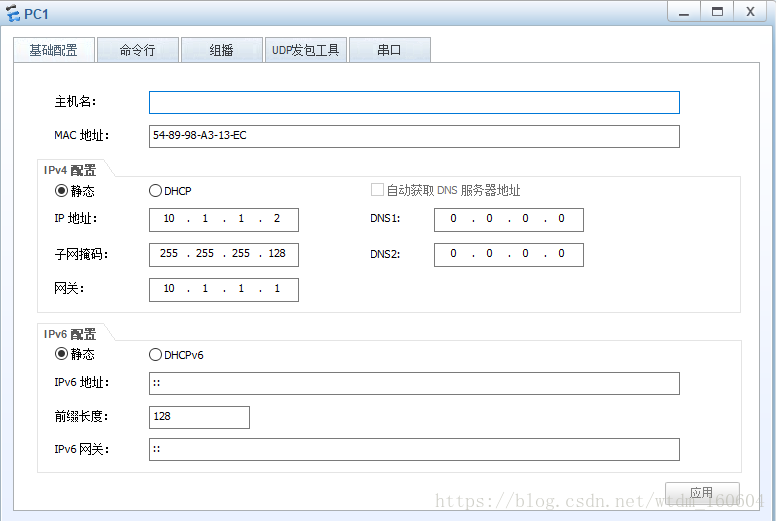

pc1 pc2 pc3

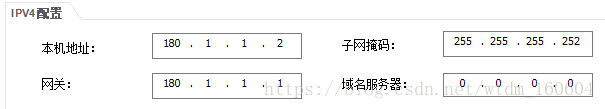

服务器端：

下面给出详细配置：

[R1]配置
#
sysname R1
#
router id 1.1.1.1
#
interface Ethernet0/0/0ip address 12.1.1.1 255.255.255.252
#
interface GigabitEthernet0/0/1ip address 12.1.1.5 255.255.255.252
#
ospf 100area 0.0.0.0network 12.1.1.0 0.0.0.3network 12.1.1.4 0.0.0.3
#[R2]配置
#
sysname R2
#
router id 2.2.2.2
#
interface Ethernet0/0/0ip address 12.1.1.2 255.255.255.252
#
interface GigabitEthernet0/0/1ip address 12.1.1.9 255.255.255.252
#
interface GigabitEthernet0/0/2ip address 180.1.1.1 255.255.255.252
#
ospf 100area 0.0.0.0network 12.1.1.0 0.0.0.3network 12.1.1.8 0.0.0.3area 0.0.0.3network 180.1.1.0 0.0.0.3
#[SW1]配置
sysname S1
#
router id 3.3.3.3
#
vlan batch 10 20 40 50
#
interface Vlanif10ip address 10.1.1.126 255.255.255.128
#
interface Vlanif20ip address 10.1.2.254 255.255.255.0
#
interface Vlanif40ip address 12.1.1.6 255.255.255.252
#
interface Vlanif50ip address 12.1.1.13 255.255.255.252
#
interface Eth-Trunk1port link-type trunkport trunk pvid vlan 10port trunk allow-pass vlan 2 to 4094
#
interface Eth-Trunk2port link-type trunkport trunk pvid vlan 20port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 40
#
interface GigabitEthernet0/0/2eth-trunk 1
#
interface GigabitEthernet0/0/3eth-trunk 2
#
interface GigabitEthernet0/0/4port link-type trunkport trunk pvid vlan 50port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/5eth-trunk 1
#
interface GigabitEthernet0/0/6eth-trunk 2
#
ospf 100area 0.0.0.0network 12.1.1.12 0.0.0.3network 12.1.1.4 0.0.0.3area 0.0.0.1network 10.1.1.0 0.0.0.127network 10.1.2.0 0.0.0.255[SW2]配置
#
sysname S2
#
router id 4.4.4.4
#
vlan batch 30 50 60
#
interface Vlanif30ip address 10.1.1.254 255.255.255.128
#
interface Vlanif50ip address 12.1.1.14 255.255.255.252
#
interface Vlanif60ip address 12.1.1.10 255.255.255.252
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 60
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 30
#
interface GigabitEthernet0/0/4port link-type trunkport trunk pvid vlan 50port trunk allow-pass vlan 2 to 4094
#
ospf 100area 0.0.0.0network 12.1.1.8 0.0.0.3network 12.1.1.12 0.0.0.3area 0.0.0.2network 10.1.1.128 0.0.0.127[SW3]配置
#
sysname S3
#
vlan batch 10
#
interface Vlanif10ip address 10.1.1.1 255.255.255.128
#
interface Eth-Trunk1port link-type trunkport trunk pvid vlan 10port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 10
#
interface GigabitEthernet0/0/2eth-trunk 1
#
interface GigabitEthernet0/0/5eth-trunk 1
#
ip route-static 0.0.0.0 0.0.0.0 10.1.1.126[SW4]配置
#
sysname S4
#
vlan batch 20
#
interface Vlanif20ip address 10.1.2.1 255.255.255.0
#
interface Eth-Trunk2port link-type trunkport trunk pvid vlan 20port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 20
#
interface GigabitEthernet0/0/3eth-trunk 2
#
interface GigabitEthernet0/0/6eth-trunk 2
#
ip route-static 0.0.0.0 0.0.0.0 10.1.2.254

下面给出测试结果：

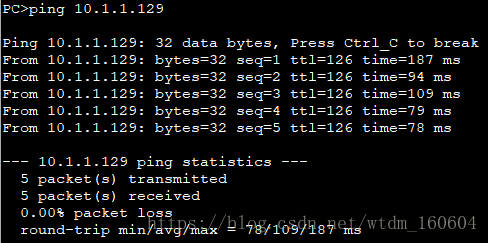

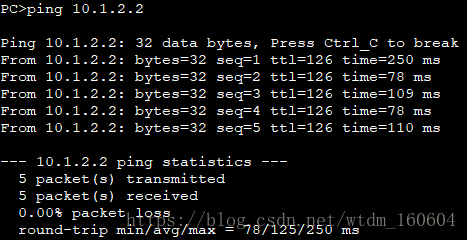

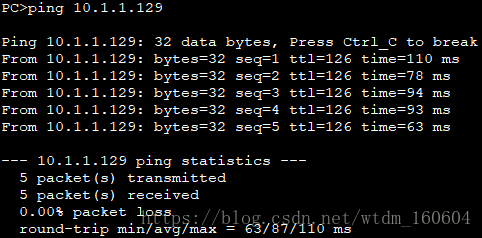

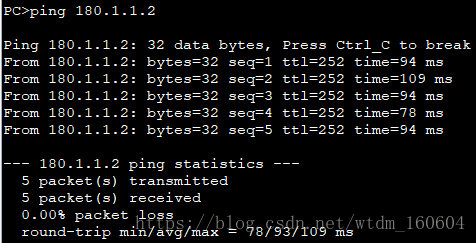

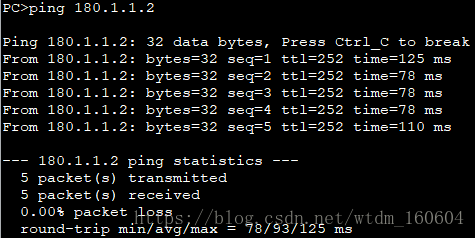

pc1分别ping pc2、pc3以及服务器：
