《Distributed representationss of Sentences and Documents》

Quoc Le and Tomas Mikolov, 2014

1. Distributed Memory Model of Paragraph Vectors (PV-DM).

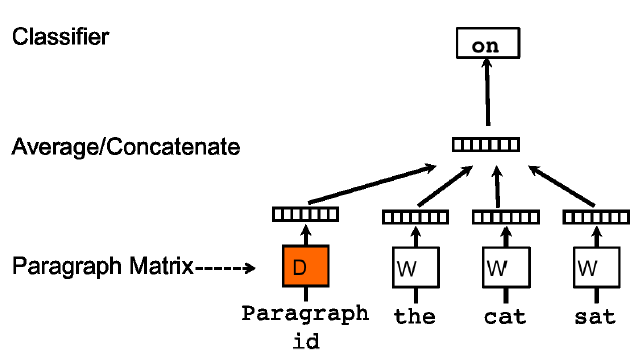

1.1 模型架构图

有点类似word2vec中的CBOW模型，根据上下文预测当前词。

在PV-DM模型中，矩阵$W$为词向量矩阵，矩阵$D$为段落向量矩阵。

每一个段落被映射为矩阵$D$中的一个唯一的向量，每个单词同样被映射为矩阵$W$中的一个唯一向量。

paragraph向量和词向量通过取平均（average）或者连接（concatenate）的方法结合，预测目标词向量。

这里的context上下文是从当前段落中的滑动窗口内采样得到的固定长度的（代码中应该是通过reduced_window来实现采样的，见下面代码阅读），段落向量只在同一个paragraph中共享，词向量在paragraph之间共享。

1.2 相关代码阅读

gensim3.8.0中Doc2vec-DM模型相关代码阅读如下（如果之前学习过Word2vec的源码，那么对doc2vec源码的理解会更加容易一些）

• 通过average计算上下文向量

    def train_document_dm(model, doc_words, doctag_indexes, alpha, work=None, neu1=None,learn_doctags=True, learn_words=True, learn_hidden=True,word_vectors=None, word_locks=None, doctag_vectors=None, doctag_locks=None):"""Update distributed memory model ("PV-DM") by training on a single document.使用一篇doc对PV-DM模型进行更新Called internally from :meth:`~gensim.models.doc2vec.Doc2Vec.train` and:meth:`~gensim.models.doc2vec.Doc2Vec.infer_vector`. This method implementsthe DM model with a projection (input) layer that is either the sum or mean ofthe context vectors, depending on the model's `dm_mean` configuration field.Notes-----This is the non-optimized, Python version. If you have cython installed, gensimwill use the optimized version from :mod:`gensim.models.doc2vec_inner` instead.Parameters----------model : :class:`~gensim.models.doc2vec.Doc2Vec`The model to train.doc_words : list of strThe input document as a list of words to be used for training. Each word will be looked up inthe model's vocabulary.doctag_indexes : list of intIndices into `doctag_vectors` used to obtain the tags of the document.alpha : floatLearning rate.work : objectUNUSED.neu1 : objectUNUSED.learn_doctags : bool, optionalWhether the tag vectors should be updated.learn_words : bool, optionalWord vectors will be updated exactly as per Word2Vec skip-gram training only if **both**`learn_words` and `train_words` are set to True.learn_hidden : bool, optionalWhether or not the weights of the hidden layer will be updated.word_vectors : iterable of list of float, optionalVector representations of each word in the model's vocabulary.word_locks : list of float, optionalLock factors for each word in the vocabulary.doctag_vectors : list of list of float, optionalVector representations of the tags. If None, these will be retrieved from the model.doctag_locks : list of float, optionalThe lock factors for each tag.Returns-------intNumber of words in the input document that were actually used for training (they were found in thevocabulary and they were not discarded by negative sampling)."""# 获取模型中的词向量if word_vectors is None:word_vectors = model.wv.syn0if word_locks is None:word_locks = model.syn0_lockf# 获取模型中的doc向量if doctag_vectors is None:doctag_vectors = model.docvecs.doctag_syn0if doctag_locks is None:doctag_locks = model.docvecs.doctag_syn0_lockf# 当前段落中词的词表信息（该词必须存在于词表中）word_vocabs = [model.wv.vocab[w] for w in doc_words if w in model.wv.vocaband model.wv.vocab[w].sample_int > model.random.rand() * 2 ** 32]# 遍历每一个词for pos, word in enumerate(word_vocabs):# 对窗口进行reducereduced_window = model.random.randint(model.window)  # `b` in the original doc2vec code# 计算窗口的起止位置start = max(0, pos - model.window + reduced_window)window_pos = enumerate(word_vocabs[start:(pos + model.window + 1 - reduced_window)], start)# 获取窗口内，除预测目标词之外，其他上下文词的idword2_indexes = [word2.index for pos2, word2 in window_pos if pos2 != pos]# 将词向量和doc向量求和成为上下文向量l1 = np_sum(word_vectors[word2_indexes], axis=0) + np_sum(doctag_vectors[doctag_indexes], axis=0)# 计算求和的向量总数count = len(word2_indexes) + len(doctag_indexes)# 这里是取向量求和之后的均值if model.cbow_mean and count > 1:l1 /= count# 计算更新的梯度，这里是复用了word2vec模型中train_cbow_pair的方法# 设置learn_vectors=False,表示不在train_cbow_pair方法内更新上下文向量# 而是获取到计算的梯度之后在本方法内更新neu1e = train_cbow_pair(model, word, word2_indexes, l1, alpha,learn_vectors=False, learn_hidden=learn_hidden)# 如果当前的方法不是取平均，说明计算的梯度是所有向量的共同梯度# 则要对梯度取平均if not model.cbow_mean and count > 1:neu1e /= count# 更新doc的向量if learn_doctags:for i in doctag_indexes:doctag_vectors[i] += neu1e * doctag_locks[i]# 更新词向量if learn_words:for i in word2_indexes:word_vectors[i] += neu1e * word_locks[i]return len(word_vocabs)

• 通过concatenate计算上下文向量

2. Distributed Bag ofWords version of Paragraph Vector (PV-DBOW)

2.1 模型架构图

有点类似word2vec中的Skip-gram模型，根据paragraph向量来预测窗口内的词向量。

2.2 相关代码理解

    def train_document_dbow(model, doc_words, doctag_indexes, alpha, work=None,train_words=False, learn_doctags=True, learn_words=True, learn_hidden=True,word_vectors=None, word_locks=None, doctag_vectors=None, doctag_locks=None):"""Update distributed bag of words model ("PV-DBOW") by training on a single document.Called internally from :meth:`~gensim.models.doc2vec.Doc2Vec.train` and:meth:`~gensim.models.doc2vec.Doc2Vec.infer_vector`.Notes-----This is the non-optimized, Python version. If you have cython installed, gensimwill use the optimized version from :mod:`gensim.models.doc2vec_inner` instead.Parameters----------model : :class:`~gensim.models.doc2vec.Doc2Vec`The model to train.doc_words : list of strThe input document as a list of words to be used for training. Each word will be looked up inthe model's vocabulary.doctag_indexes : list of intIndices into `doctag_vectors` used to obtain the tags of the document.alpha : floatLearning rate.work : np.ndarrayPrivate working memory for each worker.train_words : bool, optionalWord vectors will be updated exactly as per Word2Vec skip-gram training only if **both**`learn_words` and `train_words` are set to True.learn_doctags : bool, optionalWhether the tag vectors should be updated.learn_words : bool, optionalWord vectors will be updated exactly as per Word2Vec skip-gram training only if **both**`learn_words` and `train_words` are set to True.learn_hidden : bool, optionalWhether or not the weights of the hidden layer will be updated.word_vectors : object, optionalUNUSED.word_locks : object, optionalUNUSED.doctag_vectors : list of list of float, optionalVector representations of the tags. If None, these will be retrieved from the model.doctag_locks : list of float, optionalThe lock factors for each tag.Returns-------intNumber of words in the input document."""# doctag_vectors是否为空的判断，是为了区分当前是训练模式还是预测模式# 为空表示训练过程，从模型中直接读入# 不为空是预测过程，会预先生成一个随机向量传入if doctag_vectors is None:doctag_vectors = model.docvecs.doctag_syn0if doctag_locks is None:doctag_locks = model.docvecs.doctag_syn0_lockf# 这里复用的是word2vec中train_batch_sg方法，原理是通过当前词来预测上下文# 但是对于Docvec模型来说，当前词就是当前的paragraph vector，上下文就是段落中的每一个词# 因此context_vectors指定为当前的paragraph vectorif train_words and learn_words:train_batch_sg(model, [doc_words], alpha, work)for doctag_index in doctag_indexes:for word in doc_words:train_sg_pair(model, word, doctag_index, alpha, learn_vectors=learn_doctags, learn_hidden=learn_hidden,context_vectors=doctag_vectors, context_locks=doctag_locks)return len(doc_words)

3. Doc2vec的预测过程

3.1 预测原理

先给新的doc分配一个随机的向量，根据指定的模型，使用固定词向量和隐藏单元的向量不更新，

3.2 相关代码阅读

    def infer_vector(self, doc_words, alpha=None, min_alpha=None, epochs=None, steps=None):"""Infer a vector for given post-bulk training document.Notes-----Subsequent calls to this function may infer different representations for the same document.For a more stable representation, increase the number of steps to assert a stricket convergence.Parameters----------doc_words : list of strA document for which the vector representation will be inferred.预测的doc，是一个string类型的listalpha : float, optionalThe initial learning rate. If unspecified, value from model initialization will be reused.min_alpha : float, optionalLearning rate will linearly drop to `min_alpha` over all inference epochs. If unspecified,value from model initialization will be reused.epochs : int, optionalNumber of times to train the new document. Larger values take more time, but may improvequality and run-to-run stability of inferred vectors. If unspecified, the `epochs` valuefrom model initialization will be reused.steps : int, optional, deprecatedPrevious name for `epochs`, still available for now for backward compatibility: if`epochs` is unspecified but `steps` is, the `steps` value will be used.Returns-------np.ndarrayThe inferred paragraph vector for the new document."""if isinstance(doc_words, string_types):raise TypeError("Parameter doc_words of infer_vector() must be a list of strings (not a single string).")alpha = alpha or self.alphamin_alpha = min_alpha or self.min_alphaepochs = epochs or steps or self.epochs# 给一个新的doc生成一个随机的向量doctag_vectors, doctag_locks = self.trainables.get_doctag_trainables(doc_words, self.docvecs.vector_size)doctag_indexes = [0]work = zeros(self.trainables.layer1_size, dtype=REAL)if not self.sg:neu1 = matutils.zeros_aligned(self.trainables.layer1_size, dtype=REAL)alpha_delta = (alpha - min_alpha) / max(epochs - 1, 1)# 根据参数选择对应的模型：DM/DM-CONCAT/DBOWfor i in range(epochs):# 预测的过程中，固定词向量和隐藏单元不更新，只更新doc的向量：doctag_vectorsif self.sg:train_document_dbow(self, doc_words, doctag_indexes, alpha, work,learn_words=False, learn_hidden=False, doctag_vectors=doctag_vectors, doctag_locks=doctag_locks)# neu1参数目前是没有用的：unusedelif self.dm_concat:train_document_dm_concat(self, doc_words, doctag_indexes, alpha, work, neu1,learn_words=False, learn_hidden=False, doctag_vectors=doctag_vectors, doctag_locks=doctag_locks)else:train_document_dm(self, doc_words, doctag_indexes, alpha, work, neu1,learn_words=False, learn_hidden=False, doctag_vectors=doctag_vectors, doctag_locks=doctag_locks)alpha -= alpha_delta# 返回更新完成的paragraph vectorreturn doctag_vectors[0]
