1 功能

通过tb读取本地数据保存到FIFO，通过coe文件将转置后的地址数据保存在ROM中，读取FIFO的文件作为输入，读取ROM作为地址。通过地址变换，对矩阵进行转置，最终将转置后的矩阵保存在RAM中。

2 开发环境

Vivado

3 框架

在这里插入图片描述

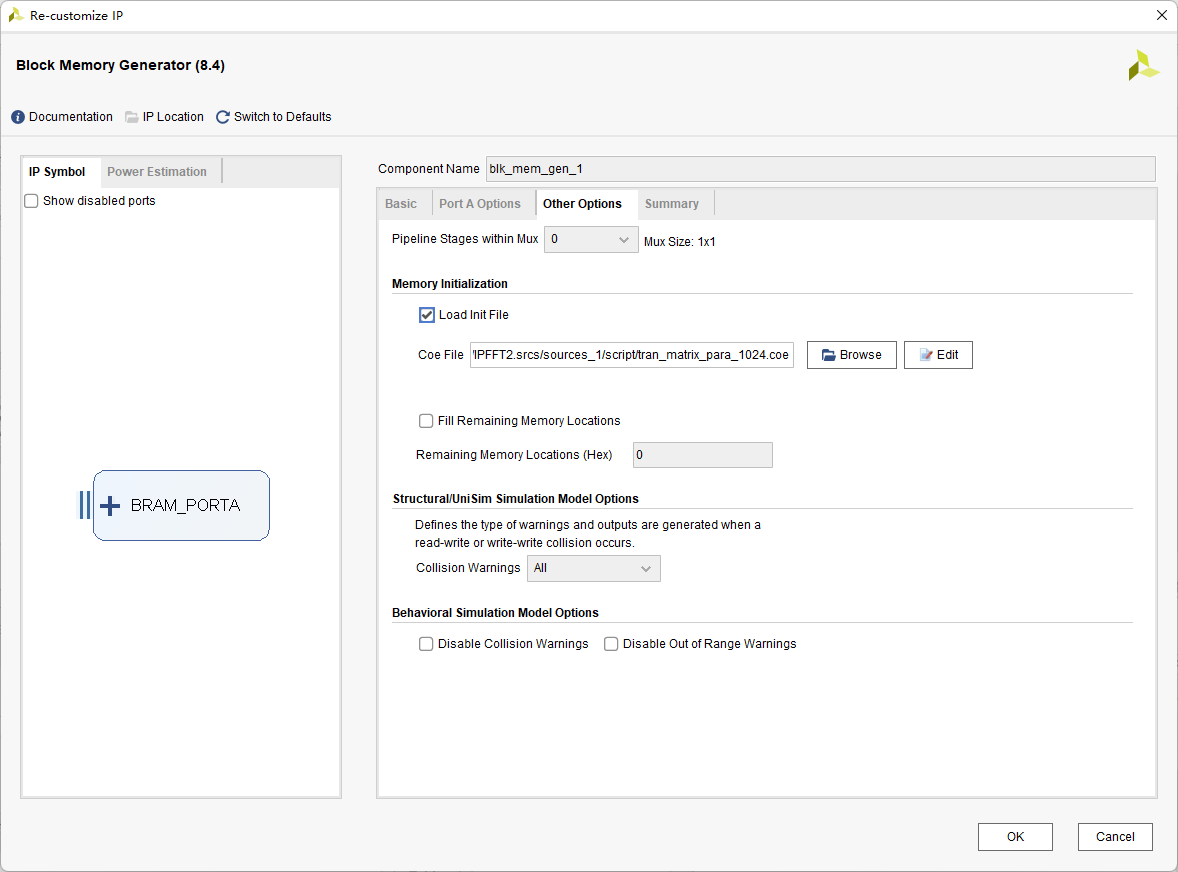

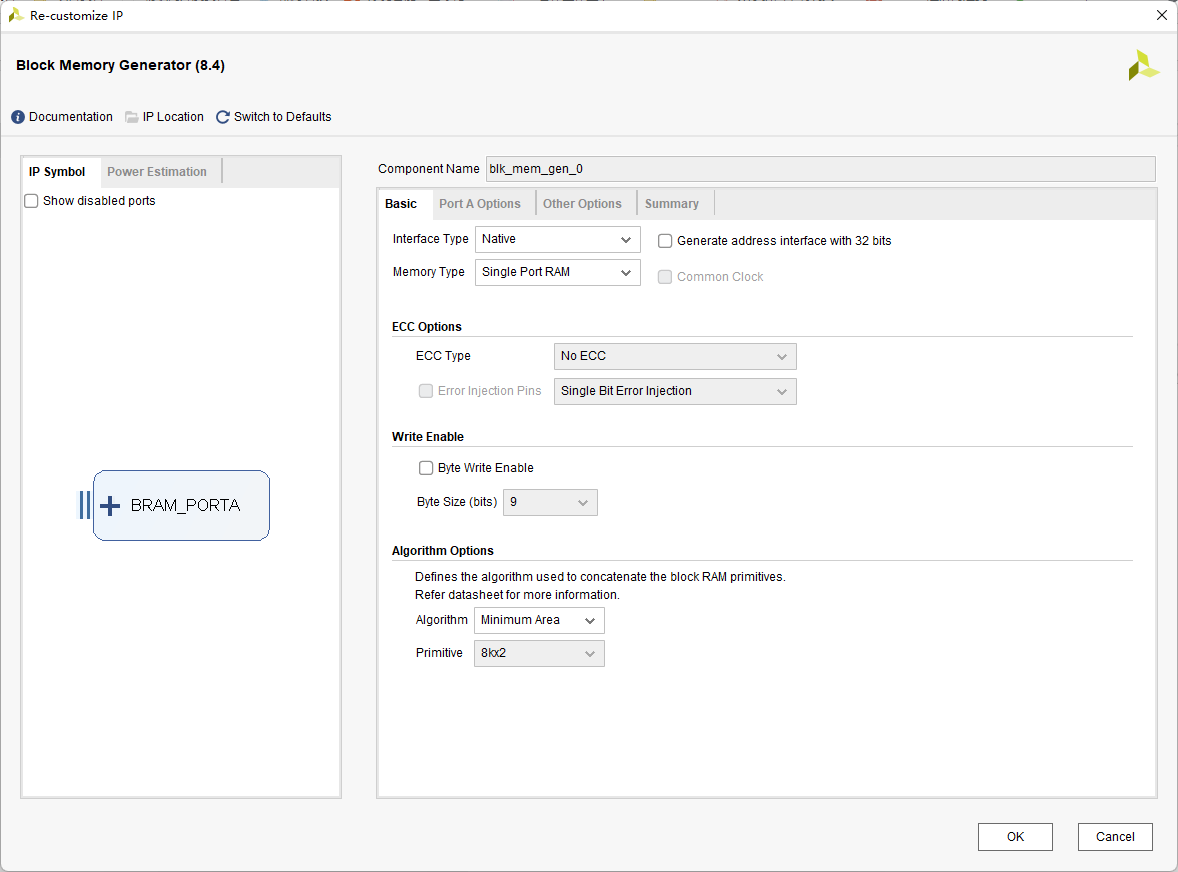

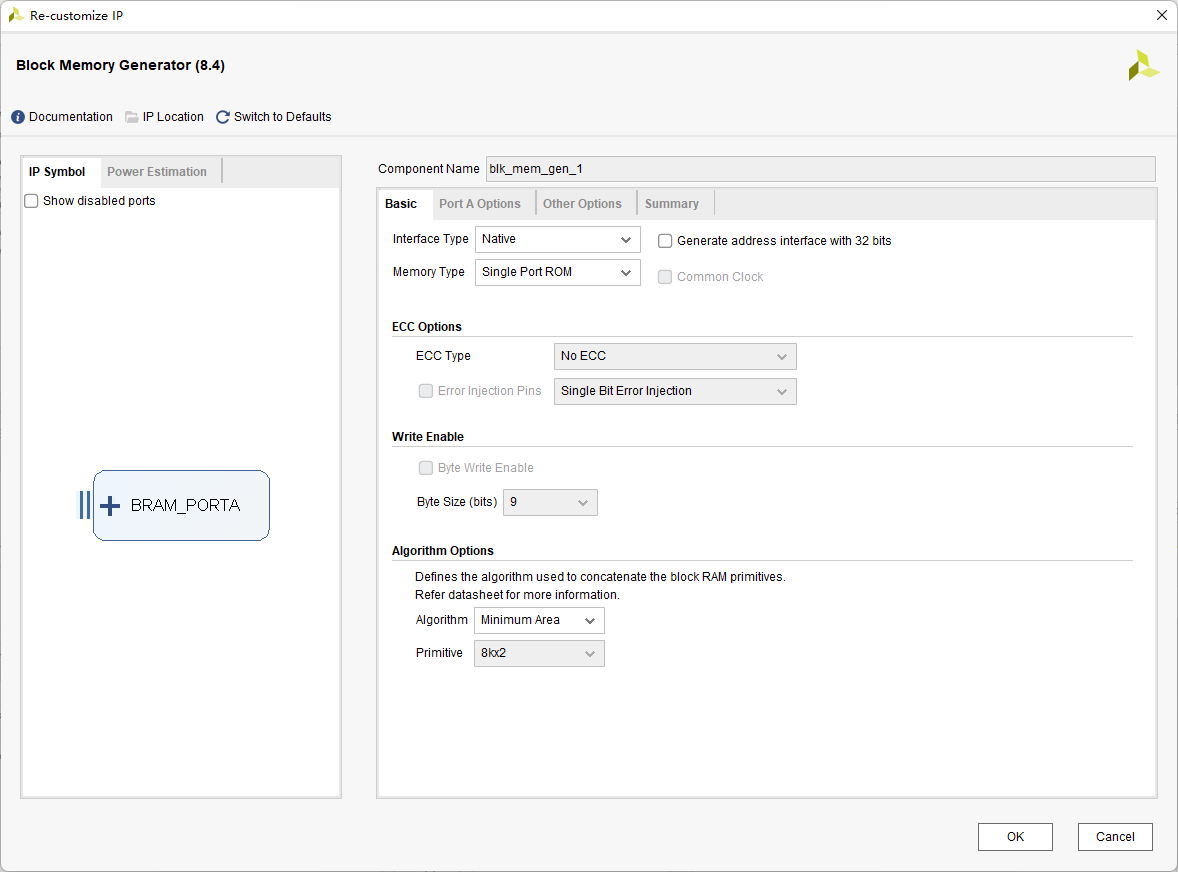

包含IP：FIFO、RAM和ROM

4 转置公式

来源见 Reference
在这里插入图片描述

5 Simulation

在这里插入图片描述

第一部分

通过tb将数据写到FIFO中，此部分数据为两路(1:32)*32。
这里的数据也就是转置前的数据，每行从1增长到32，总共32行。

第二部分

从FIFO中读取数据。
从ROM中读取地址，此地址为转置后的地址。
将FIFO中的数据按ROM中的地址写入到RAM中。

第三部分

读取RAM，可以从波形上看到转置的效果。
本来每行是1到32逐渐增加，现在每行为1到32中的一个数。
转置成功！

6 Matlab代码

产生FIFO数据

%% export to bin file% specifying a signed, fixed-point data type, rounding towards negative infinity, and saturate on overflow.
struct.mode = 'fixed';
struct.roundmode = 'floor';
struct.overflowmode = 'saturate';
struct.format = [8 0];    % 8位二进制数，0位小数，默认1位符号位
q=quantizer(struct);miu1_real = zeros(32,32);
for i = 1:32miu1_real(:,i) = i;
end
miu1_imag = miu1_real;% 量化值与实际值的误差
q_miu1_real = quantize(q,miu1_real);
q_miu1_imag = quantize(q,miu1_imag);
disp("最大量化误差");
disp(max(max([abs(miu1_real-q_miu1_real),abs(miu1_imag-q_miu1_imag)])));% 按行转为列向量
real_o = num2bin(q, reshape(miu1_real', [], 1));
imag_o = num2bin(q, reshape(miu1_imag', [], 1));
% 按列转为列向量
% real_o = num2bin(q,miu1_real(:));
% imag_o = num2bin(q,miu1_imag(:)); %% 将数据写入TXT
fid1=fopen('F:\MyTest\FPGA\IPFFT2\IPFFT2.srcs\sources_1\script/real_order.txt','wt');
fid2=fopen('F:\MyTest\FPGA\IPFFT2\IPFFT2.srcs\sources_1\script/imag_order.txt','wt');for i=1:32*32fwrite(fid1,real_o(i,:));fprintf(fid1,'\n');fwrite(fid2,imag_o(i,:));fprintf(fid2,'\n');
end
fclose(fid1);
fclose(fid2);

数据
在这里插入图片描述
imag_order内容一致

产生转置矩阵

close all; clear; clc
%% 生成方阵
a = 1:32*32;
a_exp = reshape(a, 32, 32);
a_exp = a_exp';
disp(a_exp);
%% 产生转置系数
m = 32;
n = 32;
% addr = (i-1)*n+j;
addr = 1:32*32;
% disp(addr);
i = floor((addr-1)/n) + 1;
j = mod((addr-1),n) + 1;
addr_t = (j-1)*m+i;
addr_t = addr_t-1;  % 从0开始
%% 利用转置系数对方阵进行转置
b = zeros(1, 32*32);
for i = 1:32*32b(i) = a(addr_t(i)+1);
end
b_shrink = reshape(b, 32, 32);
b_shrink = b_shrink';
disp(b_shrink);%% 生成coe
N = 32*32;
fid = fopen('F:\MyTest\FPGA\IPFFT2\IPFFT2.srcs\sources_1\script/tran_matrix_para_1024.coe','wt');
%- standard format
fprintf( fid, 'memory_initialization_radix = 10;\n');
fprintf( fid, 'memory_initialization_vector =\n');
%- write data in coe file
for i = 1:1:Nif(i == N)fprintf(fid,'%d;',addr_t(i));  elsefprintf(fid,'%d,\n',addr_t(i));  end
end
fclose(fid);

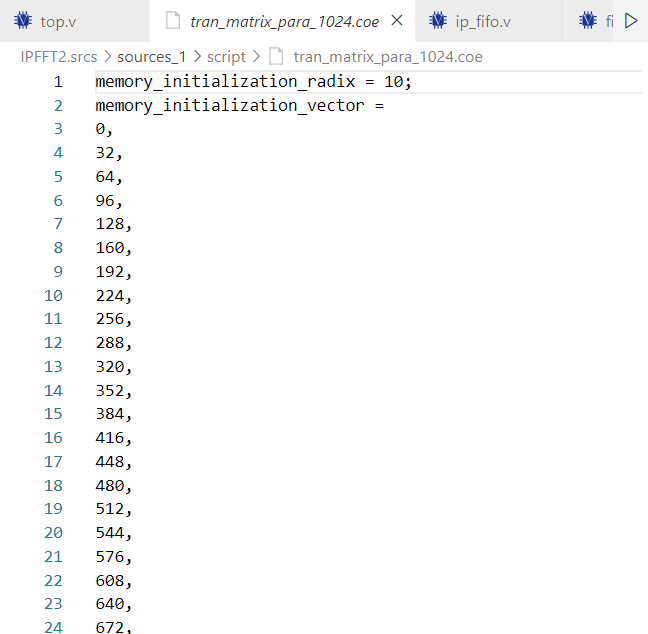

数据
在这里插入图片描述

7 HDL

仿真文件

module tb_ip_fft2;reg  			clk;
reg  			rst_n;reg [7:0] 		data_real [1023:0];
reg [7:0] 		data_imag [1023:0];reg [7:0] 		dati_in;
reg [7:0] 		datq_in;wire [15:0] 	fifo_din;
reg [9:0]  		count=0;integer i;initial  beginclk=1;rst_n=0;dati_in=0;datq_in=0;// (1:32)*32$readmemb("F:/MyTest/FPGA/IPFFT2/IPFFT2.srcs/sources_1/script/real_order.txt",data_real);$readmemb("F:/MyTest/FPGA/IPFFT2/IPFFT2.srcs/sources_1/script/imag_order.txt",data_imag);// for(i=0; i<127; i=i+1)// 	$display("%h %h", data_real[i], data_imag[i]);#100rst_n=1;
endalways #5  clk=~clk;assign fifo_din = {datq_in, dati_in};top  u_top (.clk                     ( clk                 ),.rst_n                   ( rst_n               ),.fifo_din                ( fifo_din            ),.fifo_wr_en_pre          ( fifo_wr_en_pre      )
);always @(posedge  clk)  beginif (!rst_n) begincount <= 1'b0;dati_in <= 1'b0;datq_in <= 1'b0;endelse if ( fifo_wr_en_pre ) begindati_in <= data_real[count];datq_in <= data_imag[count];count <= count+1'b1;endelse begincount 	<= count 	;dati_in <= dati_in	;datq_in <= datq_in	;end
endendmodule

顶层文件

module top(input   clk                         ,input   rst_n                       ,input [15:0] 	fifo_din            ,output 		fifo_wr_en_pre);wire                fifo_wr_en          ;// wire                fifo_wr_en_pre      ;wire                fifo_rd_en          ;wire    [1:0]            fifo_rd_en_pre      ;wire    [15:0]      fifo_dout           ;wire    [27 : 0] 	ram_douta           ;ip_fifo  u_ip_fifo (.clk                     ( clk              ),.rst_n                   ( rst_n            ),.fifo_din                ( fifo_din         ),.fifo_dout               ( fifo_dout         ),.fifo_wr_en              ( fifo_wr_en       ),.fifo_wr_en_pre          ( fifo_wr_en_pre   ),.fifo_rd_en              ( fifo_rd_en       ),.fifo_rd_en_pre          ( fifo_rd_en_pre   ));//=======================================ip_ram  u_ip_ram (.clk                     ( clk     ),.rst_n                   ( rst_n   ),.fifo_rd_en_pre          ( fifo_rd_en_pre   ),.fifo_dout               ( fifo_dout   ),.ram_douta               ( ram_douta   ));endmodule

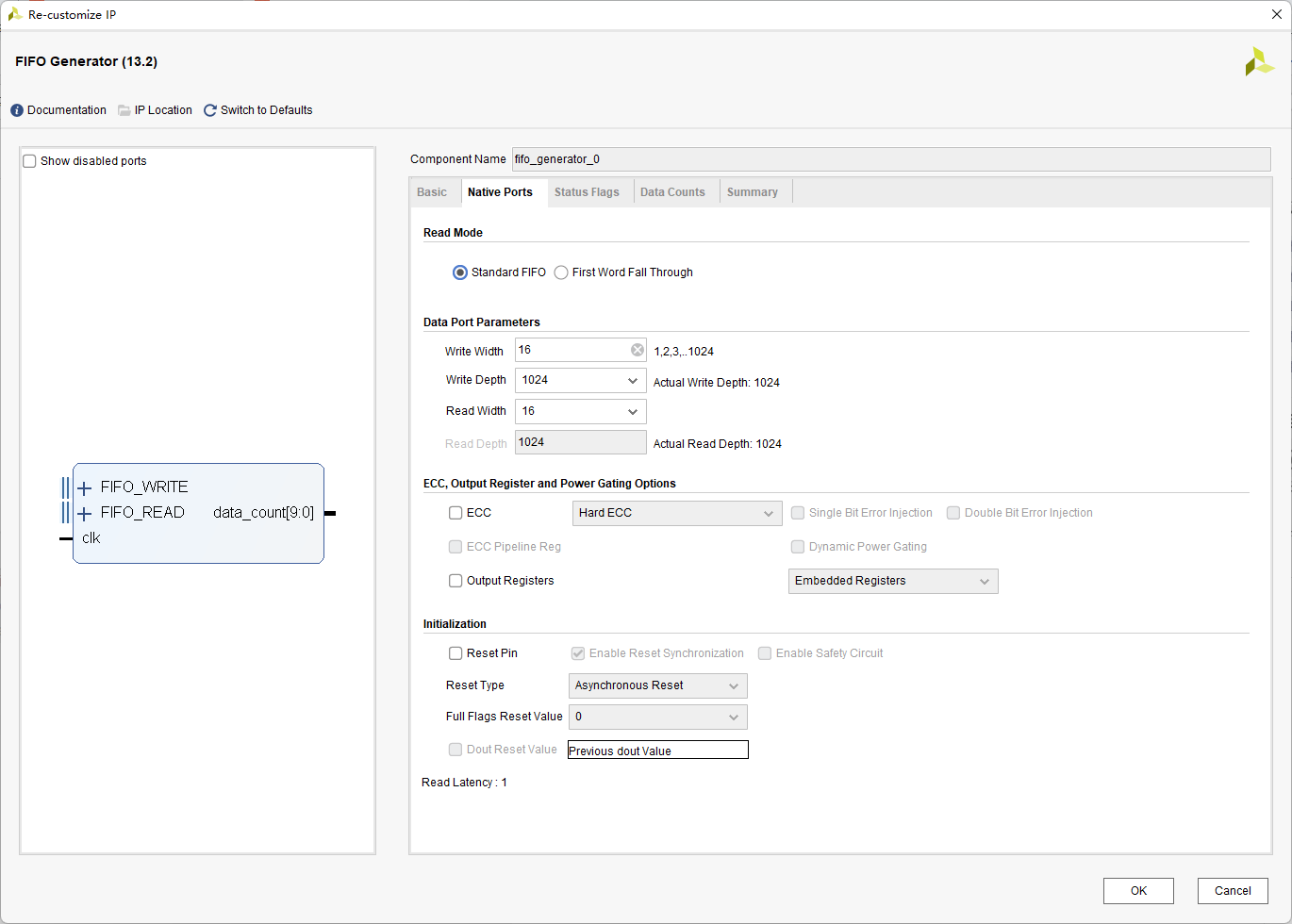

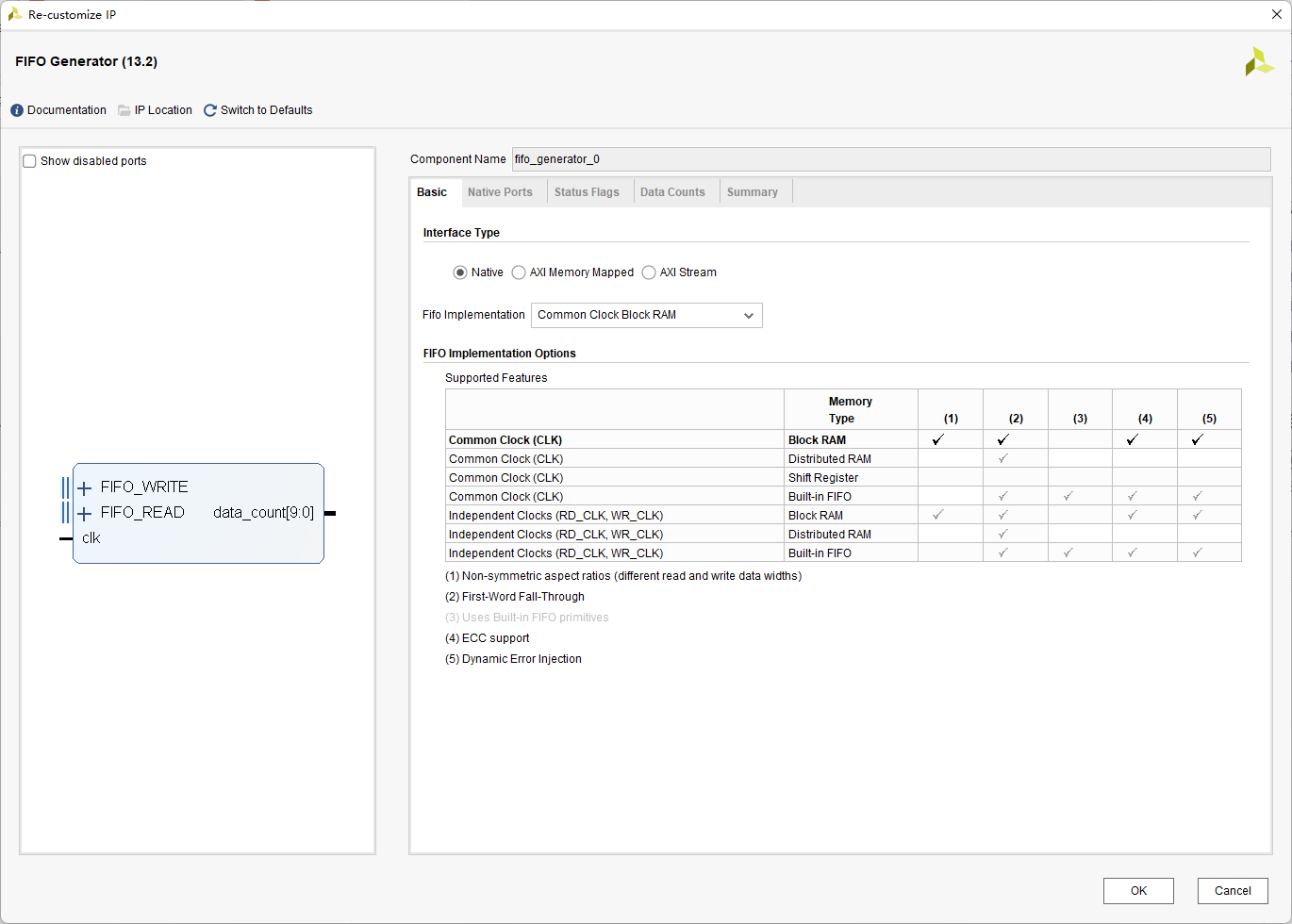

FIFO顶层文件

module ip_fifo(input   clk                         ,input   rst_n                       ,input [15:0] 	fifo_din			,output 	[15 : 0] 	fifo_dout		,output 		    	fifo_wr_en			,output 		    	fifo_wr_en_pre		,output 				fifo_rd_en			,			output 	[1:0]		fifo_rd_en_pre					);// wire	[15 : 0]	fifo_dout		;wire				full			;wire				empty			;wire	[9 : 0]		data_count		;// wire 				fifo_wr_en	;wire 				almost_full		;wire 				almost_empty	;fifo_generator_0 u_fifo (.clk			(clk),               	// input wire clk.din			(fifo_din),          	// input wire [15 : 0] din.wr_en			(fifo_wr_en),   		// input wire wr_en.rd_en			(fifo_rd_en),             	// input wire rd_en.dout			(fifo_dout),         	// output wire [15 : 0] dout.full			(full),              	// output wire full.almost_full	(almost_full),  		// output wire almost_full.empty			(empty),            	// output wire empty.almost_empty	(almost_empty),			// output wire almost_empty.data_count		(data_count)     		// output wire [9 : 0] data_count
);fifo_wr  u_fifo_wr (.clk                     ( clk            ),.rst_n                   ( rst_n          ),.almost_empty            ( almost_empty   ),.almost_full             ( almost_full    ),.fifo_din                ( fifo_din   ),.fifo_wr_en_pre             ( fifo_wr_en_pre     ),.fifo_wr_en         		( fifo_wr_en     )
);fifo_rd  u_fifo_rd (.clk                     ( clk            ),.rst_n                   ( rst_n          ),.fifo_out                ( fifo_dout      ),.almost_full             ( almost_full    ),.almost_empty            ( almost_empty   ),.fifo_rd_en              ( fifo_rd_en     ),.fifo_rd_en_pre              ( fifo_rd_en_pre     )
);endmodule

FIFO读

module fifo_rd(input clk,input rst_n,input [15:0] fifo_out,input almost_full,input almost_empty,output reg fifo_rd_en,output reg [1:0] fifo_rd_en_pre);// reg fifo_rd_en;reg [1:0] state;reg almost_full_d0;reg almost_full_syn;reg [3:0] dly_cnt;always @(posedge clk ) beginif (!rst_n) beginalmost_full_d0 <= 1'b0;almost_full_syn <= 1'b0;endelse beginalmost_full_d0 <= almost_full;almost_full_syn <= almost_full_d0;endendalways @(posedge clk ) beginif (!rst_n) beginfifo_rd_en_pre[0] <= 1'b0;state <= 2'd0; dly_cnt <= 4'd0;endelsecase (state)2'd0: if(almost_full_syn)state <= 2'd1;elsestate <= state;2'd1:if (dly_cnt == 4'd9) begindly_cnt <= 4'd0;state <= 2'd2;endelsedly_cnt <= dly_cnt +1'b1;2'd2:if (almost_empty) beginfifo_rd_en_pre[0] <= 1'b0;state <= 2'd3; endelsefifo_rd_en_pre[0] <= 1'b1;2'd3:state <= state;default: state <= 2'd0;endcaseendalways @(posedge clk ) beginfifo_rd_en_pre[1] <= fifo_rd_en_pre[0];fifo_rd_en <= fifo_rd_en_pre[1];endendmodule

FIFO写

module fifo_wr(input clk,input rst_n,input almost_empty,input almost_full,input [15:0]         fifo_din    ,output reg          fifo_wr_en,     output reg          fifo_wr_en_pre  // 涓轰簡娑堥櫎鎵撲竴鎷嶅fifo杈撳叆鐨勫奖鍝�);reg [1:0] state;reg almost_empty_d0;reg almost_empty_syn;reg [3:0] dly_cnt;reg [15:0]    fifo_wr_data;// always @(posedge clk ) beginif (!rst_n) beginalmost_empty_d0 <= 1'b0;almost_empty_syn <= 1'b0;endelse beginalmost_empty_d0 <= almost_empty;almost_empty_syn <= almost_empty_d0;endendalways @(posedge clk ) beginif (!rst_n) beginfifo_wr_en_pre <= 1'b0;fifo_wr_data <=16'd0;state <= 2'd0;dly_cnt <= 4'd0;endelse begincase (state)//  绛夊緟FIFO绌轰俊鍙�2'd0: if (almost_empty_syn) state <= 2'd1;elsestate <= state;// 寤舵椂2'd1:if (dly_cnt == 4'd9) begindly_cnt <= 4'd0;state <= 2'd2;fifo_wr_en_pre <= 1'b0; // 姝ゅ涓�1鐨勮瘽锛屽垯榛樿鏁版嵁浼氳鍐欏叆endelsedly_cnt <= dly_cnt +4'd1;// 鍐欐暟鎹�2'd2:if (almost_full) beginfifo_wr_en_pre <=1'b0;fifo_wr_data <= 16'h0;state <= 2'd3;end    else beginfifo_wr_en_pre <=1'b1;fifo_wr_data <= fifo_wr_data +1'd1;end// 姝诲惊鐜�2'd3:state <= state;default: state <= 2'd0;endcaseendendalways @(posedge clk ) beginfifo_wr_en <= fifo_wr_en_pre;end
endmodule

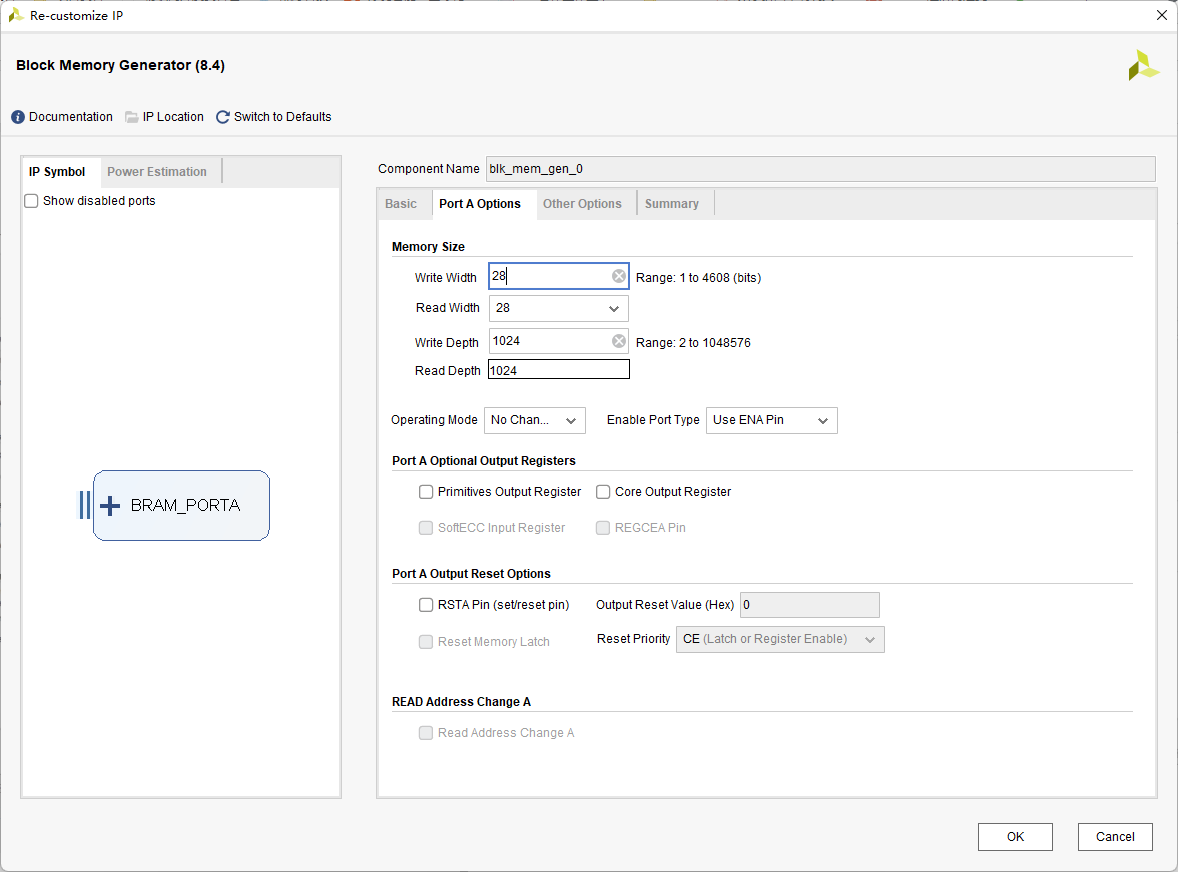

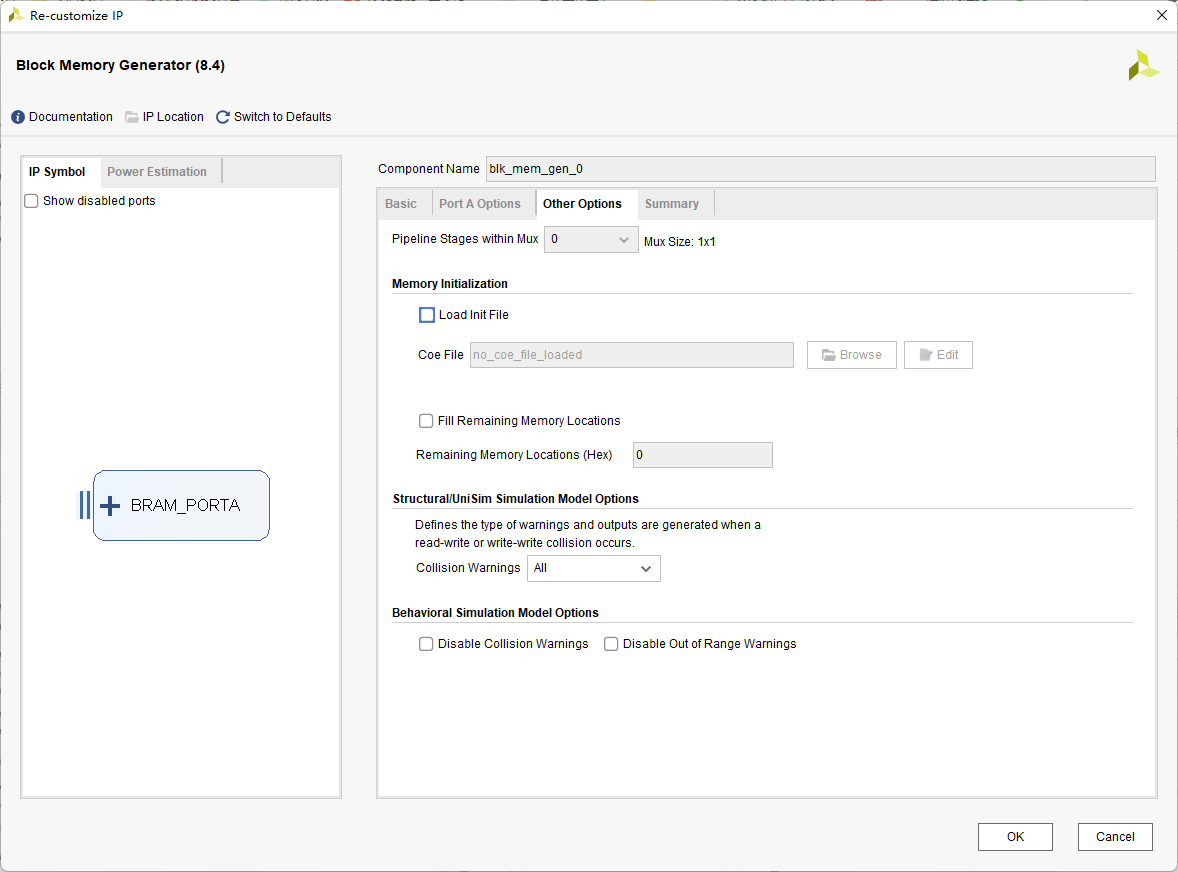

RAM顶层文件

module ip_ram(input   clk                         ,input   rst_n                       ,input   [15:0] 	    fifo_dout			,	input 	[1:0]		    fifo_rd_en_pre		,output  [27 : 0] 	ram_douta);// ==========rom==============reg [9:0] rom_addra;reg [9:0] rom_addra_pre;wire [10 : 0] rom_douta;reg rom_ena;//===========ram  ==============reg 			ram_ena		;reg [0 : 0] 	ram_wea		;reg [9 : 0] 	ram_addra	;reg [27 : 0] 	ram_dina	;//=============================reg [1:0] state;parameter START = 2'd0, WRITE = 2'd1, READ = 2'd2, WAIT = 2'd3;reg [9:0] ram_read_counter;always @(posedge clk ) beginif(!rst_n) beginram_read_counter <= 10'b0;endelse beginif(state == READ)ram_read_counter <= ram_read_counter + 1'b1;endendalways @(posedge clk ) beginif(!rst_n)beginstate <= START;endelse begincase(state)START:if (fifo_rd_en_pre[0] == 1'b1) beginstate <= WRITE;endelse beginstate <=state;end// 鍐檙amWRITE:if (fifo_rd_en_pre[0] == 1'b1) beginstate <= state;endelse beginstate <= READ;end// read ramREAD:if(ram_read_counter == 10'd1023)state <= WAIT;elsestate <= state;// if (fifo_rd_en_pre[0] == 1'b0) begin//     state <= state;// end// else begin//     state <= WAIT;// endWAIT:state <= state;default:state <= START;endcaseendendalways @(posedge clk ) beginif(!rst_n) beginram_wea <= 1'b0;endelse begincase (state)START: ram_wea <= 1'b0;WRITE: ram_wea <= 1'b1;READ : ram_wea <= 1'b0;WAIT : ram_wea <= 1'b0;default: ram_wea <= 1'b0;endcaseendendalways @(posedge clk ) beginif(!rst_n) beginram_ena <= 1'b0;endelse begincase (state)START: ram_ena <= 1'b0;WRITE: ram_ena <= 1'b1;READ : ram_ena <= 1'b1;WAIT : ram_ena <= 1'b0;default: ram_ena <= 1'b0;endcaseendendalways @(posedge clk ) beginif(!rst_n)beginram_addra <= 10'b0;endelse begincase (state)START: ram_addra <= 10'b0;WRITE: ram_addra <= rom_douta;READ : ram_addra <= ram_addra + 1'b1;WAIT : ram_addra <= 10'b0;default: ram_addra <= 10'b0;endcaseendendalways @(posedge clk ) beginif(!rst_n)beginram_dina <= 28'b0;endelse begincase (state)START: ram_dina <= 28'b0;WRITE: ram_dina <= fifo_dout;READ : ram_dina <= 28'b0;WAIT : ram_dina <= 28'b0;default: ram_dina <= 28'b0;endcaseendendram_wr  u_ram_wr (.clk                     ( clk              ),.rst_n                   ( rst_n            ),.fifo_dout               ( fifo_dout        ),.fifo_rd_en_pre          ( fifo_rd_en_pre   ),.rom_douta               ( rom_douta        ),.ram_ena                 ( ram_ena          ),.ram_wea                 ( ram_wea          ),.ram_addra               ( ram_addra        ),.ram_dina                ( ram_dina         ));blk_mem_gen_0 u_ram (.clka	(clk),    				// input wire clka.ena	(ram_ena),  		   	// input wire ena.wea	(ram_wea),  		   	// input wire [0 : 0] wea.addra	(ram_addra),		 	// input wire [9 : 0] addra.dina	(ram_dina), 		  	// input wire [27 : 0] dina.douta	(ram_douta) 			// output wire [27 : 0] douta);// ============rom==============================always @(posedge clk ) beginif(!rst_n)beginrom_ena <= 1'b0;endelse begincase (state)START:      rom_ena <= 1'b0;WRITE:      rom_ena <= 1'b1;READ :      rom_ena <= 1'b0;WAIT :      rom_ena <= 1'b0;default:    rom_ena <= 1'b0;endcaseendendalways @(posedge clk ) beginif(!rst_n)beginrom_addra <= 10'b0;rom_addra_pre <= 10'b0;endelse begincase (state)START:      rom_addra_pre <= 10'b0;WRITE:      rom_addra_pre <= rom_addra_pre + 1'b1;READ :      rom_addra_pre <= 10'b0;WAIT :      rom_addra_pre <= 10'b0;default:    rom_addra_pre <= 10'b0;endcaserom_addra <= rom_addra_pre; // 鐢变簬ena鏃讹紝addr浠�1寮�濮嬶紝鎵�浠ユ墦涓媿瀛愪粠0寮�濮�endendblk_mem_gen_1 u_rom (.clka       (clk)           ,                    // input wire clka.ena        (rom_ena)       ,                      // input wire ena.addra      (rom_addra)     ,                  // input wire [9 : 0] addra.douta      (rom_douta)                   // output wire [10 : 0] douta);// =====================================endmodule
