行为识别TSM训练ucf101数据集

序言

最近有个行为检测的需求，打算用行为识别做，纯小白入这个方向，啃了两周的TSM原理和源码，训练好自己的数据集后，发现好像没法应用到自己的需求场景？？玛德！算了，还是要记录一下。原理就没别要讲了，网上很多，感兴趣的可以自己去搜。

一、数据准备

首先把代码git下来temporal-shift-module，然后作者提供了一个mobilenetv2版本的手势识别在线demo，使用了tvm推理，在Jeston Nano能够达到实时，看着还不错的样子，赶紧试一下，可是我没有nano怎么办？没关系，修改一下。
在这里插入图片描述
该demo放在online_demo目录中的main.py文件，可是没有nano，又不想安装tvm怎么办？问题不大，修改一下，用pytorch推理！把改下的模型下载下来，README.md中有提供下载链接，推荐使用迅雷下载。在noline_demo下新建一个demo.py文件，将tvm的那部分推理换成pytorch的推理即可，基于main.py修改后的代码如下：

import torch
from online_demo.mobilenet_v2_tsm import MobileNetV2
import cv2
import numpy as np
import torchvision
from PIL import Image
import timeSOFTMAX_THRES = 1
HISTORY_LOGIT = True
REFINE_OUTPUT = Trueshift_buffer = [torch.zeros([1, 3, 56, 56]),torch.zeros([1, 4, 28, 28]),torch.zeros([1, 4, 28, 28]),torch.zeros([1, 8, 14, 14]),torch.zeros([1, 8, 14, 14]),torch.zeros([1, 8, 14, 14]),torch.zeros([1, 12, 14, 14]),torch.zeros([1, 12, 14, 14]),torch.zeros([1, 20, 7, 7]),torch.zeros([1, 20, 7, 7])]class GroupScale(object):""" Rescales the input PIL.Image to the given 'size'.'size' will be the size of the smaller edge.For example, if height > width, then image will berescaled to (size * height / width, size)size: size of the smaller edgeinterpolation: Default: PIL.Image.BILINEAR"""def __init__(self, size, interpolation=Image.BILINEAR):self.worker = torchvision.transforms.Scale(size, interpolation)def __call__(self, img_group):return [self.worker(img) for img in img_group]class GroupCenterCrop(object):def __init__(self, size):self.worker = torchvision.transforms.CenterCrop(size)def __call__(self, img_group):return [self.worker(img) for img in img_group]class Stack(object):def __init__(self, roll=False):self.roll = rolldef __call__(self, img_group):if img_group[0].mode == 'L':return np.concatenate([np.expand_dims(x, 2) for x in img_group], axis=2)elif img_group[0].mode == 'RGB':if self.roll:return np.concatenate([np.array(x)[:, :, ::-1] for x in img_group], axis=2)else:return np.concatenate(img_group, axis=2)class ToTorchFormatTensor(object):""" Converts a PIL.Image (RGB) or numpy.ndarray (H x W x C) in the range [0, 255]to a torch.FloatTensor of shape (C x H x W) in the range [0.0, 1.0] """def __init__(self, div=True):self.div = divdef __call__(self, pic):if isinstance(pic, np.ndarray):# handle numpy arrayimg = torch.from_numpy(pic).permute(2, 0, 1).contiguous()else:# handle PIL Imageimg = torch.ByteTensor(torch.ByteStorage.from_buffer(pic.tobytes()))img = img.view(pic.size[1], pic.size[0], len(pic.mode))# put it from HWC to CHW format# yikes, this transpose takes 80% of the loading time/CPUimg = img.transpose(0, 1).transpose(0, 2).contiguous()return img.float().div(255) if self.div else img.float()class GroupNormalize(object):def __init__(self, mean, std):self.mean = meanself.std = stddef __call__(self, tensor):rep_mean = self.mean * (tensor.size()[0] // len(self.mean))rep_std = self.std * (tensor.size()[0] // len(self.std))# TODO: make efficientfor t, m, s in zip(tensor, rep_mean, rep_std):t.sub_(m).div_(s)return tensordef get_transform():cropping = torchvision.transforms.Compose([GroupScale(256),GroupCenterCrop(224),])transform = torchvision.transforms.Compose([cropping,Stack(roll=False),ToTorchFormatTensor(div=True),GroupNormalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225])])return transformdef transform(frame: np.ndarray):# 480, 640, 3, 0 ~ 255frame = cv2.resize(frame, (224, 224))  # (224, 224, 3) 0 ~ 255frame = frame / 255.0  # (224, 224, 3) 0 ~ 1.0frame = np.transpose(frame, axes=[2, 0, 1])  # (3, 224, 224) 0 ~ 1.0frame = np.expand_dims(frame, axis=0)  # (1, 3, 480, 640) 0 ~ 1.0return framedef process_output(idx_, history):# idx_: the output of current frame# history: a list containing the history of predictionsif not REFINE_OUTPUT:return idx_, historymax_hist_len = 20  # max history buffer# mask out illegal action# 等于这些类时默认为2if idx_ in [7, 8, 21, 22, 3]:idx_ = history[-1]# use only single no action class# 做其他事情默认也为2if idx_ == 0:idx_ = 2# history smoothingif idx_ != history[-1]:if not (history[-1] == history[-2]):  # and history[-2] == history[-3]):idx_ = history[-1]history.append(idx_)history = history[-max_hist_len:]  return history[-1], history  # 返回本帧结果和历史结果catigories = ["Doing other things",  # 0"Drumming Fingers",  # 1"No gesture",  # 2"Pulling Hand In",  # 3"Pulling Two Fingers In",  # 4"Pushing Hand Away",  # 5"Pushing Two Fingers Away",  # 6"Rolling Hand Backward",  # 7"Rolling Hand Forward",  # 8"Shaking Hand",  # 9"Sliding Two Fingers Down",  # 10"Sliding Two Fingers Left",  # 11"Sliding Two Fingers Right",  # 12"Sliding Two Fingers Up",  # 13"Stop Sign",  # 14"Swiping Down",  # 15"Swiping Left",  # 16"Swiping Right",  # 17"Swiping Up",  # 18"Thumb Down",  # 19"Thumb Up",  # 20"Turning Hand Clockwise",  # 21"Turning Hand Counterclockwise",  # 22"Zooming In With Full Hand",  # 23"Zooming In With Two Fingers",  # 24"Zooming Out With Full Hand",  # 25"Zooming Out With Two Fingers"  # 26
]# catigories = [
#     "做其他事情",  # 0
#     "Drumming Fingers",  # 1
#     "没有手势",  # 2
#     "Pulling Hand In",  # 3
#     "把两根手指往里拉",  # 4
#     "手推掉",  # 5
#     "推开两根手指",  # 6
#     "向后滚动手",  # 7
#     "向前滚动手",  # 8
#     "颤抖的手",  # 9
#     "向下滑动两根手指",  # 10
#     "向左滑动两根手指",  # 11
#     "向右滑动两根手指",  # 12
#     "向上滑动两根手指",  # 13
#     "停止手势",  # 14
#     "刷下来",  # 15
#     "向左刷",  # 16
#     "向右刷",  # 17
#     "向上刷",  # 18
#     "拇指向下",  # 19
#     "拇指向上",  # 20
#     "顺时针",  # 21
#     "逆时针",  # 22
#     "全手放大",  # 23
#     "两根手指放大",  # 24
#     "全手缩小",  # 25
#     "Z两根手指缩小"  # 26
# ]n_still_frame = 0WINDOW_NAME = 'Video Gesture Recognition'def main():torch_module = MobileNetV2(n_class=27)torch_module.load_state_dict(torch.load(r"H:\github\TSM\online_demo\mobilenetv2_jester_online.pth.tar"))   # 加载模型，路径自己修改torch_module.eval()print("Open camera...")cap = cv2.VideoCapture(0)  # 打开摄像头print(cap)# set a lower resolution for speed up   为加速设置一个较低的分辨率cap.set(cv2.CAP_PROP_FRAME_WIDTH, 320)cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 240)# env variables  窗口变量full_screen = Falsecv2.namedWindow(WINDOW_NAME, cv2.WINDOW_NORMAL)cv2.resizeWindow(WINDOW_NAME, 640, 480)cv2.moveWindow(WINDOW_NAME, 0, 0)cv2.setWindowTitle(WINDOW_NAME, WINDOW_NAME)t = Noneindex = 0print("Build transformer...")transform = get_transform()  # 预处理print("Build Executor...")idx = 0history = [2]history_logit = []history_timing = []i_frame = -1print("Ready!")while True:  # 读取摄像头i_frame += 1_, img = cap.read()  # (480, 640, 3) 0 ~ 255if i_frame % 2 == 0:  # skip every other frame to obtain a suitable frame rate ， 隔帧抽取t1 = time.time()img_tran = transform([Image.fromarray(img).convert('RGB')])  # 图片预处理input_var = torch.autograd.Variable(img_tran.view(1, 3, img_tran.size(1), img_tran.size(2)))  # 张量转换with torch.no_grad():feat, *buffer = torch_module(input_var, *shift_buffer)if SOFTMAX_THRES > 0:feat_np = feat.numpy().reshape(-1)feat_np -= feat_np.max()softmax = np.exp(feat_np) / np.sum(np.exp(feat_np))print(max(softmax))if max(softmax) > SOFTMAX_THRES:idx_ = np.argmax(feat.numpy(), axis=1)[0]else:idx_ = idxprint(idx_)else:idx_ = np.argmax(feat.numpy(), axis=1)[0]  # 得到结果值if HISTORY_LOGIT:  # 平均history_logit.append(feat.numpy())history_logit = history_logit[-12:]avg_logit = sum(history_logit)idx_ = np.argmax(avg_logit, axis=1)[0]idx, history = process_output(idx_, history)  # 本帧结果、历史帧结果（最大保留20帧）t2 = time.time()print(f"{index} {catigories[idx]}")current_time = t2 - t1  # 推理时间# 识别效果展示部分img = cv2.resize(img, (640, 480))img = img[:, ::-1]height, width, _ = img.shapelabel = np.zeros([height // 10, width, 3]).astype('uint8') + 255cv2.putText(label, 'Prediction: ' + catigories[idx],(0, int(height / 16)),cv2.FONT_HERSHEY_SIMPLEX,0.7, (0, 0, 0), 2)cv2.putText(label, '{:.1f} Vid/s'.format(1 / current_time),(width - 170, int(height / 16)),cv2.FONT_HERSHEY_SIMPLEX,0.7, (0, 0, 0), 2)img = np.concatenate((img, label), axis=0)cv2.imshow(WINDOW_NAME, img)key = cv2.waitKey(1)if key & 0xFF == ord('q') or key == 27:  # exitbreakelif key == ord('F') or key == ord('f'):  # full screenprint('Changing full screen option!')full_screen = not full_screenif full_screen:print('Setting FS!!!')cv2.setWindowProperty(WINDOW_NAME, cv2.WND_PROP_FULLSCREEN,cv2.WINDOW_FULLSCREEN)else:cv2.setWindowProperty(WINDOW_NAME, cv2.WND_PROP_FULLSCREEN,cv2.WINDOW_NORMAL)if t is None:t = time.time()else:nt = time.time()index += 1t = ntcap.release()cv2.destroyAllWindows()main()

在这里插入图片描述

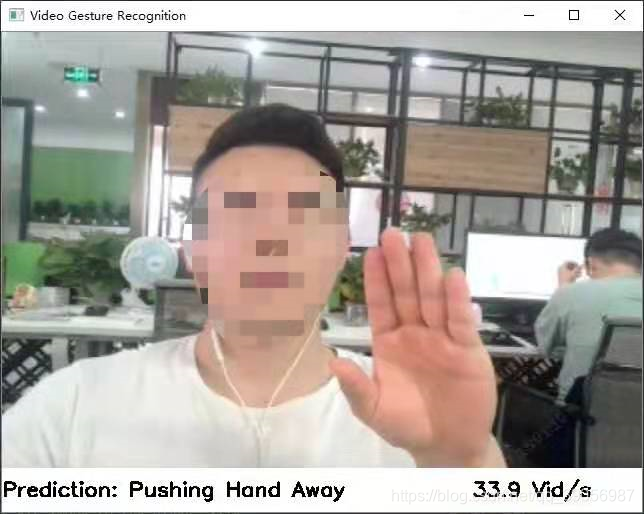

个人隐私打个码，不得不吐槽的是，效果真的不太行。。。。我想说的是这个demo也太辣鸡了吧，虽然不知道作者是咋训练的，亦或是因为我pytorch推理的原因哪里没设置好，如果有按照教程用tvm推理测试的带佬，效果可以评论区告知一下。好了，不纠结这个了，进入正题！

二、数据准备

我的数据是按照ucf101的格式准备的，如果手头上没有数据的同学，建议从ucf101中抽出10个类简单训练一下，没必要用全部的101个类，因为一会抽帧抽出来的图片实在是太多了！！全部的话得有150万+。

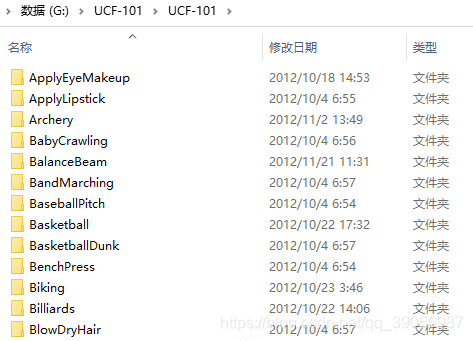

很头大的是，程序里面没有提供ucf101格式的数据准备脚本！！可是我踏马没有接触过行为识别啊，完全不知道数据该怎么准备！！靠！硬着头皮翻了很多不同模型的行为识别模型的代码，慢慢的整理，终于整出来了，妈卖批。首先看下ucf101下下来后的文件结构：
在这里插入图片描述

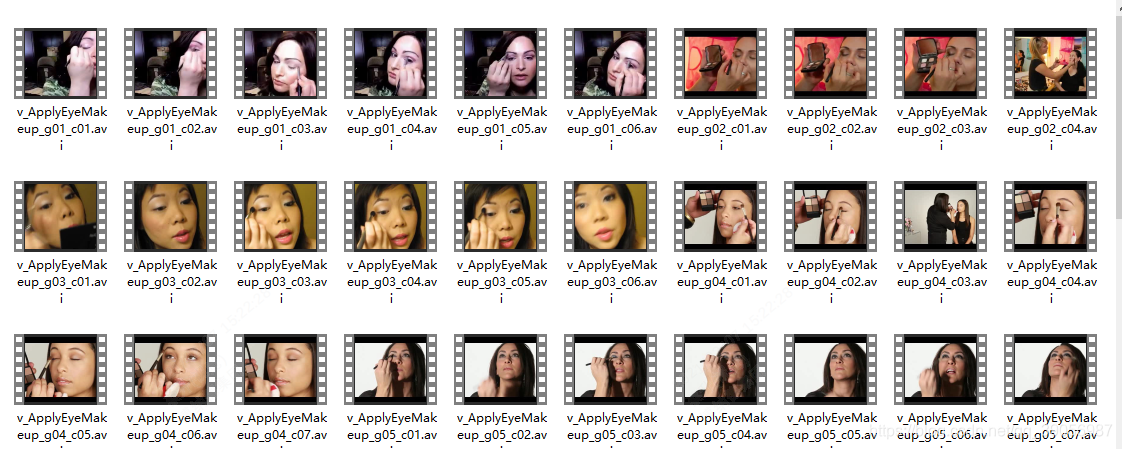

其实就是101的文件夹，每个文件夹里面有每个动作的短视频。类似于

这是数据文件，还需要标签文件，官方划分训练集和测试集的txt文件：

因为这里只提取了10个类，提取了前十个类的视频文件，并且修改label里面的标签，将后91个类别的标签信息去掉。在tools文件夹中新建一个文件夹，取名vid2img_ucf101.py，代码如下（需要安装ffmpeg，因为要用它来抽帧，这个自行百度就好，比较简单）：

from __future__ import print_function, division
import os
import sys
import subprocessdef class_process(dir_path, dst_dir_path, class_name):class_path = os.path.join(dir_path, class_name)if not os.path.isdir(class_path):returndst_class_path = os.path.join(dst_dir_path, class_name)if not os.path.exists(dst_class_path):os.mkdir(dst_class_path)for file_name in os.listdir(class_path):if '.avi' not in file_name:continuename, ext = os.path.splitext(file_name)dst_directory_path = os.path.join(dst_class_path, name)video_file_path = os.path.join(class_path, file_name)try:if os.path.exists(dst_directory_path):if not os.path.exists(os.path.join(dst_directory_path, 'image_00001.jpg')):subprocess.call('rm -r \"{}\"'.format(dst_directory_path), shell=True)print('remove {}'.format(dst_directory_path))os.mkdir(dst_directory_path)else:continueelse:os.mkdir(dst_directory_path)except:print(dst_directory_path)continuecmd = 'ffmpeg -i \"{}\" -vf scale=-1:480 \"{}/image_%05d.jpg\"'.format(video_file_path, dst_directory_path)print(cmd)subprocess.call(cmd, shell=True)print('\n')if __name__=="__main__":dir_path = sys.argv[1]      # 视频文件总路径dst_dir_path = sys.argv[2]   # 抽帧后图片存放路径for class_name in os.listdir(dir_path):class_process(dir_path, dst_dir_path, class_name)

运行命令，如果没有报错的话，要等比较久：

python tools/vid2img_ucf101.py 视频路径 抽帧后图片存放路径

抽完后，再继续新建一个gen_label_ucf101.py文件，内容如下，一些路径自己修改，需要注意的是数据生成是在windows上，所以在linux的话.split(’\’)可能要修改一下：

import os
import glob
import fnmatch
import randomroot = r"/ssd1/cai/TSM-action/UCF101/jpg/"      # 抽帧后的图片存放目录文件夹，用于写到txt文件中在构建数据集的时候读取def parse_ucf_splits():class_ind = [x.strip().split() for x in open(r'G:\UCF101\label/classInd.txt')]       # 类别txtclass_mapping = {x[1]:int(x[0])-1 for x in class_ind}def line2rec(line):items = line.strip().split('/')label = class_mapping[items[0]]vid = items[1].split('.')[0]return vid, labelsplits = []for i in range(1, 4):train_list = [line2rec(x) for x in open(r'G:\UCF101\label/trainlist{:02d}.txt'.format(i))]       # 训练集txttest_list = [line2rec(x) for x in open(r'G:\UCF101\label/testlist{:02d}.txt'.format(i))]          # 测试集txtsplits.append((train_list, test_list))return splitssplit_parsers = dict()
split_parsers['ucf101'] = parse_ucf_splits()def parse_split_file(dataset):sp = split_parsers[dataset]return tuple(sp)def parse_directory(path, rgb_prefix='image_', flow_x_prefix='flow_x_', flow_y_prefix='flow_y_'):"""Parse directories holding extracted frames from standard benchmarks"""print('parse frames under folder {}'.format(path))frame_folders = []frame = glob.glob(os.path.join(path, '*'))for frame_name in frame:frame_path = glob.glob(os.path.join(frame_name, '*'))frame_folders.extend(frame_path)def count_files(directory, prefix_list):lst = os.listdir(directory)cnt_list = [len(fnmatch.filter(lst, x+'*')) for x in prefix_list]return cnt_list# check RGBrgb_counts = {}flow_counts = {}dir_dict = {}for i,f in enumerate(frame_folders):all_cnt = count_files(f, (rgb_prefix, flow_x_prefix, flow_y_prefix))k = f.split('\\')[-1]rgb_counts[k] = all_cnt[0]dir_dict[k] = fx_cnt = all_cnt[1]y_cnt = all_cnt[2]if x_cnt != y_cnt:raise ValueError('x and y direction have different number of flow images. video: '+f)flow_counts[k] = x_cntif i % 200 == 0:print('{} videos parsed'.format(i))print('frame folder analysis done')return dir_dict, rgb_counts, flow_countsdef build_split_list(split_tuple, frame_info, split_idx, shuffle=False):split = split_tuple[split_idx]def build_set_list(set_list):rgb_list, flow_list = list(), list()for item in set_list:frame_dir = frame_info[0][item[0]]frame_dir = root + frame_dir.split('\\')[-2] +'/'+ frame_dir.split('\\')[-1]rgb_cnt = frame_info[1][item[0]]flow_cnt = frame_info[2][item[0]]rgb_list.append('{} {} {}\n'.format(frame_dir, rgb_cnt, item[1]))flow_list.append('{} {} {}\n'.format(frame_dir, flow_cnt, item[1]))if shuffle:random.shuffle(rgb_list)random.shuffle(flow_list)return rgb_list, flow_listtrain_rgb_list, train_flow_list = build_set_list(split[0])test_rgb_list, test_flow_list = build_set_list(split[1])return (train_rgb_list, test_rgb_list), (train_flow_list, test_flow_list)spl = parse_split_file('ucf101')
f_info = parse_directory(r"G:\UCF101\jpg")    # 存放抽帧后的图片out_path = r"G:\UCF101\label"      # 标签路径
dataset = "ucf101"for i in range(max(3,len(spl))):lists = build_split_list(spl,f_info,i)open(os.path.join(out_path, '{}_rgb_train_split_{}.txt'.format(dataset, i + 1)), 'w').writelines(lists[0][0])open(os.path.join(out_path, '{}_rgb_val_split_{}.txt'.format(dataset, i + 1)), 'w').writelines(lists[0][1])# open(os.path.join(out_path, '{}_flow_train_split_{}.txt'.format(dataset, i + 1)), 'w').writelines(lists[1][0])# open(os.path.join(out_path, '{}_flow_val_split_{}.txt'.format(dataset, i + 1)), 'w').writelines(lists[1][1])

最后得到六个txt文件如下，这里只用到了split_1.txt的即可，其他的可以删掉：
在这里插入图片描述

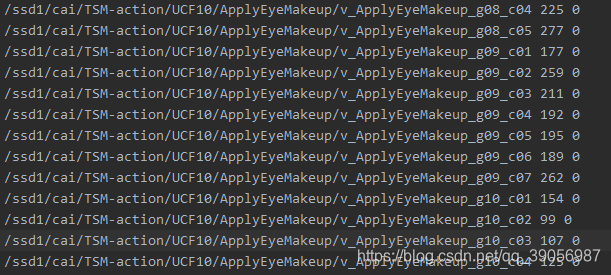

每个文件的格式如下，图片路径、帧数、类别：

三、配置修改

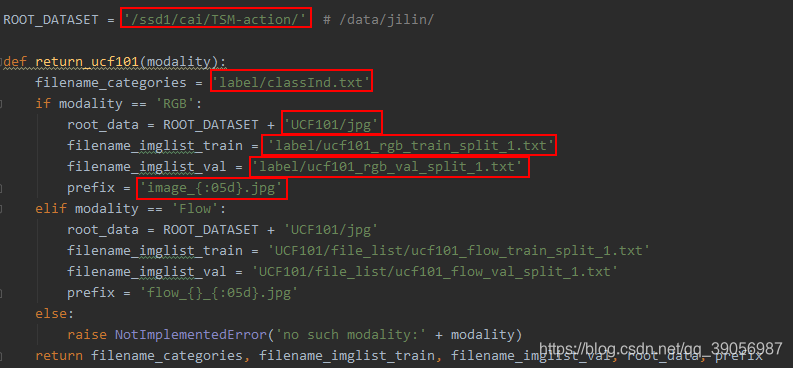

修改以下配置，在ops/dataset_config.py中修改为自己文件的路径：
在这里插入图片描述

其中ROOT_DATASET为图片的总路径，与train_split_1.txt衔接的完整的图片路径，需要自己修改。

配置完成后下载相应的预训练权重，运行训练命令：

python main.py ucf101 RGB --arch resnet --num_segment 8 --gd 20 --lr 0.001 --lr_steps 10 20 --epochs 25 --batch-size 16 -j 16 --dropout 0.8 --consensus_type=avg --eval-freq=1 --shift --shift_div=8 --shift_place=blockres --tune_from=pretrained/TSM_kinetics_RGB_resnet50_shift8_blockres_avg_segment8_e50.pthpython main.py ucf101 RGB --arch mobilenetv2 --num_segment 8 --gd 20 --lr 0.001 --lr_steps 10 20 --epochs 25 --batch-size 16 -j 16 --dropout 0.8 --consensus_type=avg --eval-freq=1 --shift --shift_div=8 --shift_place=blockres --tune_from=pretrained/TSM_kinetics_RGB_mobilenetv2_shift8_blockres_avg_segment8_e100_dense.pth

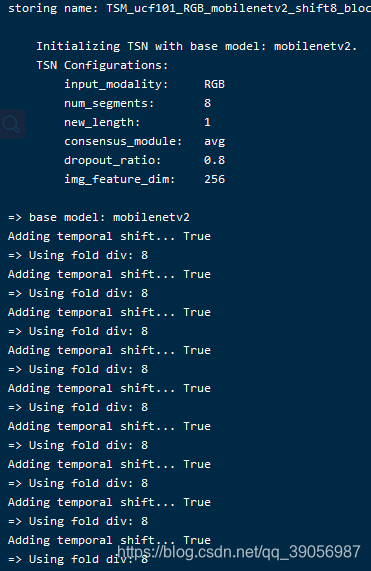

看到如下界面的话，训练开始;
在这里插入图片描述

不过这里可能会遇到个问题，如果使用mobilenetv2的预训练权重加载不上，在main文件中，将这部分替换一下，大概在97行左右：

    if args.tune_from:print(("=> fine-tuning from '{}'".format(args.tune_from)))sd = torch.load(args.tune_from)sd = sd['state_dict']if args.arch == "mobilenetv2":model_dict = model.module.state_dict()else:model_dict = model.state_dict()replace_dict = []for k, v in sd.items():if k not in model_dict and k.replace('.net', '') in model_dict:print('=> Load after remove .net: ', k)replace_dict.append((k, k.replace('.net', '')))for k, v in model_dict.items():if k not in sd and k.replace('.net', '') in sd:print('=> Load after adding .net: ', k)replace_dict.append((k.replace('.net', ''), k))for k, k_new in replace_dict:sd[k_new] = sd.pop(k)keys1 = set(list(sd.keys()))keys2 = set(list(model_dict.keys()))set_diff = (keys1 - keys2) | (keys2 - keys1)print('#### Notice: keys that failed to load: {}'.format(set_diff))if args.dataset not in args.tune_from:  # new datasetprint('=> New dataset, do not load fc weights')if args.arch == "mobilenetv2":sd = {k: v for k, v in sd.items() if k in model.state_dict().keys() and model.state_dict().keys()[k].numel() == v.numel}else:sd = {k: v for k, v in sd.items() if 'fc' not in k}if args.modality == 'Flow' and 'Flow' not in args.tune_from:sd = {k: v for k, v in sd.items() if 'conv1.weight' not in k}model_dict.update(sd)if args.arch == "mobilenetv2":model.module.load_state_dict(model_dict)else:model.load_state_dict(model_dict)if args.temporal_pool and not args.resume:make_temporal_pool(model.module.base_model, args.num_segments)
