JAVA实训项目第六次日志

实训目的：让学生综合运用J2SE有关知识开发【学生信息管理系统】。主要涉及程序控制结构、面向对象编程、图形用户界面、Java数据库应用、MySQL数据库这几个方面的内容。通过本项目的开发，让学生了解系统开发的一般流程，初步了解MVC模式与单元测试，巩固所学的Java理论知识，提高Java数据库应用编程的基本技能。

项目说明：本实训案例教学，利用Java SE基本知识是开发【学生信息管理系统】。本系统包括登录注册、系统设置（设置学校信息、设置状态栏信息、修改用户密码）、数据操作（增加学生记录、编辑学生记录、删除学生记录、浏览学生记录）、查询学生（按学号查询、按姓名查询、按班级查询、按系部查询）、人数统计（按性别统计人数、按班级统计人数、按系部统计人数）等功能。
创建FindStudentByIdFrame类，通过ID查询学生记录
编写主方法
在这里插入图片描述

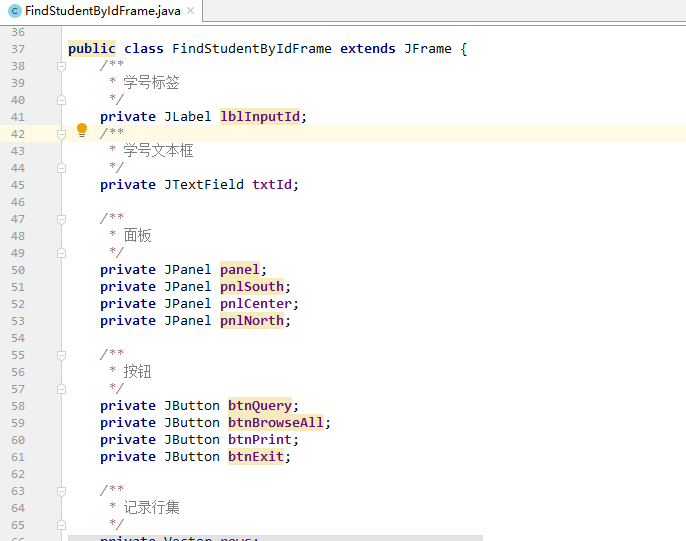

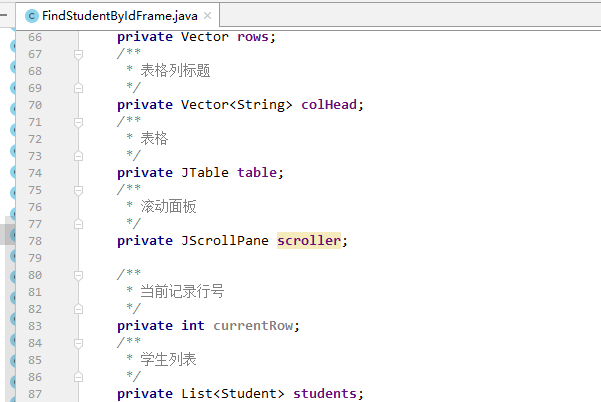

声明变量

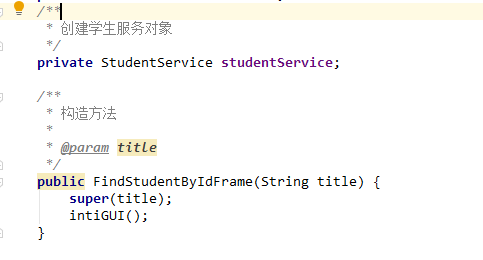

创建服务对象及构造方法

<Alt+Enter> 获取private void intiGUI() {}，实现初始化界面

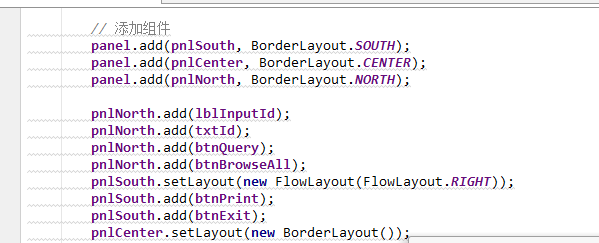

添加组件

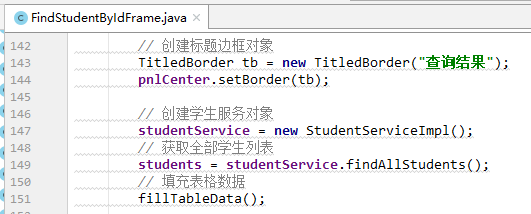

创建标题边框对象和学生服务对象，并获取全部学生列表，填充表格数据

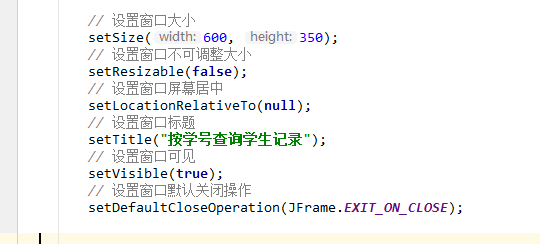

设置窗口属性

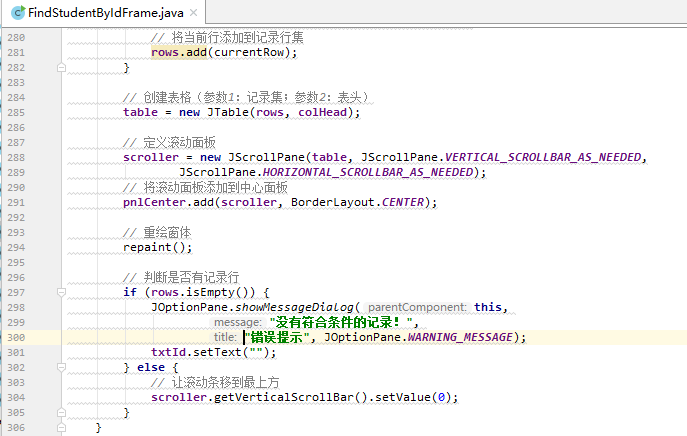

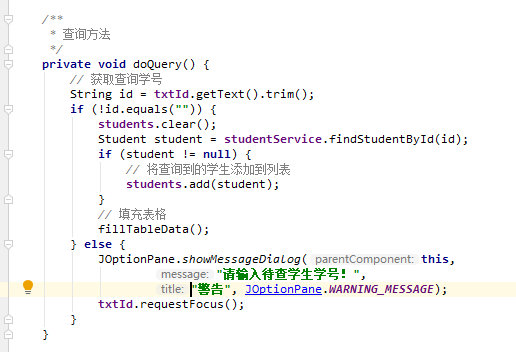

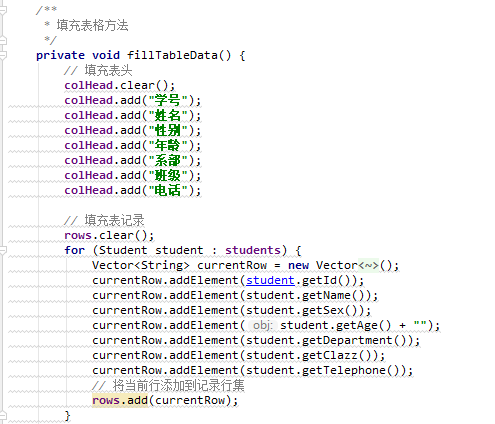

编写查询方法，填充表格方法
在这里插入图片描述

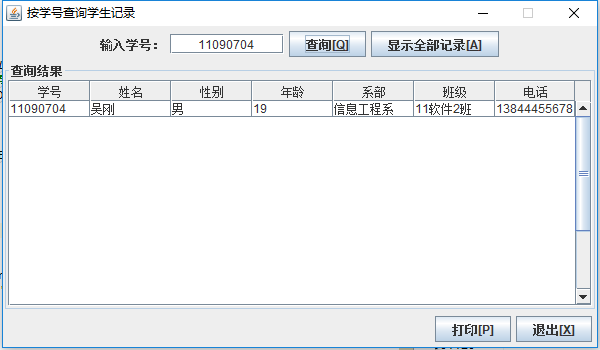

运行结果如下：

创建FindStudentByNameFrame类，按照姓名查找学生
代码如下：
package net.qf.student.gui;

/**

包名：net.qf.student.gui
类名：FindStudentByNameFrame
描述：按姓名查找学生
作者：秦芳
日期：2019年6月22日
*/

import java.awt.BorderLayout;
import java.awt.FlowLayout;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyAdapter;
import java.awt.event.KeyEvent;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.awt.print.PrinterException;
import java.util.List;
import java.util.Vector;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTable;
import javax.swing.JTextField;
import javax.swing.border.TitledBorder;

import net.qf.student.bean.Student;
import net.qf.student.service.StudentService;
import net.qf.student.service.impl.StudentServiceImpl;

public class FindStudentByNameFrame extends JFrame {
/**
* 姓名标签
/
private JLabel lblInputName;
/*
* 姓名文本框
*/
private JTextField txtName;

/*** 面板*/
private JPanel panel;
private JPanel pnlSouth;
private JPanel pnlCenter;
private JPanel pnlNorth;/*** 按钮*/
private JButton btnQuery;
private JButton btnBrowseAll;
private JButton btnPrint;
private JButton btnExit;/*** 记录行集*/
private Vector rows;
/*** 表格列标题*/
private Vector<String> colHead;
/*** 表格*/
private JTable table;
/*** 滚动面板*/
private JScrollPane scroller;/*** 当前记录行号*/
private int currentRow;
/*** 学生列表*/
private List<Student> students;
/*** 创建学生服务对象*/
private StudentService studentService;/*** 构造方法** @param title*/
public FindStudentByNameFrame(String title) {super(title);intiGUI();
}/*** 初始化用户界面*/
private void intiGUI() {// 创建对象panel = (JPanel) getContentPane();pnlNorth = new JPanel();pnlCenter = new JPanel();pnlSouth = new JPanel();rows = new Vector();colHead = new Vector();lblInputName = new JLabel("输入姓名：");txtName = new JTextField(10);txtName.setHorizontalAlignment(JTextField.CENTER);btnQuery = new JButton("查询[Q]");btnQuery.setMnemonic(KeyEvent.VK_Q);btnBrowseAll = new JButton("显示全部记录[A]");btnBrowseAll.setMnemonic(KeyEvent.VK_A);btnPrint = new JButton("打印[P]");btnPrint.setMnemonic(KeyEvent.VK_D);btnExit = new JButton("退出[X]");btnExit.setMnemonic(KeyEvent.VK_X);// 添加组件panel.add(pnlSouth, BorderLayout.SOUTH);panel.add(pnlCenter, BorderLayout.CENTER);panel.add(pnlNorth, BorderLayout.NORTH);pnlNorth.add(lblInputName);pnlNorth.add(txtName);pnlNorth.add(btnQuery);pnlNorth.add(btnBrowseAll);pnlSouth.setLayout(new FlowLayout(FlowLayout.RIGHT));pnlSouth.add(btnPrint);pnlSouth.add(btnExit);pnlCenter.setLayout(new BorderLayout());// 创建标题边框对象TitledBorder tb = new TitledBorder("查询结果");pnlCenter.setBorder(tb);// 创建学生服务对象studentService = new StudentServiceImpl();// 获取全部学生列表students = studentService.findAllStudents();// 填充表格数据fillTableData();// 设置窗口大小setSize(600, 350);// 设置窗口不可调整大小setResizable(false);// 设置窗口屏幕居中setLocationRelativeTo(null);// 设置窗口标题setTitle("按姓名查询学生记录");// 设置窗口可见setVisible(true);// 设置窗口默认关闭操作setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);// 【退出】按钮单击事件btnExit.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {dispose();}});// 【打印】按钮单击事件btnPrint.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent e) {try {table.print();} catch (PrinterException e1) {e1.printStackTrace();}}});// 【查询】按钮单击事件btnQuery.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {doQuery();}});// 【显示全部记录】按钮单击事件btnBrowseAll.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {// 获取全部学生记录students = studentService.findAllStudents();// 填充表格数据fillTableData();}});// 文本框按键事件txtName.addKeyListener(new KeyAdapter() {@Overridepublic void keyPressed(KeyEvent e) {if (e.getKeyCode() == 10) {doQuery();}}});// JTable单击事件table.addMouseListener(new MouseAdapter() {public void mouseClicked(MouseEvent e) {// 获取当前行的行数int row = table.rowAtPoint(e.getPoint());// 选中鼠标单击的行table.setRowSelectionInterval(row, row);// 设置文本框内容txtName.setText(table.getValueAt(row, 1).toString());}});
}/*** 查询方法*/
private void doQuery() {// 获取查询姓名String name = txtName.getText().trim();if (!name.equals("")) {// 按姓名查询获取学生列表students = studentService.findStudentsByName(name);// 填充表格fillTableData();} else {JOptionPane.showMessageDialog(this, "请输入待查学生姓名！", "警告", JOptionPane.WARNING_MESSAGE);txtName.requestFocus();}
}/*** 填充表格方法*/
private void fillTableData() {// 填充表头colHead.add("学号");colHead.add("姓名");colHead.add("性别");colHead.add("年龄");colHead.add("系部");colHead.add("班级");colHead.add("电话");// 填充表记录rows.clear();for (Student student : students) {Vector<String> currentRow = new Vector<String>();currentRow.addElement(student.getId());currentRow.addElement(student.getName());currentRow.addElement(student.getSex());currentRow.addElement(student.getAge() + "");currentRow.addElement(student.getDepartment());currentRow.addElement(student.getClazz());currentRow.addElement(student.getTelephone());// 将当前行添加到记录行集rows.add(currentRow);}// 创建表格（参数1：记录集；参数2：表头）table = new JTable(rows, colHead);// 定义滚动面板scroller = new JScrollPane(table, JScrollPane.VERTICAL_SCROLLBAR_AS_NEEDED,JScrollPane.HORIZONTAL_SCROLLBAR_AS_NEEDED);// 将滚动面板添加到中心面板pnlCenter.add(scroller, BorderLayout.CENTER);// 重绘窗体repaint();// 判断是否有记录行if (rows.isEmpty()) {JOptionPane.showMessageDialog(this, "没有符合条件的记录！", "错误提示", JOptionPane.WARNING_MESSAGE);txtName.setText("");} else {// 让滚动条移到最上方scroller.getVerticalScrollBar().setValue(0);}
}
/*** 主方法** @param args*/
public static void main(String[] args) {new FindStudentByNameFrame("");
}

}

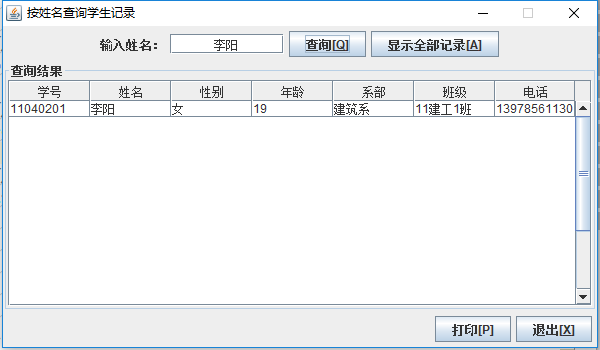

运行结果如下：
在这里插入图片描述
创建FindStudentsByClassFrame类，按照姓名查找学生
代码如下：
package net.qf.student.gui;

/**

包名：net.qf.student.gui
类名：FindStudentsByClassFrame
描述：按班级查找学生
作者：秦芳
日期：2019年6月22日
*/

import net.qf.student.bean.Student;
import net.qf.student.service.StudentService;
import net.qf.student.service.impl.StudentServiceImpl;

public class FindStudentsByClassFrame extends JFrame {
/**
* 班级标签
/
private JLabel lblInputClass;
/*
* 班级文本框
*/
private JTextField txtClass;

/*** 面板*/
private JPanel panel;
private JPanel pnlSouth;
private JPanel pnlCenter;
private JPanel pnlNorth;/*** 按钮*/
private JButton btnQuery;
private JButton btnBrowseAll;
private JButton btnPrint;
private JButton btnExit;/*** 记录行集*/
private Vector rows;
/*** 表格列标题*/
private Vector<String> colHead;
/*** 表格*/
private JTable table;
/*** 滚动面板*/
private JScrollPane scroller;/*** 当前记录行号*/
private int currentRow;
/*** 学生列表*/
private List<Student> students;
/*** 创建学生服务对象*/
private StudentService studentService;/*** 构造方法** @param title*/
public FindStudentsByClassFrame(String title) {super(title);intiGUI();
}/*** 初始化用户界面*/
private void intiGUI() {// 创建对象panel = (JPanel) getContentPane();pnlNorth = new JPanel();pnlCenter = new JPanel();pnlSouth = new JPanel();rows = new Vector();colHead = new Vector();lblInputClass = new JLabel("输入班级：");txtClass = new JTextField(10);txtClass.setHorizontalAlignment(JTextField.CENTER);btnQuery = new JButton("查询[Q]");btnQuery.setMnemonic(KeyEvent.VK_Q);btnBrowseAll = new JButton("显示全部记录[A]");btnBrowseAll.setMnemonic(KeyEvent.VK_A);btnPrint = new JButton("打印[P]");btnPrint.setMnemonic(KeyEvent.VK_D);btnExit = new JButton("退出[X]");btnExit.setMnemonic(KeyEvent.VK_X);// 添加组件panel.add(pnlSouth, BorderLayout.SOUTH);panel.add(pnlCenter, BorderLayout.CENTER);panel.add(pnlNorth, BorderLayout.NORTH);pnlNorth.add(lblInputClass);pnlNorth.add(txtClass);pnlNorth.add(btnQuery);pnlNorth.add(btnBrowseAll);pnlSouth.setLayout(new FlowLayout(FlowLayout.RIGHT));pnlSouth.add(btnPrint);pnlSouth.add(btnExit);pnlCenter.setLayout(new BorderLayout());// 创建标题边框对象TitledBorder tb = new TitledBorder("查询结果");pnlCenter.setBorder(tb);// 创建学生服务对象studentService = new StudentServiceImpl();// 获取全部学生列表students = studentService.findAllStudents();// 填充表格数据fillTableData();// 设置窗口大小setSize(600, 350);// 设置窗口不可调整大小setResizable(false);// 设置窗口屏幕居中setLocationRelativeTo(null);// 设置窗口标题setTitle("按姓名查询学生记录");// 设置窗口可见setVisible(true);// 设置窗口默认关闭操作setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);// 【退出】按钮单击事件btnExit.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {dispose();}});// 【打印】按钮单击事件btnPrint.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent e) {try {table.print();} catch (PrinterException e1) {e1.printStackTrace();}}});// 【查询】按钮单击事件btnQuery.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {doQuery();}});// 【显示全部记录】按钮单击事件btnBrowseAll.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {// 获取全部学生记录students = studentService.findAllStudents();// 填充表格数据fillTableData();}});// 文本框按键事件txtClass.addKeyListener(new KeyAdapter() {@Overridepublic void keyPressed(KeyEvent e) {if (e.getKeyCode() == 10) {doQuery();}}});// JTable单击事件table.addMouseListener(new MouseAdapter() {public void mouseClicked(MouseEvent e) {// 获取当前行的行数int row = table.rowAtPoint(e.getPoint());// 选中鼠标单击的行table.setRowSelectionInterval(row, row);// 设置文本框内容txtClass.setText(table.getValueAt(row, 5).toString());}});
}/*** 查询方法*/
private void doQuery() {// 获取查询班级String clazz = txtClass.getText().trim();if (!clazz.equals("")) {// 按班级查询获取学生列表students = studentService.findStudentsByClass(clazz);// 填充表格fillTableData();} else {JOptionPane.showMessageDialog(this, "请输入待查班级！", "警告", JOptionPane.WARNING_MESSAGE);txtClass.requestFocus();}
}/*** 填充表格方法*/
private void fillTableData() {// 填充表头colHead.clear();colHead.add("学号");colHead.add("姓名");colHead.add("性别");colHead.add("年龄");colHead.add("系部");colHead.add("班级");colHead.add("电话");// 填充表记录rows.clear();for (Student student : students) {Vector<String> currentRow = new Vector<String>();currentRow.addElement(student.getId());currentRow.addElement(student.getName());currentRow.addElement(student.getSex());currentRow.addElement(student.getAge() + "");currentRow.addElement(student.getDepartment());currentRow.addElement(student.getClazz());currentRow.addElement(student.getTelephone());// 将当前行添加到记录行集rows.add(currentRow);}// 创建表格（参数1：记录集；参数2：表头）table = new JTable(rows, colHead);// 定义滚动面板scroller = new JScrollPane(table, JScrollPane.VERTICAL_SCROLLBAR_AS_NEEDED,JScrollPane.HORIZONTAL_SCROLLBAR_AS_NEEDED);// 将滚动面板添加到中心面板pnlCenter.add(scroller, BorderLayout.CENTER);// 重绘窗体repaint();// 判断是否有记录行if (rows.isEmpty()) {JOptionPane.showMessageDialog(this, "没有符合条件的记录！", "错误提示", JOptionPane.WARNING_MESSAGE);txtClass.setText("");} else {// 让滚动条移到最上方scroller.getVerticalScrollBar().setValue(0);}
}
/*** 主方法** @param args*/
public static void main(String[] args) {new FindStudentsByClassFrame("");
}

}

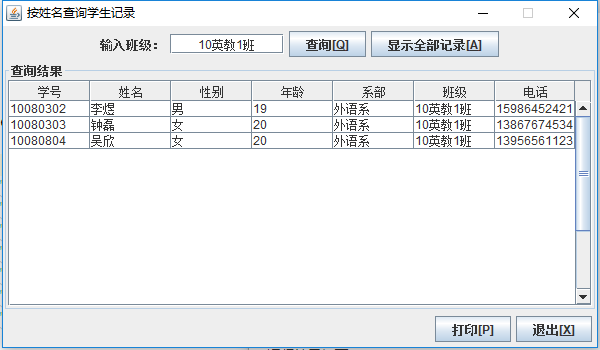

运行结果如下：
在这里插入图片描述
创建FindStudentsByDepartmentFrame类，按照姓名查找学生
代码如下：
package net.qf.student.gui;

/**

包名：net.qf.student.gui
类名：FindStudentsByDepartmentFrame
描述：按系部查找学生
作者：秦芳
日期：2019年6月22日
*/

import net.qf.student.bean.Student;
import net.qf.student.service.StudentService;
import net.qf.student.service.impl.StudentServiceImpl;

public class FindStudentsByDepartmentFrame extends JFrame {
/**
* 系部标签
/
private JLabel lblInputDepartment;
/*
* 系部文本框
*/
private JTextField txtDepartment;

/*** 面板*/
private JPanel panel;
private JPanel pnlSouth;
private JPanel pnlCenter;
private JPanel pnlNorth;/*** 按钮*/
private JButton btnQuery;
private JButton btnBrowseAll;
private JButton btnPrint;
private JButton btnExit;/*** 记录行集*/
private Vector rows;
/*** 表格列标题*/
private Vector<String> colHead;
/*** 表格*/
private JTable table;
/*** 滚动面板*/
private JScrollPane scroller;/*** 当前记录行号*/
private int currentRow;
/*** 学生列表*/
private List<Student> students;
/*** 创建学生服务对象*/
private StudentService studentService;/*** 构造方法** @param title*/
public FindStudentsByDepartmentFrame(String title) {super(title);intiGUI();
}/*** 初始化用户界面*/
private void intiGUI() {// 创建对象panel = (JPanel) getContentPane();pnlNorth = new JPanel();pnlCenter = new JPanel();pnlSouth = new JPanel();rows = new Vector();colHead = new Vector();lblInputDepartment = new JLabel("输入系部：");txtDepartment = new JTextField(10);txtDepartment.setHorizontalAlignment(JTextField.CENTER);btnQuery = new JButton("查询[Q]");btnQuery.setMnemonic(KeyEvent.VK_Q);btnBrowseAll = new JButton("显示全部记录[A]");btnBrowseAll.setMnemonic(KeyEvent.VK_A);btnPrint = new JButton("打印[P]");btnPrint.setMnemonic(KeyEvent.VK_D);btnExit = new JButton("退出[X]");btnExit.setMnemonic(KeyEvent.VK_X);// 添加组件panel.add(pnlSouth, BorderLayout.SOUTH);panel.add(pnlCenter, BorderLayout.CENTER);panel.add(pnlNorth, BorderLayout.NORTH);pnlNorth.add(lblInputDepartment);pnlNorth.add(txtDepartment);pnlNorth.add(btnQuery);pnlNorth.add(btnBrowseAll);pnlSouth.setLayout(new FlowLayout(FlowLayout.RIGHT));pnlSouth.add(btnPrint);pnlSouth.add(btnExit);pnlCenter.setLayout(new BorderLayout());// 创建标题边框对象TitledBorder tb = new TitledBorder("查询结果");pnlCenter.setBorder(tb);// 创建学生服务对象studentService = new StudentServiceImpl();// 获取全部学生列表students = studentService.findAllStudents();// 填充表格数据fillTableData();// 设置窗口大小setSize(600, 350);// 设置窗口不可调整大小setResizable(false);// 设置窗口屏幕居中setLocationRelativeTo(null);// 设置窗口标题setTitle("按系部查询学生记录");// 设置窗口可见setVisible(true);// 设置窗口默认关闭操作setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);// 【退出】按钮单击事件btnExit.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {dispose();}});// 【打印】按钮单击事件btnPrint.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent e) {try {table.print();} catch (PrinterException e1) {e1.printStackTrace();}}});// 【查询】按钮单击事件btnQuery.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {doQuery();}});// 【显示全部记录】按钮单击事件btnBrowseAll.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent event) {// 获取全部学生记录students = studentService.findAllStudents();// 填充表格数据fillTableData();}});// 文本框按键事件txtDepartment.addKeyListener(new KeyAdapter() {@Overridepublic void keyPressed(KeyEvent e) {if (e.getKeyCode() == 10) {doQuery();}}});// JTable单击事件table.addMouseListener(new MouseAdapter() {/* (non-Javadoc)* @see java.awt.event.MouseAdapter#mouseClicked(java.awt.event.MouseEvent)*//* (non-Javadoc)* @see java.awt.event.MouseAdapter#mouseClicked(java.awt.event.MouseEvent)*/public void mouseClicked(MouseEvent e) {// 获取当前行的行数int row = table.rowAtPoint(e.getPoint());// 选中鼠标单击的行table.setRowSelectionInterval(row, row);// 设置文本框内容txtDepartment.setText(table.getValueAt(row, 4).toString());}});
}/*** 查询方法*/
private void doQuery() {// 获取查询系部String department = txtDepartment.getText().trim();if (!department.equals("")) {// 按系部查询获取学生列表students = studentService.findStudentsByDepartment(department);// 填充表格fillTableData();} else {JOptionPane.showMessageDialog(this, "请输入待查系部！", "警告", JOptionPane.WARNING_MESSAGE);txtDepartment.requestFocus();}
}/*** 填充表格方法*/
private void fillTableData() {// 填充表头colHead.clear();colHead.add("学号");colHead.add("姓名");colHead.add("性别");colHead.add("年龄");colHead.add("系部");colHead.add("班级");colHead.add("电话");// 填充表记录rows.clear();for (Student student : students) {Vector<String> currentRow = new Vector<String>();currentRow.addElement(student.getId());currentRow.addElement(student.getName());currentRow.addElement(student.getSex());currentRow.addElement(student.getAge() + "");currentRow.addElement(student.getDepartment());currentRow.addElement(student.getClazz());currentRow.addElement(student.getTelephone());// 将当前行添加到记录行集rows.add(currentRow);}// 创建表格（参数1：记录集；参数2：表头）table = new JTable(rows, colHead);// 定义滚动面板scroller = new JScrollPane(table, JScrollPane.VERTICAL_SCROLLBAR_AS_NEEDED,JScrollPane.HORIZONTAL_SCROLLBAR_AS_NEEDED);// 将滚动面板添加到中心面板pnlCenter.add(scroller, BorderLayout.CENTER);// 重绘窗体repaint();// 判断是否有记录行if (rows.isEmpty()) {JOptionPane.showMessageDialog(this, "没有符合条件的记录！", "错误提示", JOptionPane.WARNING_MESSAGE);txtDepartment.setText("");} else {// 让滚动条移到最上方scroller.getVerticalScrollBar().setValue(0);}
}
/*** 主方法** @param args*/
public static void main(String[] args) {new FindStudentsByDepartmentFrame("");
}

}

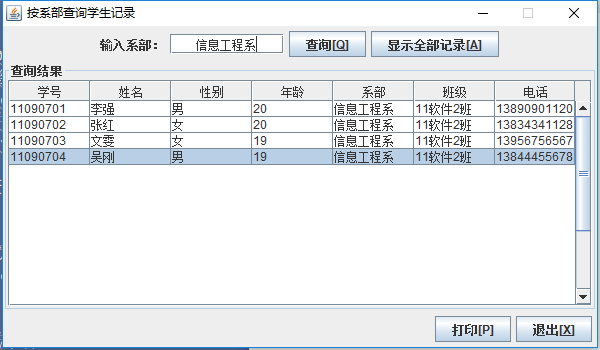

运行结果如下：
在这里插入图片描述
创建CountStudentBySexFrame类，按性别统计学生人数

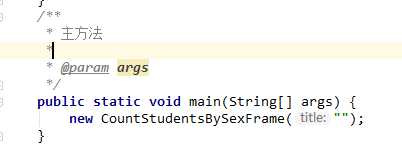

编写主方法

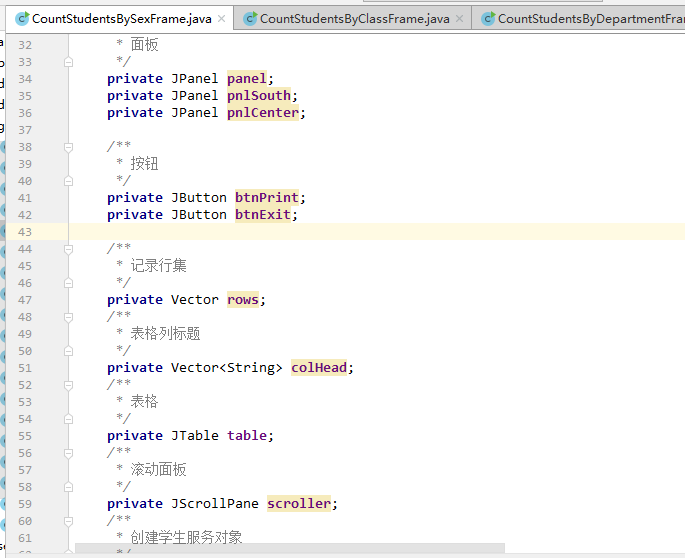

声明变量

创建学生服务对象，构造方法，及初始化界面

<Alt+Enter>获得private void initGUI() {}
创建对象

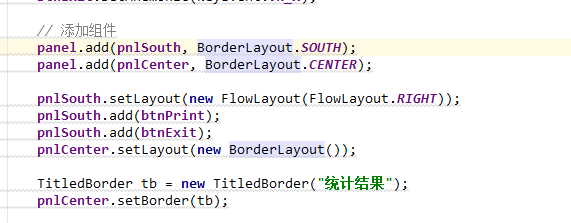

添加组件

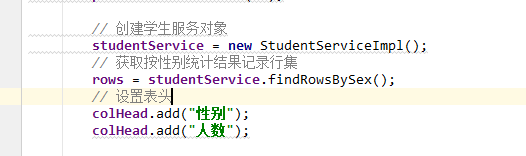

创建学生服务对象，获取按性别统计结果记录行数
并设置表头
在这里插入图片描述

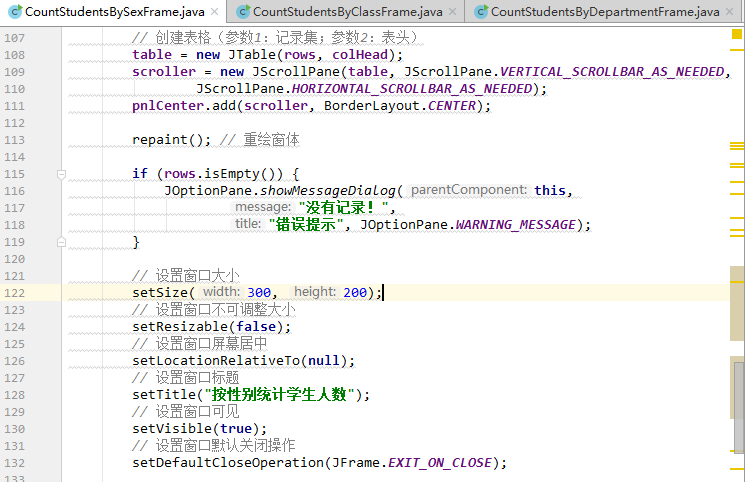

创建表格，设置窗口属性

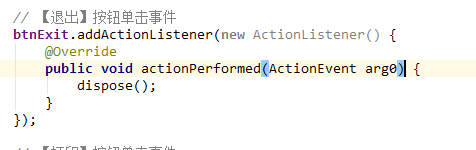

退出按钮单击事件

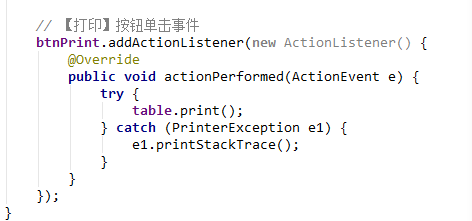

打印按钮单击事件

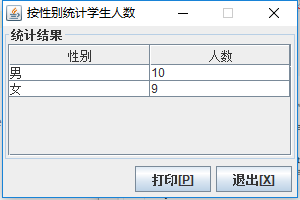

运行结果如下

创建CountStudentByClassFrame类，按照班级统计人数
代码如下：
package net.qf.student.gui;

/**

包名：net.qf.student.gui
类名：CountStudentsByClassFrame
描述：按班级统计学生人数
作者：秦芳
日期：2019年6月21日
*/

import java.awt.BorderLayout;
import java.awt.FlowLayout;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.KeyEvent;
import java.awt.print.PrinterException;
import java.util.Vector;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTable;
import javax.swing.border.TitledBorder;

import net.qf.student.service.StudentService;
import net.qf.student.service.impl.StudentServiceImpl;

public class CountStudentsByClassFrame extends JFrame {
/**
* 面板
*/
private JPanel panel;
private JPanel pnlSouth;
private JPanel pnlCenter;

/*** 按钮*/
private JButton btnPrint;
private JButton btnExit;/*** 记录行集*/
private Vector rows;
/*** 表格列标题*/
private Vector<String> colHead;
/*** 表格*/
private JTable table;
/*** 滚动面板*/
private JScrollPane scroller;
/*** 创建学生服务对象*/
private StudentService studentService;public CountStudentsByClassFrame(String title) {super(title);initGUI();
}/*** 初始化用户界面*/
private void initGUI() {// 创建对象panel = (JPanel) getContentPane();pnlCenter = new JPanel();pnlSouth = new JPanel();rows = new Vector();colHead = new Vector();btnPrint = new JButton("打印[P]");btnPrint.setMnemonic(KeyEvent.VK_P);btnExit = new JButton("退出[X]");btnExit.setMnemonic(KeyEvent.VK_X);// 添加组件panel.add(pnlSouth, BorderLayout.SOUTH);panel.add(pnlCenter, BorderLayout.CENTER);pnlSouth.setLayout(new FlowLayout(FlowLayout.RIGHT));pnlSouth.add(btnPrint);pnlSouth.add(btnExit);pnlCenter.setLayout(new BorderLayout());TitledBorder tb = new TitledBorder("统计结果");pnlCenter.setBorder(tb);// 创建学生服务对象studentService = new StudentServiceImpl();// 获取按性别统计结果记录行集rows = studentService.findRowsByClass();// 设置表头colHead.add("班级");colHead.add("人数");// 创建表格（参数1：记录集；参数2：表头）table = new JTable(rows, colHead);scroller = new JScrollPane(table, JScrollPane.VERTICAL_SCROLLBAR_AS_NEEDED,JScrollPane.HORIZONTAL_SCROLLBAR_AS_NEEDED);pnlCenter.add(scroller, BorderLayout.CENTER);repaint(); // 重绘窗体if (rows.isEmpty()) {JOptionPane.showMessageDialog(this, "没有记录！", "错误提示", JOptionPane.WARNING_MESSAGE);}// 设置窗口大小setSize(300, 200);// 设置窗口不可调整大小setResizable(false);// 设置窗口屏幕居中setLocationRelativeTo(null);// 设置窗口标题setTitle("按班级统计学生人数");// 设置窗口可见setVisible(true);// 设置窗口默认关闭操作setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);// 【退出】按钮单击事件btnExit.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent arg0) {dispose();}});// 【打印】按钮单击事件btnPrint.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent e) {try {table.print();} catch (PrinterException e1) {e1.printStackTrace();}}});
}/*** 主方法* @param args*/
public static void main(String[] args) {new CountStudentsByClassFrame("");
}

}

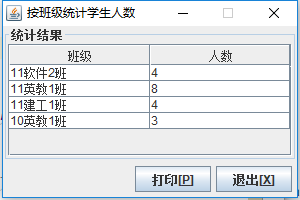

运行结果如下：
在这里插入图片描述
创建CountStudentByDepartmentFrame类，按照班级统计人数
代码如下：
package net.qf.student.gui;

/**

包名：net.qf.student.gui
类名：CountStudentsByDepartmentFrame
描述：按系部统计学生人数
作者：秦芳
日期：2019年6月22日
*/

import net.qf.student.service.StudentService;
import net.qf.student.service.impl.StudentServiceImpl;

public class CountStudentsByDepartmentFrame extends JFrame {
/**
* 面板
*/
private JPanel panel;
private JPanel pnlSouth;
private JPanel pnlCenter;

/*** 按钮*/
private JButton btnPrint;
private JButton btnExit;/*** 记录行集*/
private Vector rows;
/*** 表格列标题*/
private Vector<String> colHead;
/*** 表格*/
private JTable table;
/*** 滚动面板*/
private JScrollPane scroller;
/*** 创建学生服务对象*/
private StudentService studentService;public CountStudentsByDepartmentFrame(String title) {super(title);initGUI();
}/*** 初始化用户界面*/
private void initGUI() {// 创建对象panel = (JPanel) getContentPane();pnlCenter = new JPanel();pnlSouth = new JPanel();rows = new Vector();colHead = new Vector();btnPrint = new JButton("打印[P]");btnPrint.setMnemonic(KeyEvent.VK_P);btnExit = new JButton("退出[X]");btnExit.setMnemonic(KeyEvent.VK_X);// 添加组件panel.add(pnlSouth, BorderLayout.SOUTH);panel.add(pnlCenter, BorderLayout.CENTER);pnlSouth.setLayout(new FlowLayout(FlowLayout.RIGHT));pnlSouth.add(btnPrint);pnlSouth.add(btnExit);pnlCenter.setLayout(new BorderLayout());TitledBorder tb = new TitledBorder("统计结果");pnlCenter.setBorder(tb);// 创建学生服务对象studentService = new StudentServiceImpl();// 获取按性别统计结果记录行集rows = studentService.findRowsByDepartment();// 设置表头colHead.add("系部");colHead.add("人数");// 创建表格（参数1：记录集；参数2：表头）table = new JTable(rows, colHead);scroller = new JScrollPane(table, JScrollPane.VERTICAL_SCROLLBAR_AS_NEEDED,JScrollPane.HORIZONTAL_SCROLLBAR_AS_NEEDED);pnlCenter.add(scroller, BorderLayout.CENTER);repaint(); // 重绘窗体if (rows.isEmpty()) {JOptionPane.showMessageDialog(this, "没有记录！", "错误提示", JOptionPane.WARNING_MESSAGE);}//设置窗口大小setSize(300,200);//设置窗口不可调整大小setResizable(false);//设置窗口屏幕居中setLocationRelativeTo(null);//设置窗口标题setTitle("按班级统计学生人数");//设置窗口可见setVisible(true);//设置窗口默认关闭操作setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);// 【退出】按钮单击事件btnExit.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent arg0) {dispose();}});// 【打印】按钮单击事件btnPrint.addActionListener(new ActionListener() {@Overridepublic void actionPerformed(ActionEvent e) {try {table.print();} catch (PrinterException e1) {e1.printStackTrace();}}});
}/*** 主方法* @param args*/
public static void main(String[] args) {new CountStudentsByClassFrame("");
}

}

运行结果如下：
在这里插入图片描述
今天主要编写了通过ID，NAME,CLASS,DEPARTMENT来查询学生的信息，然后按照班级，系部，性别来统计学生的人数，方法和昨天的删除添加的结构框架是差不多的，只是根据不同的需求添加了一下细节方面的东西，但记住大框架，其他的都会比较好解决的。
