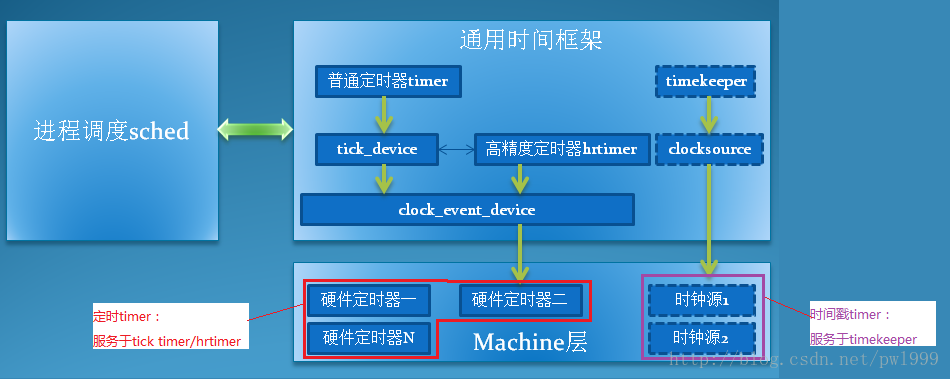

1、Linux时钟框架

上图是linux时钟框架一个经典的描述。本质上linux各种时钟架构和服务是基于硬件提供的两种timer而构建的。

1、定时Timer

• 这类timer每个cpu都有一个独立的，称为local timer。这类timer的中断一般都是PPI（Private Peripheral Interrupt）类型，即每个cpu都有独立一份中断。 与PPI对应的是SPI（Shared Peripheral Interrupt，即多个cpu共享同一个中断。
• 这类timer一般是32bit宽度count，最重要的它会频繁的溢出并产生timer到期中断。
• 这类timer服务于tick timer(低精度)或者hrtimer(高精度)。
• 低精度模式，local timer工作在PERIODIC模式。即timer以tick时间(1/HZ)周期性的产生中断。在tick timer中处理任务调度tick、低精度timer、其他时间更新和统计profile。在这种模式下，所有利用时间的进行的运算，精度都是以tick(1/HZ)为单位的，精度较低。比如HZ=1000，那么tick=1ms。
• 高精度模式，local timer工作在ONESHOT模式。即系统可以支持hrtimer(high resolution)高精度timer，精度为local timer的计数clk达到ns级别。这种情况下把tick timer也转换成一种hrtimer。

2、时间戳Timer

• 这类timer一个系统多个cpu共享一个，称为global timer。
• 这类timer一般是32bit/64bit宽度count，一般不会溢出产生中断，系统实时的去读取count的值来计算当前的时间戳。
• 这类timer服务于clocksource/timekeeper。

本文的代码分析基于linux kernel 4.4.22，最好的学习方法还是”RTFSC”

1.1、Exynos MCT(Multi-Core Timer)

我们以samsung exynos架构为例来说明linux对timer的使用。

从上图可以看到，exynos有1个64bit global timer用来做时间戳timer，有8个31bit localtimer用来做定时timer，每个cpu拥有一个localtimer。

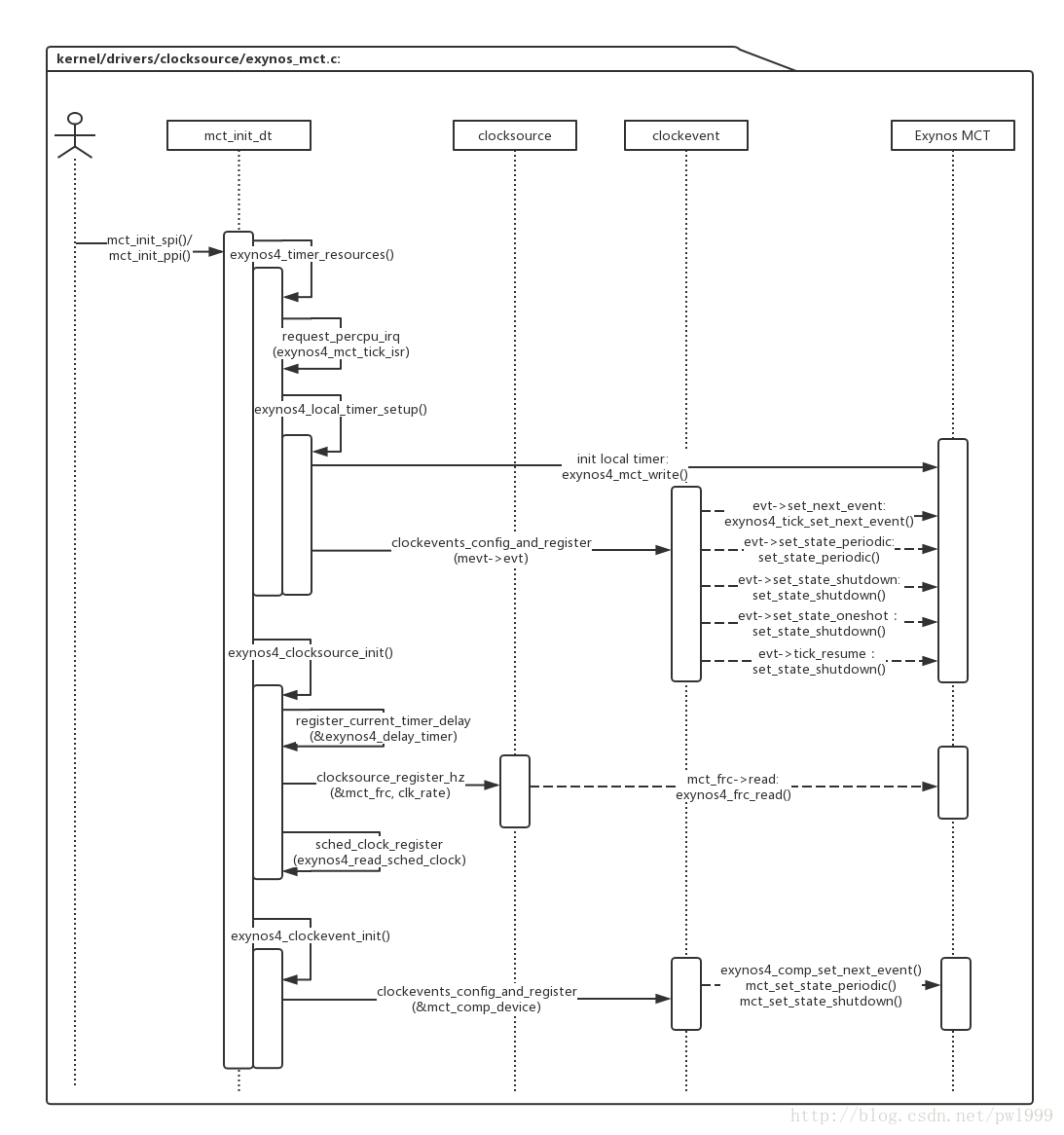

上图是exynos driver的初始化流程，mct_init_dt()中包含了主要的初始化流程：

static void __init mct_init_dt(struct device_node *np, unsigned int int_type)
{exynos4_timer_resources(np, of_iomap(np, 0)); //(1)初始化localtimer，并将其注册成clockeventexynos4_clocksource_init(); //(2)初始化globaltimer，并将其注册成clocksourceexynos4_clockevent_init(); //(3)将globaltimer的comparator 0注册成一个clockevent，一般不会使用
}

后面结合clocksource和clockevent的子系统的解析，再来详细描述exynos系统的具体实现。

2、clocksource & timekeeper

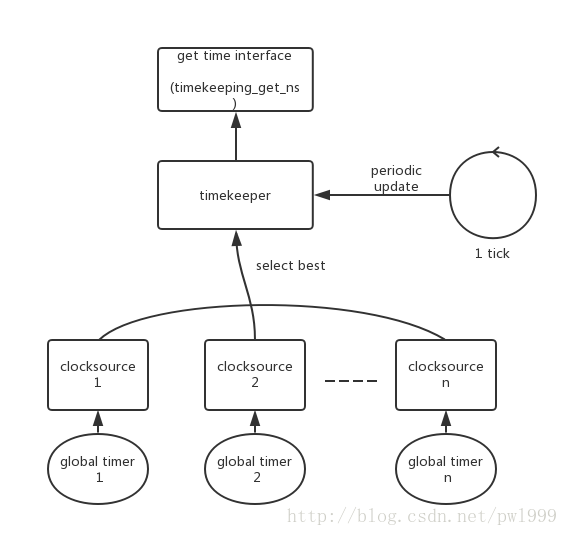

上图描述的是clocksource和timekeeper的关系：

• 一个global timer对应注册一个clocksource。
• 一个系统中可以有多个clocksource，timekeeper选择精度最高的那个来使用。
• 用户使用timekeeper提供的接口来获取系统的时间戳。
• 为了避免无人主动获取时间clocksource定时器的溢出，timekeeper需要定期的去获取clocksource的值来更新系统时间，一般是在tick处理中更新。

2.1、clocksource

下面来看一看clocksource的定义：

static struct clocksource mct_frc = {.name       = "mct-frc",/* (1) .rating = 精度，数值越大越好，select_best会选择精度最大的clocksource给timekeeper使用 */.rating     = 400,  /* (2) .read = 读取clocksource的timer当前计数 */.read       = exynos4_frc_read,/* (3) .mask = timer的位宽 */.mask       = CLOCKSOURCE_MASK(32),.flags      = CLOCK_SOURCE_IS_CONTINUOUS,.resume     = exynos4_frc_resume,
};

看一下clocksource的注册过程：

static void __init exynos4_clocksource_init(void)
{// 启动global timerexynos4_mct_frc_start();// 注册timer_delayexynos4_delay_timer.read_current_timer = &exynos4_read_current_timer;exynos4_delay_timer.freq = clk_rate;register_current_timer_delay(&exynos4_delay_timer);// (1) 注册clocksourceif (clocksource_register_hz(&mct_frc, clk_rate))panic("%s: can't register clocksource\n", mct_frc.name);// 注册sched_clocksched_clock_register(exynos4_read_sched_clock, 32, clk_rate);
}
|→
static inline int clocksource_register_hz(struct clocksource *cs, u32 hz)
{return __clocksource_register_scale(cs, 1, hz);
}
||→
int __clocksource_register_scale(struct clocksource *cs, u32 scale, u32 freq)
{/* Initialize mult/shift and max_idle_ns *//* (1.1) 根据timer的频率freq，计算cs->mult、cs->shift这两个字段是用来把timer的计数转换成实际时间单位nsns = (count * cs->mult) >> cs->shift */__clocksource_update_freq_scale(cs, scale, freq);/* Add clocksource to the clocksource list */mutex_lock(&clocksource_mutex);/* (1.2) 将新的clocksource加入全局链表 */clocksource_enqueue(cs);clocksource_enqueue_watchdog(cs);/* (1.3) 从全局链表中重新选择一个bestclocksource给timekeeper使用 */clocksource_select();clocksource_select_watchdog(false);mutex_unlock(&clocksource_mutex);return 0;
}
|||→
void __clocksource_update_freq_scale(struct clocksource *cs, u32 scale, u32 freq)
{u64 sec;/** Default clocksources are *special* and self-define their mult/shift.* But, you're not special, so you should specify a freq value.*/if (freq) {/** Calc the maximum number of seconds which we can run before* wrapping around. For clocksources which have a mask > 32-bit* we need to limit the max sleep time to have a good* conversion precision. 10 minutes is still a reasonable* amount. That results in a shift value of 24 for a* clocksource with mask >= 40-bit and f >= 4GHz. That maps to* ~ 0.06ppm granularity for NTP.*//* (1.1.1) 计算timer计数器到溢出，最大能计数多少秒 = sec */sec = cs->mask;do_div(sec, freq);do_div(sec, scale);if (!sec)sec = 1;else if (sec > 600 && cs->mask > UINT_MAX)sec = 600;/* (1.1.2) 根据1s内的频率数freq，和1s内的ns数NSEC_PER_SEC计算freq和ns之间的转换公式：ns = (freq * cs->mult) >> cs->shift 目的是把mult和shift算到最大值，最大可能的保留精度 */clocks_calc_mult_shift(&cs->mult, &cs->shift, freq,NSEC_PER_SEC / scale, sec * scale);}/** Ensure clocksources that have large 'mult' values don't overflow* when adjusted.*/cs->maxadj = clocksource_max_adjustment(cs);while (freq && ((cs->mult + cs->maxadj < cs->mult)|| (cs->mult - cs->maxadj > cs->mult))) {cs->mult >>= 1;cs->shift--;cs->maxadj = clocksource_max_adjustment(cs);}/** Only warn for *special* clocksources that self-define* their mult/shift values and don't specify a freq.*/WARN_ONCE(cs->mult + cs->maxadj < cs->mult,"timekeeping: Clocksource %s might overflow on 11%% adjustment\n",cs->name);/* (1.1.3) 根据mult和shift的值，计算最大能进入idle的时间max_idle_ns才能保证idle时timer不会溢出*/clocksource_update_max_deferment(cs);pr_info("%s: mask: 0x%llx max_cycles: 0x%llx, max_idle_ns: %lld ns\n",cs->name, cs->mask, cs->max_cycles, cs->max_idle_ns);
}
|||→
static void clocksource_select(void)
{__clocksource_select(false);
}
static void __clocksource_select(bool skipcur)
{bool oneshot = tick_oneshot_mode_active();struct clocksource *best, *cs;/* Find the best suitable clocksource *//* (1.3.1) 选择best clocksource */best = clocksource_find_best(oneshot, skipcur);if (!best)return;/* Check for the override clocksource. */list_for_each_entry(cs, &clocksource_list, list) {if (skipcur && cs == curr_clocksource)continue;if (strcmp(cs->name, override_name) != 0)continue;/** Check to make sure we don't switch to a non-highres* capable clocksource if the tick code is in oneshot* mode (highres or nohz)*/if (!(cs->flags & CLOCK_SOURCE_VALID_FOR_HRES) && oneshot) {/* Override clocksource cannot be used. */pr_warn("Override clocksource %s is not HRT compatible - cannot switch while in HRT/NOHZ mode\n",cs->name);override_name[0] = 0;} else/* Override clocksource can be used. */best = cs;break;}/* (1.3.2) 通知timekeeper更新clocksource，tick-sched更新 */if (curr_clocksource != best && !timekeeping_notify(best)) {pr_info("Switched to clocksource %s\n", best->name);curr_clocksource = best;}
}
||||→
int timekeeping_notify(struct clocksource *clock)
{struct timekeeper *tk = &tk_core.timekeeper;if (tk->tkr_mono.clock == clock)return 0;stop_machine(change_clocksource, clock, NULL);tick_clock_notify();return tk->tkr_mono.clock == clock ? 0 : -1;
}

2.1.1、exynos4_clocksource_init()

exynos将global timer注册成clocksource，虽然global timer拥有64bit的位宽，但是注册的时候把其当成32bit的clocksource注册。

static u32 notrace exynos4_read_count_32(void)
{return readl_relaxed(reg_base + EXYNOS4_MCT_G_CNT_L);
}static cycle_t exynos4_frc_read(struct clocksource *cs)
{return exynos4_read_count_32();
}static struct clocksource mct_frc = {.name       = "mct-frc",.rating     = 400,.read       = exynos4_frc_read,.mask       = CLOCKSOURCE_MASK(32),.flags      = CLOCK_SOURCE_IS_CONTINUOUS,.resume     = exynos4_frc_resume,
};static void __init exynos4_clocksource_init(void)
{exynos4_mct_frc_start();exynos4_delay_timer.read_current_timer = &exynos4_read_current_timer;exynos4_delay_timer.freq = clk_rate;register_current_timer_delay(&exynos4_delay_timer);/* (1) exynos将global timer注册成clocksource */if (clocksource_register_hz(&mct_frc, clk_rate))panic("%s: can't register clocksource\n", mct_frc.name);sched_clock_register(exynos4_read_sched_clock, 32, clk_rate);
}

2.2、timekeeper

timerkeeper提供了几种时间：xtime、monotonic time、raw monotonic time、boot time。

• xtime 即是wall time，和RTC时间一样可以表示当前的时刻，它的起始时间是公元0世纪0秒，精度大于RTC时间；
• monotonic time 从系统开机后到现在的累计时间，不过不计算系统休眠的时间；
• raw monotonic time 和monotonic time含义一样，不过更纯粹，不会受到NTP时间调整的影响；
• boot time 在monotonic time的基础上加上了系统休眠的时间，它代表着系统上电后的总时间。

时间种类	精度（统计单位）	访问速度	累计休眠时间	受NTP调整的影响	获取函数
RTC	低	慢	Yes	Yes
xtime	高	快	Yes	Yes	do_gettimeofday()、ktime_get_real_ts()、ktime_get_real()
monotonic	高	快	No	Yes	ktime_get()、ktime_get_ts64()
raw monotonic	高	快	No	No	ktime_get_raw()、getrawmonotonic64()
boot time	高	快	Yes	Yes	ktime_get_boottime()

2.2.1、timekeeper的定义

虽然clocksource定时器只有一个，但是timekeeper提供了xtime、monotonic time、raw time、boot time等几种时间，所以timekeeper结构体中定义了多个变量来记住这些差值。

/*** struct timekeeper - Structure holding internal timekeeping values.* @tkr_mono:       The readout base structure for CLOCK_MONOTONIC* @tkr_raw:        The readout base structure for CLOCK_MONOTONIC_RAW* @xtime_sec:      Current CLOCK_REALTIME time in seconds* @ktime_sec:      Current CLOCK_MONOTONIC time in seconds* @wall_to_monotonic:  CLOCK_REALTIME to CLOCK_MONOTONIC offset* @offs_real:      Offset clock monotonic -> clock realtime* @offs_boot:      Offset clock monotonic -> clock boottime* @offs_tai:       Offset clock monotonic -> clock tai* @tai_offset:     The current UTC to TAI offset in seconds* @clock_was_set_seq:  The sequence number of clock was set events* @next_leap_ktime:    CLOCK_MONOTONIC time value of a pending leap-second* @raw_time:       Monotonic raw base time in timespec64 format* @cycle_interval: Number of clock cycles in one NTP interval* @xtime_interval: Number of clock shifted nano seconds in one NTP*          interval.* @xtime_remainder:    Shifted nano seconds left over when rounding*          @cycle_interval* @raw_interval:   Raw nano seconds accumulated per NTP interval.* @ntp_error:      Difference between accumulated time and NTP time in ntp*          shifted nano seconds.* @ntp_error_shift:    Shift conversion between clock shifted nano seconds and*          ntp shifted nano seconds.* @last_warning:   Warning ratelimiter (DEBUG_TIMEKEEPING)* @underflow_seen: Underflow warning flag (DEBUG_TIMEKEEPING)* @overflow_seen:  Overflow warning flag (DEBUG_TIMEKEEPING)** Note: For timespec(64) based interfaces wall_to_monotonic is what* we need to add to xtime (or xtime corrected for sub jiffie times)* to get to monotonic time.  Monotonic is pegged at zero at system* boot time, so wall_to_monotonic will be negative, however, we will* ALWAYS keep the tv_nsec part positive so we can use the usual* normalization.** wall_to_monotonic is moved after resume from suspend for the* monotonic time not to jump. We need to add total_sleep_time to* wall_to_monotonic to get the real boot based time offset.** wall_to_monotonic is no longer the boot time, getboottime must be* used instead.*/
struct timekeeper {struct tk_read_base tkr_mono;   // tkr_mono.xtime_nsec：xtime/monotonic time 的ns// tkr_mono.base：monotonic time的base部分struct tk_read_base tkr_raw;// tkr_mono.base：raw time的base部分u64         xtime_sec;              // xtime的secunsigned long       ktime_sec;      // monotonic time 的整secstruct timespec64   wall_to_monotonic;  // xtime + wall_to_monotonic = monotonic timektime_t         offs_real;  //  monotonic time + offs_real = xtime，// 和wall_to_monotonic是相反的值ktime_t         offs_boot;  //  monotonic time + offs_boot = boot timektime_t         offs_tai;s32         tai_offset;unsigned int        clock_was_set_seq;ktime_t         next_leap_ktime;struct timespec64   raw_time;   // raw time/* The following members are for timekeeping internal use */cycle_t         cycle_interval;u64         xtime_interval;s64         xtime_remainder;u32         raw_interval;/* The ntp_tick_length() value currently being used.* This cached copy ensures we consistently apply the tick* length for an entire tick, as ntp_tick_length may change* mid-tick, and we don't want to apply that new value to* the tick in progress.*/u64         ntp_tick;/* Difference between accumulated time and NTP time in ntp* shifted nano seconds. */s64         ntp_error;u32         ntp_error_shift;u32         ntp_err_mult;
#ifdef CONFIG_DEBUG_TIMEKEEPINGlong            last_warning;/** These simple flag variables are managed* without locks, which is racy, but they are* ok since we don't really care about being* super precise about how many events were* seen, just that a problem was observed.*/int         underflow_seen;int         overflow_seen;
#endif
};

2.2.2、timekeeper的初始化

timekeeper在初始化的过程中，读取当前的RTC值和clocksource的值，来初始化xtime、monotonic time、raw time、boot time，以及各种offset。

void __init timekeeping_init(void)
{struct timekeeper *tk = &tk_core.timekeeper;struct clocksource *clock;unsigned long flags;struct timespec64 now, boot, tmp;read_persistent_clock64(&now);if (!timespec64_valid_strict(&now)) {pr_warn("WARNING: Persistent clock returned invalid value!\n""         Check your CMOS/BIOS settings.\n");now.tv_sec = 0;now.tv_nsec = 0;} else if (now.tv_sec || now.tv_nsec)persistent_clock_exists = true;read_boot_clock64(&boot);if (!timespec64_valid_strict(&boot)) {pr_warn("WARNING: Boot clock returned invalid value!\n""         Check your CMOS/BIOS settings.\n");boot.tv_sec = 0;boot.tv_nsec = 0;}raw_spin_lock_irqsave(&timekeeper_lock, flags);write_seqcount_begin(&tk_core.seq);ntp_init();clock = clocksource_default_clock();if (clock->enable)clock->enable(clock);tk_setup_internals(tk, clock);tk_set_xtime(tk, &now);tk->raw_time.tv_sec = 0;tk->raw_time.tv_nsec = 0;if (boot.tv_sec == 0 && boot.tv_nsec == 0)boot = tk_xtime(tk);set_normalized_timespec64(&tmp, -boot.tv_sec, -boot.tv_nsec);tk_set_wall_to_mono(tk, tmp);timekeeping_update(tk, TK_MIRROR | TK_CLOCK_WAS_SET);write_seqcount_end(&tk_core.seq);raw_spin_unlock_irqrestore(&timekeeper_lock, flags);
}

timekeeper原理上的初始化是在timekeeping_init()函数中完成的，但是read_persistent_clock64()、read_boot_clock64()都是空函数，所以实际上的初始化是另外的路径：rtc_hctosys() -> do_settimeofday64()，rtc初始化的时候重新配置timekeeper。

static int __init rtc_hctosys(void)
{int err = -ENODEV;struct rtc_time tm;struct timespec64 tv64 = {.tv_nsec = NSEC_PER_SEC >> 1,};struct rtc_device *rtc = rtc_class_open(CONFIG_RTC_HCTOSYS_DEVICE);if (rtc == NULL) {pr_info("unable to open rtc device (%s)\n",CONFIG_RTC_HCTOSYS_DEVICE);goto err_open;}/* (1) 读取当前的rtc时间 */err = rtc_read_time(rtc, &tm);if (err) {dev_err(rtc->dev.parent,"hctosys: unable to read the hardware clock\n");goto err_read;}tv64.tv_sec = rtc_tm_to_time64(&tm);tv64.tv_nsec = tm.tm_cnt * (1000000000 / 32768);/* (2) 根据rtc时间配置xtime */err = do_settimeofday64(&tv64);dev_info(rtc->dev.parent,"setting system clock to ""%d-%02d-%02d %02d:%02d:%02d UTC (%lld)\n",tm.tm_year + 1900, tm.tm_mon + 1, tm.tm_mday,tm.tm_hour, tm.tm_min, tm.tm_sec,(long long) tv64.tv_sec);err_read:rtc_class_close(rtc);err_open:rtc_hctosys_ret = err;return err;
}
|→
int do_settimeofday64(const struct timespec64 *ts)
{struct timekeeper *tk = &tk_core.timekeeper;struct timespec64 ts_delta, xt;unsigned long flags;int ret = 0;if (!timespec64_valid_strict(ts))return -EINVAL;raw_spin_lock_irqsave(&timekeeper_lock, flags);write_seqcount_begin(&tk_core.seq);timekeeping_forward_now(tk);/* (2.1) 读取当前的xtime，计算rtc time和xtime之间的差值  */xt = tk_xtime(tk);ts_delta.tv_sec = ts->tv_sec - xt.tv_sec;ts_delta.tv_nsec = ts->tv_nsec - xt.tv_nsec;if (timespec64_compare(&tk->wall_to_monotonic, &ts_delta) > 0) {ret = -EINVAL;goto out;}/* (2.2) 将差值追加到offset；tk->wall_to_monotonic、tk->offs_real */tk_set_wall_to_mono(tk, timespec64_sub(tk->wall_to_monotonic, ts_delta));/* (2.3) 更新xtime */tk_set_xtime(tk, ts);
out:timekeeping_update(tk, TK_CLEAR_NTP | TK_MIRROR | TK_CLOCK_WAS_SET);write_seqcount_end(&tk_core.seq);raw_spin_unlock_irqrestore(&timekeeper_lock, flags);/* signal hrtimers about time change */clock_was_set();notify_time_update();return ret;
}

2.2.3、timekeeper的update

clocksource定时器的值要定时的读出来，并且把增量加到timekeeper中，不然clocksource定时器会溢出。这个定时更新的时间一般是1 tick，调用的函数是update_wall_time()：

void update_wall_time(void)
{struct timekeeper *real_tk = &tk_core.timekeeper;struct timekeeper *tk = &shadow_timekeeper;cycle_t offset;int shift = 0, maxshift;unsigned int clock_set = 0;unsigned long flags;raw_spin_lock_irqsave(&timekeeper_lock, flags);/* Make sure we're fully resumed: */if (unlikely(timekeeping_suspended))goto out;#ifdef CONFIG_ARCH_USES_GETTIMEOFFSEToffset = real_tk->cycle_interval;
#else/* (1) 获取clocksource和上一次update之间的offset */offset = clocksource_delta(tk->tkr_mono.read(tk->tkr_mono.clock),tk->tkr_mono.cycle_last, tk->tkr_mono.mask);
#endif/* Check if there's really nothing to do */if (offset < real_tk->cycle_interval)goto out;/* Do some additional sanity checking */timekeeping_check_update(real_tk, offset);/** With NO_HZ we may have to accumulate many cycle_intervals* (think "ticks") worth of time at once. To do this efficiently,* we calculate the largest doubling multiple of cycle_intervals* that is smaller than the offset.  We then accumulate that* chunk in one go, and then try to consume the next smaller* doubled multiple.*/shift = ilog2(offset) - ilog2(tk->cycle_interval);shift = max(0, shift);/* Bound shift to one less than what overflows tick_length */maxshift = (64 - (ilog2(ntp_tick_length())+1)) - 1;shift = min(shift, maxshift);/* (2) 如果offset的值是多个cycle_interval，不要一次update，使用2的n次方cycle_interval的方式逐个update。tk->cycle_interval的值在tk_setup_internals()时被赋值，默认为1 tick */while (offset >= tk->cycle_interval) {/* (3) 将offset更新到timekeeper中 */offset = logarithmic_accumulation(tk, offset, shift,&clock_set);if (offset < tk->cycle_interval<<shift)shift--;}/* correct the clock when NTP error is too big */timekeeping_adjust(tk, offset);/** XXX This can be killed once everyone converts* to the new update_vsyscall.*/old_vsyscall_fixup(tk);/** Finally, make sure that after the rounding* xtime_nsec isn't larger than NSEC_PER_SEC*/clock_set |= accumulate_nsecs_to_secs(tk);write_seqcount_begin(&tk_core.seq);/** Update the real timekeeper.** We could avoid this memcpy by switching pointers, but that* requires changes to all other timekeeper usage sites as* well, i.e. move the timekeeper pointer getter into the* spinlocked/seqcount protected sections. And we trade this* memcpy under the tk_core.seq against one before we start* updating.*//* (4)  */timekeeping_update(tk, clock_set);memcpy(real_tk, tk, sizeof(*tk));/* The memcpy must come last. Do not put anything here! */write_seqcount_end(&tk_core.seq);
out:raw_spin_unlock_irqrestore(&timekeeper_lock, flags);if (clock_set)/* Have to call _delayed version, since in irq context*/clock_was_set_delayed();
}
|→
static cycle_t logarithmic_accumulation(struct timekeeper *tk, cycle_t offset,u32 shift,unsigned int *clock_set)
{cycle_t interval = tk->cycle_interval << shift;u64 raw_nsecs;/* If the offset is smaller than a shifted interval, do nothing */if (offset < interval)return offset;/* Accumulate one shifted interval */offset -= interval;/* (3.1) 更新cycle_last */tk->tkr_mono.cycle_last += interval;tk->tkr_raw.cycle_last  += interval;/* (3.2) 更新xtime：tk->tkr_mono.xtime_nsectk->xtime_sec   */tk->tkr_mono.xtime_nsec += tk->xtime_interval << shift;*clock_set |= accumulate_nsecs_to_secs(tk);/* Accumulate raw time *//* (3.3) 更新raw time：tk->raw_time.tv_nsectk->raw_time.tv_sec */raw_nsecs = (u64)tk->raw_interval << shift;raw_nsecs += tk->raw_time.tv_nsec;if (raw_nsecs >= NSEC_PER_SEC) {u64 raw_secs = raw_nsecs;raw_nsecs = do_div(raw_secs, NSEC_PER_SEC);tk->raw_time.tv_sec += raw_secs;}tk->raw_time.tv_nsec = raw_nsecs;/* Accumulate error between NTP and clock interval */tk->ntp_error += tk->ntp_tick << shift;tk->ntp_error -= (tk->xtime_interval + tk->xtime_remainder) <<(tk->ntp_error_shift + shift);return offset;
}
|→
static void timekeeping_update(struct timekeeper *tk, unsigned int action)
{if (action & TK_CLEAR_NTP) {tk->ntp_error = 0;ntp_clear();}tk_update_leap_state(tk);/* (4.1) update monotonic time */tk_update_ktime_data(tk);update_vsyscall(tk);update_pvclock_gtod(tk, action & TK_CLOCK_WAS_SET);update_fast_timekeeper(&tk->tkr_mono, &tk_fast_mono);update_fast_timekeeper(&tk->tkr_raw,  &tk_fast_raw);if (action & TK_CLOCK_WAS_SET)tk->clock_was_set_seq++;/** The mirroring of the data to the shadow-timekeeper needs* to happen last here to ensure we don't over-write the* timekeeper structure on the next update with stale data*/if (action & TK_MIRROR)memcpy(&shadow_timekeeper, &tk_core.timekeeper,sizeof(tk_core.timekeeper));
}
||→
static inline void tk_update_ktime_data(struct timekeeper *tk)
{u64 seconds;u32 nsec;/** The xtime based monotonic readout is:*  nsec = (xtime_sec + wtm_sec) * 1e9 + wtm_nsec + now();* The ktime based monotonic readout is:*  nsec = base_mono + now();* ==> base_mono = (xtime_sec + wtm_sec) * 1e9 + wtm_nsec*//* (4.1.1) update tk->tkr_mono.base的值，= tk->xtime_sec +  tk->wall_to_monotonic,tk->tkr_mono.xtime_nsec 没有计算到base中 */seconds = (u64)(tk->xtime_sec + tk->wall_to_monotonic.tv_sec);nsec = (u32) tk->wall_to_monotonic.tv_nsec;tk->tkr_mono.base = ns_to_ktime(seconds * NSEC_PER_SEC + nsec);/* Update the monotonic raw base *//* (4.1.2) update tk->tkr_raw.base的值，直接转换tk->raw_time */tk->tkr_raw.base = timespec64_to_ktime(tk->raw_time);/** The sum of the nanoseconds portions of xtime and* wall_to_monotonic can be greater/equal one second. Take* this into account before updating tk->ktime_sec.*//* (4.1.3) update tk->ktime_sec的值nsec += (u32)(tk->tkr_mono.xtime_nsec >> tk->tkr_mono.shift);if (nsec >= NSEC_PER_SEC)seconds++;tk->ktime_sec = seconds;
}

2.2.4、timekeeper的获取

• xtime/wall time 的获取:

do_gettimeofday()、ktime_get_real_ts()最后调用的getnstimeofday64() -> __getnstimeofday64()获取到xtime：

int __getnstimeofday64(struct timespec64 *ts)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned long seq;s64 nsecs = 0;do {seq = read_seqcount_begin(&tk_core.seq);/* (1) sec直接从变量tk->xtime_sec获取到，即上一tick更新的值 */ts->tv_sec = tk->xtime_sec;/* (2) nsec需要更新最新的值：tk->tkr_mono.xtime_nsec + deltadelta是距离上一次tick更新的差值 */nsecs = timekeeping_get_ns(&tk->tkr_mono);} while (read_seqcount_retry(&tk_core.seq, seq));ts->tv_nsec = 0;timespec64_add_ns(ts, nsecs);/** Do not bail out early, in case there were callers still using* the value, even in the face of the WARN_ON.*/if (unlikely(timekeeping_suspended))return -EAGAIN;return 0;
}
|→
static inline s64 timekeeping_get_ns(struct tk_read_base *tkr)
{cycle_t delta;s64 nsec;/* (2.1) 获取距离上一次tick更新，timer的delta值  */delta = timekeeping_get_delta(tkr);/* (2.2) delta加上上一次的nsec tkr->xtime_nsec，即为最新的ns值 */nsec = (delta * tkr->mult + tkr->xtime_nsec) >> tkr->shift;/* If arch requires, add in get_arch_timeoffset() */return nsec + arch_gettimeoffset();
}
||→
static inline cycle_t timekeeping_get_delta(struct tk_read_base *tkr)
{struct timekeeper *tk = &tk_core.timekeeper;cycle_t now, last, mask, max, delta;unsigned int seq;/** Since we're called holding a seqlock, the data may shift* under us while we're doing the calculation. This can cause* false positives, since we'd note a problem but throw the* results away. So nest another seqlock here to atomically* grab the points we are checking with.*/do {seq = read_seqcount_begin(&tk_core.seq);/* (2.1.1) 使用read函数读取当前timer的计数 */now = tkr->read(tkr->clock);last = tkr->cycle_last;mask = tkr->mask;max = tkr->clock->max_cycles;} while (read_seqcount_retry(&tk_core.seq, seq));/* (2.1.2) 使用公式：(now - last) & mask，计算delta值 */delta = clocksource_delta(now, last, mask);/** Try to catch underflows by checking if we are seeing small* mask-relative negative values.*/if (unlikely((~delta & mask) < (mask >> 3))) {tk->underflow_seen = 1;delta = 0;}/* Cap delta value to the max_cycles values to avoid mult overflows */if (unlikely(delta > max)) {tk->overflow_seen = 1;delta = tkr->clock->max_cycles;}return delta;
}

ktime_get_real()使用monotonic time再加上差值timekeeper.offs_real的方法来获取xtime：

static inline ktime_t ktime_get_real(void)
{return ktime_get_with_offset(TK_OFFS_REAL);
}
|→
static ktime_t *offsets[TK_OFFS_MAX] = {[TK_OFFS_REAL]  = &tk_core.timekeeper.offs_real,[TK_OFFS_BOOT]  = &tk_core.timekeeper.offs_boot,[TK_OFFS_TAI]   = &tk_core.timekeeper.offs_tai,
};ktime_t ktime_get_with_offset(enum tk_offsets offs)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned int seq;ktime_t base, *offset = offsets[offs];s64 nsecs;WARN_ON(timekeeping_suspended);do {seq = read_seqcount_begin(&tk_core.seq);/* (1) monotonic time = tk->tkr_mono.base，offset = timekeeper.offs_real */base = ktime_add(tk->tkr_mono.base, *offset);/* (2) nsec需要更新最新的值：tk->tkr_mono.xtime_nsec + deltadelta是距离上一次tick更新的差值 */nsecs = timekeeping_get_ns(&tk->tkr_mono);} while (read_seqcount_retry(&tk_core.seq, seq));return ktime_add_ns(base, nsecs);}

• monotonic time 的获取；

ktime_get()直接获取monotonic time：

ktime_t ktime_get(void)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned int seq;ktime_t base;s64 nsecs;WARN_ON(timekeeping_suspended);do {seq = read_seqcount_begin(&tk_core.seq);/* (1) monotonic time = tk->tkr_mono.base */base = tk->tkr_mono.base;/* (2) nsec需要更新最新的值：tk->tkr_mono.xtime_nsec + deltadelta是距离上一次tick更新的差值 */nsecs = timekeeping_get_ns(&tk->tkr_mono);} while (read_seqcount_retry(&tk_core.seq, seq));return ktime_add_ns(base, nsecs);
}

ktime_get_ts64()通过xtime加上差值tk->wall_to_monotonic的方法来获取monotonic time：

void ktime_get_ts64(struct timespec64 *ts)
{struct timekeeper *tk = &tk_core.timekeeper;struct timespec64 tomono;s64 nsec;unsigned int seq;WARN_ON(timekeeping_suspended);do {seq = read_seqcount_begin(&tk_core.seq);/* (1) 获取xtime */ts->tv_sec = tk->xtime_sec;nsec = timekeeping_get_ns(&tk->tkr_mono);/* (2) 加上xtime和monotonic之间的差值tk->wall_to_monotonic */tomono = tk->wall_to_monotonic;} while (read_seqcount_retry(&tk_core.seq, seq));ts->tv_sec += tomono.tv_sec;ts->tv_nsec = 0;timespec64_add_ns(ts, nsec + tomono.tv_nsec);
}

• raw monotonic time 的获取；

ktime_get_raw()通过tk->tkr_raw.base获取raw monotonic time：

ktime_t ktime_get_raw(void)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned int seq;ktime_t base;s64 nsecs;do {seq = read_seqcount_begin(&tk_core.seq);/* (1) raw monotonic time = tk->tkr_raw.base */base = tk->tkr_raw.base;/* (2) nsec需要更新最新的值：tk->tkr_raw.xtime_nsec + deltadelta是距离上一次tick更新的差值 */nsecs = timekeeping_get_ns(&tk->tkr_raw);} while (read_seqcount_retry(&tk_core.seq, seq));return ktime_add_ns(base, nsecs);
}

getrawmonotonic64()通过tk->raw_time获取raw monotonic time：

void getrawmonotonic64(struct timespec64 *ts)
{struct timekeeper *tk = &tk_core.timekeeper;struct timespec64 ts64;unsigned long seq;s64 nsecs;do {seq = read_seqcount_begin(&tk_core.seq);nsecs = timekeeping_get_ns(&tk->tkr_raw);ts64 = tk->raw_time;} while (read_seqcount_retry(&tk_core.seq, seq));timespec64_add_ns(&ts64, nsecs);*ts = ts64;
}

• boot time 的获取；

ktime_get_boottime()使用monotonic time再加上差值timekeeper.offs_boot的方法来获取boot time：

static inline ktime_t ktime_get_boottime(void)
{return ktime_get_with_offset(TK_OFFS_BOOT);
}
|→
static ktime_t *offsets[TK_OFFS_MAX] = {[TK_OFFS_REAL]  = &tk_core.timekeeper.offs_real,[TK_OFFS_BOOT]  = &tk_core.timekeeper.offs_boot,[TK_OFFS_TAI]   = &tk_core.timekeeper.offs_tai,
};ktime_t ktime_get_with_offset(enum tk_offsets offs)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned int seq;ktime_t base, *offset = offsets[offs];s64 nsecs;WARN_ON(timekeeping_suspended);do {seq = read_seqcount_begin(&tk_core.seq);/* (1) monotonic time = tk->tkr_mono.base，offset = timekeeper.offs_boot */base = ktime_add(tk->tkr_mono.base, *offset);/* (2) nsec需要更新最新的值：tk->tkr_mono.xtime_nsec + deltadelta是距离上一次tick更新的差值 */nsecs = timekeeping_get_ns(&tk->tkr_mono);} while (read_seqcount_retry(&tk_core.seq, seq));return ktime_add_ns(base, nsecs);}

2.2.5、timekeeper suspend

系统在进入suspend以后，clocksource不会再工作，这部分时间会计入xtime和boot time，但是不会计入monotonic time。

void timekeeping_resume(void)
{struct timekeeper *tk = &tk_core.timekeeper;struct clocksource *clock = tk->tkr_mono.clock;unsigned long flags;struct timespec64 ts_new, ts_delta;cycle_t cycle_now, cycle_delta;sleeptime_injected = false;read_persistent_clock64(&ts_new);clockevents_resume();clocksource_resume();raw_spin_lock_irqsave(&timekeeper_lock, flags);write_seqcount_begin(&tk_core.seq);/** After system resumes, we need to calculate the suspended time and* compensate it for the OS time. There are 3 sources that could be* used: Nonstop clocksource during suspend, persistent clock and rtc* device.** One specific platform may have 1 or 2 or all of them, and the* preference will be:*  suspend-nonstop clocksource -> persistent clock -> rtc* The less preferred source will only be tried if there is no better* usable source. The rtc part is handled separately in rtc core code.*/cycle_now = tk->tkr_mono.read(clock);if ((clock->flags & CLOCK_SOURCE_SUSPEND_NONSTOP) &&cycle_now > tk->tkr_mono.cycle_last) {u64 num, max = ULLONG_MAX;u32 mult = clock->mult;u32 shift = clock->shift;s64 nsec = 0;cycle_delta = clocksource_delta(cycle_now, tk->tkr_mono.cycle_last,tk->tkr_mono.mask);/** "cycle_delta * mutl" may cause 64 bits overflow, if the* suspended time is too long. In that case we need do the* 64 bits math carefully*/do_div(max, mult);if (cycle_delta > max) {num = div64_u64(cycle_delta, max);nsec = (((u64) max * mult) >> shift) * num;cycle_delta -= num * max;}nsec += ((u64) cycle_delta * mult) >> shift;ts_delta = ns_to_timespec64(nsec);sleeptime_injected = true;} else if (timespec64_compare(&ts_new, &timekeeping_suspend_time) > 0) {ts_delta = timespec64_sub(ts_new, timekeeping_suspend_time);sleeptime_injected = true;}if (sleeptime_injected)__timekeeping_inject_sleeptime(tk, &ts_delta);/* Re-base the last cycle value */tk->tkr_mono.cycle_last = cycle_now;tk->tkr_raw.cycle_last  = cycle_now;tk->ntp_error = 0;timekeeping_suspended = 0;timekeeping_update(tk, TK_MIRROR | TK_CLOCK_WAS_SET);write_seqcount_end(&tk_core.seq);raw_spin_unlock_irqrestore(&timekeeper_lock, flags);touch_softlockup_watchdog();tick_resume();hrtimers_resume();
}int timekeeping_suspend(void)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned long flags;struct timespec64       delta, delta_delta;static struct timespec64    old_delta;read_persistent_clock64(&timekeeping_suspend_time);/** On some systems the persistent_clock can not be detected at* timekeeping_init by its return value, so if we see a valid* value returned, update the persistent_clock_exists flag.*/if (timekeeping_suspend_time.tv_sec || timekeeping_suspend_time.tv_nsec)persistent_clock_exists = true;raw_spin_lock_irqsave(&timekeeper_lock, flags);write_seqcount_begin(&tk_core.seq);timekeeping_forward_now(tk);timekeeping_suspended = 1;if (persistent_clock_exists) {/** To avoid drift caused by repeated suspend/resumes,* which each can add ~1 second drift error,* try to compensate so the difference in system time* and persistent_clock time stays close to constant.*/delta = timespec64_sub(tk_xtime(tk), timekeeping_suspend_time);delta_delta = timespec64_sub(delta, old_delta);if (abs(delta_delta.tv_sec) >= 2) {/** if delta_delta is too large, assume time correction* has occurred and set old_delta to the current delta.*/old_delta = delta;} else {/* Otherwise try to adjust old_system to compensate */timekeeping_suspend_time =timespec64_add(timekeeping_suspend_time, delta_delta);}}timekeeping_update(tk, TK_MIRROR);halt_fast_timekeeper(tk);write_seqcount_end(&tk_core.seq);raw_spin_unlock_irqrestore(&timekeeper_lock, flags);tick_suspend();clocksource_suspend();clockevents_suspend();
return 0;
}/* sysfs resume/suspend bits for timekeeping */
static struct syscore_ops timekeeping_syscore_ops = {.resume     = timekeeping_resume,.suspend    = timekeeping_suspend,
};

和初始化一样的原因，理论上timekeeper的操作在timekeeping_resume()、timekeeping_suspend()，但是实际上在rtc的操作中执行rtc_suspend()、rtc_resume()。

static int rtc_suspend(struct device *dev)
{struct rtc_device   *rtc = to_rtc_device(dev);struct rtc_time     tm;struct timespec64   delta, delta_delta;int err;if (timekeeping_rtc_skipsuspend())
        return 0;if (strcmp(dev_name(&rtc->dev), CONFIG_RTC_HCTOSYS_DEVICE) != 0)
        return 0;/* snapshot the current RTC and system time at suspend*//* (1.1) 读取suspend时候的rtc时间 */err = rtc_read_time(rtc, &tm);if (err < 0) {pr_debug("%s:  fail to read rtc time\n", dev_name(&rtc->dev));
        return 0;}/* (1.2) 读取当前xtime */getnstimeofday64(&old_system);old_rtc.tv_sec = rtc_tm_to_time64(&tm);old_rtc.tv_nsec = tm.tm_cnt*(1000000000/32768);/** To avoid drift caused by repeated suspend/resumes,* which each can add ~1 second drift error,* try to compensate so the difference in system time* and rtc time stays close to constant.*//* (1.3) 如果rtc时间和xtime有偏差，尝试纠正xtime */delta = timespec64_sub(old_system, old_rtc);delta_delta = timespec64_sub(delta, old_delta);if (delta_delta.tv_sec < -2 || delta_delta.tv_sec >= 2) {/** if delta_delta is too large, assume time correction* has occured and set old_delta to the current delta.*/old_delta = delta;} else {/* Otherwise try to adjust old_system to compensate */old_system = timespec64_sub(old_system, delta_delta);}
return 0;
}static int rtc_resume(struct device *dev)
{struct rtc_device   *rtc = to_rtc_device(dev);struct rtc_time     tm;struct timespec64   new_system, new_rtc;struct timespec64   sleep_time;int err;if (timekeeping_rtc_skipresume())
        return 0;rtc_hctosys_ret = -ENODEV;if (strcmp(dev_name(&rtc->dev), CONFIG_RTC_HCTOSYS_DEVICE) != 0)
        return 0;/* snapshot the current rtc and system time at resume *//* (2.1) 读取resume后的rtc时间和xtime */getnstimeofday64(&new_system);err = rtc_read_time(rtc, &tm);if (err < 0) {pr_debug("%s:  fail to read rtc time\n", dev_name(&rtc->dev));
        return 0;}new_rtc.tv_sec = rtc_tm_to_time64(&tm);new_rtc.tv_nsec = tm.tm_cnt*(1000000000/32768);if (new_rtc.tv_sec < old_rtc.tv_sec) {pr_debug("%s:  time travel!\n", dev_name(&rtc->dev));
        return 0;}/* calculate the RTC time delta (sleep time)*//* (2.2) 计算suspend和resume之间rtc的差值 */sleep_time = timespec64_sub(new_rtc, old_rtc);/** Since these RTC suspend/resume handlers are not called* at the very end of suspend or the start of resume,* some run-time may pass on either sides of the sleep time* so subtract kernel run-time between rtc_suspend to rtc_resume* to keep things accurate.*//* (2.3) 使用上一步的差值，再减去，suspend和resume之间xtime的差值得到实际的sleep时间*/sleep_time = timespec64_sub(sleep_time,timespec64_sub(new_system, old_system));if (sleep_time.tv_sec >= 0)/* (2.4) 将计算得到的sleep时间，加入到timekeeper中 */timekeeping_inject_sleeptime64(&sleep_time);rtc_hctosys_ret = 0;
    return 0;
}
|→
void timekeeping_inject_sleeptime64(struct timespec64 *delta)
{struct timekeeper *tk = &tk_core.timekeeper;unsigned long flags;raw_spin_lock_irqsave(&timekeeper_lock, flags);write_seqcount_begin(&tk_core.seq);timekeeping_forward_now(tk);__timekeeping_inject_sleeptime(tk, delta);timekeeping_update(tk, TK_CLEAR_NTP | TK_MIRROR | TK_CLOCK_WAS_SET);write_seqcount_end(&tk_core.seq);raw_spin_unlock_irqrestore(&timekeeper_lock, flags);/* signal hrtimers about time change */clock_was_set();
}
||→
static void __timekeeping_inject_sleeptime(struct timekeeper *tk,struct timespec64 *delta)
{if (!timespec64_valid_strict(delta)) {printk_deferred(KERN_WARNING"__timekeeping_inject_sleeptime: Invalid ""sleep delta value!\n");
        return;}/* (2.4.1) 更新xtime */tk_xtime_add(tk, delta);/* (2.4.2) 更新tk->wall_to_monotonic、tk->offs_real */tk_set_wall_to_mono(tk, timespec64_sub(tk->wall_to_monotonic, *delta));/* (2.4.3) 更新tk->offs_boot */tk_update_sleep_time(tk, timespec64_to_ktime(*delta));tk_debug_account_sleep_time(delta);
}

3、clock_event

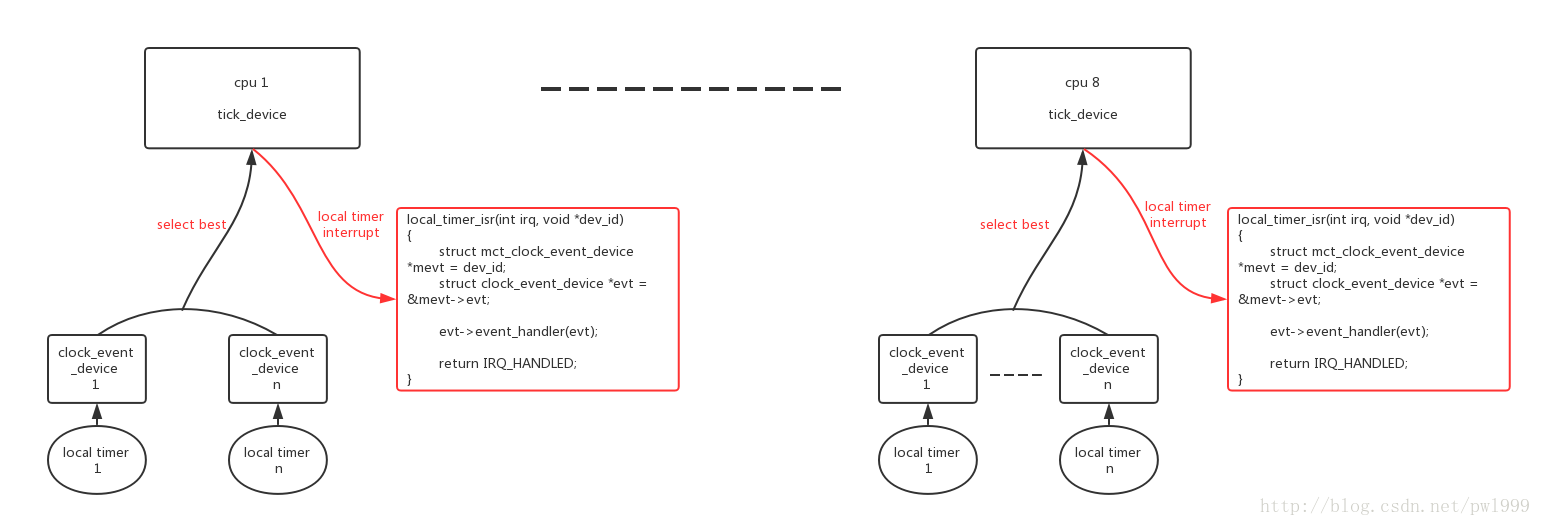

clock_event其实就是对local timer的使用，每个cpu对应一个本地local timer。global timer启动后不需要主动做任何事情，只需要等待timekepper的读取就可以了。而local timer需要触发中断，它的主要价值就体现在定时中断处理了，中断的时间可以是固定的(period mode)也或者是不固定的(oneshot mode)。

3.1、clock_event的注册

3.1.1、exynos clock_event的注册

exynos clock_event的注册分为两部分：

• 第一部分：localtimer中断的注册：

static void __init exynos4_timer_resources(struct device_node *np, void __iomem *base)
{int err, cpu;struct mct_clock_event_device *mevt = this_cpu_ptr(&percpu_mct_tick);struct clk *mct_clk, *tick_clk;tick_clk = np ? of_clk_get_by_name(np, "fin_pll") :clk_get(NULL, "fin_pll");if (IS_ERR(tick_clk))panic("%s: unable to determine tick clock rate\n", __func__);clk_rate = clk_get_rate(tick_clk);mct_clk = np ? of_clk_get_by_name(np, "mct") : clk_get(NULL, "mct");if (IS_ERR(mct_clk))panic("%s: unable to retrieve mct clock instance\n", __func__);clk_prepare_enable(mct_clk);reg_base = base;if (!reg_base)panic("%s: unable to ioremap mct address space\n", __func__);if (mct_int_type == MCT_INT_PPI) {/* (1) 大部分的localtimer是PPI模式，注册中断处理函数：exynos4_mct_tick_isr() */err = request_percpu_irq(mct_irqs[MCT_L0_IRQ],exynos4_mct_tick_isr, "MCT",&percpu_mct_tick);WARN(err, "MCT: can't request IRQ %d (%d)\n",mct_irqs[MCT_L0_IRQ], err);} else {for_each_possible_cpu(cpu) {int mct_irq = mct_irqs[MCT_L0_IRQ + cpu];struct mct_clock_event_device *pcpu_mevt =per_cpu_ptr(&percpu_mct_tick, cpu);pcpu_mevt->evt.irq = -1;irq_set_status_flags(mct_irq, IRQ_NOAUTOEN);if (request_irq(mct_irq,exynos4_mct_tick_isr,IRQF_TIMER | IRQF_NOBALANCING,pcpu_mevt->name, pcpu_mevt)) {pr_err("exynos-mct: cannot register IRQ (cpu%d)\n",cpu);continue;}pcpu_mevt->evt.irq = mct_irq;}}/* (2) 注册cpu hotplug的notifier，在其他cpu up时调用exynos4_local_timer_setup()注册clock_event */err = register_cpu_notifier(&exynos4_mct_cpu_nb);if (err)goto out_irq;/* Immediately configure the timer on the boot CPU *//* (3) 注册本cpu的clock_event */exynos4_local_timer_setup(mevt);return;out_irq:free_percpu_irq(mct_irqs[MCT_L0_IRQ], &percpu_mct_tick);
}static irqreturn_t exynos4_mct_tick_isr(int irq, void *dev_id)
{struct mct_clock_event_device *mevt = dev_id;struct clock_event_device *evt = &mevt->evt;exynos4_mct_tick_clear(mevt);/* (4) localtimer中断处理函数是固定的也是非常简单的，调用本cpu clock_event_device的handler函数：evt->event_handler(evt) */evt->event_handler(evt);return IRQ_HANDLED;
}

• 第二部分：clock_event_device注册：

static int exynos4_local_timer_setup(struct mct_clock_event_device *mevt)
{struct clock_event_device *evt = &mevt->evt;unsigned int cpu = smp_processor_id();mevt->base = EXYNOS4_MCT_L_BASE(cpu);snprintf(mevt->name, sizeof(mevt->name), "mct_tick%d", cpu);/* (1) 初始化clock_event_device */evt->name = mevt->name;evt->cpumask = cpumask_of(cpu);         // 本clock_event_device只服务于一个cpuevt->set_next_event = exynos4_tick_set_next_event;evt->set_state_periodic = set_state_periodic;evt->set_state_shutdown = set_state_shutdown;evt->set_state_oneshot = set_state_shutdown;evt->tick_resume = set_state_shutdown;evt->features = CLOCK_EVT_FEAT_PERIODIC | CLOCK_EVT_FEAT_ONESHOT;evt->rating = 450;exynos4_mct_write(TICK_BASE_CNT, mevt->base + MCT_L_TCNTB_OFFSET);if (mct_int_type == MCT_INT_SPI) {if (evt->irq == -1)return -EIO;irq_force_affinity(evt->irq, cpumask_of(cpu));enable_irq(evt->irq);} else {enable_percpu_irq(mct_irqs[MCT_L0_IRQ], 0);}/* (2) 配置并注册clockevent */clockevents_config_and_register(evt, clk_rate / (TICK_BASE_CNT + 1),0xf, 0x7fffffff);return 0;
}

3.1.2、clock_event_device的注册

我们来分析一下clock_event_device的注册过程。

void clockevents_config_and_register(struct clock_event_device *dev,u32 freq, unsigned long min_delta,unsigned long max_delta)
{dev->min_delta_ticks = min_delta;   // localtimer可配置的最小定时值dev->max_delta_ticks = max_delta;   // localtimer可配置的最大定时值，// 比如exynos是31bit的localtimer，最大值就是0x7fffffff/* (1) 根据localtimer的freq，计算clock_event_device对应的mult、shift，mult、shift的作用是用来做ns到localtimer cycle之间的转换，与之相反的是，在clocksource中mult、shift用来转换localtimer cycle到ns */clockevents_config(dev, freq);/* (2) 继续注册clock_event_device */clockevents_register_device(dev);
}
|→
void clockevents_config(struct clock_event_device *dev, u32 freq)
{u64 sec;/* (1.1) 如果不支持oneshot模式，只是period模式，定时周期是固定的，不需要动态计算ns到cycle的转换 */if (!(dev->features & CLOCK_EVT_FEAT_ONESHOT))return;/** Calculate the maximum number of seconds we can sleep. Limit* to 10 minutes for hardware which can program more than* 32bit ticks so we still get reasonable conversion values.*/sec = dev->max_delta_ticks;do_div(sec, freq);if (!sec)sec = 1;else if (sec > 600 && dev->max_delta_ticks > UINT_MAX)sec = 600;/* (1.2) 根据localtimer的freq，计算clock_event_device对应的mult、shift */clockevents_calc_mult_shift(dev, freq, sec);/* (1.3) 转换min、max的cycle到ns */dev->min_delta_ns = cev_delta2ns(dev->min_delta_ticks, dev, false);dev->max_delta_ns = cev_delta2ns(dev->max_delta_ticks, dev, true);
}
|→
void clockevents_register_device(struct clock_event_device *dev)
{unsigned long flags;/* Initialize state to DETACHED */clockevent_set_state(dev, CLOCK_EVT_STATE_DETACHED);if (!dev->cpumask) {WARN_ON(num_possible_cpus() > 1);dev->cpumask = cpumask_of(smp_processor_id());}raw_spin_lock_irqsave(&clockevents_lock, flags);/* (2.1) 将clock_event_device加入到全局链表clockevent_devices中 */list_add(&dev->list, &clockevent_devices);/* (2.2) 继续尝试向本cpu的tick_device中注册clock_event_device */tick_check_new_device(dev);clockevents_notify_released();raw_spin_unlock_irqrestore(&clockevents_lock, flags);
}
||→
void tick_check_new_device(struct clock_event_device *newdev)
{struct clock_event_device *curdev;struct tick_device *td;int cpu;cpu = smp_processor_id();td = &per_cpu(tick_cpu_device, cpu);curdev = td->evtdev;/* cpu local device ? *//* (2.2.1) 新的clock_event_device是否支持本cpu？  */if (!tick_check_percpu(curdev, newdev, cpu))goto out_bc;/* Preference decision *//* (2.2.2) 新的clock_event_device是否比当前clock_event_device更适合？1.如果curdev已经是oneshot模式，而newdev不支持oneshot，则切换2.newdev的精度要大于curdev，精度 = dev->rating */if (!tick_check_preferred(curdev, newdev))goto out_bc;if (!try_module_get(newdev->owner))return;/** Replace the eventually existing device by the new* device. If the current device is the broadcast device, do* not give it back to the clockevents layer !*/if (tick_is_broadcast_device(curdev)) {clockevents_shutdown(curdev);curdev = NULL;}/* (2.2.3) 关闭curdev、newdev */clockevents_exchange_device(curdev, newdev);/* (2.2.4) 继续clock_event_device注册 */tick_setup_device(td, newdev, cpu, cpumask_of(cpu));if (newdev->features & CLOCK_EVT_FEAT_ONESHOT)tick_oneshot_notify();return;out_bc:/** Can the new device be used as a broadcast device ?*//* (2.2.5) 如果newdev不适合注册成本cpu的td->evtdev,尝试将其注册成broadcast clockevent */tick_install_broadcast_device(newdev);
}
|||→
static void tick_setup_device(struct tick_device *td,struct clock_event_device *newdev, int cpu,const struct cpumask *cpumask)
{ktime_t next_event;void (*handler)(struct clock_event_device *) = NULL;/** First device setup ?*/if (!td->evtdev) {/* (2.2.4.1) 如果是tick_do_timer_cpu没有被设置，且没有使能tick_nohz_full_cpu把tick_do_timer_cpu设置成本cpu，tick_do_timer_cpu负责在tick中update jiffies、update_wall_time  *//** If no cpu took the do_timer update, assign it to* this cpu:*/if (tick_do_timer_cpu == TICK_DO_TIMER_BOOT) {if (!tick_nohz_full_cpu(cpu))tick_do_timer_cpu = cpu;elsetick_do_timer_cpu = TICK_DO_TIMER_NONE;tick_next_period = ktime_get();tick_period = ktime_set(0, NSEC_PER_SEC / HZ);}/** Startup in periodic mode first.*//* (2.2.4.2) 如果tick_device是第一次设置clock_event_device,把tick_device设置成period模式 */td->mode = TICKDEV_MODE_PERIODIC;} else {/* (2.2.4.3) 如果tick_device不是第一次设置clock_event_device,备份原clock_event_deviced的event_handler和next_event */handler = td->evtdev->event_handler;next_event = td->evtdev->next_event;td->evtdev->event_handler = clockevents_handle_noop;}/* (2.2.4.4) 更新tick_device->evtdev到new clock_event_deviced  */td->evtdev = newdev;/** When the device is not per cpu, pin the interrupt to the* current cpu:*/if (!cpumask_equal(newdev->cpumask, cpumask))irq_set_affinity(newdev->irq, cpumask);/** When global broadcasting is active, check if the current* device is registered as a placeholder for broadcast mode.* This allows us to handle this x86 misfeature in a generic* way. This function also returns !=0 when we keep the* current active broadcast state for this CPU.*//* (2.2.4.5) 如果全局的brodcast clockevent服务已经启动，本cpu的clockevent注册需要向brodcas服务，这是为了解决x86的一个失误(misfeature)，其他架构不需要？ */if (tick_device_uses_broadcast(newdev, cpu))return;/* (2.2.4.6) 根据td->mode安装clock_event_deviced的event_handler,并启动 */if (td->mode == TICKDEV_MODE_PERIODIC)/* (2.2.4.7) period模式 */tick_setup_periodic(newdev, 0);else/* (2.2.4.8) oneshot模式 */tick_setup_oneshot(newdev, handler, next_event);
}

3.2、tick_device的period mode

接上节，在cpu第一次注册clock_event_deviced的时候，td->mode默认被设置成period模式。event_handler会被初始化成tick_handle_periodic：

void tick_setup_periodic(struct clock_event_device *dev, int broadcast)
{/* (1) 设置period模式下的event_handler */tick_set_periodic_handler(dev, broadcast);/* Broadcast setup ? */if (!tick_device_is_functional(dev))return;/* (2) 如果dev支持period模式，则硬件上启动period模式:tick_device->mode = TICKDEV_MODE_PERIODICclock_event_device->state_use_accessors = CLOCK_EVT_STATE_PERIODIC */if ((dev->features & CLOCK_EVT_FEAT_PERIODIC) &&!tick_broadcast_oneshot_active()) {clockevents_switch_state(dev, CLOCK_EVT_STATE_PERIODIC);} else {unsigned long seq;ktime_t next;do {seq = read_seqbegin(&jiffies_lock);next = tick_next_period;} while (read_seqretry(&jiffies_lock, seq));/* (3) 如果dev不支持period模式只支持oneshot模式，则硬件上启动one shot模式，使用oneshot模式来模拟period模式：tick_device->mode = TICKDEV_MODE_PERIODICclock_event_device->state_use_accessors = CLOCK_EVT_STATE_ONESHOT */clockevents_switch_state(dev, CLOCK_EVT_STATE_ONESHOT);for (;;) {if (!clockevents_program_event(dev, next, false))return;next = ktime_add(next, tick_period);}}
}
|→
void tick_set_periodic_handler(struct clock_event_device *dev, int broadcast)
{if (!broadcast)/* (1.1) 设置period模式下的event_handler */dev->event_handler = tick_handle_periodic;elsedev->event_handler = tick_handle_periodic_broadcast;
}

仔细分析一下tick_handle_periodic：

void tick_handle_periodic(struct clock_event_device *dev)
{int cpu = smp_processor_id();ktime_t next = dev->next_event;/* (1) 周期性的tick任务 */tick_periodic(cpu);#if defined(CONFIG_HIGH_RES_TIMERS) || defined(CONFIG_NO_HZ_COMMON)/** The cpu might have transitioned to HIGHRES or NOHZ mode via* update_process_times() -> run_local_timers() ->* hrtimer_run_queues().*/if (dev->event_handler != tick_handle_periodic)return;
#endifif (!clockevent_state_oneshot(dev))return;/* (2) 如果tick_device是period mode，而clockevent是oneshot模式,编程oneshot模式clockevent在下一周期触发：tick_device->mode = TICKDEV_MODE_PERIODICclock_event_device->state_use_accessors = CLOCK_EVT_STATE_ONESHOT */for (;;) {/** Setup the next period for devices, which do not have* periodic mode:*/next = ktime_add(next, tick_period);if (!clockevents_program_event(dev, next, false))return;/** Have to be careful here. If we're in oneshot mode,* before we call tick_periodic() in a loop, we need* to be sure we're using a real hardware clocksource.* Otherwise we could get trapped in an infinite* loop, as the tick_periodic() increments jiffies,* which then will increment time, possibly causing* the loop to trigger again and again.*/if (timekeeping_valid_for_hres())tick_periodic(cpu);}
}
|→
static void tick_periodic(int cpu)
{/* (1.1) 如果本cpu是tick_do_timer_cpu，更新全局时间戳类型的任务，包括update jiffies、update_wall_time  */if (tick_do_timer_cpu == cpu) {write_seqlock(&jiffies_lock);/* Keep track of the next tick event */tick_next_period = ktime_add(tick_next_period, tick_period);/* (1.1.1) 更新jiffies */do_timer(1);write_sequnlock(&jiffies_lock);/* (1.1.2) 读取clocksource来更新timekeeper */update_wall_time();}/* (1.2) 运行软件timer(run_local_timers())和运行调度tick任务(scheduler_tick()) */update_process_times(user_mode(get_irq_regs()));profile_tick(CPU_PROFILING);
}

3.3、运行Mode

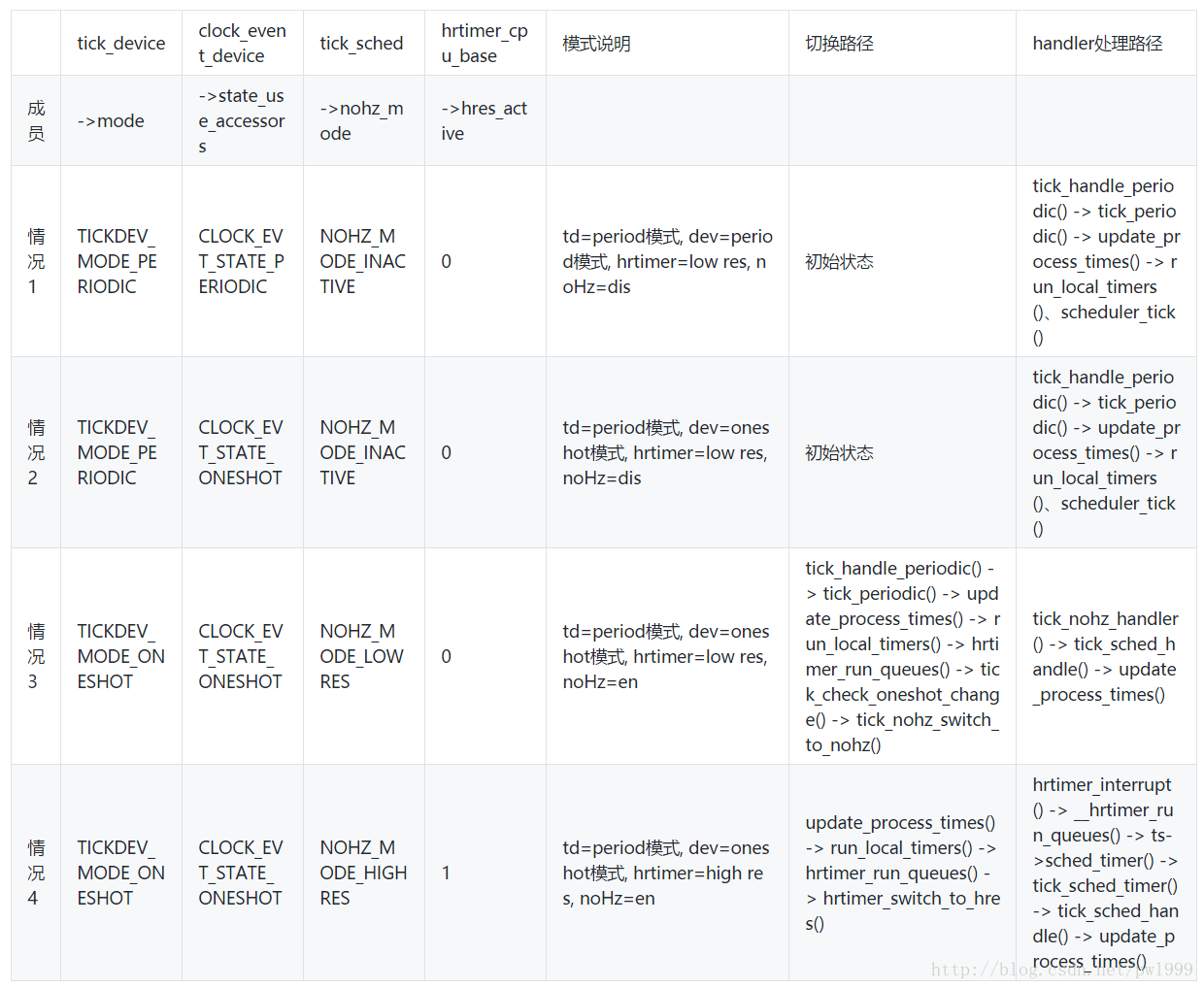

关于mode，有几个结构涉及到：tick_device、clock_event_device、tick_sched、hrtimer_cpu_base、。组合起来有以下几种情况：

其实归结起来就3种mode：NOHZ_MODE_INACTIVE、NOHZ_MODE_LOWRES、NOHZ_MODE_HIGHRES。下面来逐个解析一下。

3.3.1、NOHZ_MODE_INACTIVE

NOHZ_MODE_INACTIVE就是系统初始化时的状态：“td=period模式, dev=period/oneshot模式, hrtimer=low res, noHz=dis”。

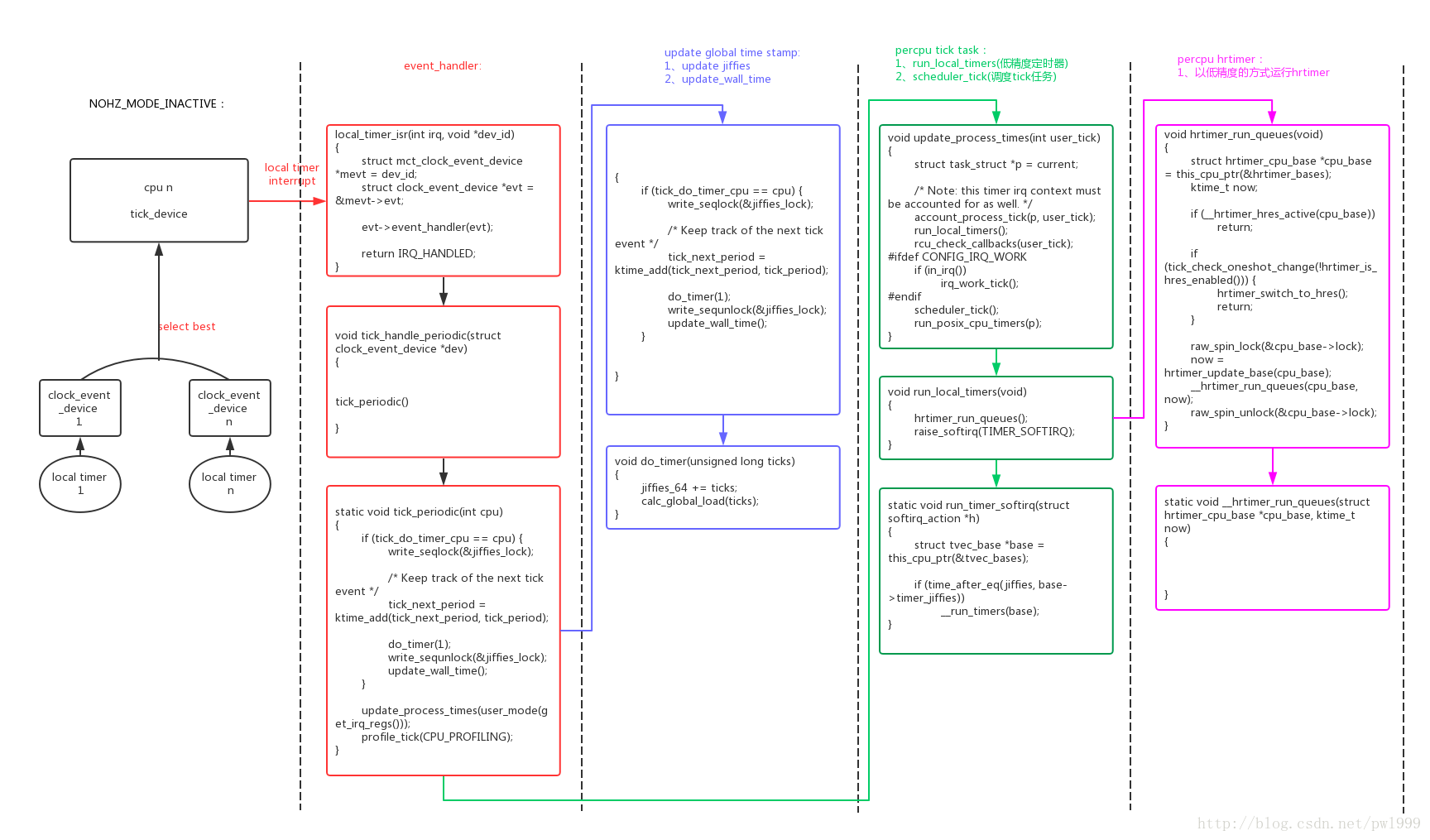

NOHZ_MODE_INACTIVE模式：

• tick_device工作在period模式，HW local timer工作在period/oneshot模式；
• noHZ没有使能，进入idle会被tick timer中断打断；
• hrtimer工作在低精度模式，和低精度定时器(SW local timer)的精度一样，都是基于tick的；

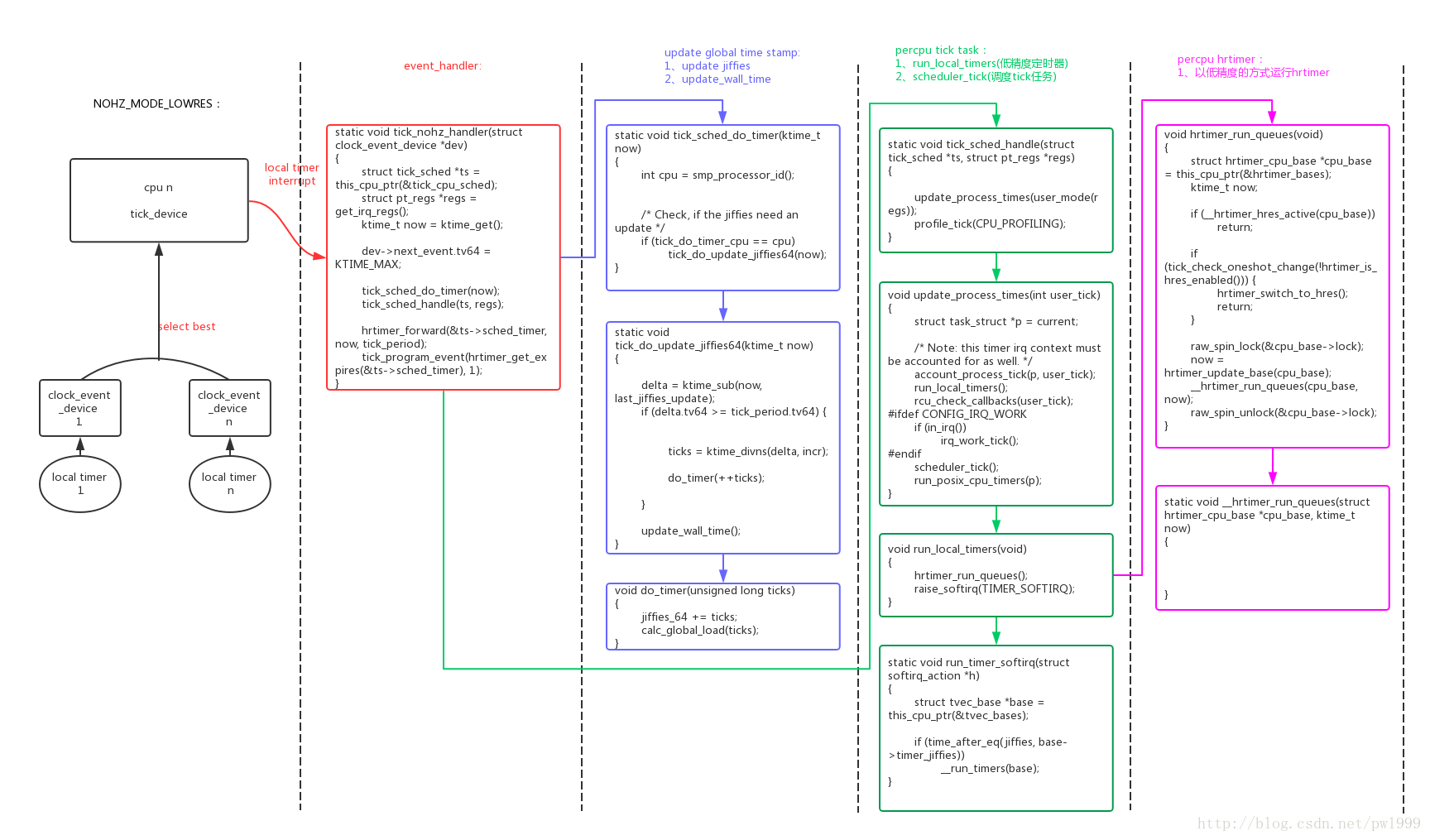

3.3.2、NOHZ_MODE_LOWRES

在系统的运行过程中系统尝试进入精度更高的模式，如果noHZ可以使能，但是hrtimer高精度不能使能，即进入NOHZ_MODE_LOWRES模式：“td=period模式, dev=oneshot模式, hrtimer=low res, noHz=en”。

NOHZ_MODE_LOWRES模式：

• tick_device工作在oneshot模式，HW local timer工作在oneshot模式；
• noHZ使能，进入idle不会被tick timer中断打断；
• hrtimer工作在低精度模式，和低精度定时器(SW local timer)的精度一样，都是基于tick的；

为了支持noHZ，tick_device必须切换成oneshot模式，在进入idle时停掉tick timer(tick_nohz_idle_enter() ->　__tick_nohz_idle_enter() -> tick_nohz_stop_sched_tick())，在离开idle时恢复tick timer(tick_nohz_idle_exit() -> tick_nohz_restart_sched_tick())，这样idle过程就不会被tick中断。就实现了noHZ模式(tickless)。

NOHZ_MODE_LOWRES模式下，没有进入idle时tick_device还是以固定周期工作的：

static void tick_nohz_handler(struct clock_event_device *dev)
{struct tick_sched *ts = this_cpu_ptr(&tick_cpu_sched);struct pt_regs *regs = get_irq_regs();ktime_t now = ktime_get();dev->next_event.tv64 = KTIME_MAX;tick_sched_do_timer(now);tick_sched_handle(ts, regs);/* No need to reprogram if we are running tickless  */if (unlikely(ts->tick_stopped))return;/* (1) HW local timer还是以固定周期发生中断 */hrtimer_forward(&ts->sched_timer, now, tick_period);tick_program_event(hrtimer_get_expires(&ts->sched_timer), 1);
}

3.3.3、NOHZ_MODE_HIGHRES

在系统的运行过程中系统尝试进入精度更高的模式，如果noHZ可以使能，hrtimer高精度可以使能，即进入NOHZ_MODE_HIGHRES模式：“td=period模式, dev=oneshot模式, hrtimer=high res, noHz=en”。

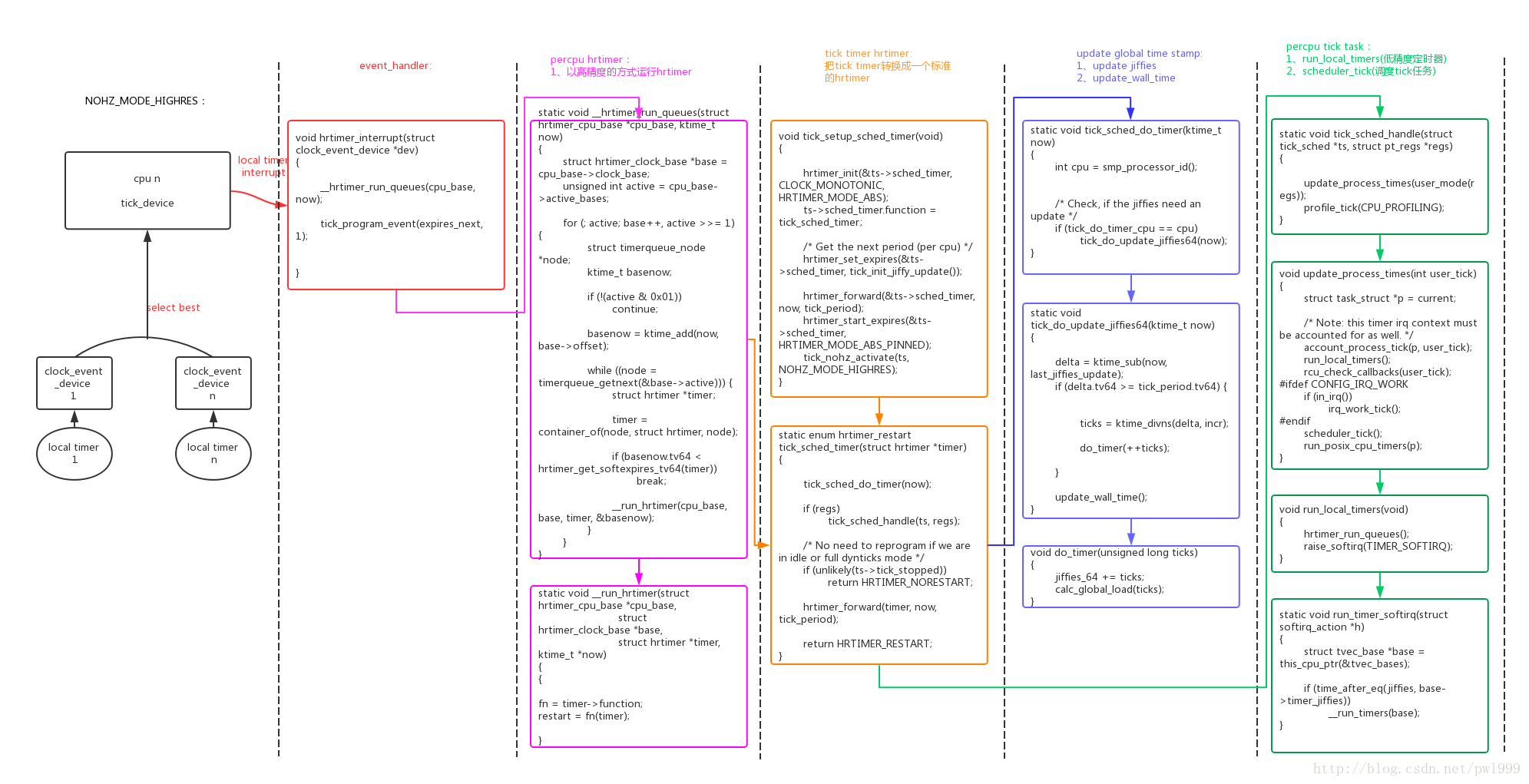

NOHZ_MODE_HIGHRES：

• tick_device工作在oneshot模式，HW local timer工作在oneshot模式；
• noHZ使能，进入idle不会被tick timer中断打断；
• hrtimer工作在高精度模式，和硬件定时器(HWlocal timer)的精度一样，远大于低精度定时器tick精度；

为了支持hrtimer的高精度模式，hrtimer必须直接使用tick_device的oneshot模式，而常规的tick timer转换成hrtimer的一个子timer。

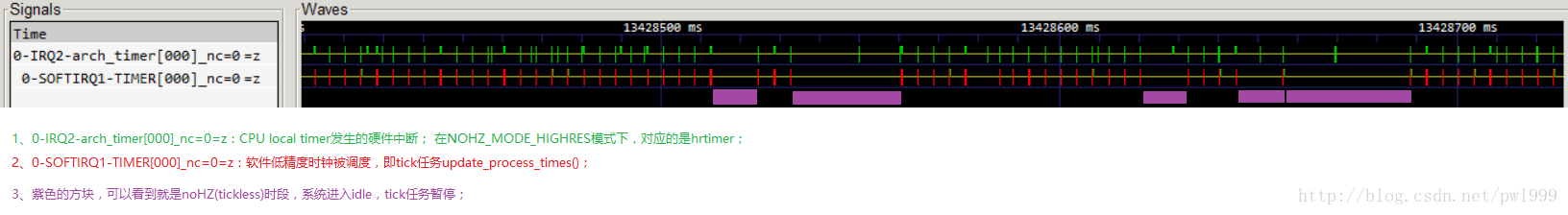

上图是NOHZ_MODE_HIGHRES模式下，用ftrace抓取HW timer硬件中断和tick任务的执行情况：

• tick任务是以固定周期4ms固定执行的；
• 遇到tick任务超过4ms的间隔，这时就是进入了idle状态，且发生了noHZ(tickless)；
• 硬件timer中断的发生周期是不固定的，是和hrtimer绑定的；
• 发生tick的时候肯定发生了timer硬中断，因为tick是其中一个hrtimer；

3.3.4、Mode切换

系统初始状态工作在NOHZ_MODE_INACTIVE模式时，会动态检测是否可以进入更高级别的模式NOHZ_MODE_LOWRES、NOHZ_MODE_HIGHRES。这个检测工作是在这个路径中做的：tick_device工作在period模式：tick_handle_periodic() -> tick_periodic() -> update_process_times() -> run_local_timers() -> hrtimer_run_queues()

void hrtimer_run_queues(void)
{struct hrtimer_cpu_base *cpu_base = this_cpu_ptr(&hrtimer_bases);ktime_t now;/* (3) 如果hrtimer已经切换到高精度模式，则不会从run_local_timers()低精度定时器路径来运行hrtimer */if (__hrtimer_hres_active(cpu_base))return;/** This _is_ ugly: We have to check periodically, whether we* can switch to highres and / or nohz mode. The clocksource* switch happens with xtime_lock held. Notification from* there only sets the check bit in the tick_oneshot code,* otherwise we might deadlock vs. xtime_lock.*//* (1) 如果hrtimer没有使能、noHZ使能，则调用：tick_check_oneshot_change() -> tick_nohz_switch_to_nohz()，切换到NOHZ_MODE_LOWRES模式 */if (tick_check_oneshot_change(!hrtimer_is_hres_enabled())) {/* (2) 如果hrtimer使能、noHZ使能，则调用：hrtimer_switch_to_hres()，切换到NOHZ_MODE_HIGHRES模式 */hrtimer_switch_to_hres();return;}raw_spin_lock(&cpu_base->lock);now = hrtimer_update_base(cpu_base);/* (4) 低精度hrtimer的运行函数 */__hrtimer_run_queues(cpu_base, now);raw_spin_unlock(&cpu_base->lock);
}

4、noHZ

系统在NOHZ_MODE_LOWRES、NOHZ_MODE_HIGHRES两种模式下支持noHZ。noHZ是一个功耗优化的feature，在系统负载比较轻的时候没有任务需要调度cpu会进入idle状态，但是系统的tick任务(update_process_times())默认会以固定周期执行，这种固定周期会打断idle状态让系统恢复成正常耗电状态。

tick任务这种不管有没有任务都是固定周期运行的特性是需要改进的，noHZ就是为了解决这一问题而产生的：如果在idle状态的过程中tick任务没有到期需要处理的低精度timer和高精度timer，tick任务可以继续保持睡眠，直到真正有timer到期。

idle进程的主要执行序列如下：

static void cpu_idle_loop(void)
{while (1) {/* (1) 进入idle前,noHZ的处理 */tick_nohz_idle_enter();while (!need_resched()) {check_pgt_cache();rmb();/* (2) cpu hotplug之cpu_down()的处理 */if (cpu_is_offline(smp_processor_id())) {arch_cpu_idle_dead();}local_irq_disable();arch_cpu_idle_enter();/* (3) cpu idle的进入 */if (cpu_idle_force_poll || tick_check_broadcast_expired())cpu_idle_poll();elsecpuidle_idle_call();arch_cpu_idle_exit();}/* (4) 退出idle后,noHZ的处理 */tick_nohz_idle_exit();}
}

可以看到，其中的关键在tick_nohz_idle_enter()/tick_nohz_idle_exit()函数。

4.1、tick_nohz_idle_enter/exit()

tick_nohz_idle_enter()的解析：

void tick_nohz_idle_enter(void)
{struct tick_sched *ts;ts = this_cpu_ptr(&tick_cpu_sched);ts->inidle = 1;__tick_nohz_idle_enter(ts);}
|→
static void __tick_nohz_idle_enter(struct tick_sched *ts)
{ktime_t now, expires;int cpu = smp_processor_id();now = tick_nohz_start_idle(ts);/* (1) 判断当前能否stop tick任务 */if (can_stop_idle_tick(cpu, ts)) {int was_stopped = ts->tick_stopped;ts->idle_calls++;/* (2) 尝试stop tick任务 */expires = tick_nohz_stop_sched_tick(ts, now, cpu);if (expires.tv64 > 0LL) {ts->idle_sleeps++;ts->idle_expires = expires;}if (!was_stopped && ts->tick_stopped)ts->idle_jiffies = ts->last_jiffies;}
}
||→
static ktime_t tick_nohz_stop_sched_tick(struct tick_sched *ts,ktime_t now, int cpu)
{struct clock_event_device *dev = __this_cpu_read(tick_cpu_device.evtdev);u64 basemono, next_tick, next_tmr, next_rcu, delta, expires;unsigned long seq, basejiff;ktime_t tick;/* Read jiffies and the time when jiffies were updated last */do {seq = read_seqbegin(&jiffies_lock);basemono = last_jiffies_update.tv64;basejiff = jiffies;} while (read_seqretry(&jiffies_lock, seq));ts->last_jiffies = basejiff;if (rcu_needs_cpu(basemono, &next_rcu) ||arch_needs_cpu() || irq_work_needs_cpu()) {next_tick = basemono + TICK_NSEC;} else {/** Get the next pending timer. If high resolution* timers are enabled this only takes the timer wheel* timers into account. If high resolution timers are* disabled this also looks at the next expiring* hrtimer.*//* (2.1) 获取下一个timer的到期时间(包括低精度和高精度timer) */next_tmr = get_next_timer_interrupt(basejiff, basemono);ts->next_timer = next_tmr;/* Take the next rcu event into account */next_tick = next_rcu < next_tmr ? next_rcu : next_tmr;}/** If the tick is due in the next period, keep it ticking or* restart it proper.*//* (2.2) 如果差距小于一个tick，不需要进入noHZ模式 */delta = next_tick - basemono;if (delta <= (u64)TICK_NSEC) {tick.tv64 = 0;if (!ts->tick_stopped)goto out;if (delta == 0) {/* Tick is stopped, but required now. Enforce it */tick_nohz_restart(ts, now);goto out;}}/** If this cpu is the one which updates jiffies, then give up* the assignment and let it be taken by the cpu which runs* the tick timer next, which might be this cpu as well. If we* don't drop this here the jiffies might be stale and* do_timer() never invoked. Keep track of the fact that it* was the one which had the do_timer() duty last. If this cpu* is the one which had the do_timer() duty last, we limit the* sleep time to the timekeeping max_deferement value.* Otherwise we can sleep as long as we want.*//* (2.3) 根据timekeeper的可能溢出的位宽，得到的idle最大值 */delta = timekeeping_max_deferment();if (cpu == tick_do_timer_cpu) {tick_do_timer_cpu = TICK_DO_TIMER_NONE;ts->do_timer_last = 1;} else if (tick_do_timer_cpu != TICK_DO_TIMER_NONE) {delta = KTIME_MAX;ts->do_timer_last = 0;} else if (!ts->do_timer_last) {delta = KTIME_MAX;}#ifdef CONFIG_NO_HZ_FULL/* Limit the tick delta to the maximum scheduler deferment */if (!ts->inidle)delta = min(delta, scheduler_tick_max_deferment());
#endif/* Calculate the next expiry time */if (delta < (KTIME_MAX - basemono))expires = basemono + delta;elseexpires = KTIME_MAX;/* (2.4) 综合上面条件，得到合理的stop tick的时间 */expires = min_t(u64, expires, next_tick);tick.tv64 = expires;/* Skip reprogram of event if its not changed */if (ts->tick_stopped && (expires == dev->next_event.tv64))goto out;/** nohz_stop_sched_tick can be called several times before* the nohz_restart_sched_tick is called. This happens when* interrupts arrive which do not cause a reschedule. In the* first call we save the current tick time, so we can restart* the scheduler tick in nohz_restart_sched_tick.*/if (!ts->tick_stopped) {nohz_balance_enter_idle(cpu);calc_load_enter_idle();ts->last_tick = hrtimer_get_expires(&ts->sched_timer);ts->tick_stopped = 1;trace_tick_stop(1, " ");}/** If the expiration time == KTIME_MAX, then we simply stop* the tick timer.*/if (unlikely(expires == KTIME_MAX)) {if (ts->nohz_mode == NOHZ_MODE_HIGHRES)hrtimer_cancel(&ts->sched_timer);goto out;}/* (2.5) 实际的stop tick动作：将local timer的周期改为大于一个tick的时间，将idle时间延长  */if (ts->nohz_mode == NOHZ_MODE_HIGHRES)hrtimer_start(&ts->sched_timer, tick, HRTIMER_MODE_ABS_PINNED);elsetick_program_event(tick, 1);
out:/* Update the estimated sleep length */ts->sleep_length = ktime_sub(dev->next_event, now);
    return tick;
}

tick_nohz_idle_exit()的解析：

void tick_nohz_idle_exit(void)
{struct tick_sched *ts = this_cpu_ptr(&tick_cpu_sched);ktime_t now;local_irq_disable();WARN_ON_ONCE(!ts->inidle);ts->inidle = 0;if (ts->idle_active || ts->tick_stopped)now = ktime_get();if (ts->idle_active)tick_nohz_stop_idle(ts, now);if (ts->tick_stopped) {/* (1) 重启tick任务 */tick_nohz_restart_sched_tick(ts, now);tick_nohz_account_idle_ticks(ts);}local_irq_enable();
}
|→
static void tick_nohz_restart_sched_tick(struct tick_sched *ts, ktime_t now)
{/* Update jiffies first */tick_do_update_jiffies64(now);update_cpu_load_nohz();calc_load_exit_idle();touch_softlockup_watchdog();/** Cancel the scheduled timer and restore the tick*/ts->tick_stopped  = 0;ts->idle_exittime = now;/* (1.1) 重启local timer */tick_nohz_restart(ts, now);
}
||→
static void tick_nohz_restart(struct tick_sched *ts, ktime_t now)
{hrtimer_cancel(&ts->sched_timer);hrtimer_set_expires(&ts->sched_timer, ts->last_tick);/* Forward the time to expire in the future */hrtimer_forward(&ts->sched_timer, now, tick_period);if (ts->nohz_mode == NOHZ_MODE_HIGHRES)hrtimer_start_expires(&ts->sched_timer, HRTIMER_MODE_ABS_PINNED);elsetick_program_event(hrtimer_get_expires(&ts->sched_timer), 1);
}

4.2 tick_nohz_irq_enter/exit()

因为在idle退出执行完本tick需要处理的timer后又需要重新关闭tick，系统设计了tick_nohz_irq_enter()/tick_nohz_irq_exit()来处理这种操作。在本次中断处理完timer后，在tick_nohz_irq_exit()中判断是否重新关闭tick任务。

static void cpu_idle_loop(void)
{while (1) {/* (1) 关闭tick */tick_nohz_idle_enter();while (!need_resched()) {check_pgt_cache();rmb();/* (2) cpu hotplug之cpu_down()的处理 */if (cpu_is_offline(smp_processor_id())) {arch_cpu_idle_dead();}/* (3) 关中断 */local_irq_disable();arch_cpu_idle_enter();/* (4) 进入idle，cpu进入暂停状态 */if (cpu_idle_force_poll || tick_check_broadcast_expired())cpu_idle_poll();elsecpuidle_idle_call();/* (5) cpu被local timer中断唤醒退出idle状态，继续执行；但是因为irq是disable状态，中断服务程序并不能马上得到执行*//* (5.1) 退出idle，并且开中断 */    /* (6) 中断打开后，被阻塞的local timer中断服务得到执行，到期的软件timer得到执行；*//* (6.1) 退出中断时调用tick_nohz_irq_exit()，重新计算一个tick可以被stop的值 */arch_cpu_idle_exit();}/* (7) 重启tick */tick_nohz_idle_exit();}
}

tick_nohz_irq_enter()/tick_nohz_irq_exit()的代码解析：

static inline void tick_nohz_irq_enter(void)
{struct tick_sched *ts = this_cpu_ptr(&tick_cpu_sched);ktime_t now;if (!ts->idle_active && !ts->tick_stopped)return;now = ktime_get();if (ts->idle_active)tick_nohz_stop_idle(ts, now);/* (1) 基本就是空操作 */if (ts->tick_stopped) {tick_nohz_update_jiffies(now);tick_nohz_kick_tick(ts, now);}
}void tick_nohz_irq_exit(void)
{struct tick_sched *ts = this_cpu_ptr(&tick_cpu_sched);if (ts->inidle)/* (2) 重新判断stop tick任务 */__tick_nohz_idle_enter(ts);elsetick_nohz_full_update_tick(ts);
}

4.3、local timer时钟被关闭时的处理

还有一种情况需要考虑，在系统进入深层次的idle状态时，local timer本身的时钟可能会被关闭。比如MTK平台进入soidle状态时，local timer本身会被停止，这时会用一个GPT timer来替代local timer继续工作。

核心函数是timer_setting_before_wfi()/timer_setting_after_wfi()：

• timer_setting_before_wfi()在进入idle前被调用，读出local timer的剩余值并配置到GPT timer中；
• timer_setting_after_wfi()在退出idle后被调用，读出GPT timer的值来重新恢复local timer；

static void timer_setting_before_wfi(bool f26m_off)
{
#ifndef USING_STD_TIMER_OPS
#ifdef CONFIG_SMPunsigned int timer_left = 0;/* (1) 读出local timer的剩余值 */timer_left = localtimer_get_counter();/* (2) 根据GPT timer在不同状态下的频率，把剩余值配置到GPT中 */if ((int)timer_left <= 0)gpt_set_cmp(IDLE_GPT, 1); /* Trigger idle_gpt Timeout imediately */else {if (f26m_off)gpt_set_cmp(IDLE_GPT, div_u64(timer_left, 406.25));elsegpt_set_cmp(IDLE_GPT, timer_left);}if (f26m_off)gpt_set_clk(IDLE_GPT, GPT_CLK_SRC_RTC, GPT_CLK_DIV_1);start_gpt(IDLE_GPT);
#elsegpt_get_cnt(GPT1, &timer_left);
#endif
#endif
}static void timer_setting_after_wfi(bool f26m_off)
{
#ifndef USING_STD_TIMER_OPS
#ifdef CONFIG_SMP/* (3) 判断当前退出idle状态是否是因为GPT到期引起的 */if (gpt_check_and_ack_irq(IDLE_GPT)) {/* (3.1) 如果GPT时间已经到期，证明local timer也已经到期，触发local timer在下一时钟执行 */localtimer_set_next_event(1);if (f26m_off)gpt_set_clk(IDLE_GPT, GPT_CLK_SRC_SYS, GPT_CLK_DIV_1);} else {/* (4) 退出idle是因为GPT以外的中断源唤醒的 *//* waked up by other wakeup source */unsigned int cnt, cmp;/* (4.1) 读出GPT中的剩余到期值，重新配置到local timer中 */idle_gpt_get_cnt(IDLE_GPT, &cnt);idle_gpt_get_cmp(IDLE_GPT, &cmp);if (unlikely(cmp < cnt)) {idle_err("[%s]GPT%d: counter = %10u, compare = %10u\n",__func__, IDLE_GPT + 1, cnt, cmp);/* BUG(); */}if (f26m_off) {localtimer_set_next_event((cmp - cnt) * 1625 / 4);gpt_set_clk(IDLE_GPT, GPT_CLK_SRC_SYS, GPT_CLK_DIV_1);} else {localtimer_set_next_event(cmp - cnt);}stop_gpt(IDLE_GPT);}
#endif
#endif
}

需要特别说明的是，这种GPT timer全局只有一个，进入soidle的状态时cpu也只有一个在线，所以能正常的工作。

5、hrtimer

5.1、hrtimer的组织

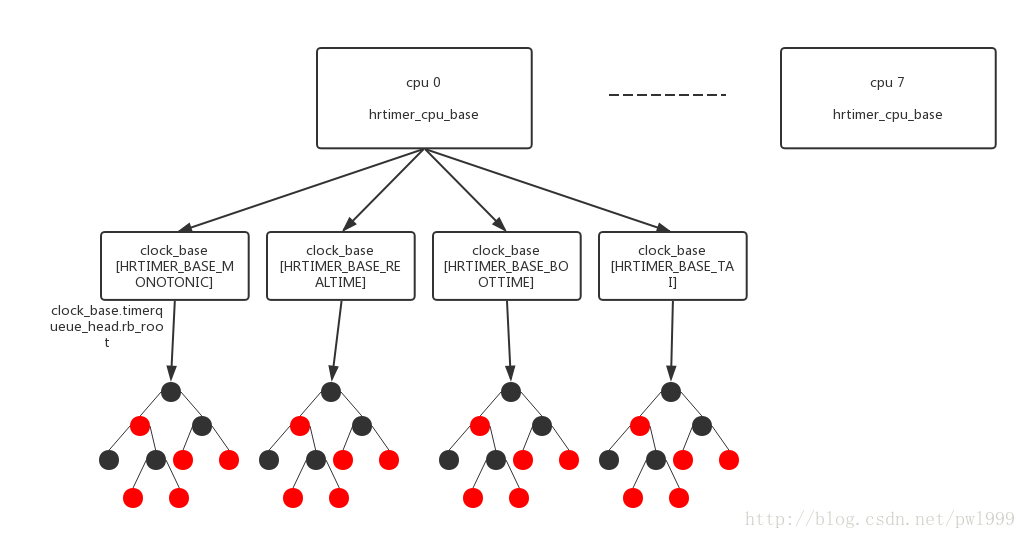

hrtimer的组织相对来说还是比较简单的，每个cpu对应一个hrtimer_cpu_base，每个hrtimer_cpu_base中有4类clock_base代表4种时间类型(HRTIMER_BASE_REALTIME、HRTIMER_BASE_MONOTONIC、HRTIMER_BASE_BOOTTIME、HRTIMER_BASE_TAI)的hrtimer，每个clock_base是以红黑树来组织同一类型的hrtimer的：

DEFINE_PER_CPU(struct hrtimer_cpu_base, hrtimer_bases) =
{.lock = __RAW_SPIN_LOCK_UNLOCKED(hrtimer_bases.lock),.seq = SEQCNT_ZERO(hrtimer_bases.seq),.clock_base ={{.index = HRTIMER_BASE_MONOTONIC,.clockid = CLOCK_MONOTONIC,.get_time = &ktime_get,},{.index = HRTIMER_BASE_REALTIME,.clockid = CLOCK_REALTIME,.get_time = &ktime_get_real,},{.index = HRTIMER_BASE_BOOTTIME,.clockid = CLOCK_BOOTTIME,.get_time = &ktime_get_boottime,},{.index = HRTIMER_BASE_TAI,.clockid = CLOCK_TAI,.get_time = &ktime_get_clocktai,},}
};

5.2、低精度模式(NOHZ_MODE_INACTIVE/NOHZ_MODE_LOWRES)

前面几章已经详细描述了执行路径，在低精度模式下hrtimer的实际精度和低精度定时器是一样的，都是基于tick精度的。他的执行路径如下。

NOHZ_MODE_INACTIVE模式：

tick_handle_periodic()↓
tick_periodic()↓
update_process_times()↓
run_local_timers()↓
hrtimer_run_queues()↓
__hrtimer_run_queues()

NOHZ_MODE_LOWRES模式：

tick_nohz_handler()↓
tick_sched_handle()↓
update_process_times()↓
run_local_timers()↓
hrtimer_run_queues()↓
__hrtimer_run_queues()

5.3、高精度模式(NOHZ_MODE_HIGHRES)

在高精度模式下hrtimer才能发挥出真正的精度，他的可以精确定时到小于一个tick，精度依赖于硬件local timer。

NOHZ_MODE_LOWRES模式：

hrtimer_interrupt()↓
__hrtimer_run_queues()

6、低精度timer(lowres timer)

低精度timer在系统中的应用范围更广，若非特别声明是hrtimer其他都是使用低精度timer，类如schedule_timeout()、msleep()。他有以下特点：

• 精度低，以tick为单位计时；
• 执行上下文，低精度timer执行时是在softirq中，而hrtimer的实际执行是在中断当中。所以低精度的执行精度更小于hrtimer；
• 对系统的实时影响小，softirq比irq对系统的实时性影响更小；

6.1、低精度timer的组织

低精度timer的组织形式和hrtimer类似，只是timer的链接不是采用红黑树，而是采用tv1 - tv5等一系列的链表。

tv1 - tv5中保留着一系列槽位，每个槽位代表一个超时时间，把相同超时时间的低精度timer链接到同一槽位当中。

6.2、低精度timer的执行路径

低精度timer的实际执行时在softirq中执行的，在中断中的动作只是简单触发softirq。

中断中：

tick_handle_periodic()/tick_nohz_handler()/hrtimer_interrupt()↓
run_local_timers()↓
raise_softirq(TIMER_SOFTIRQ);

软中断中：

run_timer_softirq()↓
__run_timers()

参考资料
