后端操作微信公众号

一、功能说明

员工端使用微信公众号完成审批操作，涉及到的功能包含：自定义菜单、授权登录、消息

1、微信公众号一级菜单为：审批列表、审批中心、我的

2、员工关注公众号，员工第一次登录微信公众号，通过微信授权登录进行员工账号绑定

3、员工通过微信公众号提交审批和审批信息，系统根据微信公众号推送审批信息，及时反馈审批过程

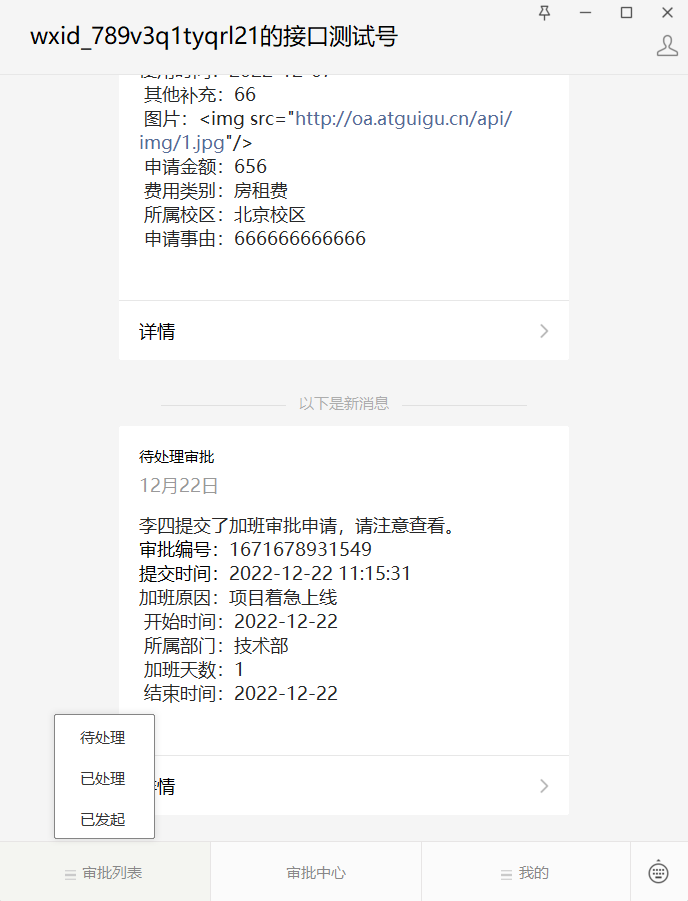

项目截图：

二、公众号菜单管理

公众号一级菜单，数据库默认初始化（审批列表、审批中心、我的）

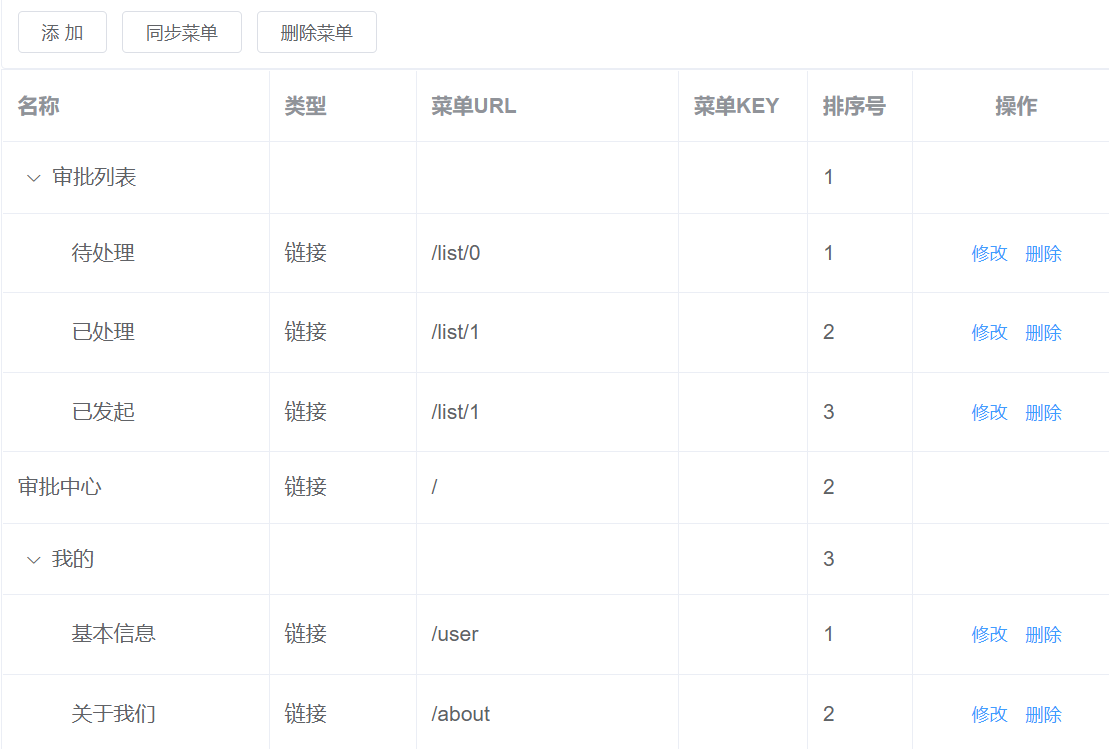

页面效果如下：

1、菜单管理CRUD

1.1、mapper

package com.atguigu.wechat.mapper;

import com.atguigu.model.wechat.Menu;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface MenuMapper extends BaseMapper<Menu> {

}

1.2、service接口

package com.atguigu.wechat.service;

import com.atguigu.model.wechat.Menu;
import com.atguigu.vo.wechat.MenuVo;
import com.baomidou.mybatisplus.extension.service.IService;
import java.util.List;

public interface MenuService extends IService<Menu> {
List<MenuVo> findMenuInfo();

}

1.3、service接口实现

package com.atguigu.wechat.service.impl;

import com.atguigu.model.wechat.Menu;
import com.atguigu.vo.wechat.MenuVo;
import com.atguigu.wechat.mapper.MenuMapper;
import com.atguigu.wechat.service.MenuService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.ArrayList;
import java.util.Comparator;
import java.util.List;
import java.util.stream.Collectors;

@Service
public class MenuServiceImpl extends ServiceImpl<MenuMapper, Menu> implementsMenuService {
@Autowiredprivate MenuMapper menuMapper;
@Overridepublic List<MenuVo> findMenuInfo() {List<MenuVo>list=newArrayList<>();List<Menu>menuList=menuMapper.selectList(null);List<Menu>oneMenuList=menuList.stream().filter(menu->menu.getParentId().longValue() ==0).collect(Collectors.toList());for (MenuoneMenu : oneMenuList) {MenuVooneMenuVo=newMenuVo();BeanUtils.copyProperties(oneMenu, oneMenuVo);
List<Menu>twoMenuList=menuList.stream().filter(menu->menu.getParentId().longValue() ==oneMenu.getId()).sorted(Comparator.comparing(Menu::getSort)).collect(Collectors.toList());List<MenuVo>children=newArrayList<>();for (MenutwoMenu : twoMenuList) {MenuVotwoMenuVo=newMenuVo();BeanUtils.copyProperties(twoMenu, twoMenuVo);children.add(twoMenuVo);}oneMenuVo.setChildren(children);list.add(oneMenuVo);}returnlist;}
}

1.4、controller接口

package com.atguigu.wechat.controller;

import com.atguigu.common.result.Result;
import com.atguigu.model.wechat.Menu;
import com.atguigu.wechat.service.MenuService;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.access.prepost.PreAuthorize;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/admin/wechat/menu")
@Slf4j
public class MenuController {
@Autowiredprivate MenuService menuService;
//@PreAuthorize("hasAuthority('bnt.menu.list')")@ApiOperation(value="获取")@GetMapping("get/{id}")public Resultget(@PathVariableLongid) {Menumenu=menuService.getById(id);returnResult.ok(menu);}
//@PreAuthorize("hasAuthority('bnt.menu.add')")@ApiOperation(value="新增")@PostMapping("save")publicResultsave(@RequestBodyMenumenu) {menuService.save(menu);returnResult.ok();}
//@PreAuthorize("hasAuthority('bnt.menu.update')")@ApiOperation(value="修改")@PutMapping("update")publicResultupdateById(@RequestBodyMenumenu) {menuService.updateById(menu);returnResult.ok();}
//@PreAuthorize("hasAuthority('bnt.menu.remove')")@ApiOperation(value="删除")@DeleteMapping("remove/{id}")publicResultremove(@PathVariableLongid) {menuService.removeById(id);returnResult.ok();}
//@PreAuthorize("hasAuthority('bnt.menu.list')")@ApiOperation(value="获取全部菜单")@GetMapping("findMenuInfo")public Result findMenuInfo() {return Result.ok(menuService.findMenuInfo());}
}

2、前端实现

2.1、定义api接口

创建src/api/wechat/menu.js

import request from'@/utils/request'

const api_name='/admin/wechat/menu'

export default {
findMenuInfo() {returnrequest({url: `${api_name}/findMenuInfo`,method: `get`})},
save(menu) {returnrequest({url: `${api_name}/save`,method: `post`,data: menu})},
getById(id) {returnrequest({url: `${api_name}/get/${id}`,method: `get`})},
updateById(menu) {returnrequest({url: `${api_name}/update`,method: `put`,data: menu})},
removeById(id) {returnrequest({url: `${api_name}/remove/${id}`,method: 'delete'})}
}

2.2、页面实现

创建views/wechat/menu/list.vue

<template><div class="app-container">
<!-- 工具条 --><div class="tools-div"><el-button class="btn-add"size="mini"@click="add">添 加</el-button></div>
<el-table:data="list"style="width: 100%;margin-bottom: 20px;"row-key="id"borderdefault-expand-all:tree-props="{children: 'children'}">
<el-table-columnlabel="名称"prop="name"width="350"></el-table-column><el-table-columnlabel="类型"width="100"><templateslot-scope="scope">{{ scope.row.type == 'view' ? '链接' : scope.row.type == 'click' ? '事件' : '' }}</template></el-table-column><el-table-columnlabel="菜单URL"prop="url"></el-table-column><el-table-columnlabel="菜单KEY"prop="meunKey"  width="130"></el-table-column><el-table-columnlabel="排序号"prop="sort"  width="70"></el-table-column><el-table-columnlabel="操作"width="170"align="center"><templateslot-scope="scope"><el-buttonv-if="scope.row.parentId > 0"type="text"size="mini"@click="edit(scope.row.id)">修改</el-button><el-buttonv-if="scope.row.parentId > 0"type="text"size="mini"@click="removeDataById(scope.row.id)">删除</el-button></template></el-table-column></el-table>
<el-dialog title="添加/修改":visible.sync="dialogVisible"width="40%"><el-form ref="flashPromotionForm"label-width="150px"size="small"style="padding-right: 40px;">
<el-form-item label="选择一级菜单"><el-selectv-model="menu.parentId"placeholder="请选择"><el-optionv-for="item in list":key="item.id":label="item.name":value="item.id"/></el-select></el-form-item><el-form-item label="菜单名称"><el-input v-model="menu.name"/></el-form-item><el-form-item label="菜单类型"><el-radio-group v-model="menu.type"><el-radio label="view">链接</el-radio><el-radio label="click">事件</el-radio></el-radio-group></el-form-item><el-form-item v-if="menu.type == 'view'"label="链接"><el-input v-model="menu.url"/></el-form-item><el-form-item v-if="menu.type == 'click'"label="菜单KEY"><el-input v-model="menu.meunKey"/></el-form-item><el-form-item label="排序"><el-input v-model="menu.sort"/></el-form-item></el-form><span slot="footer"class="dialog-footer"><el-button @click="dialogVisible = false"size="small">取 消</el-button><el-button type="primary"@click="saveOrUpdate()"size="small">确 定</el-button></span></el-dialog></div>
</template>
<script>
import menuApi from'@/api/wechat/menu'
const defaultForm= {id: null,parentId: 1,name: '',nameId: null,sort: 1,type: 'view',meunKey: '',url: ''
}
export default {
// 定义数据data() {return {list: [],dialogVisible: false,menu: defaultForm,saveBtnDisabled: false}},
// 当页面加载时获取数据created() {this.fetchData()},
methods: {// 调用api层获取数据库中的数据fetchData() {console.log('加载列表')menuApi.findMenuInfo().then(response=> {this.list=response.dataconsole.log(this.list)})},
// 根据id删除数据removeDataById(id) {// debuggerthis.$confirm('此操作将永久删除该记录, 是否继续?', '提示', {confirmButtonText: '确定',cancelButtonText: '取消',type: 'warning'}).then(() => { // promise// 点击确定，远程调用ajaxreturnmenuApi.removeById(id)}).then((response) => {this.fetchData(this.page)this.$message.success(response.message||'删除成功')}).catch(() => {this.$message.info('取消删除')})},
// -------------add() {this.dialogVisible=truethis.menu=Object.assign({}, defaultForm)},
edit(id) {this.dialogVisible=truethis.fetchDataById(id)},
fetchDataById(id) {menuApi.getById(id).then(response=> {this.menu=response.data})},
saveOrUpdate() {this.saveBtnDisabled=true// 防止表单重复提交
if (!this.menu.id) {this.saveData()} else {this.updateData()}},
// 新增saveData() {menuApi.save(this.menu).then(response=> {this.$message.success(response.message||'操作成功')this.dialogVisible=falsethis.fetchData(this.page)})},
// 根据id更新记录updateData() {menuApi.updateById(this.menu).then(response=> {this.$message.success(response.message||'操作成功')this.dialogVisible=falsethis.fetchData(this.page)})}}
}
</script>

3、推送菜单

后台配置好菜单后，我们要推送到微信公众平台

3.1、申请账号

云尚办公系统没有微信支付等高级功能，因此无需使用服务号，使用测试账号即可完成测试。

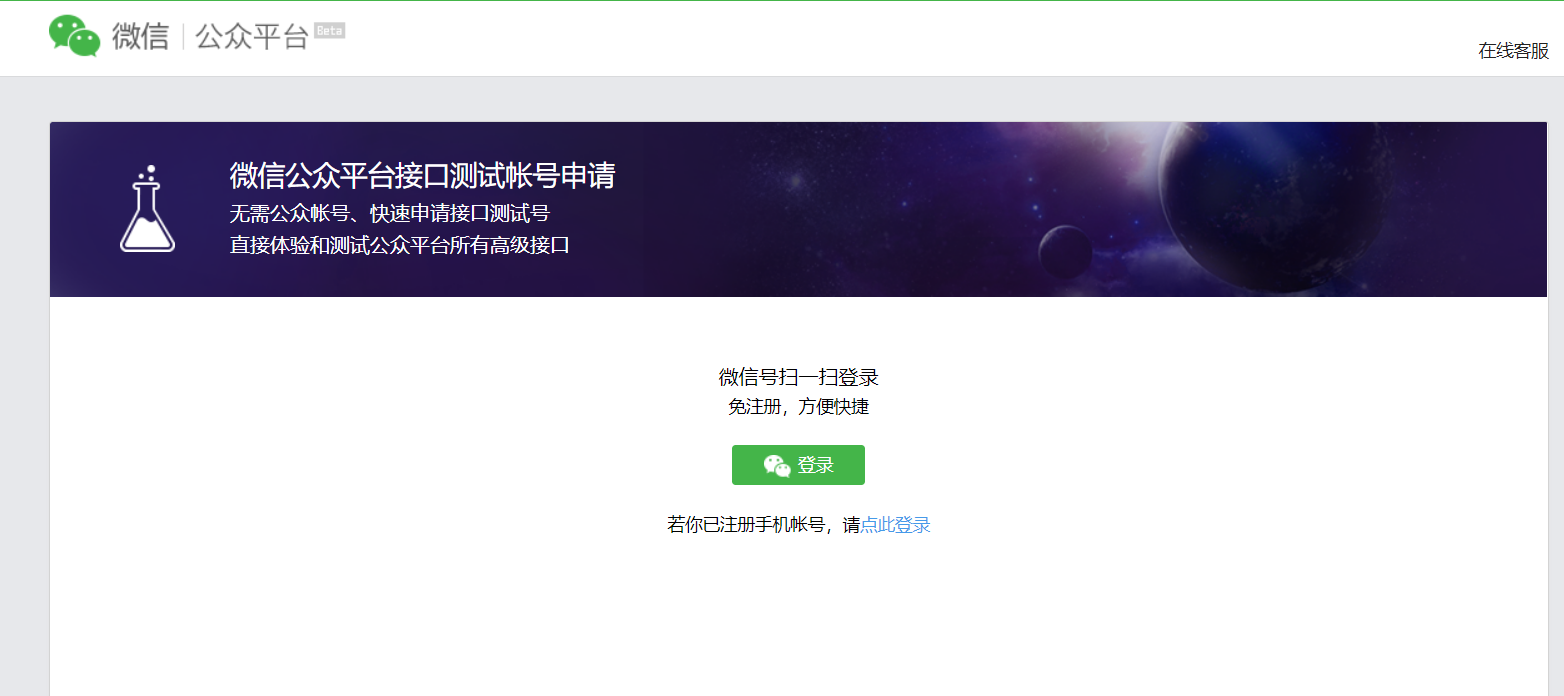

我们使用“微信公众平台接口测试帐号”，申请地址：https://mp.weixin.qq.com/debug/cgi-bin/sandbox?t=sandbox/login，以后有了正式账号，直接一切换即可

扫描登录进入，获取测试号信息：appID与appsecret

查看“自定义菜单“api文档：

https://developers.weixin.qq.com/doc/offiaccount/Custom_Menus/Creating_Custom-Defined_Menu.html

推送菜单有两种实现方式：

1、完全按照接口文档http方式，但这种方式比较繁琐

2、使用weixin-java-mp工具，这个是封装好的工具，可以直接使用，方便快捷，后续我们使用这种方式开发

3.2、添加配置

在application-dev.yml添加配置

wechat:mpAppId: wx13db7dcf69bc1223mpAppSecret: de3d7888d30febf84b64d0e6571e4027

3.3、工具类方式

3.3.1、引入依赖

<dependency><groupId>com.github.binarywang</groupId><artifactId>weixin-java-mp</artifactId><version>4.1.0</version>
</dependency>

3.3.2、添加工具类和配置类

工具类

package com.atguigu.wechat.config;

importl ombok.Data;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Data
@Component
@ConfigurationProperties(prefix="wechat")
public class WechatAccountConfig {
private String mpAppId;
private String mpAppSecret;

}
配置类
packagecom.atguigu.wechat.config;

importme.chanjar.weixin.mp.api.WxMpService;
importme.chanjar.weixin.mp.api.impl.WxMpServiceImpl;
importme.chanjar.weixin.mp.config.WxMpConfigStorage;
importme.chanjar.weixin.mp.config.impl.WxMpDefaultConfigImpl;
importorg.springframework.beans.factory.annotation.Autowired;
importorg.springframework.context.annotation.Bean;
importorg.springframework.stereotype.Component;

@Component
publicclassWeChatMpConfig {
@AutowiredprivateWechatAccountConfigwechatAccountConfig;
@BeanpublicWxMpServicewxMpService(){WxMpServicewxMpService=newWxMpServiceImpl();wxMpService.setWxMpConfigStorage(wxMpConfigStorage());returnwxMpService;}
@BeanpublicWxMpConfigStoragewxMpConfigStorage(){WxMpDefaultConfigImplwxMpConfigStorage=newWxMpDefaultConfigImpl();wxMpConfigStorage.setAppId(wechatAccountConfig.getMpAppId());wxMpConfigStorage.setSecret(wechatAccountConfig.getMpAppSecret());returnwxMpConfigStorage;}
}

3.3.3、推送接口实现

操作类：MenuServiceImpl

@Autowired
private WxMpService wxMpService;

@Override
public void syncMenu() {List<MenuVo> menuVoList=this.findMenuInfo();//菜单JSONArray buttonList=new JSONArray();for(MenuVo oneMenuVo : menuVoList) {JSONObjectone=newJSONObject();one.put("name", oneMenuVo.getName());if(CollectionUtils.isEmpty(oneMenuVo.getChildren())) {one.put("type", oneMenuVo.getType());one.put("url", "http://oa.atguigu.cn/#"+oneMenuVo.getUrl());} else {JSONArraysubButton=newJSONArray();for(MenuVotwoMenuVo : oneMenuVo.getChildren()) {JSONObjectview=newJSONObject();view.put("type", twoMenuVo.getType());if(twoMenuVo.getType().equals("view")) {view.put("name", twoMenuVo.getName());//H5页面地址view.put("url", "http://oa.atguigu.cn#"+twoMenuVo.getUrl());} else {view.put("name", twoMenuVo.getName());view.put("key", twoMenuVo.getMeunKey());}subButton.add(view);}one.put("sub_button", subButton);}buttonList.add(one);}//菜单JSONObjectbutton=newJSONObject();button.put("button", buttonList);try {wxMpService.getMenuService().menuCreate(button.toJSONString());} catch (WxErrorExceptione) {thrownewRuntimeException(e);}
}

3.3.4、controller接口

//@PreAuthorize("hasAuthority('bnt.menu.syncMenu')")
@ApiOperation(value="同步菜单")
@GetMapping("syncMenu")
public Result createMenu() {menuService.syncMenu();returnResult.ok();
}

3.4 前端实现

3.4.1、api接口

在api/wechat/menu.js添加

syncMenu() {return request({url: `${api_name}/syncMenu`,method: `get`})
},

3.4.2、菜单列表添加同步功能

1、添加按钮

<el-button class="btn-add" size="mini" @click="syncMenu">同步菜单</el-button>

2、添加方法

syncMenu() {this.$confirm('你确定上传菜单吗, 是否继续?', '提示', {confirmButtonText: '确定',cancelButtonText: '取消',type: 'warning'}).then(() => {returnmenuApi.syncMenu()}).then((response) => {this.$message.success(response.message)}).catch(error=> {console.log('error', error)if (error==='cancel') {this.$message.info('取消上传')}})
}

4、删除推送菜单

4.1、删除接口

4.1.1、service接口

void removeMenu();

4.1.2、service接口实现

@SneakyThrows
@Override
public void removeMenu() {wxMpService.getMenuService().menuDelete();
}

4.1.3、controller接口

@PreAuthorize("hasAuthority('bnt.menu.removeMenu')")
@ApiOperation(value="删除菜单")
@DeleteMapping("removeMenu")
public Result removeMenu() {menuService.removeMenu();return Result.ok();
}

4.2、前端实现

4.2.1、api接口

在api/wechat/menu.js添加

removeMenu() {return request({url: `${api_name}/removeMenu`,method: `delete`})}

4.2.2、菜单列表添加同步功能

1、添加按钮

<el-button class="btn-add"size="mini"@click="removeMenu">删除菜单</el-button>

2、添加方法

removeMenu() {menuApi.removeMenu().then(response=> {this.$message.success('菜单已删除')})
}

三、微信授权登录

当前后台员工账号与微信账号是没有关联的，因此在点击微信菜单时，要判断是否登录，如果是第一次访问则弹出关联层，建立微信账号与员工账号的绑定，即：通过员工手机号码与微信openId建立绑定，后续进入就知道用户身份了。

1、服务器端接口开发

1.1、配置内网穿透(ngrok)

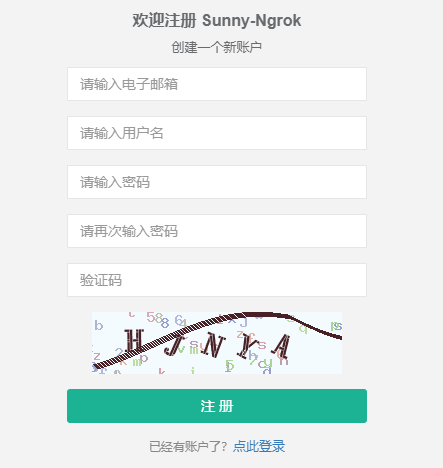

1.1.1、注册用户

网址：https://ngrok.cc/login/register

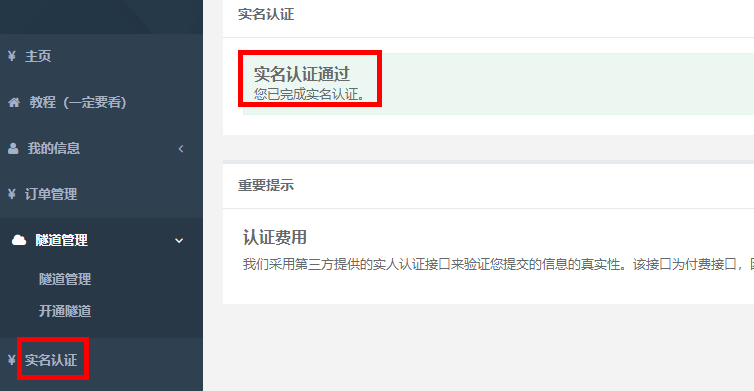

1.1.2、实名认证

（1）注册成功之后，登录系统，进行实名认证，认证费2元，认证通过后才能开通隧道

1.1.3、开通隧道

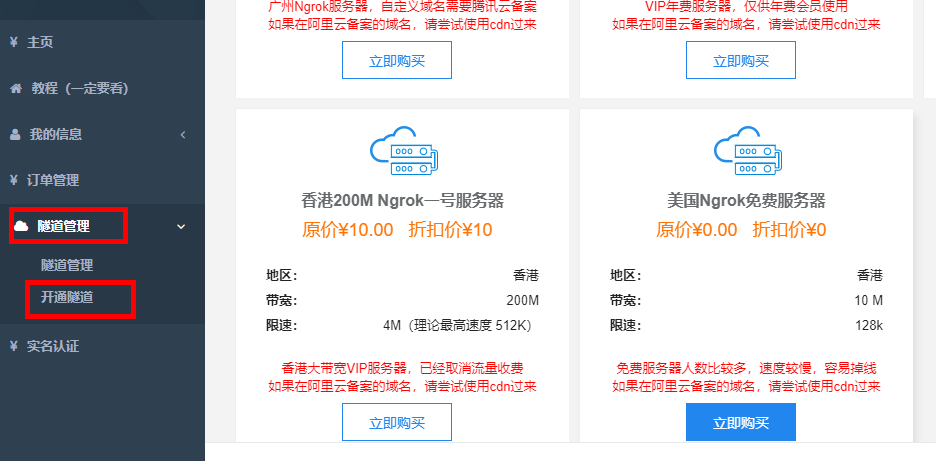

（1）选择隧道管理 -> 开通隧道

最后一个是免费服务器，建议选择付费服务器，10元/月，因为免费服务器使用人数很多，经常掉线

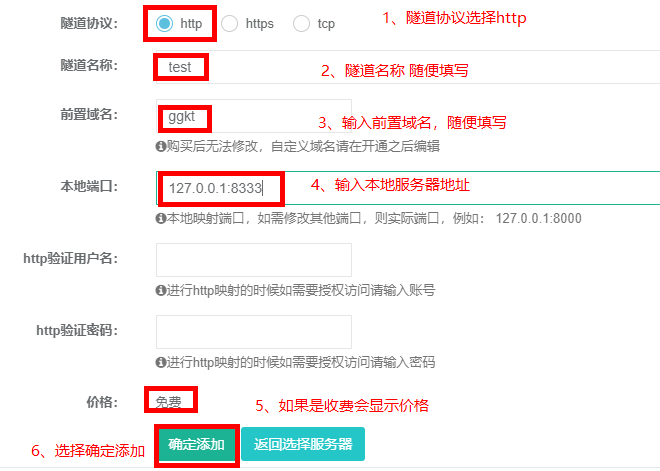

（2）点击立即购买 -> 输入相关信息

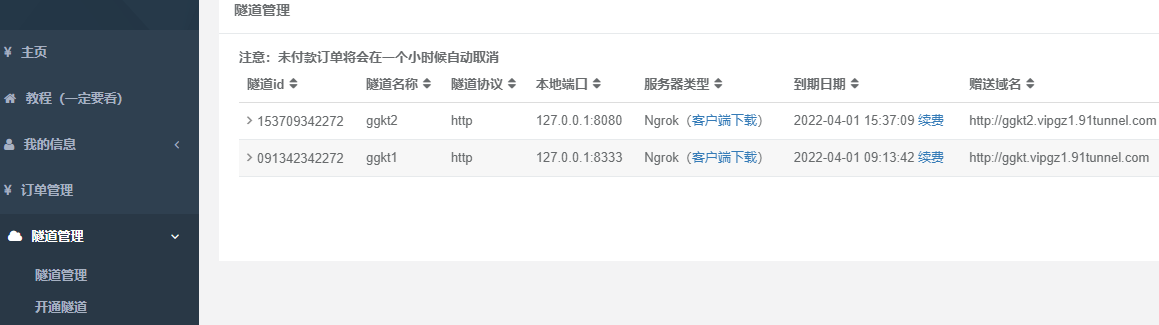

（3）开通成功后，查看开通的隧道

这里开通了两个隧道，一个用于后端接口调用，一个用于公众号前端调用

1.1.4、启动隧道

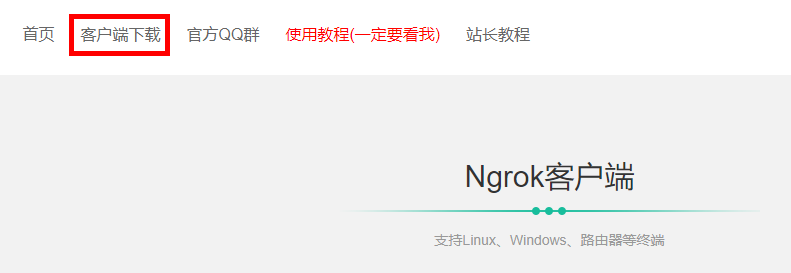

（1）下载客户端工具

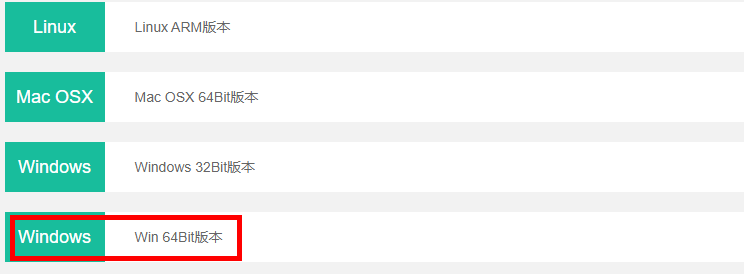

（2）选择windows版本

（3）解压，找到bat文件，双击启动

（4）输入隧道id，多个使用逗号隔开，最后回车就可以启动

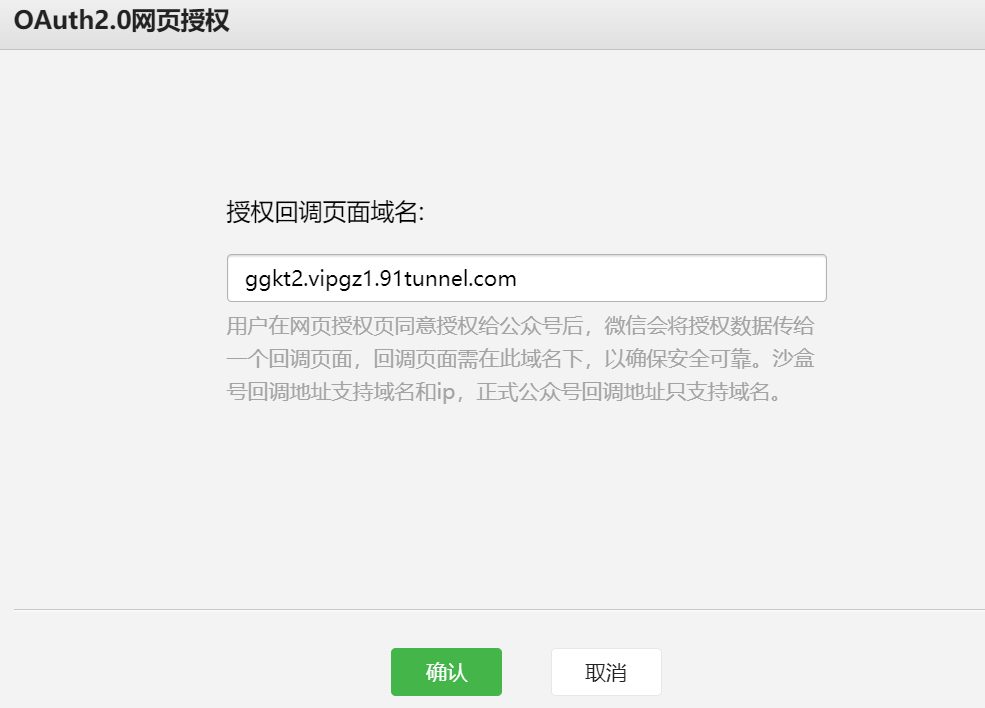

1.2、配置“授权回调页面域名”

在“[网页授权获取用户基本信息]”后面，点击“修改”，添加“授权回调页面域名”（本地使用内网穿透地址）

1.3、配置授权回调获取用户信息接口地址

wechat:mpAppId: wx13db7dcf69bq1233mpAppSecret: de3d7888d30febf84b64d041231e4027# 授权回调获取用户信息接口地址userInfoUrl: http://ggkt2.vipgz1.91tunnel.com/admin/wechat/userInfo

1.4、controller接口

package com.atguigu.wechat.controller;

import com.alibaba.fastjson.JSON;
import com.atguigu.common.jwt.JwtHelper;
import com.atguigu.common.result.Result;
import com.atguigu.model.system.SysUser;
import com.atguigu.system.service.SysUserService;
import com.atguigu.vo.wechat.BindPhoneVo;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import me.chanjar.weixin.common.api.WxConsts;
import me.chanjar.weixin.common.bean.WxOAuth2UserInfo;
import me.chanjar.weixin.common.bean.oauth2.WxOAuth2AccessToken;
import me.chanjar.weixin.mp.api.WxMpService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import java.net.URLEncoder;

@Controller
@RequestMapping("/admin/wechat")
@Slf4j
public class WechatController {
@Resourceprivate SysUserService sysUserService;
@Autowiredprivate WxMpService wxMpService;
@Value("${wechat.userInfoUrl}")private String userInfoUrl;
@GetMapping("/authorize")public Stringauthorize(@RequestParam("returnUrl") StringreturnUrl, HttpServletRequestrequest) {//由于授权回调成功后，要返回原地址路径，原地址路径带“#”号，当前returnUrl获取带“#”的url获取不全，因此前端把“#”号替换为“guiguoa”了，这里要还原一下StringredirectURL=wxMpService.getOAuth2Service().buildAuthorizationUrl(userInfoUrl, WxConsts.OAuth2Scope.SNSAPI_USERINFO, URLEncoder.encode(returnUrl.replace("guiguoa", "#")));log.info("【微信网页授权】获取code,redirectURL={}", redirectURL);return"redirect:"+redirectURL;}
@GetMapping("/userInfo")public String userInfo(@RequestParam("code") Stringcode,@RequestParam("state") StringreturnUrl) throwsException {log.info("【微信网页授权】code={}", code);log.info("【微信网页授权】state={}", returnUrl);WxOAuth2AccessTokenaccessToken=wxMpService.getOAuth2Service().getAccessToken(code);StringopenId=accessToken.getOpenId();log.info("【微信网页授权】openId={}", openId);
WxOAuth2UserInfowxMpUser=wxMpService.getOAuth2Service().getUserInfo(accessToken, null);log.info("【微信网页授权】wxMpUser={}", JSON.toJSONString(wxMpUser));
SysUsersysUser=sysUserService.getOne(newLambdaQueryWrapper<SysUser>().eq(SysUser::getOpenId, openId));Stringtoken="";//null != sysUser 说明已经绑定，反之为建立账号绑定，去页面建立账号绑定if(null!=sysUser) {token=JwtHelper.createToken(sysUser.getId(), sysUser.getUsername());}if(returnUrl.indexOf("?") ==-1) {return"redirect:"+returnUrl+"?token="+token+"&openId="+openId;} else {return"redirect:"+returnUrl+"&token="+token+"&openId="+openId;}}
@ApiOperation(value="微信账号绑定手机")@PostMapping("bindPhone")@ResponseBodypublic Result bindPhone(@RequestBodyBindPhoneVobindPhoneVo) {SysUser sysUser=sysUserService.getOne(newLambdaQueryWrapper<SysUser>().eq(SysUser::getPhone, bindPhoneVo.getPhone()));if(null!=sysUser) {sysUser.setOpenId(bindPhoneVo.getOpenId());sysUserService.updateById(sysUser);
String token=JwtHelper.createToken(sysUser.getId(), sysUser.getUsername());returnResult.ok(token);} else {returnResult.fail("手机号码不存在，绑定失败");}}
}

1.5、排除拦截

在WebSecurityConfig类配置排除拦截

   /*** 配置哪些请求不拦截* 排除swagger相关请求* @param web* @throws Exception*/@Overridepublic void configure(WebSecurityweb) throwsException {web.ignoring().antMatchers("/admin/modeler/**","/diagram-viewer/**","/editor-app/**","/*.html","/admin/processImage/**","/admin/wechat/authorize","/admin/wechat/userInfo","/admin/wechat/bindPhone","/favicon.ico","/swagger-resources/**", "/webjars/**", "/v2/**", "/swagger-ui.html/**", "/doc.html");}

2、移动端前端处理

2.1、添加api接口

在src/api/userInfo.js添加方法

bindPhone(bindPhoneVo) {return request({url: `/admin/wechat/bindPhone`,method: 'post',data: bindPhoneVo})
},

2.2、绑定关系

由于移动端所有页面都需要授权登录后在可以访问，因此我们把处理业务放到入口页面处理，scr/App.vue

<template><div id="app"><router-view/>
<el-dialog title="绑定手机":visible.sync="dialogVisible"width="80%"><el-form ref="dataForm":model="bindPhoneVo"size="small"><h4>绑定你的手机号，建立云尚办公系统关联关系</h4><el-form-item label="手机号码"><el-input v-model="bindPhoneVo.phone"/></el-form-item></el-form><spans lot="footer"class="dialog-footer"><el-button type="primary"icon="el-icon-check"@click="saveBind()"size="small">确 定</el-button></span></el-dialog></div>
</template>
<script>
import userInfoApi from'@/api/userInfo'
export default {data() {return {show: true,dialogVisible: false,bindPhoneVo: {openId: '',phone: ''}};},
created() {// 处理微信授权登录this.wechatLogin();},
methods: {wechatLogin() {// 处理微信授权登录lettoken=this.getQueryString('token') ||'';letopenId=this.getQueryString('openId') ||'';// token === '' && openId != '' 只要这种情况，未绑定账号if(token===''&&openId!='') {// 绑定账号this.bindPhoneVo.openId=openIdthis.dialogVisible=true} else {// 如果绑定了，授权登录直接返回tokenif(token!=='') {window.localStorage.setItem('token', token);}token=window.localStorage.getItem('token') ||'';if (token=='') {leturl=window.location.href.replace('#', 'guiguoa')window.location='http://oa.atguigu.cn/admin/wechat/authorize?returnUrl='+url}}},
saveBind() {if(this.bindPhoneVo.phone.length!=11) {alert('手机号码格式不正确')return}userInfoApi.bindPhone(this.bindPhoneVo).then(response=> {window.localStorage.setItem('token', response.data);this.dialogVisible=falsewindow.location='http://oa.atguigu.cn'})},
getQueryString (paramName) {if(window.location.href.indexOf('?') ==-1) return'';
letsearchString=window.location.href.split('?')[1];leti, val, params=searchString.split("&");
for (i=0;i<params.length;i++) {val=params[i].split("=");if (val[0] ==paramName) {returnval[1];}}return'';}}
};
</script>
<stylelang="scss">
#app {font-family: Avenir, Helvetica, Arial, sans-serif;-webkit-font-smoothing: antialiased;-moz-osx-font-smoothing: grayscale;color: #2c3e50;
}
</style>

2.3、添加微信js引用

在public/index.html添加js引用

<script src="http://res.wx.qq.com/open/js/jweixin-1.4.0.js"type="text/javascript"></script>

2.4、调整request.js

import axios from"axios";

// 创建axios实例
const service=axios.create({baseURL: "http://oa.atguigu.cn", // api 的 base_urltimeout: 30000// 请求超时时间
});

// http request 拦截器
service.interceptors.request.use(config=> {lettoken=window.localStorage.getItem("token") ||"";if (token!="") {config.headers["token"] =token;}return config;},err=> {return Promise.reject(err);});
// http response 拦截器
service.interceptors.response.use(response=> {if (response.data.code==208) {// debugger// 替换# 后台获取不到#后面的参数leturl=window.location.href.replace('#', 'guiguoa')window.location='http://oa.atguigu.cn/admin/wechat/authorize?returnUrl='+url} else {if (response.data.code==200) {return response.data;} else {// 209没有权限 系统会自动跳转授权登录的，已在App.vue处理过，不需要提示if (response.data.code!=209) {alert(response.data.message||"error");}return Promise.reject(response);}}},error=> {return Promise.reject(error.response);   // 返回接口返回的错误信息});

export default service;

2.5、测试

四、消息推送

有待审批消息，我们需要通知审批人审批信息，审批人审批过了，我们要通知提交申请人查看信息。

消息推送我们使用“微信模板消息”接口

1、配置微信模板消息

1、待处理审批：{{first.DATA}} 审批编号：{{keyword1.DATA}} 提交时间：{{keyword2.DATA}} {{content.DATA}}

审批已处理：{{first.DATA}} 审批编号：{{keyword1.DATA}} 提交时间：{{keyword2.DATA}} 当前审批人：{{keyword3.DATA}} 审批状态：{{keyword4.DATA}} {{content.DATA}}

2、定义接口

package com.atguigu.wechat.service;

public interface MessageService {
/*** 推送待审批人员* @param processId* @param userId* @param taskId*/void pushPendingMessage(LongprocessId, LonguserId, StringtaskId);
/*** 审批后推送提交审批人员* @param processId* @param userId* @param status*/void pushProcessedMessage(LongprocessId, LonguserId, Integerstatus);

}

3、service接口实现

package com.atguigu.wechat.service.impl;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.atguigu.model.process.Process;
import com.atguigu.model.process.ProcessTemplate;
import com.atguigu.model.system.SysUser;
import com.atguigu.process.service.ProcessService;
import com.atguigu.process.service.ProcessTemplateService;
import com.atguigu.security.custom.LoginUserInfoHelper;
import com.atguigu.system.service.SysUserService;
import com.atguigu.wechat.service.MessageService;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import me.chanjar.weixin.mp.api.WxMpService;
import me.chanjar.weixin.mp.bean.template.WxMpTemplateData;
import me.chanjar.weixin.mp.bean.template.WxMpTemplateMessage;
import org.joda.time.DateTime;
import org.springframework.stereotype.Service;
import org.springframework.util.StringUtils;

import javax.annotation.Resource;
import java.util.Map;

@Slf4j
@Service
public class MessageServiceImpl implements MessageService {
@Resourceprivate WxMpService wxMpService;
@Resourceprivate ProcessService processService;
@Resourceprivate ProcessTemplateService processTemplateService;
@Resourceprivate SysUserService sysUserService;
@SneakyThrows@Overridepublic void pushPendingMessage(LongprocessId, LonguserId, StringtaskId) {Process process=processService.getById(processId);ProcessTemplate processTemplate=processTemplateService.getById(process.getProcessTemplateId());SysUser sysUser=sysUserService.getById(userId);SysUsersubmitSysUser=sysUserService.getById(process.getUserId());Stringopenid=sysUser.getOpenId();//方便测试，给默认值（开发者本人的openId）if(StringUtils.isEmpty(openid)) {openid="omwf25izKON9dktgoy0dogqvnGhk";}WxMpTemplateMessagetemplateMessage=WxMpTemplateMessage.builder().toUser(openid)//要推送的用户openid.templateId("KvOVeW7jz4-DZgQ_WuXjMZO5I4pPA7L7fflVNwC_ZQg")//模板id.url("http://oa.atguigu.cn/#/show/"+processId+"/"+taskId)//点击模板消息要访问的网址.build();JSONObjectjsonObject=JSON.parseObject(process.getFormValues());JSONObjectformShowData=jsonObject.getJSONObject("formShowData");StringBuffercontent=newStringBuffer();for (Map.Entryentry : formShowData.entrySet()) {content.append(entry.getKey()).append("：").append(entry.getValue()).append("\n ");}templateMessage.addData(newWxMpTemplateData("first", submitSysUser.getName()+"提交了"+processTemplate.getName()+"审批申请，请注意查看。", "#272727"));templateMessage.addData(newWxMpTemplateData("keyword1", process.getProcessCode(), "#272727"));templateMessage.addData(newWxMpTemplateData("keyword2", newDateTime(process.getCreateTime()).toString("yyyy-MM-dd HH:mm:ss"), "#272727"));templateMessage.addData(newWxMpTemplateData("content", content.toString(), "#272727"));Stringmsg=wxMpService.getTemplateMsgService().sendTemplateMsg(templateMessage);log.info("推送消息返回：{}", msg);}
@SneakyThrows@Overridepublic void pushProcessedMessage(LongprocessId, LonguserId, Integerstatus) {Process process=processService.getById(processId);ProcessTemplateprocessTemplate=processTemplateService.getById(process.getProcessTemplateId());SysUsersysUser=sysUserService.getById(userId);SysUsercurrentSysUser=sysUserService.getById(LoginUserInfoHelper.getUserId());Stringopenid=sysUser.getOpenId();if(StringUtils.isEmpty(openid)) {openid="omwf25izKON9dktgoy0dogqvnGhk";}WxMpTemplateMessagetemplateMessage=WxMpTemplateMessage.builder().toUser(openid)//要推送的用户openid.templateId("I0kVeto7T0WIDP6tyoHh-hx83wa9_pe7Nx9eT93-6sc")//模板id.url("http://oa.atguigu.cn/#/show/"+processId+"/0")//点击模板消息要访问的网址.build();JSONObjectjsonObject=JSON.parseObject(process.getFormValues());JSONObjectformShowData=jsonObject.getJSONObject("formShowData");StringBuffercontent=newStringBuffer();for (Map.Entryentry : formShowData.entrySet()) {content.append(entry.getKey()).append("：").append(entry.getValue()).append("\n ");}templateMessage.addData(newWxMpTemplateData("first", "你发起的"+processTemplate.getName()+"审批申请已经被处理了，请注意查看。", "#272727"));templateMessage.addData(newWxMpTemplateData("keyword1", process.getProcessCode(), "#272727"));templateMessage.addData(newWxMpTemplateData("keyword2", newDateTime(process.getCreateTime()).toString("yyyy-MM-dd HH:mm:ss"), "#272727"));templateMessage.addData(newWxMpTemplateData("keyword3", currentSysUser.getName(), "#272727"));templateMessage.addData(newWxMpTemplateData("keyword4", status==1?"审批通过" : "审批拒绝", status==1?"#009966" : "#FF0033"));templateMessage.addData(newWxMpTemplateData("content", content.toString(), "#272727"));Stringmsg=wxMpService.getTemplateMsgService().sendTemplateMsg(templateMessage);log.info("推送消息返回：{}", msg);}

}

4、推送调用

4.1、启动流程实例接口

代码片段

@Autowired
private MessageService messageService;
@Transactional
public ProcessstartUp(ProcessFormVoprocessFormVo) {...
//计算下一个审批人List<Task>taskList=this.getCurrentTaskList(processInstanceId);if (!CollectionUtils.isEmpty(taskList)) {List<String>assigneeList=newArrayList<>();for(Tasktask : taskList) {SysUsersysUser=sysUserService.getByUsername(task.getAssignee());assigneeList.add(sysUser.getName());
//推送消息给下一个审批人messageService.pushPendingMessage(process.getId(), sysUser.getId(), task.getId());}process.setDescription("等待"+StringUtils.join(assigneeList.toArray(), ",") +"审批");}
processMapper.updateById(process);returnprocess;
}

4.2、审批接口

代码片段

public void approve(ApprovalVoapprovalVo) {...
//计算下一个审批人Process process=this.getById(approvalVo.getProcessId());List<Task> taskList=this.getCurrentTaskList(process.getProcessInstanceId());if (!CollectionUtils.isEmpty(taskList)) {List<String> assigneeList=newArrayList<>();for(Task task : taskList) {SysUser sysUser=sysUserService.getByUsername(task.getAssignee());assigneeList.add(sysUser.getName());
//推送消息给下一个审批人messageService.pushPendingMessage(process.getId(), sysUser.getId(), task.getId());}
process.setDescription("等待"+StringUtils.join(assigneeList.toArray(), ",") +"审批");process.setStatus(1);} else {...}//推送消息给申请人messageService.pushProcessedMessage(process.getId(), process.getUserId(), approvalVo.getStatus());this.updateById(process);
}
