华为路由交换设备配置综合实验：

单臂路由、三层交换、动静路由、VRRP路由、DHCP中继、捆绑Etrunk链路(实验六合一)

实验拓扑图：

目的：实现全网各个PC之间的互联互通


全部实验脚本如下，以下脚本直接复制即可使用

一、实现右部DHCP中继的实现

R2

#

sysname R2

#

dhcp enable

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password cipher +(V`Q@`WtC:z9:%F`[a=6M4#

local-user admin service-type http

#

firewall zone Local

priority 16

#

interface Ethernet0/0/0

#

interface Ethernet0/0/1

#

interface Serial0/0/0

link-protocol ppp

ip address 11.0.0.2 255.255.255.252

#

interface Serial0/0/1

link-protocol ppp

#

interface Serial0/0/2

link-protocol ppp

#

interface Serial0/0/3

link-protocol ppp

#

interface GigabitEthernet0/0/0

#

interface GigabitEthernet0/0/0.100

dot1q termination vid 100

ip address 192.168.100.1 255.255.255.0

arp broadcast enable

dhcp select relay

dhcp relay server-ip 23.0.0.2

#

interface GigabitEthernet0/0/0.200

dot1q termination vid 200

ip address 192.168.200.1 255.255.255.0

arp broadcast enable

dhcp select relay

dhcp relay server-ip 23.0.0.2

#

interface GigabitEthernet0/0/1

ip address 23.0.0.1 255.255.255.0

#

interface GigabitEthernet0/0/2

#

interface GigabitEthernet0/0/3

#

wlan

#

interface NULL0

#

ip route-static 0.0.0.0 0.0.0.0 23.0.0.2

ip route-static 192.168.0.0 255.255.0.0 11.0.0.1

#

R3

#

sysname Huawei

#

dhcp enable

#

ip pool dhcp100

gateway-list 192.168.100.1

network 192.168.100.0 mask 255.255.255.0

dns-list 8.8.8.8 2.2.2.2

#

ip pool dhcp200

gateway-list 192.168.200.1

network 192.168.200.0 mask 255.255.255.0

dns-list 8.8.8.8 2.2.2.2

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password cipher -$[1(P>3t>+/Y@:Y>Lw(YM6#

local-user admin service-type http

#

firewall zone Local

priority 16

#

interface Ethernet0/0/0

#

interface Ethernet0/0/1

#

interface Serial0/0/0

link-protocol ppp

#

interface Serial0/0/1

link-protocol ppp

#

interface Serial0/0/2

link-protocol ppp

#

interface Serial0/0/3

link-protocol ppp

#

interface GigabitEthernet0/0/0

#

interface GigabitEthernet0/0/1

ip address 23.0.0.2 255.255.255.0

dhcp select global

#

interface GigabitEthernet0/0/2

#

interface GigabitEthernet0/0/3

#

wlan

#

interface NULL0

#

ip route-static 0.0.0.0 0.0.0.0 23.0.0.1

#

LSW5

#

sysname SW5

#

vlan batch 100 200

#

cluster enable

ntdp enable

ndp enable

#

drop illegal-mac alarm

#

diffserv domain default

#

drop-profile default

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password simple admin

local-user admin service-type http

#

interface Vlanif1

#

interface MEth0/0/1

#

interface Ethernet0/0/1

port link-type access

port default vlan 100

#

interface Ethernet0/0/2

port link-type access

port default vlan 200

#

interface Ethernet0/0/3

#

interface Ethernet0/0/4

#

interface Ethernet0/0/5

#

interface Ethernet0/0/6

#

interface Ethernet0/0/7

#

interface Ethernet0/0/8

#

interface Ethernet0/0/9

#

interface Ethernet0/0/10

#

interface Ethernet0/0/11

#

interface Ethernet0/0/12

#

interface Ethernet0/0/13

#

interface Ethernet0/0/14

#

interface Ethernet0/0/15

#

interface Ethernet0/0/16

#

interface Ethernet0/0/17

#

interface Ethernet0/0/18

#

interface Ethernet0/0/19

#

interface Ethernet0/0/20

#

interface Ethernet0/0/21

#

interface Ethernet0/0/22

#

interface GigabitEthernet0/0/1

port link-type trunk

port trunk allow-pass vlan 2 to 4094

#

二、实现左边浮动路由的设置

LSW3

#

sysname SW3

#

vlan batch 10 20

#

lacp priority 1000

#

cluster enable

ntdp enable

ndp enable

#

drop illegal-mac alarm

#

diffserv domain default

#

drop-profile default

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password simple admin

local-user admin service-type http

#

interface Vlanif1

#

interface MEth0/0/1

#

interface Eth-Trunk1

port link-type trunk

port trunk allow-pass vlan 10 20

#

interface Eth-Trunk2

port link-type trunk

port trunk allow-pass vlan 10 20

#

interface Ethernet0/0/1

eth-trunk 1

#

interface Ethernet0/0/2

eth-trunk 1

#

interface Ethernet0/0/3

eth-trunk 2

#

interface Ethernet0/0/4

eth-trunk 2

#

interface Ethernet0/0/5

port link-type access

port default vlan 10

#

interface Ethernet0/0/6

port link-type access

port default vlan 20

LSW4

#

sysname SW4

#

vlan batch 30 40

#

cluster enable

ntdp enable

ndp enable

#

drop illegal-mac alarm

#

diffserv domain default

#

drop-profile default

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password simple admin

local-user admin service-type http

#

interface Vlanif1

#

interface MEth0/0/1

#

interface Eth-Trunk1

port link-type trunk

port trunk allow-pass vlan 30 40

#

interface Eth-Trunk2

port link-type trunk

port trunk allow-pass vlan 30 40

#

interface Ethernet0/0/1

eth-trunk 1

#

interface Ethernet0/0/2

eth-trunk 1

#

interface Ethernet0/0/3

eth-trunk 2

#

interface Ethernet0/0/4

eth-trunk 2

#

interface Ethernet0/0/5

port link-type access

port default vlan 30

#

interface Ethernet0/0/6

port link-type access

port default vlan 40

LSW1(三层交换机)

#

sysname SW1

#

vlan batch 10 20 30 40 50

#

cluster enable

ntdp enable

ndp enable

#

drop illegal-mac alarm

#

diffserv domain default

#

drop-profile default

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password simple admin

local-user admin service-type http

#

interface Vlanif1

#

interface Vlanif10

ip address 192.168.10.2 255.255.255.0

vrrp vrid 1 Virtual-ip 192.168.10.1

vrrp vrid 1 priority 120

vrrp vrid 1 track interface Eth-Trunk1

vrrp vrid 1 track interface Eth-Trunk3

#

interface Vlanif20

ip address 192.168.20.2 255.255.255.0

vrrp vrid 2 Virtual-ip 192.168.20.1

vrrp vrid 2 priority 115

#

interface Vlanif30

ip address 192.168.30.2 255.255.255.0

vrrp vrid 3 Virtual-ip 192.168.30.1

vrrp vrid 3 priority 120

vrrp vrid 3 track interface Eth-Trunk2

vrrp vrid 3 track interface Eth-Trunk3

#

interface Vlanif40

ip address 192.168.40.2 255.255.255.0

vrrp vrid 4 Virtual-ip 192.168.40.1

vrrp vrid 4 priority 115

#

interface Vlanif50

ip address 13.0.0.2 255.255.255.0

#

interface MEth0/0/1

#

interface Eth-Trunk1

port link-type trunk

port trunk allow-pass vlan 10 20

#

interface Eth-Trunk2

port link-type trunk

port trunk allow-pass vlan 30 40

#

interface Eth-Trunk3

port link-type access

port default vlan 50

#

interface GigabitEthernet0/0/1

eth-trunk 1

#

interface GigabitEthernet0/0/2

eth-trunk 1

#

interface GigabitEthernet0/0/3

eth-trunk 2

#

interface GigabitEthernet0/0/4

eth-trunk 2

#

interface GigabitEthernet0/0/5

eth-trunk 3

#

interface GigabitEthernet0/0/6

eth-trunk 3

#

interface GigabitEthernet0/0/8

#

interface GigabitEthernet0/0/9

#

interface GigabitEthernet0/0/10

#

interface GigabitEthernet0/0/11

#

interface GigabitEthernet0/0/12

#

interface GigabitEthernet0/0/13

#

interface GigabitEthernet0/0/14

#

interface GigabitEthernet0/0/15

#

interface GigabitEthernet0/0/16

#

interface GigabitEthernet0/0/17

#

interface GigabitEthernet0/0/18

#

interface GigabitEthernet0/0/19

#

interface GigabitEthernet0/0/20

#

interface GigabitEthernet0/0/21

#

interface GigabitEthernet0/0/22

#

interface GigabitEthernet0/0/23

#

interface GigabitEthernet0/0/24

#

interface NULL0

#

ip route-static 0.0.0.0 0.0.0.0 13.0.0.1

#

LSW2(三层交换机)

#

sysname SW2

#

vlan batch 10 20 30 40 50

#

cluster enable

ntdp enable

ndp enable

#

drop illegal-mac alarm

#

diffserv domain default

#

drop-profile default

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password simple admin

local-user admin service-type http

#

interface Vlanif1

#

interface Vlanif10

ip address 192.168.10.3 255.255.255.0

vrrp vrid 1 Virtual-ip 192.168.10.1

vrrp vrid 1 priority 115

#

interface Vlanif20

ip address 192.168.20.3 255.255.255.0

vrrp vrid 2 Virtual-ip 192.168.20.1

vrrp vrid 2 priority 120

vrrp vrid 2 track interface Eth-Trunk2

vrrp vrid 2 track interface Eth-Trunk3

#

interface Vlanif30

ip address 192.168.30.3 255.255.255.0

vrrp vrid 3 Virtual-ip 192.168.30.1

vrrp vrid 3 priority 115

#

interface Vlanif40

ip address 192.168.40.3 255.255.255.0

vrrp vrid 4 Virtual-ip 192.168.40.1

vrrp vrid 4 priority 120

vrrp vrid 4 track interface Eth-Trunk3

vrrp vrid 4 track interface Eth-Trunk1

#

interface Vlanif50

ip address 12.0.0.2 255.255.255.0

#

interface MEth0/0/1

#

interface Eth-Trunk1

port link-type trunk

port trunk allow-pass vlan 30 40

#

interface Eth-Trunk2

port link-type trunk

port trunk allow-pass vlan 10 20

#

interface Eth-Trunk3

port link-type access

port default vlan 50

#

interface GigabitEthernet0/0/1

eth-trunk 1

#

interface GigabitEthernet0/0/2

eth-trunk 1

#

interface GigabitEthernet0/0/3

eth-trunk 2

#

interface GigabitEthernet0/0/4

eth-trunk 2

#

interface GigabitEthernet0/0/5

eth-trunk 3

#

interface GigabitEthernet0/0/6

eth-trunk 3

#

interface GigabitEthernet0/0/7

#

interface GigabitEthernet0/0/8

#

interface GigabitEthernet0/0/9

#

interface GigabitEthernet0/0/10

#

interface GigabitEthernet0/0/11

#

interface GigabitEthernet0/0/12

#

interface GigabitEthernet0/0/13

#

interface GigabitEthernet0/0/14

#

interface GigabitEthernet0/0/15

#

interface GigabitEthernet0/0/16

#

interface GigabitEthernet0/0/17

#

interface GigabitEthernet0/0/18

#

interface GigabitEthernet0/0/19

#

interface GigabitEthernet0/0/20

#

interface GigabitEthernet0/0/21

#

interface GigabitEthernet0/0/22

#

interface GigabitEthernet0/0/23

#

interface GigabitEthernet0/0/24

#

interface NULL0

#

ip route-static 0.0.0.0 0.0.0.0 12.0.0.1

#

R1

#

sysname R1

#

aaa

authentication-scheme default

authorization-scheme default

accounting-scheme default

domain default

domain default_admin

local-user admin password cipher +(V`Q@`WtC3IF$':[285RM1#

local-user admin service-type http

#

firewall zone Local

priority 16

#

interface Eth-Trunk3

ip address 13.0.0.1 255.255.255.0

#

interface Eth-Trunk4

ip address 12.0.0.1 255.255.255.0

#

interface Ethernet0/0/0

#

interface Ethernet0/0/1

#

interface Serial0/0/0

link-protocol ppp

ip address 11.0.0.1 255.255.255.252

#

interface Serial0/0/1

link-protocol ppp

#

interface Serial0/0/2

link-protocol ppp

#

interface Serial0/0/3

link-protocol ppp

#

interface GigabitEthernet0/0/0

eth-trunk 3

#

interface GigabitEthernet0/0/1

eth-trunk 3

#

interface GigabitEthernet0/0/2

eth-trunk 4

#

interface GigabitEthernet0/0/3

eth-trunk 4

#

wlan

#

interface NULL0

#

ip route-static 0.0.0.0 0.0.0.0 11.0.0.2

ip route-static 192.168.10.0 255.255.255.0 13.0.0.2

ip route-static 192.168.10.0 255.255.255.0 12.0.0.2 preference 70

ip route-static 192.168.20.0 255.255.255.0 13.0.0.2 preference 70

ip route-static 192.168.20.0 255.255.255.0 12.0.0.2

ip route-static 192.168.30.0 255.255.255.0 13.0.0.2

ip route-static 192.168.30.0 255.255.255.0 12.0.0.2 preference 70

ip route-static 192.168.40.0 255.255.255.0 13.0.0.2 preference 70

ip route-static 192.168.40.0 255.255.255.0 12.0.0.2

#

实验结果验证

1、PC5&6通过DHCP获取地址情况



2、实现全网互通



http://chatgpt.dhexx.cn/article/Oedm6HrD.shtml

相关文章

排错-通过LLDP信息查找环路（以H3C S5100为例）

排错-通过LLDP信息查找环路（以H3C S5100为例）

故障现象 某栋宿舍楼中有多个用户报修，现场查勘后发现室内进线接主机无法获取地址，物理线路连通。因假期期间，只有少数用户留校，不能确定是否是该栋所有用户都无法上网。 组网信息 如图，两台接入交换机光纤级联&…
阅读更多...
BGP综合实验

BGP综合实验

目录 实验说明 开始实验 1.在SW4上进行配置 （1）配置VLAN和接口划入VLAN （2）配置trunk干道 （3）R10上配置子接口 （4）测试 2.配置IP地址 3.总部、分部、骨干网获取各自部分的路由…
阅读更多...
XX市高中网络拓扑整体规划配置

XX市高中网络拓扑整体规划配置

2台核心交换机irf配置&#xff1a; <HX_A>dis cu <HX_A>dis current-configuration version 7.1.075, Alpha 7571 sysname HX_A irf mac-address persistent timer irf auto-update enable undo irf link-delay irf member 1 priority 32 irf member 2 priority 1…
阅读更多...
[计算机网络】【网络设备】网关冗余和负载平衡 （HSRP）

[计算机网络】【网络设备】网关冗余和负载平衡 （HSRP）

为了减少交换机故障的影响&#xff0c;交换上有STP技术。然而作为网关的路由器出故障了&#xff0c;又有什么办法&#xff1f;HSRP和VRRP是最常用的网关冗余技术。HSRP和VRRP类似&#xff0c;由多个路由器共同组成一个组&#xff0c;虚拟一个网关&#xff0c;其中的一台路由器处…
阅读更多...
HCIP静态路由实验（一）：

HCIP静态路由实验（一）：

第一步&#xff1a;划分地址 由实验要求可知R1、R2、R4各有两个用户网段&#xff0c;且R5需要一个用户网段&#xff0c;所以在此处我们可以将R1、R2、R4的用户网段看成一个&#xff0c;然后再进行二次划分&#xff0c;然后加上骨干网段&#xff0c;我们一共需要8个网段: 192.16…
阅读更多...
ensp关于interface GigabitEthernet指令的报错.(AR3260接口配置)

ensp关于interface GigabitEthernet指令的报错.(AR3260接口配置)

1. 上面的问题是因为忘了system-view的命令 这样就可以接入接口的配置了。 并且当你对其他接口进行配置前都需要system-view指令哦。 2. 指令错误&#xff0c;指令如上。 3.接口不存在&#xff0c;如下 在不存在0/0/3的接口情况下就会报错。
阅读更多...
《网络基础》p84.interface gigabitethernet 0/0/0报错

《网络基础》p84.interface gigabitethernet 0/0/0报错

BOOK1&#xff1a;《网络基础》by 田果&#xff0c;刘丹宁 关键词&#xff1a;eNSP, interface gigabitethernet 0/0/0&#xff0c;ip address. 概述&#xff1a;第84页&#xff0c;在eNSP中建立一个路由器和FTP服务器连接。出现问题&#xff1a; &#xff08;1&#xff09;进…
阅读更多...
Gigabit Ethernet

Gigabit Ethernet

前言 本文仅为翻译手册&#xff0c;留以自己查看&#xff0c;若需要深入交流&#xff0c;可以在个人分类中查找解析与实践内容&#xff08;可能未发布&#xff09;&#xff0c;或与作者联系 关于本手册 本文档提供了以太网交换机子系统的功能描述以及串行器/解串器&#xff0…
阅读更多...
阅读笔记4：基于运动想象的脑机接口系统模式识别算法研究

阅读笔记4：基于运动想象的脑机接口系统模式识别算法研究

论文信息 题目&#xff1a;基于运动想象的脑机接口系统模式识别算法研究作者&#xff1a;刘美春单位&#xff1a;华南理工大学信号与信息处理发表时间&#xff1a;20091009 笔记 1.摘要 脑机接口是一种不依赖于正常的由外围神经和肌肉组成的输出通道的通讯系统。BCI系统包括…
阅读更多...
Vue核心

Vue核心

1. Vue核心&#xff08;一&#xff09; 1.1 模板语法 插值语法 功能&#xff1a;用于解析标签体的内容 写法&#xff1a;{{xxx}}, xxx是 js 表达式&#xff0c;且可以直接读取到 data 中的所有属性 指令语法&#xff1a; 功能&#xff1a;用于解析标签&#xff0c;&#xff0…
阅读更多...
JavaScript总结(二：基础知识）

JavaScript总结(二：基础知识）

HTML中如何使用JavaScript&#xff1f; HTML要想使用JavaScript&#xff0c;首先自己要拥有它&#xff0c;有了才可以用&#xff0c;就好像我们学习一样&#xff0c;先要认&#xff0c;后才知&#xff0c;好了废话不多说了&#xff0c;下面进入这个问题的解答过程。 JavaScript…
阅读更多...
android.database.sqlite.SQLiteException: no such column:xxxxx

android.database.sqlite.SQLiteException: no such column:xxxxx

今天在使用sql语句删除数据时报了android.database.sqlite.SQLiteException: no such column:xxxxx&#xff0c;令人奇怪的是删除的数据是int类型的却没报错&#xff0c;代码如下 if ((list.get(j)).equals(list_delete.get(i))) {db.execSQL("delete from TotalData whe…
阅读更多...
（AD FS 配置完全说明）图文说明 SharePoint 2013 配置AD FS

（AD FS 配置完全说明）图文说明 SharePoint 2013 配置AD FS

图文说明 SharePoint 2013 配置AD FS 前提是已经安装成功AD FS服务&#xff0c;下面开始配置&#xff1a; 为信赖方配置 AD FS 使用有管理员权限的帐号。 在 AD FS 服务器上&#xff0c;打开 Active Directory 联合身份验证服务 (AD FS) 管理控制台。 在导航窗格中展开“信任…
阅读更多...
在Azure中部署AD FS

在Azure中部署AD FS

AD FS提供简化安全的身份联合验证和Web SSO。 ADFS和Azure AD O365联合起来的话&#xff0c;用户就可以拿本地的凭据来访问云上的所有资源。所以&#xff0c;ADFS就将本地资源和云上资源整合起来&#xff0c;至关重要。 ADFS部署在Azure上有以下有点&#xff1a; 高可用&…
阅读更多...
Python中的Unicode编码和UTF-8编码

Python中的Unicode编码和UTF-8编码

下午看廖雪峰的Python2.7教程&#xff0c;看到 字符串和编码 一节&#xff0c;有一点感受&#xff0c;结合 崔庆才的Python博客 &#xff0c;把这种感受记录下来&#xff1a; ASCII码&#xff1a;是用一个字节&#xff08;8bit&#xff0c; 0-255&#xff09;中的127个字母表示…
阅读更多...
01、ADS新建工程后初始设置

01、ADS新建工程后初始设置

为了避免版图报错&#xff0c;需要在ADS新建工程之后进行一些初始设置 Option→Technology→Technology Setup... 此时可以看到已经不报错了
阅读更多...
Windows Server 2012 AD域控搭建-系统安装及环境配置

Windows Server 2012 AD域控搭建-系统安装及环境配置

一、安装系统 首先https://msdn.itellyou.cn&#xff0c;去下载系统。 刻录到U盘省略&#xff0c;创建虚拟机步骤省略&#xff0c;直接进入安装步骤&#xff1a; 选择带标准版&#xff0c;带GUI的服务器安装 后面选择硬盘即可 等等等&#xff0c;完成后设置密码&#xff0c;一…
阅读更多...
论文阅读ICLR2020《ADAPTIVE STRUCTURAL FINGERPRINTS FOR GRAPH ATTENTION NETWORKS》

论文阅读ICLR2020《ADAPTIVE STRUCTURAL FINGERPRINTS FOR GRAPH ATTENTION NETWORKS》

论文阅读ICLR2020《ADAPTIVE STRUCTURAL FINGERPRINTS FOR GRAPH ATTENTION NETWORKS》 摘要确定节点相似性时图的结构Adaptive Structural Fingprients&#xff08;ADSF&#xff09;模型介绍结果分析原作CONCLUSION AND FUTURE WORK论文 摘要 观点&#xff1a;如何利用注意力…
阅读更多...
MDC300的ADSFI框架介绍

MDC300的ADSFI框架介绍

文章目录 什么是ADSFI框架&#xff1f;ADSFI应用框架图MDC300上有哪些ADSFI框架&#xff1f;各个ADSFI框架的联系单个ADSFI框架的构成单个ADSFI框架中的yaml文件 什么是ADSFI框架&#xff1f; ADSFI&#xff08;Autonomous Driving Service Framework Initiative&#xff09; …
阅读更多...
论文阅读笔记（4-2）---吴恩达DNN算法分析和仿真实现

论文阅读笔记（4-2）---吴恩达DNN算法分析和仿真实现

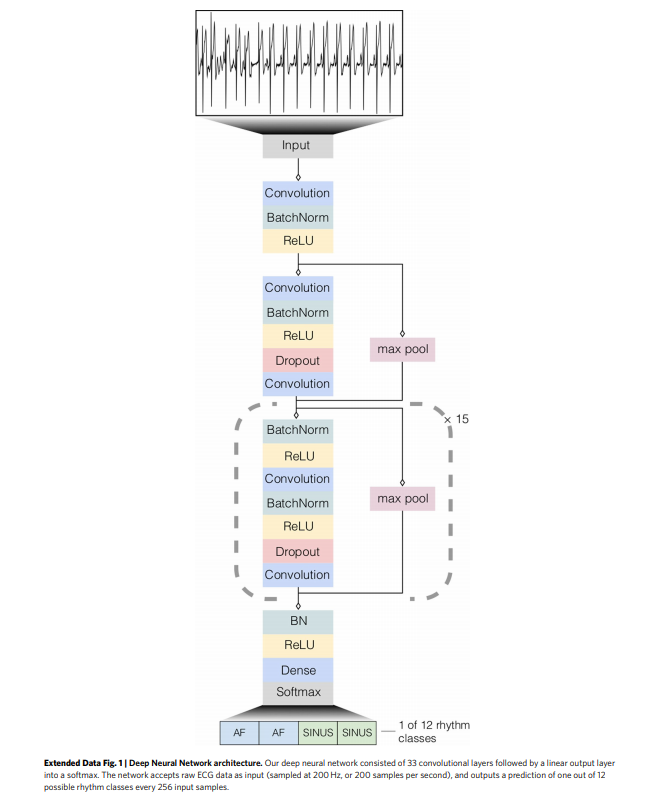

算法开发 该深度卷积神经网络以原始心电图数据&#xff08;以200Hz或每秒200个样本为样本&#xff09;作为输入&#xff0c;并且每256个样本&#xff08;或每1.28秒&#xff09;生成一个预测&#xff0c;我们称之为输出间隔。网络仅以原始心电图样本为输入&#xff0c;网络架构…
阅读更多...
推荐文章

Copyright @ 2022~2023
