安装conky
sudo yum install conky
安装sensors
sudo yum install lm-sensors
设置开机自启
在GNOME Tweaks中将conky加入开机自启
复制文件
sudo cp /etc/conky/conky.conf ~/.conkyrc
设置配置文件
sudo vim ~/.conkyrc
配置文件内容
conky.config = {own_window_argb_visual = true,own_window_argb_value = 0,own_window_transparent = true,own_window_hints = 'undecorated,below,sticky,skip_taskbar,skip_pager',alignment = 'top_right',background = true,border_width = 1,cpu_avg_samples = 2,default_color = 'lightgrey',default_outline_color = 'white',default_shade_color = 'white',double_buffer = true,draw_borders = false,draw_graph_borders = true,draw_outline = false,draw_shades = false,extra_newline = false,font = 'DejaVu Sans Mono:size=12',gap_x = 10,gap_y = 60,minimum_height = 260,minimum_width = 5,maximum_width = 400,net_avg_samples = 2,no_buffers = true,out_to_console = false,out_to_ncurses = false,out_to_stderr = false,out_to_x = true,own_window = true,own_window_class = 'Conky',own_window_type = 'desktop',show_graph_range = false,show_graph_scale = false,stippled_borders = 0,update_interval = 3.0,uppercase = false,use_spacer = 'none',use_xft = true
}conky.text = [[${color grey}${font StyleBats:size=16}S${font OpenLogos:size=10} System$stippled_hr${color yellow}User:${alignr}${exec whoami}Kernel: ${alignr}$kernelBattery:${alignr}${battery_percent BAT1}% Temp: ${alignr}${acpitemp} °CFile systems:/ ${fs_used /}/${fs_size /} ${fs_bar 6 /}${color grey}${font PizzaDude Bullets:size=16}T${font :size=10} Date&Time $stippled_hr${color green}${font :size=11} ${time %Y/%m/%e %H:%M:%S}${alignr} Week:${time %w}${color grey}Uptime:${color #A080F0} $uptime${color grey} ${font StyleBats:size=16}V${font OpenLogos:size=10} CPU&MEM $stippled_hr${color green}${font OpenLogos:size=10} CPU@${freq}MHz: ${cpu cpu1}%${alignr}${cpubar cpu1 8,60}${color green} CPU@${freq}MHz: ${cpu cpu2}%${alignr}${cpubar cpu2 8,60}${color grey}${font StyleBats:size=16}T${font OpenLogos:size=10} Thread$stippled_hr${color grey}Name PID CPU% ${alignr}MEM%${color #FF8C00} ${top name 1} ${top pid 1} ${top cpu 1} ${alignr}${top mem 1}${color #FFA54F} ${top name 2} ${top pid 2} ${top cpu 2} ${alignr}${top mem 2}${color #FFD700} ${top name 3} ${top pid 3} ${top cpu 3} ${alignr}${top mem 3}${color #FFEC8B} ${top name 4} ${top pid 4} ${top cpu 4} ${alignr}${top mem 4}${color grey}${font StyleBats:size=16}E${font :size=10} MEMORY $stippled_hr${color #F05020}RAM : $mem/$memmax - $memperc% ${membar 6}${color green}Swap : $swap/$swapmax ${swapbar 6}/: ${fs_used /}/${fs_size /} ${fs_bar 6 /}/boot: ${fs_used /boot}/${fs_size /boot} ${fs_bar 6 /boot}${color grey} ${font PizzaDude Bullets:size=16}@${font OpenLogos:size=10} NETWORK $stippled_hr${color #FF8C00}IP:${addr wlp2s0}GateWay:$gw_ipUp: ${upspeed wlp2s0} - Down: ${downspeed wlp2s0}${color red} LAN:${color green} Download: ${downspeedf enpvirbr01s0 } KB/s $alignr ${totaldown virbr0 }${color #40E0D0} Upload: ${upspeedf virbr0 } KB/s $alignr ${totalup virbr0 }${color red} WLAN:${color green} Download: ${downspeedf wlp2s0} KB/s $alignr ${totaldown wlp2s0}${color #40E0D0} Upload: ${upspeedf wlp2s0} KB/s $alignr ${totalup wlp2s0}${color grey}${font StyleBats:size=16}C ${font :size=10} CPU Temp:$stippled_hr${font OpenLogos:size=10}$color${color blue}${exec sensors | grep 'Core 0'}${color blue}${exec sensors | grep 'Core 1'}${color blue}${exec sensors | grep 'Core 2'}${color blue}${exec sensors | grep 'Core 3'}
]]

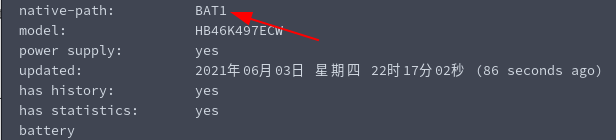

上面的conky.text中的电池名称通过以下命令查看修改
upower -i `upower -e | grep 'BAT'`
wlan名称通过以下命令查看修改
ip addr
conky & #开启conky
kill `pidof conky` #关闭conky# conky & //启动conky
效果如下图
