Pix2Pix原理解析

1.网络搭建

class UnetGenerator(nn.Module):"""Create a Unet-based generator"""def __init__(self, input_nc, output_nc, num_downs, ngf=64, norm_layer=nn.BatchNorm2d, use_dropout=False):"""Construct a Unet generatorParameters:input_nc (int)  -- the number of channels in input imagesoutput_nc (int) -- the number of channels in output imagesnum_downs (int) -- the number of downsamplings in UNet. For example, # if |num_downs| == 7,image of size 128x128 will become of size 1x1 # at the bottleneckngf (int)       -- the number of filters in the last conv layernorm_layer      -- normalization layerWe construct the U-Net from the innermost layer to the outermost layer.It is a recursive process."""super(UnetGenerator, self).__init__()# construct unet structureunet_block = UnetSkipConnectionBlock(ngf * 8, ngf * 8, input_nc=None, submodule=None, norm_layer=norm_layer, innermost=True)  # add the innermost layerfor i in range(num_downs - 5):          # add intermediate layers with ngf * 8 filtersunet_block = UnetSkipConnectionBlock(ngf * 8, ngf * 8, input_nc=None, submodule=unet_block, norm_layer=norm_layer, use_dropout=use_dropout)# gradually reduce the number of filters from ngf * 8 to ngfunet_block = UnetSkipConnectionBlock(ngf * 4, ngf * 8, input_nc=None, submodule=unet_block, norm_layer=norm_layer)unet_block = UnetSkipConnectionBlock(ngf * 2, ngf * 4, input_nc=None, submodule=unet_block, norm_layer=norm_layer)unet_block = UnetSkipConnectionBlock(ngf, ngf * 2, input_nc=None, submodule=unet_block, norm_layer=norm_layer)self.model = UnetSkipConnectionBlock(output_nc, ngf, input_nc=input_nc, submodule=unet_block, outermost=True, norm_layer=norm_layer)  # add the outermost layerdef forward(self, input):"""Standard forward"""return self.model(input)

Unet的模型结构如下图示，因此是从最内层开始搭建：

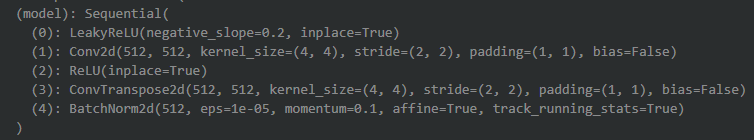

经过第一行后，网络结构如下，也就是最内层的下采样->上采样。

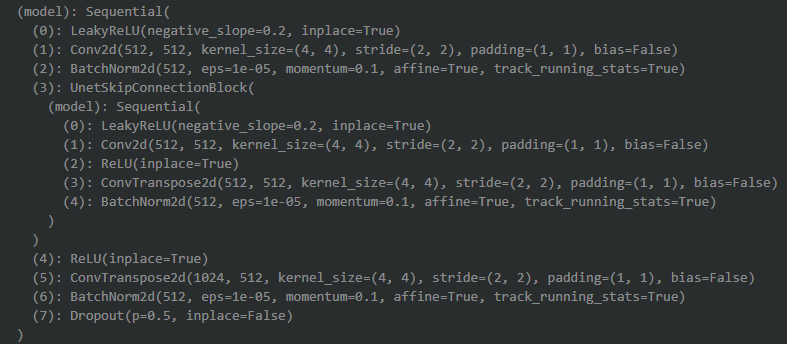

之后有一个循环，经过第一次循环后，在上一层的外围再次搭建了下采样和上采样：

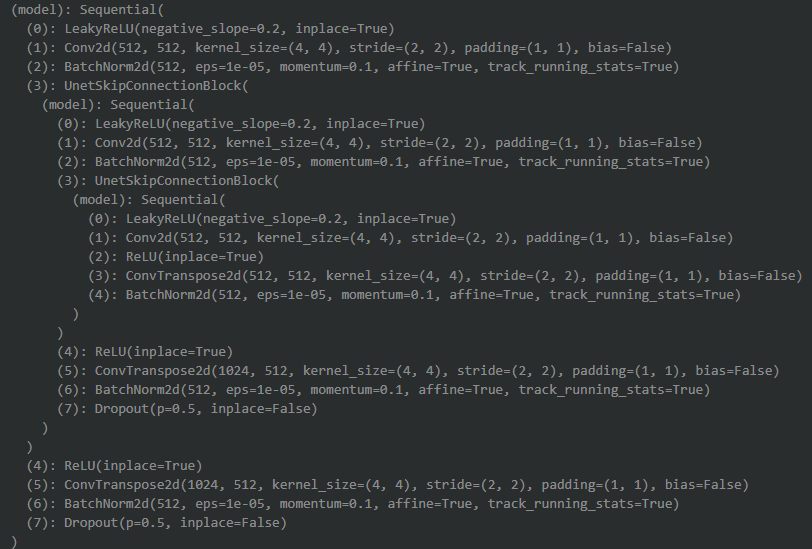

经过第二次循环：

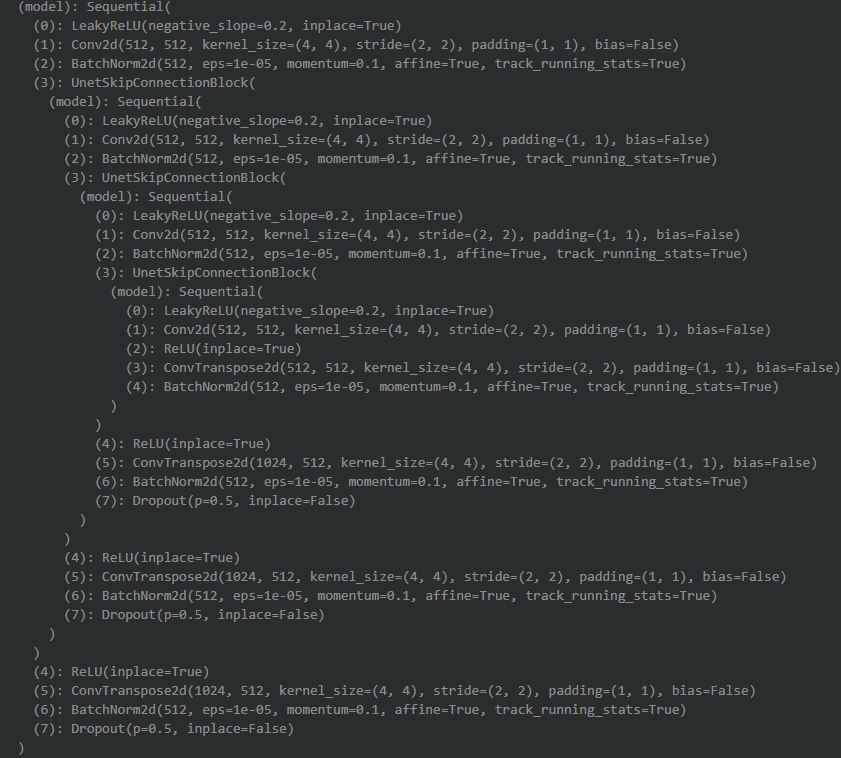

经过第三次循环：

可以看到每次反卷积的输入特征图的channel是1024，是因为它除了要接受上一层反卷积的输出（512维度），还要接受与其特征图大小相同的下采样层的输出（512维度），因此是1024的维度数。

循环完毕后，再次添加四次外部的降采样和反卷积，最终的网络结构如下：

UnetGenerator((model): UnetSkipConnectionBlock((model): Sequential((0): Conv2d(3, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(1): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(64, 128, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(3): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(128, 256, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(3): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(256, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(3): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(512, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(3): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(512, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(3): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(512, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(3): UnetSkipConnectionBlock((model): Sequential((0): LeakyReLU(negative_slope=0.2, inplace=True)(1): Conv2d(512, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(2): ReLU(inplace=True)(3): ConvTranspose2d(512, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(4): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)))(4): ReLU(inplace=True)(5): ConvTranspose2d(1024, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(7): Dropout(p=0.5, inplace=False)))(4): ReLU(inplace=True)(5): ConvTranspose2d(1024, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(7): Dropout(p=0.5, inplace=False)))(4): ReLU(inplace=True)(5): ConvTranspose2d(1024, 512, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(7): Dropout(p=0.5, inplace=False)))(4): ReLU(inplace=True)(5): ConvTranspose2d(1024, 256, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)))(4): ReLU(inplace=True)(5): ConvTranspose2d(512, 128, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)))(4): ReLU(inplace=True)(5): ConvTranspose2d(256, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)))(2): ReLU(inplace=True)(3): ConvTranspose2d(128, 3, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))(4): Tanh()))
)

2.反向传播过程

我们这里假定pix2pix是风格A2B，风格A就是左边的图，风格B是右边的图。

反向传播的代码如下，整个是先更新D再更新G。

（1）首先向前传播，输入A，经过G，得到fakeB；

（2）开始更新D，进入backward_D函数：

将A和fakeB cat起来，cat的整体相当于下图中的negative img，送入D，得到pred_fake；
计算pred_fake的GAN损失，标签为0；
将A与real B cat起来，cat的整体相当于positive img，送入D，得到real_fake；
计算pred_real的GAN损失，标签为1；
fake和real的GAN相加，得到总的判别器GAN损失。

（3）开始更新G，进入backward_G函数：

将A和fakeB cat起来，cat的整体相当于下图中的negative img，送入D，得到pred_fake；
计算pred_fake的GAN损失，标签为1；
计算real B和fake B的逐像素损失L1；
将GAN损失和逐像素损失L1相加，得到总损失。

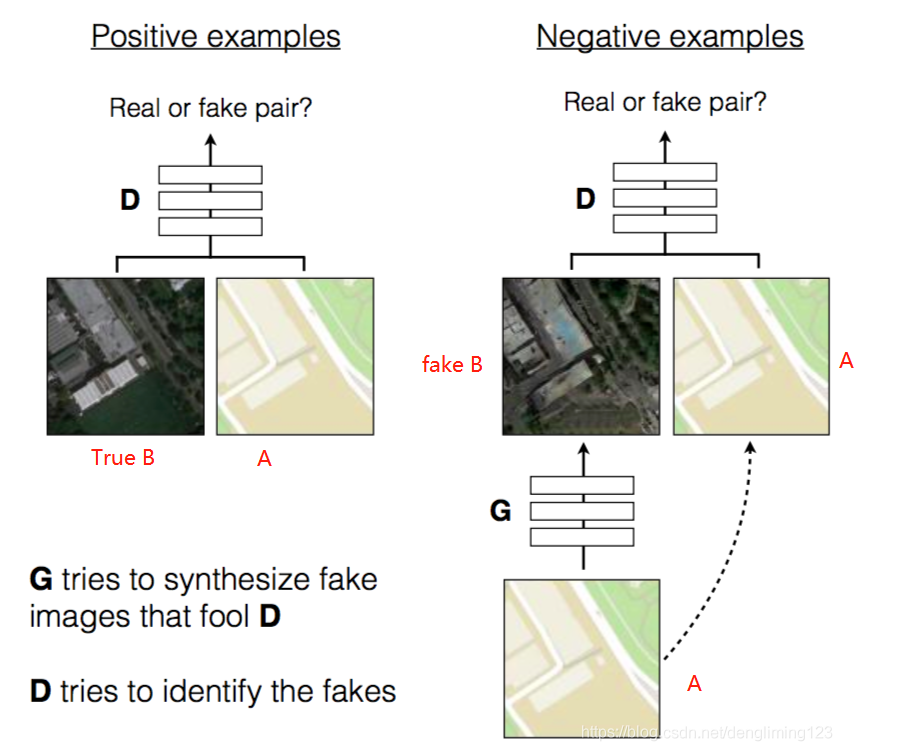

下图就可视化了上述的过程。

    def backward_D(self):"""Calculate GAN loss for the discriminator"""# Fake; stop backprop to the generator by detaching fake_Bfake_AB = torch.cat((self.real_A, self.fake_B), 1)  # we use conditional GANs; we need to feed both input and output to the discriminatorpred_fake = self.netD(fake_AB.detach())self.loss_D_fake = self.criterionGAN(pred_fake, False)# Realreal_AB = torch.cat((self.real_A, self.real_B), 1)pred_real = self.netD(real_AB)self.loss_D_real = self.criterionGAN(pred_real, True)# combine loss and calculate gradientsself.loss_D = (self.loss_D_fake + self.loss_D_real) * 0.5self.loss_D.backward()def backward_G(self):"""Calculate GAN and L1 loss for the generator"""# First, G(A) should fake the discriminatorfake_AB = torch.cat((self.real_A, self.fake_B), 1)pred_fake = self.netD(fake_AB)self.loss_G_GAN = self.criterionGAN(pred_fake, True)# Second, G(A) = Bself.loss_G_L1 = self.criterionL1(self.fake_B, self.real_B) * self.opt.lambda_L1# combine loss and calculate gradientsself.loss_G = self.loss_G_GAN + self.loss_G_L1self.loss_G.backward()def optimize_parameters(self):self.forward()                   # compute fake images: G(A)# update Dself.set_requires_grad(self.netD, True)  # enable backprop for Dself.optimizer_D.zero_grad()     # set D's gradients to zeroself.backward_D()                # calculate gradients for Dself.optimizer_D.step()          # update D's weights# update Gself.set_requires_grad(self.netD, False)  # D requires no gradients when optimizing Gself.optimizer_G.zero_grad()        # set G's gradients to zeroself.backward_G()                   # calculate graidents for Gself.optimizer_G.step()             # udpate G's weights

3.PatchGAN

pix2pix还对判别器的结构做了一定的改动。之前都是对整张图像输出一个是否为真实的概率。pix2pix提出了PatchGan的概念。PatchGAN对图片中的每一个N×N的小块（patch）计算概率，然后再将这些概率求平均值作为整体的输出。

在上面的代码中pred_fake = self.netD(fake_AB.detach())的输出就不是一个概率值，而是30×30的特征图，相当于有30×30个patch。

下图表示标准的D网络结构（n_layers = 3），n_layers 为主要的特征卷积层数为3。如何理解？

下面(0)(1)表示head conv层，不算在n_layers layer中；
(2)(3)(4)才算做是标准的一个n_layers层，因此2-4、5-7、8-10一共是3层。
最后有一个卷积层，channel维度为1。

需要注意一下，patchgan channel维度最大为512。

DataParallel((module): NLayerDiscriminator((model): Sequential((0): Conv2d(6, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))(1): LeakyReLU(negative_slope=0.2, inplace=True)(2): Conv2d(64, 128, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(3): BatchNorm2d(128, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(4): LeakyReLU(negative_slope=0.2, inplace=True)(5): Conv2d(128, 256, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1), bias=False)(6): BatchNorm2d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(7): LeakyReLU(negative_slope=0.2, inplace=True)(8): Conv2d(256, 512, kernel_size=(4, 4), stride=(1, 1), padding=(1, 1), bias=False)(9): BatchNorm2d(512, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)(10): LeakyReLU(negative_slope=0.2, inplace=True)(11): Conv2d(512, 1, kernel_size=(4, 4), stride=(1, 1), padding=(1, 1))))
)

具体代码如下。与我们前面所述的稍微有些不一样，按照前面所述for n in range(1, n_layers)中相当于构建n_layers个特征提取层。但是代码中实际上构建了n_layers-1个，最后一个标准的特征提取层放在了sequence +=[...]中。

但是理解上还是可以按照前面。在spade框架中，就重新了构建patchgan的过程，其中就把最后一个标准的特征提取层也通过for n in range(1, n_layers)构建了。见https://github.com/NVlabs/SPADE/blob/master/models/networks/discriminator.py

class NLayerDiscriminator(nn.Module):def __init__(self, input_nc, ndf=64, n_layers=3, norm_layer=nn.BatchNorm2d):"""Construct a PatchGAN discriminatorParameters:input_nc (int)  -- the number of channels in input imagesndf (int)       -- the number of filters in the last conv layern_layers (int)  -- the number of conv layers in the discriminatornorm_layer      -- normalization layer"""super(NLayerDiscriminator, self).__init__()if type(norm_layer) == functools.partial:  # no need to use bias as BatchNorm2d has affine parametersuse_bias = norm_layer.func == nn.InstanceNorm2delse:use_bias = norm_layer == nn.InstanceNorm2dkw = 4  #卷积核的大小padw = 1  #padingsequence = [nn.Conv2d(input_nc, ndf, kernel_size=kw, stride=2, padding=padw), nn.LeakyReLU(0.2, True)]  #head convnf_mult = 1nf_mult_prev = 1for n in range(1, n_layers):  # gradually increase the number of filtersnf_mult_prev = nf_multnf_mult = min(2 ** n, 8)sequence += [nn.Conv2d(ndf * nf_mult_prev, ndf * nf_mult, kernel_size=kw, stride=2, padding=padw, bias=use_bias),norm_layer(ndf * nf_mult),nn.LeakyReLU(0.2, True)]nf_mult_prev = nf_multnf_mult = min(2 ** n_layers, 8)sequence += [nn.Conv2d(ndf * nf_mult_prev, ndf * nf_mult, kernel_size=kw, stride=1, padding=padw, bias=use_bias),norm_layer(ndf * nf_mult),nn.LeakyReLU(0.2, True)]sequence += [nn.Conv2d(ndf * nf_mult, 1, kernel_size=kw, stride=1, padding=padw)]  # channel = 1self.model = nn.Sequential(*sequence)
