树莓派连接LCD1602液晶显示屏，并显示内容

一、效果图

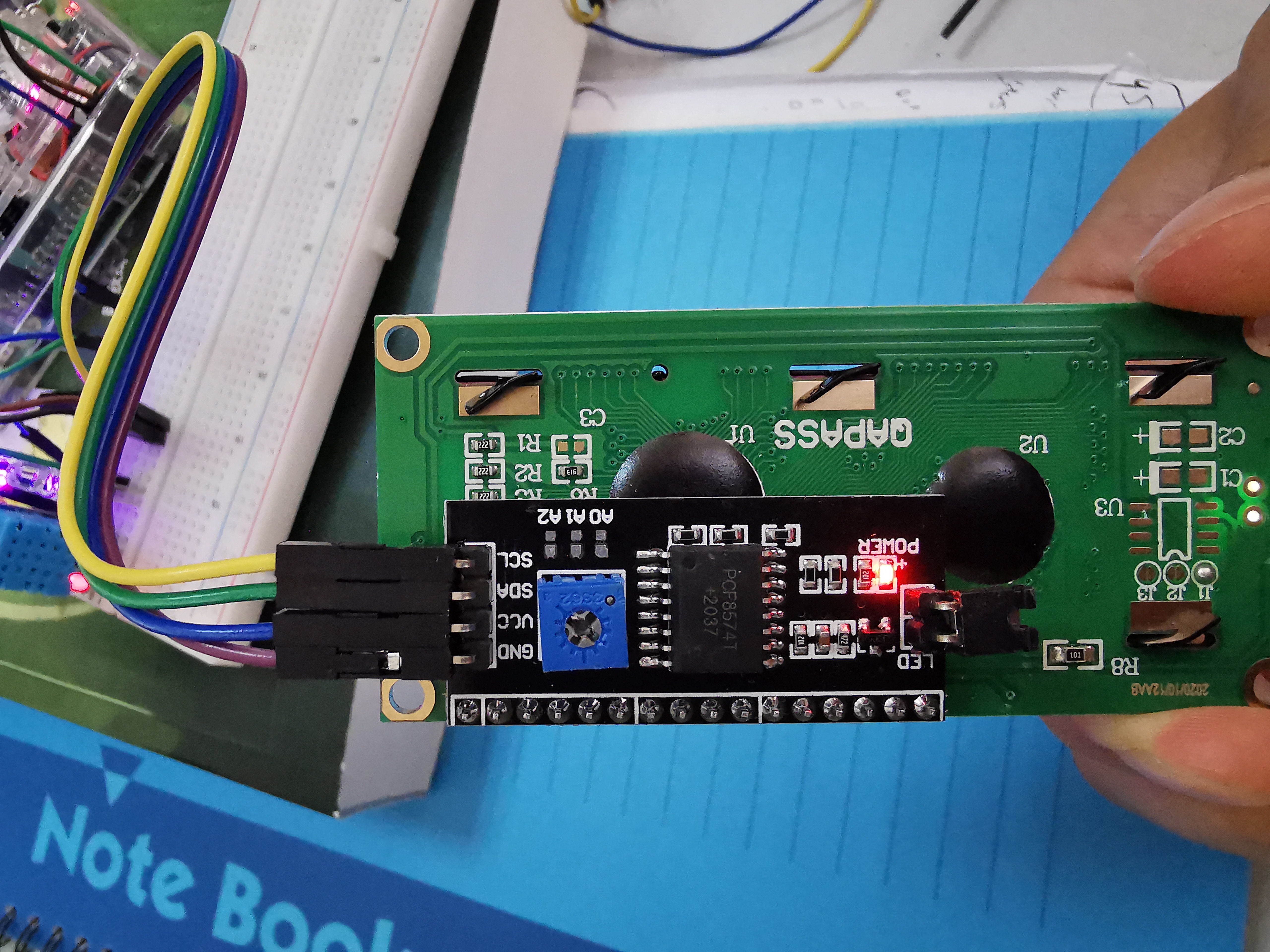

所需要硬件：

LCD1602液晶显示屏
IIC转接LCD1602模块（转成IIC通讯）

在这里插入图片描述

二、设置树莓派，启动IIC通讯功能

因为树莓派刚烧录完系统后IIC功能是没有启动的，在命令行分别输入以下命令：

raspi-config ;  进入树莓派设置界面
>>>Interfacing Options  ; 设置
>>>P5 I2C  ; 选择I2C选项
>>>enable  ; 启动I2C功能

下载对应缺的包，例如：

sudo apt-get install i2c-tools
sudo apt-get update
sudo apt-get install python3-smbus

设置好了，重启一次树莓派。

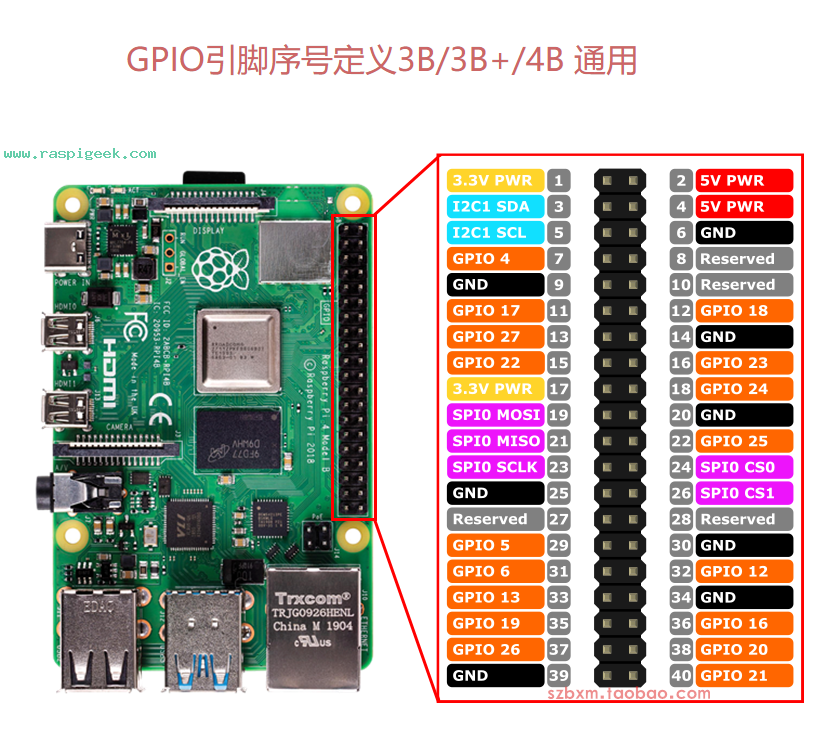

三、连线

在这里插入图片描述

树莓派-------液晶显示屏
VCC----------3.3V
GND-----------地
SDA----------SDA
SCL-----------SCL

四、代码

方案一：（一个LCD602程序—LCD1602.py）

'''1602/1602Aauthor：ZengXiaojiedescription：直接实例化 My1602 对象然后调用对象的 print_lcd(param1, param2, str) 方法ex：print_lcd(0, 0, 'Hello, world!')param1：从第几位开始，共16位（0-15），超出不显示，除非移动屏幕（其实1602一行有40位）param2：第几行，共有两行，0为第一行，1位第二行。str：要显示的数据每次打印字符时，建议适当清屏。
'''import time
import smbus
import sysclass My1602(object):BUS = smbus.SMBus(1)LCD_ADDR = 0x27BLEN = 1# '''# 开关灯def turn_light(self, key):self.BLEN = keyif key == 1:self.BUS.write_byte(self.LCD_ADDR, 0x08)else:self.BUS.write_byte(self.LCD_ADDR, 0x00)# '''def write_word(self, addr, data):temp = dataif self.BLEN == 1:temp |= 0x08else:temp &= 0xF7self.BUS.write_byte(addr, temp)# 写命令def send_command(self, comm):# 发送7-4位数据buf = comm & 0xF0buf |= 0x04  # RS = 0, RW = 0, EN = 1self.write_word(self.LCD_ADDR, buf)time.sleep(0.002)buf &= 0xFBself.write_word(self.LCD_ADDR, buf)# 发送3-0位数据buf = (comm & 0x0F) << 4buf |= 0x04  # RS = 0, RW = 0, EN = 1self.write_word(self.LCD_ADDR, buf)time.sleep(0.002)buf &= 0xFBself.write_word(self.LCD_ADDR, buf)# 写数据def send_data(self, data):# 发送7-4位数据buf = data & 0xF0buf |= 0x05  # RS = 1, RW = 0, EN = 1self.write_word(self.LCD_ADDR, buf)time.sleep(0.002)buf &= 0xFBself.write_word(self.LCD_ADDR, buf)# 发送3-0位数据buf = (data & 0x0F) << 4buf |= 0x05  # RS = 1, RW = 0, EN = 1self.write_word(self.LCD_ADDR, buf)time.sleep(0.002)buf &= 0xFBself.write_word(self.LCD_ADDR, buf)# 初始化def __init__(self):try:self.send_command(0x33)time.sleep(0.005)self.send_command(0x32)time.sleep(0.005)self.send_command(0x28)time.sleep(0.005)self.send_command(0x0C)time.sleep(0.005)self.send_command(0x01)self.BUS.write_byte(self.LCD_ADDR, 0x08)except:return Noneelse:return None# 清屏def clear_lcd(self):self.send_command(0x01)  # 清屏# 显示字符def print_lcd(self, x, y, str):if x < 0:x = 0if x > 15:x = 15if y < 0:y = 0if y > 1:y = 1addr = 0x80 + 0x40 * y + xself.send_command(addr)for chr in str:self.send_data(ord(chr))if __name__ == '__main__':my1602 = My1602()# turn_light(0)  # 关闭背景灯光my1602.print_lcd(0, 0, 'Hello, world!')my1602.print_lcd(8, 1, 'by zxj')

方案二：（两个python程序：1.LCD1602驱动程序，2.调用驱动程序）

程序1—LCD1602.py(LCD主控制程序)：

import LCD1602 as LCD
import timeLCD.init_lcd()
time.sleep(2)
LCD.print_lcd(0,0,'start')

程序2—LCD1602.py（LCD驱动程序1）：

import time
import smbus
import logx
import logging
BUS = smbus.SMBus(1)
LCD_ADDR = 0x27
BLEN = 1 #turn on/off background lightdef turn_light(key):global BLENBLEN = keyif key ==1 :BUS.write_byte(LCD_ADDR ,0x08)logging.info('LCD executed turn on BLight')else:BUS.write_byte(LCD_ADDR ,0x00)logging.info('LCD executed turn off BLight')def write_word(addr, data):global BLENtemp = dataif BLEN == 1:temp |= 0x08else:temp &= 0xF7BUS.write_byte(addr ,temp)def send_command(comm):# Send bit7-4 firstlybuf = comm & 0xF0buf |= 0x04               # RS = 0, RW = 0, EN = 1write_word(LCD_ADDR ,buf)time.sleep(0.002)buf &= 0xFB               # Make EN = 0write_word(LCD_ADDR ,buf)# Send bit3-0 secondlybuf = (comm & 0x0F) << 4buf |= 0x04               # RS = 0, RW = 0, EN = 1write_word(LCD_ADDR ,buf)time.sleep(0.002)buf &= 0xFB               # Make EN = 0write_word(LCD_ADDR ,buf)def send_data(data):# Send bit7-4 firstlybuf = data & 0xF0buf |= 0x05               # RS = 1, RW = 0, EN = 1write_word(LCD_ADDR ,buf)time.sleep(0.002)buf &= 0xFB               # Make EN = 0write_word(LCD_ADDR ,buf)# Send bit3-0 secondlybuf = (data & 0x0F) << 4buf |= 0x05               # RS = 1, RW = 0, EN = 1write_word(LCD_ADDR ,buf)time.sleep(0.002)buf &= 0xFB               # Make EN = 0write_word(LCD_ADDR ,buf)def init_lcd():try:send_command(0x33) # Must initialize to 8-line mode at firsttime.sleep(0.005)send_command(0x32) # Then initialize to 4-line modetime.sleep(0.005)send_command(0x28) # 2 Lines & 5*7 dotstime.sleep(0.005)send_command(0x0C) # Enable display without cursortime.sleep(0.005)send_command(0x01) # Clear Screenlogging.info('LCD init over')BUS.write_byte(LCD_ADDR ,0x08)logging.info('LCD turning on BLight')except:return Falseelse:return Truedef clear_lcd():send_command(0x01) # Clear Screendef print_lcd(x, y, str):if x < 0:x = 0if x > 15:x = 15if y <0:y = 0if y > 1:y = 1# Move cursoraddr = 0x80 + 0x40 * y + xsend_command(addr)for chr in str:send_data(ord(chr))if __name__ == '__main__':init_lcd()print_lcd(0, 0, 'Hello, world!')print_lcd(8, 1, 'by Jerry')

程序3—logx.py（LCD驱动程序2）：

import logging
#print on log file
logging.basicConfig(level=logging.INFO,format='%(asctime)s <%(levelname)s> [line:%(lineno)d] %(filename)s : %(message)s',datefmt='%Y-%m-%d %H:%M:%S',filename='trace.log',filemode='a')#w a
#print on screem
console = logging.StreamHandler()
console.setLevel(logging.DEBUG)
formatter = logging.Formatter('%(asctime)s <%(levelname)s> [line:%(lineno)d] %(filename)s : %(message)s')
console.setFormatter(formatter)
logging.getLogger('').addHandler(console)
if __name__ == '__main__':				#CRITICAL > ERROR > WARNING > INFO > DEBUG > NOTSETlogging.critical('This is critical message')logging.error('This is error message')logging.warning('This is warning message')logging.info('This is info message')logging.debug('This is debug message')#logging.notset('This is notset message')
