| 窗名称 | 主瓣宽度 | 旁瓣相对衰减（旁瓣抑制） | 旁瓣能量占比 | 最大值（32个点时） | 最小值（32个点时） |

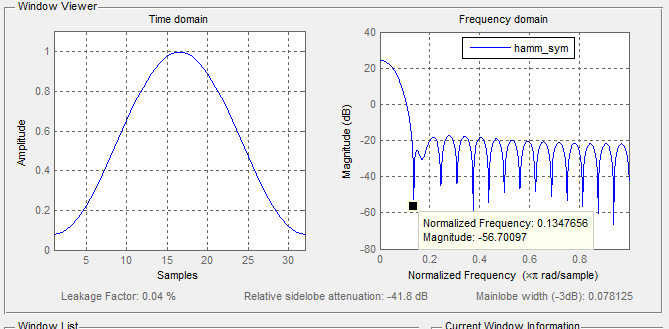

| hamming(symmetric) | 4.3125*谱线间隔 | -41.8dB | 0.04% | 0.9976 | 0.0800 |

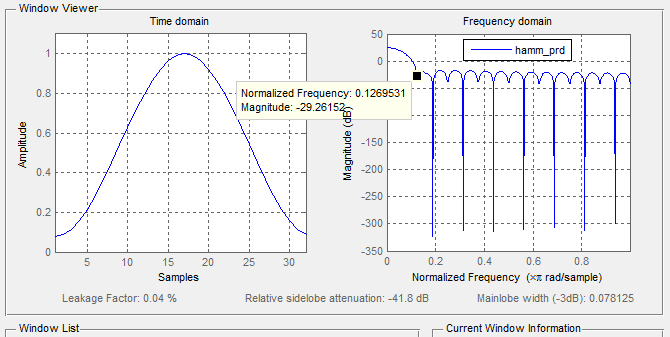

| hamming(periodic) | 4.0625*谱线间隔 | -41.8dB | 0.04% | 1 | 0.0800 |
| bartlett | 4*谱线间隔 | -26.5dB | 0.28% | 0.9677 | 0 |
| bartlett_hanning | 4.09*谱线间隔 | -35.8dB | 0.03% | 0.9903 | 0 |
| blackman(symmetric) | 6.125*谱线间隔 | -58.2dB | 0% | 0.9958 | 0 |
| blackman(periodic) | 6*谱线间隔 | -58.1dB | 0% | 1 | 0 |

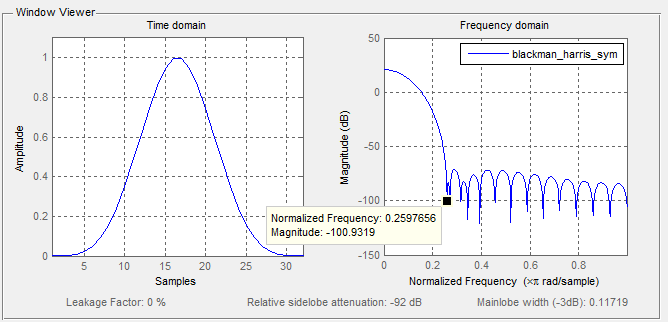

| black-harris(symmetric) | 8.31*谱线间隔 | -92dB | 0% | 0.9941 | 6e-5 |

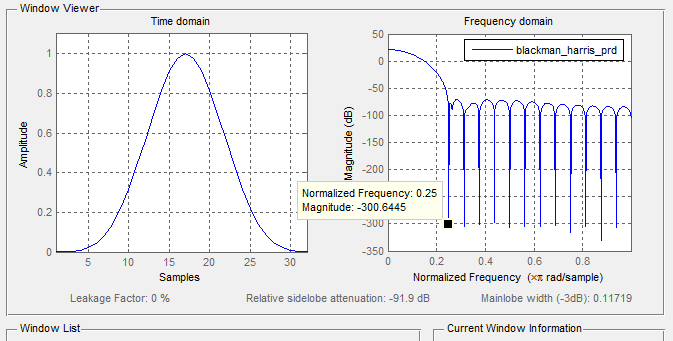

| black-harris(periodic) | 6*谱线间隔 | -91.9dB | 0% | 1 | 6e-5 |

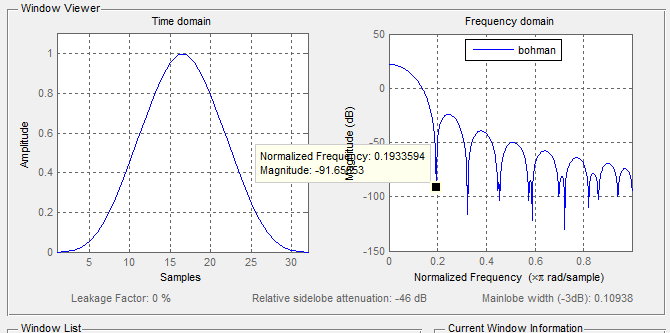

| bohman | 6.188*谱线间隔 | -46dB | 0% | 0.9950 | 0 |

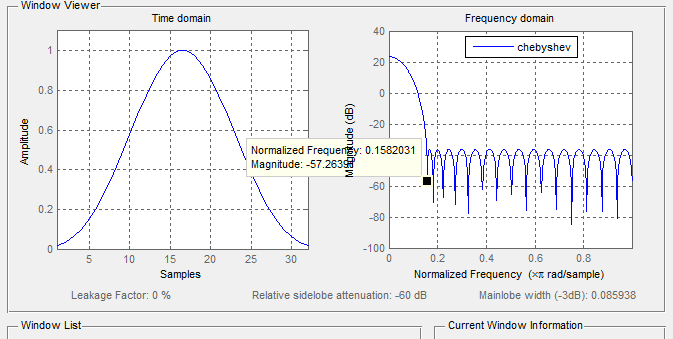

| chebyshev(60dB旁瓣衰减） | 5.0625*谱线间隔 | -60dB（可设置） | 0% | 1 | 0.0189 |

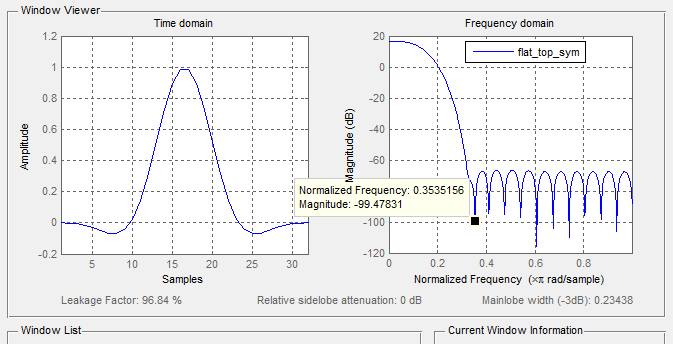

| flat_top(symmetric) | 11.3125*谱线间隔 | 0dB? | 96.84% | 0.9878 | -0.0695 |

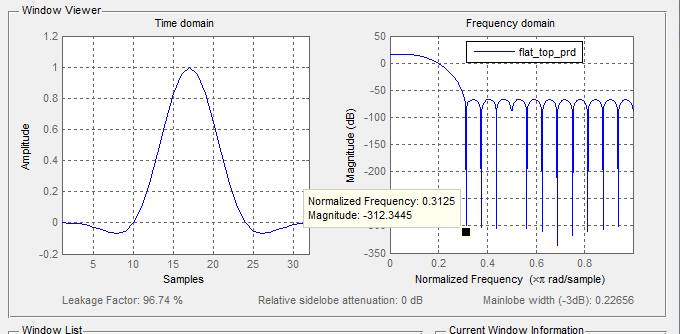

| flat_top(periodic) | 10*谱线间隔 | 0dB? | 96.74% | 1 | -0.0705 |

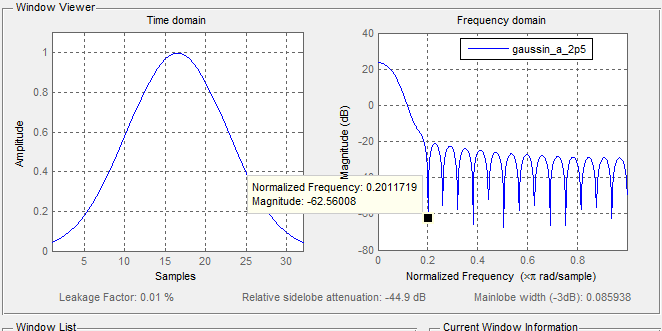

| gaussin（a=2.5) | 6.4375*谱线间隔 | -44.9dB | 0.01% | 0.9968 | 0.0439 |

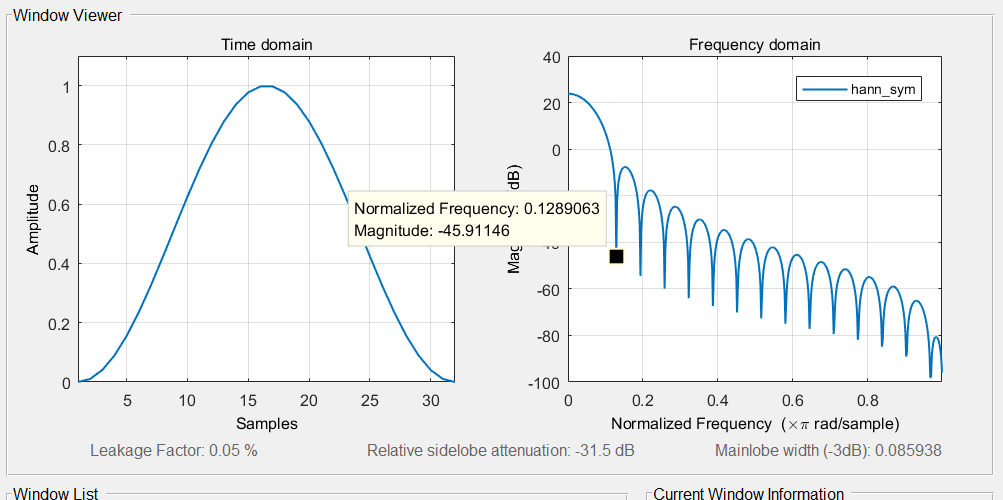

| hann(symmetric) | 4.125*谱线间隔 | -31.5dB | 0.05% | 0.9974 | 0 |

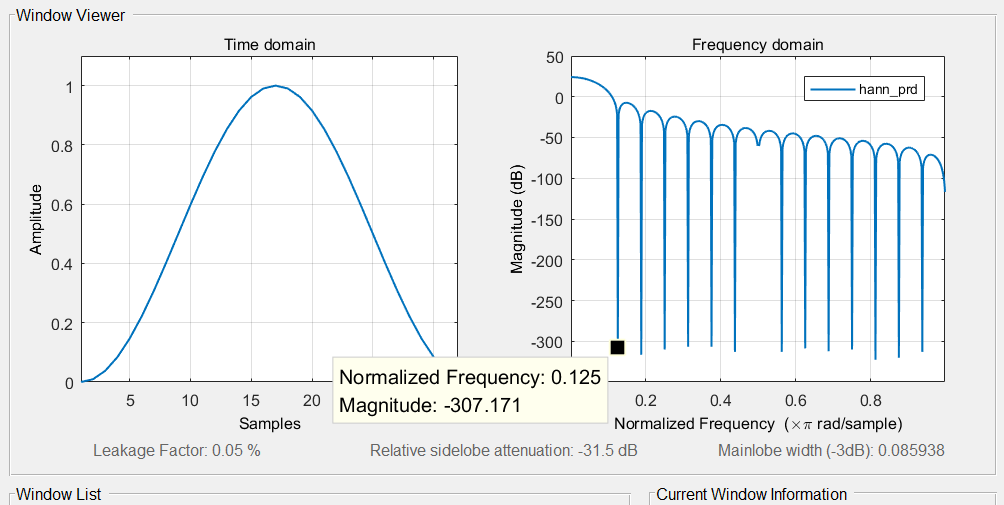

| hann(periodic) | 4*谱线间隔 | -31.5dB | 0.05% | 1 | 0 |

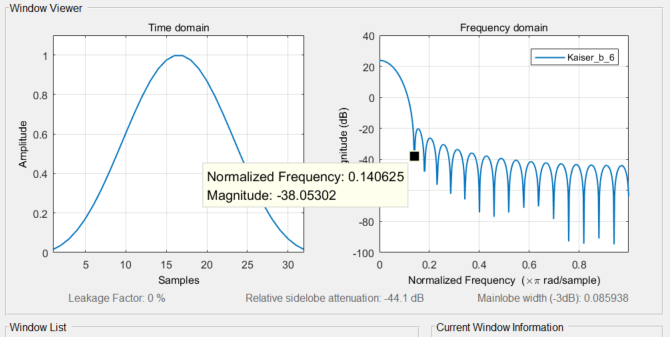

| Kaiser(β=6） | 4.4375*谱线间隔 | -44.1dB | 0% | 0.9998 | 0.0149 |

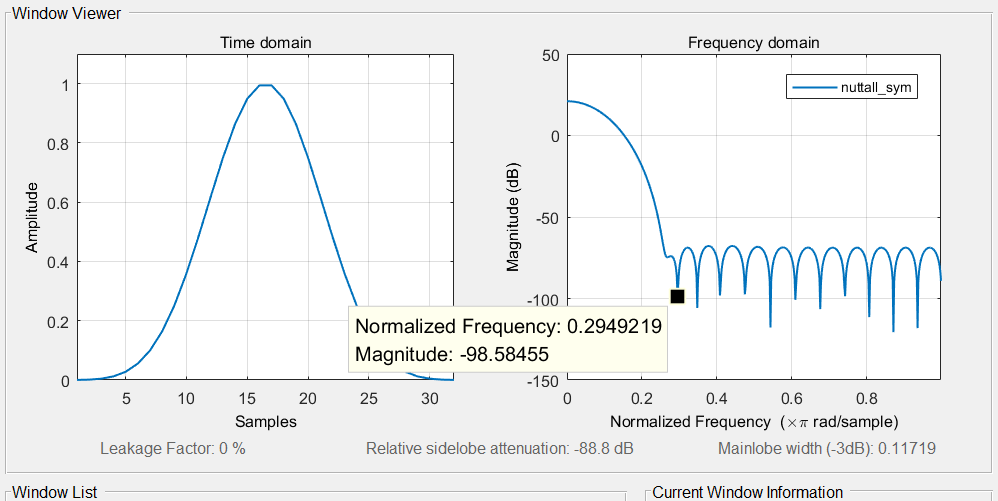

| nuttall(symmetric) | 9.4375*谱线间隔 | -88.8dB | 0% | 0.9942 | 3.628e-4 |

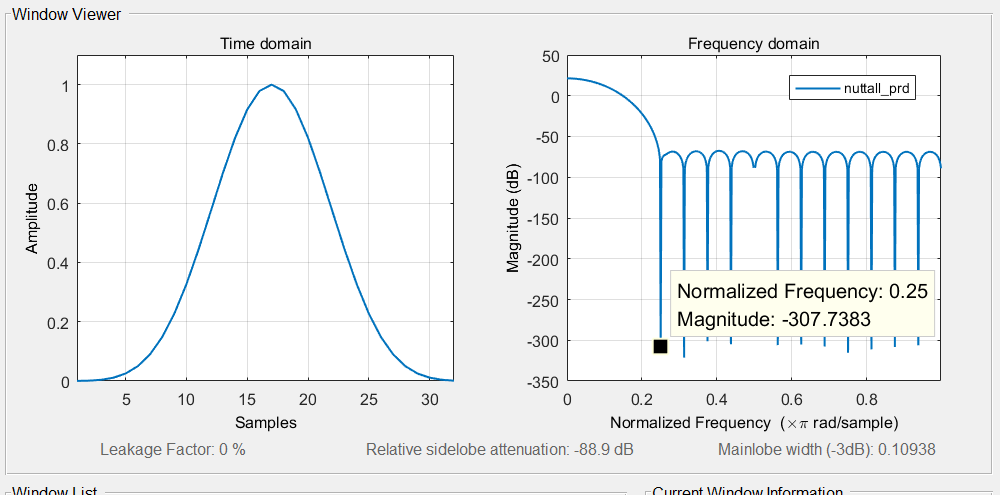

| nuttall(periodic) | 9*谱线间隔 | -88.9dB | 0% | 1 | 3.628e-4 |

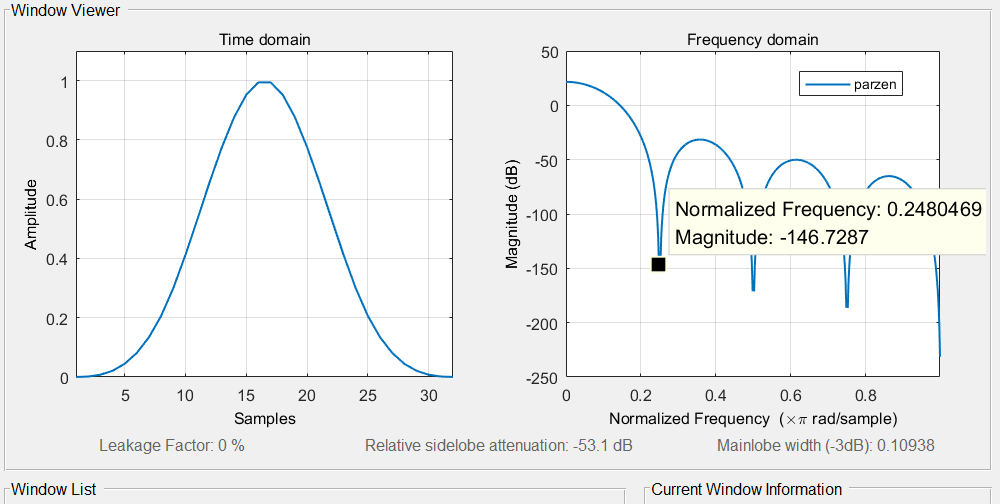

| parzen | 7.9375*谱线间隔 | -53.1dB | 0% | 0.9943 | 6.1035e-5 |

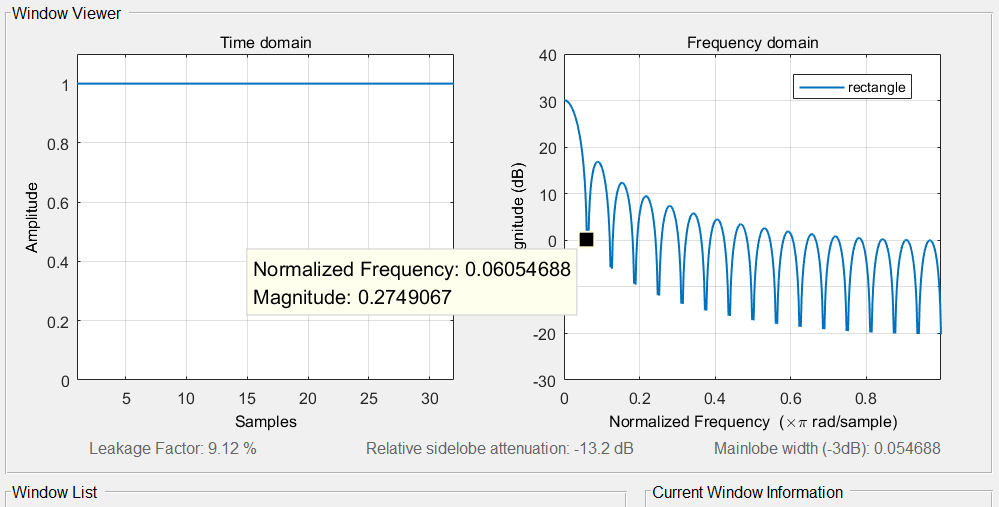

| rectangle | 1.7500*谱线间隔 | -13.2dB | 9.12% | 1 | 1 |
| taylor(nb=4, sl=50) | 4.1875*谱线间隔 | -44.2dB | 0.02% | 1.8861 | 0.1341 |

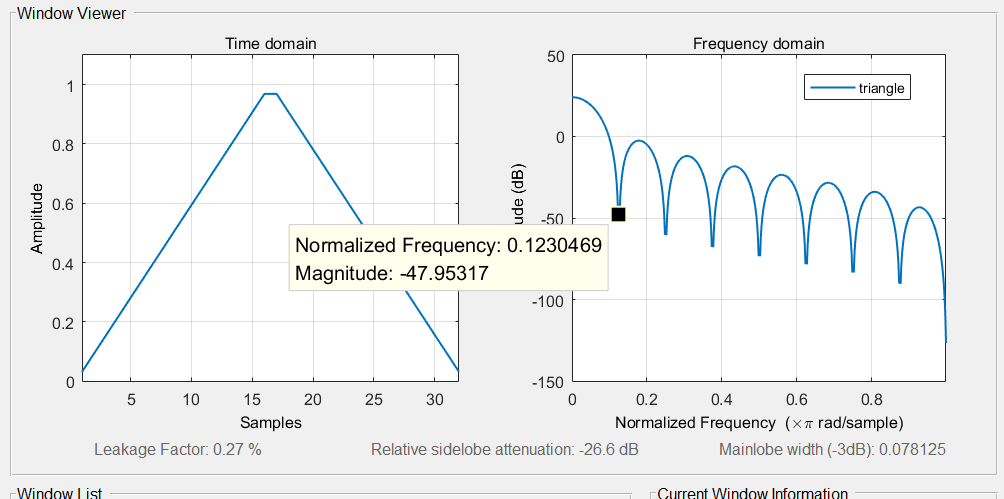

| triang | 3.9375*谱线间隔 | -26.6dB | 0.27% | 0.9688 | 0.0313 |
| tukey（a=0.5） | 2.75*谱线间隔 | -15.1dB | 3.57% | 1 | 0 |
N = 128;
hamm = hamming(N);
barthann = barthannwin(N);
bartlet = bartlett(N);%旁瓣抑制-26.5dB
blackman_sym = blackman(N,'symmetric');
blackman_prd = blackman(N,'periodic');blackman_harris_sym = blackmanharris(N,'symmetric');
blackman_harris_prd = blackmanharris(N,'periodic');
bohman_sym = bohman(N,'symmetric');
bohman_prd = bohman(N,'periodic');chebyshev_60 = chebwin(N, 60);
flat_top_sym = flattopwin(N, 'symmetric');
flat_top_prd = flattopwin(N, 'periodic');
gauss = gausswin(N,2.5);幅值恢复系数= 1/ Coherent Gain
能量恢复系数= 1/sqrt[Equivalent Noise Bandwidth x (Coherent Gain^2)]
