为什么引入IRQ-Domain

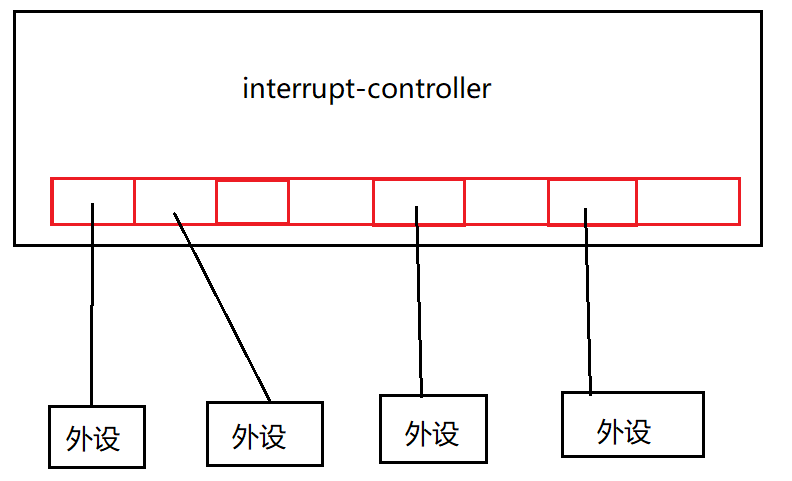

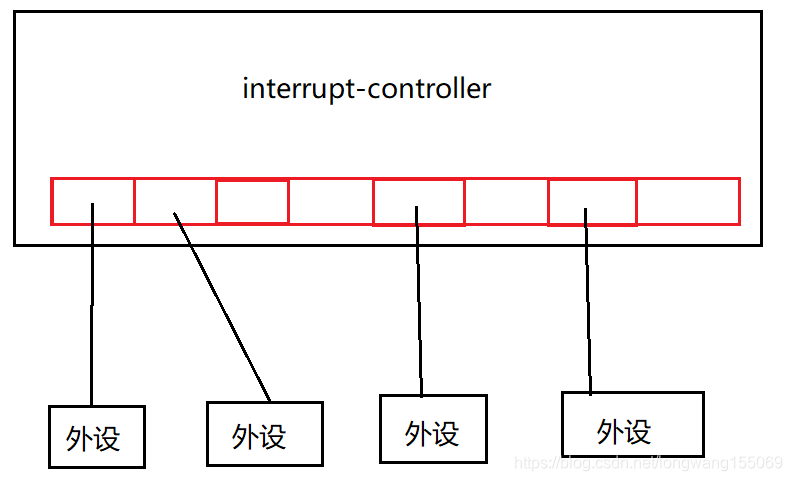

当早期的系统只存在一个interrupt-controller的时候，而且中断数目也不多的时候，一个很简单的做法就是一个中断号对应到interrupt-contoller的一个号，可以说是简单的线性映射

而当一个系统中有多个interrupt-controller的时候，而且中断号也逐渐增加。linux内核为了应对此问题，引入了IRQ-domain的概念

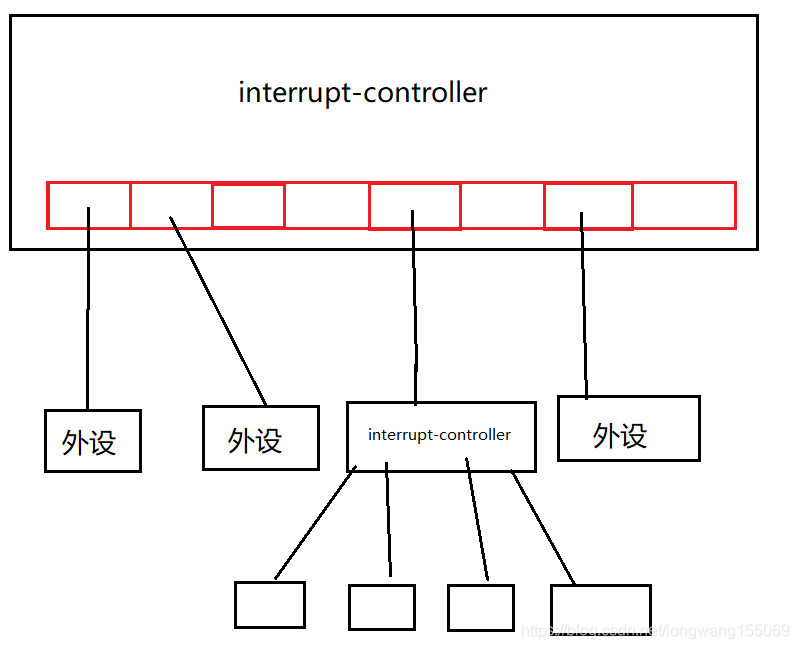

irq-domain的引入相当于一个中断控制器就是一个irq-domain。就是一个中断区域。这样一来所有的irq-contoller会出现级联的布局。

利用树状的结构可以充分的利用irq数目，而且每一个irq-domain区域可以自己去管理自己interrupt的特性

IRQ-Domain的作用

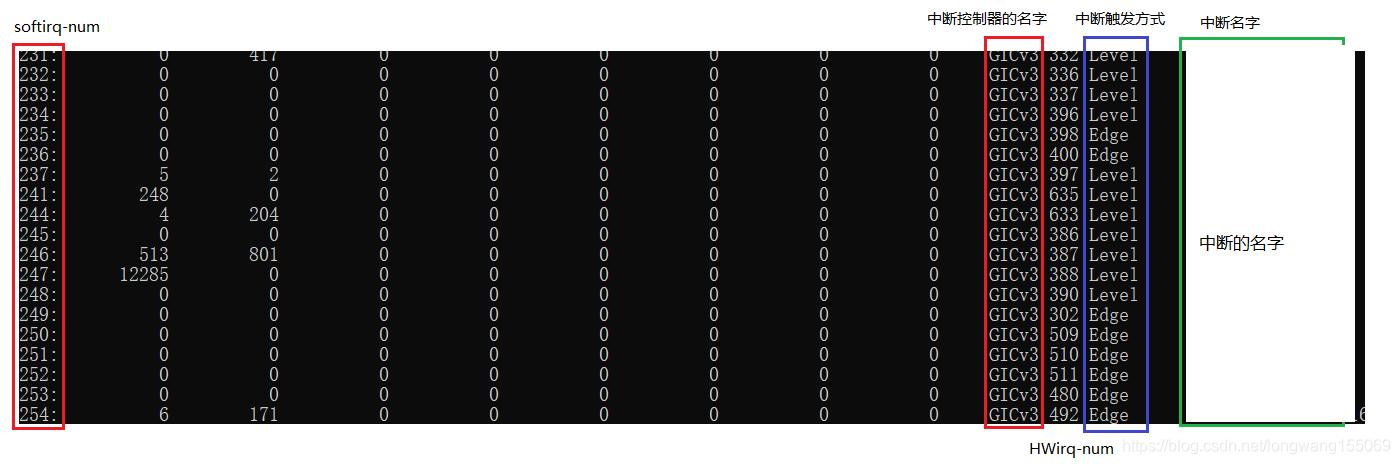

咋们通过/proc/interrupt的值来看下irq-domain的作用

从这图上可以看出，这些中断只直接连接到root-interrupt-controller的，也就是直接连接到GICv3的中断控制器上的。而Hwirq-num就是dts中配置的irq号

而第一列就是对应的softirq-num，也就是request_irq时传入的irq

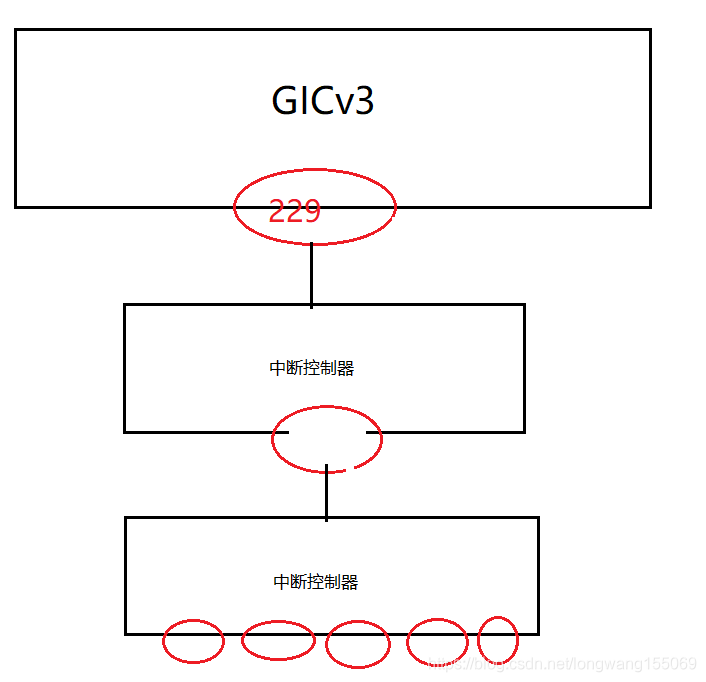

中断控制器级联的情况图

hwirq到softirq的映射

当开机之后，内核会自动将dts全部解析，然后会进行填充，对于中断使用如下函数进行解析dts，然后map

unsigned int irq_of_parse_and_map(struct device_node *dev, int index)
{struct of_phandle_args oirq;if (of_irq_parse_one(dev, index, &oirq))return 0;return irq_create_of_mapping(&oirq);
}

of_irq_parse_one会将dts中的中断信息进行解析，然后通过irq_create_of_mapping函数进行hwirq到softirq的map

首先dts中配置的中断号都是hwirq
刚开机hwirq没有对应的softirq的，所以第一次开机需要进行hwirq和softirq之间建立map

int irq_domain_alloc_descs(int virq, unsigned int cnt, irq_hw_number_t hwirq,int node, const struct cpumask *affinity)
{unsigned int hint;if (virq >= 0) {virq = __irq_alloc_descs(virq, virq, cnt, node, THIS_MODULE,affinity);} else {hint = hwirq % nr_irqs;if (hint == 0)hint++;virq = __irq_alloc_descs(-1, hint, cnt, node, THIS_MODULE,affinity);if (virq <= 0 && hint > 1) {virq = __irq_alloc_descs(-1, 1, cnt, node, THIS_MODULE,affinity);}}return virq;
}

通过上述的函数分配virq，也就是softirq

static struct irq_data *irq_domain_insert_irq_data(struct irq_domain *domain,struct irq_data *child)
{struct irq_data *irq_data;irq_data = kzalloc_node(sizeof(*irq_data), GFP_KERNEL,irq_data_get_node(child));if (irq_data) {child->parent_data = irq_data;irq_data->irq = child->irq;irq_data->common = child->common;irq_data->domain = domain;}return irq_data;
}

分配一个Irq_data结构，然后将virq设置到irq_data结构中

static void irq_domain_set_mapping(struct irq_domain *domain,irq_hw_number_t hwirq,struct irq_data *irq_data)
{if (hwirq < domain->revmap_size) {domain->linear_revmap[hwirq] = irq_data->irq;} else {mutex_lock(&domain->revmap_tree_mutex);radix_tree_insert(&domain->revmap_tree, hwirq, irq_data);mutex_unlock(&domain->revmap_tree_mutex);}
}

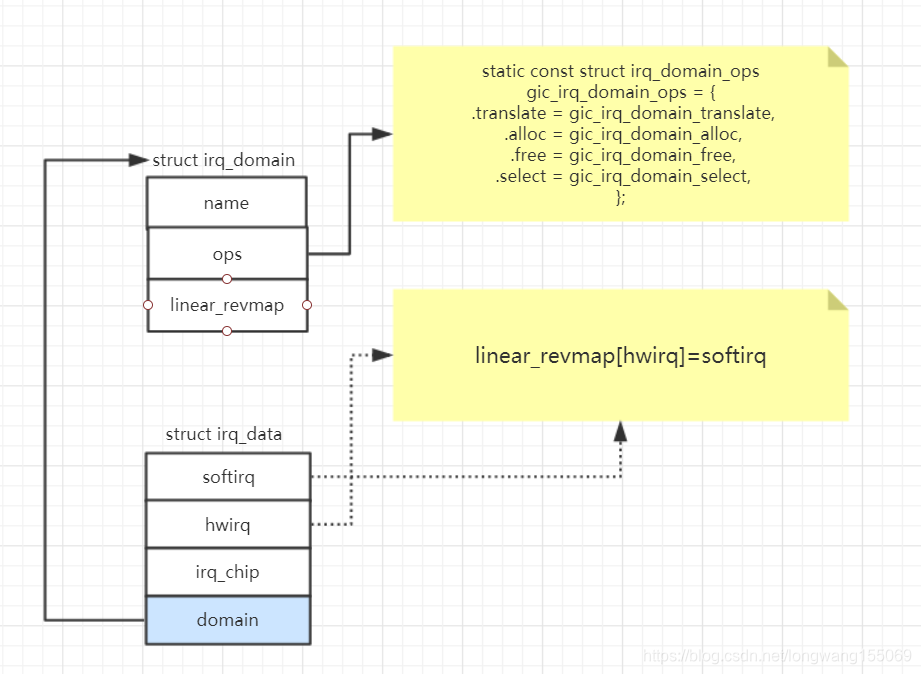

将hwirq和irq_data→irq建立映射。这里有两种映射方式一种是线性映射，一种是树形映射

irq和irq_desc的关系

在分配一个softirq的时候，其实最终也会分配一个irq_desc结构的

这里有两种管理方式，一种是通过线性固定开机固定分配好了的，一种是动态分配的

static struct irq_desc *alloc_desc(int irq, int node, unsigned int flags,const struct cpumask *affinity,struct module *owner)
{struct irq_desc *desc;desc = kzalloc_node(sizeof(*desc), GFP_KERNEL, node);if (!desc)return NULL;/* allocate based on nr_cpu_ids */desc->kstat_irqs = alloc_percpu(unsigned int);if (!desc->kstat_irqs)goto err_desc;if (alloc_masks(desc, node))goto err_kstat;raw_spin_lock_init(&desc->lock);lockdep_set_class(&desc->lock, &irq_desc_lock_class);mutex_init(&desc->request_mutex);init_rcu_head(&desc->rcu);desc_set_defaults(irq, desc, node, affinity, owner);irqd_set(&desc->irq_data, flags);kobject_init(&desc->kobj, &irq_kobj_type);return desc;err_kstat:free_percpu(desc->kstat_irqs);
err_desc:kfree(desc);return NULL;
}

开机已经分配好了的，用于irq比较少

struct irq_desc irq_desc[NR_IRQS] __cacheline_aligned_in_smp = {[0 ... NR_IRQS-1] = {.handle_irq = handle_bad_irq,.depth      = 1,.lock       = __RAW_SPIN_LOCK_UNLOCKED(irq_desc->lock),}
};

通过irq_to_desc函数来获取desc通过irq的值,两种方式

struct irq_desc *irq_to_desc(unsigned int irq)
{return radix_tree_lookup(&irq_desc_tree, irq);
}struct irq_desc *irq_to_desc(unsigned int irq)
{return (irq < NR_IRQS) ? irq_desc + irq : NULL;
}

申请中断

通过request_irq函数来设置中断的回调函数，最终会设置到Irqaction中去

int request_threaded_irq(unsigned int irq, irq_handler_t handler,irq_handler_t thread_fn, unsigned long irqflags,const char *devname, void *dev_id)
{struct irqaction *action;struct irq_desc *desc;action->handler = handler;                   //设置中断回调函数action->thread_fn = thread_fn;               //如果中断是线程化，则需要设置此回调action->flags = irqflags;action->name = devname;action->dev_id = dev_id; }

处理中断

irqreturn_t __handle_irq_event_percpu(struct irq_desc *desc, unsigned int *flags)
{irqreturn_t retval = IRQ_NONE;unsigned int irq = desc->irq_data.irq;struct irqaction *action;record_irq_time(desc);for_each_action_of_desc(desc, action) {irqreturn_t res;trace_irq_handler_entry(irq, action);res = action->handler(irq, action->dev_id);           //处理中断trace_irq_handler_exit(irq, action, res);if (WARN_ONCE(!irqs_disabled(),"irq %u handler %pF enabled interrupts\n",irq, action->handler))local_irq_disable();switch (res) {case IRQ_WAKE_THREAD:/** Catch drivers which return WAKE_THREAD but* did not set up a thread function*/if (unlikely(!action->thread_fn)) {warn_no_thread(irq, action);break;}__irq_wake_thread(desc, action);/* Fall through to add to randomness */case IRQ_HANDLED:*flags |= action->flags;break;default:break;}retval |= res;}return retval;
}
