获取数据

通过pandas_datareader来获取沪深300的股票数据，为此，先从网上爬虫得到沪深300的股票名单

import os
import pandas as pd
import pandas_datareader as web
import pickle
import requests
import bs4 as bs
import matplotlib.pyplot as plt
import numpy as np
# import tusharedef save_hs300_tickers():# resp = requests.get('https://en.wikipedia.org/wiki/List_of_S%26P_500_companies')resp = requests.get('https://zh.wikipedia.org/wiki/%E6%B2%AA%E6%B7%B1300#%E6%88%90%E4%BB%BD%E8%82%A1%E5%88%97%E8%A1%A8')soup =bs.BeautifulSoup(resp.text, "lxml")table = soup.find('table', {'class':"wikitable collapsible sortable"})tickers = []for row in table.find_all('tr')[1:]:ticker = row.find('td').textif ticker[0] == "6" :ticker = ticker + ".SS"else :ticker = ticker + ".SZ"tickers.append(ticker)with open("hs300tickers.pickle","wb") as f:pickle.dump(tickers,f)print(tickers)return tickers

之后下载数据

def get_data_from_yahoo(reload_hs300=False):if reload_hs300:tickers = save_hs300_tickers()else:with open("hs300tickers.pickle", "rb") as f:tickers = pickle.load(f)if not os.path.exists('stock_dfs'):os.makedirs('stock_dfs')start_date = dt.datetime(2010, 1, 1)end_date = dt.datetime(2020, 6, 1)for ticker in tickers[:]:print(ticker)if not os.path.exists('stock_dfs/{}.csv'.format(ticker)):df = web.DataReader(ticker,'yahoo',start_date, end_date )df.to_csv('stock_dfs/{}.csv'.format(ticker))else:print('Already have {}'.format(ticker))

这些步骤也可以用tushare完成，现在电脑里已经有了300个CSV文件，为了之后读取文件更方便，先写一个整合数据的程序

def compile_data():with open("hs300tickers.pickle", "rb") as f:tickers = pickle.load(f)main_df = pd.DataFrame()for count,ticker in enumerate(tickers):df = pd.read_csv('stock_dfs/{}.csv'.format(ticker))df.set_index('Date',inplace=True)df.rename(columns={'Adj Close': ticker}, inplace=True)df.drop(['Open', 'High', 'Low', 'Close', 'Volume'], 1, inplace=True)df.fillna(method = 'ffill')if main_df.empty:main_df = dfelse:main_df = main_df.join(df,how='outer')if count % 10 ==0:print(count)print(main_df.head())main_df.to_csv('hs300_closes.csv')

把300只股票的收盘价统一放进hs300_closes.csv中

相关系数三级目录

计算相关系数非常简单

df = pd.read_csv('hs300_closes.csv')
df = df[-700:-400]
df_corr = df.corr()

df_corr就是相关系数矩阵，可以通过下面的程序画出相关系数热力图

data = df_corr.values
fig = plt.figure()
ax = fig.add_subplot(1,1,1)heatmap = ax.pcolor(data,cmap=plt.cm.RdYlGn)
fig.colorbar(heatmap)
ax.set_xticks(np.arange(data.shape[0])+0.5, minor=False)
ax.set_yticks(np.arange(data.shape[1])+0.5, minor=False)ax.invert_yaxis()
ax.xaxis.tick_top()column_labels = df_corr.columns
row_labels = df_corr.indexax.set_xticklabels(column_labels)
ax.set_yticklabels(row_labels)heatmap.set_clim(-1,1)
plt.tight_layout()
plt.show()

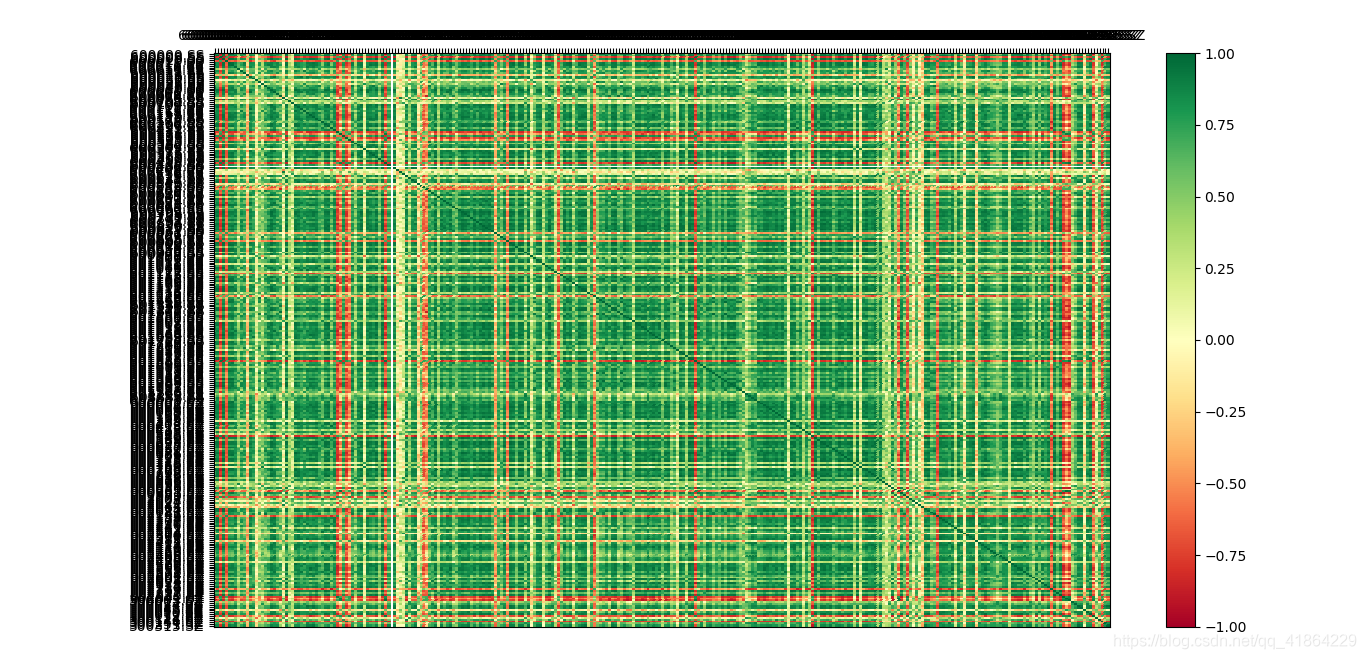

绿色代表正相关，红色代表负相关，颜色越深值越大。可以通过图有一个大致上的判断。

协整检验

两只股票价格的相关系数不能直接做为选择股票对的标准，一般要求配对的股票能够通过协整检验。协整检验是为了检验两个或多个非平稳时间序列有无因果关系。协整检验要先检验两只股票的价格时间序列是否同阶单整，本次就简化为先看两只股票的价格的一阶差分是否平稳，都单整后进行协整检验。整检验有两种方法，一种是先做回归，看残差是否平稳，这种方法叫Engel-Granger 两步协整检验法；另一种为Johansen Test 协整检验法。

import statsmodels.api as sm
from statsmodels.tsa.stattools import coint,adfullerdef cointrgration(priceX,priceY):if priceX is None or priceY is None:print('数据缺失')priceX = np.log(priceX)priceY = np.log(priceY)ret_x = np.diff(priceX)ret_y = np.diff(priceY)ret_x = ret_x[1:]ret_y = ret_y[1:]adf_x = adfuller(ret_x)adf_y = adfuller(ret_y)results = sm.OLS(priceY,sm.add_constant(priceX)).fit()spread = results.residadfSpread = adfuller(spread)if adfSpread[0]<adfSpread[4]['1%'] and adf_x[0]<adf_x[4]['1%'] and adf_y[0]<adf_y[4]['1%']:return Trueelse:return False

上面是python实现协整检验的方法，也可以用arch包进行以上操作。

聚类算法进一步筛选

一般同行业内的股票才可以进行配对交易。目前筛选股票的过程中并没有考虑到这一点，因此筛选出来的股票对中，会有一些统计意义上可以配对，但实际没有什么逻辑的股票对。所以用聚类算法对股票进行分类，筛选出适合实际操作的股票对。可以直接用sklearn库进行聚类，本次用的AP算法进行聚类，好处是不用事先给出聚类数目。

from sklearn.cluster import affinity_propagation
from sklearn.covariance import GraphicalLassoCV
def Clusters():df = pd.read_csv('hs300_diff.csv')df = df[-700:-400]df.drop(['Date'],axis=1,inplace=True)stock_dataset = np.array(df)stock_dataset = stock_dataset.copy().Tstock_dataset = stock_dataset/np.std(stock_dataset,axis=0)np.nan_to_num(stock_dataset)stock_model = GraphicalLassoCV()stock_model.fit(stock_dataset)_,labels = affinity_propagation(stock_model.covariance_)n_labels = max(labels)print('Stock Clusters: {}'.format(n_labels + 1))  # 10，即得到10个类别print(len(labels))return labels

完整的筛选股票对程序如下

def filter_data():df = pd.read_csv('hs300_closes.csv')df = df[-700:-400]df_corr = df.corr()pair_list=[]pair_SSD=[]pair_corr=[]tickers = df_corr.columnslabels = Clusters()for i in range(0,300):for j in range(i,300):corr = df_corr.iloc[i,j]if corr > 0.95:if labels[i]  ==labels[j]:priceX = df[str(tickers[i])].valuespriceY = df[str(tickers[j])].valuesif cointrgration(priceX ,priceY ):pair_list.append((tickers[i],tickers[j]))pair_SSD.append(SSD(priceX,priceY))pair_corr.append(corr)data = pd.DataFrame([pair_list,pair_corr,pair_SSD],index=['pair','corr','SSd'])return data

回测

对筛选出来的股票，在聚宽进行回测，采用标准的布林带策略，回测结果如下
