讲完了anchor机制，接下来我们讲RPN(region proposal network)区域候选网络，它的作用是为了得到候选框。
先看以下内容：
faster rcnn结构及代码讲解

原理解释

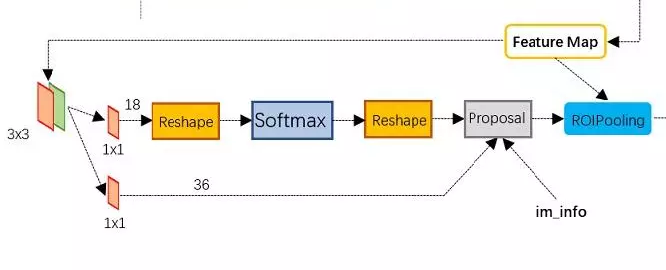

Feature Map进入RPN后，先经过一次33的卷积，同样，特征图大小依然是6040,数量512，这样做的目的应该是进一步集中特征信息，接着看到两个全卷积,即kernel_size=1*1,p=0,stride=1;

如上图中标识：

① rpn_cls：60*40*512-d ⊕ 1*1*512*18 ==> 60*40*9*2
逐像素对其9个Anchor box进行二分类

② rpn_bbox：60*40*512-d ⊕ 1*1*512*36==>60*40*9*4
逐像素得到其9个Anchor box四个坐标信息（其实是偏移量，后面介绍）

如下图所示：

代码解析

这段代码基本上就是第一张图，代码注意看注释：

def _region_proposal(self, net_conv, is_training, initializer):rpn = slim.conv2d(net_conv, cfg.RPN_CHANNELS, [3, 3], trainable=is_training, weights_initializer=initializer,scope="rpn_conv/3x3")#cfg.RPN_CHANNELS = 512, 3*3卷积处理,cfg.RPN_CHANNELS = 512,output shape=(1, 60, 40, 512)self._act_summaries.append(rpn)#可视化保存rpn_cls_score = slim.conv2d(rpn, self._num_anchors*2, [1, 1], trainable=is_training,weights_initializer=initializer,padding='VALID', activation_fn=None, scope='rpn_cls_score')#1*1卷积处理,分类,是否为前景,self._num_anchors=9,ouput shape=(1, 60, 40, 18)rpn_cls_score_reshape = _reshape_layer(self, rpn_cls_score, 2, 'rpn_cls_score_reshape')#后面需要进行softmax和argmax# change it so that the score has 2 as its channel size#shape=(1, 540, 40, 2),540=9*60#该函数后面有详细讲解rpn_cls_prob_reshape = _softmax_layer(self, rpn_cls_score_reshape, "rpn_cls_prob_reshape")#(1, 540, 40, 2)#该函数后面有详细讲解rpn_cls_pred = tf.argmax(tf.reshape(rpn_cls_score_reshape, [-1, 2]), axis=1, name="rpn_cls_pred")#tf.reshape=>shape=(21600, 2)  output shape=(21600,)rpn_cls_prob = self._reshape_layer(rpn_cls_prob_reshape, self._num_anchors * 2, "rpn_cls_prob")#shape=(1, 60, 40, 18)#该函数后面有详细讲解rpn_bbox_pred = slim.conv2d(rpn, self._num_anchors * 4, [1, 1], trainable=is_training,weights_initializer=initializer,padding='VALID', activation_fn=None, scope='rpn_bbox_pred')# shape=(1, 60, 40, 36), 注意这里预测的不是 left, bottom, right, top而是anchor与真实框之间的误差值。if is_training:rois, roi_scores = self._proposal_layer(rpn_cls_prob, rpn_bbox_pred, "rois")#输出roi shape=(1*60*40*9,5)以及roi_scores shape=(1*60*40*9,1)#该函数后面有详细讲解rpn_labels = self._anchor_target_layer(rpn_cls_score, "anchor")#rpn_cls_score 在这个函数，只提取了它的H,W# Try to have a deterministic order for the computing graph, for reproducibility#这个函数主要生成标签#该函数后面有详细讲解with tf.control_dependencies([rpn_labels]):rois, _ = self._proposal_target_layer(rois, roi_scores, "rpn_rois")#该函数后面有详细讲解else:if cfg.TEST.MODE == 'nms':rois, _ = self._proposal_layer(rpn_cls_prob, rpn_bbox_pred, "rois")elif cfg.TEST.MODE == 'top':rois, _ = self._proposal_top_layer(rpn_cls_prob, rpn_bbox_pred, "rois")else:raise NotImplementedErrorself._predictions["rpn_cls_score"] = rpn_cls_scoreself._predictions["rpn_cls_score_reshape"] = rpn_cls_score_reshapeself._predictions["rpn_cls_prob"] = rpn_cls_probself._predictions["rpn_cls_pred"] = rpn_cls_predself._predictions["rpn_bbox_pred"] = rpn_bbox_predself._predictions["rois"] = roisreturn rois

以上代码得到了6个后续主要所需值：
1.rpn_cls_score：分类分数，shape=(1, 60, 40, 2*9)
2.rpn_cls_score_reshape：分类分数，shape=(1, 540, 40, 2)
3.rpn_cls_prob：分类分概率，shape=(1, 60, 40, 18)
4.rpn_cls_pred：分类预测，shape=(21600, 2)
5.rpn_bbox_pred：shape=(1, 60, 40, 36)，输出框,输出形式为[$\Delta x$,$\Delta y$,$\Delta w$,$\Delta h$],为误差值。误差值的计算方式：
  anchor box: 中心点位置坐标$x_a$,$y_a$和宽高$w_a$,$h_a$
  ground truth(真实框):标定的框也对应一个中心点位置坐标$x^{\ast }$,$y^{\ast }$和宽高$w^{\ast }$,$h^{\ast }$
  所以，偏移量：
  $\Delta x=(x^{\ast }-x_a)/h_a$ ，$\Delta y=(y^{\ast }-y_a)/h_a$
  $\Delta w=log(w^{\ast }/w_a)$， $\Delta h=log(h^{\ast }/h_a)$
6.rois：

深入代码解析

  同时，这段代码有5个函数需要深入了解以下：
1._reshape_layer：改变输入层的shape
2._softmax_layer：进行softmax
3._proposal_layer：提取ROI
4._anchor_target_layer：打标签
5._proposal_target_layer：打标签
  前两篇博客，将在本篇博客进行讲解，后三个点链接

1._reshape_layer

  def _reshape_layer(self, bottom, num_dim, name):input_shape = tf.shape(bottom)with tf.variable_scope(name) as scope:# change the channel to the caffe format#之所以怎么做，是想把第3维度和第1维放在一起好做做个处理to_caffe = tf.transpose(bottom, [0, 3, 1, 2])# then force it to have channel 2#注意看tf.concat里面，num_dim为输入值，-1自己算reshaped = tf.reshape(to_caffe,tf.concat(axis=0, values=[[1, num_dim, -1], [input_shape[2]]]))# then swap the channel backto_tf = tf.transpose(reshaped, [0, 2, 3, 1])return to_tf#以下我们举个栗子：shape的前后变化(1, 60, 40, num_dim*9)=>(1, 60*9, 40, num_dim)

2._softmax_layer

  def _softmax_layer(self, bottom, name):if name.startswith('rpn_cls_prob_reshape'):#rpn_cls_prob_reshape层进入if语句，因为需要变形，再softmaxinput_shape = tf.shape(bottom)bottom_reshaped = tf.reshape(bottom, [-1, input_shape[-1]])#(1, 540, 40, 2)=>(1*540*40, 2)reshaped_score = tf.nn.softmax(bottom_reshaped, name=name)return tf.reshape(reshaped_score, input_shape)return tf.nn.softmax(bottom, name=name)

其实就是简单的softmax语句其中有一个if语句

3._proposal_layer
主要进行了box的修正（通过我们预测的误差值），nms的筛选和超出原图的裁剪。详细见：
https://blog.csdn.net/m0_37663944/article/details/103728902

4._anchor_target_layer
主要根据真实框与anchor的iou值进行了筛选，打标签（分类0,1，然后得出回归预测的误差值等）。这一部分得出的值是用来训练的，训练RPN(也就是得到roi的网络)
https://blog.csdn.net/m0_37663944/article/details/103735094

5._proposal_target_layer
https://blog.csdn.net/m0_37663944/article/details/103737373
这个函数主要根据_proposal_layer函数得到的roi与真实框得到iou，进行筛选，打标签（分类0,1，然后得出回归预测的误差值），和上面的_anchor_target_layer有以下不同：
1.它是用来训练最终的分类回归的，不在本篇博客的图中。
