先说最小二乘。

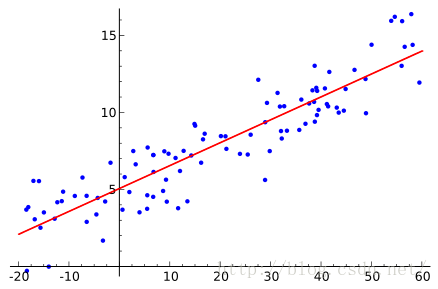

ok，你手头有一堆数据，比如这些蓝点：
那么我们假设它符合一个直线模型：y=ax+b，用最小二乘就可以很容易求解出未知参数a和b。最小二乘大法确实好哇，毕竟高斯用它来估计谷神星的轨道（https://math.berkeley.edu/~mgu/MA221/Ceres_Presentation.pdf；http://www.cnblogs.com/washa/p/3164212.html）。

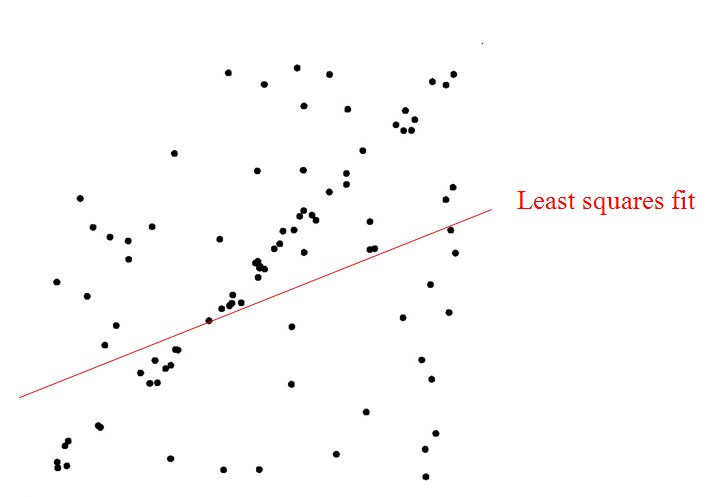

但是，当你的数据充满了噪声时，比如下面图中的黑点，很明显中间有一条妥妥的直线，但是你也用最小二乘去解它，于是悲剧了：
很显然最小二乘失效了，这时候我们就要用RANSAC去解决它。
RANSAC的使用条件是：
1.输入是一组带污染的观测数据，其中的可信数据占了大多数；
2.有一个可以解释可信观测数据的参数化模型
RANSAC的思想是（引自wiki，汉化部分有修改）：
- Select a random subset of the original data. Call this subset the hypothetical inliers. 从观测数据中随机选择一个子集，称之为hypothetical inliers。
- A model is fitted to the set of hypothetical inliers.估计出适合于这些个hypothetical inliers的模型
- All other data are then tested against the fitted model. Those points that fit the estimated model well, according to some model-specific loss function, are considered as part of the consensus set. 用这个模型测试其他的数据，根据损失函数，得到符合这个模型的点，称为一致性集合：consensus set。
- The estimated model is reasonably good if sufficiently many points have been classified as part of the consensus set. 如果足够多的数据都被归类于一致性集合，那么说明这个估计的模型是正确的；如果这个集合中的数据太少，那么说明模型不合适，弃之，返回第一步。
- Afterwards, the model may be improved by reestimating it using all members of the consensus set.最后，根据一致性集合中的数据（可以认为是可靠的数据了），用最小二乘的方法重新估计模型。

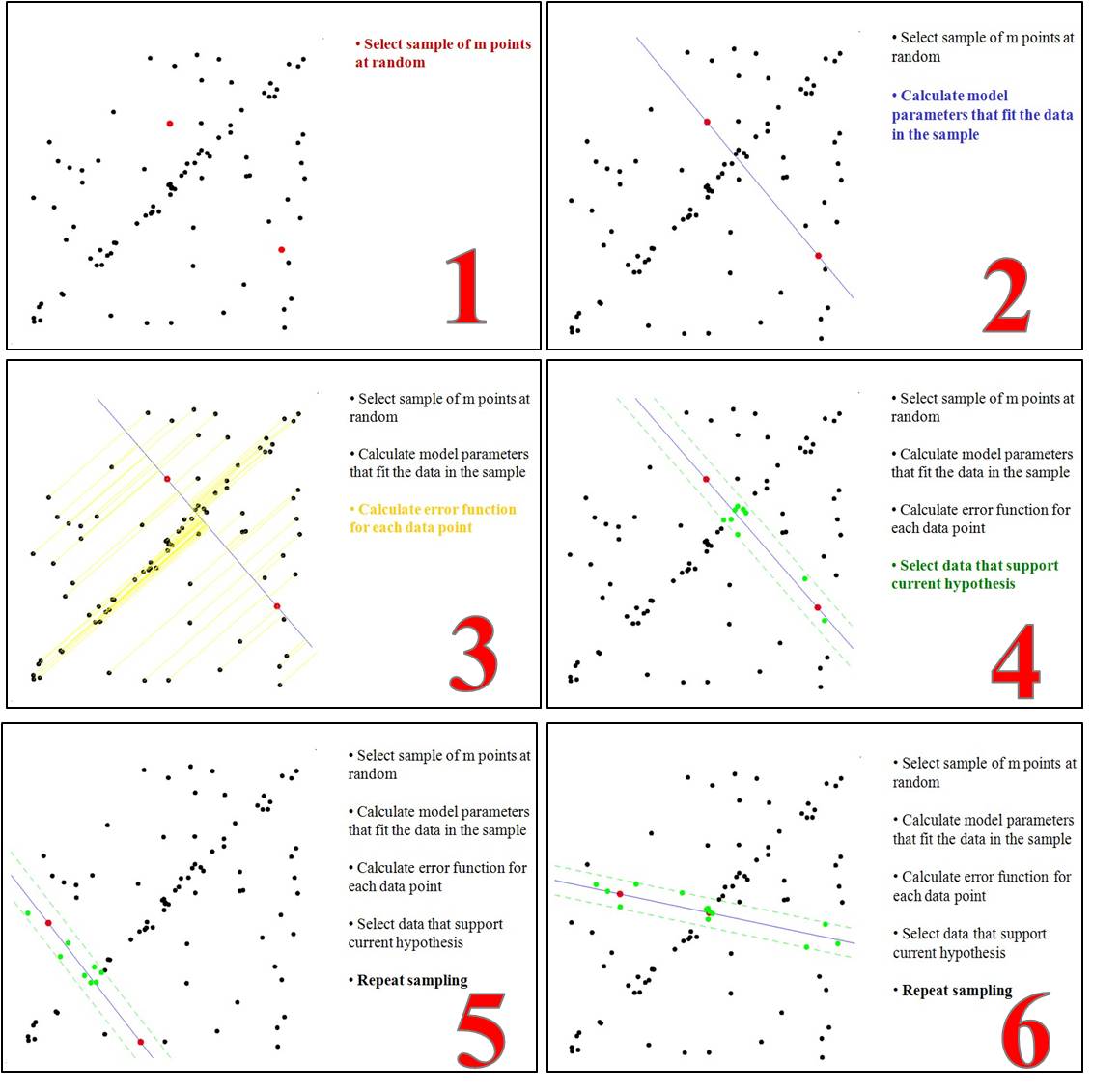

根据上述思想，如果不停的迭代，就会得到一个最优的模型。如下图所示：
RANSAC有什么用？

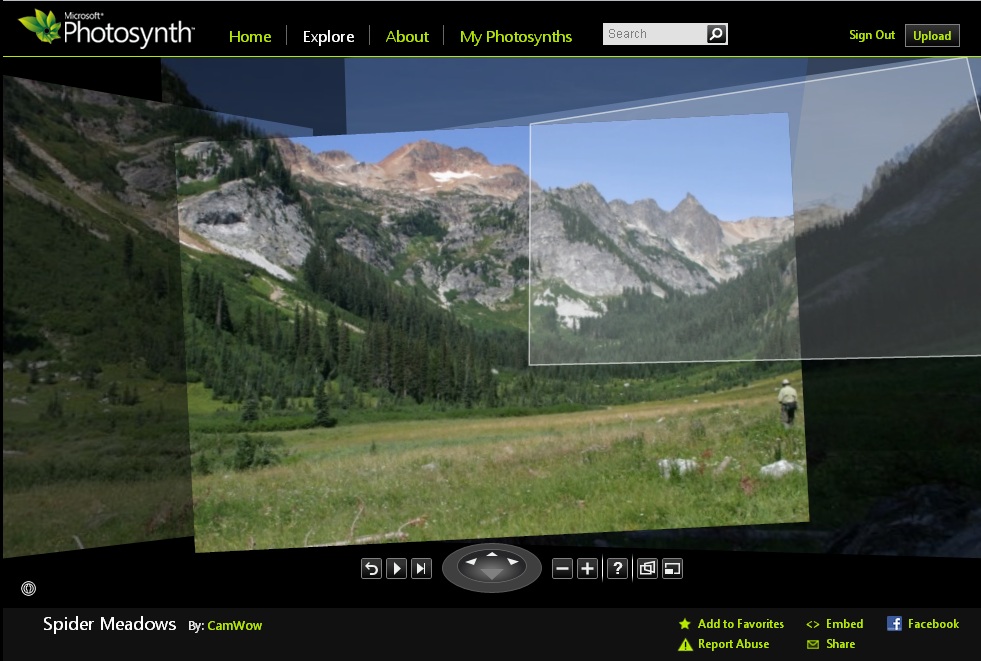

可以用于图像拼接，如果你年纪比较大，应该记得Microsoft有一款叫photosynth的产品：
怎么用RANSAC拼接呢？
图像和图像之间的关系可以用一个单应性矩阵描述，即x1=H*x2。
x1和x2就是同名点齐次坐标向量，我们可以用SIFT或SURF算子找到：
但是可以看出，虽然大部分匹配是正确的，但有一些匹配是错误，这些同名点就构成了“受污染的观测数据”，也是RANSAC的适用条件。
用RANSAC估计H的步骤如下（参考http://eric-yuan.me/ransac/）：
- Select four feature pairs (at random) 随机找4对特征点
- Compute homography H 计算H
- Compute inliers where ||pi’, H pi|| < ε (if not enough times, goto 1.) 找到符合H的inliers
- Keep largest set of inliers 直到这个H有最多的inliers
- Re-compute least-squares H estimate using all of the inliers 用inliers和最小二乘重新估计H
同名点齐次坐标和H的关系可以写为：
4个点对正好构成唯一解，http://eric-yuan.me/ransac/中用QR分解的方法求出H。不停迭代，直到求出最终的inliers，到第5步用最小二乘求解H时，可以用SVD分解（http://blog.csdn.net/dsbatigol/article/details/9625211）。
基于OpenCV的图像拼接的代码在这里：https://ramsrigoutham.com/tag/ransac/，随手贴上来，并感谢作者：
#include <stdio.h>
#include <iostream>#include "opencv2/core/core.hpp"
#include "opencv2/features2d/features2d.hpp"
#include "opencv2/highgui/highgui.hpp"
#include "opencv2/nonfree/nonfree.hpp"
#include "opencv2/calib3d/calib3d.hpp"
#include "opencv2/imgproc/imgproc.hpp"using namespace cv;void readme();/** @function main */
int main( int argc, char** argv )
{if( argc != 3 ){ readme(); return -1; }// Load the imagesMat image1= imread( argv[2] );Mat image2= imread( argv[1] );Mat gray_image1;Mat gray_image2;// Convert to GrayscalecvtColor( image1, gray_image1, CV_RGB2GRAY );cvtColor( image2, gray_image2, CV_RGB2GRAY );imshow("first image",image2);imshow("second image",image1);if( !gray_image1.data || !gray_image2.data ){ std::cout<< " --(!) Error reading images " << std::endl; return -1; }//-- Step 1: Detect the keypoints using SURF Detectorint minHessian = 400;SurfFeatureDetector detector( minHessian );std::vector< KeyPoint > keypoints_object, keypoints_scene;detector.detect( gray_image1, keypoints_object );detector.detect( gray_image2, keypoints_scene );//-- Step 2: Calculate descriptors (feature vectors)SurfDescriptorExtractor extractor;Mat descriptors_object, descriptors_scene;extractor.compute( gray_image1, keypoints_object, descriptors_object );extractor.compute( gray_image2, keypoints_scene, descriptors_scene );//-- Step 3: Matching descriptor vectors using FLANN matcherFlannBasedMatcher matcher;std::vector< DMatch > matches;matcher.match( descriptors_object, descriptors_scene, matches );double max_dist = 0; double min_dist = 100;//-- Quick calculation of max and min distances between keypointsfor( int i = 0; i < descriptors_object.rows; i++ ){ double dist = matches[i].distance;if( dist < min_dist ) min_dist = dist;if( dist > max_dist ) max_dist = dist;}printf("-- Max dist : %f \n", max_dist );printf("-- Min dist : %f \n", min_dist );//-- Use only "good" matches (i.e. whose distance is less than 3*min_dist )std::vector< DMatch > good_matches;for( int i = 0; i < descriptors_object.rows; i++ ){ if( matches[i].distance < 3*min_dist ){ good_matches.push_back( matches[i]); }}std::vector< Point2f > obj;std::vector< Point2f > scene;for( int i = 0; i < good_matches.size(); i++ ){//-- Get the keypoints from the good matchesobj.push_back( keypoints_object[ good_matches[i].queryIdx ].pt );scene.push_back( keypoints_scene[ good_matches[i].trainIdx ].pt );}// Find the Homography MatrixMat H = findHomography( obj, scene, CV_RANSAC );// Use the Homography Matrix to warp the imagescv::Mat result;warpPerspective(image1,result,H,cv::Size(image1.cols+image2.cols,image1.rows));cv::Mat half(result,cv::Rect(0,0,image2.cols,image2.rows));image2.copyTo(half);imshow( "Result", result );waitKey(0);return 0;}/** @function readme */void readme(){ std::cout << " Usage: Panorama < img1 > < img2 >" << std::endl; }最后提一句，RANSAC称为RANdom SAmple Consensus，即随机采样一致算法，发表于1981：
- Martin A. Fischler & Robert C. Bolles (June 1981). "Random Sample Consensus: A Paradigm for Model Fitting with Applications to Image Analysis and Automated Cartography" (PDF).
