深度学习 — VOC 数据集 & 处理工具类

一、数据集简介

VOC数据集官网

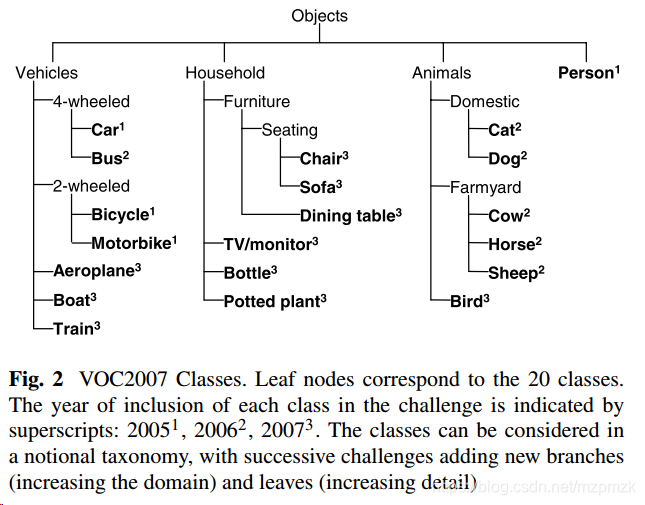

PASCAL VOC 2007 和 2012 数据集总共分 4 个大类：vehicle、household、animal、person，总共 20 个小类（加背景 21 类），预测的时候是只输出下图中黑色粗体的类别：

二、数据集内容

目录结构：

以VOC2012数据集为例，数据集下载后解压得到一个名为VOCdevkit的文件夹，该文件夹结构如下：

.
└── VOCdevkit     #根目录└── VOC2012   #不同年份的数据集，这里只列举了2012的，还有2007等其它年份的├── Annotations        # 存放的是数据集标签文件，xml格式，与JPEGImages中的图片一一对应├── ImageSets          # 数据集的划分文件，txt格式，txt文件中每一行包含一个图片的名称，末尾会加上±1表示正负样本│   ├── Action│   ├── Layout│   ├── Main			│   └── Segmentation├── JPEGImages         # 存放的是数据集图片├── SegmentationClass  # 存放的是图片，语义分割相关└── SegmentationObject # 存放的是图片，实例分割相关

以下将介绍每个文件夹的内容。

1. Annotations

简介：

Annotation文件夹存放的是 xml 格式的标签文件，每个 xml 文件都对应于 JPEGImages 文件夹的一张同名的图片。
其中 xml 主要介绍了对应图片的基本信息，如来自那个文件夹、文件名、来源、图像尺寸以及图像中包含哪些目标以及目标的信息等等，内容如下：

<annotation><folder>VOC2012</folder><filename>2007_000027.jpg</filename><source><database>The VOC2007 Database</database><annotation>PASCAL VOC2007</annotation><image>flickr</image></source><size><width>486</width><height>500</height><depth>3</depth></size><segmented>0</segmented><object><name>person</name><pose>Unspecified</pose><truncated>0</truncated><difficult>0</difficult><bndbox><xmin>174</xmin><ymin>101</ymin><xmax>349</xmax><ymax>351</ymax></bndbox><part><name>head</name><bndbox><xmin>169</xmin><ymin>104</ymin><xmax>209</xmax><ymax>146</ymax></bndbox></part><part><name>hand</name><bndbox><xmin>278</xmin><ymin>210</ymin><xmax>297</xmax><ymax>233</ymax></bndbox></part><part><name>foot</name><bndbox><xmin>273</xmin><ymin>333</ymin><xmax>297</xmax><ymax>354</ymax></bndbox></part><part><name>foot</name><bndbox><xmin>319</xmin><ymin>307</ymin><xmax>340</xmax><ymax>326</ymax></bndbox></part></object>
</annotation>

1) VOC 数据集类别统计

python代码：

# !/usr/bin/env python
# encoding: utf-8
'''
@Author  : pentiumCM
@Email   : 842679178@qq.com
@Software: PyCharm
@File    : voc_label_statistics.py
@Time    : 2020/12/4 23:56
@desc	 : VOC 数据集类别统计
'''import xml.dom.minidom as xmldom
import osdef voc_label_statistics(annotation_path):'''VOC 数据集类别统计:param annotation_path: voc数据集的标签文件夹:return: {'class1':'count',...}'''count = 0annotation_names = [os.path.join(annotation_path, i) for i in os.listdir(annotation_path)]labels = dict()for names in annotation_names:names_arr = names.split('.')file_type = names_arr[-1]if file_type != 'xml':continuefile_size = os.path.getsize(names)if file_size == 0:continuecount = count + 1print('process：', names)xmlfilepath = namesdomobj = xmldom.parse(xmlfilepath)# 得到元素对象elementobj = domobj.documentElement# 获得子标签subElementObj = elementobj.getElementsByTagName("object")for s in subElementObj:label = s.getElementsByTagName("name")[0].firstChild.datalabel_count = labels.get(label, 0)labels[label] = label_count + 1print('文件标注个数：', count)return labelsif __name__ == '__main__':annotation_path = "F:/develop_code/python/ssd-pytorch/VOCdevkit/VOC2007/Annotations"label = voc_label_statistics(annotation_path)print(label)

2) VOC 标注文件解析

简介：

将 VOC 数据集的标注汇总到 txt 中，（train.txt，val.txt，test.txt — 分别对应训练集，验证集，测试集）

如下图所示：每一行代表 一张图片的路径 以及 对应的标注框（xyxy）和 label

python代码：

#!/usr/bin/env python
# encoding: utf-8
'''
@Author  : pentiumCM
@Email   : 842679178@qq.com
@Software: PyCharm
@File    : voc_annotation.py
@Time    : 2020/11/25 16:54
@desc	 : VOC 标注文件处理
'''import os
import xml.etree.ElementTree as ETdef convert(size, box):"""VOC 的标注转为 yolo的标注，即 xyxy -> xywh:param size: 图片尺寸 (w, h):param box: 标注框（xyxy）:return:"""dw = 1. / size[0]dh = 1. / size[1]# 中心点坐标x = (box[0] + box[2]) / 2.0y = (box[1] + box[3]) / 2.0# 宽高w = box[2] - box[0]h = box[3] - box[1]# 归一化x = x * dww = w * dwy = y * dhh = h * dhreturn (x, y, w, h)def xml_annotation(Annotations_path, image_id, out_file, classes, label_type):"""解析 VOC 的 xml 标注文件，汇总到 txt 文件中:param Annotations_path     数据集标注文件夹:param image_id:            对应于每张图片标注的索引:param out_file:            汇总数据集标注 的输出文件:param classes:             数据集类别:param label_type:          标注解析方式：xyxy / xywh:return:"""# 做该校验，为了方便对背景进行训练annotation_filepath = os.path.join(Annotations_path, image_id + '.xml')file_size = os.path.getsize(annotation_filepath)if file_size > 0:in_file = open(os.path.join(Annotations_path, '%s.xml' % image_id), encoding='utf-8')tree = ET.parse(in_file)root = tree.getroot()size = root.find('size')w = int(size.find('width').text)h = int(size.find('height').text)for obj in root.iter('object'):difficult = obj.find('difficult').textcls = obj.find('name').textif cls not in classes or int(difficult) == 1:continuecls_id = classes.index(cls)xmlbox = obj.find('bndbox')b = (int(float(xmlbox.find('xmin').text)),int(float(xmlbox.find('ymin').text)),int(float(xmlbox.find('xmax').text)),int(float(xmlbox.find('ymax').text)))b_box = bif label_type == 'xywh':# 标注格式：x,y,w,h,labelb_box = convert((w, h), b)elif label_type == 'xyxy':# 标注格式：x,y,x,y,labelpass# yolo: out_file.write(str(cls_id) + " " + " ".join([str(a) for a in b_box]) + '\n')out_file.write(" " + ",".join([str(a) for a in b_box]) + ',' + str(cls_id))def convert_annotation(dataset_path, classes, label_type='xyxy'):"""2. 处理标注结果：汇总数据集标注到 txt:param dataset_path     VOC 数据集路径:param classes:         VOC 数据集标注类别:param label_type:      标注解析方式：xyxy / xywh:return:"""JPEGImages_path = os.path.join(dataset_path, 'JPEGImages')Annotations_path = os.path.join(dataset_path, 'Annotations')ImageSets_path = os.path.join(dataset_path, 'ImageSets')assert os.path.exists(JPEGImages_path)assert os.path.exists(Annotations_path)assert os.path.exists(ImageSets_path)sets = ['train', 'test', 'val']for image_set in sets:# 数据集划分文件：ImageSets/Main/train.txtds_divide_file = os.path.join(ImageSets_path, 'Main', '%s.txt' % (image_set))# （训练，验证，测试集）数据集索引image_ids = open(ds_divide_file).read().strip().split()list_file = open(os.path.join(dataset_path, '%s.txt' % (image_set)), 'w', encoding='utf-8')for image_id in image_ids:list_file.write(os.path.join(JPEGImages_path, '%s.jpg' % (image_id)))xml_annotation(Annotations_path, image_id, list_file, classes, label_type)list_file.write('\n')list_file.close()if __name__ == '__main__':# 数据集路径dataset_path = 'mgq_ds'classes = ["aeroplane", "bicycle", "bird", "boat", "bottle", "bus", "car", "cat", "chair", "cow","diningtable", "dog", "horse", "motorbike", "person", "pottedplant", "sheep", "sofa","train", "tvmonitor"]label_type = 'xyxy'convert_annotation(dataset_path='F:/develop_code/python/ssd-pytorch/VOCdevkit/VOC2007',classes=classes,label_type=label_type)

2. ImageSets

简介：

ImageSets文件夹下存放了三个文件，分别是 Layout，Main，Segmentation
- Main：
  ImageSets里Main文件夹，存放训练的索引文件，用到4个文件：
  - train.txt：是用来训练的图片文件的文件名列表（训练集）
  - val.txt：是用来验证的图片文件的文件名列表（验证集）
  - trianval.txt：是用来训练和验证的图片文件的文件名列表（训练集 + 验证集）
  - test.txt：是用来测试的图片文件的文件名列表（测试集）

1) VOC数据集划分

完整代码：

（训练集，验证集，测试集）

# !/usr/bin/env python
# encoding: utf-8
'''
@Author  : pentiumCM
@Email   : 842679178@qq.com
@Software: PyCharm
@File    : dataset_divide.py
@Time    : 2020/11/25 16:51
@desc	 : 生成：trainval.txt，train.txt，val.txt，test.txt为ImageSets文件夹下面Main子文件夹中的训练集+验证集、训练集、验证集、测试集的划分
'''import os
import randomdef ds_partition(annotation_filepath, ds_divide_save__path, train_percent=0.8, trainval_percent=1):"""数据集划分：训练集，验证集，测试集。在ImageSets/Main/生成 train.txt，val.txt，trainval.txt，test.txt:param annotation_filepath:     标注文件的路径 Annotations:param ds_divide_save__path:    数据集划分保存的路径 ImageSets/Main/:param train_percent:           训练集占（训练集+验证集）的比例:param trainval_percent:        （训练集+验证集）占总数据集的比例。测试集所占比例为：1-trainval_percent:return:"""if not os.path.exists(ds_divide_save__path):os.makedirs(ds_divide_save__path)assert os.path.exists(annotation_filepath)assert os.path.exists(ds_divide_save__path)# train_percent：训练集占（训练集+验证集）的比例# train_percent = 0.8# trainval_percent：（训练集+验证集）占总数据集的比例。测试集所占比例为：1-trainval_percent# trainval_percent = 1temp_xml = os.listdir(annotation_filepath)total_xml = []for xml in temp_xml:if xml.endswith(".xml"):total_xml.append(xml)num = len(total_xml)list = range(num)tv_len = int(num * trainval_percent)tr_len = int(tv_len * train_percent)test_len = int(num - tv_len)trainval = random.sample(list, tv_len)train = random.sample(trainval, tr_len)print("train and val size:", tv_len)print("train size:", tr_len)print("test size:", test_len)ftrainval = open(os.path.join(ds_divide_save__path, 'trainval.txt'), 'w')ftest = open(os.path.join(ds_divide_save__path, 'test.txt'), 'w')ftrain = open(os.path.join(ds_divide_save__path, 'train.txt'), 'w')fval = open(os.path.join(ds_divide_save__path, 'val.txt'), 'w')for i in list:name = total_xml[i][:-4] + '\n'if i in trainval:ftrainval.write(name)if i in train:ftrain.write(name)else:fval.write(name)else:ftest.write(name)ftrainval.close()ftrain.close()fval.close()ftest.close()if __name__ == '__main__':# 数据集根路径dataset_path = r'F:/develop_code/python/ssd-pytorch/VOCdevkit/VOC2007'annotation_filepath = os.path.join(dataset_path, 'Annotations')divide_save_path = os.path.join(dataset_path, 'ImageSets/Main')ds_partition(annotation_filepath, divide_save_path)

3. JPEGImages

简介：

JPEGImages文件夹下存放的是数据集图片，包含训练和测试图片。

4. SegmentationClass

5. SegmentationObject

三 VOC 数据集工具类

工具类简介：
- 工具类包含：
  - VOC 数据集类别统计
  - VOC数据集划分：【（训练集，验证集），测试集】
  - VOC标注结果处理，包括：
    - VOC 的标注转为 yolo的标注，即 xyxy -> xywh
    - 解析 VOC 的 xml 标注文件
    - 汇总数据集标注到 txt

完整代码：

#!/usr/bin/env python
# encoding: utf-8
'''
@Author  : pentiumCM
@Email   : 842679178@qq.com
@Software: PyCharm
@File    : voc_data_util.py
@Time    : 2021/6/30 21:31
@desc	 : VOC 数据集工具类
'''
import os
import random
import xml.dom.minidom as xmldom
import xml.etree.ElementTree as ETclass VOCDataUtil:"""VOC 数据集工具类"""def __init__(self, dataset_path,JPEGImages_dir='JPEGImages', annotation_dir='Annotations', ImageSets_dir='ImageSets',label_type='xyxy'):"""VOC 格式数据集初始化:param dataset_path:        数据集文件夹根路径:param JPEGImages_dir:      图片文件夹:param annotation_dir:      标注文件夹:param ImageSets_dir:       数据集划分文件夹:param label_type:          解析标注方式 xyxy（ssd）/ xywh（yolo）"""self.dataset_path = dataset_pathself.JPEGImages = os.path.join(self.dataset_path, JPEGImages_dir)self.Annotations = os.path.join(self.dataset_path, annotation_dir)self.ImageSets = os.path.join(self.dataset_path, ImageSets_dir)self.label_type = label_typeassert os.path.exists(self.JPEGImages)assert os.path.exists(self.Annotations)def fill_blanklabel(self):"""填充 空白（背景）标注文件:return:"""JPEGImages_names = [i.split('.')[0] for i in os.listdir(self.JPEGImages)]Annotations_names = [i.split('.')[0] for i in os.listdir(self.Annotations)]background_list = list(set(JPEGImages_names).difference(set(Annotations_names)))  # 前面有而后面中没有的for item in background_list:file_name = item + '.xml'file_path = os.path.join(self.Annotations, file_name)open(file_path, "w")print('process：', file_path)def remove_blanklabel(self):"""删除 空白（背景）标注文件:return:"""Annotations_names = [os.path.join(self.Annotations, i) for i in os.listdir(self.Annotations)]for item in Annotations_names:file_size = os.path.getsize(item)if file_size == 0:os.remove(item)print('process：', item)def voc_label_statistics(self):'''voc数据集类别统计:return: {'class1':'count',...}'''count = 0annotation_names = [os.path.join(self.Annotations, i) for i in os.listdir(self.Annotations)]labels = dict()for names in annotation_names:names_arr = names.split('.')file_type = names_arr[-1]if file_type != 'xml':continuefile_size = os.path.getsize(names)if file_size == 0:continuecount = count + 1print('process：', names)xmlfilepath = namesdomobj = xmldom.parse(xmlfilepath)# 得到元素对象elementobj = domobj.documentElement# 获得子标签subElementObj = elementobj.getElementsByTagName("object")for s in subElementObj:label = s.getElementsByTagName("name")[0].firstChild.datalabel_count = labels.get(label, 0)labels[label] = label_count + 1print('文件标注个数：', count)return labelsdef dataset_divide(self, train_percent=0.8, trainval_percent=1):"""1. 划分数据集：【（训练集，验证集），测试集】在ImageSets/Main/生成 trainval.txt，train.txt，val.txt，test.txt:param train_percent:           train_percent = 训练集 / (训练集 + 验证集):param trainval_percent:        trainval_percent = (训练集 + 验证集) / 总数据集。测试集所占比例为：1-trainval_percent:return:"""# 数据集划分保存的路径 ImageSets/Main/ds_divide_save__path = os.path.join(self.ImageSets, 'Main')if not os.path.exists(ds_divide_save__path):os.makedirs(ds_divide_save__path)# train_percent：训练集占（训练集+验证集）的比例# train_percent = 0.8# trainval_percent：（训练集+验证集）占总数据集的比例。测试集所占比例为：1-trainval_percent# trainval_percent = 1temp_xml = os.listdir(self.Annotations)total_xml = []for xml in temp_xml:if xml.endswith(".xml"):total_xml.append(xml)num = len(total_xml)list = range(num)tv_len = int(num * trainval_percent)tr_len = int(tv_len * train_percent)test_len = int(num - tv_len)trainval = random.sample(list, tv_len)train = random.sample(trainval, tr_len)print("train and val size:", tv_len)print("train size:", tr_len)print("test size:", test_len)ftrainval = open(os.path.join(ds_divide_save__path, 'trainval.txt'), 'w')ftest = open(os.path.join(ds_divide_save__path, 'test.txt'), 'w')ftrain = open(os.path.join(ds_divide_save__path, 'train.txt'), 'w')fval = open(os.path.join(ds_divide_save__path, 'val.txt'), 'w')for i in list:name = total_xml[i][:-4] + '\n'if i in trainval:ftrainval.write(name)if i in train:ftrain.write(name)else:fval.write(name)else:ftest.write(name)ftrainval.close()ftrain.close()fval.close()ftest.close()def convert(self, size, box):"""VOC 的标注转为 yolo的标注，即 xyxy -> xywh:param size: 图片尺寸 (w, h):param box: 标注框（xyxy）:return:"""dw = 1. / size[0]dh = 1. / size[1]# 中心点坐标x = (box[0] + box[2]) / 2.0y = (box[1] + box[3]) / 2.0# 宽高w = box[2] - box[0]h = box[3] - box[1]# 归一化x = x * dww = w * dwy = y * dhh = h * dhreturn (x, y, w, h)def xml_annotation(self, image_id, out_file, classes):"""解析 voc 的 xml 标注文件:param image_id:    对应于每张图片标注的索引:param out_file:    汇总数据集标注 的输出文件:param classes:     数据集类别:return:"""# 做该校验，为了方便对背景进行训练annotation_filepath = os.path.join(self.Annotations, image_id + '.xml')file_size = os.path.getsize(annotation_filepath)if file_size > 0:in_file = open(os.path.join(self.Annotations, '%s.xml' % image_id), encoding='utf-8')tree = ET.parse(in_file)root = tree.getroot()size = root.find('size')w = int(size.find('width').text)h = int(size.find('height').text)for obj in root.iter('object'):difficult = obj.find('difficult').textcls = obj.find('name').textif cls not in classes or int(difficult) == 1:continuecls_id = classes.index(cls)xmlbox = obj.find('bndbox')b = (int(float(xmlbox.find('xmin').text)),int(float(xmlbox.find('ymin').text)),int(float(xmlbox.find('xmax').text)),int(float(xmlbox.find('ymax').text)))b_box = bif self.label_type == 'xywh':# 标注格式：x,y,w,h,labelb_box = self.convert((w, h), b)elif self.label_type == 'xyxy':# 标注格式：x,y,x,y,labelpass# yolo: out_file.write(str(cls_id) + " " + " ".join([str(a) for a in b_box]) + '\n')out_file.write(" " + ",".join([str(a) for a in b_box]) + ',' + str(cls_id))def convert_annotation(self, classes):"""2. 处理标注结果：汇总数据集标注到 txt:param classes:         数据集类别:return:"""sets = ['train', 'test', 'val']for image_set in sets:# 数据集划分文件：ImageSets/Main/train.txtds_divide_file = os.path.join(self.ImageSets, 'Main', '%s.txt' % (image_set))# （训练，验证，测试集）数据集索引image_ids = open(ds_divide_file).read().strip().split()list_file = open(os.path.join(self.dataset_path, '%s.txt' % (image_set)), 'w', encoding='utf-8')for image_id in image_ids:list_file.write(os.path.join(self.JPEGImages, '%s.jpg' % (image_id)))self.xml_annotation(image_id, list_file, classes)list_file.write('\n')list_file.close()if __name__ == '__main__':# VOC_CLASS = [#     "aeroplane", "bicycle", "bird", "boat", "bottle", "bus", "car", "cat", "chair", "cow", "diningtable", "dog",#     "horse", "motorbike", "person", "pottedplant", "sheep", "sofa", "train", "tvmonitor"# ]vocutil = VOCDataUtil(dataset_path='E:/project/nongda/code/ssd-keras-nd/VOCdevkit/VOC2007', label_type='xyxy')# 1. 汇总数据集标注类别label_dict = vocutil.voc_label_statistics()cus_classes = []for key in label_dict.keys():cus_classes.append(key)# 按照字符串进行正序排序cus_classes.sort()# 2. 划分数据集vocutil.dataset_divide()# 3. 处理标注结果vocutil.convert_annotation(cus_classes)
