- 调研类型：
Freemarker，Thymeleaf，Beetl，Velocity
- 调研方向：
性能，活跃度，各自优缺点，应用实例

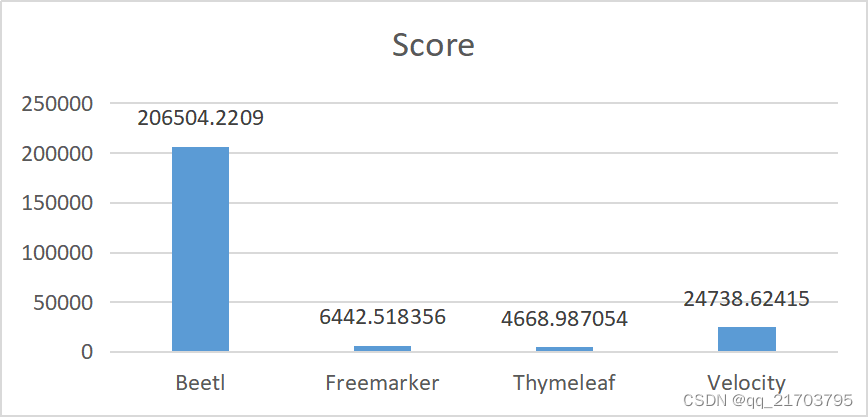

2.1、性能报告：
Jdk:1.8
Cpu: 8核12线程
Jvm : -Xms512m -Xmx512m
| Benchmark | Version | Mode | Score | Score Error (99.9%) | Unit |
| Beetl | 3.10.0.RELEASE | thrpt | 206504.2209 | 3396.544778 | ops/s |
| Freemarker | 2.3.31 | thrpt | 6442.518356 | 965.471192 | ops/s |
| Thymeleaf | 3.1.0.M2 | thrpt | 4668.987054 | 906.704589 | ops/s |
| Velocity | 1.7 | thrpt | 24738.62415 | 251.33537 | ops/s |

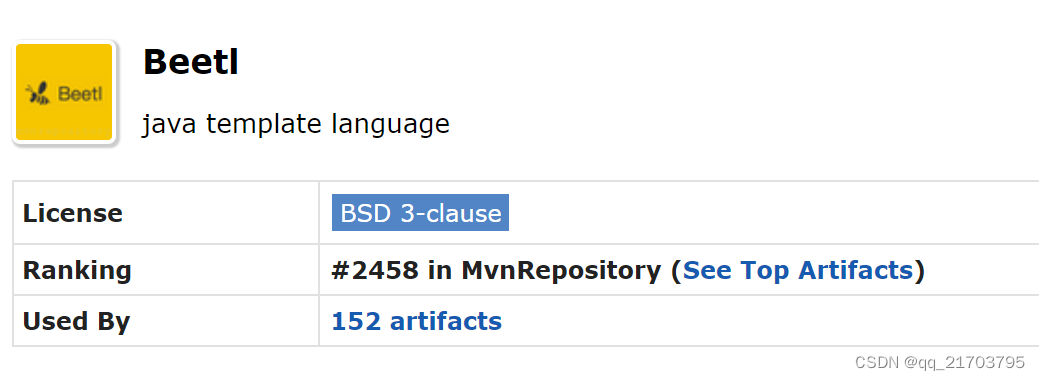

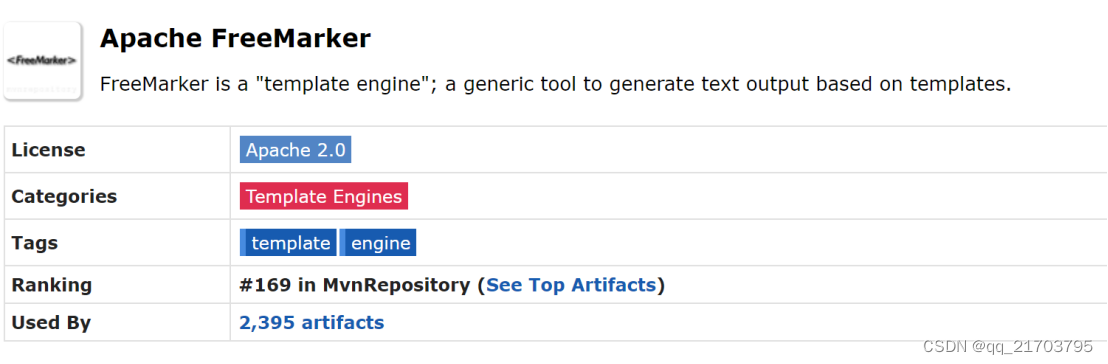

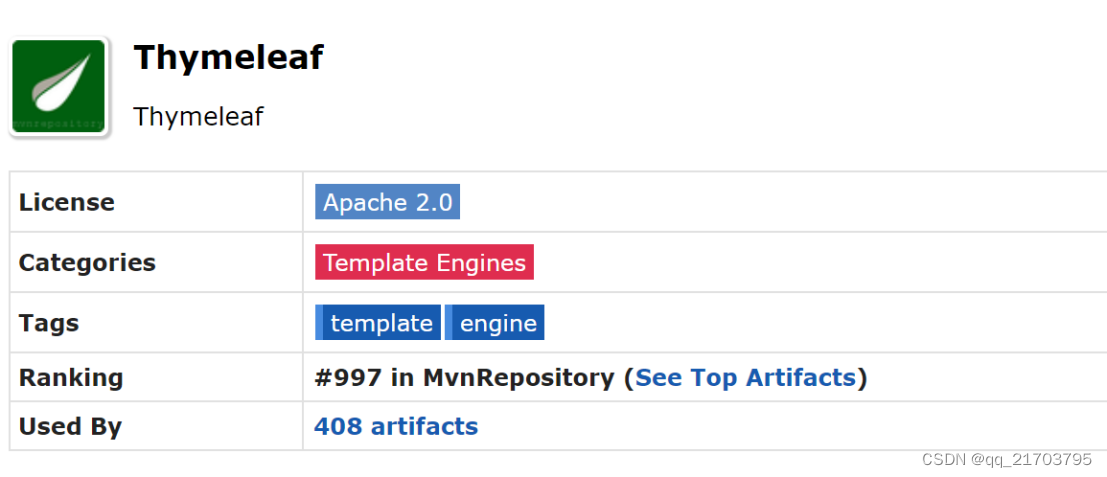

2.2、活跃度：
springbo
ot1.5以后就已经停止对velocity的支持了，不仅是springboot。spring5也不再支持velocity了
2.4、各自优缺点：
| 模板 | 优势 | 缺点 | 安全性 | 官网 | |
| Beetl | - 性能优越
- 已开源11年，一直在维护，比较稳定
| - 比较小众，应用量无从考证社区已作废
| Xss攻击：需要单独开发过滤器，工作量大：https://cxymm.net/article/weixin_33775582/91969237 | https://www.kancloud.cn/xiandafu/beetl3_guide/1992542 | |
| FreeMarker | 1、应用广泛 2、有社区，1999年Freemarker 1 发布，2002 年重写并发布Freemarker 2，至今已经20年；语法简单，功能丰富，文档完整 3、语法比较简单，html语法，js，css都适用 | | Xss攻击防范：默认在模板的头部加上<#escape x as x?html>在尾部加上</#escape>，对模板中所有的变量进行html转义；<#noautoesc>标签取消转义； | http://freemarker.foofun.cn/app_faq.html | |
| Thymeleaf | - springboot推荐，有专业团队开发维护
- 语法简单
| 性能差 | Xss攻击防范：默认会转义返回结果 | https://www.docs4dev.com/docs/zh/thymeleaf/3.0/reference/using_thymeleaf.html#introducing-thymeleaf | |
2.5、应用实例：
| <!--freemarker--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-freemarker</artifactId> </dependency> <!-- thymeleaf模板依赖 --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> <!--ibeetl--> <dependency> <groupId>com.ibeetl</groupId> <artifactId>beetl-framework-starter</artifactId> <version>1.1.68.RELEASE</version> </dependency> |
| thymeleaf |
| <!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>静态页展示!</title> </head> <body> <table class="display table table-bordered" id="hidden-table-info" border="1"> <thead> <tr> <td>序号</td> <td>姓名</td> <td>年龄</td> <td>学号</td> </tr> </thead> <tbody> <tr class="gradeX" th:each="stu:${stus}"> <td th:text="${stuStat.count}"></td> <td th:text="${stu.name}"></td> <td th:text="${stu.age}">Trident</td> <td th:text="${stu.number}">Trident</td> </tr> </tbody> </table> </body> </html> |
| @Controller public class ThymeleafController { @RequestMapping("/thymeleaf") public String thymeleaf(Model model) { List<Student> stus = new ArrayList<>(); //表格内容的遍历 for (int i = 0; i < 1000; i++) { Student stu = new Student(); stu.setName("thymeleaf" + i); stu.setAge(i); stu.setNumber(i); stu.setBirthday(new Date()); stus.add(stu); } model.addAttribute("stus", stus); return "thymeleaf"; } } |
|
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.thymeleaf.TemplateEngine;
import org.thymeleaf.context.Context;
import java.io.*;
import java.util.Map;
/**
* @ClassName ThymeleafUtil
* @Description
* @Date 2022/6/22
**/
public class ThymeleafUtil {
private static Logger logger = LoggerFactory.getLogger(ThymeleafUtil.class);
/**
* @param templateFile 模板名称
* @param data 数据
* @param suffix 模板后缀
* @param path 静态html文件保存路径
* @return 文件名称
*/
public static String createHtml(String templateFile, Map data, String path) {
TemplateEngine templateEngine = SpringContextHolder.getBean(TemplateEngine.class);
Writer out = null;
try {
//文件递归创建生成文件目录
File realDirectory = new File(path);
if (!realDirectory.exists()) {
realDirectory.mkdirs();
}
//生成文件名
String fileName = UUIDUtil.randomUUID() + ".html";
//初始化一个IO流
out = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(new File(path + fileName)), "UTF-8"));
// 模板渲染出所要的内容
Context context = new Context();
context.setVariables(data);
templateEngine.process(templateFile,context,out);
return path+fileName;
} catch (Exception e) {
logger.error("生成html模板失败",e);
throw new RuntimeException("生成html模板失败");
} finally {
try {
out.flush();
out.close();
} catch (IOException e) {
logger.error("输出流关闭失败",e);
}
}
}
}
|
| spring:
thymeleaf:
cache: false
prefix: classpath:/templates/
encoding: UTF-8 #编码
suffix: .html #模板后缀
mode: HTML #模板 |
| Freemarker |
| <!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>静态页展示!</title> </head> <body> <table> <tr> <td>序号</td> <td>姓名</td> <td>年龄</td> <td>学号</td> </tr> <#list stus as stu> <tr> <td>${stu_index + 1}</td> <td <#if stu.name =='freemarker小明'>style="background:blue;"</#if>>${stu.name}</td> <td>${stu.age}</td> <td>${stu.number}</td> </tr> </#list> </table> </body> </html> |
| @Controller public class FreemarkerController { @Autowired private Configuration configuration; @GetMapping("/freemarker") public String test1(Map map) throws IOException, TemplateException { List<Student> stus = new ArrayList<>(); //表格内容的遍历 for (int i = 0; i < 1000; i++) { Student stu = new Student(); stu.setName("freemarker" + i); stu.setAge(i); stu.setNumber(i); stu.setBirthday(new Date()); stus.add(stu); } // 向数据模型放数据 map.put("stus", stus); return "freemarker"; } } |
|
import freemarker.template.Configuration;
import freemarker.template.Template;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.*;
import java.util.Map;
import java.util.Objects;
import static freemarker.template.Configuration.VERSION_2_3_30;
/**
* FreeMarker生成HTML模板
*/
public class FreeMarkerUtil {
private static Logger logger = LoggerFactory.getLogger(FreeMarkerUtil.class);
/**
* @param templateFile 模板名称
* @param data 数据
* @param suffix 模板后缀
* @param path 静态html文件保存路径
* @return 文件名称
*/
public static String createHtml(String templateFile, String suffix, Map data, String path) {
Configuration cfg = SpringContextHolder.getBean(Configuration.class);
Writer out = null;
try {
//根据模板名称获取模板文件
Template template = cfg.getTemplate(templateFile + suffix);
if (Objects.isNull(template)) {
logger.error("模板文件不存在");
throw new RuntimeException("模板文件不存在");
}
//文件递归创建生成文件目录
File realDirectory = new File(path);
if (!realDirectory.exists()) {
realDirectory.mkdirs();
}
//生成文件名
String fileName = UUIDUtil.randomUUID() + ".html";
//初始化一个IO流
out = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(new File(path + fileName)), "UTF-8"));
// 模板渲染出所要的内容
template.process(data, out);
return path+fileName;
} catch (Exception e) {
logger.error("生成html模板失败",e);
throw new RuntimeException("生成html模板失败");
} finally {
try {
out.flush();
out.close();
} catch (IOException e) {
logger.error("输出流关闭失败",e);
}
}
}
}
|
| spring:
freemarker:
#指定HttpServletRequest的属性是否可以覆盖controller的model的同名项
allow-request-override: false
#req访问request
request-context-attribute: request
#后缀名freemarker默认后缀为.ftlh，当然你也可以改成自己习惯的.html
suffix: .ftlh
#设置响应的内容类型
content-type: text/html;charset=utf-8
#是否允许mvc使用freemarker
enabled: true
#是否开启template caching
cache: false
#设定模板的加载路径，多个以逗号分隔，默认: [“classpath:/templates/”]
template-loader-path: classpath:/templates/
#设定Template的编码
charset: UTF-8 |
| beetl |
| <!DOCTYPE html> <html> <head> <meta charset="utf-8"> <title>静态页展示!</title> <style type="text/css"> /*<![CDATA[*/ body { color: #333333; line-height: 150%; } thead { font-weight: bold; background-color: #CCCCCC; } .odd { background-color: #FFCCCC; } .even { background-color: #CCCCFF; } .minus { color: #FF0000; } /*]]>*/ </style> </head> <body> <table> <tr> <td>序号</td> <td>姓名</td> <td>年龄</td> <td>学号</td> </tr> <% for(stu in stus) { %> <% if(stuLP.index%2==0) { %> <tr class="even"> <% }else{ %> <tr class="odd"> <% } %> <td>${stuLP.index}</td> <td>${stu.name}</td> <td>${stu.age}</td> <td>${stu.number}</td> <td>${stu.birthday,"yyyy-MM/dd"}</td> <td>${date()} </td> </tr> <% } %> </table> </body> </html> |
| @Controller public class BeetlController { @GetMapping("/test") public String test(HttpServletRequest request) throws IOException { List<Student> stus = new ArrayList<>(); //表格内容的遍历 for (int i = 0; i < 20; i++) { Student stu = new Student(); stu.setName("beetl" + i); stu.setAge(i); stu.setNumber(i); stu.setBirthday(new Date()); stus.add(stu); } request.setAttribute("stus", stus); return "beetl.html"; } } |
|
import org.beetl.core.GroupTemplate;
import org.beetl.core.Template;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.*;
import java.util.Map;
import java.util.Objects;
/**
* @ClassName BeetlUtil
* @Description
* @Date 2022/6/22
**/
public class BeetlUtil {
private static Logger logger = LoggerFactory.getLogger(BeetlUtil.class);
/**
* @param templateFile 模板名称
* @param data 数据
* @param suffix 模板后缀
* @param path 静态html文件保存路径
* @return 文件名称
*/
public static String createHtml(String templateFile, String suffix, Map data, String path) {
Writer out = null;
try {
//根据模板名称获取模板文件
GroupTemplate gt = SpringContextHolder.getBean(GroupTemplate.class);
Template template = gt.getTemplate(templateFile + suffix);
if (Objects.isNull(template)) {
logger.error("模板文件不存在");
throw new RuntimeException("模板文件不存在");
}
//文件递归创建生成文件目录
File realDirectory = new File(path);
if (!realDirectory.exists()) {
realDirectory.mkdirs();
}
//生成文件名
String fileName = UUIDUtil.randomUUID() + ".html";
//初始化一个IO流
out = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(new File(path + fileName)), "UTF-8"));
// 模板渲染出所要的内容
template.binding(data);
template.renderTo(out);
return path+fileName;
} catch (Exception e) {
logger.error("生成html模板失败",e);
throw new RuntimeException("生成html模板失败");
} finally {
try {
out.flush();
out.close();
} catch (IOException e) {
logger.error("输出流关闭失败",e);
}
}
}
}
|
| 注意：beetl使用时还须增加如下代码配置：
import org.beetl.core.resource.ClasspathResourceLoader;
import org.beetl.ext.spring.BeetlGroupUtilConfiguration;
import org.beetl.ext.spring.BeetlSpringViewResolver;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class BeetlConf {
@Value("${beetl.templatesPath}") String templatesPath;//模板根目录 ，比如 "templates"
@Bean(name = "beetlConfig")
public BeetlGroupUtilConfiguration getBeetlGroupUtilConfiguration() {
BeetlGroupUtilConfiguration beetlGroupUtilConfiguration = new BeetlGroupUtilConfiguration();
//获取Spring Boot 的ClassLoader
ClassLoader loader = Thread.currentThread().getContextClassLoader();
if(loader==null){
loader = BeetlConf.class.getClassLoader();
}
//beetlGroupUtilConfiguration.setConfigProperties(extProperties);//额外的配置，可以覆盖默认配置，一般不需要
ClasspathResourceLoader cploder = new ClasspathResourceLoader(loader,
templatesPath);
beetlGroupUtilConfiguration.setResourceLoader(cploder);
beetlGroupUtilConfiguration.init();
//如果使用了优化编译器，涉及到字节码操作，需要添加ClassLoader
beetlGroupUtilConfiguration.getGroupTemplate().setClassLoader(loader);
return beetlGroupUtilConfiguration;
}
@Bean(name = "beetlViewResolver")
public BeetlSpringViewResolver getBeetlSpringViewResolver(@Qualifier("beetlConfig") BeetlGroupUtilConfiguration beetlGroupUtilConfiguration) {
BeetlSpringViewResolver beetlSpringViewResolver = new BeetlSpringViewResolver();
beetlSpringViewResolver.setContentType("text/html;charset=UTF-8");
beetlSpringViewResolver.setOrder(0);
beetlSpringViewResolver.setConfig(beetlGroupUtilConfiguration);
return beetlSpringViewResolver;
}
}
|
| beetl:
enabled: true
suffix: .html
templatesPath: templates
beetl-beetlsql:
dev: true #监控模板变更 |
