下面回到路由器，编辑wifidog.conf，一般情况下，我们之后配置ExternalInterface，GatewayInterface和AuthServer这三项就可以，其他默认。下面是我的配置：

opk安装包：luci-app-wifidog-all.ipk

链接：http://pan.baidu.com/s/1dFfD4M9 密码：qgoo

/etc/wifidog.conf

# $Id$
# WiFiDog Configuration file# Parameter: GatewayID
# Default: default
# Optional
#
# Set this to the node ID on the auth server
# This is used to give a customized login page to the clients and for
# monitoring/statistics purpose. If you run multiple gateways on the same
# machine each gateway needs to have a different gateway id.
# If none is supplied, the mac address of the GatewayInterface interface will be used,
# without the : separators# GatewayID default# Parameter: ExternalInterface
# Default: NONE
# Optional
#
# Set this to the external interface (the one going out to the Inernet or your larger LAN).
# Typically vlan1 for OpenWrt, and eth0 or ppp0 otherwise,
# Normally autodetectedExternalInterface eth1# Parameter: GatewayInterface
# Default: NONE
# Mandatory
#
# Set this to the internal interface (typically your wifi interface).
# Typically br-lan for Openwrt (by default the wifi interface is bridged with wired lan in openwrt)
# and eth1, wlan0, ath0, etc. otherwise

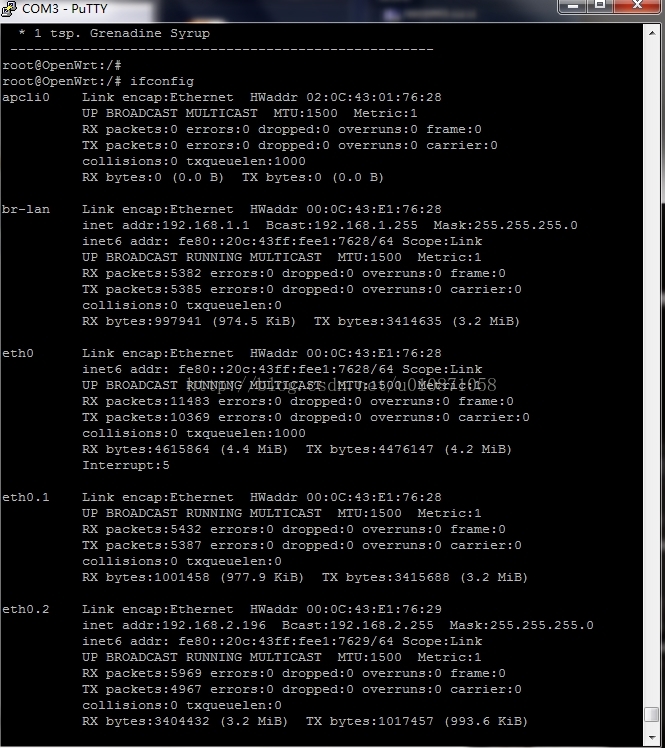

# You can get this interface with the ifconfig command and finding your wifi interfaceGatewayInterface br-lan# Parameter: GatewayAddress
# Default: Find it from GatewayInterface
# Optional
#
# Set this to the internal IP address of the gateway.  Not normally required.GatewayAddress 192.168.1.1# Parameter: HtmlMessageFile
# Default: wifidog-msg.html
# Optional
#
# This allows you to specify a custome HTML file which will be used for
# system errors by the gateway. Any $title, $message and $node variables
# used inside the file will be replaced.
#
# HtmlMessageFile /opt/wifidog/etc/wifidog-.html# Parameter: AuthServer
# Default: NONE
# Mandatory, repeatable
#
# This allows you to configure your auth server(s).  Each one will be tried in order, untill one responds.
# Set this to the hostname or IP of your auth server(s), the path where
# WiFiDog-auth resides in and the port it listens on.
#AuthServer {
#	Hostname                 (Mandatory; Default: NONE)
#	SSLAvailable             (Optional; Default: no; Possible values: yes, no)
#	SSLPort                  (Optional; Default: 443)
#	HTTPPort                 (Optional; Default: 80)
#	Path                     (Optional; Default: /wifidog/ Note:  The path must be both prefixed and suffixed by /.  Use a single / for server root.)
#   LoginScriptPathFragment  (Optional; Default: login/? Note:  This is the script the user will be sent to for login.)
#   PortalScriptPathFragment (Optional; Default: portal/? Note:  This is the script the user will be sent to after a successfull login.)
#   MsgScriptPathFragment    (Optional; Default: gw_message.php? Note:  This is the script the user will be sent to upon error to read a readable message.)
#   PingScriptPathFragment    (Optional; Default: ping/? Note:  This is the script the user will be sent to upon error to read a readable message.)
#   AuthScriptPathFragment    (Optional; Default: auth/? Note:  This is the script the user will be sent to upon error to read a readable message.)
#}
AuthServer {Hostname 192.168.1.1SSLAvailable noHTTPPort 80Path /cgi-bin/luci/LoginScriptPathFragment login/?PortalScriptPathFragment portal/?MsgScriptPathFragment msg/?PingScriptPathFragment ping/?AuthScriptPathFragment auth/?
}#AuthServer {
#    Hostname auth.ilesansfil.org
#    SSLAvailable yes
#    Path /
#}#AuthServer {
#    Hostname auth2.ilesansfil.org
#    SSLAvailable yes
#    Path /
#}# Parameter: Daemon
# Default: 1
# Optional
#
# Set this to true if you want to run as a daemon
# Daemon 1# Parameter: GatewayPort
# Default: 2060
# Optional
#
# Listen on this port
# GatewayPort 2060# Parameter: ProxyPort
# Default: 0 (disable)
# Optional
#
# Redirect http traffic of knowns & probations users
# to a local transparent proxy listening on ProxyPort port
# ProxyPort 0# Parameter: HTTPDName
# Default: WiFiDog
# Optional
#
# Define what name the HTTPD server will respond
# HTTPDName WiFiDog# Parameter: HTTPDMaxConn
# Default: 10
# Optional
#
# How many sockets to listen to
# HTTPDMaxConn 10# Parameter: HTTPDRealm
# Default: WiFiDog
# Optional
#
# The name of the HTTP authentication realm. This only used when a user
# tries to access a protected WiFiDog internal page. See HTTPUserName.
# HTTPDRealm WiFiDog# Parameter: HTTPDUserName / HTTPDPassword
# Default: unset
# Optional
#
# The gateway exposes some information such as the status page through its web
# interface. This information can be protected with a username and password,
# which can be set through the HTTPDUserName and HTTPDPassword parameters.
# HTTPDUserName admin
# HTTPDPassword secret# Parameter: CheckInterval
# Default: 60
# Optional
#
# How many seconds should we wait between timeout checks.  This is also
# how often the gateway will ping the auth server and how often it will
# update the traffic counters on the auth server.  Setting this too low
# wastes bandwidth, setting this too high will cause the gateway to take
# a long time to switch to it's backup auth server(s).# CheckInterval 60# Parameter: ClientTimeout
# Default: 5
# Optional
#
# Set this to the desired of number of CheckInterval of inactivity before a client is logged out
# The timeout will be INTERVAL * TIMEOUT
ClientTimeout 5# Parameter: TrustedMACList
# Default: none
# Optional
#
# Comma separated list of MAC addresses who are allowed to pass
# through without authentication
#TrustedMACList 00:00:DE:AD:BE:AF,00:00:C0:1D:F0:0D# Parameter: FirewallRuleSet
# Default: none
# Mandatory
#
# Groups a number of FirewallRule statements together.# Parameter: FirewallRule
# Default: none
#
# Define one firewall rule in a rule set.# Rule Set: global
#
# Used for rules to be applied to all other rulesets except locked.
FirewallRuleSet global {# FirewallRule syntax:# FirewallRule (block|drop|allow|log|ulog) [(tcp|udp|icmp) [port X]] [to IP/CIDR]## To block SMTP out, as it's a tech support nightmare, and a legal liability#FirewallRule block tcp port 25## Use the following if you don't want clients to be able to access machines on ## the private LAN that gives internet access to wifidog.  Note that this is not## client isolation;  The laptops will still be able to talk to one another, as## well as to any machine bridged to the wifi of the router.# FirewallRule block to 192.168.0.0/16# FirewallRule block to 172.16.0.0/12# FirewallRule block to 10.0.0.0/8## This is an example ruleset for the Teliphone service.#FirewallRule allow udp to 69.90.89.192/27#FirewallRule allow udp to 69.90.85.0/27#FirewallRule allow tcp port 80 to 69.90.89.205## Use the following to log or ulog the traffic you want to allow or block.# For OPENWRT: use of these feature requires modules ipt_LOG or ipt_ULOG present in dependencies# iptables-mod-extra and iptables-mod-ulog (to adapt it to the linux distribution). # Note: the log or ulog rule must be passed before, the rule you want to match.# for openwrt: use of these feature requires modules ipt_LOG or ipt_ULOG present in dependencies# iptables-mod-extra and iptables-mod-ulog# For example, you want to log (ulog works the same way) the traffic allowed on port 80 to the ip 69.90.89.205:#FirewallRule log tcp port 80 to 69.90.89.205#FirewallRule allow tcp port 80 to 69.90.89.205# And you want to know, who matche your block rule:#FirewallRule log to 0.0.0.0/0#FirewallRule block to 0.0.0.0/0
}# Rule Set: validating-users
#
# Used for new users validating their account
FirewallRuleSet validating-users {FirewallRule allow to 0.0.0.0/0
}# Rule Set: known-users
#
# Used for normal validated users.
FirewallRuleSet known-users {FirewallRule allow to 0.0.0.0/0
}# Rule Set: unknown-users
#
# Used for unvalidated users, this is the ruleset that gets redirected.
#
# XXX The redirect code adds the Default DROP clause.
FirewallRuleSet unknown-users {FirewallRule allow udp port 53FirewallRule allow tcp port 53FirewallRule allow udp port 67FirewallRule allow tcp port 67
}# Rule Set: locked-users
#
# Not currently used
FirewallRuleSet locked-users {FirewallRule block to 0.0.0.0/0
}

/etc/init.d/wifidog enable

/etc/init.d/wifidog start

wifidog

具体配置
