高通和低通类似，本篇文章用到的a、b参数，我在低通中有给出那个图

如果大家要设计高通滤波器，大家可以和低通滤波器一起考虑~~~~

————————————————————————————————

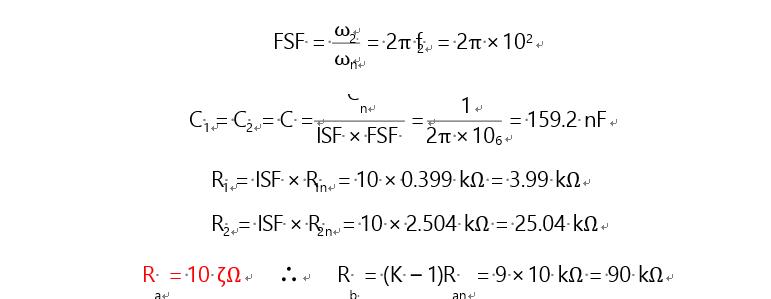

example1:

{

in there we can see:

R=1/C

}

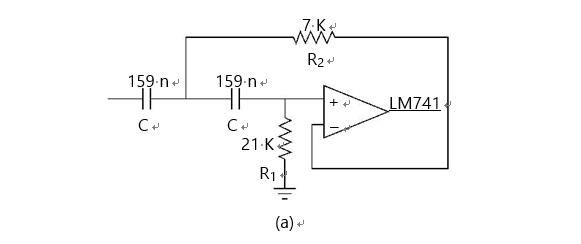

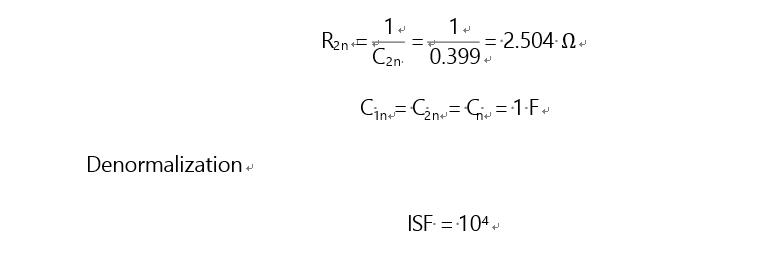

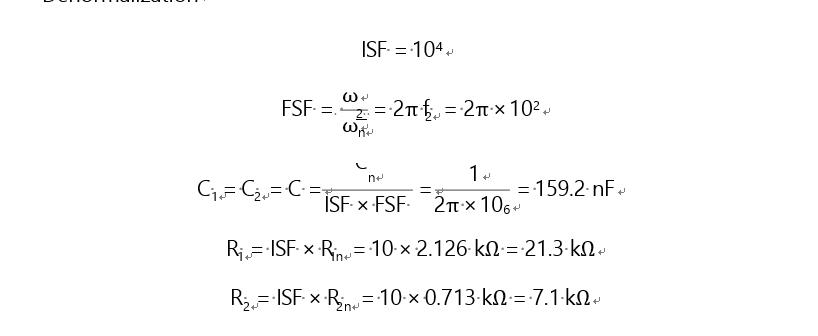

finally

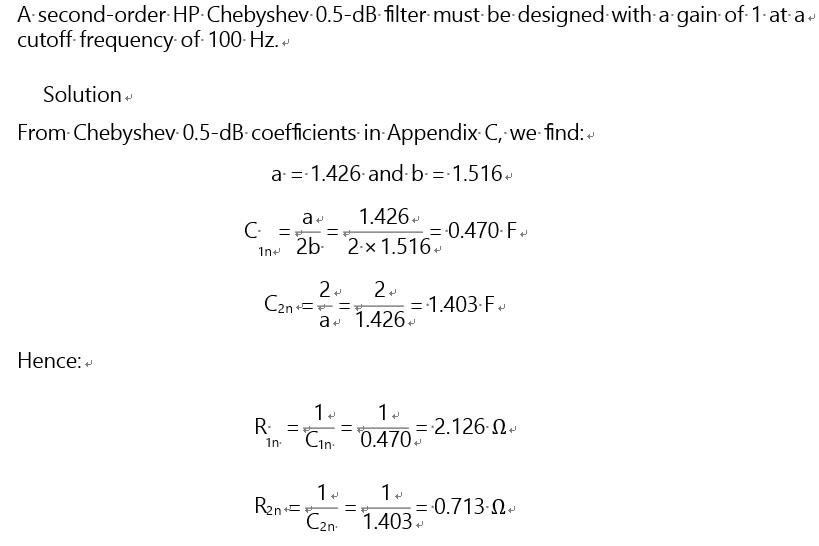

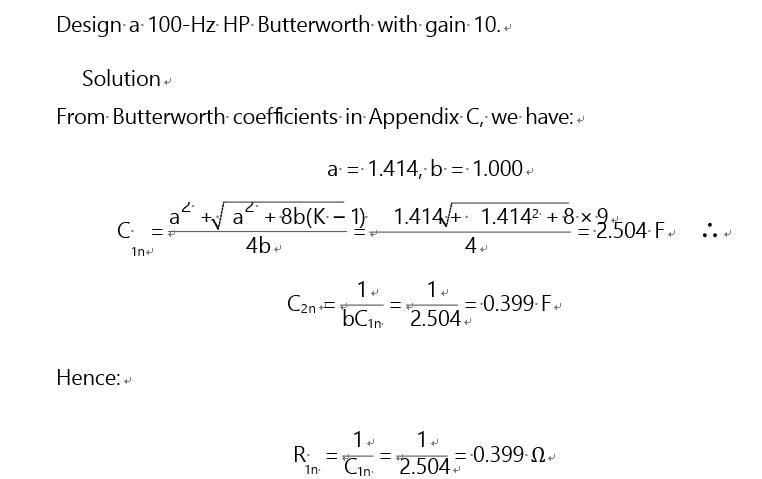

example2:



add example1,we can find

C1n=(a+sqrt(a*a+8*(k-1)*b))/4*b;if k==1;2a/4b=a/2b;

C2n=1/(b*C1n);if k==1;2/a;

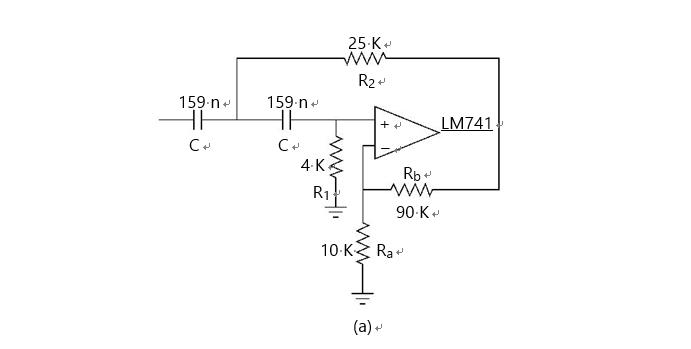

finally

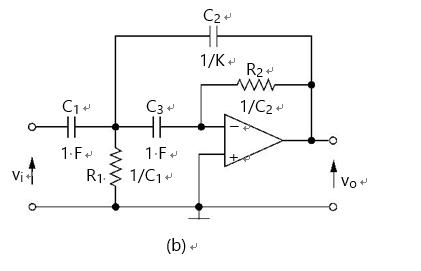

MultiFeedback Filters

****

计算与Sally-key相比一样

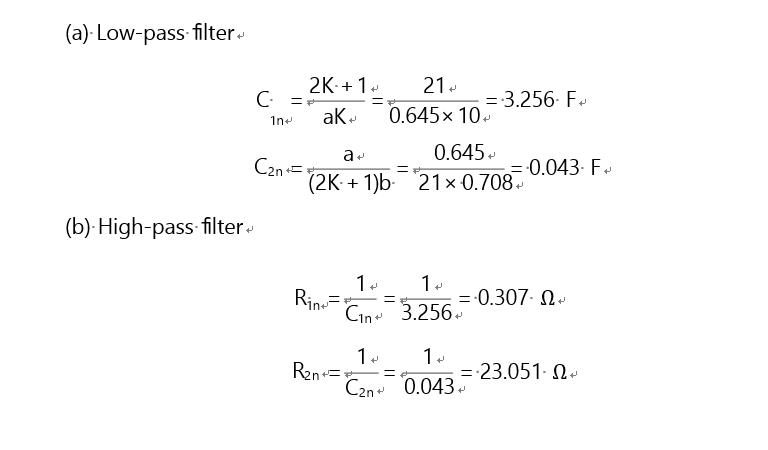

先算低通

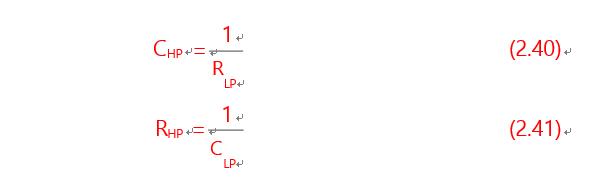

再算高通C=1/R;R=1/C;

****

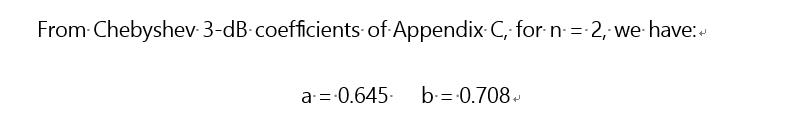

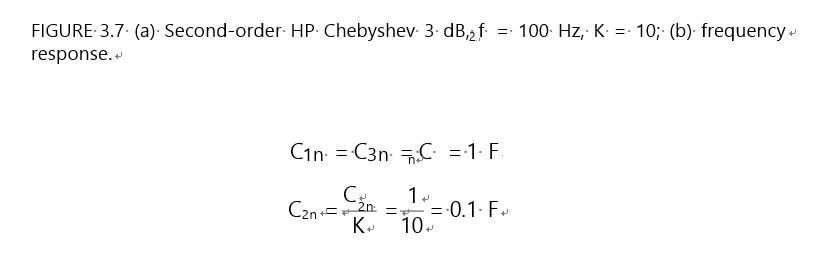

example



***

R2=K*R1

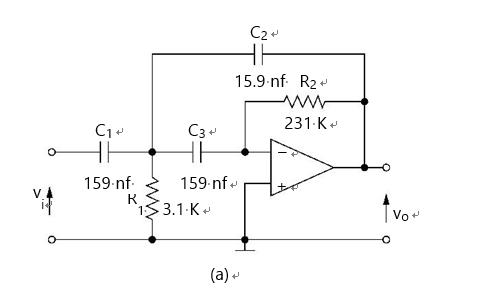

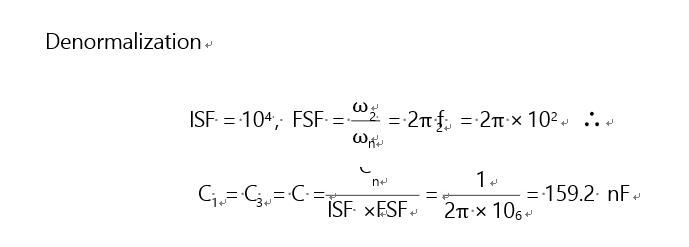

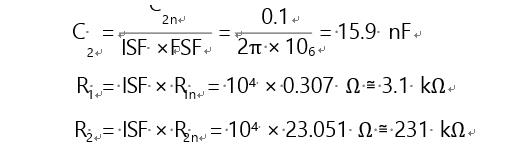

finally

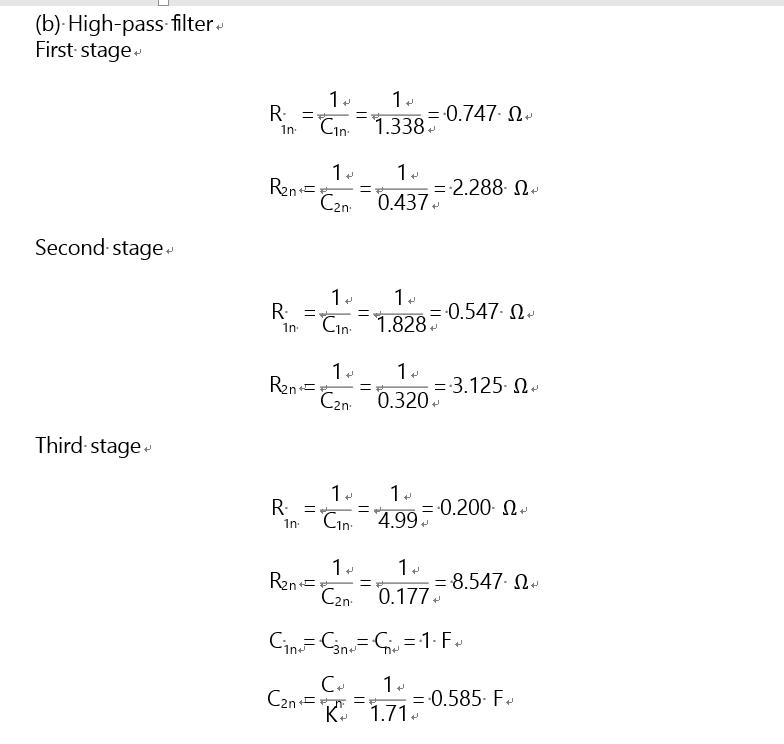

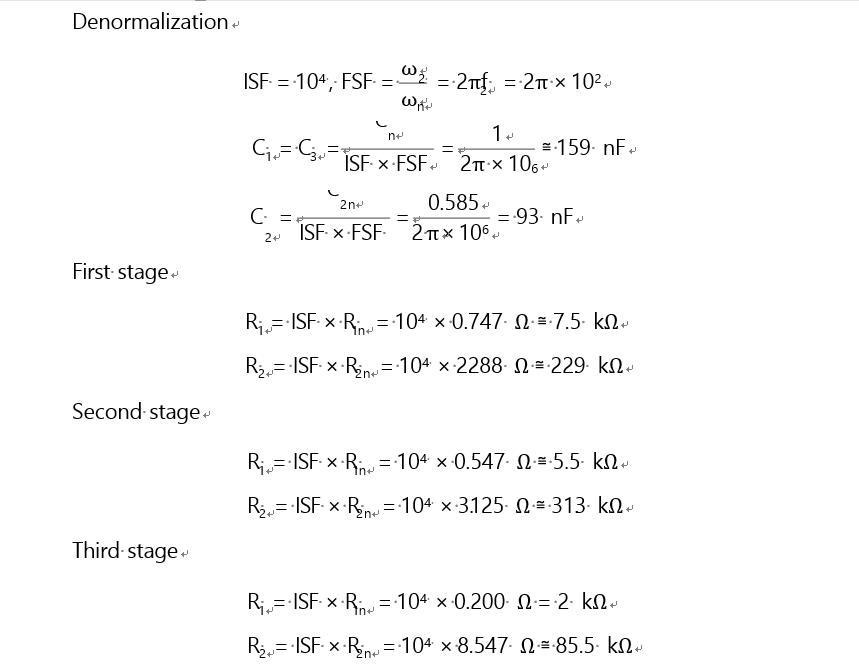

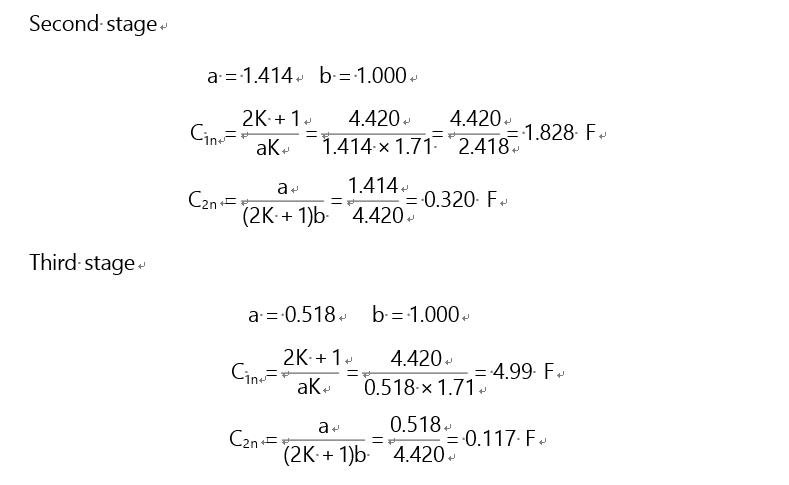

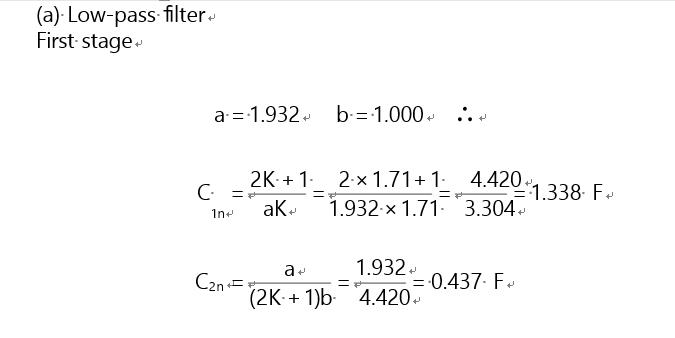

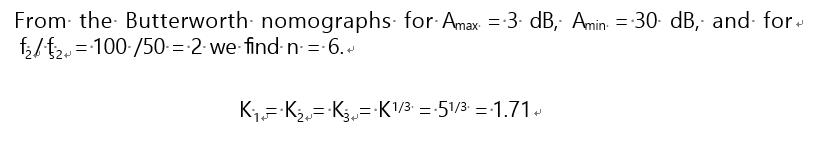

****6阶高通*****



finally
