PageRank 算法及实例分析

本文一部分是针对图的PageRank 的实现，以及具体数据集的分析过程的记录。

另一部分是BFS的实现，并记录每一层的节点数。

数据集下载地址 soc-Slashdot0811 、 roadNet-CA 、 soc-LiveJournal1

1. java 实现代码

Main.java

import java.util.List;public class Main{public static void main(String args[]){long start = System.currentTimeMillis();List<List<Integer>> graph = PageRank.file_to_matrix();System.out.println("开始PageRank算法...");PageRank.pagerank(graph);System.out.println("PageRank算法结束，总共用时：" + (System.currentTimeMillis() - start) + "ms");start = System.currentTimeMillis();System.out.println();System.out.println("开始进行BFS遍历...");System.out.println();BFS.bfs(graph);System.out.println();System.out.println("BFS结束，总共用时：" + (System.currentTimeMillis() - start) + "ms");}
}

PageRank.java

import java.io.*;
import java.sql.Time;
import java.util.*;public class PageRank {//    public static final int N = 77360;
//    public static final int N = 1971281;public static final int N = 4847571;
//    public static final int N = 5;private static final double AFA = 0.85;private static final double DELTA = 1;private static final double MAX_TIMES = 100;
//    private static final String FILE = "/home/jkbao/Slashdot0811.txt";
//    private static final String OUT = "/home/jkbao/result.txt";
//    private static final String FILE = "/home/jkbao/roadNet-CA.txt";
//    private static final String OUT = "/home/jkbao/result_roadNet.txt";private static final String FILE = "/home/jkbao/soc-LiveJournal1.txt";private static final String OUT = "/home/jkbao/result_LiveJournall.txt";public static void pagerank(List<List<Integer>> graph){//        List<List<Integer>> graph = new ArrayList<>();
//        List<Integer> list0 = Arrays.asList(1,2,3);
//        List<Integer> list1 = Arrays.asList(3,4);
//        List<Integer> list2 = Arrays.asList(4);
//        List<Integer> list3 = Arrays.asList(4);
//        List<Integer> list4 = Arrays.asList(0);
//        graph.add(list0);
//        graph.add(list1);
//        graph.add(list2);
//        graph.add(list3);
//        graph.add(list4);double [] Prnew = new double[N];for (int i = 0; i < N; i++) {Prnew[i] = 1.0/N;}double [] Pr;//迭代至|Pn+1−Pn|<ϵlong start = System.currentTimeMillis();long now = 0;for (int i = 1; i < MAX_TIMES; i++) {//保留迭代前的PrPr = Prnew;//迭代后Prnew = get_Prnew(graph,Pr);double delta = get_DELTA(Prnew,Pr);now = System.currentTimeMillis() - start;System.out.println("第" + i + "次迭代完成,DELTA = " + delta + ", 用时 " + now + "ms");if(delta < DELTA)break;}//打印前十个pr节点System.out.println();System.out.println("开始计算前十节点...");System.out.println();double [][] big = getBiggestPr(Prnew);for (int j = 0; j < 10; j++) {System.out.println("第" + (j+1) + "大节点, node: " + (int)big[j][0] + " pr: " + big[j][1]);}//写文件
//        BufferedWriter bw = null;
//        try {
//            bw = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(OUT)));
//            double sum = 0;
//            for (int j = 0; j < N; j++) {System.out.println(Prnew[j]);
//                sum+=Prnew[j];
//                bw.write(String.valueOf(Prnew[j]));
//                bw.newLine();
//            }
//            System.out.println(sum);
//
//        }catch (Exception e){
//            e.printStackTrace();
//        }}public static double [][] getBiggestPr(double [] Pr){double [][] biggestPr = new double[10][2];for (int i = 0; i < N; i++) {if (Pr[i] > biggestPr[9][1]){biggestPr[9][0] = i;biggestPr[9][1] = Pr[i];for (int j = 8; j >= 0; j--) {if (biggestPr[j+1][1] > biggestPr[j][1]){//交换biggestPr[j+1][0] = biggestPr[j+1][0] + biggestPr[j][0];biggestPr[j][0] = biggestPr[j+1][0] - biggestPr[j][0];biggestPr[j+1][0] = biggestPr[j+1][0] - biggestPr[j][0];biggestPr[j+1][1] = biggestPr[j+1][1] + biggestPr[j][1];biggestPr[j][1] = biggestPr[j+1][1] - biggestPr[j][1];biggestPr[j+1][1] = biggestPr[j+1][1] - biggestPr[j][1];}else{break;}}}}return biggestPr;}//计算|Pn+1−Pn|public static double get_DELTA(double[] Prnew,double [] Pr){double temp = 0;for (int i = 0; i < N; i++) {temp += (Prnew[i] - Pr[i])*(Prnew[i] - Pr[i]);}return Math.sqrt(temp);}//一次迭代过程public static double [] get_Prnew(List<List<Integer>> list,double [] Pr){double [] Prnew = new double[N];List<Integer> _list;int _list_size;for (int i = 0; i < N; i++) {if(i%100000 == 0)System.out.println("pr值更新到：" + i);for (int k = 0; k < N; k++) {_list = list.get(k);if (_list.size() == 0){Prnew[i] += Pr[k] * (AFA * (1.0 / N) + (1 - AFA) / N);break;}_list_size = _list.size();int has = 0;for (int j = 0; j < _list_size; j++) {if (_list.get(j) == i) {Prnew[i] += Pr[k] * (AFA * (1.0 / _list_size) + (1 - AFA) / N);has = 1;break;}}if (has == 0)Prnew[i] += Pr[k] * ((1 - AFA) / N);}}return Prnew;}//读取图，处理后得到矩阵public static List<List<Integer>> file_to_matrix(){List<List<Integer>> graph = new ArrayList<>(N);for (int i = 0; i < N; i++) {graph.add(new ArrayList<>());}BufferedReader br = null;try {br = new BufferedReader(new InputStreamReader(new FileInputStream(FILE)),65536);int delete4 = 0;while(br.readLine() != null && delete4 < 3){delete4++;}String line;String []str;
//            int max = 0;int num = 0;long start = System.currentTimeMillis();long now = 0;while((line = br.readLine()) != null){num++;if(num%1000000 == 0){now = System.currentTimeMillis() - start;System.out.println("已读取 " + num + "行！ 用时 " + now + "ms");}str = line.split("\t");
//                max = Math.max(max,Integer.parseInt(str[1]));graph.get(Integer.parseInt(str[0])).add(Integer.parseInt(str[1]));}System.out.println("文件读取结束,共 " + num + "行,开始迭代！");System.out.println();
//            System.out.println(max);}catch (Exception e){e.printStackTrace();}finally {try {if (br != null)br.close();}catch (IOException e){br = null;e.printStackTrace();}finally {br = null;}}return graph;}}

BFS.java

广度优先遍历，记录每一层的节点数

import java.util.ArrayList;
import java.util.LinkedList;
import java.util.List;
import java.util.Queue;public class BFS {public static void main(String args[]){List<List<Integer>> graph = PageRank.file_to_matrix();System.out.println();System.out.println("BFS 第一层：");bfs(graph);}public static void bfs(List<List<Integer>> graph){int flag[] = new int[PageRank.N];
//        System.out.println(flag[0]);Queue<Integer> queue = new LinkedList<>();Queue<Integer> tempQueue = new LinkedList<>();List<Integer> layer_Nodes = new ArrayList<>();queue.offer(0);flag[0] = 1;layer_Nodes.add(1);//System.out.print(0 + " ");int node;List<Integer> node_li;int sum = 0;int layer_now = 1;while(!queue.isEmpty()){node = queue.poll();sum++;if(sum%100000 == 0)System.out.println("已遍历节点数： " + sum);node_li = graph.get(node);for (int i = 0; i < node_li.size(); i++) {if (flag[node_li.get(i)] == 0){tempQueue.offer(node_li.get(i));flag[node_li.get(i)] = 1;}}if (queue.isEmpty() && !tempQueue.isEmpty()){if (layer_Nodes.size() > layer_now)layer_Nodes.set(layer_now,layer_Nodes.get(layer_now) + tempQueue.size());elselayer_Nodes.add(tempQueue.size());queue = tempQueue;tempQueue = new LinkedList<>();layer_now++;}if (queue.isEmpty() && tempQueue.isEmpty()){for (int i = 0; i < PageRank.N; i++) {if (flag[i] == 0){queue.offer(i);flag[i] = 1;layer_Nodes.set(0,layer_Nodes.get(0) + 1);layer_now = 1;//System.out.print(i + " ");break;}}}}System.out.println();System.out.println("总遍历节点数： " + sum);int check = 0;for (int i = 0; i < layer_Nodes.size(); i++) {System.out.println("第" + (i+1) + "层节点数: " + layer_Nodes.get(i));check+=layer_Nodes.get(i);}//System.out.println(check);}
}

2. 机器配置

主板：Intel HM70

Cpu：Intel 赛扬双核 B830

内存：4G

3. 实验中遇到的问题及解决方式

1. 图的存储方式问题

一开始使用邻接矩阵的方式存储图，第一个数据集就跑不过，jvm堆内存溢出，想了想问题出现在内存上，简单分析一下，第一个数据集7万多个节点，转化成矩阵就是70000 * 70000，double类型占用8个字节，矩阵存储需要的内存就是70000 * 70000 * 8个字节，大约40G，明显是不现实的。想了想发现矩阵很稀疏，所以改用邻接表存储，并且改为存储int类型数据，只在计算过程中再对图进行处理。

2. Jvm堆内存溢出问题

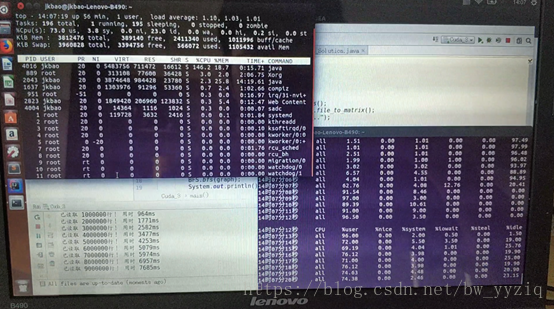

在改变存储方式之后对于前两个数据集可以跑过，但是soc-LiveJournal1.txt跑不过，分析得知内存不够，然后调jvm参数，堆内存上限设置为3G（电脑内存一共就4G），虽然机器变得很卡但最终还是跑过了。

3. BFS记录每一层节点数时复杂度不够优的问题

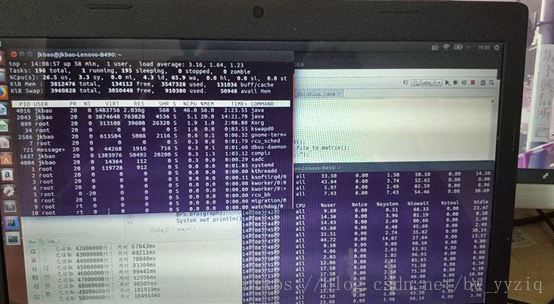

一开始实现BFS分层节点数记录时，对于非连通节点的处理时部分代码复杂度为O(n²)，结果导致遍历到第4400000个节点附近，遍历速度急剧下降。后来发现是找根节点那部分代码复杂度太大，每次都可能要从头遍历几百万个节点，后将算法优化成上面那样，速度就极快了。
