vivado 和 modesim 联合仿真快速修改重仿

vivado与modelsim的联合仿真(一)_坚持-CSDN博客_modelsim和vivado

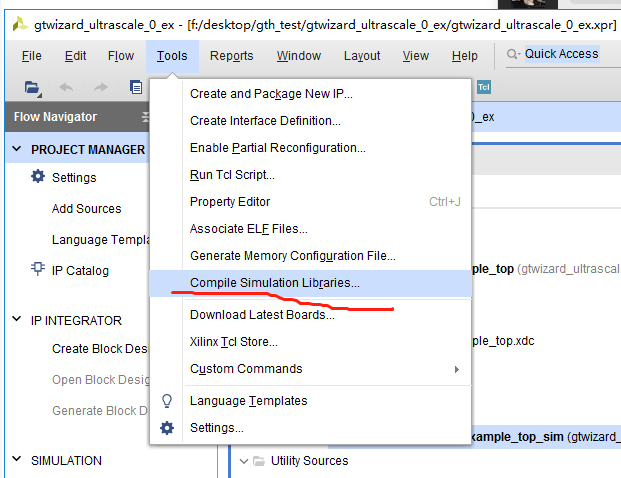

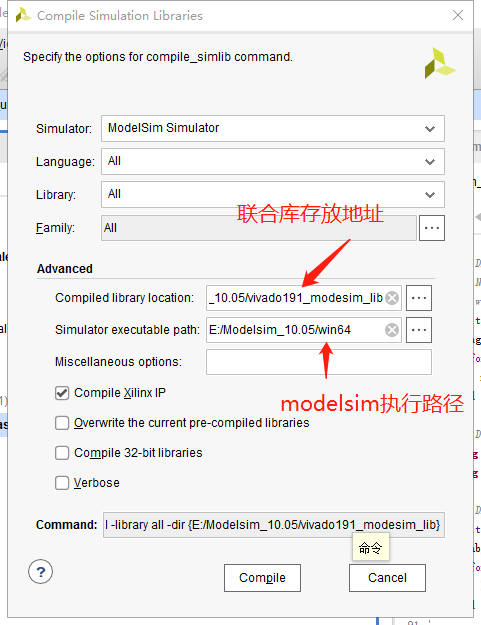

1 编译联合仿真库 tool → compile_simulation_libraries ，选择simulator 为 modelsim simulator，填写好 compiled library location(联合库存放地址)，simulator executable path (modelsim.exe 地址)

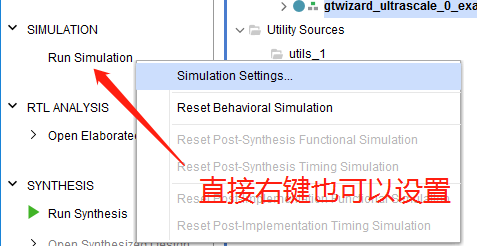

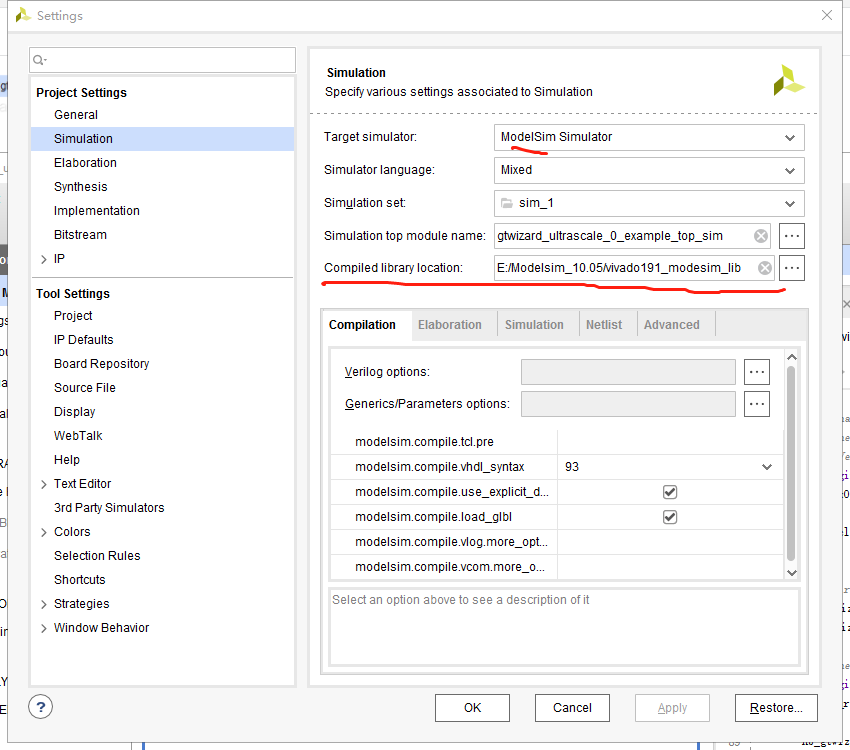

2 setting里面simulation选项，选择 target simulator 为 modelsim，编译库设置为第1步的存放位置。

设置好后点击 run simulation 即可

安装后联合仿真跑不起来的原因：

0 .v中有错误，错误信息会在 vivado的 tcl console窗口中说明

1 查看下环境变量 PATH中有没有modelsim的路径

2 vivado setting中将 3rd party simulators的路径设置一下看是否有用

联合仿真使用建议：

modelsim中的两个操作：do wave.do 和combine signals - FPGA/ASIC技术 - 电子发烧友网

1 在重新加载后还有一个麻烦事是信号要重新往modelsim的波形窗口里面添加一遍，这个很麻烦，do wave.do就是来解决这一麻烦的。

要执行这一命令，首先在上次把信号往波形窗口里面添加好后，单击一下波形窗口的信号，执行一下操作File----Save Format...命令，或者直接点击工具栏中左上角的保存

执行以上命令后，默认保存为wave.do，当然wave这个名字可以随意更改的。

保存好后，在下次加载了 vivado 的程序后，执行do wave.do就可以把上次已经添加到波形窗口的信号自动添加过去，很方便，很省事。

需要说明的是，do wave.do命令等价于File---Load...操作，当然，改了保存的名字那你就找你保存的那个.do文件就行。

2 在vivado中联合使用modelsim中仿真时，经常要修改了vivado里面的程序然后重新仿真，重新加载程序可以使用以下方法来重新加载而不必每次关掉modelsim在vivado中重新打开

1> 在自己制作的 xxx.do 文件中，复制添加vivado生成的 编译命令 prj \ prj.sim \ sim_1\ behav \ modelsim \ tb_preload_top_compile.do，去掉最后的强制退出命令quit -force

2> 在自己制作的 xxx.do 文件中，复制添加vivado生成的 仿真命令 prj \ prj.sim \ sim_1\ behav \ modelsim \ tb_preload_top_simulate.do

3> 在自己制作的 xxx.do 文件中, 添加1保存的波形信息 do wave.do，然后添加 run 1ms 命令

4> 直接打开modelsim，change_dir 到 prj \ prj.sim \ sim_1\ behav \ modelsim （compile.do所在的文件夹），然后 do xxx.do 即可，如果要添加或者删除文件，记得修改compile.do部分的包含内容

xxx.do 的一个示例如下：

######################################################################
#
# File name : tb_preload_top_wave.do
# Created on: Tue Jun 08 13:44:44 +0800 2021
#
# Auto generated by Vivado for 'behavioral' simulation
#
######################### tb_preload_top_compile.do #############################################vlib modelsim_lib/work
vlib modelsim_lib/msimvlib modelsim_lib/msim/xil_defaultlibvmap xil_defaultlib modelsim_lib/msim/xil_defaultlibvlog -64 -incr -work xil_defaultlib  "+incdir+../../../../../rtl/pre_load" "+incdir+../../../../../rtl/pre_load/sim" \
"../../../../../rtl/pre_load/ip/fifo128to128/sim/fifo128to128.v" \
"../../../../../rtl/pre_load/ip/fifo256to128/sim/fifo256to128.v" \
"../../../../../rtl/pre_load/preload_top.v" \
"../../../../../rtl/pre_load/sim/tb_preload_top.v" \# compile glbl module
vlog -work xil_defaultlib "glbl.v"######################### tb_preload_top_simulate.do #############################################vsim -voptargs="+acc" -L fifo_generator_v13_2_4 -L xil_defaultlib -L unisims_ver -L unimacro_ver -L secureip -L xpm -lib xil_defaultlib xil_defaultlib.tb_preload_top xil_defaultlib.glblset NumericStdNoWarnings 1
set StdArithNoWarnings 1do {tb_preload_top_wave.do}view wave
view structure
view signalsdo {tb_preload_top.udo}######################### usr #############################################do {I:\ATE_prj\IOPE_prj\rtl\pre_load\sim\preload_wave.do}run 1ms

方案2

直接在modelsim中添加 .v 文件

添加库参考：在ModelSim中添加Xilinx仿真库 - Craftor - 博客园

即修改 .ini 文件，一劳永逸，

具体内容可以copy某个vivado工程中的 prj.sim -- sim_1 -- behav -- modelsim --modelsim.ini中的下面内容

secureip = D:/modelsim10.05/Vivado2019.1_jiont/secureip
unisim = D:/modelsim10.05/Vivado2019.1_jiont/unisim
unimacro = D:/modelsim10.05/Vivado2019.1_jiont/unimacro
unifast = D:/modelsim10.05/Vivado2019.1_jiont/unifast
unisims_ver = D:/modelsim10.05/Vivado2019.1_jiont/unisims_ver
unimacro_ver = D:/modelsim10.05/Vivado2019.1_jiont/unimacro_ver
unifast_ver = D:/modelsim10.05/Vivado2019.1_jiont/unifast_ver
simprims_ver = D:/modelsim10.05/Vivado2019.1_jiont/simprims_ver
xpm = D:/modelsim10.05/Vivado2019.1_jiont/xpm
xilinx_vip = D:/modelsim10.05/Vivado2019.1_jiont/xilinx_vip
advanced_io_wizard_phy_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/advanced_io_wizard_phy_v1_0_0
advanced_io_wizard_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/advanced_io_wizard_v1_0_0
ahblite_axi_bridge_v3_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/ahblite_axi_bridge_v3_0_14
ai_noc = D:/modelsim10.05/Vivado2019.1_jiont/ai_noc
ai_pl_trig = D:/modelsim10.05/Vivado2019.1_jiont/ai_pl_trig
ai_pl = D:/modelsim10.05/Vivado2019.1_jiont/ai_pl
audio_clock_recovery_v1_0 = D:/modelsim10.05/Vivado2019.1_jiont/audio_clock_recovery_v1_0
audio_tpg_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/audio_tpg_v1_0_0
av_pat_gen_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/av_pat_gen_v1_0_0
axis_infrastructure_v1_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/axis_infrastructure_v1_1_0
axis_protocol_checker_v2_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/axis_protocol_checker_v2_0_3
axi_ahblite_bridge_v3_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/axi_ahblite_bridge_v3_0_16
axi_amm_bridge_v1_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/axi_amm_bridge_v1_0_9
axi_bram_ctrl_v4_1_1 = D:/modelsim10.05/Vivado2019.1_jiont/axi_bram_ctrl_v4_1_1
axi_chip2chip_v5_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi_chip2chip_v5_0_5
axi_dbg_hub = D:/modelsim10.05/Vivado2019.1_jiont/axi_dbg_hub
axi_infrastructure_v1_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/axi_infrastructure_v1_1_0
axi_jtag_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/axi_jtag_v1_0_0
axi_lite_ipif_v3_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/axi_lite_ipif_v3_0_4
axi_pcie3_v3_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/axi_pcie3_v3_0_9
axi_perf_mon_v5_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/axi_perf_mon_v5_0_21
axi_pmon_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/axi_pmon_v1_0_0
blk_mem_gen_v8_3_6 = D:/modelsim10.05/Vivado2019.1_jiont/blk_mem_gen_v8_3_6
blk_mem_gen_v8_4_3 = D:/modelsim10.05/Vivado2019.1_jiont/blk_mem_gen_v8_4_3
bsip_v1_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/bsip_v1_1_0
bs_mux_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/bs_mux_v1_0_0
clk_gen_sim_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/clk_gen_sim_v1_0_0
clk_vip_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/clk_vip_v1_0_2
cmac_usplus_v2_4_5 = D:/modelsim10.05/Vivado2019.1_jiont/cmac_usplus_v2_4_5
cmac_usplus_v2_5_1 = D:/modelsim10.05/Vivado2019.1_jiont/cmac_usplus_v2_5_1
cmac_usplus_v2_6_0 = D:/modelsim10.05/Vivado2019.1_jiont/cmac_usplus_v2_6_0
cmac_v2_3_5 = D:/modelsim10.05/Vivado2019.1_jiont/cmac_v2_3_5
cmac_v2_4_1 = D:/modelsim10.05/Vivado2019.1_jiont/cmac_v2_4_1
cmac_v2_5_0 = D:/modelsim10.05/Vivado2019.1_jiont/cmac_v2_5_0
compact_gt_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/compact_gt_v1_0_5
ddr4_pl_phy_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/ddr4_pl_phy_v1_0_0
ddr4_pl_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/ddr4_pl_v1_0_2
dist_mem_gen_v8_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/dist_mem_gen_v8_0_13
ecc_v2_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/ecc_v2_0_13
emb_fifo_gen_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/emb_fifo_gen_v1_0_1
emb_mem_gen_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/emb_mem_gen_v1_0_1
emc_common_v3_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/emc_common_v3_0_5
ethernet_1_10_25g_v2_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/ethernet_1_10_25g_v2_0_4
ethernet_1_10_25g_v2_1_3 = D:/modelsim10.05/Vivado2019.1_jiont/ethernet_1_10_25g_v2_1_3
ethernet_1_10_25g_v2_2_2 = D:/modelsim10.05/Vivado2019.1_jiont/ethernet_1_10_25g_v2_2_2
ethernet_1_10_25g_v2_3_0 = D:/modelsim10.05/Vivado2019.1_jiont/ethernet_1_10_25g_v2_3_0
fifo_generator_v13_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/fifo_generator_v13_0_6
fifo_generator_v13_1_4 = D:/modelsim10.05/Vivado2019.1_jiont/fifo_generator_v13_1_4
fifo_generator_v13_2_4 = D:/modelsim10.05/Vivado2019.1_jiont/fifo_generator_v13_2_4
fit_timer_v2_0_10 = D:/modelsim10.05/Vivado2019.1_jiont/fit_timer_v2_0_10
generic_baseblocks_v2_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/generic_baseblocks_v2_1_0
gigantic_mux = D:/modelsim10.05/Vivado2019.1_jiont/gigantic_mux
gig_ethernet_pcs_pma_v16_1_6 = D:/modelsim10.05/Vivado2019.1_jiont/gig_ethernet_pcs_pma_v16_1_6
gmii_to_rgmii_v4_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/gmii_to_rgmii_v4_0_7
gtwizard_ultrascale_v1_5_4 = D:/modelsim10.05/Vivado2019.1_jiont/gtwizard_ultrascale_v1_5_4
gtwizard_ultrascale_v1_6_11 = D:/modelsim10.05/Vivado2019.1_jiont/gtwizard_ultrascale_v1_6_11
gtwizard_ultrascale_v1_7_6 = D:/modelsim10.05/Vivado2019.1_jiont/gtwizard_ultrascale_v1_7_6
hbm_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/hbm_v1_0_3
hdcp22_cipher_dp_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/hdcp22_cipher_dp_v1_0_0
hdcp22_cipher_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/hdcp22_cipher_v1_0_3
hdcp22_rng_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/hdcp22_rng_v1_0_1
hdcp_keymngmt_blk_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/hdcp_keymngmt_blk_v1_0_0
hdcp_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/hdcp_v1_0_3
hdmi_gt_controller_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/hdmi_gt_controller_v1_0_0
high_speed_selectio_wiz_v3_2_3 = D:/modelsim10.05/Vivado2019.1_jiont/high_speed_selectio_wiz_v3_2_3
high_speed_selectio_wiz_v3_3_1 = D:/modelsim10.05/Vivado2019.1_jiont/high_speed_selectio_wiz_v3_3_1
high_speed_selectio_wiz_v3_4_1 = D:/modelsim10.05/Vivado2019.1_jiont/high_speed_selectio_wiz_v3_4_1
high_speed_selectio_wiz_v3_5_1 = D:/modelsim10.05/Vivado2019.1_jiont/high_speed_selectio_wiz_v3_5_1
i2s_receiver_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/i2s_receiver_v1_0_3
i2s_transmitter_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/i2s_transmitter_v1_0_3
ibert_lib_v1_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/ibert_lib_v1_0_6
ieee802d3_clause74_fec_v1_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_clause74_fec_v1_0_4
interlaken_v2_4_3 = D:/modelsim10.05/Vivado2019.1_jiont/interlaken_v2_4_3
in_system_ibert_v1_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/in_system_ibert_v1_0_9
iomodule_v3_1_4 = D:/modelsim10.05/Vivado2019.1_jiont/iomodule_v3_1_4
jesd204c_v4_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/jesd204c_v4_1_0
jesd204_v7_2_6 = D:/modelsim10.05/Vivado2019.1_jiont/jesd204_v7_2_6
jtag_axi = D:/modelsim10.05/Vivado2019.1_jiont/jtag_axi
lib_cdc_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/lib_cdc_v1_0_2
lib_pkg_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/lib_pkg_v1_0_2
lmb_bram_if_cntlr_v4_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/lmb_bram_if_cntlr_v4_0_16
lmb_v10_v3_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/lmb_v10_v3_0_9
ltlib_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/ltlib_v1_0_0
lut_buffer_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/lut_buffer_v1_0_0
lut_buffer_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/lut_buffer_v2_0_0
l_ethernet_v2_3_5 = D:/modelsim10.05/Vivado2019.1_jiont/l_ethernet_v2_3_5
l_ethernet_v2_4_1 = D:/modelsim10.05/Vivado2019.1_jiont/l_ethernet_v2_4_1
l_ethernet_v2_5_0 = D:/modelsim10.05/Vivado2019.1_jiont/l_ethernet_v2_5_0
mammoth_transcode_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/mammoth_transcode_v1_0_0
microblaze_v10_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/microblaze_v10_0_7
microblaze_v11_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/microblaze_v11_0_1
microblaze_v9_5_4 = D:/modelsim10.05/Vivado2019.1_jiont/microblaze_v9_5_4
mii_to_rmii_v2_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/mii_to_rmii_v2_0_21
mipi_csi2_rx_ctrl_v1_0_8 = D:/modelsim10.05/Vivado2019.1_jiont/mipi_csi2_rx_ctrl_v1_0_8
mipi_csi2_tx_ctrl_v1_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/mipi_csi2_tx_ctrl_v1_0_4
mipi_dphy_v4_1_3 = D:/modelsim10.05/Vivado2019.1_jiont/mipi_dphy_v4_1_3
mipi_dsi_tx_ctrl_v1_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/mipi_dsi_tx_ctrl_v1_0_7
mrmac_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/mrmac_v1_0_0
multi_channel_25g_rs_fec_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/multi_channel_25g_rs_fec_v1_0_2
mutex_v2_1_10 = D:/modelsim10.05/Vivado2019.1_jiont/mutex_v2_1_10
axi_tg_lib = D:/modelsim10.05/Vivado2019.1_jiont/axi_tg_lib
noc_na_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/noc_na_v1_0_0
noc_nidb_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/noc_nidb_v1_0_0
noc_nmu_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/noc_nmu_v1_0_0
noc_nps_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/noc_nps_v1_0_0
nvmeha_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/nvmeha_v1_0_0
oddr_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/oddr_v1_0_0
pci32_v5_0_12 = D:/modelsim10.05/Vivado2019.1_jiont/pci32_v5_0_12
pci64_v5_0_11 = D:/modelsim10.05/Vivado2019.1_jiont/pci64_v5_0_11
pcie_jtag_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/pcie_jtag_v1_0_0
pc_cfr_v6_0_8 = D:/modelsim10.05/Vivado2019.1_jiont/pc_cfr_v6_0_8
pc_cfr_v6_1_4 = D:/modelsim10.05/Vivado2019.1_jiont/pc_cfr_v6_1_4
pc_cfr_v6_2_2 = D:/modelsim10.05/Vivado2019.1_jiont/pc_cfr_v6_2_2
pc_cfr_v6_3_0 = D:/modelsim10.05/Vivado2019.1_jiont/pc_cfr_v6_3_0
picxo = D:/modelsim10.05/Vivado2019.1_jiont/picxo
qdma_v3_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/qdma_v3_0_1
rama_v1_1_1_lib = D:/modelsim10.05/Vivado2019.1_jiont/rama_v1_1_1_lib
rld3_pl_phy_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/rld3_pl_phy_v1_0_0
rld3_pl_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/rld3_pl_v1_0_1
roe_framer_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/roe_framer_v2_0_0
rst_vip_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/rst_vip_v1_0_3
smartconnect_v1_0 = D:/modelsim10.05/Vivado2019.1_jiont/smartconnect_v1_0
sd_fec_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/sd_fec_v1_0_2
sem_ultra_v3_1_11 = D:/modelsim10.05/Vivado2019.1_jiont/sem_ultra_v3_1_11
sem_v4_1_12 = D:/modelsim10.05/Vivado2019.1_jiont/sem_v4_1_12
shell_utils_msp432_bsl_crc_gen_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/shell_utils_msp432_bsl_crc_gen_v1_0_0
sim_clk_gen_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/sim_clk_gen_v1_0_2
sim_rst_gen_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/sim_rst_gen_v1_0_2
sim_trig_top_v1_0 = D:/modelsim10.05/Vivado2019.1_jiont/sim_trig_top_v1_0
stm_v1_0 = D:/modelsim10.05/Vivado2019.1_jiont/stm_v1_0
stm_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/stm_v1_0_0
system_cache_v4_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/system_cache_v4_0_6
ta_dma_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/ta_dma_v1_0_3
tcc_decoder_3gpplte_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/tcc_decoder_3gpplte_v3_0_6
ten_gig_eth_mac_v15_1_7 = D:/modelsim10.05/Vivado2019.1_jiont/ten_gig_eth_mac_v15_1_7
ten_gig_eth_pcs_pma_v6_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/ten_gig_eth_pcs_pma_v6_0_15
timer_sync_1588_v1_2_4 = D:/modelsim10.05/Vivado2019.1_jiont/timer_sync_1588_v1_2_4
tmr_inject_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/tmr_inject_v1_0_3
tmr_manager_v1_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/tmr_manager_v1_0_4
tmr_voter_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/tmr_voter_v1_0_2
tsn_endpoint_ethernet_mac_block_v1_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/tsn_endpoint_ethernet_mac_block_v1_0_4
uhdsdi_gt_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/uhdsdi_gt_v1_0_3
uhdsdi_gt_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/uhdsdi_gt_v2_0_0
usxgmii_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/usxgmii_v1_0_5
usxgmii_v1_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/usxgmii_v1_1_0
util_idelay_ctrl_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/util_idelay_ctrl_v1_0_1
util_reduced_logic_v2_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/util_reduced_logic_v2_0_4
util_vector_logic_v2_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/util_vector_logic_v2_0_1
ba317 = D:/modelsim10.05/Vivado2019.1_jiont/ba317
versal_cips_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/versal_cips_v1_0_0
vfb_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/vfb_v1_0_13
video_frame_crc_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/video_frame_crc_v1_0_1
vid_edid_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/vid_edid_v1_0_0
vid_phy_controller_v2_1_5 = D:/modelsim10.05/Vivado2019.1_jiont/vid_phy_controller_v2_1_5
vid_phy_controller_v2_2_3 = D:/modelsim10.05/Vivado2019.1_jiont/vid_phy_controller_v2_2_3
v_axi4s_remap_v1_0_11 = D:/modelsim10.05/Vivado2019.1_jiont/v_axi4s_remap_v1_0_11
v_csc_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_csc_v1_0_13
v_deinterlacer_v4_0_12 = D:/modelsim10.05/Vivado2019.1_jiont/v_deinterlacer_v4_0_12
v_deinterlacer_v5_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_deinterlacer_v5_0_13
v_demosaic_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/v_demosaic_v1_0_5
v_frmbuf_rd_v2_1_2 = D:/modelsim10.05/Vivado2019.1_jiont/v_frmbuf_rd_v2_1_2
v_frmbuf_wr_v2_1_2 = D:/modelsim10.05/Vivado2019.1_jiont/v_frmbuf_wr_v2_1_2
v_gamma_lut_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/v_gamma_lut_v1_0_5
v_hcresampler_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_hcresampler_v1_0_13
v_hdmi_rx_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_hdmi_rx_v2_0_0
v_hdmi_rx_v3_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_hdmi_rx_v3_0_0
v_hdmi_tx_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_hdmi_tx_v2_0_0
v_hdmi_tx_v3_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_hdmi_tx_v3_0_0
v_hscaler_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_hscaler_v1_0_13
v_letterbox_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_letterbox_v1_0_13
v_mix_v3_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/v_mix_v3_0_3
v_mix_v4_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_mix_v4_0_0
v_multi_scaler_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/v_multi_scaler_v1_0_1
v_scenechange_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/v_scenechange_v1_0_1
v_sdi_rx_vid_bridge_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_sdi_rx_vid_bridge_v2_0_0
v_smpte_sdi_v3_0_8 = D:/modelsim10.05/Vivado2019.1_jiont/v_smpte_sdi_v3_0_8
v_smpte_uhdsdi_rx_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_smpte_uhdsdi_rx_v1_0_0
v_smpte_uhdsdi_tx_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_smpte_uhdsdi_tx_v1_0_0
v_smpte_uhdsdi_v1_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/v_smpte_uhdsdi_v1_0_7
v_tpg_v7_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_tpg_v7_0_13
v_tpg_v8_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/v_tpg_v8_0_1
v_uhdsdi_audio_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_uhdsdi_audio_v1_0_0
v_uhdsdi_audio_v1_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_uhdsdi_audio_v1_1_0
v_uhdsdi_audio_v2_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/v_uhdsdi_audio_v2_0_1
v_uhdsdi_vidgen_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/v_uhdsdi_vidgen_v1_0_1
v_vcresampler_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_vcresampler_v1_0_13
v_vid_in_axi4s_v4_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/v_vid_in_axi4s_v4_0_9
v_vscaler_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_vscaler_v1_0_13
xaui_v12_3_6 = D:/modelsim10.05/Vivado2019.1_jiont/xaui_v12_3_6
xbip_dsp48_wrapper_v3_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_wrapper_v3_0_4
xbip_utils_v3_0_10 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_utils_v3_0_10
xdma_v4_1_3 = D:/modelsim10.05/Vivado2019.1_jiont/xdma_v4_1_3
xhmc_v1_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/xhmc_v1_0_9
xlconcat_v2_1_3 = D:/modelsim10.05/Vivado2019.1_jiont/xlconcat_v2_1_3
xlconstant_v1_1_6 = D:/modelsim10.05/Vivado2019.1_jiont/xlconstant_v1_1_6
xlslice_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/xlslice_v1_0_2
xsdbm_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/xsdbm_v2_0_0
xsdbm_v3_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/xsdbm_v3_0_0
xxv_ethernet_v2_4_4 = D:/modelsim10.05/Vivado2019.1_jiont/xxv_ethernet_v2_4_4
xxv_ethernet_v2_5_2 = D:/modelsim10.05/Vivado2019.1_jiont/xxv_ethernet_v2_5_2
xxv_ethernet_v3_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/xxv_ethernet_v3_0_0
zynq_ultra_ps_e_v3_2_3 = D:/modelsim10.05/Vivado2019.1_jiont/zynq_ultra_ps_e_v3_2_3
zynq_ultra_ps_e_v3_3_0 = D:/modelsim10.05/Vivado2019.1_jiont/zynq_ultra_ps_e_v3_3_0
lib_srl_fifo_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/lib_srl_fifo_v1_0_2
lib_fifo_v1_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/lib_fifo_v1_0_13
axi_datamover_v5_1_21 = D:/modelsim10.05/Vivado2019.1_jiont/axi_datamover_v5_1_21
amm_axi_bridge_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/amm_axi_bridge_v1_0_5
axis_interconnect_v1_1_17 = D:/modelsim10.05/Vivado2019.1_jiont/axis_interconnect_v1_1_17
ats_switch_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/ats_switch_v1_0_2
audio_formatter_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/audio_formatter_v1_0_1
axi4stream_vip_v1_1_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi4stream_vip_v1_1_5
v_tc_v6_1_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_tc_v6_1_13
v_axi4s_vid_out_v4_0_10 = D:/modelsim10.05/Vivado2019.1_jiont/v_axi4s_vid_out_v4_0_10
axi4svideo_bridge_v1_0_10 = D:/modelsim10.05/Vivado2019.1_jiont/axi4svideo_bridge_v1_0_10
axis_accelerator_adapter_v2_1_15 = D:/modelsim10.05/Vivado2019.1_jiont/axis_accelerator_adapter_v2_1_15
axis_broadcaster_v1_1_18 = D:/modelsim10.05/Vivado2019.1_jiont/axis_broadcaster_v1_1_18
axis_clock_converter_v1_1_20 = D:/modelsim10.05/Vivado2019.1_jiont/axis_clock_converter_v1_1_20
axis_combiner_v1_1_17 = D:/modelsim10.05/Vivado2019.1_jiont/axis_combiner_v1_1_17
axis_data_fifo_v1_1_20 = D:/modelsim10.05/Vivado2019.1_jiont/axis_data_fifo_v1_1_20
axis_data_fifo_v2_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/axis_data_fifo_v2_0_1
axis_register_slice_v1_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axis_register_slice_v1_1_19
axis_dwidth_converter_v1_1_18 = D:/modelsim10.05/Vivado2019.1_jiont/axis_dwidth_converter_v1_1_18
axis_subset_converter_v1_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axis_subset_converter_v1_1_19
axis_switch_v1_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axis_switch_v1_1_19
axis_vio_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/axis_vio_v1_0_0
axi_apb_bridge_v3_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/axi_apb_bridge_v3_0_15
axi_bram_ctrl_v4_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/axi_bram_ctrl_v4_0_14
axi_sg_v4_1_12 = D:/modelsim10.05/Vivado2019.1_jiont/axi_sg_v4_1_12
axi_cdma_v4_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axi_cdma_v4_1_19
axi_clock_converter_v2_1_18 = D:/modelsim10.05/Vivado2019.1_jiont/axi_clock_converter_v2_1_18
axi_data_fifo_v2_1_18 = D:/modelsim10.05/Vivado2019.1_jiont/axi_data_fifo_v2_1_18
axi_register_slice_v2_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axi_register_slice_v2_1_19
axi_crossbar_v2_1_20 = D:/modelsim10.05/Vivado2019.1_jiont/axi_crossbar_v2_1_20
axi_dma_v7_1_20 = D:/modelsim10.05/Vivado2019.1_jiont/axi_dma_v7_1_20
axi_protocol_converter_v2_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axi_protocol_converter_v2_1_19
axi_dwidth_converter_v2_1_19 = D:/modelsim10.05/Vivado2019.1_jiont/axi_dwidth_converter_v2_1_19
axi_emc_v3_0_19 = D:/modelsim10.05/Vivado2019.1_jiont/axi_emc_v3_0_19
axi_epc_v2_0_22 = D:/modelsim10.05/Vivado2019.1_jiont/axi_epc_v2_0_22
lib_bmg_v1_0_12 = D:/modelsim10.05/Vivado2019.1_jiont/lib_bmg_v1_0_12
axi_ethernetlite_v3_0_17 = D:/modelsim10.05/Vivado2019.1_jiont/axi_ethernetlite_v3_0_17
axi_ethernet_buffer_v2_0_20 = D:/modelsim10.05/Vivado2019.1_jiont/axi_ethernet_buffer_v2_0_20
axi_fifo_mm_s_v4_1_16 = D:/modelsim10.05/Vivado2019.1_jiont/axi_fifo_mm_s_v4_1_16
axi_fifo_mm_s_v4_2_1 = D:/modelsim10.05/Vivado2019.1_jiont/axi_fifo_mm_s_v4_2_1
axi_firewall_v1_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/axi_firewall_v1_0_7
interrupt_control_v3_1_4 = D:/modelsim10.05/Vivado2019.1_jiont/interrupt_control_v3_1_4
axi_gpio_v2_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/axi_gpio_v2_0_21
axi_hwicap_v3_0_23 = D:/modelsim10.05/Vivado2019.1_jiont/axi_hwicap_v3_0_23
axi_iic_v2_0_22 = D:/modelsim10.05/Vivado2019.1_jiont/axi_iic_v2_0_22
axi_intc_v4_1_13 = D:/modelsim10.05/Vivado2019.1_jiont/axi_intc_v4_1_13
axi_interconnect_v1_7_16 = D:/modelsim10.05/Vivado2019.1_jiont/axi_interconnect_v1_7_16
axi_master_burst_v2_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/axi_master_burst_v2_0_7
axi_msg_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi_msg_v1_0_5
axi_mcdma_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi_mcdma_v1_0_5
axi_mcdma_v1_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/axi_mcdma_v1_1_0
axi_memory_init_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/axi_memory_init_v1_0_0
axi_mm2s_mapper_v1_1_18 = D:/modelsim10.05/Vivado2019.1_jiont/axi_mm2s_mapper_v1_1_18
axi_mmu_v2_1_17 = D:/modelsim10.05/Vivado2019.1_jiont/axi_mmu_v2_1_17
axi_pcie_v2_9_1 = D:/modelsim10.05/Vivado2019.1_jiont/axi_pcie_v2_9_1
axi_protocol_checker_v2_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi_protocol_checker_v2_0_5
axi_quad_spi_v3_2_18 = D:/modelsim10.05/Vivado2019.1_jiont/axi_quad_spi_v3_2_18
axi_sideband_util_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/axi_sideband_util_v1_0_3
axi_tft_v2_0_22 = D:/modelsim10.05/Vivado2019.1_jiont/axi_tft_v2_0_22
axi_timebase_wdt_v3_0_11 = D:/modelsim10.05/Vivado2019.1_jiont/axi_timebase_wdt_v3_0_11
axi_timer_v2_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/axi_timer_v2_0_21
axi_traffic_gen_v2_0_20 = D:/modelsim10.05/Vivado2019.1_jiont/axi_traffic_gen_v2_0_20
axi_traffic_gen_v3_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi_traffic_gen_v3_0_5
axi_uart16550_v2_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/axi_uart16550_v2_0_21
axi_uartlite_v2_0_23 = D:/modelsim10.05/Vivado2019.1_jiont/axi_uartlite_v2_0_23
axi_usb2_device_v5_0_20 = D:/modelsim10.05/Vivado2019.1_jiont/axi_usb2_device_v5_0_20
axi_utils_v2_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/axi_utils_v2_0_6
axi_vdma_v6_3_7 = D:/modelsim10.05/Vivado2019.1_jiont/axi_vdma_v6_3_7
xbip_pipe_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_pipe_v3_0_6
xbip_dsp48_addsub_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_addsub_v3_0_6
xbip_addsub_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_addsub_v3_0_6
c_reg_fd_v12_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/c_reg_fd_v12_0_6
c_addsub_v12_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/c_addsub_v12_0_13
axi_vfifo_ctrl_v2_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/axi_vfifo_ctrl_v2_0_21
axi_vip_v1_1_5 = D:/modelsim10.05/Vivado2019.1_jiont/axi_vip_v1_1_5
bs_switch_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/bs_switch_v1_0_0
canfd_v2_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/canfd_v2_0_1
can_v5_0_22 = D:/modelsim10.05/Vivado2019.1_jiont/can_v5_0_22
cic_compiler_v4_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/cic_compiler_v4_0_14
xbip_bram18k_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_bram18k_v3_0_6
mult_gen_v12_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/mult_gen_v12_0_15
cmpy_v6_0_17 = D:/modelsim10.05/Vivado2019.1_jiont/cmpy_v6_0_17
c_mux_bit_v12_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/c_mux_bit_v12_0_6
c_shift_ram_v12_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/c_shift_ram_v12_0_13
c_mux_bus_v12_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/c_mux_bus_v12_0_6
c_gate_bit_v12_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/c_gate_bit_v12_0_6
xbip_counter_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_counter_v3_0_6
c_counter_binary_v12_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/c_counter_binary_v12_0_13
c_compare_v12_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/c_compare_v12_0_6
convolution_v9_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/convolution_v9_0_14
cordic_v6_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/cordic_v6_0_15
cpri_v8_10_0 = D:/modelsim10.05/Vivado2019.1_jiont/cpri_v8_10_0
xbip_dsp48_acc_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_acc_v3_0_6
xbip_accum_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_accum_v3_0_6
c_accum_v12_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/c_accum_v12_0_13
xbip_dsp48_multadd_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_multadd_v3_0_6
dds_compiler_v6_0_18 = D:/modelsim10.05/Vivado2019.1_jiont/dds_compiler_v6_0_18
dft_v4_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/dft_v4_0_16
dft_v4_1_1 = D:/modelsim10.05/Vivado2019.1_jiont/dft_v4_1_1
displayport_v7_0_11 = D:/modelsim10.05/Vivado2019.1_jiont/displayport_v7_0_11
displayport_v8_1_1 = D:/modelsim10.05/Vivado2019.1_jiont/displayport_v8_1_1
displayport_v9_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/displayport_v9_0_1
xbip_dsp48_mult_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_mult_v3_0_6
floating_point_v7_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/floating_point_v7_0_16
div_gen_v5_1_15 = D:/modelsim10.05/Vivado2019.1_jiont/div_gen_v5_1_15
dp_videoaxi4s_bridge_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/dp_videoaxi4s_bridge_v1_0_0
dsp_macro_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/dsp_macro_v1_0_0
fir_compiler_v5_2_6 = D:/modelsim10.05/Vivado2019.1_jiont/fir_compiler_v5_2_6
duc_ddc_compiler_v3_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/duc_ddc_compiler_v3_0_15
ernic_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/ernic_v1_0_1
etrnic_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/etrnic_v1_0_3
etrnic_v1_1_2 = D:/modelsim10.05/Vivado2019.1_jiont/etrnic_v1_1_2
fc32_rs_fec_v1_0_10 = D:/modelsim10.05/Vivado2019.1_jiont/fc32_rs_fec_v1_0_10
fec_5g_common_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/fec_5g_common_v1_0_1
fec_5g_common_v1_1_1 = D:/modelsim10.05/Vivado2019.1_jiont/fec_5g_common_v1_1_1
fir_compiler_v7_2_12 = D:/modelsim10.05/Vivado2019.1_jiont/fir_compiler_v7_2_12
flexo_100g_rs_fec_v1_0_10 = D:/modelsim10.05/Vivado2019.1_jiont/flexo_100g_rs_fec_v1_0_10
floating_point_v7_1_8 = D:/modelsim10.05/Vivado2019.1_jiont/floating_point_v7_1_8
g709_rs_encoder_v2_2_6 = D:/modelsim10.05/Vivado2019.1_jiont/g709_rs_encoder_v2_2_6
rs_toolbox_v9_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/rs_toolbox_v9_0_7
g709_rs_decoder_v2_2_8 = D:/modelsim10.05/Vivado2019.1_jiont/g709_rs_decoder_v2_2_8
g709_fec_v2_3_5 = D:/modelsim10.05/Vivado2019.1_jiont/g709_fec_v2_3_5
g709_fec_v2_4_1 = D:/modelsim10.05/Vivado2019.1_jiont/g709_fec_v2_4_1
g975_efec_i4_v1_0_17 = D:/modelsim10.05/Vivado2019.1_jiont/g975_efec_i4_v1_0_17
g975_efec_i7_v2_0_18 = D:/modelsim10.05/Vivado2019.1_jiont/g975_efec_i7_v2_0_18
ieee802d3_200g_rs_fec_v1_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_200g_rs_fec_v1_0_6
ieee802d3_25g_rs_fec_v1_0_12 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_25g_rs_fec_v1_0_12
ieee802d3_400g_rs_fec_v1_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_400g_rs_fec_v1_0_6
ieee802d3_50g_rs_fec_v1_0_11 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_50g_rs_fec_v1_0_11
ieee802d3_50g_rs_fec_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_50g_rs_fec_v2_0_0
ieee802d3_rs_fec_v1_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_rs_fec_v1_0_15
ieee802d3_rs_fec_v2_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/ieee802d3_rs_fec_v2_0_4
ldpc_v2_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/ldpc_v2_0_3
lte_3gpp_channel_estimator_v2_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/lte_3gpp_channel_estimator_v2_0_16
lte_3gpp_mimo_decoder_v3_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/lte_3gpp_mimo_decoder_v3_0_15
lte_3gpp_mimo_encoder_v4_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/lte_3gpp_mimo_encoder_v4_0_14
tcc_encoder_3gpplte_v4_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/tcc_encoder_3gpplte_v4_0_15
lte_dl_channel_encoder_v3_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/lte_dl_channel_encoder_v3_0_15
lte_dl_channel_encoder_v4_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/lte_dl_channel_encoder_v4_0_0
xfft_v7_2_9 = D:/modelsim10.05/Vivado2019.1_jiont/xfft_v7_2_9
lte_fft_v2_0_18 = D:/modelsim10.05/Vivado2019.1_jiont/lte_fft_v2_0_18
xfft_v9_1_2 = D:/modelsim10.05/Vivado2019.1_jiont/xfft_v9_1_2
lte_fft_v2_1_0 = D:/modelsim10.05/Vivado2019.1_jiont/lte_fft_v2_1_0
xbip_dsp48_multacc_v3_0_6 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_multacc_v3_0_6
lte_pucch_receiver_v2_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/lte_pucch_receiver_v2_0_16
xbip_multadd_v3_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_multadd_v3_0_14
lte_rach_detector_v3_1_5 = D:/modelsim10.05/Vivado2019.1_jiont/lte_rach_detector_v3_1_5
lte_ul_channel_decoder_v4_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/lte_ul_channel_decoder_v4_0_16
mailbox_v2_1_11 = D:/modelsim10.05/Vivado2019.1_jiont/mailbox_v2_1_11
mdm_v3_2_16 = D:/modelsim10.05/Vivado2019.1_jiont/mdm_v3_2_16
iomodule_v3_0 = D:/modelsim10.05/Vivado2019.1_jiont/iomodule_v3_0
lmb_bram_if_cntlr_v4_0 = D:/modelsim10.05/Vivado2019.1_jiont/lmb_bram_if_cntlr_v4_0
lmb_v10_v3_0 = D:/modelsim10.05/Vivado2019.1_jiont/lmb_v10_v3_0
axi_lite_ipif_v3_0 = D:/modelsim10.05/Vivado2019.1_jiont/axi_lite_ipif_v3_0
mdm_v3_2 = D:/modelsim10.05/Vivado2019.1_jiont/mdm_v3_2
microblaze_mcs_v2_3_6 = D:/modelsim10.05/Vivado2019.1_jiont/microblaze_mcs_v2_3_6
noc_mc_ddr4_phy_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/noc_mc_ddr4_phy_v1_0_0
perf_axi_tg_v1_0_8 = D:/modelsim10.05/Vivado2019.1_jiont/perf_axi_tg_v1_0_8
polar_v1_0_3 = D:/modelsim10.05/Vivado2019.1_jiont/polar_v1_0_3
prc_v1_3_2 = D:/modelsim10.05/Vivado2019.1_jiont/prc_v1_3_2
processing_system7_vip_v1_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/processing_system7_vip_v1_0_7
proc_sys_reset_v5_0_13 = D:/modelsim10.05/Vivado2019.1_jiont/proc_sys_reset_v5_0_13
pr_axi_shutdown_manager_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/pr_axi_shutdown_manager_v1_0_1
pr_bitstream_monitor_v1_0_1 = D:/modelsim10.05/Vivado2019.1_jiont/pr_bitstream_monitor_v1_0_1
pr_decoupler_v1_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/pr_decoupler_v1_0_7
quadsgmii_v3_4_6 = D:/modelsim10.05/Vivado2019.1_jiont/quadsgmii_v3_4_6
rs_decoder_v9_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/rs_decoder_v9_0_16
rs_encoder_v9_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/rs_encoder_v9_0_15
rxaui_v4_4_6 = D:/modelsim10.05/Vivado2019.1_jiont/rxaui_v4_4_6
sd_fec_v1_1_3 = D:/modelsim10.05/Vivado2019.1_jiont/sd_fec_v1_1_3
sid_v8_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/sid_v8_0_14
soft_ecc_proxy_v1_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/soft_ecc_proxy_v1_0_0
spdif_v2_0_21 = D:/modelsim10.05/Vivado2019.1_jiont/spdif_v2_0_21
srio_gen2_v4_1_6 = D:/modelsim10.05/Vivado2019.1_jiont/srio_gen2_v4_1_6
switch_core_top_v1_0_7 = D:/modelsim10.05/Vivado2019.1_jiont/switch_core_top_v1_0_7
sync_ip = D:/modelsim10.05/Vivado2019.1_jiont/sync_ip
tcc_decoder_3gppmm_v2_0_18 = D:/modelsim10.05/Vivado2019.1_jiont/tcc_decoder_3gppmm_v2_0_18
tcc_encoder_3gpp_v5_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/tcc_encoder_3gpp_v5_0_15
tmr_comparator_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/tmr_comparator_v1_0_2
tmr_sem_v1_0_8 = D:/modelsim10.05/Vivado2019.1_jiont/tmr_sem_v1_0_8
tri_mode_ethernet_mac_v9_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/tri_mode_ethernet_mac_v9_0_14
tsn_temac_v1_0_4 = D:/modelsim10.05/Vivado2019.1_jiont/tsn_temac_v1_0_4
videoaxi4s_bridge_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/videoaxi4s_bridge_v1_0_5
viterbi_v9_1_11 = D:/modelsim10.05/Vivado2019.1_jiont/viterbi_v9_1_11
v_ccm_v6_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/v_ccm_v6_0_15
v_cfa_v7_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/v_cfa_v7_0_14
v_cresample_v4_0_14 = D:/modelsim10.05/Vivado2019.1_jiont/v_cresample_v4_0_14
v_dual_splitter_v1_0_9 = D:/modelsim10.05/Vivado2019.1_jiont/v_dual_splitter_v1_0_9
v_enhance_v8_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/v_enhance_v8_0_15
v_gamma_v7_0_15 = D:/modelsim10.05/Vivado2019.1_jiont/v_gamma_v7_0_15
v_osd_v6_0_16 = D:/modelsim10.05/Vivado2019.1_jiont/v_osd_v6_0_16
v_rgb2ycrcb_v7_1_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_rgb2ycrcb_v7_1_13
v_vid_sdi_tx_bridge_v2_0_0 = D:/modelsim10.05/Vivado2019.1_jiont/v_vid_sdi_tx_bridge_v2_0_0
v_ycrcb2rgb_v7_1_13 = D:/modelsim10.05/Vivado2019.1_jiont/v_ycrcb2rgb_v7_1_13
xbip_dsp48_macro_v3_0_17 = D:/modelsim10.05/Vivado2019.1_jiont/xbip_dsp48_macro_v3_0_17
xfft_v9_0_17 = D:/modelsim10.05/Vivado2019.1_jiont/xfft_v9_0_17
xsdbs_v1_0_2 = D:/modelsim10.05/Vivado2019.1_jiont/xsdbs_v1_0_2
zynq_ultra_ps_e_vip_v1_0_5 = D:/modelsim10.05/Vivado2019.1_jiont/zynq_ultra_ps_e_vip_v1_0_5

同时需要添加 ip 模块中 sim(前仿) 文件夹下的内容，simulation文件夹为后仿真,在每个ip的说明文档里有

如果只是临时仿真，可以在 simulate - start simulation -- librariese 中手动添加库的位置，此方法一次只能添加一个ip，不能直接添加联合仿真的总文件夹，否则无法识别

快捷键：

首次运行 tcl：tool-tcl-execute macro

修改后再次运行 tcl ： load - macro file

快速分组：选中信号，ctrl+g

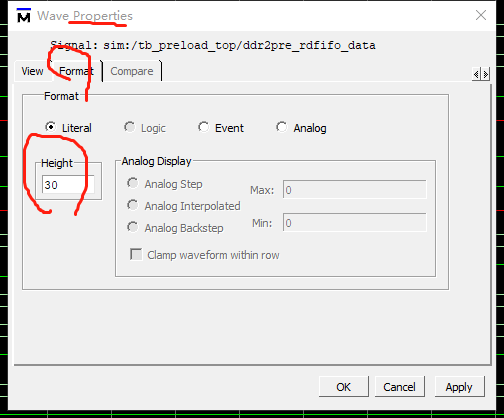

修改行高：选中信号，右键properties-format-height
