Louvain 社团发现算法学习（我的java实现+数据用例）

为了大家方便，直接把数据放在github了：

https://github.com/qq547276542/Louvain

算法介绍：

Louvain 算法是基于模块度的社区发现算法，该算法在效率和效果上都表现较好，并且能够发现层次性的社区结构，其优化目标是最大化整个社区网络的模块度。

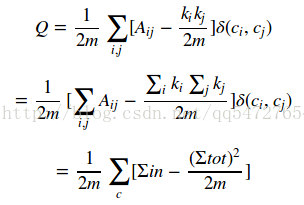

社区网络的模块度（Modularity）是评估一个社区网络划分好坏的度量方法，它的含义是社区内节点的连边数与随机情况下的边数之差，它的取值范围是 (0,1)，其定义如下：

上式中，Aij代表结点i和j之间的边权值（当图不带权时，边权值可以看成1）。 ki代表结点i的領街边的边权和（当图不带权时，即为结点的度数）。

m为图中所有边的边权和。 ci为结点i所在的社团编号。

模块度的公式定义可以做如下的简化：

其中Sigma in表示社区c内的边的权重之和，Sigma tot表示与社区c内的节点相连的边的权重之和。

我们的目标，是要找出各个结点处于哪一个社团，并且让这个划分结构的模块度最大。

Louvain算法的思想很简单：

1）将图中的每个节点看成一个独立的社区，次数社区的数目与节点个数相同；

2）对每个节点i，依次尝试把节点i分配到其每个邻居节点所在的社区，计算分配前与分配后的模块度变化Delta Q，并记录Delta Q最大的那个邻居节点，如果maxDelta Q>0，则把节点i分配Delta Q最大的那个邻居节点所在的社区，否则保持不变；

3）重复2），直到所有节点的所属社区不再变化；

4）对图进行压缩，将所有在同一个社区的节点压缩成一个新节点，社区内节点之间的边的权重转化为新节点的环的权重，社区间的边权重转化为新节点间的边权重；

5）重复1）直到整个图的模块度不再发生变化。

在写代码时，要注意几个要点：

* 第二步，尝试分配结点时，并不是只尝试独立的结点，也可以尝试所在社区的结点数大于1的点，我在看paper时一开始把这个部分看错了，导致算法出问题。

* 第三步，重复2）的时候，并不是将每个点遍历一次后就对图进行一次重构，而是要不断循环的遍历每个结点，直到一次循环中所有结点所在社区都不更新了，表示当前网络已经稳定，然后才进行图的重构。

* 模块度增益的计算，请继续看下文

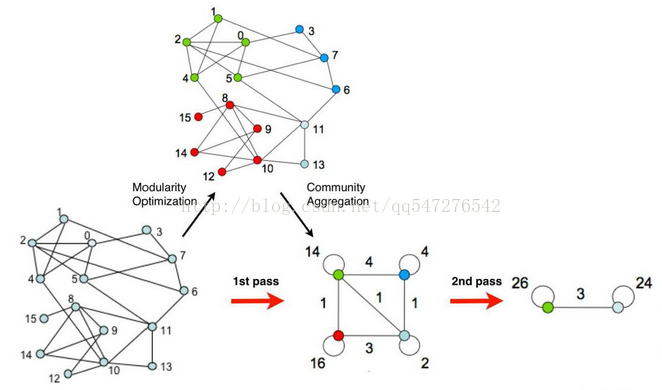

过程如下图所示：

可以看出，louvain是一个启发式的贪心算法。我们需要对模块度进行一个启发式的更新。这样的话这个算法会有如下几个问题：

1：尝试将节点i分配到相邻社团时，如果真的移动结点i，重新计算模块度，那么算法的效率很难得到保证

2：在本问题中，贪心算法只能保证局部最优，而不能够保证全局最优

3：将节点i尝试分配至相邻社团时，要依据一个什么样的顺序

......

第一个问题，在该算法的paper中给了我们解答。我们实际上不用真的把节点i加入相邻社团后重新计算模块度，paper中给了我们一个计算把结点i移动至社团c时，模块度的增益公式：

其中Sigma in表示起点终点都在社区c内的边的权重之和，Sigma tot表示入射社区c内的边的权重之和，ki代表结点i的带权度数和，m为所有边权和。

但是该增益公式还是过于复杂，仍然会影响算法的时间效率。

但是请注意，我们只是想通过模块增益度来判断一个结点i是否能移动到社团c中，而我们实际上是没有必要真正的去求精确的模块度，只需要知道，当前的这步操作，模块度是否发生了增长。

因此，就有了相对增益公式的出现：

相对增益的值可能大于1，不是真正的模块度增长值，但是它的正负表示了当前的操作是否增加了模块度。用该公式能大大降低算法的时间复杂度。

第二个问题，该算法的确不能够保证全局最优。但是我们该算法的启发式规则很合理，因此我们能够得到一个十分精确的近似结果。

同时，为了校准结果，我们可以以不同的序列多次调用该算法，保留一个模块度最大的最优结果。

第三个问题，在第二个问题中也出现了，就是给某个结点i找寻領接点时，应当以一个什么顺序？递增or随机or其它规则？我想这个问题需要用实验数据去分析。

在paper中也有提到一些能够使结果更精确的序列。我的思路是，如果要尝试多次取其最优，取随机序列应该是比较稳定比较精确的方式。

说了这么多，下面给上本人的Louvain算法java实现供参考。本人代码注释比较多，适合学习。

我的代码后面是国外大牛的代码，时空复杂度和我的代码一样，但是常数比我小很多，速度要快很多，而且答案更精准（迭代了10次），适合实际运用~

本人的java代码：（时间复杂度o(e),空间复杂度o(e)）

Edge.java:

package myLouvain;public class Edge implements Cloneable{int v;     //v表示连接点的编号,w表示此边的权值double weight;int next;    //next负责连接和此点相关的边Edge(){}public Object clone(){Edge temp=null;try{  temp = (Edge)super.clone();   //浅复制  }catch(CloneNotSupportedException e) {  e.printStackTrace();  }   return temp;}
}

Louvain.java:

package myLouvain;import java.io.BufferedReader;
import java.io.File;
import java.io.FileInputStream;
import java.io.InputStreamReader;
import java.util.ArrayList;
import java.util.Random;public class Louvain implements Cloneable{int n; // 结点个数int m; // 边数int cluster[]; // 结点i属于哪个簇Edge edge[]; // 邻接表int head[]; // 头结点下标int top; // 已用E的个数double resolution; // 1/2m 全局不变double node_weight[]; // 结点的权值double totalEdgeWeight; // 总边权值double[] cluster_weight; // 簇的权值double eps = 1e-14; // 误差int global_n; // 最初始的nint global_cluster[]; // 最后的结果，i属于哪个簇Edge[] new_edge;   //新的邻接表int[] new_head;int new_top = 0;final int iteration_time = 3; // 最大迭代次数Edge global_edge[];   //全局初始的临接表  只保存一次，永久不变，不参与后期运算int global_head[];int global_top=0;void addEdge(int u, int v, double weight) {  if(edge[top]==null)edge[top]=new Edge();edge[top].v = v;edge[top].weight = weight;edge[top].next = head[u];head[u] = top++;}void addNewEdge(int u, int v, double weight) {if(new_edge[new_top]==null)new_edge[new_top]=new Edge();new_edge[new_top].v = v;new_edge[new_top].weight = weight;new_edge[new_top].next = new_head[u];new_head[u] = new_top++;}void addGlobalEdge(int u, int v, double weight) {if(global_edge[global_top]==null)global_edge[global_top]=new Edge();global_edge[global_top].v = v;global_edge[global_top].weight = weight;global_edge[global_top].next = global_head[u];global_head[u] = global_top++;}void init(String filePath) {try {String encoding = "UTF-8";File file = new File(filePath);if (file.isFile() && file.exists()) { // 判断文件是否存在InputStreamReader read = new InputStreamReader(new FileInputStream(file), encoding);// 考虑到编码格式BufferedReader bufferedReader = new BufferedReader(read);String lineTxt = null;lineTxt = bufferedReader.readLine();// 预处理部分String cur2[] = lineTxt.split(" ");global_n = n = Integer.parseInt(cur2[0]);m = Integer.parseInt(cur2[1]);m *= 2;edge = new Edge[m];head = new int[n];for (int i = 0; i < n; i++)head[i] = -1;top = 0;global_edge=new Edge[m];global_head = new int[n];for(int i=0;i<n;i++)global_head[i]=-1;global_top=0;global_cluster = new int[n];for (int i = 0; i < global_n; i++)global_cluster[i] = i;node_weight = new double[n];totalEdgeWeight = 0.0;while ((lineTxt = bufferedReader.readLine()) != null) {String cur[] = lineTxt.split(" ");int u = Integer.parseInt(cur[0]);int v = Integer.parseInt(cur[1]);double curw;if (cur.length > 2) {curw = Double.parseDouble(cur[2]);} else {curw = 1.0;}addEdge(u, v, curw);addEdge(v, u, curw);addGlobalEdge(u,v,curw);addGlobalEdge(v,u,curw);totalEdgeWeight += 2 * curw;node_weight[u] += curw;if (u != v) {node_weight[v] += curw;}}resolution = 1 / totalEdgeWeight;read.close();} else {System.out.println("找不到指定的文件");}} catch (Exception e) {System.out.println("读取文件内容出错");e.printStackTrace();}}void init_cluster() {cluster = new int[n];for (int i = 0; i < n; i++) { // 一个结点一个簇cluster[i] = i;}}boolean try_move_i(int i) { // 尝试将i加入某个簇double[] edgeWeightPerCluster = new double[n];for (int j = head[i]; j != -1; j = edge[j].next) {int l = cluster[edge[j].v]; // l是nodeid所在簇的编号edgeWeightPerCluster[l] += edge[j].weight;}int bestCluster = -1; // 最优的簇号下标(先默认是自己)double maxx_deltaQ = 0.0; // 增量的最大值boolean[] vis = new boolean[n];cluster_weight[cluster[i]] -= node_weight[i];for (int j = head[i]; j != -1; j = edge[j].next) {int l = cluster[edge[j].v]; // l代表領接点的簇号if (vis[l]) // 一个領接簇只判断一次continue;vis[l] = true;double cur_deltaQ = edgeWeightPerCluster[l];cur_deltaQ -= node_weight[i] * cluster_weight[l] * resolution;if (cur_deltaQ > maxx_deltaQ) {bestCluster = l;maxx_deltaQ = cur_deltaQ;}edgeWeightPerCluster[l] = 0;}if (maxx_deltaQ < eps) {bestCluster = cluster[i];}//System.out.println(maxx_deltaQ);cluster_weight[bestCluster] += node_weight[i];if (bestCluster != cluster[i]) { // i成功移动了cluster[i] = bestCluster;return true;}return false;}void rebuildGraph() { // 重构图/// 先对簇进行离散化int[] change = new int[n];int change_size=0;boolean vis[] = new boolean[n];for (int i = 0; i < n; i++) {if (vis[cluster[i]])continue;vis[cluster[i]] = true;change[change_size++]=cluster[i];}int[] index = new int[n]; // index[i]代表 i号簇在新图中的结点编号for (int i = 0; i < change_size; i++)index[change[i]] = i;int new_n = change_size; // 新图的大小new_edge = new Edge[m];new_head = new int[new_n];new_top = 0;double new_node_weight[] = new double[new_n]; // 新点权和for(int i=0;i<new_n;i++)new_head[i]=-1;ArrayList<Integer>[] nodeInCluster = new ArrayList[new_n]; // 代表每个簇中的节点列表for (int i = 0; i < new_n; i++)nodeInCluster[i] = new ArrayList<Integer>();for (int i = 0; i < n; i++) {nodeInCluster[index[cluster[i]]].add(i);}for (int u = 0; u < new_n; u++) { // 将同一个簇的挨在一起分析。可以将visindex数组降到一维boolean visindex[] = new boolean[new_n]; // visindex[v]代表新图中u节点到v的边在临街表是第几个（多了1，为了初始化方便）double delta_w[] = new double[new_n]; // 边权的增量for (int i = 0; i < nodeInCluster[u].size(); i++) {int t = nodeInCluster[u].get(i);for (int k = head[t]; k != -1; k = edge[k].next) {int j = edge[k].v;int v = index[cluster[j]];if (u != v) {if (!visindex[v]) {addNewEdge(u, v, 0);visindex[v] = true;} delta_w[v] += edge[k].weight;}}new_node_weight[u] += node_weight[t];}for (int k = new_head[u]; k != -1; k = new_edge[k].next) {int v = new_edge[k].v;new_edge[k].weight = delta_w[v];}}// 更新答案int[] new_global_cluster = new int[global_n];for (int i = 0; i < global_n; i++) {new_global_cluster[i] = index[cluster[global_cluster[i]]];}for (int i = 0; i < global_n; i++) {global_cluster[i] = new_global_cluster[i];}top = new_top;for (int i = 0; i < m; i++) {edge[i] = new_edge[i];}for (int i = 0; i < new_n; i++) {node_weight[i] = new_node_weight[i];head[i] = new_head[i];}n = new_n;init_cluster();}void print() {for (int i = 0; i < global_n; i++) {System.out.println(i + ": " + global_cluster[i]);}System.out.println("-------");}void louvain() {init_cluster();int count = 0; // 迭代次数boolean update_flag; // 标记是否发生过更新do { // 第一重循环，每次循环rebuild一次图//    print(); // 打印簇列表count++;cluster_weight = new double[n];for (int j = 0; j < n; j++) { // 生成簇的权值cluster_weight[cluster[j]] += node_weight[j];}int[] order = new int[n]; // 生成随机序列for (int i = 0; i < n; i++)order[i] = i;Random random = new Random();for (int i = 0; i < n; i++) {int j = random.nextInt(n);int temp = order[i];order[i] = order[j];order[j] = temp;}int enum_time = 0; // 枚举次数，到n时代表所有点已经遍历过且无移动的点int point = 0; // 循环指针update_flag = false; // 是否发生过更新的标记do {int i = order[point];point = (point + 1) % n;if (try_move_i(i)) { // 对i点做尝试enum_time = 0;update_flag = true;} else {enum_time++;}} while (enum_time < n);if (count > iteration_time || !update_flag) // 如果没更新过或者迭代次数超过指定值break;rebuildGraph(); // 重构图} while (true);}
}

Main.java:

package myLouvain;import java.io.BufferedWriter;
import java.io.FileWriter;
import java.io.IOException;
import java.util.ArrayList;public class Main {public static void writeOutputJson(String fileName, Louvain a) throws IOException {BufferedWriter bufferedWriter;bufferedWriter = new BufferedWriter(new FileWriter(fileName));bufferedWriter.write("{\n\"nodes\": [\n");for(int i=0;i<a.global_n;i++){bufferedWriter.write("{\"id\": \""+i+"\", \"group\": "+a.global_cluster[i]+"}");if(i+1!=a.global_n)bufferedWriter.write(",");bufferedWriter.write("\n");}bufferedWriter.write("],\n\"links\": [\n");for(int i=0;i<a.global_n;i++){for (int j = a.global_head[i]; j != -1; j = a.global_edge[j].next) {int k=a.global_edge[j].v;bufferedWriter.write("{\"source\": \""+i+"\", \"target\": \""+k+"\", \"value\": 1}");   if(i+1!=a.global_n||a.global_edge[j].next!=-1)bufferedWriter.write(",");bufferedWriter.write("\n");}}bufferedWriter.write("]\n}\n");bufferedWriter.close();}static void writeOutputCluster(String fileName, Louvain a) throws IOException{BufferedWriter bufferedWriter;bufferedWriter = new BufferedWriter(new FileWriter(fileName));for(int i=0;i<a.global_n;i++){bufferedWriter.write(Integer.toString(a.global_cluster[i]));bufferedWriter.write("\n");}bufferedWriter.close();}static void writeOutputCircle(String fileName, Louvain a) throws IOException{BufferedWriter bufferedWriter;bufferedWriter = new BufferedWriter(new FileWriter(fileName));ArrayList list[] = new ArrayList[a.global_n];for(int i=0;i<a.global_n;i++){list[i]=new ArrayList<Integer>();}for(int i=0;i<a.global_n;i++){list[a.global_cluster[i]].add(i);}for(int i=0;i<a.global_n;i++){if(list[i].size()==0)continue;for(int j=0;j<list[i].size();j++)bufferedWriter.write(list[i].get(j).toString()+" ");bufferedWriter.write("\n");}bufferedWriter.close();}     public static void main(String[] args) throws IOException {// TODO Auto-generated method stubLouvain a = new Louvain();double beginTime = System.currentTimeMillis();a.init("/home/eason/Louvain/testdata.txt");a.louvain();double endTime = System.currentTimeMillis();writeOutputJson("/var/www/html/Louvain/miserables.json", a);  //输出至d3显示writeOutputCluster("/home/eason/Louvain/cluster.txt",a);  //打印每个节点属于哪个簇writeOutputCircle("/home/eason/Louvain/circle.txt",a);   //打印每个簇有哪些节点System.out.format("program running time: %f seconds%n", (endTime - beginTime) / 1000.0);}}

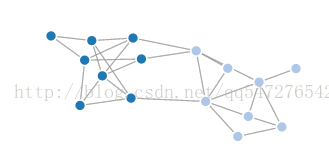

用d3绘图工具对上文那张16个结点的图的划分进行louvain算法后的可视化结果：

对一个4000个结点，80000条边的无向图（facebook数据）运行我的louvain算法，大概需要1秒多的时间，划分的效果还可以，可视化效果（边有点多了，都粘在一块了）：

下面是国外大牛的代码实现（为了大家方便直接贴上了，时间复杂度o(e),空间复杂度o(e)）：

ModularityOptimizer.java

import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.FileReader;
import java.io.FileWriter;
import java.io.IOException;
import java.util.Arrays;
import java.util.Random;  public class ModularityOptimizer
{  public static void main(String[] args) throws IOException  {  boolean  update;  double modularity, maxModularity, resolution, resolution2;  int algorithm, i, j, modularityFunction, nClusters, nIterations, nRandomStarts;  int[] cluster;  double beginTime, endTime;  Network network;  Random random;  String inputFileName, outputFileName;  inputFileName = "/home/eason/Louvain/facebook_combined.txt";  outputFileName = "/home/eason/Louvain/answer.txt";  modularityFunction = 1;  resolution = 1.0;  algorithm = 1;  nRandomStarts = 10;  nIterations = 3;  System.out.println("Modularity Optimizer version 1.2.0 by Ludo Waltman and Nees Jan van Eck");  System.out.println();  System.out.println("Reading input file...");  System.out.println();  network = readInputFile(inputFileName, modularityFunction);  System.out.format("Number of nodes: %d%n", network.getNNodes());  System.out.format("Number of edges: %d%n", network.getNEdges() / 2);  System.out.println();  System.out.println("Running " + ((algorithm == 1) ? "Louvain algorithm" : ((algorithm == 2) ? "Louvain algorithm with multilevel refinement" : "smart local moving algorithm")) + "...");  System.out.println();  resolution2 = ((modularityFunction == 1) ? (resolution / network.getTotalEdgeWeight()) : resolution);  beginTime = System.currentTimeMillis();  cluster = null;  nClusters = -1;  maxModularity = Double.NEGATIVE_INFINITY;  random = new Random(100);  for (i = 0; i < nRandomStarts; i++)  {  if (nRandomStarts > 1)  System.out.format("Random start: %d%n", i + 1);  network.initSingletonClusters();       //网络初始化，每个节点一个簇  j = 0;  update = true;  do  {  if (nIterations > 1)  System.out.format("Iteration: %d%n", j + 1);  if (algorithm == 1)  update = network.runLouvainAlgorithm(resolution2, random);  j++;  modularity = network.calcQualityFunction(resolution2);  if (nIterations > 1)  System.out.format("Modularity: %.4f%n", modularity);  }  while ((j < nIterations) && update);  if (modularity > maxModularity)     {  cluster = network.getClusters();  nClusters = network.getNClusters();  maxModularity = modularity;  }  if (nRandomStarts > 1)  {  if (nIterations == 1)  System.out.format("Modularity: %.8f%n", modularity);  System.out.println();  }  }  endTime = System.currentTimeMillis();  if (nRandomStarts == 1)  {  if (nIterations > 1)  System.out.println();  System.out.format("Modularity: %.8f%n", maxModularity);  }  else  System.out.format("Maximum modularity in %d random starts: %f%n", nRandomStarts, maxModularity);  System.out.format("Number of communities: %d%n", nClusters);  System.out.format("Elapsed time: %.4f seconds%n", (endTime - beginTime) / 1000.0);  System.out.println();  System.out.println("Writing output file...");  System.out.println();  writeOutputFile(outputFileName, cluster);  }  private static Network readInputFile(String fileName, int modularityFunction) throws IOException  {  BufferedReader bufferedReader;  double[] edgeWeight1, edgeWeight2, nodeWeight;  int i, j, nEdges, nLines, nNodes;  int[] firstNeighborIndex, neighbor, nNeighbors, node1, node2;  Network network;  String[] splittedLine;  bufferedReader = new BufferedReader(new FileReader(fileName));  nLines = 0;  while (bufferedReader.readLine() != null)  nLines++;  bufferedReader.close();  bufferedReader = new BufferedReader(new FileReader(fileName));  node1 = new int[nLines];  node2 = new int[nLines];  edgeWeight1 = new double[nLines];  i = -1;  bufferedReader.readLine() ;for (j = 1; j < nLines; j++)  {  splittedLine = bufferedReader.readLine().split(" ");  node1[j] = Integer.parseInt(splittedLine[0]);  if (node1[j] > i)  i = node1[j];  node2[j] = Integer.parseInt(splittedLine[1]);  if (node2[j] > i)  i = node2[j];  edgeWeight1[j] = (splittedLine.length > 2) ? Double.parseDouble(splittedLine[2]) : 1;  }  nNodes = i + 1;  bufferedReader.close();  nNeighbors = new int[nNodes];  for (i = 0; i < nLines; i++)  if (node1[i] < node2[i])  {  nNeighbors[node1[i]]++;  nNeighbors[node2[i]]++;  }  firstNeighborIndex = new int[nNodes + 1];  nEdges = 0;  for (i = 0; i < nNodes; i++)  {  firstNeighborIndex[i] = nEdges;  nEdges += nNeighbors[i];  }  firstNeighborIndex[nNodes] = nEdges;  neighbor = new int[nEdges];  edgeWeight2 = new double[nEdges];  Arrays.fill(nNeighbors, 0);  for (i = 0; i < nLines; i++)  if (node1[i] < node2[i])  {  j = firstNeighborIndex[node1[i]] + nNeighbors[node1[i]];  neighbor[j] = node2[i];  edgeWeight2[j] = edgeWeight1[i];  nNeighbors[node1[i]]++;  j = firstNeighborIndex[node2[i]] + nNeighbors[node2[i]];  neighbor[j] = node1[i];  edgeWeight2[j] = edgeWeight1[i];  nNeighbors[node2[i]]++;  }  {  nodeWeight = new double[nNodes];  for (i = 0; i < nEdges; i++)  nodeWeight[neighbor[i]] += edgeWeight2[i];  network = new Network(nNodes, firstNeighborIndex, neighbor, edgeWeight2, nodeWeight);  }  return network;  }  private static void writeOutputFile(String fileName, int[] cluster) throws IOException  {  BufferedWriter bufferedWriter;  int i;  bufferedWriter = new BufferedWriter(new FileWriter(fileName));  for (i = 0; i < cluster.length; i++)  {  bufferedWriter.write(Integer.toString(cluster[i]));  bufferedWriter.newLine();  }  bufferedWriter.close();  }
}

Network.java

import java.io.Serializable;
import java.util.Random;public class Network implements Cloneable, Serializable {private static final long serialVersionUID = 1;private int nNodes;private int[] firstNeighborIndex;private int[] neighbor;private double[] edgeWeight;private double[] nodeWeight;private int nClusters;private int[] cluster;private double[] clusterWeight;private int[] nNodesPerCluster;private int[][] nodePerCluster;private boolean clusteringStatsAvailable;public Network(int nNodes, int[] firstNeighborIndex, int[] neighbor, double[] edgeWeight, double[] nodeWeight) {this(nNodes, firstNeighborIndex, neighbor, edgeWeight, nodeWeight, null);}public Network(int nNodes, int[] firstNeighborIndex, int[] neighbor, double[] edgeWeight, double[] nodeWeight,int[] cluster) {int i, nEdges;this.nNodes = nNodes;this.firstNeighborIndex = firstNeighborIndex;this.neighbor = neighbor;if (edgeWeight == null) {nEdges = neighbor.length;this.edgeWeight = new double[nEdges];for (i = 0; i < nEdges; i++)this.edgeWeight[i] = 1;} elsethis.edgeWeight = edgeWeight;if (nodeWeight == null) {this.nodeWeight = new double[nNodes];for (i = 0; i < nNodes; i++)this.nodeWeight[i] = 1;} elsethis.nodeWeight = nodeWeight;}public int getNNodes() {return nNodes;}public int getNEdges() {return neighbor.length;}public double getTotalEdgeWeight() // 计算总边权{double totalEdgeWeight;int i;totalEdgeWeight = 0;for (i = 0; i < neighbor.length; i++)totalEdgeWeight += edgeWeight[i];return totalEdgeWeight;}public double[] getEdgeWeights() {return edgeWeight;}public double[] getNodeWeights() {return nodeWeight;}public int getNClusters() {return nClusters;}public int[] getClusters() {return cluster;}public void initSingletonClusters() {int i;nClusters = nNodes;cluster = new int[nNodes];for (i = 0; i < nNodes; i++)cluster[i] = i;deleteClusteringStats();}public void mergeClusters(int[] newCluster) {int i, j, k;if (cluster == null)return;i = 0;for (j = 0; j < nNodes; j++) {k = newCluster[cluster[j]];if (k > i)i = k;cluster[j] = k;}nClusters = i + 1;deleteClusteringStats();}public Network getReducedNetwork() {double[] reducedNetworkEdgeWeight1, reducedNetworkEdgeWeight2;int i, j, k, l, m, reducedNetworkNEdges1, reducedNetworkNEdges2;int[] reducedNetworkNeighbor1, reducedNetworkNeighbor2;Network reducedNetwork;if (cluster == null)return null;if (!clusteringStatsAvailable)calcClusteringStats();reducedNetwork = new Network();reducedNetwork.nNodes = nClusters;reducedNetwork.firstNeighborIndex = new int[nClusters + 1];reducedNetwork.nodeWeight = new double[nClusters];reducedNetworkNeighbor1 = new int[neighbor.length];reducedNetworkEdgeWeight1 = new double[edgeWeight.length];reducedNetworkNeighbor2 = new int[nClusters - 1];reducedNetworkEdgeWeight2 = new double[nClusters];reducedNetworkNEdges1 = 0;for (i = 0; i < nClusters; i++) {reducedNetworkNEdges2 = 0;for (j = 0; j < nodePerCluster[i].length; j++) {k = nodePerCluster[i][j]; // k是簇i中第j个节点的idfor (l = firstNeighborIndex[k]; l < firstNeighborIndex[k + 1]; l++) {m = cluster[neighbor[l]]; // m是k的在l位置的邻居节点所属的簇idif (m != i) {if (reducedNetworkEdgeWeight2[m] == 0) {reducedNetworkNeighbor2[reducedNetworkNEdges2] = m;reducedNetworkNEdges2++;}reducedNetworkEdgeWeight2[m] += edgeWeight[l];}}reducedNetwork.nodeWeight[i] += nodeWeight[k];}for (j = 0; j < reducedNetworkNEdges2; j++) {reducedNetworkNeighbor1[reducedNetworkNEdges1 + j] = reducedNetworkNeighbor2[j];reducedNetworkEdgeWeight1[reducedNetworkNEdges1+ j] = reducedNetworkEdgeWeight2[reducedNetworkNeighbor2[j]];reducedNetworkEdgeWeight2[reducedNetworkNeighbor2[j]] = 0;}reducedNetworkNEdges1 += reducedNetworkNEdges2;reducedNetwork.firstNeighborIndex[i + 1] = reducedNetworkNEdges1;}reducedNetwork.neighbor = new int[reducedNetworkNEdges1];reducedNetwork.edgeWeight = new double[reducedNetworkNEdges1];System.arraycopy(reducedNetworkNeighbor1, 0, reducedNetwork.neighbor, 0, reducedNetworkNEdges1);System.arraycopy(reducedNetworkEdgeWeight1, 0, reducedNetwork.edgeWeight, 0, reducedNetworkNEdges1);return reducedNetwork;}public double calcQualityFunction(double resolution) {double qualityFunction, totalEdgeWeight;int i, j, k;if (cluster == null)return Double.NaN;if (!clusteringStatsAvailable)calcClusteringStats();qualityFunction = 0;totalEdgeWeight = 0;for (i = 0; i < nNodes; i++) {j = cluster[i];for (k = firstNeighborIndex[i]; k < firstNeighborIndex[i + 1]; k++) {if (cluster[neighbor[k]] == j)qualityFunction += edgeWeight[k];totalEdgeWeight += edgeWeight[k];}}for (i = 0; i < nClusters; i++)qualityFunction -= clusterWeight[i] * clusterWeight[i] * resolution;qualityFunction /= totalEdgeWeight;return qualityFunction;}public boolean runLocalMovingAlgorithm(double resolution) {return runLocalMovingAlgorithm(resolution, new Random());}public boolean runLocalMovingAlgorithm(double resolution, Random random) {boolean update;double maxQualityFunction, qualityFunction;double[] clusterWeight, edgeWeightPerCluster;int bestCluster, i, j, k, l, nNeighboringClusters, nStableNodes, nUnusedClusters;int[] neighboringCluster, newCluster, nNodesPerCluster, nodeOrder, unusedCluster;if ((cluster == null) || (nNodes == 1))return false;update = false;clusterWeight = new double[nNodes];nNodesPerCluster = new int[nNodes];for (i = 0; i < nNodes; i++) {clusterWeight[cluster[i]] += nodeWeight[i];nNodesPerCluster[cluster[i]]++;}nUnusedClusters = 0;unusedCluster = new int[nNodes];for (i = 0; i < nNodes; i++)if (nNodesPerCluster[i] == 0) {unusedCluster[nUnusedClusters] = i;nUnusedClusters++;}nodeOrder = new int[nNodes];for (i = 0; i < nNodes; i++)nodeOrder[i] = i;for (i = 0; i < nNodes; i++) {j = random.nextInt(nNodes);k = nodeOrder[i];nodeOrder[i] = nodeOrder[j];nodeOrder[j] = k;}edgeWeightPerCluster = new double[nNodes];neighboringCluster = new int[nNodes - 1];nStableNodes = 0;i = 0;do {j = nodeOrder[i];nNeighboringClusters = 0;for (k = firstNeighborIndex[j]; k < firstNeighborIndex[j + 1]; k++) {l = cluster[neighbor[k]];if (edgeWeightPerCluster[l] == 0) {neighboringCluster[nNeighboringClusters] = l;nNeighboringClusters++;}edgeWeightPerCluster[l] += edgeWeight[k];}clusterWeight[cluster[j]] -= nodeWeight[j];nNodesPerCluster[cluster[j]]--;if (nNodesPerCluster[cluster[j]] == 0) {unusedCluster[nUnusedClusters] = cluster[j];nUnusedClusters++;}bestCluster = -1;maxQualityFunction = 0;for (k = 0; k < nNeighboringClusters; k++) {l = neighboringCluster[k];qualityFunction = edgeWeightPerCluster[l] - nodeWeight[j] * clusterWeight[l] * resolution;if ((qualityFunction > maxQualityFunction)|| ((qualityFunction == maxQualityFunction) && (l < bestCluster))) {bestCluster = l;maxQualityFunction = qualityFunction;}edgeWeightPerCluster[l] = 0;}if (maxQualityFunction == 0) {bestCluster = unusedCluster[nUnusedClusters - 1];nUnusedClusters--;}clusterWeight[bestCluster] += nodeWeight[j];nNodesPerCluster[bestCluster]++;if (bestCluster == cluster[j])nStableNodes++;else {cluster[j] = bestCluster;nStableNodes = 1;update = true;}i = (i < nNodes - 1) ? (i + 1) : 0;} while (nStableNodes < nNodes); // 优化步骤是直到所有的点都稳定下来才结束newCluster = new int[nNodes];nClusters = 0;for (i = 0; i < nNodes; i++)if (nNodesPerCluster[i] > 0) {newCluster[i] = nClusters;nClusters++;}for (i = 0; i < nNodes; i++)cluster[i] = newCluster[cluster[i]];deleteClusteringStats();return update;}public boolean runLouvainAlgorithm(double resolution) {return runLouvainAlgorithm(resolution, new Random());}public boolean runLouvainAlgorithm(double resolution, Random random) {boolean update, update2;Network reducedNetwork;if ((cluster == null) || (nNodes == 1))return false;update = runLocalMovingAlgorithm(resolution, random);if (nClusters < nNodes) {reducedNetwork = getReducedNetwork();reducedNetwork.initSingletonClusters();update2 = reducedNetwork.runLouvainAlgorithm(resolution, random);if (update2) {update = true;mergeClusters(reducedNetwork.getClusters());}}deleteClusteringStats();return update;}private Network() {}private void calcClusteringStats() {int i, j;clusterWeight = new double[nClusters];nNodesPerCluster = new int[nClusters];nodePerCluster = new int[nClusters][];for (i = 0; i < nNodes; i++) {clusterWeight[cluster[i]] += nodeWeight[i];nNodesPerCluster[cluster[i]]++;}for (i = 0; i < nClusters; i++) {nodePerCluster[i] = new int[nNodesPerCluster[i]];nNodesPerCluster[i] = 0;}for (i = 0; i < nNodes; i++) {j = cluster[i];nodePerCluster[j][nNodesPerCluster[j]] = i;nNodesPerCluster[j]++;}clusteringStatsAvailable = true;}private void deleteClusteringStats() {clusterWeight = null;nNodesPerCluster = null;nodePerCluster = null;clusteringStatsAvailable = false;}
}

最后给上测试数据的链接，里面有facebook，亚马逊等社交信息数据，供大家调试用：

http://snap.stanford.edu/data/#socnets

如果我有写的不对的地方，欢迎指正，相互学习！
