流程引擎应用及分析

介绍：工作流引擎目前比较热门的有Activiti、Flowable等，Flowable是Activiti(Alfresco持有的注册商标)的fork版本。下面就两种工作流引擎做一个比较和入门分析。

模块一对比：

Activiti现存文档比Flowable多，有大量与业务集成的文档及博客。相比之下，学习Flowable主要为官方的用户手册。
Flowable是Activiti的fork版本，所以API使用类似，包括核心类、各种服务类和业务对象。
Flowable目前最新版本为6.4.X，其插件设计器只支持Eclipse；Activiti目前最新版本为7.X，这个版本是基于6.X版本的Bug修改和API封装。
查看Flowable的发展史，发现Flowable的开发人员是原来Activiti的主要负责人员，所以可能Flowable为后起之秀。但目前与业务集成文档较少。

模块二 Flowable引擎使用：

Flowable有几大引擎，分别用来管理不同部分
1. ProcessEngine（重要）：核心引擎，其下管理着各种Service
  1. RuntimeService：负责创建实例
  2. TaskService：负责操作任务，如查询任务
  3. RepositoryService: 负责操作流程，如加载bpmn文件部署流程、创建查询对象
2. CmmnEngine
3. DmnEngine：决策引擎
4. FormEngine：表单引擎
5. ContentEngine：内容引擎
6. IdmEngine：身份识别引擎

2. 独立运行的Flowable引擎

2.1 引入引擎的依赖，这里数据库使用的是内存数据库

<!-- Standalone -->
<dependencies><dependency><groupId>org.flowable</groupId><artifactId>flowable-engine</artifactId><version>6.3.0</version></dependency><dependency><groupId>com.h2database</groupId><artifactId>h2</artifactId><version>1.3.176</version></dependency><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-api</artifactId><version>1.7.21</version></dependency><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-log4j12</artifactId><version>1.7.21</version></dependency>
</dependencies>

2.2 创建引擎配置，并使用此配置生成引擎

ProcessEngineConfiguration cfg = new StandaloneProcessEngineConfiguration().setJdbcUrl("jdbc:h2:mem:flowable;DB_CLOSE_DELAY=-1").setJdbcUsername("sa").setJdbcPassword("").setJdbcDriver("org.h2.Driver").setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE);ProcessEngine processEngine = cfg.buildProcessEngine();

2.3 使用RepositoryService部署一个流程，需提供BPMN或BPMN 2.0 XML文件

实例文件：

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"xmlns:flowable="http://flowable.org/bpmn"typeLanguage="http://www.w3.org/2001/XMLSchema"expressionLanguage="http://www.w3.org/1999/XPath"targetNamespace="http://www.flowable.org/processdef"><process id="holidayRequest" name="Holiday Request" isExecutable="true"><startEvent id="startEvent"/><sequenceFlow sourceRef="startEvent" targetRef="approveTask"  /><userTask id="approveTask" name="Approve or reject request" flowable:candidateGroups="managers" /><sequenceFlow sourceRef="approveTask" targetRef="decision"/><exclusiveGateway id="decision"/><sequenceFlow sourceRef="decision" targetRef="externalSystemCall"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${approved}]]></conditionExpression></sequenceFlow><sequenceFlow  sourceRef="decision" targetRef="sendRejectionMail"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${!approved}]]></conditionExpression></sequenceFlow><serviceTask id="externalSystemCall" name="Enter holidays in external system"flowable:class="org.flowable.CallExternalSystemDelegate"/><sequenceFlow sourceRef="externalSystemCall" targetRef="holidayApprovedTask"/><userTask id="holidayApprovedTask" name="Holiday approved" flowable:assignee="${employee}"/><sequenceFlow sourceRef="holidayApprovedTask" targetRef="approveEnd"/><serviceTask id="sendRejectionMail" name="Send out rejection email"flowable:class="org.flowable.SendRejectionMail"/><sequenceFlow sourceRef="sendRejectionMail" targetRef="rejectEnd"/><endEvent id="approveEnd"/><endEvent id="rejectEnd"/></process>
</definitions>

部署流程：

RepositoryService repositoryService = processEngine.getRepositoryService();
Deployment deploy = repositoryService.createDeployment().addClasspathResource("processes/one-task-process.bpmn20.xml").deploy();
ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery().deploymentId(deploy.getId()).singleResult();
System.out.println("流程定义: " + processDefinition.getName());

2.4 使用RuntimeService开启一个流程实例任务

String employee = "dedu";
Integer holidayNumber = 5;
String reason = "tensorflow";//根据process id 创建实例
String processId = "holidayRequest";
RuntimeService runtimeService = processEngine.getRuntimeService();
// 开启实例并传入参数
Map<String, Object> conditions = new HashMap<>();
conditions.put("employee", employee);
conditions.put("holidayNumber", holidayNumber);
conditions.put("reason", reason);
runtimeService.startProcessInstanceByKey(processId, conditions);

2.5 使用TaskService查询并完成任务

// 查询任务
TaskService taskService = processEngine.getTaskService();
List<Task> taskList = taskService.createTaskQuery().taskCandidateGroup("managers").list();
System.out.println("你有"+ taskList.size() + "个任务！");
Map<String, Object> variables = taskService.getVariables(taskList.get(0).getId());
System.out.println(variables);// 完成任务
variables = new HashMap<>();
variables.put("approved", true);
taskService.complete(taskList.get(0).getId(), variables);//查询 任务数量
List<Task> endTaskList = taskService.createTaskQuery().taskCandidateGroup("managers").list();
System.out.println("你有"+ endTaskList.size() + "个任务！");

2.6 可以配置任务完成后的回调，注意package名字需改成org.flowable并实现JavaDelegate接口：

package org.flowable;import org.flowable.engine.delegate.DelegateExecution;
import org.flowable.engine.delegate.JavaDelegate;public class CallExternalSystemDelegate implements JavaDelegate {@Overridepublic void execute(DelegateExecution delegateExecution) {System.out.println("任务完成后回调：");System.out.println(delegateExecution.getVariables());}
}

3 整合SpringBoot的Flowable引擎，即由Spring管理Flowable，然后在使用各种Service时直接依赖注入即可。

3.1 引入依赖，这里使用的Flowable引擎版本为6.4（引入的依赖为flowable-spring-boot-starter，即会加载所有引擎，如只需个别引擎，可单独引入）。这里使用MySQL数据库管理流程，所以引入了JPA。

<properties><java.version>1.8</java.version><flowable.version>6.4.0</flowable.version>
</properties><dependencies><dependency><groupId>org.flowable</groupId><artifactId>flowable-spring-boot-starter</artifactId><version>${flowable.version}</version></dependency><!--<dependency>--><!--<groupId>com.h2database</groupId>--><!--<artifactId>h2</artifactId>--><!--<version>1.4.197</version>--><!--</dependency>--><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-jpa</artifactId></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency>
</dependencies>

3.2 配置数据源和Flowable配置。这里flowable.check-process-definitions设置为true，程序启动后会自动生成流程引擎所需表。

spring:application:name: flowable-moduledatasource:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://111.231.193.138:3306/test?serverTimezone=UTC&characterEncoding=utf-8&useSSL=falseusername: rootpassword: ZhongFei-ca-2018# Hikari数据源配置hikari.maximum-pool-size: 20hikari.minimum-idle: 5logging:level:ROOT: debugflowable:#是否需要自动部署resource/processes中的流程定义check-process-definitions: true#db-identity-used: true# 自动生成flowable相关表 第一次生成后建议关闭提高运行速度database-schema-update: false# 保存历史数据级别设置为full最高级别，便于历史数据的追溯history-level: full

3.3 Flowable交给Spring管理后，会自动扫描resources下cases、forms、processes包下的文件，所以需将设计好的BPMN或BPMN 2.0 XML文件放到processes流程包下。示例文件同上。

3.4 启动程序，有两种方式提供服务：

3.4.1 提供CommandLineRunner实现，启动后自动加载引擎

@SpringBootApplication
public class FlowableModuleApplication {public static void main(String[] args) {SpringApplication.run(FlowableModuleApplication.class, args);}@Beanpublic CommandLineRunner init(final RepositoryService repositoryService,final RuntimeService runtimeService,final TaskService taskService) {return new CommandLineRunner() {@Overridepublic void run(String... strings) throws Exception {System.out.println("Number of process definitions : "+ repositoryService.createProcessDefinitionQuery().count());System.out.println("Number of tasks : " + taskService.createTaskQuery().count());runtimeService.startProcessInstanceByKey("oneTaskProcess");System.out.println("Number of tasks after process start: "+ taskService.createTaskQuery().count());}};}
}

3.4.2 提供相应的控制器，手动调用加载引擎

@RestController
public class DemoController {@Autowiredprivate DemoService myService;@RequestMapping(value="/process", method= RequestMethod.POST)public void startProcessInstance() {myService.startProcess("oneTaskProcess");}@RequestMapping(value="/tasks", method= RequestMethod.GET, produces=MediaType.APPLICATION_JSON_VALUE)public List<TaskRepresentation> getTasks(@RequestParam String assignee) {List<Task> tasks = myService.getTasks(assignee);List<TaskRepresentation> dtos = new ArrayList<>();for (Task task : tasks) {dtos.add(new TaskRepresentation(task.getId(), task.getName()));}return dtos;}@Data@AllArgsConstructorstatic class TaskRepresentation {private String id;private String name;}
}@Slf4j
@Service
public class DemoService {@Autowiredprivate RuntimeService runtimeService;@Autowiredprivate TaskService taskService;@Autowiredprivate RepositoryService repositoryService;@Transactionalpublic void startProcess(String process) {runtimeService.startProcessInstanceByKey(process);}@Transactionalpublic List<Task> getTasks(String assignee) {return taskService.createTaskQuery().taskAssignee(assignee).list();}public Deployment deployFlow(String filePath) {try {DeploymentBuilder deploymentBuilder = repositoryService.createDeployment().addClasspathResource(filePath);Deployment deployment = deploymentBuilder.deploy();log.info("成功：部署工作流成：" + filePath);return deployment;} catch (Exception e) {log.error("失败：部署工作流：" + e);return null;} // end catch}}

模块三 Activiti引擎使用：

Activiti目前分为两大类：Activiti Core和Activiti Cloud。如果想上手Activiti的核心是否遵循了新的运行时，API的入门指南可参考Activiti Core；如果你想基于Kuberantes构建Activiti，你可以参考Activiti Cloud HELM Charts:Activiti Cloud。同Flowable类似，Activiti 6.X提供了几大Service接口，分别用来和用户交互流程的不同生命周期部分；Activiti 7.X则对6.X版本及之前的版本中各大Service接口进行了封装，提供了两个核心API：
1. RepositoryService
2. RuntimeService
3. TaskService
4. IdentityService
5. ManagementService
6. HistoryService
7. FormService
8. askRuntime API（7.X版本）
9. ProcessRuntime API（7.X版本）
流程设计器：目前的流程设计器有Eclipse Designer、IDEA的actiBPM插件和基于Web的Activiti Modeler流程设计器。
独立运行的Activiti 7引擎（由于Activiti7中新的API是对老的几大Service的封装，因此直接引入activiti-spring-boot-starter也是可以直接使用老的Service API）

3.1 引入Activiti和SpringDataJPA依赖，注意直接在Maven仓库中搜索最新版本

<dependencies><!-- https://mvnrepository.com/artifact/org.activiti/activiti-spring-boot-starter --><dependency><groupId>org.activiti</groupId><artifactId>activiti-spring-boot-starter</artifactId><version>7.1.0.M2</version></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-devtools</artifactId><scope>runtime</scope><optional>true</optional></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><optional>true</optional></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-data-jpa</artifactId></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId></dependency>
</dependencies>

3.2 在resources下创建processes目录，并创建bpmn流程文件（IDEA流程设计器使用的是插件actiBPM）例如：

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:tns="http://www.activiti.org/testm1564641391279" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" expressionLanguage="http://www.w3.org/1999/XPath" id="m1564641391279" name="" targetNamespace="http://www.activiti.org/testm1564641391279" typeLanguage="http://www.w3.org/2001/XMLSchema"><process id="HelloworldProcess" isClosed="false" isExecutable="true" name="HelloworldProcess" processType="None"><startEvent id="_2" name="StartEvent"/><endEvent id="_3" name="EndEvent"/><userTask activiti:assignee="system" activiti:exclusive="true" id="_4" name="笔试"/><sequenceFlow id="_5" sourceRef="_2" targetRef="_4"/><userTask activiti:assignee="zhangsan" activiti:exclusive="true" id="_6" name="技术一面"/><sequenceFlow id="_7" sourceRef="_4" targetRef="_6"/><userTask activiti:assignee="lisi" activiti:exclusive="true" id="_8" name="技术二面"/><userTask activiti:assignee="wangwu" activiti:exclusive="true" id="_9" name="HR面"/><sequenceFlow id="_10" sourceRef="_6" targetRef="_8"/><sequenceFlow id="_11" sourceRef="_8" targetRef="_9"/><sequenceFlow id="_12" sourceRef="_9" targetRef="_3"/></process><bpmndi:BPMNDiagram documentation="background=#3C3F41;count=1;horizontalcount=1;orientation=0;width=842.4;height=1195.2;imageableWidth=832.4;imageableHeight=1185.2;imageableX=5.0;imageableY=5.0" id="Diagram-_1" name="New Diagram"><bpmndi:BPMNPlane bpmnElement="HelloworldProcess"><bpmndi:BPMNShape bpmnElement="_2" id="Shape-_2"><dc:Bounds height="32.0" width="32.0" x="440.0" y="185.0"/><bpmndi:BPMNLabel><dc:Bounds height="32.0" width="32.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="_3" id="Shape-_3"><dc:Bounds height="32.0" width="32.0" x="445.0" y="645.0"/><bpmndi:BPMNLabel><dc:Bounds height="32.0" width="32.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="_4" id="Shape-_4"><dc:Bounds height="55.0" width="85.0" x="410.0" y="265.0"/><bpmndi:BPMNLabel><dc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="_6" id="Shape-_6"><dc:Bounds height="55.0" width="85.0" x="410.0" y="365.0"/><bpmndi:BPMNLabel><dc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="_8" id="Shape-_8"><dc:Bounds height="55.0" width="85.0" x="415.0" y="460.0"/><bpmndi:BPMNLabel><dc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNShape><bpmndi:BPMNShape bpmnElement="_9" id="Shape-_9"><dc:Bounds height="55.0" width="85.0" x="420.0" y="560.0"/><bpmndi:BPMNLabel><dc:Bounds height="55.0" width="85.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNShape><bpmndi:BPMNEdge bpmnElement="_12" id="BPMNEdge__12" sourceElement="_9" targetElement="_3"><di:waypoint x="461.0" y="615.0"/><di:waypoint x="461.0" y="645.0"/><bpmndi:BPMNLabel><dc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="_5" id="BPMNEdge__5" sourceElement="_2" targetElement="_4"><di:waypoint x="456.0" y="217.0"/><di:waypoint x="456.0" y="265.0"/><bpmndi:BPMNLabel><dc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="_7" id="BPMNEdge__7" sourceElement="_4" targetElement="_6"><di:waypoint x="452.5" y="320.0"/><di:waypoint x="452.5" y="365.0"/><bpmndi:BPMNLabel><dc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="_11" id="BPMNEdge__11" sourceElement="_8" targetElement="_9"><di:waypoint x="460.0" y="515.0"/><di:waypoint x="460.0" y="560.0"/><bpmndi:BPMNLabel><dc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNEdge><bpmndi:BPMNEdge bpmnElement="_10" id="BPMNEdge__10" sourceElement="_6" targetElement="_8"><di:waypoint x="455.0" y="420.0"/><di:waypoint x="455.0" y="460.0"/><bpmndi:BPMNLabel><dc:Bounds height="0.0" width="0.0" x="0.0" y="0.0"/></bpmndi:BPMNLabel></bpmndi:BPMNEdge></bpmndi:BPMNPlane></bpmndi:BPMNDiagram>
</definitions>

效果图：

3.3 核心API调用

public static void main(String[] args) {// 获得内存存储的工作流引擎ProcessEngine processEngine = ProcessEngineConfiguration.createStandaloneInMemProcessEngineConfiguration().buildProcessEngine();// 部署流程delopyProcess(processEngine);// 查询流程queryProcess(processEngine);// 流程删除
//        deleteProcess(processEngine);// 开启流程实例startProcessInstance(processEngine);// 查询已开启的实例queryProcessInstance(processEngine);// 查询任务querySelfTask(processEngine);// 完成任务completeSelfTask(processEngine);// 完成后再次查询任务querySelfTask(processEngine);}public static void delopyProcess(ProcessEngine processEngine) {// ②获得repositoryService并进行部署流程RepositoryService repositoryService = processEngine.getRepositoryService();String filePath = "processes/Helloworld.bpmn";Deployment deploy = repositoryService.createDeployment().addClasspathResource(filePath).name("Helloworld").deploy();printMessage("部署流程：{0} -> {1} -> {2}.",deploy.getId(),deploy.getKey(), deploy.getName());}public static void queryProcess(ProcessEngine processEngine) {RepositoryService repositoryService = processEngine.getRepositoryService();String processKey = "HelloworldProcess";printMessage("查询流程：{0}", processKey);List<ProcessDefinition> processDefinitionList = repositoryService.createProcessDefinitionQuery().processDefinitionKey(processKey).list();processDefinitionList.stream().forEach(t-> System.out.println(t));}public static void deleteProcess(ProcessEngine processEngine) {RepositoryService repositoryService = processEngine.getRepositoryService();String deploymentId = "1";printMessage("删除流程：{0}", deploymentId);repositoryService.deleteDeployment(deploymentId);}public static void startProcessInstance(ProcessEngine processEngine) {RuntimeService runtimeService = processEngine.getRuntimeService();String processKey = "HelloworldProcess";String businessKey = "关联的业务Id";ProcessInstance helloworldProcess = runtimeService.startProcessInstanceByKey(processKey, businessKey);printMessage("开启流程实例：{0} -> {1}", helloworldProcess.getId(), helloworldProcess.getProcessDefinitionId());}private static void queryProcessInstance(ProcessEngine processEngine) {RuntimeService runtimeService = processEngine.getRuntimeService();String processDefinitionKey = "HelloworldProcess";List<ProcessInstance> processInstanceList = runtimeService.createProcessInstanceQuery().processDefinitionKey(processDefinitionKey).list();processInstanceList.stream().forEach(t -> printMessage("查询到流程：{0} -> {1}", t.getId(), t.getBusinessKey()));}public static void querySelfTask(ProcessEngine processEngine) {String assignee = "zhangsan";String processDefinitionKey = "HelloworldProcess";TaskService taskService = processEngine.getTaskService();List<Task> taskList = taskService.createTaskQuery().processDefinitionKey(processDefinitionKey).taskAssignee(assignee).list();printMessage("查询到任务:");taskList.stream().forEach(t -> {printMessage(MessageFormat.format("任务Id：{0}，任务名称：{1}，任务负责人：{2}",t.getId(), t.getName(), t.getAssignee()));});List<Task> sysTaskList = taskService.createTaskQuery().processDefinitionKey("HelloworldProcess").taskAssignee("system").list();printMessage("查询到任务:");sysTaskList.stream().forEach(t -> {printMessage("任务Id：{0}，任务名称：{1}，任务负责人：{2}",t.getId(), t.getName(), t.getAssignee());});}public static void completeSelfTask(ProcessEngine processEngine) {String taskId = "8";printMessage("完成任务：{0}", taskId);TaskService taskService = processEngine.getTaskService();taskService.complete(taskId);}private static void printMessage(String message, Object... args) {System.out.println(MessageFormat.format(message, args));}

4 SpringBoot整合Activiti 7引擎（实际使用的是原生API）

4.1 同独立运行Activiti引擎一样，引入Activiti和SpringDataJPA依赖

4.2 配置数据源和activiti配置

spring:application:name: activiti-moduleactiviti:async-executor-activate: truemail-server-use-ssl: true#自动更新数据库database-schema-update: true#校验流程文件，默认校验resources下的processes文件夹里的流程文件#check-process-definitions: false#restApiEnabled: falsedatasource:driverClassName: com.mysql.cj.jdbc.Drivertype: com.zaxxer.hikari.HikariDataSourceurl: jdbc:mysql://*****:3306/test?serverTimezone=UTC&characterEncoding=utf-8&useSSL=falseusername: ****password: ****# Hikari数据源配置hikari:maximum-pool-size: 20minimum-idle: 5

4.3 在 resources目录下新建processes目录并编写bpmn流程文件

4.4 编写controller控制器和service服务

package com.dedu.activitimodule.controller;import com.alibaba.fastjson.JSON;
import com.dedu.activitimodule.service.ActivitiCoreService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.MediaType;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.OutputStream;@Controller
public class HelloController {@Autowiredprivate ActivitiCoreService activitiCoreService;@GetMapping("/hello")@ResponseBodypublic String hello() {return "hello";}@GetMapping("/delopyProcess")@ResponseBodypublic String delopyProcess() {activitiCoreService.delopyProcess();return "部署成功！";}@GetMapping("/process/{key}")@ResponseBodypublic String queryProcess(@PathVariable(value = "key") String processKey) {return JSON.toJSONString(activitiCoreService.queryProcess(processKey));}@GetMapping(value = "/processImage/{key}", produces = MediaType.IMAGE_JPEG_VALUE)public void queryProcessImage(@PathVariable(value = "key") String processKey, HttpServletResponse response) throws IOException {OutputStream os = response.getOutputStream();ImageIO.write(ImageIO.read(activitiCoreService.queryProcessImage(processKey)), "png", os);}@GetMapping("/deleteProcess/{id}")@ResponseBodypublic String deleteProcess(@PathVariable(value = "id") String deploymentId) {activitiCoreService.deleteProcess(deploymentId);return "删除成功！";}@GetMapping("/startProcess")@ResponseBodypublic String startProcessInstance(@RequestParam String processKey, @RequestParam String businessKey) {activitiCoreService.startProcessInstance(processKey, businessKey);return "已开启流程实例！";}@GetMapping("/queryProcessInstance")@ResponseBodypublic String queryProcessInstance(@RequestParam String processInstanceKey) {return JSON.toJSONString(activitiCoreService.queryProcessInstance(processInstanceKey));}@GetMapping("/queryTaskByProcessAndAssignee")@ResponseBodypublic String queryTaskByProcessAndAssignee(@RequestParam String processDefinitionKey,@RequestParam String assignee) {return JSON.toJSONString(activitiCoreService.querySelfTask(processDefinitionKey, assignee));}@GetMapping("/completeTask")@ResponseBodypublic String completeTask(@RequestParam String taskId) {activitiCoreService.completeTaskByTaskId(taskId);return "完成任务！";}}package com.dedu.activitimodule.service.impl;import com.dedu.activitimodule.module.SysProcessDefinition;
import com.dedu.activitimodule.module.SysTask;
import com.dedu.activitimodule.service.ActivitiCoreService;
import org.activiti.api.process.runtime.ProcessRuntime;
import org.activiti.api.task.runtime.TaskRuntime;
import org.activiti.engine.ProcessEngine;
import org.activiti.engine.RepositoryService;
import org.activiti.engine.RuntimeService;
import org.activiti.engine.TaskService;
import org.activiti.engine.repository.Deployment;
import org.activiti.engine.repository.ProcessDefinition;
import org.activiti.engine.runtime.ProcessInstance;
import org.activiti.engine.task.Task;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import java.io.InputStream;
import java.text.MessageFormat;
import java.util.ArrayList;
import java.util.List;@Service
public class ActivitiCoreServiceImpl implements ActivitiCoreService {@Autowiredprivate ProcessEngine processEngine;@Autowiredprivate RepositoryService repositoryService;@Autowiredprivate RuntimeService runtimeService;@Autowiredprivate TaskService taskService;@Autowiredprivate ProcessRuntime processRuntime;@Autowiredprivate TaskRuntime taskRuntime;/*** 部署流程* TODO 文件名和图片名写死的*/@Overridepublic void delopyProcess() {// ②获得repositoryService并进行部署流程RepositoryService repositoryService = processEngine.getRepositoryService();String filePath = "processes/Helloworld.bpmn";String imagePath = "processes/Helloworld.png";Deployment deploy = repositoryService.createDeployment().addClasspathResource(filePath).addClasspathResource(imagePath).name("Helloworld").deploy();printMessage("部署流程：{0} -> {1} -> {2}.",deploy.getId(),deploy.getKey(), deploy.getName());}/*** 查询流程* @return*/@Overridepublic List<SysProcessDefinition> queryProcess(String processKey) {RepositoryService repositoryService = processEngine.getRepositoryService();printMessage("查询流程：{0}", processKey);List<ProcessDefinition> processDefinitionList = repositoryService.createProcessDefinitionQuery().processDefinitionKey(processKey).list();List<SysProcessDefinition> sysProcessDefinitionList = new ArrayList<>();processDefinitionList.stream().forEach(t-> {SysProcessDefinition sysProcessDefinition = new SysProcessDefinition();BeanUtils.copyProperties(t, sysProcessDefinition);sysProcessDefinitionList.add(sysProcessDefinition);});return sysProcessDefinitionList;}/**** @param processKey ACT_RE_DEPLOYMENT表主键Id.* @return 图片输入流.*/@Overridepublic InputStream queryProcessImage(String processKey) {RepositoryService repositoryService = processEngine.getRepositoryService();List<String> deploymentResourceNames = repositoryService.getDeploymentResourceNames(processKey);InputStream resourceAsStream = null;if (!deploymentResourceNames.isEmpty()) {String imageResourceName =deploymentResourceNames.stream().filter(t -> t.indexOf(".png") >= 0).findFirst().get();resourceAsStream = repositoryService.getResourceAsStream(processKey, imageResourceName);}return resourceAsStream;}@Overridepublic void deleteProcess(String deploymentId) {RepositoryService repositoryService = processEngine.getRepositoryService();repositoryService.deleteDeployment(deploymentId);printMessage("删除流程：{0}", deploymentId);}@Overridepublic void startProcessInstance(String processKey, String businessKey) {RuntimeService runtimeService = processEngine.getRuntimeService();ProcessInstance helloworldProcess = runtimeService.startProcessInstanceByKey(processKey, businessKey);printMessage("开启流程实例：{0} -> {1}", helloworldProcess.getId(), helloworldProcess.getProcessDefinitionId());}@Overridepublic List<SysProcessDefinition> queryProcessInstance(String processDefinitionKey) {RuntimeService runtimeService = processEngine.getRuntimeService();List<ProcessInstance> processInstanceList = runtimeService.createProcessInstanceQuery().processDefinitionKey(processDefinitionKey).list();List<SysProcessDefinition> sysProcessDefinitionList = new ArrayList<>();processInstanceList.stream().forEach(t-> {SysProcessDefinition sysProcessDefinition = new SysProcessDefinition();BeanUtils.copyProperties(t, sysProcessDefinition);sysProcessDefinitionList.add(sysProcessDefinition);});return sysProcessDefinitionList;}@Overridepublic List<SysTask> querySelfTask(String processDefinitionKey, String assignee) {TaskService taskService = processEngine.getTaskService();List<Task> taskList = taskService.createTaskQuery().processDefinitionKey(processDefinitionKey).taskAssignee(assignee).list();printMessage("查询到任务:");List<SysTask> sysTaskList = new ArrayList<>();taskList.stream().forEach(t -> {printMessage(MessageFormat.format("任务Id：{0}，任务名称：{1}，任务负责人：{2}",t.getId(), t.getName(), t.getAssignee()));SysTask sysTask = new SysTask();BeanUtils.copyProperties(t, sysTask);sysTaskList.add(sysTask);});return sysTaskList;}@Overridepublic void completeTaskByTaskId(String taskId) {printMessage("完成任务：{0}", taskId);TaskService taskService = processEngine.getTaskService();taskService.complete(taskId);}private void printMessage(String message, Object... args) {System.out.println(MessageFormat.format(message, args));}
}

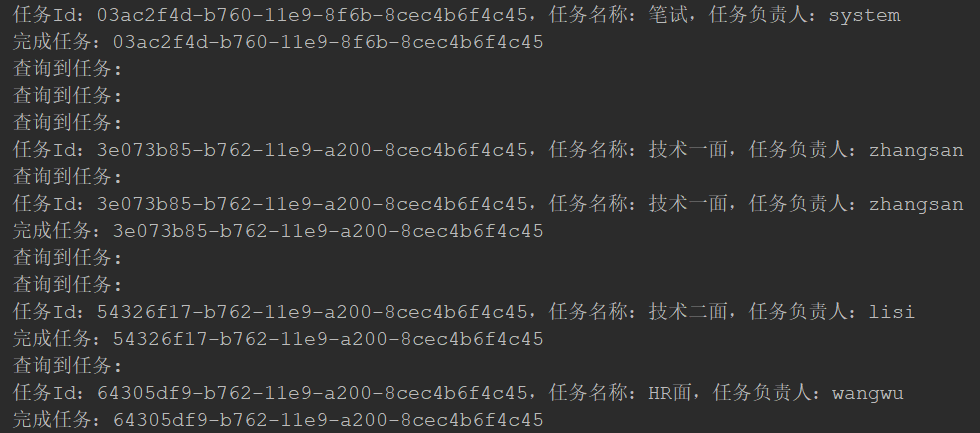

4.5 启动程序，并依次调用相关接口，实现整个面试流程状态变化，控制台日志如下

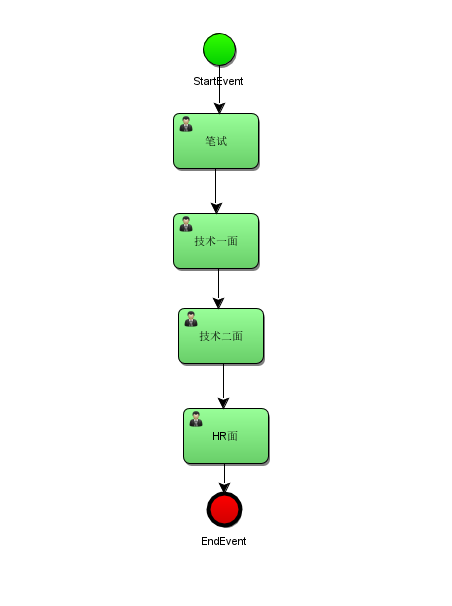

4.6 查看流程图结果如下：

4.7 注意：由于Activiti集成了SpringSecurity，因此实例中使用的是官方提供的activiti-examples-master中activiti-api-spring-integration-example里的配置，除此以外可以自己集成配置SpringSecurity，相关集成见另一篇博客。官方配置如下：

@Configuration
public class DemoApplicationConfiguration {private Logger logger = LoggerFactory.getLogger(DemoApplicationConfiguration.class);@Beanpublic UserDetailsService myUserDetailsService() {InMemoryUserDetailsManager inMemoryUserDetailsManager = new InMemoryUserDetailsManager();String[][] usersGroupsAndRoles = {{"system", "system", "ROLE_ACTIVITI_USER"},{"zhangsan", "zhangsan", "ROLE_ACTIVITI_USER"},{"lisi", "lisi", "ROLE_ACTIVITI_USER"},{"wangwu", "wangwu", "ROLE_ACTIVITI_USER"},{"admin", "admin", "ROLE_ACTIVITI_ADMIN"},};for (String[] user : usersGroupsAndRoles) {List<String> authoritiesStrings = Arrays.asList(Arrays.copyOfRange(user, 2, user.length));logger.info("> Registering new user: " + user[0] + " with the following Authorities[" + authoritiesStrings + "]");inMemoryUserDetailsManager.createUser(new User(user[0], passwordEncoder().encode(user[1]),authoritiesStrings.stream().map(s -> new SimpleGrantedAuthority(s)).collect(Collectors.toList())));}return inMemoryUserDetailsManager;}@Beanpublic PasswordEncoder passwordEncoder() {return new BCryptPasswordEncoder();}
}@Component
public class SecurityUtil {@Autowiredprivate UserDetailsService userDetailsService;public void logInAs(String username) {UserDetails user = userDetailsService.loadUserByUsername(username);if (user == null) {throw new IllegalStateException("User " + username + " doesn't exist, please provide a valid user");}SecurityContextHolder.setContext(new SecurityContextImpl(new Authentication() {@Overridepublic Collection<? extends GrantedAuthority> getAuthorities() {return user.getAuthorities();}@Overridepublic Object getCredentials() {return user.getPassword();}@Overridepublic Object getDetails() {return user;}@Overridepublic Object getPrincipal() {return user;}@Overridepublic boolean isAuthenticated() {return true;}@Overridepublic void setAuthenticated(boolean isAuthenticated) throws IllegalArgumentException {}@Overridepublic String getName() {return user.getUsername();}}));org.activiti.engine.impl.identity.Authentication.setAuthenticatedUserId(username);}
}

5 Activiti Modeler集成：

目前网络博客大多是集成Activiti5.x版本，Activiti6官方提供的是全流程集成，目前还是集成中。当然可以在一些在线bpmn设计网站进行设计，然后手动部署到业务系统。

①在线设计：

https://online.visual-paradigm.com/cn/features/bpmn-tool/

https://demo.bpmn.io/
