leflet使用kriging.js构建气象图层

一、克里金法

kriging.js
kriging.js是一个 Javascript 库，通过普通克里金算法提供空间预测和映射功能。
克里金法是一种高斯过程，其中使用核回归将二维坐标映射到某个目标变量。该算法经过专门设计，可通过为变异函数参数分配先验参数来准确地对较小的数据集进行建模。

二、构图函数调用

canvas在地图实例标签同列，定义一个canvas标签

在这里插入图片描述

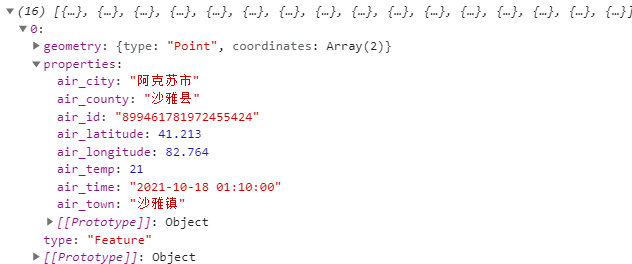

-POINT数据
在这里插入图片描述

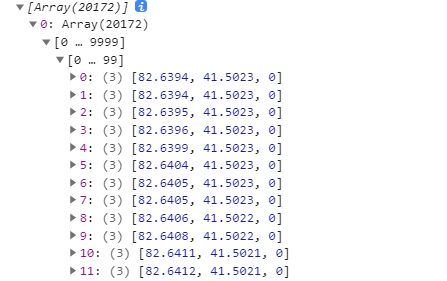

world数据


import kriging from "./kirging.js";// 定义一个WEATHER_LAYERS图层
// 气象图层
// let WEATHER_LAYERS = L.layerGroup([], {
//   zIndex: 9,
// }).addTo(L_MAP);/*** 气温图层* @param {*} canvas：canvas = window.document.querySelector("#canvasMap");* @param {*} POINT* @param {*} world：边界*/
export const ADD_WEATHER_LAYER = (canvas, POINT, world) => {//WEATHER_LAYERS图层清空WEATHER_LAYERS.clearLayers();//遍历world边界数据，生成scope边界线const positions = [];world[0].forEach(function (point) {positions.push([point[1], point[0]]);});const scope = L.polyline(positions, { color: "rgba(0,0,0,0)" });WEATHER_LAYERS.addLayer(scope);//根据scope边界线的范围，计算范围变量const xlim = [scope.getBounds()._southWest.lng,scope.getBounds()._northEast.lng,];const ylim = [scope.getBounds()._southWest.lat,scope.getBounds()._northEast.lat,];//进行克里金插值function loadkriging() {canvas.width = 1000;canvas.height = 1000;const n = POINT.length;const t = []; //数值const x = []; //经度const y = []; //纬度for (let i = 0; i < n; i++) {t.push(POINT[i].properties.air_temp);x.push(POINT[i].geometry.coordinates[0]);y.push(POINT[i].geometry.coordinates[1]);// WEATHER_LAYERS.addLayer(//   L.circle([y[i], x[i]], { color: "rgba(0,0,0,0)" })// );//定义文本内容const divText = L.divIcon({html: `${POINT[i].properties.air_temp}℃`,className: "weather_number",bgPos: [0, 40],});const text = L.marker([POINT[i].geometry.coordinates[1], POINT[i].geometry.coordinates[0]],{icon: divText,});WEATHER_LAYERS.addLayer(text);}//对数据集进行训练const variogram = kriging.train(t, x, y, "exponential", 0, 100);//使用variogram对象使polygons描述的地理位置内的格网元素具备不一样的预测值,最后一个参数，是插值格点精度大小const grid = kriging.grid(world, variogram, (ylim[1] - ylim[0]) / 150);const colors = ["#002f86","#1a5ca6","#2075d2","#3ca0f0","#abe7f6","#abe7f6","#d2fbff","#f3ffee","#d0ffd0","#bffe8b","#fcfe9c","#fff3c4","#fecfa5","#fa9589","#ff5500","#e60000",];//将得到的格网grid渲染至canvas上kriging.plot(canvas, grid, [xlim[0], xlim[1]], [ylim[0], ylim[1]], colors);}//将canvas对象转换成image的URLfunction returnImage() {return canvas.toDataURL("image/png");}loadkriging();const imageBounds = [[ylim[0], xlim[0]],[ylim[1], xlim[1]],];const weather_layer = L.imageOverlay(returnImage(), imageBounds, {opacity: 0.8,});WEATHER_LAYERS.addLayer(weather_layer);
};

三、实例展示

在这里插入图片描述

四、kirging.js

// Extend the Array class
Array.prototype.max = function () {return Math.max.apply(null, this);
};
Array.prototype.min = function () {return Math.min.apply(null, this);
};
Array.prototype.mean = function () {var i, sum;for (i = 0, sum = 0; i < this.length; i++) sum += this[i];return sum / this.length;
};
Array.prototype.pip = function (x, y) {var i,j,c = false;for (i = 0, j = this.length - 1; i < this.length; j = i++) {if (this[i][1] > y != this[j][1] > y &&x <((this[j][0] - this[i][0]) * (y - this[i][1])) /(this[j][1] - this[i][1]) +this[i][0]) {c = !c;}}return c;
};var kriging = (function () {var kriging = {};var createArrayWithValues = function (value, n) {var array = [];for (var i = 0; i < n; i++) {array.push(value);}return array;};// Matrix algebraconst kriging_matrix_diag = function (c, n) {var Z = createArrayWithValues(0, n * n);for (let i = 0; i < n; i++) Z[i * n + i] = c;return Z;};const kriging_matrix_transpose = function (X, n, m) {var i,j,Z = Array(m * n);for (i = 0; i < n; i++) for (j = 0; j < m; j++) Z[j * n + i] = X[i * m + j];return Z;};const kriging_matrix_scale = function (X, c, n, m) {var i, j;for (i = 0; i < n; i++) for (j = 0; j < m; j++) X[i * m + j] *= c;};const kriging_matrix_add = function (X, Y, n, m) {var i,j,Z = Array(n * m);for (i = 0; i < n; i++)for (j = 0; j < m; j++) Z[i * m + j] = X[i * m + j] + Y[i * m + j];return Z;};// Naive matrix multiplicationconst kriging_matrix_multiply = function (X, Y, n, m, p) {var i,j,k,Z = Array(n * p);for (i = 0; i < n; i++) {for (j = 0; j < p; j++) {Z[i * p + j] = 0;for (k = 0; k < m; k++) Z[i * p + j] += X[i * m + k] * Y[k * p + j];}}return Z;};// Cholesky decompositionconst kriging_matrix_chol = function (X, n) {var i,j,k,sum,p = Array(n);for (i = 0; i < n; i++) p[i] = X[i * n + i];for (i = 0; i < n; i++) {for (j = 0; j < i; j++) p[i] -= X[i * n + j] * X[i * n + j];if (p[i] <= 0) return false;p[i] = Math.sqrt(p[i]);for (j = i + 1; j < n; j++) {for (k = 0; k < i; k++) X[j * n + i] -= X[j * n + k] * X[i * n + k];X[j * n + i] /= p[i];}}for (i = 0; i < n; i++) X[i * n + i] = p[i];return true;};// Inversion of cholesky decompositionconst kriging_matrix_chol2inv = function (X, n) {var i, j, k, sum;for (i = 0; i < n; i++) {X[i * n + i] = 1 / X[i * n + i];for (j = i + 1; j < n; j++) {sum = 0;for (k = i; k < j; k++) sum -= X[j * n + k] * X[k * n + i];X[j * n + i] = sum / X[j * n + j];}}for (i = 0; i < n; i++) for (j = i + 1; j < n; j++) X[i * n + j] = 0;for (i = 0; i < n; i++) {X[i * n + i] *= X[i * n + i];for (k = i + 1; k < n; k++) X[i * n + i] += X[k * n + i] * X[k * n + i];for (j = i + 1; j < n; j++)for (k = j; k < n; k++) X[i * n + j] += X[k * n + i] * X[k * n + j];}for (i = 0; i < n; i++) for (j = 0; j < i; j++) X[i * n + j] = X[j * n + i];};// Inversion via gauss-jordan eliminationconst kriging_matrix_solve = function (X, n) {var m = n;var b = Array(n * n);var indxc = Array(n);var indxr = Array(n);var ipiv = Array(n);var i, icol, irow, j, k, l, ll;var big, dum, pivinv, temp;for (i = 0; i < n; i++)for (j = 0; j < n; j++) {if (i == j) b[i * n + j] = 1;else b[i * n + j] = 0;}for (j = 0; j < n; j++) ipiv[j] = 0;for (i = 0; i < n; i++) {big = 0;for (j = 0; j < n; j++) {if (ipiv[j] != 1) {for (k = 0; k < n; k++) {if (ipiv[k] == 0) {if (Math.abs(X[j * n + k]) >= big) {big = Math.abs(X[j * n + k]);irow = j;icol = k;}}}}}++ipiv[icol];if (irow != icol) {for (l = 0; l < n; l++) {temp = X[irow * n + l];X[irow * n + l] = X[icol * n + l];X[icol * n + l] = temp;}for (l = 0; l < m; l++) {temp = b[irow * n + l];b[irow * n + l] = b[icol * n + l];b[icol * n + l] = temp;}}indxr[i] = irow;indxc[i] = icol;if (X[icol * n + icol] == 0) return false; // Singularpivinv = 1 / X[icol * n + icol];X[icol * n + icol] = 1;for (l = 0; l < n; l++) X[icol * n + l] *= pivinv;for (l = 0; l < m; l++) b[icol * n + l] *= pivinv;for (ll = 0; ll < n; ll++) {if (ll != icol) {dum = X[ll * n + icol];X[ll * n + icol] = 0;for (l = 0; l < n; l++) X[ll * n + l] -= X[icol * n + l] * dum;for (l = 0; l < m; l++) b[ll * n + l] -= b[icol * n + l] * dum;}}}for (l = n - 1; l >= 0; l--)if (indxr[l] != indxc[l]) {for (k = 0; k < n; k++) {temp = X[k * n + indxr[l]];X[k * n + indxr[l]] = X[k * n + indxc[l]];X[k * n + indxc[l]] = temp;}}return true;};// Variogram modelsconst kriging_variogram_gaussian = function (h, nugget, range, sill, A) {return (nugget +((sill - nugget) / range) *(1.0 - Math.exp(-(1.0 / A) * Math.pow(h / range, 2))));};const kriging_variogram_exponential = function (h, nugget, range, sill, A) {return (nugget +((sill - nugget) / range) * (1.0 - Math.exp(-(1.0 / A) * (h / range))));};const kriging_variogram_spherical = function (h, nugget, range, sill, A) {if (h > range) return nugget + (sill - nugget) / range;return (nugget +((sill - nugget) / range) *(1.5 * (h / range) - 0.5 * Math.pow(h / range, 3)));};// Train using gaussian processes with bayesian priorskriging.train = function (t, x, y, model, sigma2, alpha) {var variogram = {t: t,x: x,y: y,nugget: 0.0,range: 0.0,sill: 0.0,A: 1 / 3,n: 0,};switch (model) {case "gaussian":variogram.model = kriging_variogram_gaussian;break;case "exponential":variogram.model = kriging_variogram_exponential;break;case "spherical":variogram.model = kriging_variogram_spherical;break;}// Lag distance/semivariancevar i,j,k,l,n = t.length;var distance = Array((n * n - n) / 2);for (i = 0, k = 0; i < n; i++)for (j = 0; j < i; j++, k++) {distance[k] = Array(2);distance[k][0] = Math.pow(Math.pow(x[i] - x[j], 2) + Math.pow(y[i] - y[j], 2),0.5);distance[k][1] = Math.abs(t[i] - t[j]);}distance.sort(function (a, b) {return a[0] - b[0];});variogram.range = distance[(n * n - n) / 2 - 1][0];// Bin lag distancevar lags = (n * n - n) / 2 > 30 ? 30 : (n * n - n) / 2;var tolerance = variogram.range / lags;var lag = createArrayWithValues(0, lags);var semi = createArrayWithValues(0, lags);if (lags < 30) {for (l = 0; l < lags; l++) {lag[l] = distance[l][0];semi[l] = distance[l][1];}} else {for (i = 0, j = 0, k = 0, l = 0;i < lags && j < (n * n - n) / 2;i++, k = 0) {while (distance[j][0] <= (i + 1) * tolerance) {lag[l] += distance[j][0];semi[l] += distance[j][1];j++;k++;if (j >= (n * n - n) / 2) break;}if (k > 0) {lag[l] /= k;semi[l] /= k;l++;}}if (l < 2) return variogram; // Error: Not enough points}// Feature transformationn = l;variogram.range = lag[n - 1] - lag[0];var X = createArrayWithValues(1, 2 * n);var Y = Array(n);var A = variogram.A;for (i = 0; i < n; i++) {switch (model) {case "gaussian":X[i * 2 + 1] =1.0 - Math.exp(-(1.0 / A) * Math.pow(lag[i] / variogram.range, 2));break;case "exponential":X[i * 2 + 1] =1.0 - Math.exp((-(1.0 / A) * lag[i]) / variogram.range);break;case "spherical":X[i * 2 + 1] =1.5 * (lag[i] / variogram.range) -0.5 * Math.pow(lag[i] / variogram.range, 3);break;}Y[i] = semi[i];}// Least squaresvar Xt = kriging_matrix_transpose(X, n, 2);var Z = kriging_matrix_multiply(Xt, X, 2, n, 2);Z = kriging_matrix_add(Z, kriging_matrix_diag(1 / alpha, 2), 2, 2);var cloneZ = Z.slice(0);if (kriging_matrix_chol(Z, 2)) kriging_matrix_chol2inv(Z, 2);else {kriging_matrix_solve(cloneZ, 2);Z = cloneZ;}var W = kriging_matrix_multiply(kriging_matrix_multiply(Z, Xt, 2, 2, n),Y,2,n,1);// Variogram parametersvariogram.nugget = W[0];variogram.sill = W[1] * variogram.range + variogram.nugget;variogram.n = x.length;// Gram matrix with priorn = x.length;var K = Array(n * n);for (i = 0; i < n; i++) {for (j = 0; j < i; j++) {K[i * n + j] = variogram.model(Math.pow(Math.pow(x[i] - x[j], 2) + Math.pow(y[i] - y[j], 2), 0.5),variogram.nugget,variogram.range,variogram.sill,variogram.A);K[j * n + i] = K[i * n + j];}K[i * n + i] = variogram.model(0,variogram.nugget,variogram.range,variogram.sill,variogram.A);}// Inverse penalized Gram matrix projected to target vectorvar C = kriging_matrix_add(K, kriging_matrix_diag(sigma2, n), n, n);var cloneC = C.slice(0);if (kriging_matrix_chol(C, n)) kriging_matrix_chol2inv(C, n);else {kriging_matrix_solve(cloneC, n);C = cloneC;}// Copy unprojected inverted matrix as Kvar K = C.slice(0);var M = kriging_matrix_multiply(C, t, n, n, 1);variogram.K = K;variogram.M = M;return variogram;};// Model predictionkriging.predict = function (x, y, variogram) {var i,k = Array(variogram.n);for (i = 0; i < variogram.n; i++)k[i] = variogram.model(Math.pow(Math.pow(x - variogram.x[i], 2) + Math.pow(y - variogram.y[i], 2),0.5),variogram.nugget,variogram.range,variogram.sill,variogram.A);return kriging_matrix_multiply(k, variogram.M, 1, variogram.n, 1)[0];};kriging.variance = function (x, y, variogram) {var i,k = Array(variogram.n);for (i = 0; i < variogram.n; i++)k[i] = variogram.model(Math.pow(Math.pow(x - variogram.x[i], 2) + Math.pow(y - variogram.y[i], 2),0.5),variogram.nugget,variogram.range,variogram.sill,variogram.A);return (variogram.model(0,variogram.nugget,variogram.range,variogram.sill,variogram.A) +kriging_matrix_multiply(kriging_matrix_multiply(k, variogram.K, 1, variogram.n, variogram.n),k,1,variogram.n,1)[0]);};// Gridded matrices or contour pathskriging.grid = function (polygons, variogram, width) {var i,j,k,n = polygons.length;if (n == 0) return;// Boundaries of polygons spacevar xlim = [polygons[0][0][0], polygons[0][0][0]];var ylim = [polygons[0][0][1], polygons[0][0][1]];for (i = 0;i < n;i++ // Polygons)for (j = 0; j < polygons[i].length; j++) {// Verticesif (polygons[i][j][0] < xlim[0]) xlim[0] = polygons[i][j][0];if (polygons[i][j][0] > xlim[1]) xlim[1] = polygons[i][j][0];if (polygons[i][j][1] < ylim[0]) ylim[0] = polygons[i][j][1];if (polygons[i][j][1] > ylim[1]) ylim[1] = polygons[i][j][1];}// Alloc for O(n^2) spacevar xtarget, ytarget;var a = Array(2),b = Array(2);var lxlim = Array(2); // Local dimensionsvar lylim = Array(2); // Local dimensionsvar x = Math.ceil((xlim[1] - xlim[0]) / width);var y = Math.ceil((ylim[1] - ylim[0]) / width);var A = Array(x + 1);for (i = 0; i <= x; i++) A[i] = Array(y + 1);for (i = 0; i < n; i++) {// Range for polygons[i]lxlim[0] = polygons[i][0][0];lxlim[1] = lxlim[0];lylim[0] = polygons[i][0][1];lylim[1] = lylim[0];for (j = 1; j < polygons[i].length; j++) {// Verticesif (polygons[i][j][0] < lxlim[0]) lxlim[0] = polygons[i][j][0];if (polygons[i][j][0] > lxlim[1]) lxlim[1] = polygons[i][j][0];if (polygons[i][j][1] < lylim[0]) lylim[0] = polygons[i][j][1];if (polygons[i][j][1] > lylim[1]) lylim[1] = polygons[i][j][1];}// Loop through polygon subspacea[0] = Math.floor((lxlim[0] - ((lxlim[0] - xlim[0]) % width) - xlim[0]) / width);a[1] = Math.ceil((lxlim[1] - ((lxlim[1] - xlim[1]) % width) - xlim[0]) / width);b[0] = Math.floor((lylim[0] - ((lylim[0] - ylim[0]) % width) - ylim[0]) / width);b[1] = Math.ceil((lylim[1] - ((lylim[1] - ylim[1]) % width) - ylim[0]) / width);for (j = a[0]; j <= a[1]; j++)for (k = b[0]; k <= b[1]; k++) {xtarget = xlim[0] + j * width;ytarget = ylim[0] + k * width;if (polygons[i].pip(xtarget, ytarget))A[j][k] = kriging.predict(xtarget, ytarget, variogram);}}A.xlim = xlim;A.ylim = ylim;A.zlim = [variogram.t.min(), variogram.t.max()];A.width = width;return A;};kriging.contour = function (value, polygons, variogram) {};// Plotting on the DOMkriging.plot = function (canvas, grid, xlim, ylim, colors) {// Clear screenvar ctx = canvas.getContext("2d");ctx.clearRect(0, 0, canvas.width, canvas.height);// Starting boundariesvar range = [xlim[1] - xlim[0],ylim[1] - ylim[0],grid.zlim[1] - grid.zlim[0],];var i, j, x, y, z;var n = grid.length;var m = grid[0].length;var wx = Math.ceil((grid.width * canvas.width) / (xlim[1] - xlim[0]));var wy = Math.ceil((grid.width * canvas.height) / (ylim[1] - ylim[0]));for (i = 0; i < n; i++)for (j = 0; j < m; j++) {if (grid[i][j] == undefined) continue;x =(canvas.width * (i * grid.width + grid.xlim[0] - xlim[0])) / range[0];y =canvas.height *(1 - (j * grid.width + grid.ylim[0] - ylim[0]) / range[1]);z = (grid[i][j] - grid.zlim[0]) / range[2];if (z < 0.0) z = 0.0;if (z > 1.0) z = 1.0;ctx.fillStyle = colors[Math.floor((colors.length - 1) * z)];ctx.fillRect(Math.round(x - wx / 2), Math.round(y - wy / 2), wx, wy);}};return kriging;
})();if (module && module.exports) {module.exports = kriging;
}
