搭建jmeter+Jenkins+ant接口自动化测试

这是本人第一次在Jenkins下搭建接口自动化测试，也是一步一步摸索成形，继而满足基本使用要求。

一、前期准备

1.下载jdk，配置环境变量

export JAVA_HOME=/brd_devops/jdk1.8.0_161
export JRE_HOME=$JAVA_HOME/jre
export CLASS_PATH=$JAVA_HOME/lib:./
export PATH=$PATH:$JAVA_HOME/bin
export TESSDATA_PREFIX="/autotest/swatv2"
export ANT_HOME=/brd_devops/apache-ant-1.10.5
export PATH=$PATH:$ANT_HOME/bin

2.下载jmeter，配置环境变量

export JMETER_HOME=/apiTest/apache-jmeter-5.5
export CLASSPATH=$JMETER_HOME/lib/ext/ApacheJMeter_core.jar:$JMETER_HOME/lib/jorphan.jar:$JMETER_HOME/lib/logkit-2.0.jar:$CLASSPATH
export PATH=$JMETER_HOME/bin:$PATH

3.下载ant，配置环境变量

export ANT_HOME=/brd_devops/apache-ant-1.10.5
export PATH=$PATH:$ANT_HOME/bin

二、jmeter个性化配置

1.找到extras/build.xml，添加代码

  <!-- Force suitable defaults -->
<property name="jmeter.save.saveservice.response_data" value="true"/>
<property name="jmeter.save.saveservice.samplerData" value="true"/>
<property name="jmeter.save.saveservice.responseHeaders" value="true"/>
<property name="jmeter.save.saveservice.requestHeaders" value="true"/>
<property name="jmeter.save.saveservice.encoding" value="true"/>
<property name="jmeter.save.saveservice.url" value="true"/>
<property name="jmeter.save.saveservice.filename" value="true"/>
<property name="jmeter.save.saveservice.hostname" value="true"/>
<property name="jmeter.save.saveservice.thread_counts" value="true"/>
<property name="jmeter.save.saveservice.sample_count" value="true"/>
<property name="jmeter.save.saveservice.idle_time" value="true"/>
<!-- 如下为原有代码，添加如上代码即可 -->
<property name="jmeter.save.saveservice.output_format" value="xml"/>
<property name="jmeter.save.saveservice.assertion_results" value="all"/>
<property name="jmeter.save.saveservice.bytes" value="true"/>
<property name="file_format.testlog" value="${format}"/>
<property name="jmeter.save.saveservice.response_data.on_error" value="${funcMode}"/>

2.下载http://shanhe.me/download.php?file=jmeter.results.shanhe.me.xsl，并上传至jmeter/extras下，再次配置extras/build.xml

<target name="report" depends="_message_xalan"><xsltclasspathref="xslt.classpath"force="true"in="${testpath}/${test}.jtl"out="${testpath}/${test}.html"//style="${basedir}/jmeter-results-detail-report${style_version}.xsl">  将左侧代码更新为如下代码，即更换xsl文件style="${basedir}/jmeter-results-shanhe-me.xsl">  //jmeter-results-shanhe-me.xsl为该文件，若提示未找到，改名即可<param name="showData" expression="${show-data}"/></xslt>
</target>

3.将extra目录下的ant-jmeter-1.1.1.jar拷贝到ant/lib下

4.验证之前的配置是否成功

[root@localhost ~]# cd /apiTest/apache-jmeter-5.5/
[root@localhost apache-jmeter-5.5]# cd extras/
[root@localhost extras]# ls
addons.txt            build.xml     expand.png                           jmeter-results-report_21.xsl  proxycert.cmd  schematic.cmd  schematic.xsl  Test.jmx
addons.xml            collapse.png  GrafanaJMeterTemplate.json           jmeter-results-shanhe-me.xsl  proxycert.sh   schematic.sh   startup.bsh    Test.jtl
ant-jmeter-1.1.1.jar  execcode.bsh  jmeter-results-detail-report_21.xsl  printvars.bsh                 remote.bsh     schematic.xml  Test.html
[root@localhost extras]# ant
Buildfile: /apiTest/apache-jmeter-5.5/extras/build.xml
run:
[echo] funcMode = false
[delete] Deleting: /apiTest/apache-jmeter-5.5/extras/Test.html
[jmeter] Executing test plan: /apiTest/apache-jmeter-5.5/extras/Test.jmx ==> /apiTest/apache-jmeter-5.5/extras/Test.jtl
[jmeter] Creating summariser <summary>
[jmeter] Created the tree successfully using /apiTest/apache-jmeter-5.5/extras/Test.jmx
[jmeter] Starting standalone test @ August 12, 2022 10:14:09 AM CST (1660270449166)
[jmeter] Waiting for possible Shutdown/StopTestNow/HeapDump/ThreadDump message on port 4445
[jmeter] summary =     30 in 00:00:03 =    9.6/s Avg:   224 Min:   100 Max:   351 Err:     2 (6.67%)
[jmeter] Tidying up ...    @ August 12, 2022 10:14:13 AM CST (1660270453465)
[jmeter] ... end of run
_message_xalan:
xslt-report:
[xslt] Processing /apiTest/apache-jmeter-5.5/extras/Test.jtl to /apiTest/apache-jmeter-5.5/extras/Test.html
[xslt] Loading stylesheet /apiTest/apache-jmeter-5.5/extras/jmeter-results-shanhe-me.xsl
verify-images:
copy-images:
report:
[echo] Report generated at 2022/08/12 10:14
all:
BUILD SUCCESSFUL
// BUILD SUCCESSFUL即为成功
Total time: 14 seconds

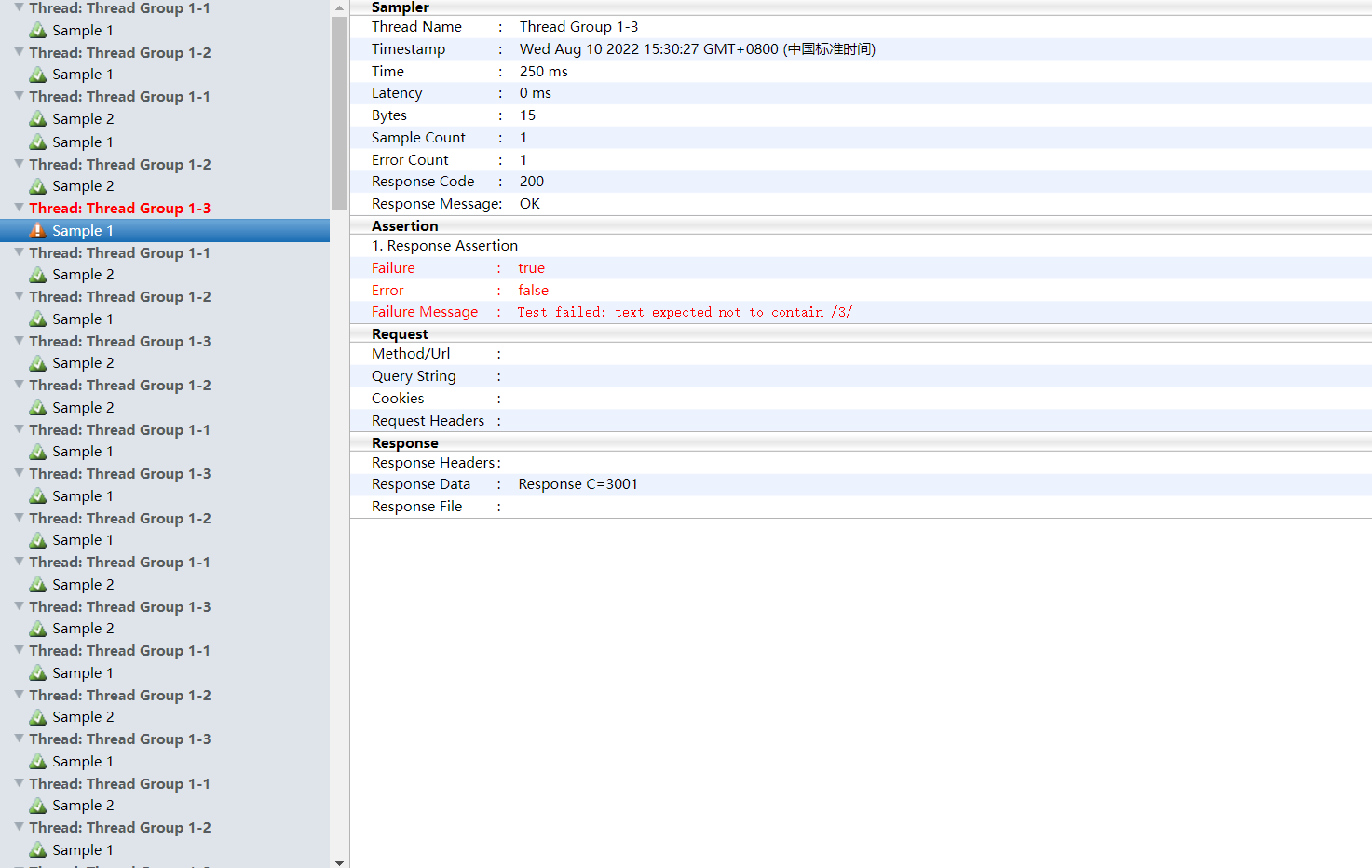

5.运行过后会生成Test.html文件，打开效果如下，可显示请求/响应详细内容，并且可查看断言错误详细信息

三、完成Jenkins自动化构建

1.将已调试的jmx脚本拷到Linux下，建议单独创建目录以便独立操作

//如下为参考目录示例，具体目录按实际需求

[root@localhost ~]# cd /apiTest/jmx/Test_Plan-Bdv_new
[root@localhost Test_Plan-Bdv_new]# ls
build.xml  Test_Plan-Bdv_new.jmx

2.在jmx脚本对应目录下创建build.xml文件，用来ant执行脚本，可以直接复制jmeter/extras中的build.xml文件，配置build.xml

//找到如下字段，修改配置</description><property name="testpath" value="/apiTest/jmx/Test_Plan-Bdv_new"/> //测试脚本路径<property name="respath" value="/apiTest/report"/> //测试结果存放地址<property name="jmeter.home" value="/apiTest/apache-jmeter-5.5"/> //jmeter引用地址<property name="report.title" value="Load Test Results"/> //还不晓得，可能是报告标题？<property name="xsldir" value="/apiTest/apache-jmeter-5.5/extras"/> //用来转换测试结果为html的文件存放的地址，即二、2中的文件<!-- Name of test (without .jmx) --><property name="test" value="${jmx}"/> //所执行测试的脚本名称，这里写成变量，以便后续脚本变多可灵活使用//-----------------再往下----------------------<!-- Use xalan copy from JMeter lib directory to ensure consistent processing with Java 1.4+ --><path id="xslt.classpath"><fileset dir="${lib.dir}" includes="xalan*.jar"/><fileset dir="${lib.dir}" includes="serializer*.jar"/></path><target name="report" depends="xslt-report,copy-images"><echo>Report generated at ${report.datestamp}</echo></target><target name="xslt-report" depends="_message_xalan"><tstamp><format property="report.datestamp" pattern="yyyy/MM/dd HH:mm"/></tstamp><xsltclasspathref="xslt.classpath"force="true"in="${respath}/${test}.jtl"out="${respath}/${test}.html"style="${xsldir}/jmeter-results-shanhe-me.xsl"> //这里需要修改成xsldir<param name="showData" expression="${show-data}"/><param name="titleReport" expression="${report.title}"/><param name="dateReport" expression="${report.datestamp}"/></xslt></target>

3.在对应目录下执行ant测试，验证是否成功

[root@localhost Test_Plan-Bdv_new]# ant -Djmx=Test_Plan-Bdv_new //<property name="test" value="${jmx}"/
/* 如上命令参考：ant -f build.xml -Dparam1=value1 -Dparam2=value2
/* 在build.xml文件中： <property name=build.param1 value=${param1} />
Buildfile: /apiTest/jmx/Test_Plan-Bdv_new/build.xml
run:
[echo] funcMode = false
[delete] Deleting: /apiTest/report/Test_Plan-Bdv_new.html
[jmeter] Executing test plan: /apiTest/jmx/Test_Plan-Bdv_new/Test_Plan-Bdv_new.jmx ==> /apiTest/report/Test_Plan-Bdv_new.jtl
[jmeter] Creating summariser <summary>
[jmeter] Created the tree successfully using /apiTest/jmx/Test_Plan-Bdv_new/Test_Plan-Bdv_new.jmx
[jmeter] Starting standalone test @ August 12, 2022 10:57:10 AM CST (1660273030712)
[jmeter] Waiting for possible Shutdown/StopTestNow/HeapDump/ThreadDump message on port 4445
[jmeter] summary =     77 in 00:00:05 =   14.1/s Avg:    37 Min:     2 Max:   326 Err:     0 (0.00%)
[jmeter] Tidying up ...    @ August 12, 2022 10:57:16 AM CST (1660273036526)
[jmeter] ... end of run
_message_xalan:
xslt-report:
[xslt] Processing /apiTest/report/Test_Plan-Bdv_new.jtl to /apiTest/report/Test_Plan-Bdv_new.html
[xslt] Loading stylesheet /apiTest/apache-jmeter-5.5/extras/jmeter-results-shanhe-me.xsl
verify-images:
copy-images:
report:
[echo] Report generated at 2022/08/12 10:57
all:
BUILD SUCCESSFUL
Total time: 14 seconds

4.在Jenkins上构建脚本

a.创建自由项目（自行百度如何创建项目）

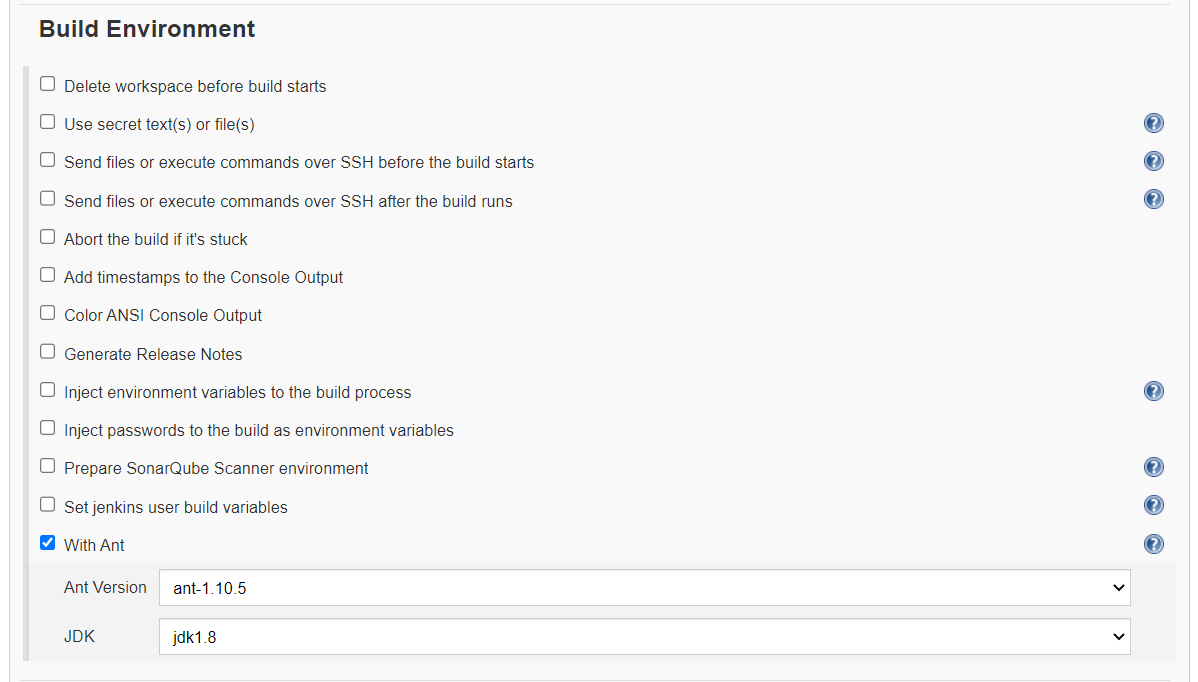

b.buildEnvironment配置ant
