回答----https://blog.csdn.net/weixin_42381351/article/details/115524780?spm=1001.2014.3001.5501

用户APP里面函数 struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);

这个是一个指针分配内存但是右边是强转的实际上右边结构体要小呀安不安全？？？？


typedef uint16_t ke_task_id_t;typedef struct prf_env
{/// Application Task Number - if MSB bit set, Multi-Instantiated taskke_task_id_t app_task;/// Profile Task  Number    - if MSB bit set, Multi-Instantiated taskke_task_id_t prf_task;
} prf_env_t;//1----这是一个结构体#define BLE_NB_PROFILES          32/// Profile task environment variable definition to dynamically allocate a Task.
struct prf_task_env
{/// Profile Task description//struct ke_task_desc desc;/// pointer to the allocated memory used by profile during runtime.prf_env_t*          env;/// Profile Task Numberke_task_id_t        task;/// Profile Task Identifierke_task_id_t        id;
};/// Profile Manager environment structure
struct prf_env_tag
{/// Array of profile tasks that can be managed by Profile manager.struct prf_task_env prf[BLE_NB_PROFILES];
};struct prf_env_tag prf_env __attribute__((section("retention_mem_area0"),zero_init));prf_env_t* prf_env_get(uint16_t prf_id)
{prf_env_t* env = NULL;uint8_t i;// find if profile present in profile tasksfor(i = 0; i < BLE_NB_PROFILES ; i++){// check if profile identifier is knownif(prf_env.prf[i].id == prf_id){env = prf_env.prf[i].env;break;}}return env;
}prf_env_t tast_data = {0XAA,0XBB};
void my_init(void)
{prf_env.prf[20].id = 0x01;//  TASK_ID_CUSTS1; 假设数组中的20号是内存根源prf_env.prf[20].env = &tast_data;
}
//2----这是一个内存银行 最核心的其实是 prf_env_t*          env;它只是地址#define PRF_ENV_GET(prf_id, type) \((struct type ## _env_tag *)prf_env_get((TASK_ID_##prf_id)))/*
struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);
也就是
struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);= (struct custs1_env_tag *)prf_env_get(TASK_ID_CUSTS1)1---custs1_env_tag  2---TASK_ID_CUSTS1       TASK_ID_CUSTS1       = 0xFD, // Custom1 Task
*/  #define       TASK_ID_CUSTS1     0x01
struct custs1_env_tag
{/// profile environmentprf_env_t prf_env;/// Service Start Handleuint16_t shdl;/// To store the DB max number of attributesuint8_t max_nb_att;/// On-going operationstruct ke_msg *operation;/// Cursor on connection used to notify peer devicesuint8_t cursor;/// CCC handle index, used during notification/indication busy stateuint8_t ccc_idx;
};
static int custs1_val_ntf_req_handler(void)
{struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);//custs1_env->operation = ke_param2msg(param);custs1_env->cursor = 10;//ke_free(custs1_env->operation);custs1_env->operation = NULL;
}//3----
//struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);
//这句话终于可以分析了 它是 一个指针分配内存 而右边不是一个数组中死死的内存 是一个提前malloc的内存
//好像是左边指针比较大 右边内存比较小啊  安全吗？？？？struct custs1_env_tag2
{uint8_t cursor;uint8_t ccc_idx;
};struct custs1_env_tag2 *custs1_env2;
uint8_t abc=3;
int main(void)
{my_init();custs1_val_ntf_req_handler();custs1_env2 = (struct custs1_env_tag2 *)&abc;custs1_env2->ccc_idx=1;custs1_env2->cursor=2;return 0;
}

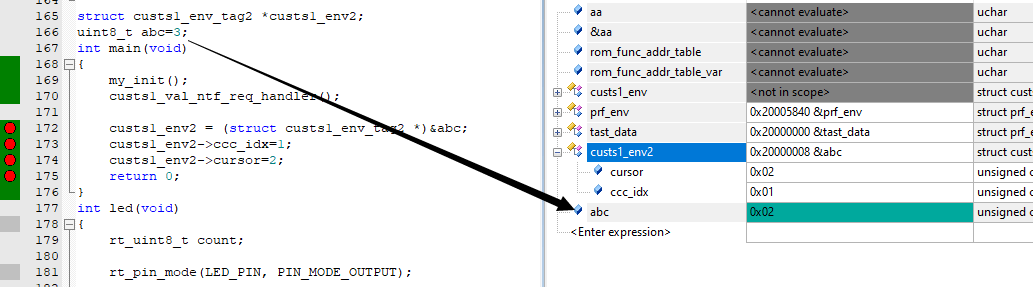

可以debug看的正常

自己测试的也没有崩溃

+++++++++++++++++++++++++继续问题++++++++++++++++

快要吐血发个抖音吧这个问题真不不理解在表达一次

发消息

void user_svc1_accel_X_send_ntf()
struct custs1_val_ntf_ind_req* req = KE_MSG_ALLOC_DYN(CUSTS1_VAL_NTF_REQ, //Message id

然后执行回调函数

static int custs1_val_ntf_req_handler(ke_msg_id_t const msgid,
struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);
custs1_env->operation = ke_param2msg(param);

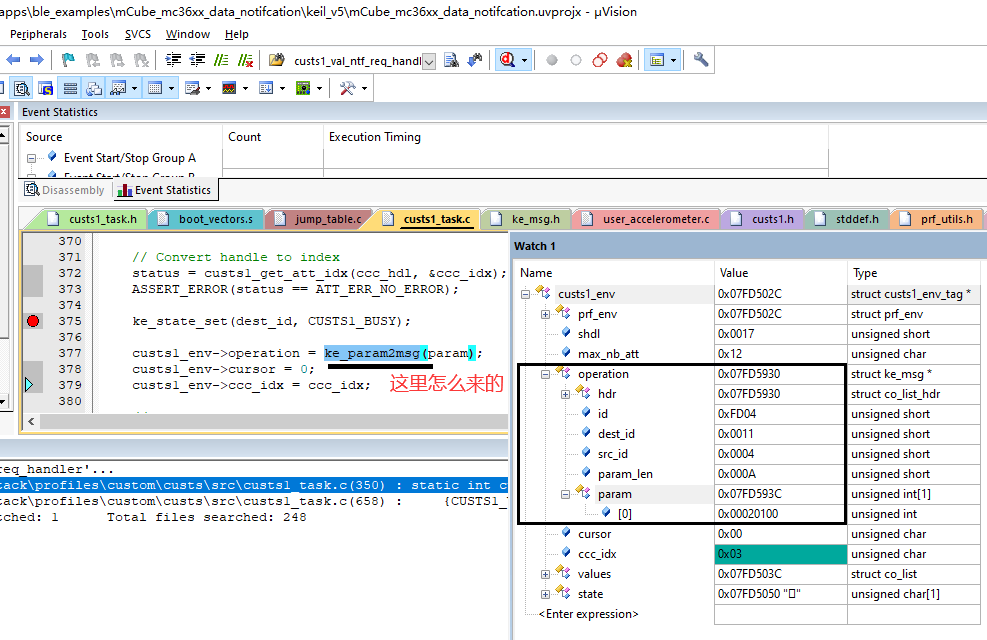

已经明白了参数是req过来的这个 ke_param2msg 不懂

它是修改指针的指向的从头部修改到最后的U32 但是完全不相干啊

++++++再次描述一下++++

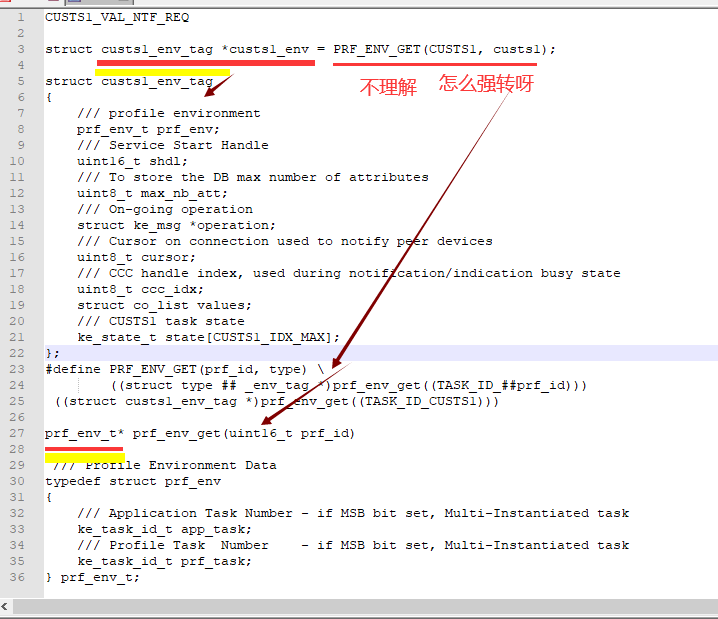

CUSTS1_VAL_NTF_REQstruct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);struct custs1_env_tag
{/// profile environmentprf_env_t prf_env;/// Service Start Handleuint16_t shdl;/// To store the DB max number of attributesuint8_t max_nb_att;/// On-going operationstruct ke_msg *operation;/// Cursor on connection used to notify peer devicesuint8_t cursor;/// CCC handle index, used during notification/indication busy stateuint8_t ccc_idx;struct co_list values;/// CUSTS1 task stateke_state_t state[CUSTS1_IDX_MAX];
};
#define PRF_ENV_GET(prf_id, type) \((struct type ## _env_tag *)prf_env_get((TASK_ID_##prf_id)))((struct custs1_env_tag *)prf_env_get((TASK_ID_CUSTS1)))prf_env_t* prf_env_get(uint16_t prf_id)/// Profile Environment Data
typedef struct prf_env
{/// Application Task Number - if MSB bit set, Multi-Instantiated taskke_task_id_t app_task;/// Profile Task  Number    - if MSB bit set, Multi-Instantiated taskke_task_id_t prf_task;
} prf_env_t;

++++++基于RTT自己测试一下分配小内存看看+++++


#define      ke_task_id_t   int
#define      TASK_ID_CUSTS1 11/// Profile Environment Data
typedef struct prf_env
{/// Application Task Number - if MSB bit set, Multi-Instantiated taskke_task_id_t app_task;/// Profile Task  Number    - if MSB bit set, Multi-Instantiated taskke_task_id_t prf_task;
} prf_env_t;struct custs1_env_tag
{/// profile environmentprf_env_t prf_env;/// Service Start Handleint shdl;/// To store the DB max number of attributesint max_nb_att;/// On-going operationstruct ke_msg *operation;/// Cursor on connection used to notify peer devicesint cursor;/// CCC handle index, used during notification/indication busy stateint ccc_idx;};prf_env_t data __attribute__((at(0X20000100))) ={1,2} ;
prf_env_t* prf_env_get(uint16_t prf_id)
{// static prf_env_t data={1,2};return &data;
}#define PRF_ENV_GET(prf_id, type) \((struct type ## _env_tag *)prf_env_get((TASK_ID_##prf_id)))
// ((struct custs1_env_tag *)prf_env_get((TASK_ID_CUSTS1)))int main(void)
{struct custs1_env_tag *custs1_env = PRF_ENV_GET(CUSTS1, custs1);custs1_env->cursor=5;custs1_env->ccc_idx=6;return 0;
}
