测试用例

测试应用有两个按钮，分别用 HttpURLConnection 和 Okhttp3 请求 https://www.baidu.com/。注意：两个请求都加入了 Proxy.NO_PROXY。

//HttpURLConnection请求https://tcc.taobao.com/cc/json/mobile_tel_segment.htm?tel=13812371237
public void getHtmlByUrlconnection(String path) throws Exception {URL url = new URL(path);HttpURLConnection conn = (HttpURLConnection) url.openConnection(Proxy.NO_PROXY); // openConnection(Proxy.NO_PROXY)是关键conn.setConnectTimeout(5000);conn.setRequestMethod("GET");if (conn.getResponseCode() == 200) {InputStream inStream = conn.getInputStream();ByteArrayOutputStream outStream = new ByteArrayOutputStream();byte[] buffer = new byte[1024];int len = 0;while ((len = inStream.read(buffer)) != -1) {outStream.write(buffer, 0, len);}inStream.close();String res = new String(outStream.toByteArray(), "UTF-8");Log.d("GRAB", res);}
}//OkHTTP3请求https://tcc.taobao.com/cc/json/mobile_tel_segment.htm?tel=13923542345
public void getHtmlByOkhttp3(String path) {OkHttpClient okHttpClient = new OkHttpClient().newBuilder().proxy(Proxy.NO_PROXY).build(); // proxy(Proxy.NO_PROXY)是关键final Request request = new Request.Builder().url(path).get().build();Call call = okHttpClient.newCall(request);call.enqueue(new Callback() {@Overridepublic void onFailure(Call call, IOException e) {Log.d("GRAB", "onFailure: ");}@Overridepublic void onResponse(Call call, Response response) throws IOException {Log.d("GRAB", "onResponse: " + response.body().string());}});
}

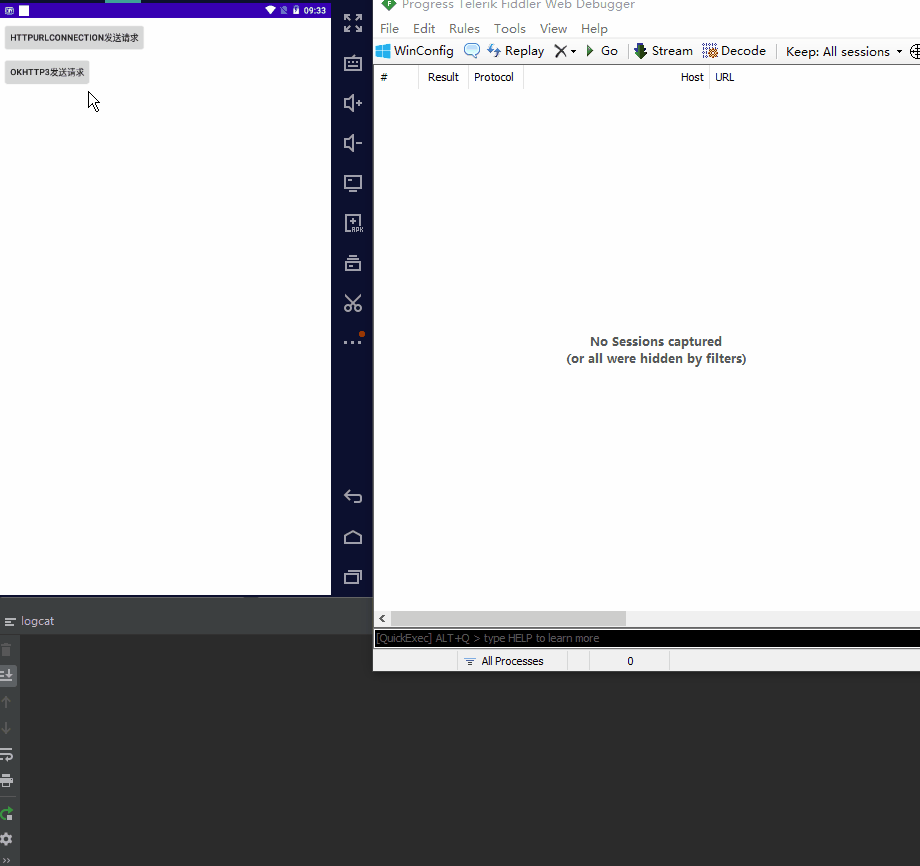

可以看到，基于代理抓包的Fiddler不再有效，我们可以从网络更底层或者函数本身入手解决。
在这里插入图片描述

HttpCanary

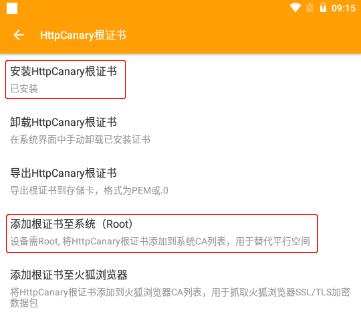

Android平台抓包工具，功能非常强大，基于传输层，连TCP UDP也能抓。首先去其设置中安装证书（Android7.0+注意要系统证书）。
在这里插入图片描述

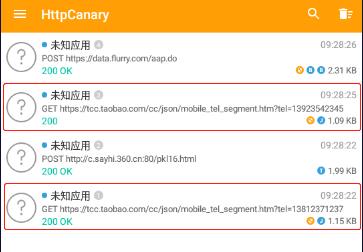

操作比较简单，不多赘述了，可以看到用此工具可以抓到不走代理的包。

Hook相关函数

使用Frida Hook掉设置代理的函数：

function hookProxy() {Java.perform(function () {let URL = Java.use("java.net.URL");URL.openConnection.overload("java.net.Proxy").implementation = function (arg1) {console.log("hook了HttpURLConnection")return this.openConnection();}let Builer = Java.use("okhttp3.OkHttpClient$Builder");let newBuilder = Builer.$new();Builer.proxy.overload("java.net.Proxy").implementation = function (arg1) {console.log("hook了okhttp3")return newBuilder;}});
}
