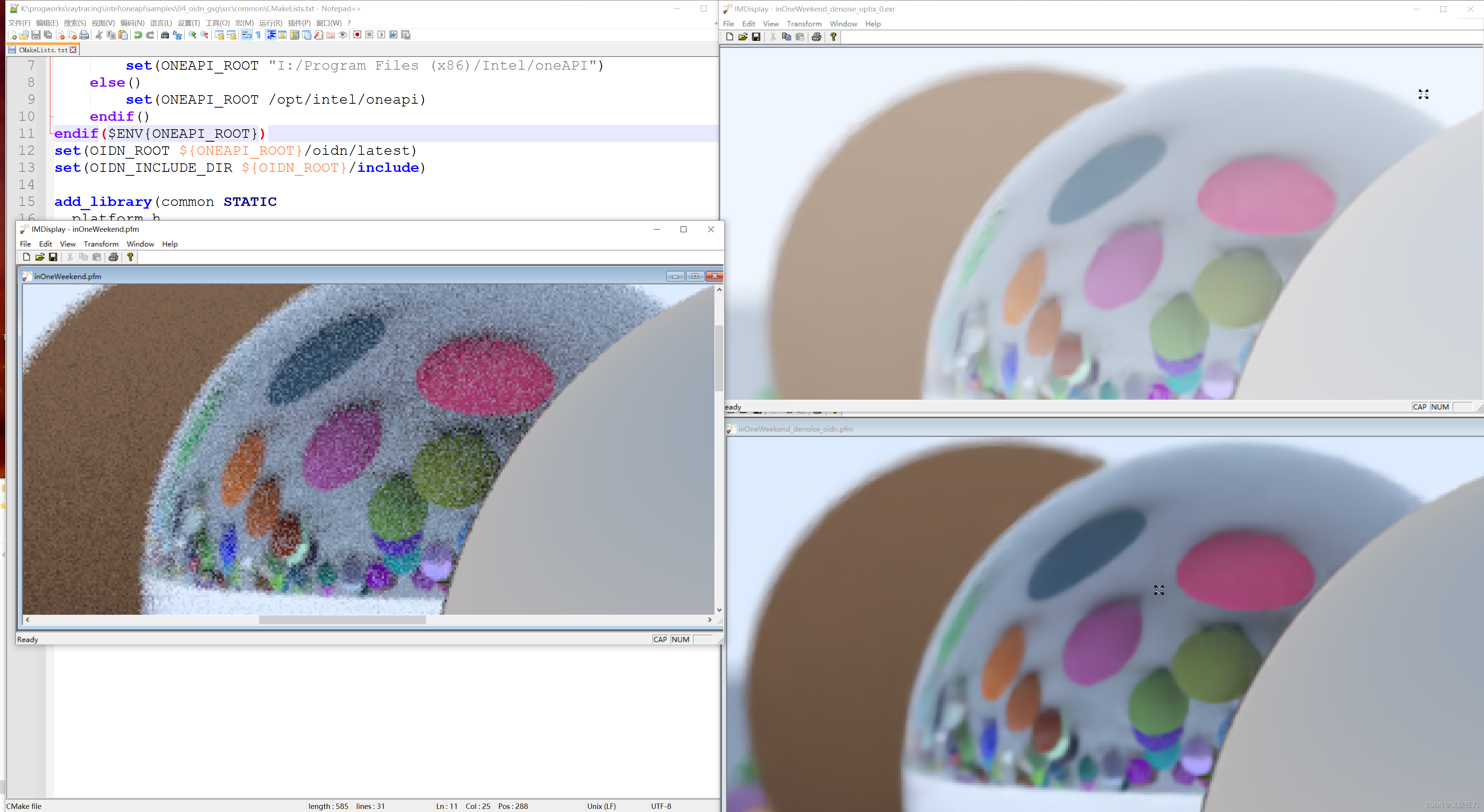

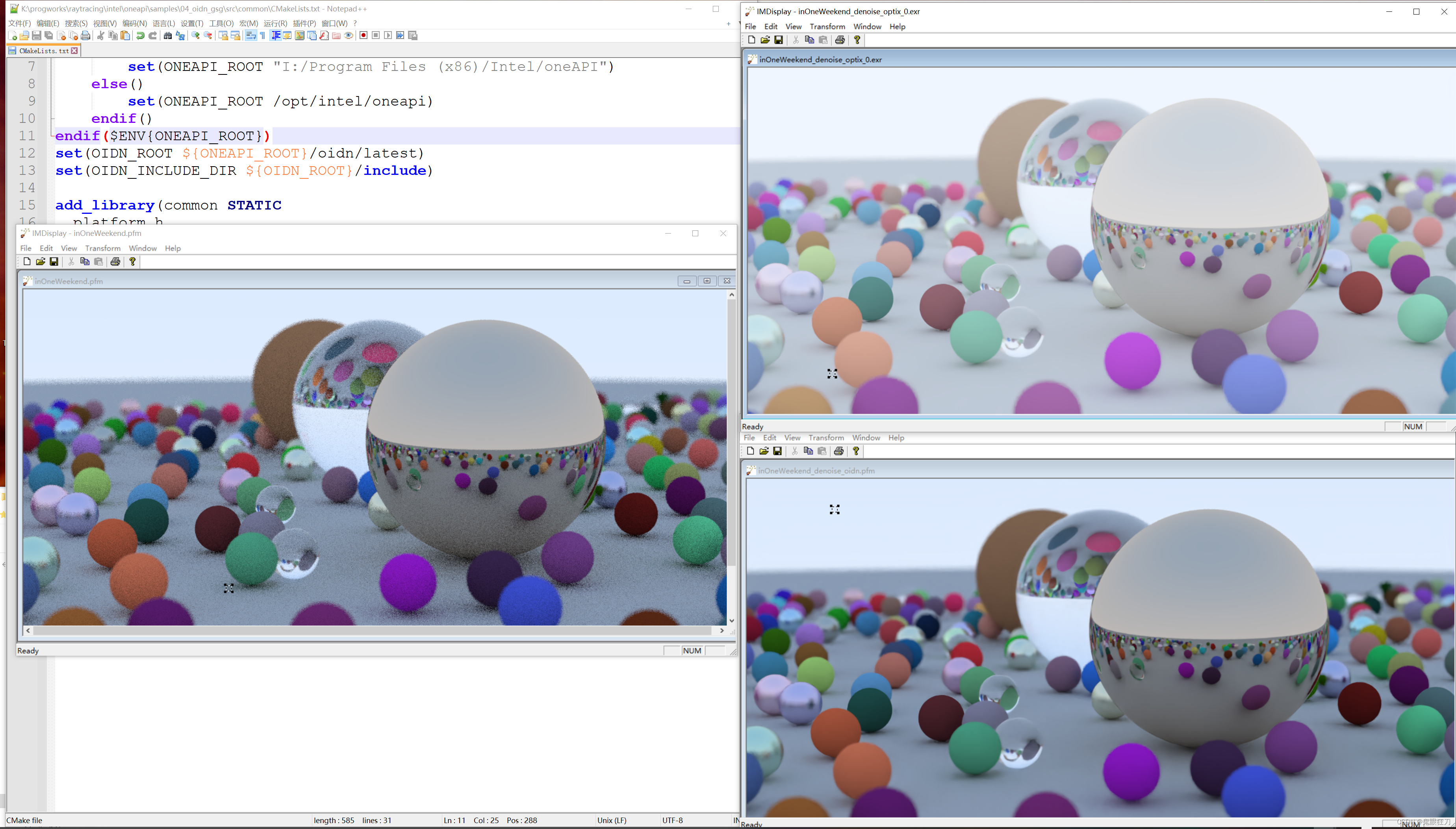

说明：原始图像（Raytracing的直接输出结果，每一幅的左图）为PPM格式，

一、OIDN

按照官方文档提示，先用ImageMagick转换成pfm格式，再将其作为oidn的输入，输出亦为pfm。

magick convert inOneWeekend.ppm -endian LSB PFM:inOneWeekend.pfm



K:\progworks\raytracing\intel\oneapi\samples\04_oidn_gsg\build\
Release>.\oidnDenoise.exe -hdr inOneWeekend.pfm -o denoise.pfm

输出结果为每一幅的右下图。

二、Optix

Optix 不支持ppm作为输入，

pfm作为输入时：

会提示有通道信息缺失，转换可能会有损失。

K:\progworks\raytracing\intel\oneapi\samples\04_oidn_gsg\build\Release>imgtool denoise-optix inOneWeekend.pfm --outfile inOneWeekend_denoise_optix.exr
Warning: inOneWeekend.pfm: image doesn't have Albedo.{R,G,B} channels. Denoising quality may suffer.
Warning: inOneWeekend.pfm: image doesn't have Nsx, Nsy, Nsz channels. Denoising quality may suffer.

后又尝试先转为exr格式 ，

https://convertio.co/zh/ppm-exr/

再进行降噪，输出为exr格式。

会出现同样的提示：

K:\progworks\raytracing\intel\oneapi\samples\04_oidn_gsg\build\Release>imgtool denoise-optix inOneWeekend_convertio.co.exr --outfile inOneWeekend_denoise_optix2.exr
Warning: inOneWeekend_convertio.co.exr: image doesn't have Albedo.{R,G,B} channels. Denoising quality may suffer.
Warning: inOneWeekend_convertio.co.exr: image doesn't have Nsx, Nsy, Nsz channels. Denoising quality may suffer.

输出结果为每一幅的右上图。
