微信小程序组件 —— 树形下拉框

article/2025/10/8 8:41:50

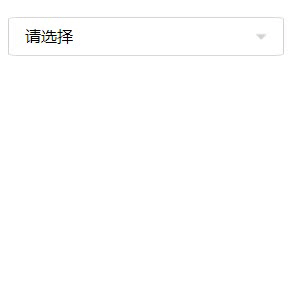

因为项目需求，需要一个树形下拉选择框，参考了网上的树形结构整理出了这样一个效果图
在这里插入图片描述
下载地址：wx_treeSelect下载

其实主要还是参考了treeview的递归思想微信小程序实现简单的树形图treeview 绘制出下拉框内的内容，在加个状态判断展开隐藏下拉框，方法回调显示选择值其实思想还是很容易的接下来直接上代码

1.首先新建树形菜单组件 —— mytree
在这里插入图片描述
(1) mytree.wxml


<view class="container"><view style="padding:5rpx 0;"><image wx:if='{{ isBranch }}' bindtap='toggle' src="{{ open ? '/image/show_less.png' : '/image/show_more.png'}}"  class='item-sImg'></image><image wx:else src='/image/page_turning_right.png'  class='item-sImg'></image><text bindtap='tapItem' data-itemid='{{ model.id }}' data-value='{{ model.text }}'>{{ model.text }}</text></view><view style='padding-left: 25rpx;' wx:if='{{ isBranch }}' hidden='{{ !open }}'><mytree wx:for='{{ model.nodes }}' wx:key='id' model='{{ item }}'></mytree></view>
</view>

(2) mytree.wxss


.container{font-size: 30rpx;color: #333;
}.item-sImg{width: 40rpx;height: 40rpx;vertical-align: middle;
}

(3) mytree.json


{"component": true,"usingComponents": {"mytree": "../mytree/mytree"}
}

(4) mytree.js


Component({properties: {model: Object,},data: {open: true,isBranch: false,},methods: {toggle: function(e) {if (this.data.isBranch) {this.setData({open: !this.data.open,})}},tapItem: function(e) {var itemid = e.currentTarget.dataset.itemid;var value = e.currentTarget.dataset.value;this.triggerEvent('tapitem', { value: value,itemid: itemid }, { bubbles: true, composed: true });}},ready: function(e) {this.setData({isBranch: Boolean(this.data.model.nodes && this.data.model.nodes.length),});}
})

2.再创建下拉树形列表组件 —— treeSelect
(1) treeSelect.wxml


<view class='com-selectBox'><view class='com-sContent' bindtap='selectToggle'><view class='com-sTxt'>{{nowText}}</view><image src='/image/show_more.png'  class='com-sImg'></image></view><view class='com-sList' wx:if="{{selectShow}}"><view wx:if='{{ isBranch }}' hidden='{{ !open }}'><mytree wx:for='{{ model.nodes }}' wx:key='id' model='{{ item }}'  bind:tapitem='tapItem'></mytree></view></view>
</view>

(2) treeSelect.wxss


.com-selectBox{width: 500rpx;
}
.com-sContent{border: 2rpx solid #d3d3d3;background: white;border-radius: 5%;position: relative;padding: 5rpx 30rpx;line-height: 2;height: 60rpx;
}
.com-sImg{position: absolute;right: 0;top: 50%;width: 40rpx;height: 40rpx;transform: translate(-50%,-50%);
}
.com-sTxt{overflow: hidden;text-overflow: ellipsis;white-space: nowrap;
}
.com-sList{background: white;width: inherit;position: absolute;border: 1px solid #e2e2e2;border-top: none;box-sizing: border-box;z-index: 3;height: 200px;overflow: auto;padding: 15rpx;
}
.com-sItem{height: 30px;line-height: 30px;border-top: 1px solid #e2e2e2;padding: 0 6px;text-align: left;overflow: hidden;text-overflow: ellipsis;white-space: nowrap;font-size: 14px;
}
.com-sItem:first-child{border-top: none;
}.item-sImg{width: 40rpx;height: 40rpx;vertical-align: middle;
}

(3) treeSelect.json


{"component": true,"usingComponents": {"mytree": "../mytree/mytree"}
}

(4) treeSelect.js


Component({/*** 组件的属性列表*/properties: {model: Object},/*** 组件的初始数据*/data: {selectShow:false,nowText : "请选择",open: true,isBranch: false,},/*** 组件的方法列表*/methods: {selectToggle:function(){var nowShow=this.data.selectShow;this.setData({selectShow: !nowShow})},toggle: function(e) {if (this.data.isBranch) {this.setData({open: !this.data.open,})}},tapItem: function(e) {var itemid = e.detail.itemid;var value = e.detail.value;this.triggerEvent('tapitem', { value: value,itemid: itemid }, { bubbles: true, composed: true });this.setData({selectShow: false,nowText:value})}},ready: function(e) {this.setData({isBranch: Boolean(this.data.model.nodes && this.data.model.nodes.length)});}
})

3.最后就是创建一个页面测试一下啦 —— index
(1) index.wxml


<!--index.wxml-->
<view class="container"><treeSelect model='{{selectArray}}' bind:tapitem='tapItem'></treeSelect>
</view>

(2) index.wxss


.container{padding: 30rpx;
}

(3) index.json


{"navigationBarTitleText": "树形下拉框","usingComponents": {"treeSelect": "/components/treeSelect/treeSelect"}
}

(4) index.js

//index.js
//获取应用实例
const app = getApp()Page({data: {selectArray: {text: '', id: '',nodes: [{"id": 5,"text": "沈阳市","nodes": []}, {"id": 6,"text": "本溪市","nodes": [{"id": 7,"text": "本溪石街","nodes": []}, {"id": 8,"text": "本溪梨树","nodes": []}, {"id": 9,"text": "辽宁本溪","nodes": []}, {"id": 10,"text": "本溪平山","nodes": []}, {"id": 11,"text": "本溪明山","nodes": []}]}, {"id": 12,"text": "盘锦市","nodes": [{"id": 13,"text": "盘锦辽东湾","nodes": []}]}, {"id": 14,"text": "辽阳市","nodes": [{"id": 15,"text": "辽阳灯塔","nodes": []}]}, {"id": 16,"text": "铁岭市","nodes": [{"id": 17,"text": "铁岭银州","nodes": []}]}, {"id": 18,"text": "鞍山市","nodes": [{"id": 19,"text": "鞍山千山","nodes": []}]}]}},tapItem: function (e) {var itemid = e.detail.itemid;var itemval = e.detail.value;console.log("所选中的分区编号：" + itemid + "， 名称：" + itemval);}
})
