OpenStack部署之Placement项目（7-4）
- 一、Placement概述
- 二、OpenStack-Placement组件部署
- 1、创建数据库实例和数据库用户
- 2、创建Placement服务用户和API的endpoint
- 3、安装placement服务
- 4、修改00-placemenct-api.conf配置文件
- 5、测试访问和端口号
- 6、总结

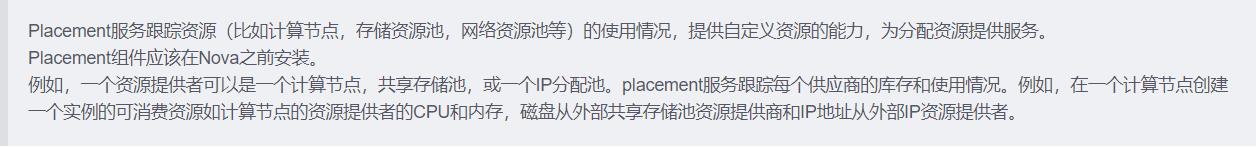

一、Placement概述
二、OpenStack-Placement组件部署
CT VM:192.168.10.101 NAT:192.168.221.101

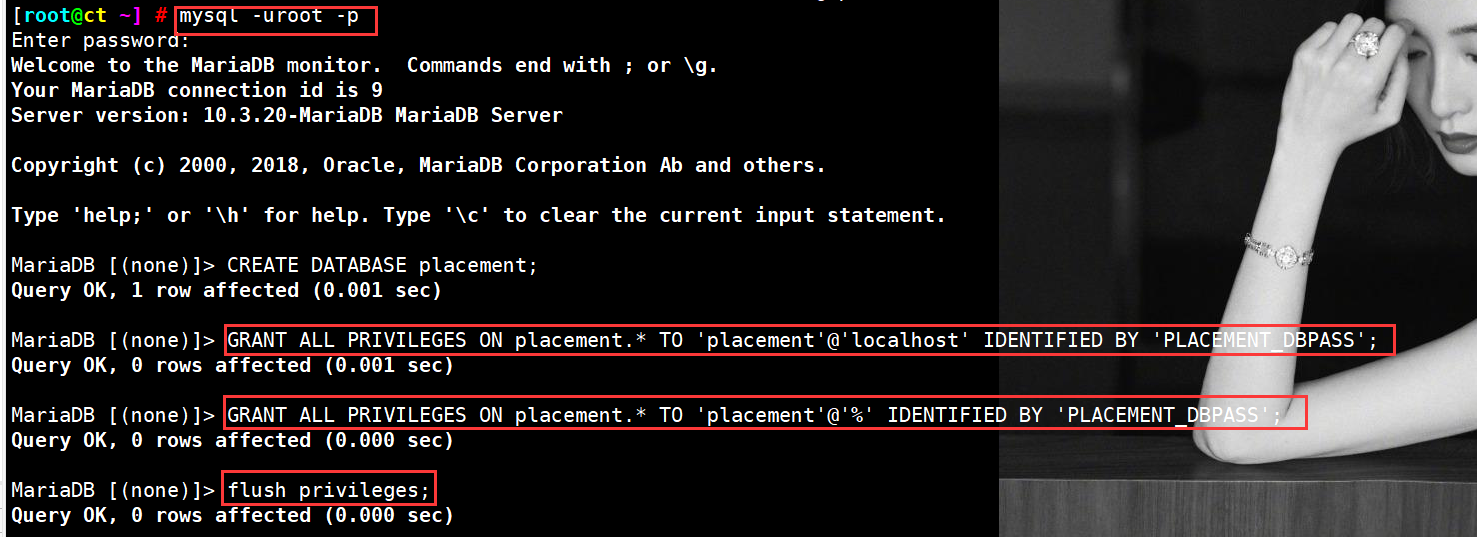

1、创建数据库实例和数据库用户
mysql -uroot -pCREATE DATABASE placement;
GRANT ALL PRIVILEGES ON placement.* TO 'placement'@'localhost' IDENTIFIED BY 'PLACEMENT_DBPASS';
GRANT ALL PRIVILEGES ON placement.* TO 'placement'@'%' IDENTIFIED BY 'PLACEMENT_DBPASS';
flush privileges;
exit

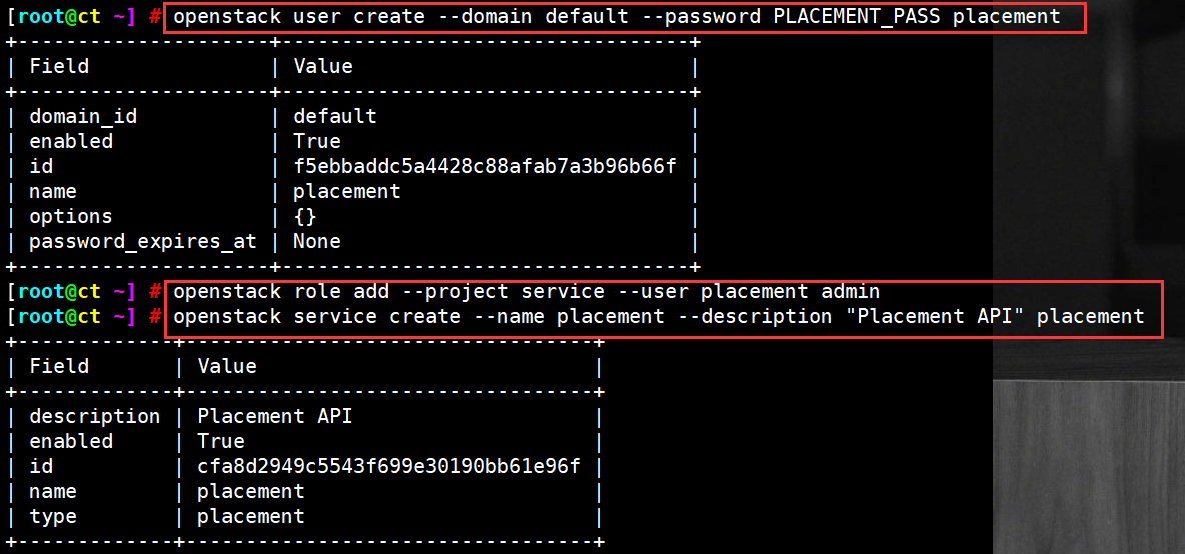

2、创建Placement服务用户和API的endpoint
创建placement用户、授权、创建placement服务
openstack user create --domain default --password PLACEMENT_PASS placement #创建角色placement指定域名default,密码PASS...
openstack role add --project service --user placement admin #将placement用户加入service项目中,并赋予admin权限
openstack service create --name placement --description "Placement API" placement #在service项目中创建服务名字placement描述Placement API类型placement注册API端口到placement的service中；注册的信息会写入到mysql中

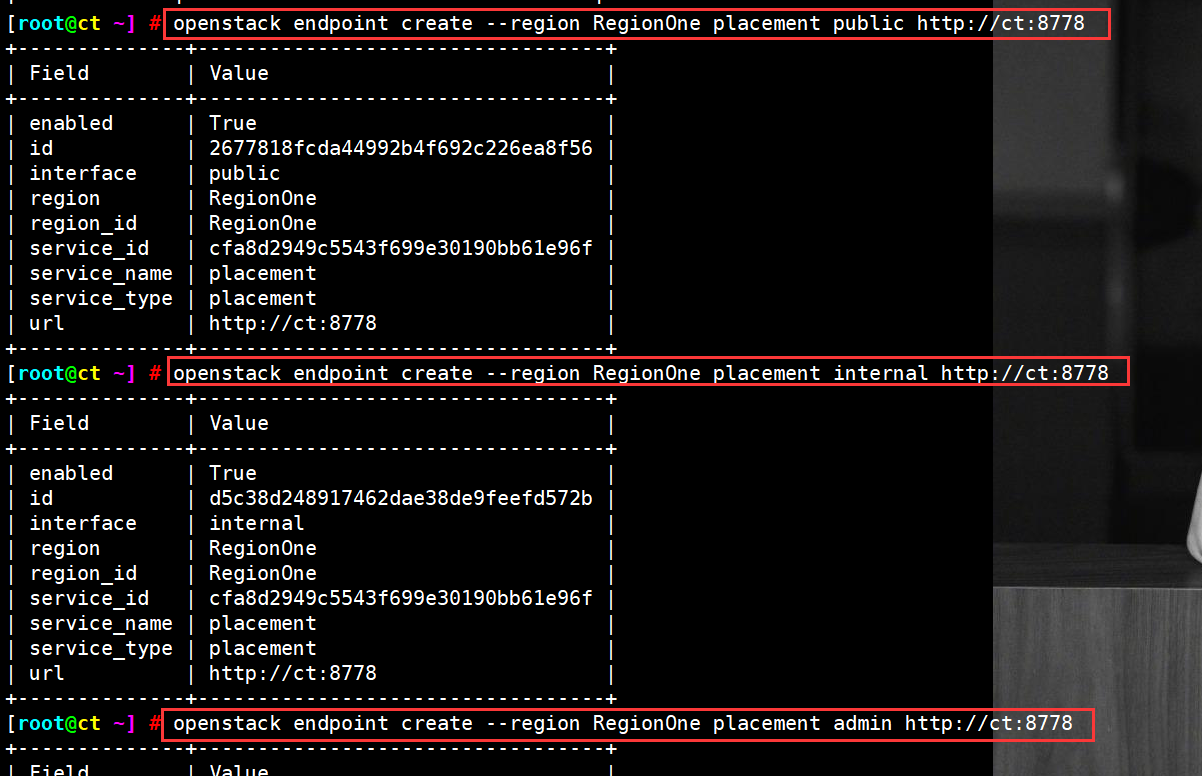

openstack endpoint create --region RegionOne placement public http://ct:8778
openstack endpoint create --region RegionOne placement internal http://ct:8778
openstack endpoint create --region RegionOne placement admin http://ct:8778

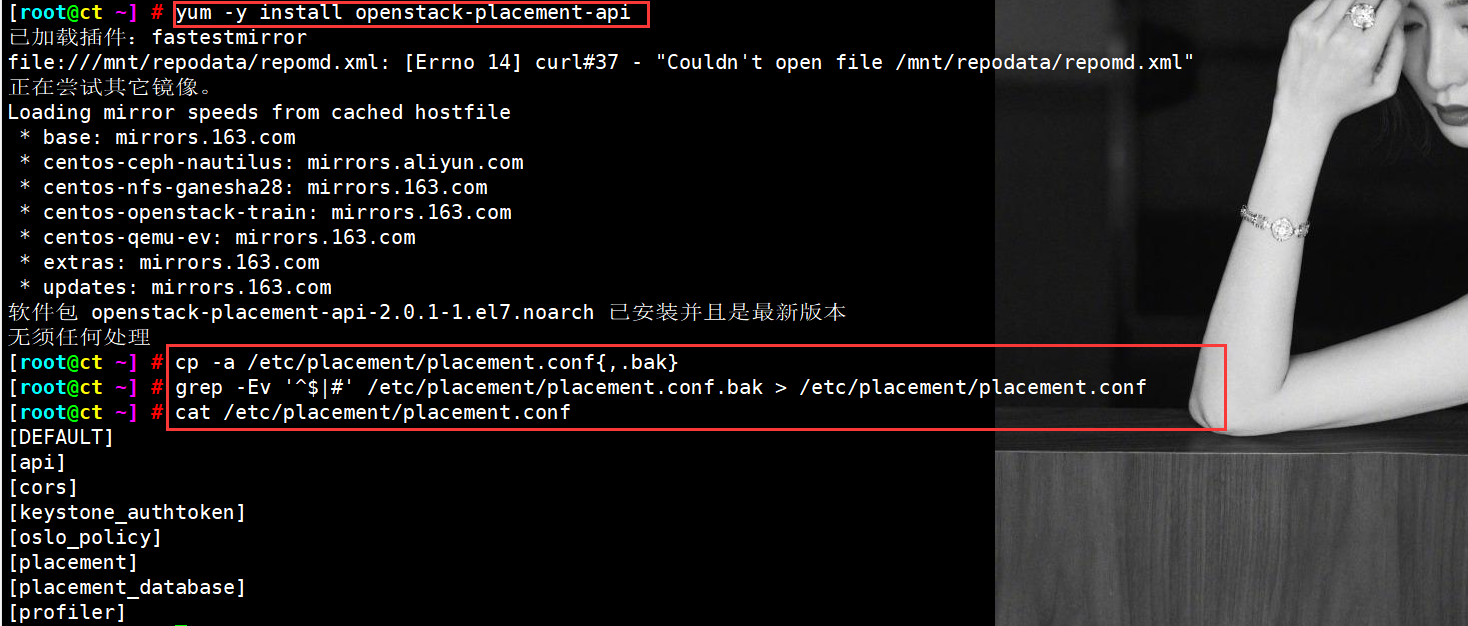

3、安装placement服务
yum -y install openstack-placement-api修改placement配置文件/etc/placement/placement.conf
cp -a /etc/placement/placement.conf{,.bak}
grep -Ev '^$|#' /etc/placement/placement.conf.bak > /etc/placement/placement.conf添加/etc/placement/placement.conf配置（可以使用下面的命令传参）
openstack-config --set /etc/placement/placement.conf placement_database connection mysql+pymysql://placement:PLACEMENT_DBPASS@ct/placement
openstack-config --set /etc/placement/placement.conf api auth_strategy keystone
openstack-config --set /etc/placement/placement.conf keystone_authtoken auth_url http://ct:5000/v3
openstack-config --set /etc/placement/placement.conf keystone_authtoken memcached_servers ct:11211
openstack-config --set /etc/placement/placement.conf keystone_authtoken auth_type password
openstack-config --set /etc/placement/placement.conf keystone_authtoken project_domain_name Default
openstack-config --set /etc/placement/placement.conf keystone_authtoken user_domain_name Default
openstack-config --set /etc/placement/placement.conf keystone_authtoken project_name service
openstack-config --set /etc/placement/placement.conf keystone_authtoken username placement
openstack-config --set /etc/placement/placement.conf keystone_authtoken password PLACEMENT_PASS传参后，查看配置文件里是否有参数，传参是否成功

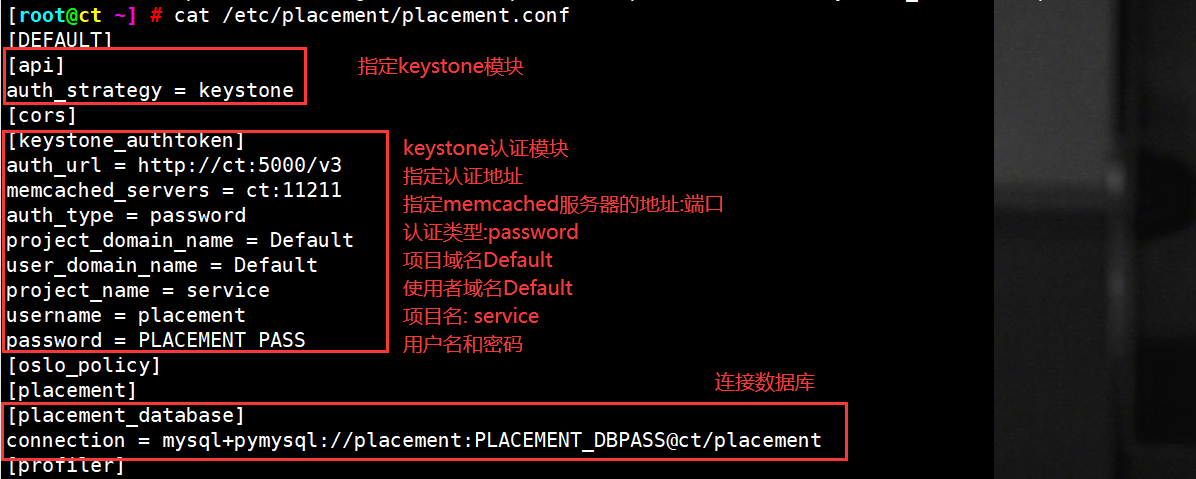

cat /etc/placement/placement.conf导入数据库
su -s /bin/sh -c "placement-manage db sync" placement

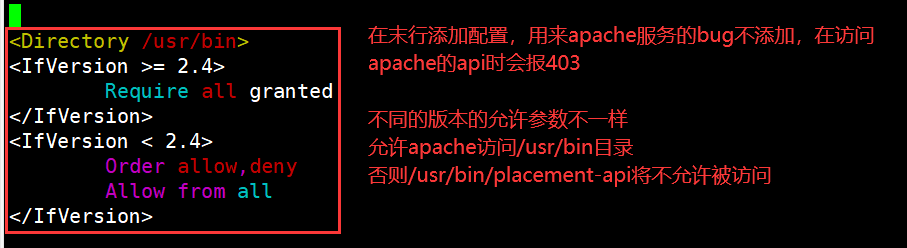

4、修改00-placemenct-api.conf配置文件
00-placemenct-api.conf（安装完placement服务后会自动创建该文件-虚拟主机配置 ）cd /etc/httpd/conf.d
vim 00-placement-api.conf ==末行添加==
<Directory /usr/bin>
<IfVersion >= 2.4> Require all granted
</IfVersion>
<IfVersion < 2.4> Order allow,deny Allow from all
</IfVersion>
</Directory>重新启动apache
systemctl restart httpd
5、测试访问和端口号
curl 测试访问
curl ct:8778查看端口占用（netstat、lsof）
netstat -natp | grep 8778检查placement状态
placement-status upgrade check
6、总结
