4.8.1 IFFT/FFT原理

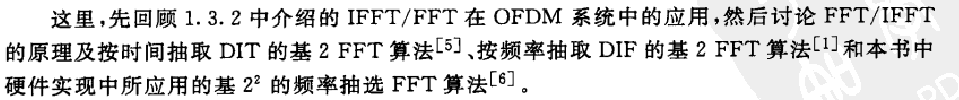

1. IFFT、FFT在OFDM系统中的应用

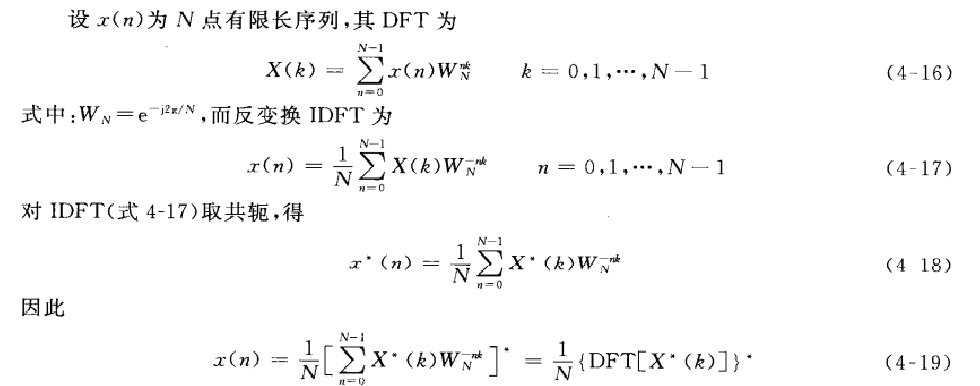

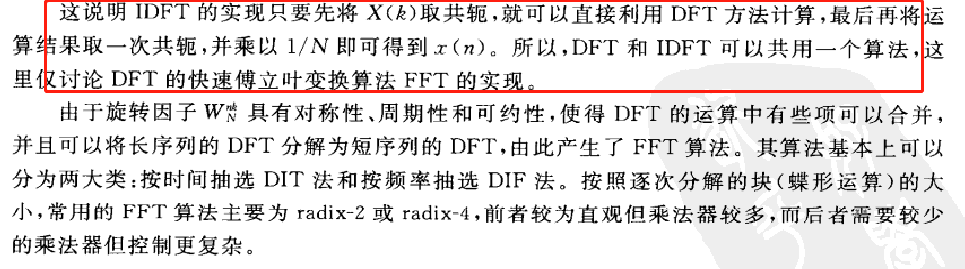

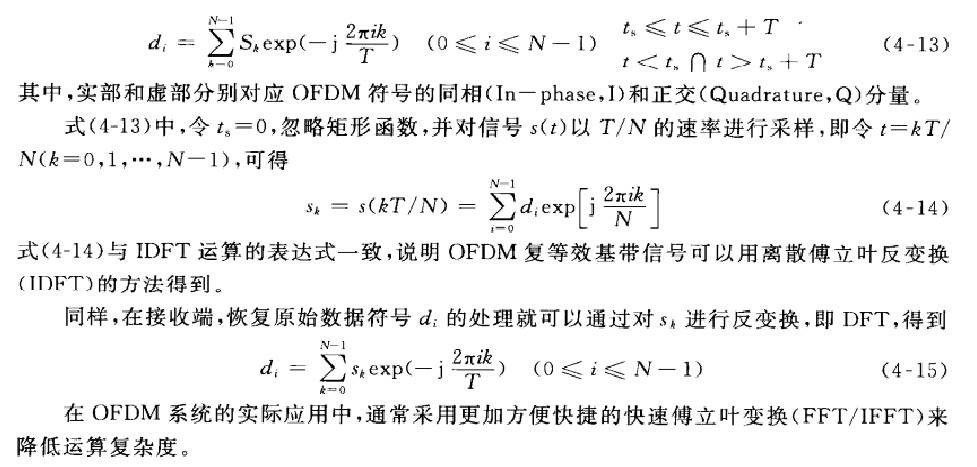

2、IFFT/FFT原理

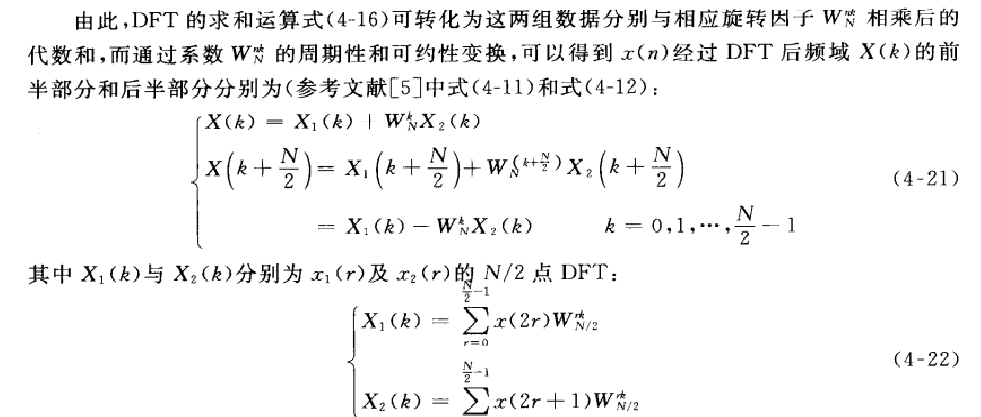

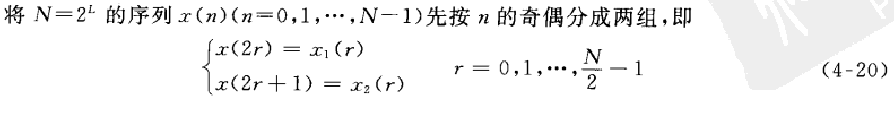

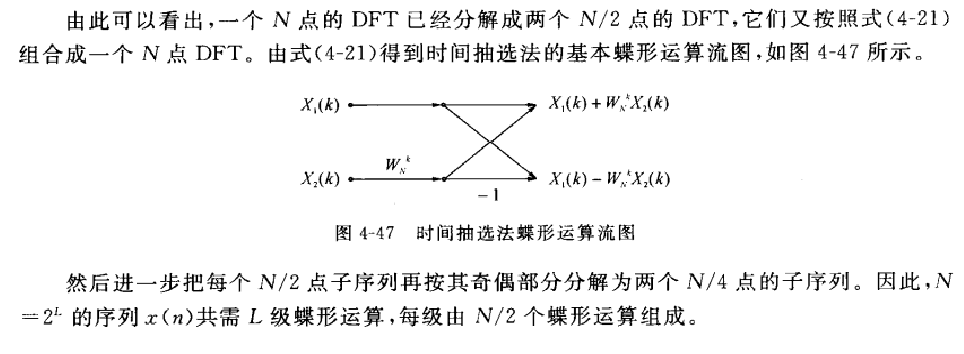

3、DIT的基2FFT算法

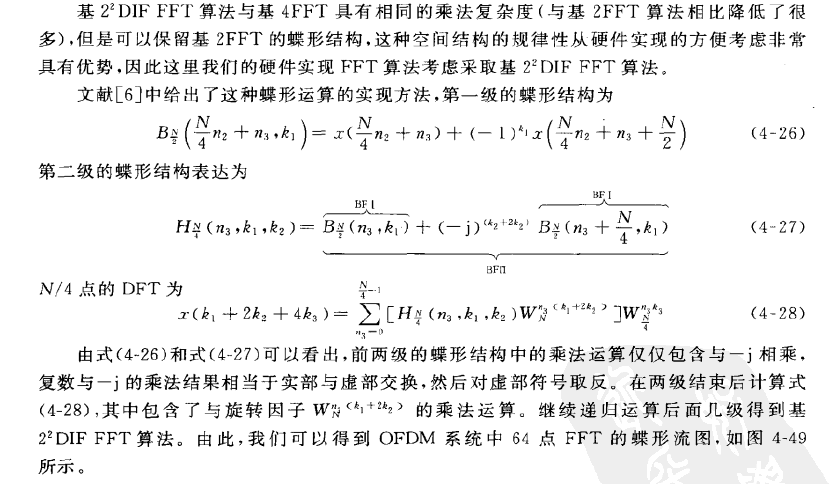

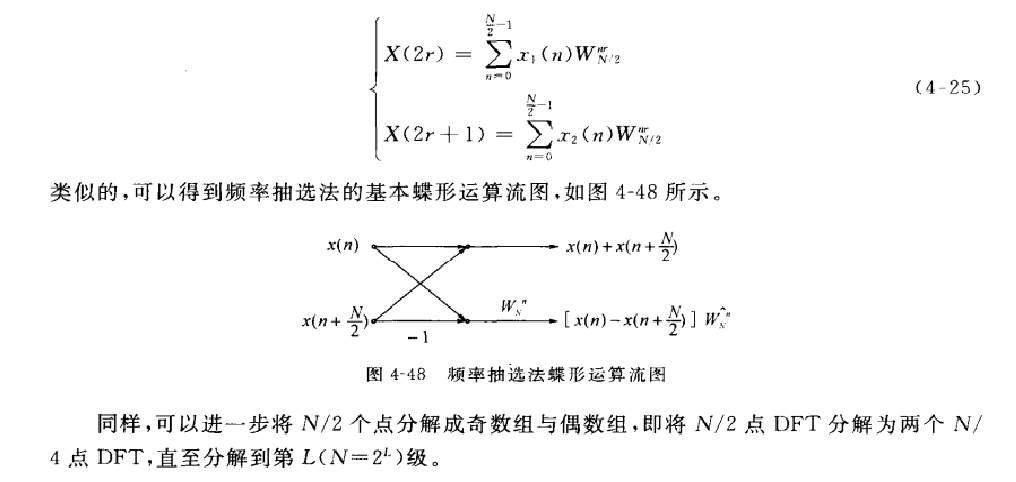

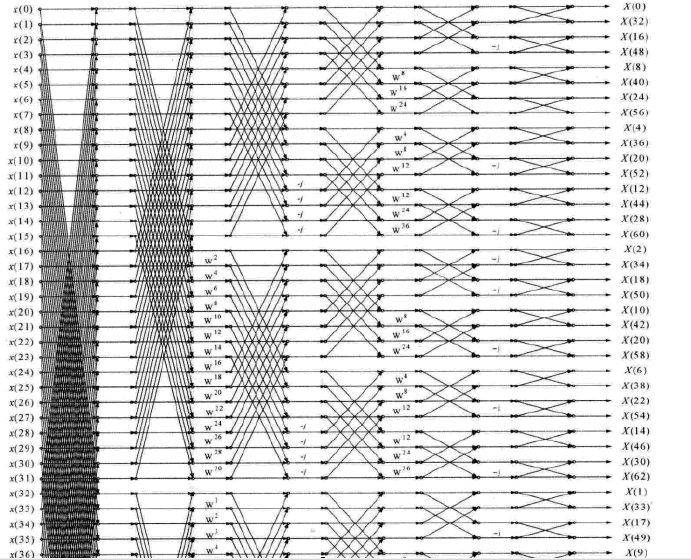

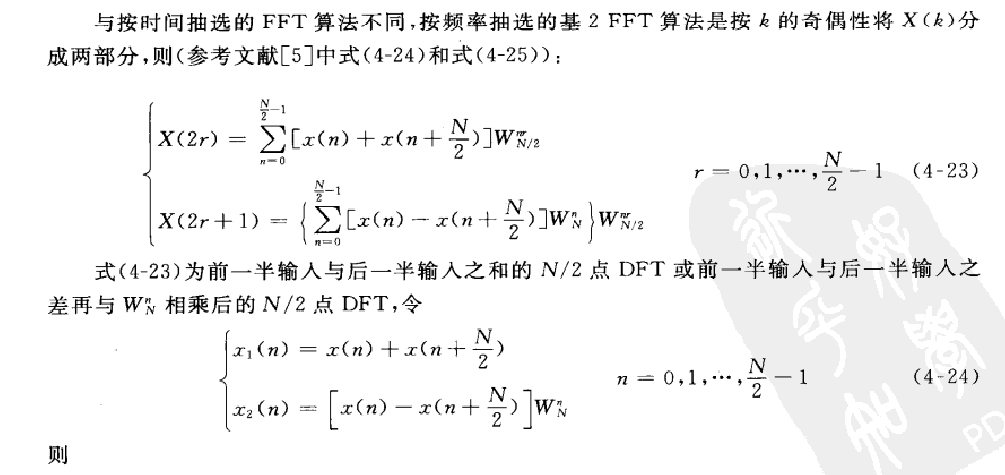

4、DIF的基2FFT运算
5、基于
的频率抽选FFT算法

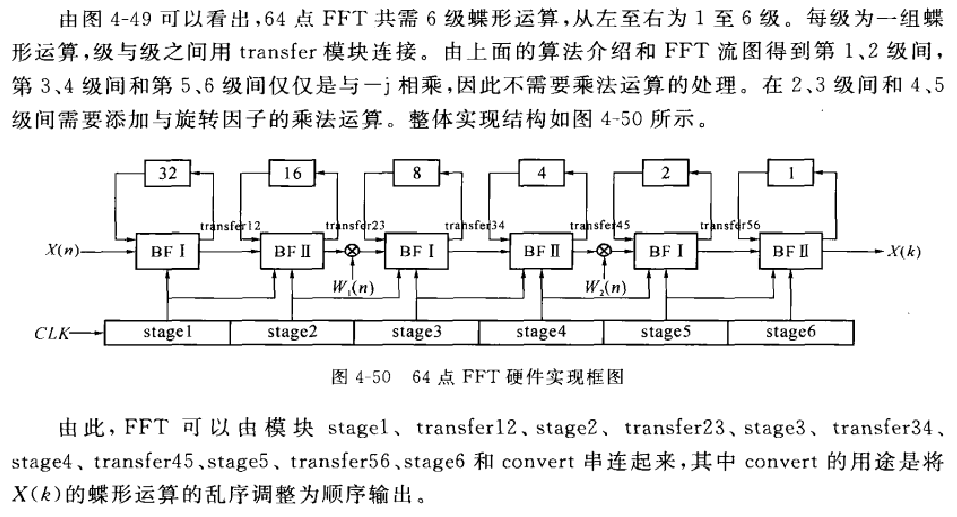

4.8.2 基于
DIF FFT的硬件 结构
1、各级的蝶形运算硬件实现

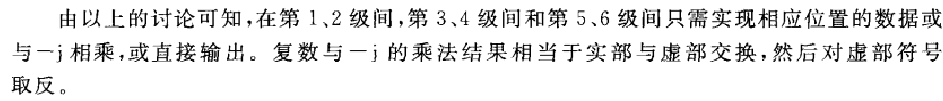

2、transfer12、 transfer34、transfer56硬件实现

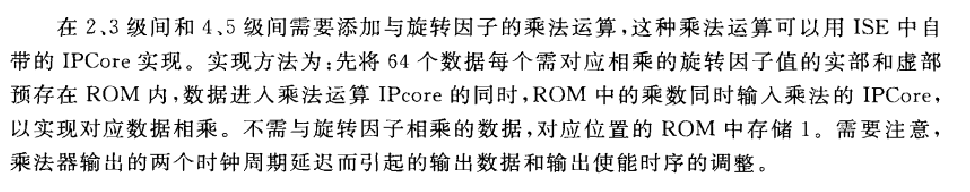

3、transfer23、 transfer45硬件实现

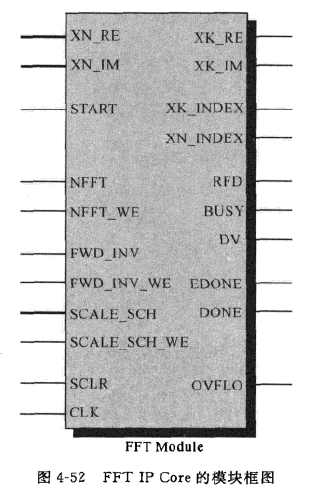

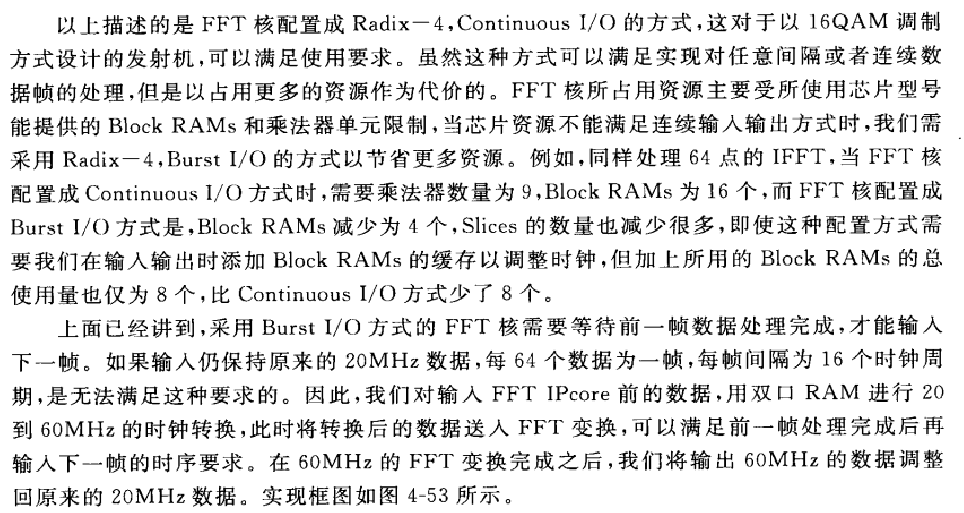

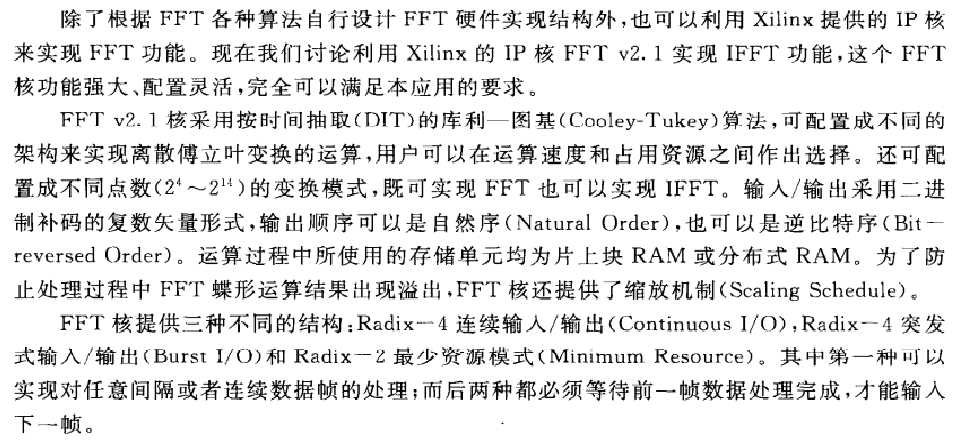

4.8.3 运用IP Core实现IFFT/FFT
matlab
matlab：
function [data_out]=ifft_64(data_in,NumCarrier)
%ifft变换
%data_in为经过bpsk，qpsk，QAM16，QAM64星座映射后的复数信号
%NumCarrier为子载波数量，也即ifft变换长度
LengthSymbol=length(data_in)/NumCarrier;
data_out=zeros(1,length(data_in));
%IFFT处理，ifft函数将进行除以NumCarrier，也即64的因子
%根据硬件设计，ifft的系统缩放比例应设为2+3+2-3位为最好,三级蝶形运算，分别右移2/3/2位，然后为了不影响DAC精度，对输入信号放大左移3位
%故我们对ifft进行6-（2+3+2-3）=2，也即乘以4的处理，得到的幅值刚好在-1---1区间//？？？
for k=1:LengthSymboldata_out((k-1)*NumCarrier+1:k*NumCarrier)=ifft(data_in((k-1)*NumCarrier+1:k*NumCarrier))*4;
end暂时不太会用；其实不用看，后来发现变换过程中数据会或多或少丢失，因为matalb采用的是浮点运算，fpga采用的是定点运算测试方案采用：fpgaIFFT变换后的数据，与原数据matlab仿真数据的对比，下面是程序：
时钟模块clk20M-clk60M：
//clk20M-clk60M
module change60(clk20M,clk60M,reset,inEn,outEn,dataInR,dataInI,dataOutR,dataOutI,FFT_set);input clk20M;input clk60M;input reset;input inEn;input [7:0]dataInR;input [7:0]dataInI;output outEn;output [7:0]dataOutR;output [7:0]dataOutI; output FFT_set;wire [7:0]dataOutR;wire [7:0]dataOutI;reg [7:0]dataInR_buf;reg [7:0]dataInI_buf;reg En;wire clk60M;always @(posedge clk20M or negedge reset)beginif(!reset)beginEn<=0;dataInR_buf<=0;dataInI_buf<=0;endelse beginif(inEn)begindataInR_buf<=dataInR;dataInI_buf<=dataInI; En<=1; endelse begindataInR_buf<=8'b0;dataInI_buf<=8'b0;En<=0;endendendreg mode;
reg [7:0] k;
//以clk20M的写信号
always @(posedge clk20M or negedge reset)beginif(!reset)begink<=0;endelse beginif(En) beginif(k==63)k<=0;elsek<=k+1; endendendreg [7:0] r;
reg outEn;
reg FFT_set;
reg [7:0] t;//以clk60M的读信号
always @(posedge clk60M or negedge reset)beginif(!reset)begin r<=0;mode<=0;FFT_set<=0;outEn<=0;t<=0;endelse beginif(En)beginif(r==8'b10111010)beginFFT_set<=1; // output FFT_set 6 clock cycle before dataOut r<=r+1;endelse if(r==8'b10111100) beginoutEn<=1; //output outEn 4 clock cycle before dataOutr<=r+1;endelse if(r==8'd191)beginmode<=1; r<=0;endelse beginr<=r+1;FFT_set<=0;outEn<=0;endendelse r<=0;if(mode)beginif(t==63)begint<=0;mode<=0;endelse t<=t+1;endendend//实部rami ramr ( //BRAM for real part: input 20MHz, output 60MHz, depth 64 bytes.a(k),.dpra(t),.clk(clk20M),.qdpo_clk(clk60M),.d (dataInR_buf),.qdpo(dataOutR),.qdpo_ce(mode),.we(En));//虚部rami rami ( //BRAM for image part: input 20MHz, output 60MHz, depth 64 bytes.a(k),.dpra(t),.clk(clk20M),.qdpo_clk(clk60M),.d (dataInI_buf),.qdpo(dataOutI),.qdpo_ce(mode),.we(En));
endmodule时钟模块的测试：

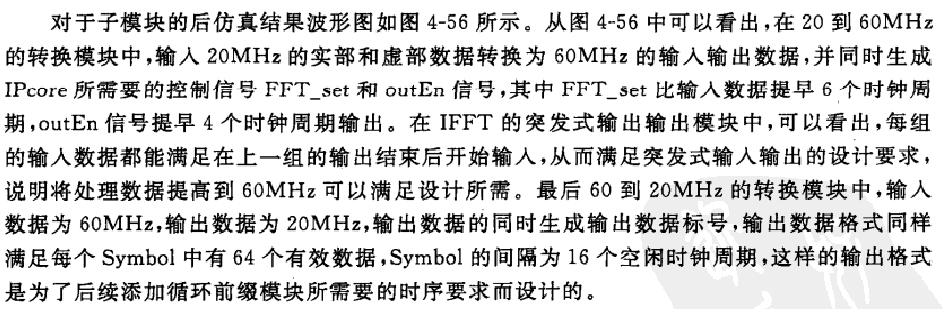

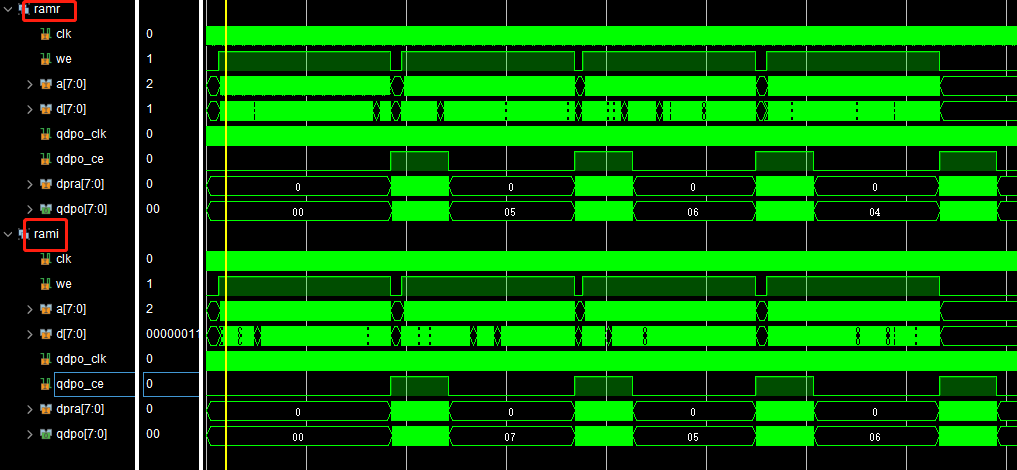

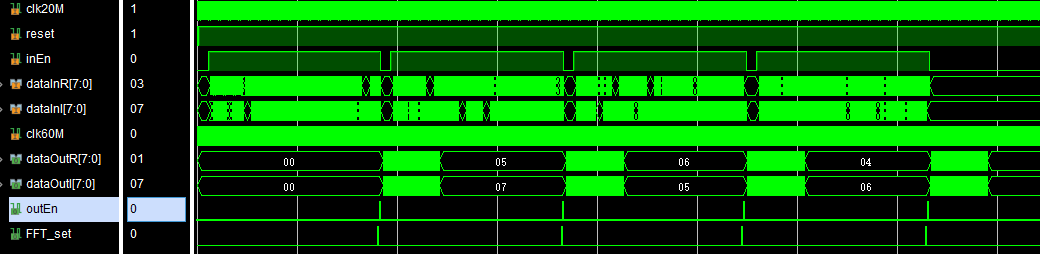

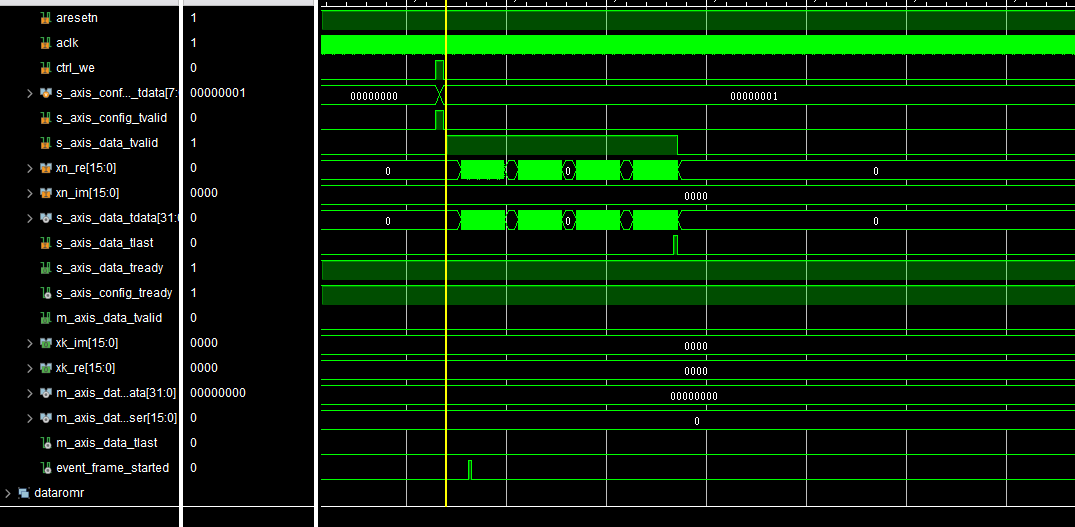

for (j=0;j<=3;j=j+1)begin#200inEn=1;for (i=0;i<64;i=i+1)begin#54dataInR = {$random}%8;dataInI = {$random}%8; endi=0;inEn=0;endj=0;时钟模块的波形：
change_60:
从现在看来完全正确：但是下一级IFFT IP的复位、开始时钟时序不太明白；继续做。。。

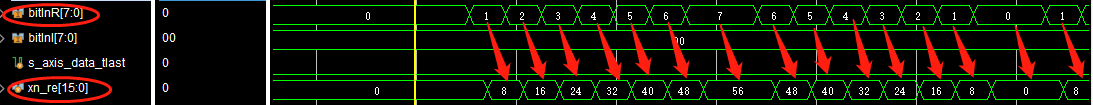

左移三位，八倍的关系；
先做一下原数据与原数据*3后傅里叶变换的对比：
原数据：实部：0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 7 7 6 6 5 5 4 4 3 3 2 2 1 1 0 0
0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 7 7 6 6 5 5 4 4 3 3 2 2 1 1 0 0
虚部：0
扩大三倍后输出的数据：
xk_re：0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -788 -3 -24 2 -52 -11 -19 -2 -2 -19 -11 -52 2 -24 -3 -788 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
xk_im：0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 -239 -2 78 4 -63 -1 16 21 -21 -21 -16 1 63 -4 -78 2 239 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

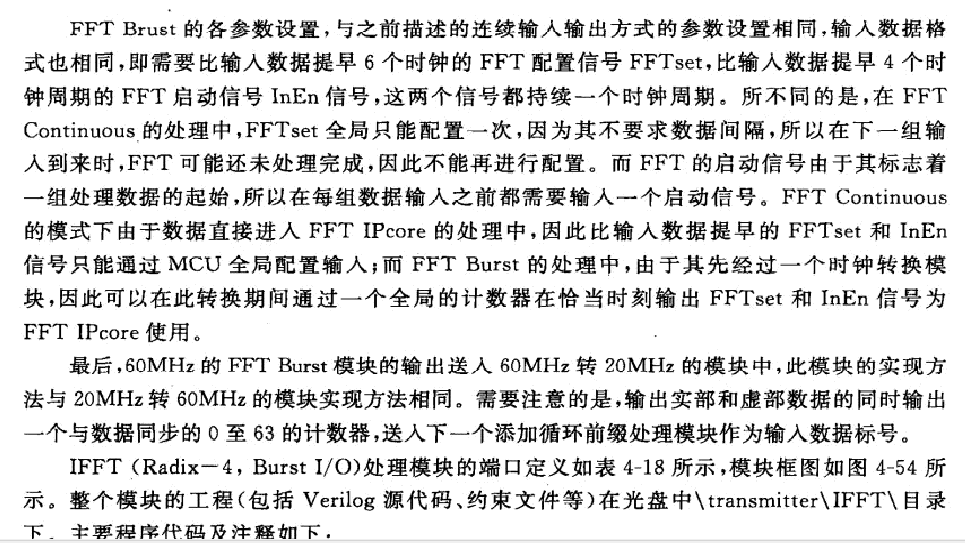

fft_burst：
module fft_Burst(bitInR,bitInI,inEn,FFT_set,Gclk,rst_n,dv,bitOutR,bitOutI,outEn); input [7:0] bitInR;
input [7:0] bitInI;
input inEn;
input FFT_set;
input Gclk;
input rst_n;
output [7:0] bitOutR;
output [7:0] bitOutI;
output outEn;
output dv;//
reg [15:0] cnt=0;reg s_axis_config_tvalid;
reg s_axis_data_tvalid;
reg s_axis_data_tlast;
wire m_axis_data_tvalid;
wire s_axis_data_tready;
//wire m_axis_data_tuser;
reg ctrl_we;//
reg start; //start ip core, enable for 1 cycle high. 4 cycles before input datareg [15:0] xn_re; //input real part register for ip core
reg [15:0] xn_im; //input image part register for ip core
reg [7:0] bitOutR; //output real part register
reg [7:0] bitOutI; //output image part register
reg outEn; //synchronize with output, as handshake with next modulereg [5:0] xn_index; //index of input for ip corewire clr;
/
assign clr=rst_n; //reset of ip core, enable under high level/***************************************************************************/IP时序//
always @(posedge Gclk)beginif(clr)begincnt <= cnt + 1'b1;if(start) begin s_axis_data_tvalid <=1; cnt <= 0; endelse if(cnt == 16'd62)begin s_axis_data_tlast <= 1'b1; endelse if(cnt == 16'd63)begins_axis_data_tvalid <= 1'b0;s_axis_data_tlast <= 1'b0;end end end
/******************** Set and control FFT *********************************/always @ (negedge rst_n or posedge Gclk)
if (!rst_n) //Initialize IP core begin start<=1'b0; ctrl_we<=1'b0;s_axis_config_tvalid<=1'b0;s_axis_data_tvalid <= 0;s_axis_data_tlast <= 0;xn_re<=16'h0000;xn_im<=16'h0000;endelsebeginif (FFT_set) //if FFT_set is high, enable all write control signals begin ctrl_we<=1'b1; s_axis_config_tvalid <=1'b1; endif (inEn) //if inEn is high, enable start and disable all write control signalsbegin start<=1'b1;ctrl_we<=1'b0;s_axis_config_tvalid <=1'b0; endelsestart<=1'b0;if (s_axis_data_tvalid) //If new data is high, input data.begin
// xn_re[10:3]<=bitInR; //The input of IP core is 16 bit. notice the high bits which indicate sign of data
// xn_re[11]<=bitInR[7];
// xn_re[12]<=bitInR[7];
// xn_re[13]<=bitInR[7];
// xn_re[14]<=bitInR[7];
// xn_re[15]<=bitInR[7];
// xn_im[10:3]<=bitInI; //we enlarge the input data by 8 times
// xn_im[11]<=bitInI[7];
// xn_im[12]<=bitInI[7];
// xn_im[13]<=bitInI[7];
// xn_im[14]<=bitInI[7];

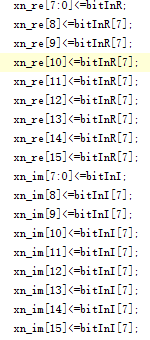

// xn_im[15]<=bitInI[7];xn_re[7:0]<=bitInR; //The input of IP core is 16 bit. notice the high bits which indicate sign of data xn_re[8]<=bitInR[7];xn_re[9]<=bitInR[7];xn_re[10]<=bitInR[7];xn_re[11]<=bitInR[7];xn_re[12]<=bitInR[7];xn_re[13]<=bitInR[7];xn_re[14]<=bitInR[7];xn_re[15]<=bitInR[7];xn_im[7:0]<=bitInI; //we enlarge the input data by 8 timesxn_im[8]<=bitInI[7];xn_im[9]<=bitInI[7];xn_im[10]<=bitInI[7];xn_im[11]<=bitInI[7];xn_im[12]<=bitInI[7];xn_im[13]<=bitInI[7];xn_im[14]<=bitInI[7];xn_im[15]<=bitInI[7];endelsebeginxn_re<=16'h0000;xn_im<=16'h0000; end end/********************************************************************/
/******************** FFT ip core *********************************/
wire [15:0] xk_re;
wire [15:0] xk_im;always @(negedge rst_n or posedge Gclk)beginif(rst_n)beginif(s_axis_data_tvalid)xn_index <= xn_index +1;endend
/***************************************************************************/
/******************** IFFT output *********************************/
always @ (negedge rst_n or posedge Gclk)
if (!rst_n) begin outEn<=1'b0;endelsebegin if (m_axis_data_tvalid) //If dv is enable, output data's lowest 8 bits.begin outEn<=1'b1; endelsebeginoutEn<=1'b0;endendalways @ (negedge rst_n or posedge Gclk)
if (!rst_n) begin bitOutR<=16'h00;bitOutI<=16'h00;endelsebegin if (outEn) //If dv is enable, output data's lowest 8 bits.begin bitOutR <= xk_re[7:0];bitOutI <= xk_im[7:0]; endelsebeginbitOutR<=8'h00;bitOutI<=8'h00;endend
fft_text fft_text_inst( .aclk(Gclk),.aresetn(clr),.ctrl_we(ctrl_we),.xn_im(xn_im),.xn_re(xn_re),.s_axis_data_tvalid(s_axis_data_tvalid),.s_axis_data_tlast(s_axis_data_tlast),.s_axis_config_tvalid(s_axis_config_tvalid),.s_axis_data_tready(s_axis_data_tready),.xk_im(xk_im),.xk_re(xk_re),.m_axis_data_tvalid(m_axis_data_tvalid) );
endmodulefft_text：
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2018/12/10 17:16:18
// Design Name:
// Module Name: xfft_64text
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//module fft_text( input aclk,input aresetn,input [15:0] xn_im,input [15:0] xn_re,input s_axis_data_tvalid,input s_axis_data_tlast,input s_axis_config_tvalid,input ctrl_we,// output reg [15:0] xn_index,output s_axis_data_tready,output [15:0] xk_im,output [15:0] xk_re,
// output [15:0] m_axis_data_tuser,output m_axis_data_tvalid );reg [7:0] s_axis_config_tdata;wire [31:0] m_axis_data_tdata;wire [15:0] m_axis_data_tuser;wire m_axis_data_tlast; wire s_axis_config_tready;wire event_frame_started;wire event_tlast_unexpected;wire event_tlast_missing;wire event_status_channel_halt;wire event_data_in_channel_halt;wire event_data_out_channel_halt;wire [31:0] s_axis_data_tdata = {xn_im,xn_re}; assign {xk_im,xk_re} = m_axis_data_tdata;always @(posedge aclk or negedge aresetn)beginif(!aresetn)begins_axis_config_tdata <= 8'b0;endelsebeginif(ctrl_we)s_axis_config_tdata <= 8'b1011100;endend xfft_64 usr_FFT(.aclk(aclk),.aresetn(aresetn),.s_axis_config_tdata(s_axis_config_tdata),.s_axis_config_tvalid(s_axis_config_tvalid),.s_axis_config_tready(s_axis_config_tready),.s_axis_data_tdata(s_axis_data_tdata),.s_axis_data_tvalid(s_axis_data_tvalid),.s_axis_data_tready(s_axis_data_tready),.s_axis_data_tlast(s_axis_data_tlast),.m_axis_data_tdata(m_axis_data_tdata),.m_axis_data_tuser(m_axis_data_tuser),.m_axis_data_tvalid(m_axis_data_tvalid),.m_axis_data_tready(1'b1),.m_axis_data_tlast(m_axis_data_tlast),.event_frame_started(event_frame_started),.event_tlast_unexpected(event_tlast_unexpected),.event_tlast_missing(event_tlast_missing),.event_status_channel_halt(event_status_channel_halt),.event_data_in_channel_halt(event_data_in_channel_halt),.event_data_out_channel_halt(event_data_out_channel_halt)); endmodulechange20：
//clk60M写clk20M读
module channge20(clk20M,clk60M,reset,inEn,outEn,dataInR,dataInI,dataOutR,dataOutI,bitIndexOut);input clk20M;input clk60M;input reset;input inEn;input [7:0]dataInR;input [7:0]dataInI; output outEn;output [7:0]dataOutR;output [7:0]dataOutI; output [5:0] bitIndexOut; reg [5:0] bitIndexOut; wire [7:0]dataOutR;wire [7:0]dataOutI;reg [7:0]dataInR_buf;reg [7:0]dataInI_buf;reg En;wire clk60M;always @(posedge clk60M or negedge reset)beginif(!reset)beginEn<=0;dataInR_buf<=0;dataInI_buf<=0;endelse beginif(inEn)begindataInR_buf<=dataInR;dataInI_buf<=dataInI;En<=1;endelse begindataInR_buf<=0;dataInI_buf<=0;En<=0;endendendreg mode;
reg [7:0] k;
//clk60M64涓暟鎹啓鍏?
always @(posedge clk60M or negedge reset)beginif(!reset)begink<=0;endelse beginif(En) beginif(k==63)k<=0;elsek<=k+1; endendend
reg [7:0] r;
reg modetemp;
reg [1:0] cont;
always @(posedge clk60M or negedge reset)beginif(!reset)begin r<=0;modetemp<=0;endelse beginif(En)beginif(r==63)beginmodetemp<=1;r<=0;endelse beginr<=r+1;modetemp<=0;endendelsebeginr<=0;modetemp<=0;endendendalways @(posedge clk60M or negedge reset)beginif(!reset)begin cont<=2'b0;mode<=0;endelsebeginif (cont==2'b11)beginmode<=0;cont<=0;endelse if (modetemp)beginmode<=1;cont<=cont+1;endelse beginif(mode)cont<=cont+1; elsecont<=0;end endendreg [7:0] t;
reg outEn;
reg flag;
//clk20M 64涓暟鎹鍙?
always @(posedge clk20M or negedge reset)beginif(!reset)begint<=0;outEn<=0; flag<=0;endelse beginif(mode)beginflag<=1;endif(flag)beginoutEn<=1;if(t==63)begint<=0;flag<=0;endelse t<=t+1;endelse outEn<=0;endendalways @(posedge clk20M or negedge reset)beginif(!reset)bitIndexOut<=0;elsebitIndexOut<=t;endwire dpo;data_rom dataromr ( //BRAM for real part: input 60MHz, output 20MHz, depth 64 bytes.a(k),.dpra(t),.clk(clk60M),.qdpo_clk(clk20M),.d(dataInR_buf),.qdpo(dataOutR),.qdpo_ce(flag),.we(En),.dpo(dpo));data_rom dataromi ( //BRAM for image part: input 60MHz, output 20MHz, depth 64 bytes.a(k),.dpra(t),.clk(clk60M),.qdpo_clk(clk20M),.d(dataInI_buf),.qdpo(dataOutI),.qdpo_ce(flag),.we(En),.dpo(dpo));endmodule

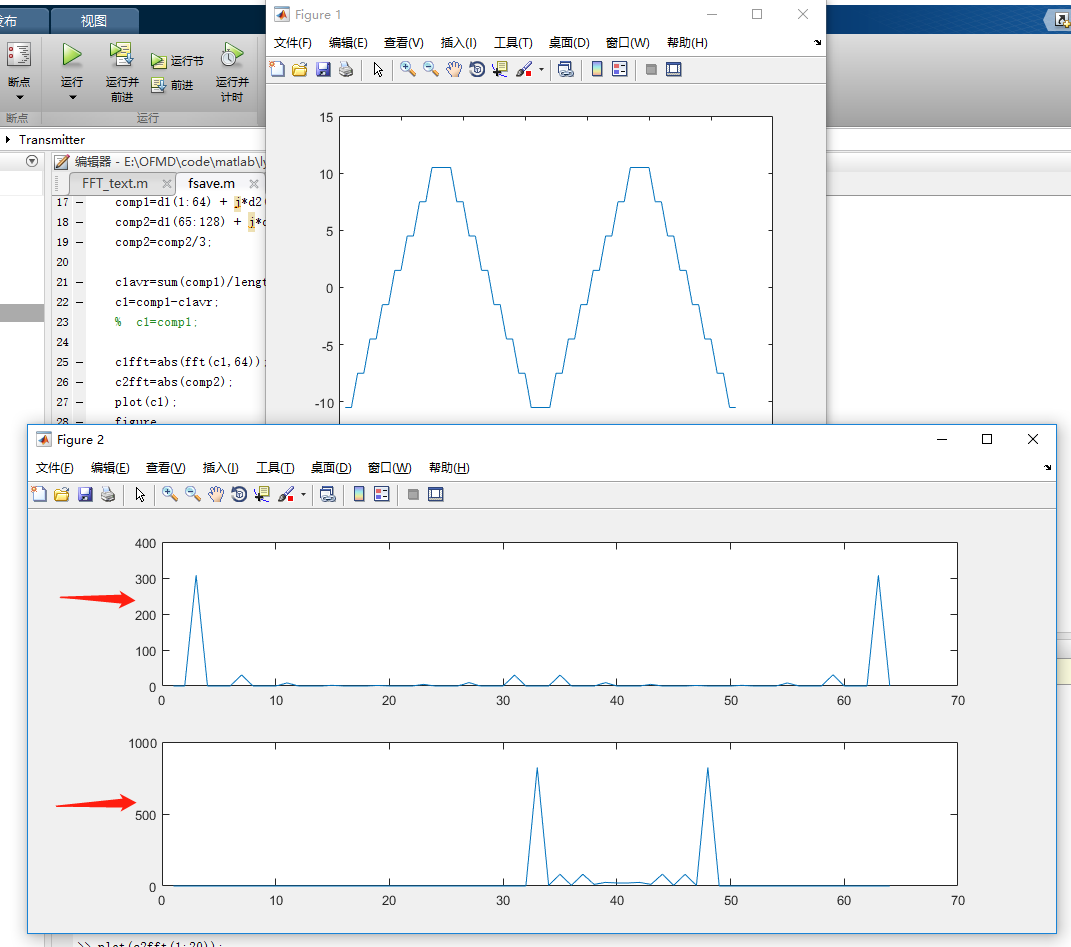

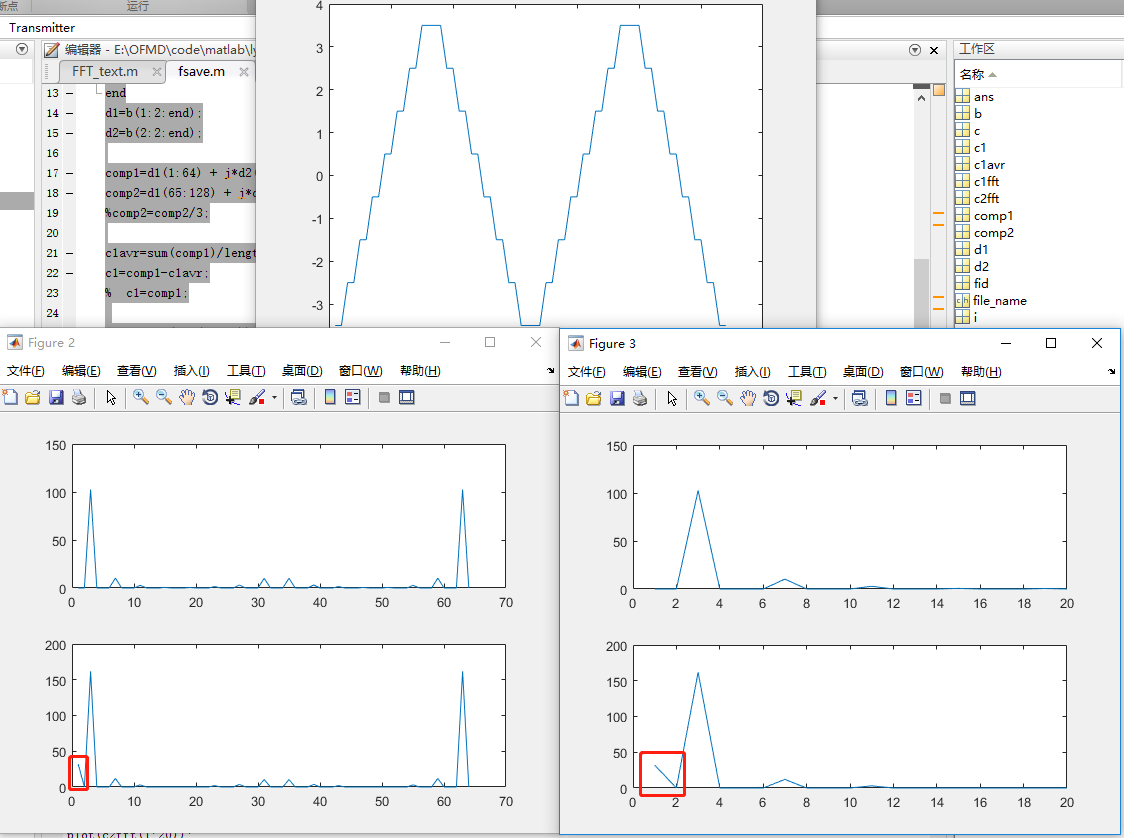

matlab仿真验证程序：
clear;file_name='C:/Users/lyw/Desktop/fsave.txt';
fid = fopen(file_name,'r');
c = fscanf(fid,'%d');
fclose(fid);
%有符号数for i=1: length(c)if(c(i)>200)b(i) = c(i)-256;else b(i) = c(i);end
end
d1=b(1:2:end);
d2=b(2:2:end);comp1=d1(1:64) + j*d2(1:64);
comp2=d1(65:128) + j*d2(65:128);
%comp2=comp2/3;c1avr=sum(comp1)/length(comp1);
c1=comp1-c1avr;
% c1=comp1;c1fft=abs(ifft(c1,64));
c2fft=abs(comp2);
plot(c1);
figure
subplot(2,1,1);
plot(c1fft);
subplot(2,1,2);
plot(c2fft);
figure
subplot(2,1,1);
plot(c1fft(1:20));
subplot(2,1,2);
plot(c2fft(1:20));
tb：
`timescale 1ns/1ns

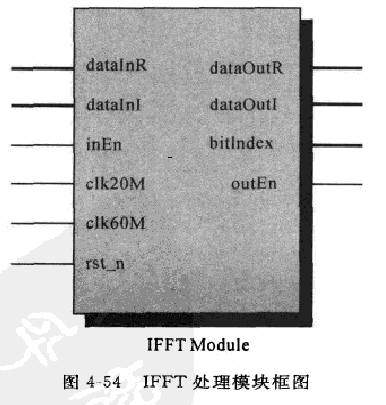

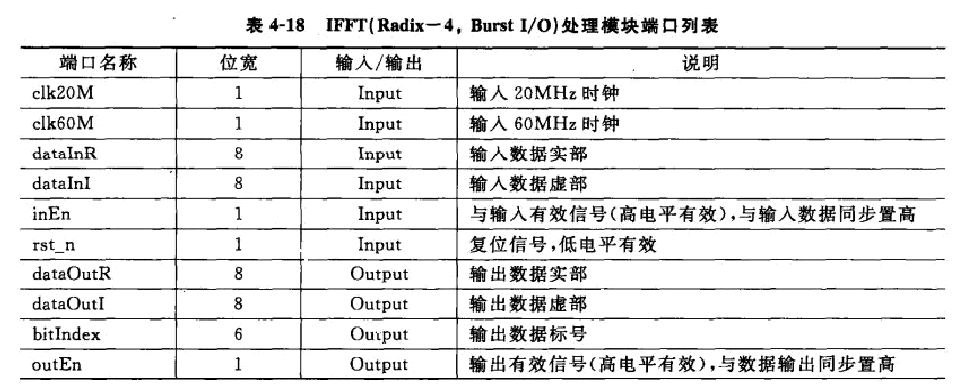

module IFFT_tb();reg clk20M;reg clk60M;reg rst_n;reg inEn;reg [7:0] dat_c;wire [7:0]dataInR;wire [7:0]dataInI;wire outEn;wire [7:0]dataOutR;wire [7:0]dataOutI;wire [5:0] bitIndex;IFFT IFFT_inst(.clk20M(clk20M),.clk60M(clk60M),.rst_n(rst_n),.inEn(inEn),.dataInR(dataInR),.dataInI(dataInI),.outEn(outEn),.dataOutR(dataOutR),.dataOutI(dataOutI),.bitIndex(bitIndex));
integer i=0;
integer j=0;integer handle1;initialbegin//sequence block handle1 =$fopen("C:/Users/lyw/Desktop/fsave.txt"); #200000 $fclose(handle1);$stop;end initial beginclk20M=0;clk60M=0;rst_n=0;inEn=0;dat_c = 8'b0;
// dataInR=8'b00000000;
// dataInI=8'b00000000;#200rst_n=1;inEn=1;for (i=0;i<64;i=i+1)begin#60dat_c <=(dat_c + 4'b1000); endinEn=0;
endalways @(posedge clk20M)beginif(inEn) $fwrite(handle1,"%d %d \n",dataInR,dataInI); else if(outEn) $fwrite(handle1,"%d %d \n",dataOutR,dataOutI); endassign dataInR ={13'b0,{dat_c[7]? ~dat_c[7:4] : dat_c[7:4]}};assign dataInI =0;
always #30 clk20M = ~clk20M;
always #10 clk60M = ~clk60M;
endmodule在验证过程中出现的问题：
问题1、设置IP疏忽，未顺序输出；

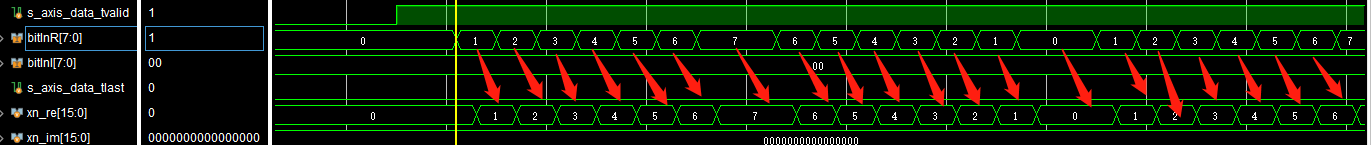

除了幅度不同，还有感觉是在x方向上缩小了；寻找原因中。。。。。在后续的学习过程中，发现设置IP的时候没有选择顺序输出；
output [7 : 0] m_axis_data_tuser，设置为自动scaling时，该端口表示该次转换的截位（压缩倍数）；如果scaling不是自动，那么不会有该信号；该信号在一帧数据的整个时间段内都有效；
问题二：采样时钟问题，部分数据丢失；

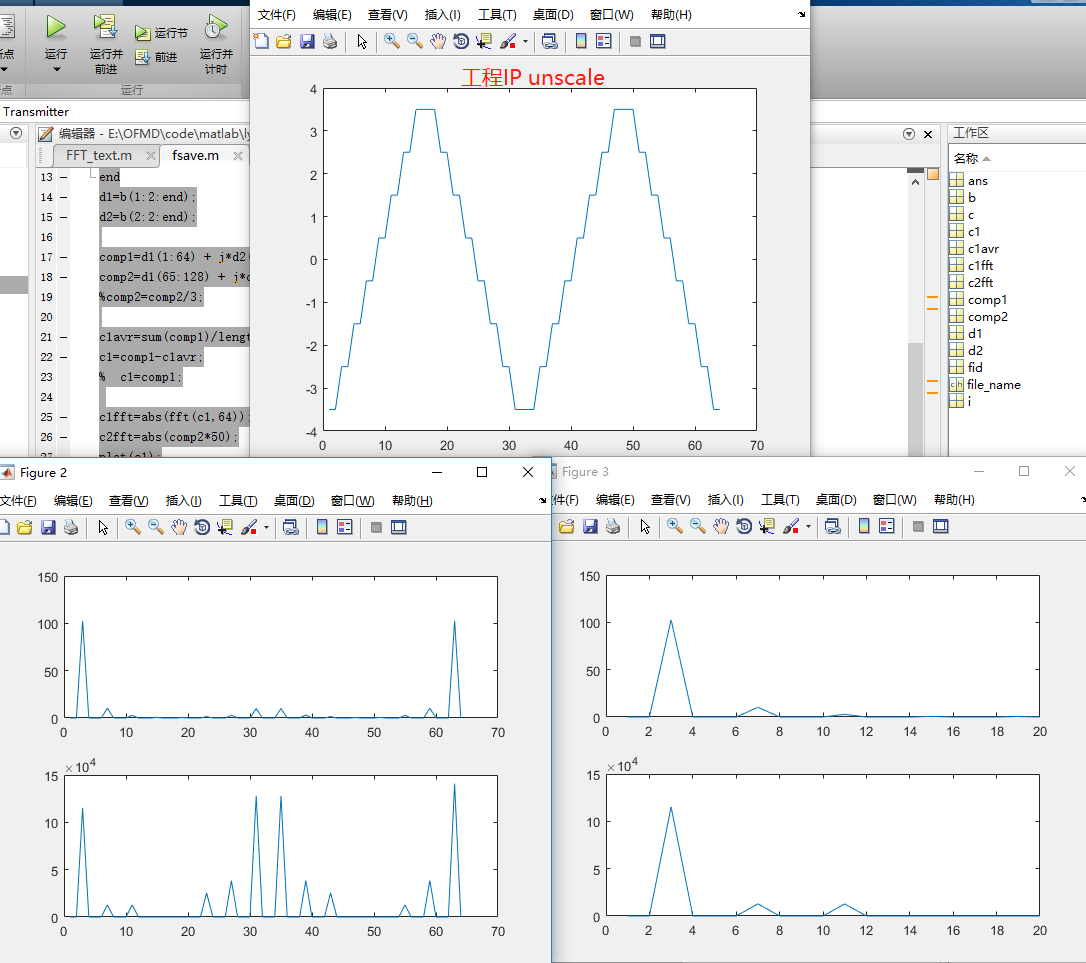

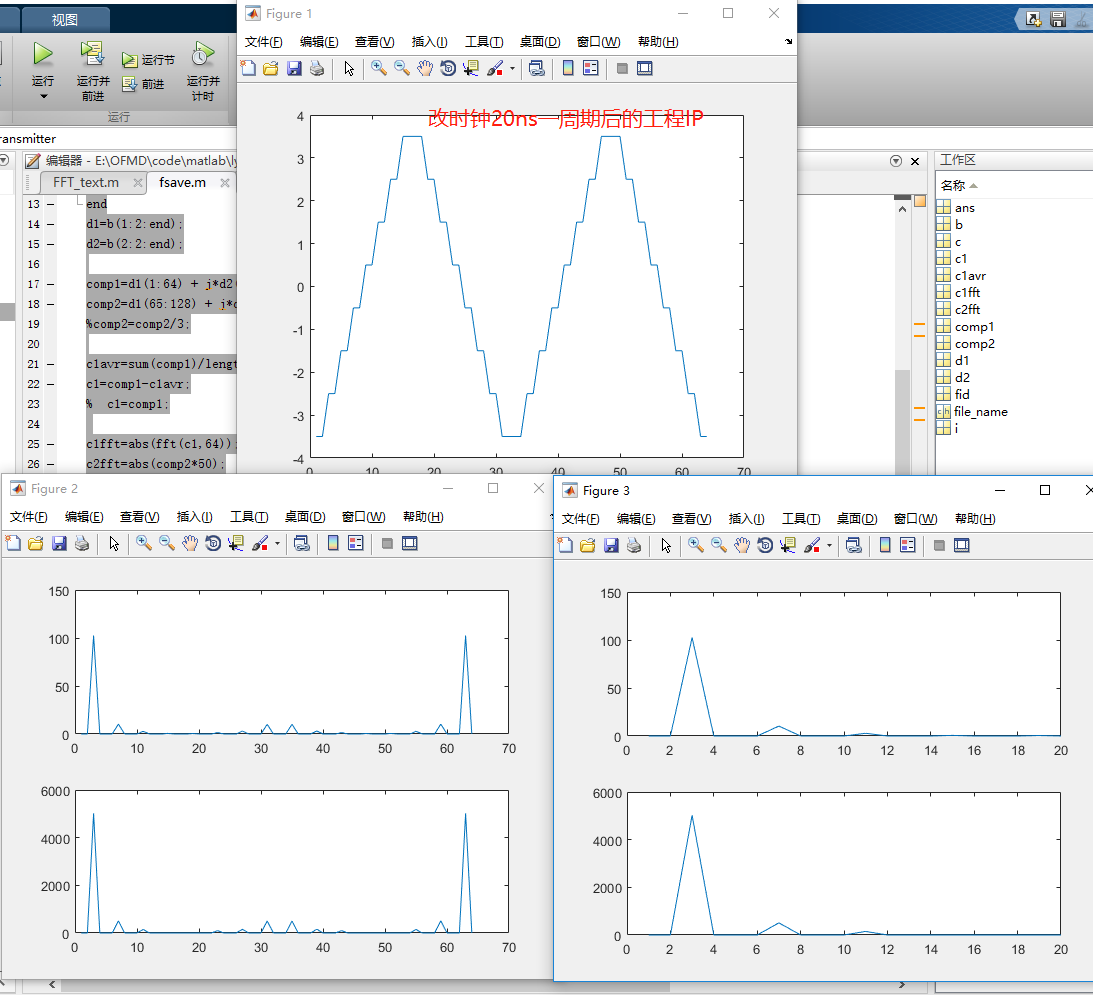

笔者发现，单独IP采样周期为20ns，而工程的IP为16ns，可能采样时间太短，造成了数据的丢失，把工程IP的数据改为20ns一周期，发现数据的波形基本一致，幅度上会有差异，下面致力于解决幅值上的差异和第一个转换数据的不准确性；
问题3：添加outEn，晚m_axis_data_tvalid一个时钟周期有效；

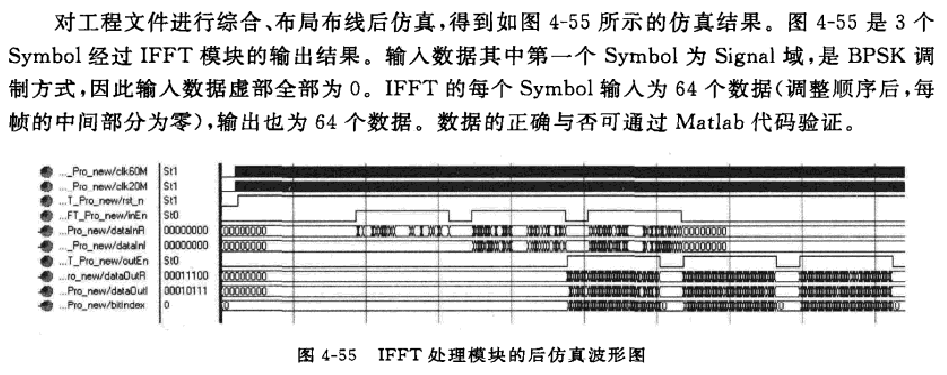

对整个工程进行测试：
发现处理第一个数，所有都正确；此时没有考虑扩大三倍； 幅值fpga大了1.5倍；
等到后面考虑到ADC转换精度的时候在考虑放大倍数的问题；程序控制如下：

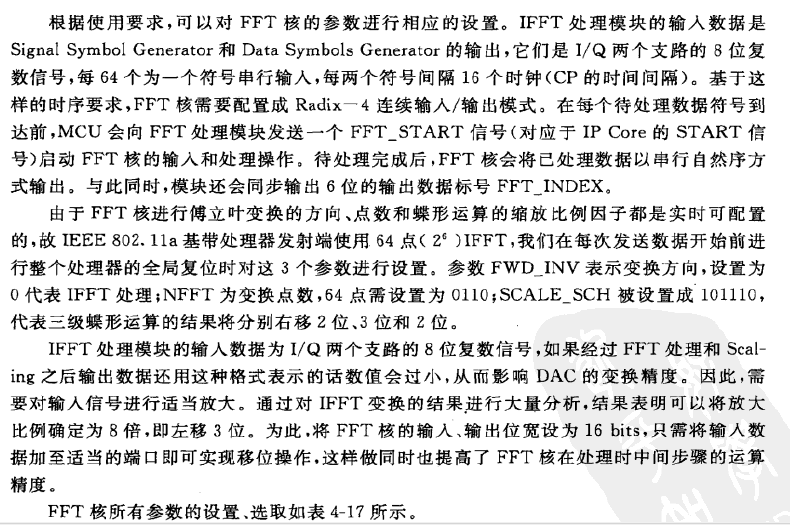

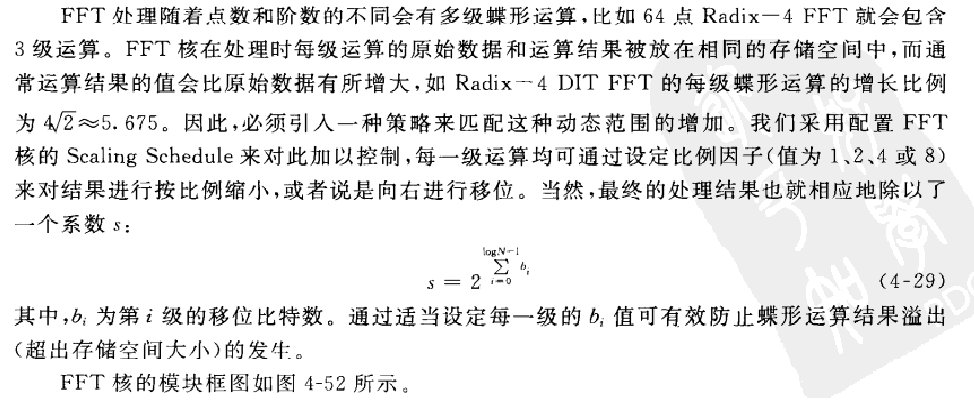

此时考虑到三级蝶形运算的放大倍数，设置 s_axis_config_tdata <= 8'b1011100; scale=101110；进行逆运算；
还是要解决第一个数据不对的问题呀。。。。
后面对输出数据延迟一个时钟周期，fpga输出数据与matlab仿真数据完全吻合，幅度扩大了100倍；基本正确！
总结：fpga IFFT变换输出数据比实际变换后的数据扩大了100倍；（后面根据ADC转换精度决定）输入到IP的数据未经过放大，scale=101110；
