1.软件版本

matlab2013b

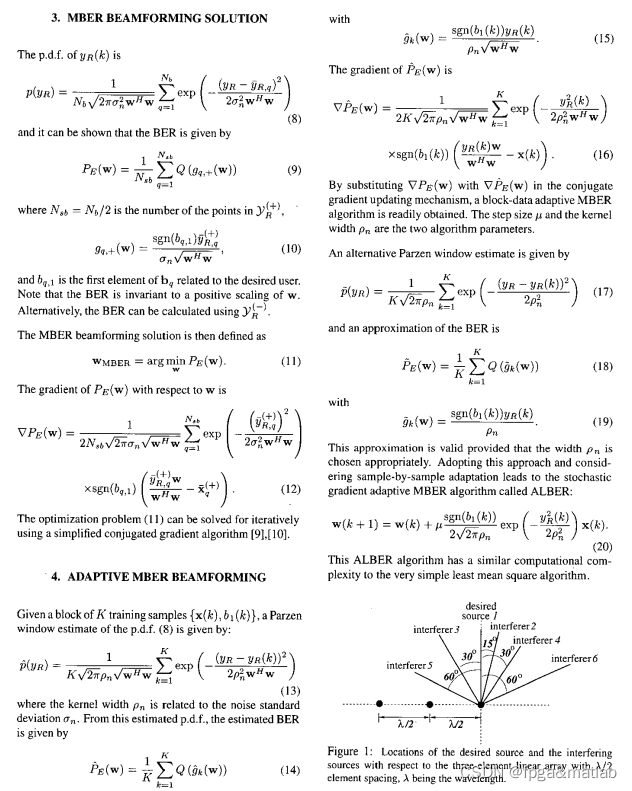

2.本算法理论知识

3.部分源码

clc;
clear;
close all;
warning off;SNR_set      = [0:1:12];
BER          = 1;
nRx          = 10;
nTx          = 10;
frame_length = 1000;
Bers         = [];
%论文table 2
alpha        = [0,10,-15,30,-45,50,60,-55,-35,-60];
for SNR = SNR_set;N0          = 1/(10^(SNR/10));delta2      = N0;error_count = 0;bit_count   = 0;index       = 0;ERR_NUM     = [];tmps        = 0;while error_count < 50000index = index+1;for kk=1:nTxbits(kk,:)    =  round(rand(1,frame_length));%QPSKsymbols(kk,:) = -2*(pskmod(bits(kk,:),4)-(0.5+sqrt(-1)*0.5));end%transmit signals        = symbols; u        = reshape(s,nRx,nTx,length(s)/nTx);%Channelh        = 1/sqrt(2)*[randn(nRx, nTx,length(s)/nTx) + j*randn(nRx,nTx,length(s)/nTx)];for ij = 1:nTxp(:,ij,:) = h(:,ij,:).*exp(j*alpha(ij)*pi/180);end%mmse beamformingWK = [];WK2= [];w  = [];for i=1:length(s)/nTxn        = sqrt(N0/2)*(randn(nTx,nRx)+1j*randn(nTx,nRx));XN(:,:,i)= u(:,:,i) + n;%定义接收信号w(:,:,i) = inv(p(:,:,i)*p(:,:,i)'+2*delta2^2*eye(nRx))*p(:,1,i);if i == 1WK = w(:,:,i)'*p(:,:,i);elsebk          = bits(1,nTx*(i-2)+1:nTx*(i-1)); bk          = 2*bk-1;pn          = 2^delta2;yr          = real(yhat(:,:,i-1));miu         = 0.0000001;WK          = WK + miu*(sign(bk)/(2*sqrt(2*pi)*pn)).*exp(-yr.^2/(2*pn^2))*(XN(:,:,i)); endWK          = WK/(max(abs(WK)));yhat(:,:,i) = WK*XN(:,:,i);R1          = real(yhat(:,:,i))<0;I1          = imag(yhat(:,:,i))<0;s_hat(:,:,i)= pskdemod(R1+sqrt(-1)*I1,4);ends_hat1               = squeeze(s_hat);recovered_bits       = reshape(s_hat1,1,length(s));ERR_NUM              = sum(recovered_bits ~= bits(1,:));%异常错误不进行统计if index <= 200tmps  = tmps + ERR_NUM; elseif ERR_NUM/(tmps/200) < 20SNRerror_counterror_count    = error_count + ERR_NUM;bit_count      = bit_count + frame_length;endendend%Calculate the BERBER  = error_count/bit_count;Bers = [Bers,BER];
end
error_count
bit_countfigure;

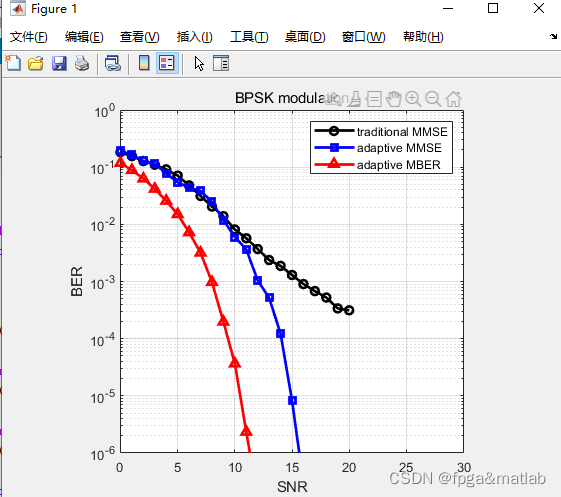

semilogy(SNR_set,Bers,'b-o');
axis([0,30,1e-6,1]);
ylabel('BER');
xlabel('SNR');
grid on
% save r4.mat SNR_set Bers
