让Table显示信息用到的是TableItem
类。创建一个TableItem类对象,通过调用该对象的setText( new String[ ] )
方法可以显示一行数据,循环调用则可以显示多条不同的数据。
一、步骤:
1. 创建Table类 。最好将Table类设置为全局变量。并且设置该表格有多少列。在Table对象的基础上创建一列的类为TableColumn。可以创建多列。
Table table = new Table(shell, SWT.BORDER | SWT.FULL_SELECTION); //创建一个表格
TableColumn tblclmnNewColumn = new TableColumn(table, SWT.NONE); //创建一个列
TableColumn tblclmnNewColumn_1 = new TableColumn(table, SWT.NONE); //创建的第二个列
2.创建TableItem类。记住,TableItem类就是这个表格的一行,并且new的时候需要传入这一行是属于哪一个Table对象,所以要传入上述的table。
TablItem item = new TableItem(table,SWT.NONE);
3.通过TableItem类显示信息。使用到的是TableItem类中的setText( new String[] )方法。传入的参数是一个String数组,按照顺序每一个String分别是当前行的第一列,第二列…。
也可以将第2,3步封装成一个方法来调用。
item.setText(new String[] {"第一行数据","第二行数据"});
二、代码示例:
前置:
import java.util.ArrayList;
import java.util.List;public class Person {String id ;String name ;Person(){}Person(String id , String name){this.id = id;this.name = name;}String getName() {return this.name;}String getId() {return this.id;}static List<Person> getData(){List<Person> list = new ArrayList<Person>();list.add( new Person("1001","zhangsan") );list.add( new Person("1002","lisi") );return list;}
}
首先通过可视化工具创建一个Table,和表格的列。
然后在创建Table对象下方加上如下代码:
TableItem item = null;List<Person> list = Person.getData(); //用于测试的for(Person p: list) {item = new TableItem(table,SWT.NONE);item.setText(new String[] {p.getId(),p.getName()});}

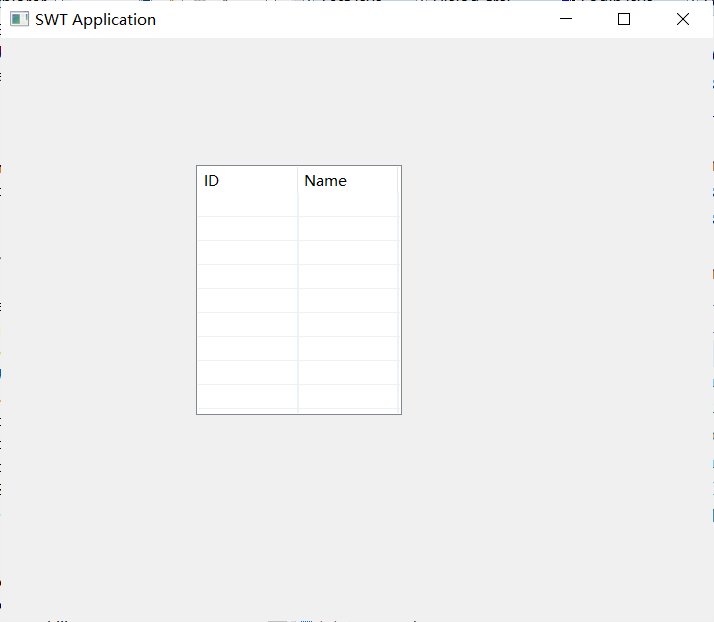

则可以显示提供的list对象的数据了。
三、完整代码:
import org.eclipse.swt.widgets.Display;
import org.eclipse.swt.widgets.Shell;
import org.eclipse.swt.widgets.Table;import java.util.List;import org.eclipse.swt.SWT;
import org.eclipse.swt.widgets.TableColumn;
import org.eclipse.swt.widgets.TableItem;public class Test {protected Shell shell;private Table table;/*** Launch the application.* @param args*/public static void main(String[] args) {try {Test window = new Test();window.open();} catch (Exception e) {e.printStackTrace();}}/*** Open the window.*/public void open() {Display display = Display.getDefault();createContents();shell.open();shell.layout();while (!shell.isDisposed()) {if (!display.readAndDispatch()) {display.sleep();}}}/*** Create contents of the window.*/protected void createContents() {shell = new Shell();shell.setSize(730, 630);shell.setText("SWT Application");table = new Table(shell, SWT.BORDER | SWT.FULL_SELECTION);table.setBounds(195, 127, 206, 250);table.setHeaderVisible(true);table.setLinesVisible(true);TableColumn tblclmnNewColumn = new TableColumn(table, SWT.NONE);tblclmnNewColumn.setWidth(100);tblclmnNewColumn.setText("ID");TableColumn tblclmnNewColumn_1 = new TableColumn(table, SWT.NONE);tblclmnNewColumn_1.setWidth(100);tblclmnNewColumn_1.setText("Name");TableItem item = null;List<Person> list = Person.getData(); //用于测试的for(Person p: list) {item = new TableItem(table,SWT.NONE);item.setText(new String[] {p.getId(),p.getName()});}}
}
