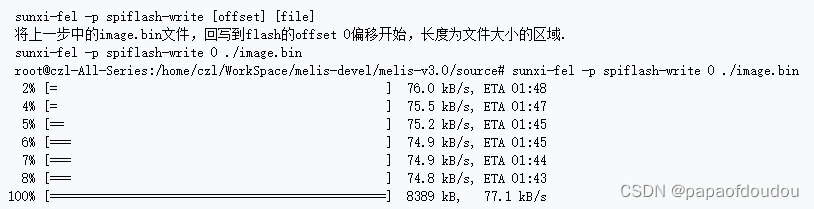

测试方式：

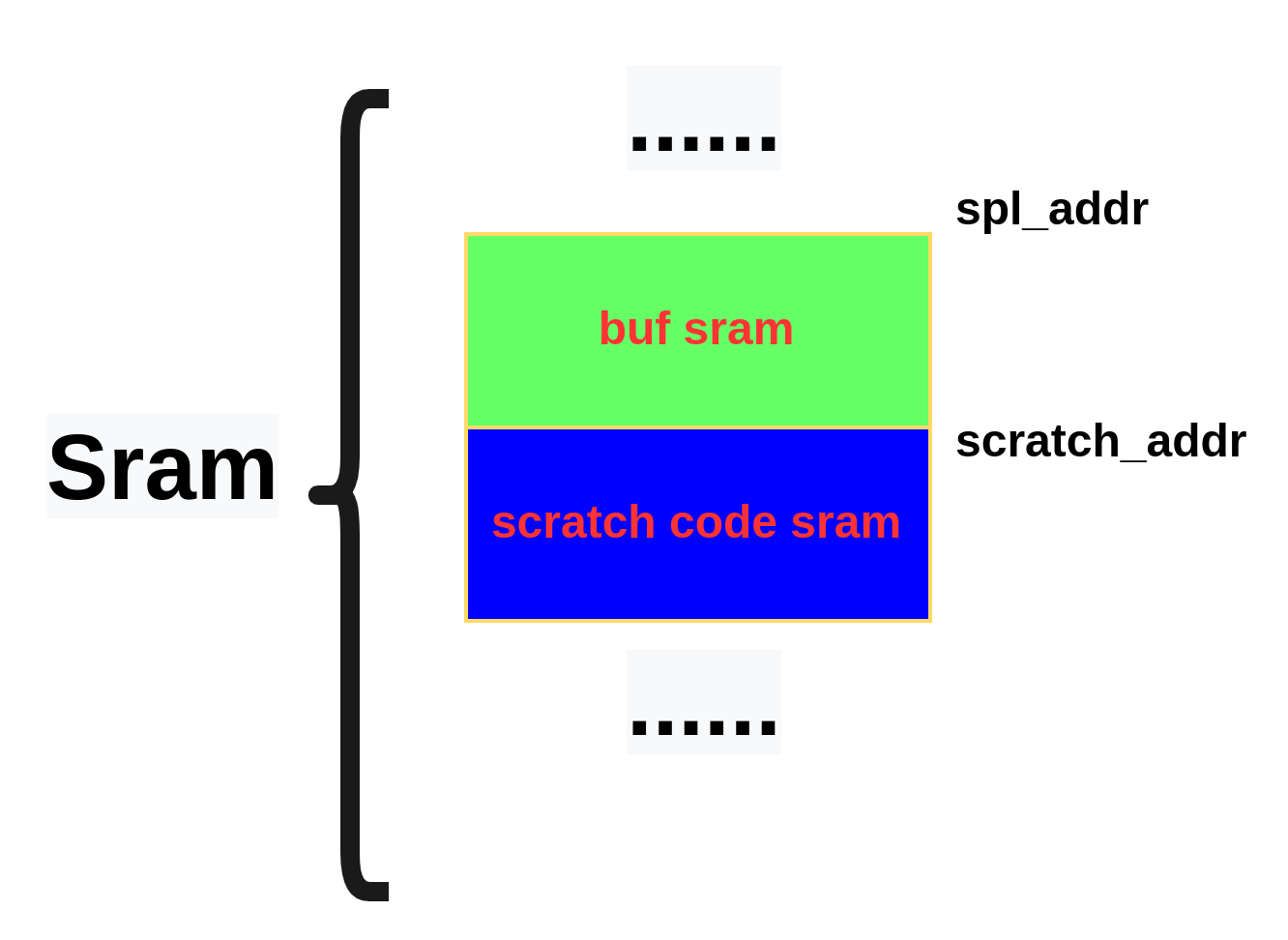

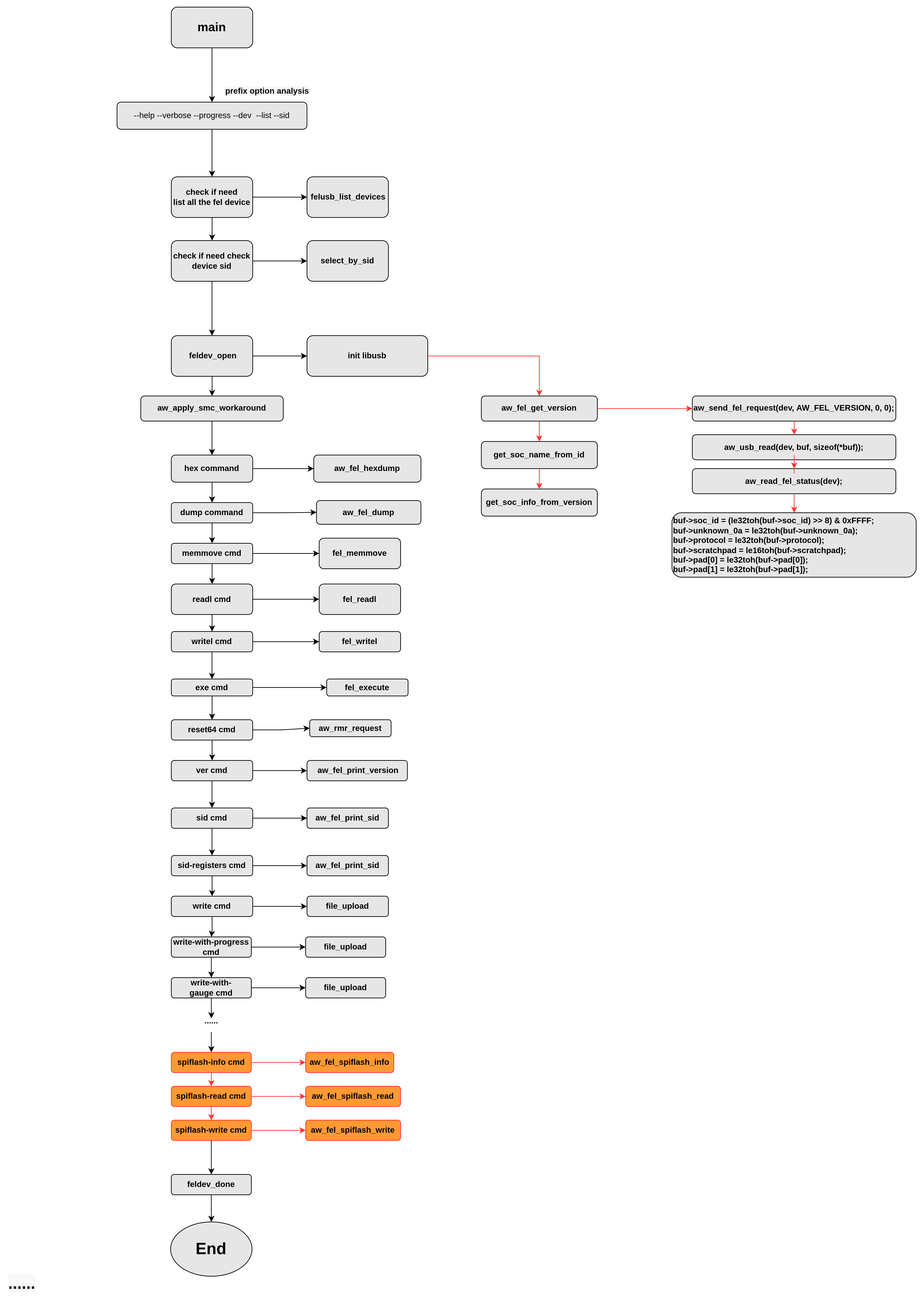

移植补丁
diff --git a/.gitignore b/.gitignore
index 1db11da..7618ae1 100644
--- a/.gitignore
+++ b/.gitignore
@@ -8,3 +8,7 @@ sunxi-pioversion.h*.o*.swp
+cscope.*
+tags
+.err
+*.fex
diff --git a/aw_spi.h b/aw_spi.h
new file mode 100644
index 0000000..5866523
--- /dev/null
+++ b/aw_spi.h
@@ -0,0 +1,868 @@
+#ifndef __AW_SPI_H__
+#define __AW_SPI_H__
+
+#include <stdint.h>
+
+//typedef unsigned int uint32_t;
+//typedef unsigned short uint16_t;
+//typedef unsigned char uint8_t;
+#ifdef __cplusplus
+extern "C" {
+#endif
+/********************** private ************************************/
+
+/**
+ * @brief Serial Peripheral Interface
+ */
+typedef struct
+{
+ volatile uint32_t RESERVED0; /* Reserved, 0x00 Address offset: 0x00 */
+ volatile uint32_t GCR; /* SPI Global Control Register, Address offset: 0x04 */
+ volatile uint32_t TCR; /* SPI Transfer Control Register, Address offset: 0x08 */
+ volatile uint32_t RESERVED1[1]; /* Reserved, 0x0C */
+ volatile uint32_t IER; /* SPI Interrupt Control Register, Address offset: 0x10 */
+ volatile uint32_t ISR; /* SPI Interrupt Status Register, Address offset: 0x14 */
+ volatile uint32_t FCR; /* SPI FIFO Control Register, Address offset: 0x18 */
+ volatile uint32_t FSR; /* SPI FIFO Status Register, Address offset: 0x1C */
+ volatile uint32_t WCR; /* SPI Wait Clock Counter Register, Address offset: 0x20 */
+ volatile uint32_t CCR; /* SPI Clock Rate Control Register, Address offset: 0x24 */
+
+ volatile uint32_t RESERVED2[2]; /* Reserved, 0x28-0x2C */
+ volatile uint32_t MBC; /* SPI Master mode Burst Control Register, Address offset: 0x30 */
+ volatile uint32_t MTC; /* SPI Master mode Transmit Counter Register, Address offset: 0x34 */
+ volatile uint32_t BCC; /* SPI Burst Control Register, Address offset: 0x38 */
+ volatile uint32_t RESERVED4[113]; /* Reserved, 0x3C-0x1FC */
+ volatile uint32_t TXD; /* SPI TX Date Register, Address offset: 0x200 */
+ volatile uint32_t RESERVED5[63]; /* Reserved, 0x204-0x2FC */
+ volatile uint32_t RXD; /* SPI RX Date Register, Address offset: 0x300 */
+} SPI_T;
+
+/*
+ * @brief SPI Global Control Register
+ */
+#define SPI_CTRL_RST_SHIFT (31)
+#define SPI_CTRL_RST_MASK (0x1U << SPI_CTRL_RST_SHIFT)
+
+#define SPI_CTRL_TP_EN_SHIFT (7)
+#define SPI_CTRL_TP_EN_MASK (0x1U << SPI_CTRL_TP_EN_SHIFT)
+
+#define SPI_CTRL_MODE_SHIFT (1)
+#define SPI_CTRL_MODE_MASK (0x1U << SPI_CTRL_MODE_SHIFT)
+typedef enum
+{
+ SPI_CTRL_MODE_SLAVE = 0 << SPI_CTRL_MODE_SHIFT,
+ SPI_CTRL_MODE_MASTER = 1 << SPI_CTRL_MODE_SHIFT
+} SPI_CTRL_Mode;
+
+#define SPI_CTRL_EN_SHIFT (0)
+#define SPI_CTRL_EN_MASK (0x1U << SPI_CTRL_EN_SHIFT)
+typedef enum
+{
+ SPI_CTRL_EN_DISABLE = 0 << SPI_CTRL_EN_SHIFT,
+ SPI_CTRL_EN_ENABLE = 1 << SPI_CTRL_EN_SHIFT
+} SPI_CTRL_En;
+
+/*
+ * @brief SPI Transfer Control Register
+ */
+#define SPI_TCTRL_XCH_SHIFT (31)
+#define SPI_TCTRL_XCH_MASK (0x1U << SPI_TCTRL_XCH_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_XCH_IDLE = 0 << SPI_TCTRL_XCH_SHIFT,
+ SPI_TCTRL_XCH_START = 1 << SPI_TCTRL_XCH_SHIFT
+} SPI_TCTRL_Xch;
+
+#define SPI_TCTRL_SDM_SHIFT (13)
+#define SPI_TCTRL_SDM_MASK (0x1U << SPI_TCTRL_SDM_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_SDM_SAMPLE_NODELAY = 1 << SPI_TCTRL_SDM_SHIFT,
+ SPI_TCTRL_SDM_SAMPLE_DELAY = 0 << SPI_TCTRL_SDM_SHIFT
+} SPI_TCTRL_Sdm;
+
+#define SPI_TCTRL_FBS_SHIFT (12)
+#define SPI_TCTRL_FBS_MASK (0x1U << SPI_TCTRL_FBS_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_FBS_MSB = 0 << SPI_TCTRL_FBS_SHIFT,
+ SPI_TCTRL_FBS_LSB = 1 << SPI_TCTRL_FBS_SHIFT
+} SPI_TCTRL_Fbs;
+
+#define SPI_TCTRL_SDC_SHIFT (11)
+#define SPI_TCTRL_SDC_MASK (0x1U << SPI_TCTRL_SDC_SHIFT)
+
+#define SPI_TCTRL_RPSM_SHIFT (10)
+#define SPI_TCTRL_RPSM_MASK (0x1U << SPI_TCTRL_RPSM_SHIFT)
+
+#define SPI_TCTRL_DDB_SHIFT (9)
+#define SPI_TCTRL_DDB_MASK (0x1U << SPI_TCTRL_DDB_SHIFT)
+
+#define SPI_TCTRL_DHB_SHIFT (8)
+#define SPI_TCTRL_DHB_MASK (0x1U << SPI_TCTRL_DHB_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_DHB_FULL_DUPLEX = 0 << SPI_TCTRL_DHB_SHIFT,
+ SPI_TCTRL_DHB_HALF_DUPLEX = 1 << SPI_TCTRL_DHB_SHIFT
+} SPI_TCTRL_DHB_Duplex;
+
+#define SPI_TCTRL_SS_LEVEL_SHIFT (7)
+#define SPI_TCTRL_SS_LEVEL_MASK (0x1U << SPI_TCTRL_SS_LEVEL_SHIFT)
+
+#define SPI_TCTRL_SS_OWNER_SHIFT (6)
+#define SPI_TCTRL_SS_OWNER_MASK (0x1U << SPI_TCTRL_SS_OWNER_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_SS_OWNER_CONTROLLER = 0 << SPI_TCTRL_SS_OWNER_SHIFT,
+ SPI_TCTRL_SS_OWNER_SOFTWARE = 1 << SPI_TCTRL_SS_OWNER_SHIFT
+} SPI_TCTRL_SS_OWNER;
+
+#define SPI_TCTRL_SS_SEL_SHIFT (4)
+#define SPI_TCTRL_SS_SEL_MASK (0x3U << SPI_TCTRL_SS_SEL_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_SS_SEL_SS0 = 0 << SPI_TCTRL_SS_SEL_SHIFT,
+ SPI_TCTRL_SS_SEL_SS1 = 1 << SPI_TCTRL_SS_SEL_SHIFT,
+ SPI_TCTRL_SS_SEL_SS2 = 2 << SPI_TCTRL_SS_SEL_SHIFT,
+ SPI_TCTRL_SS_SEL_SS3 = 3 << SPI_TCTRL_SS_SEL_SHIFT
+} SPI_TCTRL_SS_Sel;
+
+#define SPI_TCTRL_SS_CTL_SHIFT (3)
+#define SPI_TCTRL_SS_CTL_MASK (0x1U << SPI_TCTRL_SS_CTL_SHIFT)
+
+#define SPI_TCTRL_SPOL_SHIFT (2)
+#define SPI_TCTRL_SPOL_MASK (0x1U << SPI_TCTRL_SPOL_SHIFT)
+
+#define SPI_TCTRL_CPOL_SHIFT (1)
+#define SPI_TCTRL_CPOL_MASK (0x1U << SPI_TCTRL_CPOL_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_CPOL_HIGH = 0 << SPI_TCTRL_CPOL_SHIFT,
+ SPI_TCTRL_CPOL_LOW = 1 << SPI_TCTRL_CPOL_SHIFT
+} SPI_TCTRL_Cpol;
+
+#define SPI_TCTRL_CPHA_SHIFT (0)
+#define SPI_TCTRL_CPHA_MASK (0x1U << SPI_TCTRL_CPHA_SHIFT)
+typedef enum
+{
+ SPI_TCTRL_CPHA_PHASE0 = 0 << SPI_TCTRL_CPHA_SHIFT,
+ SPI_TCTRL_CPHA_PHASE1 = 1 << SPI_TCTRL_CPHA_SHIFT
+} SPI_TCTRL_Cpha;
+
+typedef enum
+{
+ SPI_SCLK_Mode0 = 0 << SPI_TCTRL_CPHA_SHIFT,
+ SPI_SCLK_Mode1 = 1 << SPI_TCTRL_CPHA_SHIFT,
+ SPI_SCLK_Mode2 = 2 << SPI_TCTRL_CPHA_SHIFT,
+ SPI_SCLK_Mode3 = 3 << SPI_TCTRL_CPHA_SHIFT
+} SPI_SCLK_Mode;
+
+/*
+ * @brief SPI Interrupt Control Register
+ */
+#define SPI_IER_SS_INT_EN_SHIFT (13)
+#define SPI_IER_SS_INT_EN_MASK (0x1U << SPI_IER_SS_INT_EN_SHIFT)
+
+#define SPI_IER_TC_INT_EN_SHIFT (12)
+#define SPI_IER_TC_INT_EN_MASK (0x1U << SPI_IER_TC_INT_EN_SHIFT)
+
+#define SPI_IER_TF_UDR_INT_EN_SHIFT (11)
+#define SPI_IER_TF_UDR_INT_EN_MASK (0x1U << SPI_IER_TF_UDR_INT_EN_SHIFT)
+
+#define SPI_IER_TF_OVF_INT_EN_SHIFT (10)
+#define SPI_IER_TF_OVF_INT_EN_MASK (0x1U << SPI_IER_TF_OVF_INT_EN_SHIFT)
+
+#define SPI_IER_RF_UDR_INT_EN_SHIFT (9)
+#define SPI_IER_RF_UDR_INT_EN_MASK (0x1U << SPI_IER_RF_UDR_INT_EN_SHIFT)
+
+#define SPI_IER_RF_OVF_INT_EN_SHIFT (8)
+#define SPI_IER_RF_OVF_INT_EN_MASK (0x1U << SPI_IER_RF_OVF_INT_EN_SHIFT)
+
+#define SPI_IER_TF_FUL_INT_EN_SHIFT (6)
+#define SPI_IER_TF_FUL_INT_EN_MASK (0x1U << SPI_IER_TF_FUL_INT_EN_SHIFT)
+
+#define SPI_IER_TX_EMP_INT_EN_SHIFT (5)
+#define SPI_IER_TX_EMP_INT_EN_MASK (0x1U << SPI_IER_TX_EMP_INT_EN_SHIFT)
+
+#define SPI_IER_TX_ERQ_INT_EN_SHIFT (4)
+#define SPI_IER_TX_ERQ_INT_EN_MASK (0x1U << SPI_IER_TX_ERQ_INT_EN_SHIFT)
+
+#define SPI_IER_RF_FUL_INT_EN_SHIFT (2)
+#define SPI_IER_RF_FUL_INT_EN_MASK (0x1U << SPI_IER_RF_FUL_INT_EN_SHIFT)
+
+#define SPI_IER_RX_EMP_INT_EN_SHIFT (1)
+#define SPI_IER_RX_EMP_INT_EN_MASK (0x1U << SPI_IER_RX_EMP_INT_EN_SHIFT)
+
+#define SPI_IER_RF_RDY_INT_EN_SHIFT (0)
+#define SPI_IER_RF_RDY_INT_EN_MASK (0x1U << SPI_IER_RF_RDY_INT_EN_SHIFT)
+
+/*
+ * @brief SPI Interrupt Status Register
+ */
+#define SPI_STA_SSI_SHIFT (13)
+#define SPI_STA_SSI_MASK (0x1U << SPI_STA_SSI_SHIFT)
+
+#define SPI_STA_TC_SHIFT (12)
+#define SPI_STA_TC_MASK (0x1U << SPI_STA_TC_SHIFT)
+
+#define SPI_STA_TF_UDF_SHIFT (11)
+#define SPI_STA_TF_UDF_MASK (0x1U << SPI_STA_TF_UDF_SHIFT)
+
+#define SPI_STA_TF_OVF_SHIFT (10)
+#define SPI_STA_TF_OVF_MASK (0x1U << SPI_STA_TF_OVF_SHIFT)
+
+#define SPI_STA_RX_UDF_SHIFT (9)
+#define SPI_STA_RX_UDF_MASK (0x1U << SPI_STA_RX_UDF_SHIFT)
+
+#define SPI_STA_RX_OVF_SHIFT (8)
+#define SPI_STA_RX_OVF_MASK (0x1U << SPI_STA_RX_OVF_SHIFT)
+
+#define SPI_STA_TX_FULL_SHIFT (6)
+#define SPI_STA_TX_FULL_MASK (0x1U << SPI_STA_TX_FULL_SHIFT)
+
+#define SPI_STA_TX_EMP_SHIFT (5)
+#define SPI_STA_TX_EMP_MASK (0x1U << SPI_STA_TX_EMP_SHIFT)
+
+#define SPI_STA_TX_READY_SHIFT (4)
+#define SPI_STA_TX_READY_MASK (0x1U << SPI_STA_TX_READY_SHIFT)
+
+#define SPI_STA_RX_FULL_SHIFT (2)
+#define SPI_STA_RX_FULL_MASK (0x1U << SPI_STA_RX_FULL_SHIFT)
+
+#define SPI_STA_RX_EMP_SHIFT (1)
+#define SPI_STA_RX_EMP_MASK (0x1U << SPI_STA_RX_EMP_SHIFT)
+
+#define SPI_STA_RX_RDY_SHIFT (0)
+#define SPI_STA_RX_RDY_MASK (0x1U << SPI_STA_RX_RDY_SHIFT)
+
+/*
+ * @brief SPI FIFO Control Register
+ */
+#define SPI_FCTL_TF_RST_SHIFT (31)
+#define SPI_FCTL_TF_RST_MASK (0x1U << SPI_FCTL_TF_RST_SHIFT)
+
+#define SPI_FCTL_TF_TEST_EN_SHIFT (30)
+#define SPI_FCTL_TF_TEST_EN_MASK (0x1U << SPI_FCTL_TF_TEST_EN_SHIFT)
+
+#define SPI_FCTL_TF_DRQ_EN_SHIFT (24)
+#define SPI_FCTL_TF_DRQ_EN_MASK (0x1U << SPI_FCTL_TF_DRQ_EN_SHIFT)
+#define SPI_FCTL_TF_DRQ_EN_BIT HAL_BIT(24)
+
+#define SPI_FCTL_TX_TRIG_LEVEL_SHIFT (16)
+#define SPI_FCTL_TX_TRIG_LEVEL_MASK (0xFFU << SPI_FCTL_TX_TRIG_LEVEL_SHIFT)
+
+#define SPI_FCTL_RF_RST_SHIFT (15)
+#define SPI_FCTL_RF_RST_MASK (0x1U << SPI_FCTL_RF_RST_SHIFT)
+
+#define SPI_FCTL_RF_TEST_SHIFT (14)
+#define SPI_FCTL_RF_TEST_MASK (0x1U << SPI_FCTL_RF_TEST_SHIFT)
+
+#define SPI_FCTL_RF_DRQ_EN_SHIFT (8)
+#define SPI_FCTL_RF_DRQ_EN_MASK (0x1U << SPI_FCTL_RF_DRQ_EN_SHIFT)
+
+#define SPI_FCTL_RX_TRIG_LEVEL_SHIFT (0)
+#define SPI_FCTL_RX_TRIG_LEVEL_MASK (0xFFU << SPI_FCTL_RX_TRIG_LEVEL_SHIFT)
+
+/*
+ * @brief SPI FIFO Status Registe
+ */
+#define SPI_FST_TB_WR_SHIFT (31)
+#define SPI_FST_TB_WR_MASK (0x1U << SPI_FST_TB_WR_SHIFT)
+
+#define SPI_FST_TB_CNT_SHIFT (28)
+#define SPI_FST_TB_CNT_MASK (0x7U << SPI_FST_TB_CNT_SHIFT)
+
+#define SPI_FST_TF_CNT_SHIFT (16)
+#define SPI_FST_TF_CNT_MASK (0xFFU << SPI_FST_TF_CNT_SHIFT)
+
+#define SPI_FST_RB_WR_SHIFT (15)
+#define SPI_FST_RB_WR_MASK (0x1U << SPI_FST_RB_WR_SHIFT)
+
+#define SPI_FST_RB_CNT_SHIFT (12)
+#define SPI_FST_RB_CNT_MASK (0x7U << SPI_FST_RB_CNT_SHIFT)
+
+#define SPI_FST_RF_CNT_SHIFT (0)
+#define SPI_FST_RF_CNT_MASK (0xFFU << SPI_FST_RF_CNT_SHIFT)
+
+/*
+ * @brief SPI Wait Clock Counter Register
+ */
+#define SPI_WAIT_SWC_SHIFT (16)
+#define SPI_WAIT_SWC_MASK (0xFU << SPI_WAIT_SWC_SHIFT)
+
+#define SPI_WAIT_WCC_SHIFT (0)
+#define SPI_WAIT_WCC_MASK (0xFFFFU << SPI_WAIT_WCC_SHIFT)
+
+/*
+ * @brief SPI Clock Rate Control Register
+ */
+#define SPI_CCTR_DRS_SHIFT (12)
+#define SPI_CCTR_DRS_MASK (0x1U << SPI_CCTR_DRS_SHIFT)
+typedef enum
+{
+ SPI_CCTR_DRS_type_divRate1 = 0 << SPI_CCTR_DRS_SHIFT,
+ SPI_CCTR_DRS_type_divRate2 = 1 << SPI_CCTR_DRS_SHIFT
+} SPI_CCTR_DRS_type;
+
+#define SPI_CCTR_CDR1_SHIFT (8)
+#define SPI_CCTR_CDR1_MASK (0xFU << SPI_CCTR_CDR1_SHIFT)
+
+#define SPI_CCTR_CDR2_SHIFT (0)
+#define SPI_CCTR_CDR2_MASK (0xFFU << SPI_CCTR_CDR2_SHIFT)
+
+/*
+ * @brief SPI Master mode Burst Control Register
+ */
+#define SPI_BC_MBC_SHIFT (0)
+#define SPI_BC_MBC_MASK (0xFFFFFFU << SPI_BC_MBC_SHIFT)
+
+/*
+ * @brief SPI Master mode Transmit Counter Register
+ */
+#define SPI_TC_MWTC_SHIFT (0)
+#define SPI_TC_MWTC_MASK (0xFFFFFFU << SPI_TC_MWTC_SHIFT)
+
+/*
+ * @brief SPI Burst Control Register
+ */
+#define SPI_BCC_DRM_SHIFT (28)
+#define SPI_BCC_DRM_MASK (0x1U << SPI_BCC_DRM_SHIFT)
+
+#define SPI_BCC_DBC_SHIFT (24)
+#define SPI_BCC_DBC_MASK (0xFU
