示例演示
如果在中文搜索的话，一般会找到《数字图像处理-图像分割：Snake主动轮廓模型 Matlab代码及运行结果》。里面有句代码，千万别用，否则出不来效果。（别问我怎么知道的）
% 转化为双精度型
%I = im2double(I);
当然英文搜索的话，会在Matlab官网上找到《Snakes: Active Contour Models》,提供更好的代码，里面不同图片的算法参数都调好了。核心代码展示。
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% interate.m implements the core of the snakes (active contours) algorithm.
% It is called by the snk.m file which is the GUI frontend. If you do not
% want to deal with GUI, look at this file and the included comments which
% explain how active contours work.
%
% To run this code with GUI
% 1. Type guide on the matlab prompt.
% 2. Click on "Go to Existing GUI"
% 3. Select the snk.fig file in the same directory as this file
% 4. Click the green arrow at the top to launch the GUI
%
% Once the GUI has been launched, you can use snakes by
% 1. Click on "New Image" and load an input image. Samples image are
% provided.
% 2. Set the smoothing parameter "sigma" or leave it at its default value
% and click "Filter". This will smooth the image.
% 3. As soon as you click "Filter", cross hairs would appear and using
% them and left click of you mouse you can pick initial contour location
% on the image. A red circle would appead everywhere you click and in
% most cases you should click all the way around the object you want to
% segement. The last point must be picked using a right-click in order to
% stop matlab for asking for more points.
% 4. Set the various snake parameters (relative weights of energy terms
% in the snake objective function) or leave them with their default value
% and click "Iterate" button. The snake would appear and move as it
% converges to its low energy state.
%
% Copyright (c) Ritwik Kumar, Harvard University 2010
% www.seas.harvard.edu/~rkkumar
%
% This code implements 揝nakes: Active Contour Models�by Kass, Witkin and
% Terzopolous incorporating Eline, Eedge and Eterm energy factors. See the
% included report and the paper to learn more.
%
% If you find this useful, also look at Radon-Like Features based
% segmentation in the following paper:
% Ritwik Kumar, Amelio V. Reina & Hanspeter Pfister, 揜adon-Like Features
% and their Application to Connectomics� IEEE Computer Society Workshop %
% on Mathematical Methods in Biomedical Image Analysis (MMBIA) 2010
% http://seas.harvard.edu/~rkkumar
% Its code is also available on MATLAB Central
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%function [smth] = interate(image, xs, ys, alpha, beta, gamma, kappa, wl, we, wt, iterations);
% image: This is the image data
% xs, ys: The initial snake coordinates
% alpha: Controls tension
% beta: Controls rigidity
% gamma: Step size
% kappa: Controls enegry term
% wl, we, wt: Weights for line, edge and terminal enegy components
% iterations: No. of iteration for which snake is to be moved%parameters
N = iterations;
smth = image;% Calculating size of image
[row col] = size(image);%Computing external forceseline = smth; %eline is simply the image intensities[grady,gradx] = gradient(smth);
eedge = -1 * sqrt ((gradx .* gradx + grady .* grady)); %eedge is measured by gradient in the image%masks for taking various derivatives
m1 = [-1 1];
m2 = [-1;1];
m3 = [1 -2 1];
m4 = [1;-2;1];
m5 = [1 -1;-1 1];cx = conv2(smth,m1,'same');
cy = conv2(smth,m2,'same');
cxx = conv2(smth,m3,'same');
cyy = conv2(smth,m4,'same');
cxy = conv2(smth,m5,'same');for i = 1:rowfor j= 1:col% eterm as deined in Kass et al Snakes papereterm(i,j) = (cyy(i,j)*cx(i,j)*cx(i,j) -2 *cxy(i,j)*cx(i,j)*cy(i,j) + cxx(i,j)*cy(i,j)*cy(i,j))/((1+cx(i,j)*cx(i,j) + cy(i,j)*cy(i,j))^1.5);end
end% imview(eterm);
% imview(abs(eedge));
eext = (wl*eline + we*eedge -wt * eterm); %eext as a weighted sum of eline, eedge and eterm[fx, fy] = gradient(eext); %computing the gradient%initializing the snake
xs=xs';
ys=ys';
[m n] = size(xs);
[mm nn] = size(fx);%populating the penta diagonal matrix
A = zeros(m,m);
b = [(2*alpha + 6 *beta) -(alpha + 4*beta) beta];
brow = zeros(1,m);
brow(1,1:3) = brow(1,1:3) + b;
brow(1,m-1:m) = brow(1,m-1:m) + [beta -(alpha + 4*beta)]; % populating a template row
for i=1:mA(i,:) = brow;brow = circshift(brow',1)'; % Template row being rotated to egenrate different rows in pentadiagonal matrix
end[L U] = lu(A + gamma .* eye(m,m));
Ainv = inv(U) * inv(L); % Computing Ainv using LU factorization%moving the snake in each iteration
for i=1:N;ssx = gamma*xs - kappa*interp2(fx,xs,ys);ssy = gamma*ys - kappa*interp2(fy,xs,ys);%calculating the new position of snakexs = Ainv * ssx;ys = Ainv * ssy;%Displaying the snake in its new positionimshow(image,[]); hold on;plot([xs; xs(1)], [ys; ys(1)], 'r-');hold off;pause(0.001)
end;

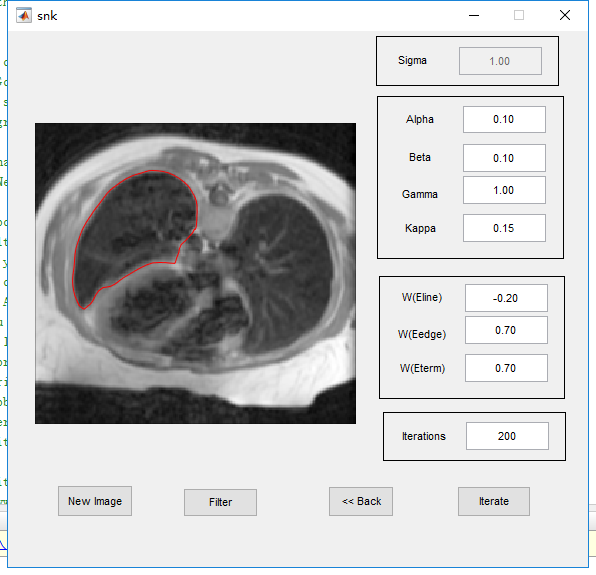

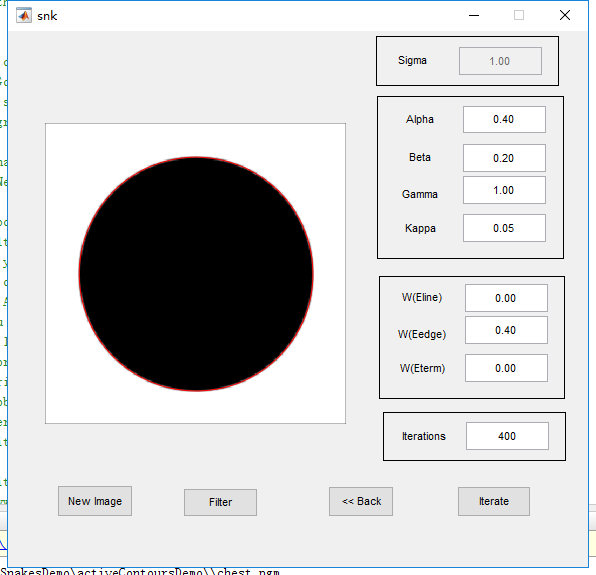

不同图片运行结果
