一、环境部署(准备两台Centos虚拟机)
1.关闭防火墙和SElinux
#systemctl stop firewalld.service
#systemctl disable firewalld.service
#sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
#grep SELINUX=disabled /etc/selinux/config
#setenforce 0
2.安装EPEL源
#yum -y install epel-release
3.安装绘图工具、web服务、及Smokeping扩展包
#yum -y install rrdtool perl-rrdtool fping httpd openssl-devel
#yum -y install perl-core curl gcc gcc-c++ wget
二、安装Smokeping服务
1.源码下载
#wget https://oss.oetiker.ch/smokeping/pub/smokeping-2.6.11.tar.gz
2.源码编译安装Smokeping
#tar -xzvf smokeping-2.6.11.tar.gz
#cd smokeping-2.6.11
#./setup/build-perl-modules.sh /usr/local/smokeping/thirdparty //用Smokeping自脚本安装依赖包
#./configure --prefix=/usr/local/smokeping //指定安装路径
#/usr/bin/gmake install
三、配置主从
1.master端配置
配置web页面支持中文
1.1.安装一个中文字体
#yum -y install wqy-zenhei-fonts.noarch
1.2.编辑SmokePing文件config
#vi /usr/local/smokeping/etc/configtemplate = /usr/local/smokeping/etc/basepage.html.dist
charset = utf-8... ...*** Database ***
step = 60
pings = 60 ... ...添加监控项（此处可以用@include添加）
***Slaves***
secrets=/usr/local/smokeping/etc/smokeping_secrets.dist+swbooo #这里设置Slave的名字，颜色等
display_name=swbooo
color=0000ff*** Targets ***+MasterTest
menu = test本机++localhost
menu = 本机
title = localhost
host = 127.0.0.1+slaves #配置Slave监控节点
menu = slave++swbooomenu = 腾讯
title = 腾讯
slaves = swbooo
host = qq.com++ swbooo2menu = 百度
title = 百度
slaves = swbooo
host = baidu.com

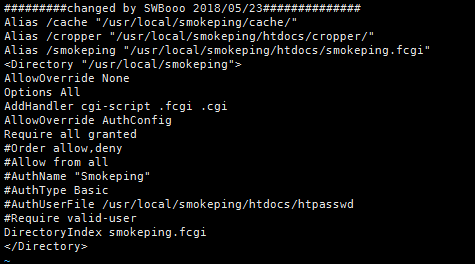

2.配置apache服务（master端）
修改配置文件
#末尾添加如下内容（此处其实就是做httpd开放访问，环境不同可能会影响）
# vim /etc/httpd/conf/httpd.conf
创建相关文件夹个日志文件
# cd /usr/local/smokeping
# mkdir cache data var //建立存放图像、数据、日志的目录
# touch /var/log/smokeping.log //建立日志文件
# chown apache.apache cache/ data/ var/ /var/log //更改权限
# cd /usr/local/smokeping/htdocs
# cp /smokeping.fcgi.dist smokeping.fcgi //将目录内的fcgi文件重命名
# cd /usr/local/smokeping/etc
# cp config.dist config // //复制一份配置文件# echo swbooo:123456 > /usr/local/smokeping/etc/smokeping_secrest.dist
# chmod 600 smokeping_secrets.dist //修改密码文件权限
3.slave端配置（不需要修改配置文件）
创建相关文件夹个日志文件
# cd /usr/local/smokeping
# mkdir cache data var //建立存放图像、数据、日志的目录
# touch slave.log //建立日志文件
# chown apache.apache cache/ data/ var/ slave.log //更改权限
# cd /usr/local/smokeping/htdocs
# cp smokeping.fcgi.dist smokeping.fcgi //将目录内的fcgi文件重命名# cp etc/smokeping_secrets.dist etc/smokeping_slave_secrets
# echo 123456 > etc/smokeping_slave_secrets
# chmod 600 etc/smokeping_slave_secrets //修改密码文件权限
3.启动服务
master:
# /usr/local/smokeping/bin/smokeping restart Note: logging to syslog as local0/info.
Daemonizing /usr/local/smokeping/bin/smokeping ...
slave:
# /usr/local/smokeping/bin/smokeping \
--master-url=http://masterIP/smokeping \
--cache-dir=/usr/local/smokeping/cache/ \
--shared-secret=/usr/local/smokeping/etc/smokeping_slave_secrets \
--slave-name=swbooo \
--logfile=/usr/local/smokeping/slave.log Sent data to Server and got new config in response.
Note: logging to syslog as local0/info.
Daemonizing /usr/local/smokeping/bin/smokeping ...

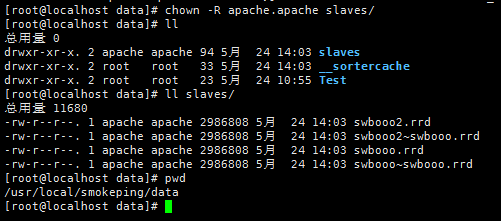

最后确保master端的slave rrd文件，使apache有写入权限
四、完成
浏览器访问http://IP/smokeping
最终效果图
