目录

1、运行docker centos:7 版本系统

 1.1进入 docker系统

1.2更新系统

1.3安装依赖软件

2、安装MySQL

2.1下载解压mysql

2.2解压mysql

2.3 编译安装mysql

2.3创建mysql用户

2.4创建my.cnf配置

 2.5初始化

2.6其他配置

2.7启动mysql

2.8修改密码

2.9完成mysql安装退回上级目录

3、安装PHP5.3.28

3.1安装libiconv依赖

3.1.1 下载解压libiconv

3.1.2修改srclib/stdio.in.h文件

3.1.3编译安装libiconv

3.2安装libmcrypt依赖

3.3安装mhash依赖

 3.4下载PHP5.3.28

3.5解压编译安装PHP

3.6配置PHP

3.7安装ZendGuardLoader

3.8编辑php.ini

3.9创建php-fpm.conf

3.10创建php-fpm启动脚本

3.11启动php-fpm

3.12开机启动

4、安装nginx

4.1安装pcre依赖

4.2下载nginx

4.3解压编译安装

4.4配置nginx

4.5配置目录权限

4.6创建nginx启动脚本

5、安装redis

5.1下载解压编译安装

5.2配置redis

5.3创建启动文件

 5.4授权

5.5启动redis

6、设置开机启动

7、安装编译环境

7.1下载解压编译安装gcc

7.2 下载解压编译安装termcap

7.3 下载解压编译安装 gdb

7.4 下载解压编译安装 protobuf

8、安装TeamTalk

8.1下载TeamTalk

8.2生成pb文件

8.3安装依赖

8.3.1修改 make_log4cxx.sh

 8.3.2开始安装

8.4编译server

8.4.1修改代码

        1）因为mysql不是默认路径，所以修改db_proxy_server/CMakeList

        2）因为是测试环境只开了一个 DBServer 所以修改一下msg_server/msg_server.cpp 86行

 8.4.2开始编译

8.4.3部署服务

8.4.4导入mysql

8.4.5部署web

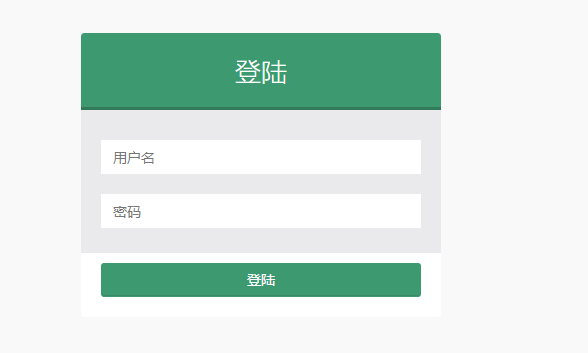

8.4.6测试web

8.4.7运行服务

        1）修改 restart.sh

        2）修改 db_proxy_server/dbproxyserver.conf 配置

        3）局域网访问

        4）启动服务

        5）查看服务运行情况

        6）服务说明

8.4.8 redis,php,nginx,mysql 服务管理

8.4.9win客户端编译

8.4.10win客户端登录

---

说明

TeamTalk https://github.com/mogujie/TeamTalk已经是停更6年的项目了，最近学习C++找到了这个项目，不过服务端只有linux版本的而且兼容不太好，centos7的版本是官方推荐的版本，安装完整的虚拟机系统感觉太麻烦，所以使用 docker 来部署，下面是操作过程记录。

docker容器已经共享到Docker Hub 不喜欢捣腾的可以直接运行测试

注意：官方的目前已经无法打开,可以在一下地址获取,下文用的是 Tags 2015 版本GitHub - lsqtzj/TeamTalk: TeamTalk is a solution for enterprise IMTeamTalk is a solution for enterprise IM. Contribute to lsqtzj/TeamTalk development by creating an account on GitHub.https://github.com/lsqtzj/TeamTalkTeamTalk: TeamTalk is a solution for enterprise IMhttps://gitee.com/CyrusZHou/TeamTalk

1、运行docker centos:7 版本系统

docker run -d -p 80:80 -p 8080:8080 -p 8008:8008 -p 8000:8000 -p 10600:10600 -p 8200:8200 -p 8400:8400 -p8500:8500 -p8600:8600 -p 8700:8700 -tid --name teamtalk --privileged=true centos:7 /sbin/init

这里开放的端口为服务端口后面需要使用

 1.1进入 docker系统

docker exec -it teamtalk /bin/bash

1.2更新系统

yum update

1.3安装依赖软件

yum -y install net-tools initscripts wget vim git texinfo patch make cmake gcc gcc-c++ gcc-g77 flex bison file libtool libtool-libs autoconf kernel-devel libjpeg libjpeg-devel libpng libpng-devel libpng10 libpng10-devel gd gd-devel freetype freetype-devel libxml2 libxml2-devel zlib zlib-devel glib2 glib2-devel bzip2 bzip2-devel libevent libevent-devel ncurses ncurses-devel curl curl-devel e2fsprogs e2fsprogs-devel krb5 krb5-devel libidn libidn-devel openssl openssl-devel vim-minimal nano fonts-chinese gettext gettext-devel ncurses-devel gmp-devel pspell-devel unzip libcap diffutils

2、安装MySQL

2.1下载解压mysql

wget https://downloads.mysql.com/archives/get/p/23/file/mysql-5.6.45.tar.gz

2.2解压mysql

tar -zxvf mysql-5.6.45.tar.gz

2.3 编译安装mysql

cd mysql-5.6.45
cmake -DCMAKE_INSTALL_PREFIX=/usr/local/mysql -DEXTRA_CHARSETS=all -DDEFAULT_CHARSET=utf8 -DDEFAULT_COLLATION=utf8_general_ci -DWITH_READLINE=1 -DWITH_SSL=system -DWITH_ZLIB=system -DWITH_EMBEDDED_SERVER=1 -DENABLED_LOCAL_INFILE=1
make -j 2 && make install

2.3创建mysql用户

groupadd mysql
useradd -s /sbin/nologin -M -g mysql mysql

2.4创建my.cnf配置

vim /etc/my.cnf

# Example MySQL config file for medium systems.# The following options will be passed to all MySQL clients
[client]
#password   = your_password
port        = 3306
socket      = /tmp/mysql.sock
default-character-set=utf8mb4# Here follows entries for some specific programs# The MySQL server
[mysqld]
bind-address=127.0.0.1
port        = 3306
socket      = /tmp/mysql.sock
datadir = /usr/local/mysql/var
collation-server     = utf8mb4_general_ci
character-set-server = utf8mb4
skip-external-locking
key_buffer_size = 16M
max_allowed_packet = 1M
table_open_cache = 64
sort_buffer_size = 512K
net_buffer_length = 8K
read_buffer_size = 256K
read_rnd_buffer_size = 512K
myisam_sort_buffer_size = 8M# Replication Master Server (default)
# binary logging is required for replication
log-bin=mysql-bin# binary logging format - mixed recommended
binlog_format=mixed# required unique id between 1 and 2^32 - 1
# defaults to 1 if master-host is not set
# but will not function as a master if omittedserver-id   = 1# Uncomment the following if you are using InnoDB tablesinnodb_data_home_dir = /usr/local/mysql/varinnodb_data_file_path = ibdata1:10M:autoextendinnodb_log_group_home_dir = /usr/local/mysql/var
# You can set .._buffer_pool_size up to 50 - 80 %
# of RAM but beware of setting memory usage too highinnodb_buffer_pool_size = 16Minnodb_additional_mem_pool_size = 2M
# Set .._log_file_size to 25 % of buffer pool sizeinnodb_log_file_size = 5Minnodb_log_buffer_size = 8Minnodb_flush_log_at_trx_commit = 1
innodb_lock_wait_timeout = 50[mysqldump]
quickmax_allowed_packet = 16M[mysql]
no-auto-rehash
# Remove the next comment character if you are not familiar with SQL
#safe-updatesdefault-character-set=utf8mb4[myisamchk]
key_buffer_size = 20Ms
ort_buffer_size = 20M
read_buffer = 2M
write_buffer = 2M[mysqlhotcopy]
interactive-timeout

 2.5初始化

/usr/local/mysql/scripts/mysql_install_db --defaults-file=/etc/my.cnf --basedir=/usr/local/mysql --datadir=/usr/local/mysql/var --user=mysql
chown -R mysql /usr/local/mysql/var
chgrp -R mysql /usr/local/mysql/.
cp support-files/mysql.server /etc/init.d/mysql
chmod 755 /etc/init.d/mysql

2.6其他配置

vim /etc/ld.so.conf.d/mysql.conf

内容：

/usr/local/mysql/lib
/usr/local/lib

应用配置

ldconfig

ln -s /usr/local/mysql/lib/mysql /usr/lib/mysql
ln -s /usr/local/mysql/include/mysql /usr/include/mysql
ln -s /usr/local/mysql/bin/mysql /usr/bin/mysql
ln -s /usr/local/mysql/bin/mysqldump /usr/bin/mysqldump
ln -s /usr/local/mysql/bin/myisamchk /usr/bin/myisamchk
ln -s /usr/local/mysql/bin/mysqld_safe /usr/bin/mysqld_safe

2.7启动mysql

/etc/init.d/mysql start

2.8修改密码

空密码登录

mysql -uroot

 sql命令

use mysql;
update user set password=password('12345') where user='root';
flush privileges;
exit

新密码登录

mysql -uroot -p12345

2.9完成mysql安装退回上级目录

exit
cd ../

3、安装PHP5.3.28

3.1安装libiconv依赖

3.1.1 下载解压libiconv

wget http://ftp.gnu.org/pub/gnu/libiconv/libiconv-1.14.tar.gz
tar -zxvf libiconv-1.14.tar.gz
cd libiconv-1.14

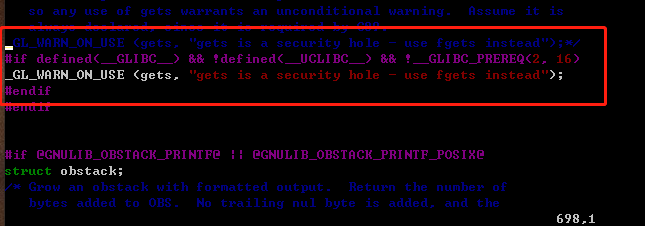

3.1.2修改srclib/stdio.in.h文件

避免error: ‘gets’

In file included from progname.c:26:0:
./stdio.h:1010:1: error: ‘gets’ undeclared here (not in a function)_GL_WARN_ON_USE (gets, "gets is a security hole - use fgets instead");

vim srclib/stdio.in.h

 注释698 行，添加如下3行：

#if defined(__GLIBC__) && !defined(__UCLIBC__) && !__GLIBC_PREREQ(2, 16)
_GL_WARN_ON_USE (gets, "gets is a security hole - use fgets instead");
#endif



3.1.3编译安装libiconv

./configure
make -j 2&& make install
cd ..

3.2安装libmcrypt依赖

wget https://sourceforge.net/projects/mcrypt/files/Libmcrypt/2.5.8/libmcrypt-2.5.8.tar.gz
tar zxvf libmcrypt-2.5.8.tar.gz
cd libmcrypt-2.5.8/
./configure
make
make install
ldconfig
cd libltdl/
./configure --enable-ltdl-install
make
make install
cd ../../

3.3安装mhash依赖

wget https://sourceforge.net/projects/mhash/files/latest/download/mhash-0.9.9.9.tar.gz
tar -zxvf mhash-0.9.9.9.tar.gz
cd mhash-0.9.9.9
./configure
make -j 2 && make install
cd ../

 3.4下载PHP5.3.28

wget https://www.php.net/distributions/php-5.3.28.tar.gz

3.5解压编译安装PHP

tar -zxvf php-5.3.28.tar.gz
cd php-5.3.28
./configure --prefix=/usr/local/php --with-config-file-path=/usr/local/php/etc --enable-fpm --with-fpm-user=www --with-fpm-group=www --with-mysql=mysqlnd --with-mysqli=mysqlnd --with-pdo-mysql=mysqlnd --with-iconv-dir --with-freetype-dir --with-jpeg-dir --with-png-dir --with-zlib --with-libxml-dir=/usr --enable-xml --disable-rpath --enable-magic-quotes --enable-safe-mode --enable-bcmath --enable-shmop --enable-sysvsem --enable-inline-optimization --with-curl --enable-mbregex --enable-mbstring --with-mcrypt --enable-ftp --with-gd --enable-gd-native-ttf --with-openssl --with-mhash --enable-pcntl --enable-sockets --with-xmlrpc --enable-zip --enable-soap --without-pear --with-gettext --disable-fileinfo
make -j 2 ZEND_EXTRA_LIBS='-liconv' && make install

3.6配置PHP

cp php.ini-production /usr/local/php/etc/php.ini
sed -i 's/post_max_size = 8M/post_max_size = 50M/g' /usr/local/php/etc/php.ini
sed -i 's/upload_max_filesize = 2M/upload_max_filesize = 50M/g' /usr/local/php/etc/php.ini
sed -i 's/;date.timezone =/date.timezone = PRC/g' /usr/local/php/etc/php.ini
sed -i 's/short_open_tag = Off/short_open_tag = On/g' /usr/local/php/etc/php.ini
sed -i 's/; cgi.fix_pathinfo=1/cgi.fix_pathinfo=0/g' /usr/local/php/etc/php.ini
sed -i 's/; cgi.fix_pathinfo=0/cgi.fix_pathinfo=0/g' /usr/local/php/etc/php.ini
sed -i 's/;cgi.fix_pathinfo=1/cgi.fix_pathinfo=0/g' /usr/local/php/etc/php.ini
sed -i 's/max_execution_time = 30/max_execution_time = 300/g' /usr/local/php/etc/php.ini
sed -i 's/register_long_arrays = On/;register_long_arrays = On/g' /usr/local/php/etc/php.ini
sed -i 's/magic_quotes_gpc = On/;magic_quotes_gpc = On/g' /usr/local/php/etc/php.ini
sed -i 's/disable_functions =.*/disable_functions = passthru,exec,system,chroot,scandir,chgrp,chown,shell_exec,proc_open,proc_get_status,ini_alter,ini_restore,dl,openlog,syslog,readlink,symlink,popepassthru,stream_socket_server/g' /usr/local/php/etc/php.ini
ln -s /usr/local/php/bin/php /usr/bin/php
ln -s /usr/local/php/bin/phpize /usr/bin/phpize
ln -s /usr/local/php/sbin/php-fpm /usr/bin/php-fpm
cd ..

3.7安装ZendGuardLoader

mkdir -p /usr/local/zend/
wget http://downloads.zend.com/guard/5.5.0/ZendGuardLoader-php-5.3-linux-glibc23-x86_64.tar.gz
tar -zxvf ZendGuardLoader-php-5.3-linux-glibc23-x86_64.tar.gz
cp ZendGuardLoader-php-5.3-linux-glibc23-x86_64/php-5.3.x/ZendGuardLoader.so /usr/local/zend/

3.8编辑php.ini

vim  /usr/local/php/etc/php.ini

最后添加如下内容：

[Zend Optimizer]
zend_extension=/usr/local/zend/ZendGuardLoader.so
zend_loader.enable=1
zend_loader.disable_licensing=0
zend_loader.obfuscation_level_support=3
zend_loader.license_path=

3.9创建php-fpm.conf

vim /usr/local/php/etc/php-fpm.conf

内容：

[global]
pid = /usr/local/php/var/run/php-fpm.pid
error_log = /usr/local/php/var/log/php-fpm.log
log_level = notice[www]
listen = /tmp/php-cgi.sock
listen.backlog = -1
listen.allowed_clients = 127.0.0.1
listen.owner = www
listen.group = www
listen.mode = 0666
user = www
group = www
pm = dynamic
pm.max_children = 10
pm.start_servers = 2
pm.min_spare_servers = 1
pm.max_spare_servers = 6
request_terminate_timeout = 100
request_slowlog_timeout = 0
slowlog = var/log/slow.log

3.10创建php-fpm启动脚本

vim /etc/init.d/php-fpm

内容：

#! /bin/sh### BEGIN INIT INFO
# Provides:          php-fpm
# Required-Start:    $remote_fs $network
# Required-Stop:     $remote_fs $network
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: starts php-fpm
# Description:       starts the PHP FastCGI Process Manager daemon
### END INIT INFO
prefix=/usr/local/php
exec_prefix=${prefix}
php_fpm_BIN=${exec_prefix}/sbin/php-fpm
php_fpm_CONF=${prefix}/etc/php-fpm.conf
php_fpm_PID=${prefix}/var/run/php-fpm.pid
php_opts="--fpm-config $php_fpm_CONF --pid $php_fpm_PID"wait_for_pid () {try=0while test $try -lt 35 ; docase "$1" in'created')if [ -f "$2" ] ; thentry=''breakfi;;'removed')if [ ! -f "$2" ] ; thentry=''breakfi;;esacecho -n .try=`expr $try + 1`sleep 1done
}case "$1" instart)echo -n "Starting php-fpm "$php_fpm_BIN --daemonize $php_optsif [ "$?" != 0 ] ; thenecho " failed"exit 1fiwait_for_pid created $php_fpm_PIDif [ -n "$try" ] ; thenecho " failed"exit 1elseecho " done"fi;;stop)echo -n "Gracefully shutting down php-fpm "if [ ! -r $php_fpm_PID ] ; thenecho "warning, no pid file found - php-fpm is not running ?"exit 1fikill -QUIT `cat $php_fpm_PID`wait_for_pid removed $php_fpm_PIDif [ -n "$try" ] ; thenecho " failed. Use force-quit"exit 1elseecho " done"fi;;force-quit)echo -n "Terminating php-fpm "if [ ! -r $php_fpm_PID ] ; thenecho "warning, no pid file found - php-fpm is not running ?"exit 1fikill -TERM `cat $php_fpm_PID`wait_for_pid removed $php_fpm_PIDif [ -n "$try" ] ; thenecho " failed"exit 1elseecho " done"fi;;restart)$0 stop$0 start;;reload)echo -n "Reload service php-fpm "if [ ! -r $php_fpm_PID ] ; thenecho "warning, no pid file found - php-fpm is not running ?"exit 1fikill -USR2 `cat $php_fpm_PID`echo " done";;*)echo "Usage: $0 {start|stop|force-quit|restart|reload}"exit 1;;esac

授权

chmod +x /etc/init.d/php-fpm

3.11启动php-fpm

groupadd www
useradd -s /sbin/nologin -g www www
/etc/init.d/php-fpm start

3.12开机启动

 vim /etc/systemd/system/php-fpm.service

内容：

[Unit]
Description=php-fpm
After=network.target
[Service]
Type=forking
ExecStart=/etc/init.d/php-fpm
PrivateTmp=true
User=www
Group=www
[Install]
WantedBy=multi-user.target

systemctl enable php-fpm.service

4、安装nginx

4.1安装pcre依赖

wget https://sourceforge.net/projects/pcre/files/pcre/8.39/pcre-8.39.tar.bz2
tar -jxvf pcre-8.39.tar.bz2
cd pcre-8.39
./configure
make -j 2 && make install
cd ..

4.2下载nginx

wget http://mirrors.sohu.com/nginx/nginx-1.6.0.tar.gz

4.3解压编译安装

tar -zxvf nginx-1.6.0.tar.gz
cd nginx-1.6.0
./configure --user=www --group=www --prefix=/usr/local/nginx --with-http_stub_status_module --with-http_ssl_module --with-http_gzip_static_module --with-ipv6
make -j 2 && make install
cd ..
ln -s /usr/local/nginx/sbin/nginx /usr/bin/nginx

4.4配置nginx

rm -f /usr/local/nginx/conf/nginx.conf
vim /usr/local/nginx/conf/nginx.conf

内容:

user  www www;
worker_processes auto;
error_log  /home/wwwlogs/nginx_error.log  crit;
pid        /usr/local/nginx/logs/nginx.pid;
#Specifies the value for maximum file descriptors that can be opened by this process.
worker_rlimit_nofile 51200;
events{use epoll;worker_connections 51200;multi_accept on;}
http{include       mime.types;default_type  application/octet-stream;server_names_hash_bucket_size 128;client_header_buffer_size 32k;large_client_header_buffers 4 32k;client_max_body_size 50m;sendfile on;tcp_nopush     on;keepalive_timeout 60;tcp_nodelay on;fastcgi_connect_timeout 300;fastcgi_send_timeout 300;fastcgi_read_timeout 300;fastcgi_buffer_size 64k;fastcgi_buffers 4 64k;fastcgi_busy_buffers_size 128k;fastcgi_temp_file_write_size 256k;gzip on;gzip_min_length  1k;gzip_buffers     4 16k;gzip_http_version 1.0;gzip_comp_level 2;gzip_types       text/plain application/x-javascript text/css application/xml;gzip_vary on;gzip_proxied        expired no-cache no-store private auth;gzip_disable        "MSIE [1-6]\.";server_tokens off;#log_format  access  '$remote_addr - $remote_user [$time_local] "$request" ''$status $body_bytes_sent "$http_referer" ''"$http_user_agent" $http_x_forwarded_for';log_format  access  '$remote_addr - $remote_user [$time_local] "$request" ''$status $body_bytes_sent "$http_referer" ''"$http_user_agent" $http_x_forwarded_for "$upstream_addr" "$upstream_response_time" $request_time $content_length';server{listen       80;server_name localhost;index index.html index.htm index.php default.html default.htm default.php;root        /home/wwwroot/default;location ~ \.php($|/) {fastcgi_pass   unix:/tmp/php-cgi.sock;fastcgi_index  index.php;fastcgi_split_path_info ^(.+\.php)(.*)$;fastcgi_param   PATH_INFO $fastcgi_path_info;fastcgi_param  SCRIPT_FILENAME  $document_root$fastcgi_script_name;include        fastcgi_params;}location ~ .*\.(gif|jpg|jpeg|png|bmp|swf)${expires      30d;}location ~ .*\.(js|css)?${expires      12h;}if (!-e $request_filename) {rewrite ^/(.*)$ /index.php/$1 last;break;}}
}

4.5配置目录权限

mkdir -p /home/wwwroot/default
chmod +w /home/wwwroot/default
mkdir -p /home/wwwlogs
chmod 777 /home/wwwlogs
chown -R www:www /home/wwwroot/default

4.6创建nginx启动脚本

vim /etc/init.d/nginx

内容：

#!/bin/sh
# chkconfig: 2345 55 25
# Description: Startup script for nginx webserver on Debian. Place in /etc/init.d and
# run 'update-rc.d -f nginx defaults', or use the appropriate command on your
# distro. For CentOS/Redhat run: 'chkconfig --add nginx'
### BEGIN INIT INFO# Provides:          nginx
# Required-Start:    $all
# Required-Stop:     $all
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description: starts the nginx web server# Description:       starts nginx using start-stop-daemon
### END INIT INFO
# Author:   licess
# website:  http://lnmp.orgPATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin
NAME=nginx
NGINX_BIN=/usr/local/nginx/sbin/$NAME
CONFIGFILE=/usr/local/nginx/conf/$NAME.conf
PIDFILE=/usr/local/nginx/logs/$NAME.pid
SCRIPTNAME=/etc/init.d/$NAME
case "$1" instart)echo -n "Starting $NAME... "if netstat -tnpl | grep -q nginx;thenecho "$NAME (pid `pidof $NAME`) already running."exit 1fi$NGINX_BIN -c $CONFIGFILEif [ "$?" != 0 ] ; thenecho " failed"exit 1elseecho " done"fi;;stop)echo -n "Stoping $NAME... "if ! netstat -tnpl | grep -q nginx; thenecho "$NAME is not running."exit 1fi$NGINX_BIN -s stopif [ "$?" != 0 ] ; thenecho " failed. Use force-quit"exit 1elseecho " done"fi;;status)if netstat -tnpl | grep -q nginx; thenPID=`pidof nginx`echo "$NAME (pid $PID) is running..."elseecho "$NAME is stopped"exit 0fi;;force-quit)echo -n "Terminating $NAME... "if ! netstat -tnpl | grep -q nginx; thenecho "$NAME is not running."exit 1fikill `pidof $NAME`if [ "$?" != 0 ] ; thenecho " failed"xit 1elseecho " done"fi;;restart)$SCRIPTNAME stopsleep 1$SCRIPTNAME start;;reload)echo -n "Reload service $NAME... "if netstat -tnpl | grep -q nginx; then $NGINX_BIN -s reloadecho " done"elseecho "$NAME is not running, can't reload."exit 1fi;;configtest)echo -n "Test $NAME configure files... "$NGINX_BIN -t;;*)echo "Usage: $SCRIPTNAME {start|stop|force-quit|restart|reload|status|configtest}"exit 1;;
esac

授权

chmod +x /etc/init.d/nginx

5、安装redis

5.1下载解压编译安装

wget http://download.redis.io/releases/redis-2.8.19.tar.gz
tar -zxvf redis-2.8.19.tar.gz
cd redis-2.8.19
make PREFIX=/usr/local/redis install

5.2配置redis

mkdir -p /usr/local/redis/etc/
cp redis.conf  /usr/local/redis/etc/redis.conf
sed -i 's/daemonize no/daemonize yes/g' /usr/local/redis/etc/redis.conf
cd ..

5.3创建启动文件

vim /etc/init.d/redis

内容

#! /bin/bash
## redis - this script starts and stops the redis-server daemon
## chkconfig:    2345 80 90
# description:  Redis is a persistent key-value database##
## BEGIN INIT INFO
# Provides:          redis
# Required-Start:    $syslog
# Required-Stop:     $syslog# Should-Start:        $local_fs# Should-Stop:        $local_fs
# Default-Start:     2 3 4 5
# Default-Stop:      0 1 6
# Short-Description:    redis-server daemon
# Description:        redis-server daemon
### END INIT INFO# chkconfig:   2345 90 10
# description:  Redis is a persistent key-value databaseREDISPORT=6379
EXEC=/usr/local/redis/bin/redis-server
REDIS_CLI=/usr/local/redis/bin/redis-cliPIDFILE=/var/run/redis.pid
CONF="/usr/local/redis/etc/redis.conf"
case "$1" instart)if [ -f $PIDFILE ]thenecho "$PIDFILE exists, process is already running or crashed"elseecho "Starting Redis server..."$EXEC $CONFfiif [ "$?"="0" ]thenecho "Redis is running..."fi;;stop)if [ ! -f $PIDFILE ]thenecho "$PIDFILE does not exist, process is not running"elsePID=$(cat $PIDFILE)echo "Stopping ..."$REDIS_CLI -p $REDISPORT shutdownwhile [ -x ${PIDFILE} ]doecho "Waiting for Redis to shutdown ..."sleep 1doneecho "Redis stopped"fi;;restart)${0} stop${0} start;;*)  echo "Usage: /etc/init.d/redis {start|stop|restart}" >&2exit 1esac

 5.4授权

chmod +x /etc/init.d/redis

5.5启动redis

/etc/init.d/redis start

6、设置开机启动

chkconfig --level 345 php-fpm on
chkconfig --level 345 nginx on
chkconfig --level 345 mysql on
chkconfig --level 345 redis on

7、安装编译环境

7.1下载解压编译安装gcc

wget http://ftp.tsukuba.wide.ad.jp/software/gcc/releases/gcc-4.9.2/gcc-4.9.2.tar.gz
tar -zxvf gcc-4.9.2.tar.gz
cd gcc-4.9.2
./contrib/download_prerequisites
mkdir gcc-build-4.9.2
cd gcc-build-4.9.2
../configure --prefix=/usr -enable-checking=release -enable-languages=c,c++ -disable-multilib
make -j 2 && make install
cd ../../

7.2 下载解压编译安装termcap

wget https://mirrors.sjtug.sjtu.edu.cn/gnu/termcap/termcap-1.3.1.tar.gz
tar -zxvf termcap-1.3.1.tar.gz
cd termcap-1.3.1
./configure --prefix=/usr
make -j 2 && make install
cd ..

7.3 下载解压编译安装 gdb

wget http://ftp.gnu.org/gnu/gdb/gdb-7.9.tar.gz
tar -zxvf gdb-7.9.tar.gz
cd gdb-7.9
./configure --prefix=/usr
make -j 2 && make install
cd ..

7.4 下载解压编译安装 protobuf

wget https://github.com/google/protobuf/releases/download/v2.6.1/protobuf-2.6.1.tar.gz
tar -zxvf protobuf-2.6.1.tar.gz
cd protobuf-2.6.1
./configure --prefix=/usr/local/protobuf
make -j 2 && make install
cd ..

8、安装TeamTalk

8.1下载TeamTalk

git clone https://github.com/mogujie/TeamTalk.git

8.2生成pb文件

mkdir -p TeamTalk/server/src/base/pb/lib/linux/
cp /usr/local/protobuf/lib/libprotobuf-lite.a TeamTalk/server/src/base/pb/lib/linux/
cp  -r /usr/local/protobuf/include/* TeamTalk/server/src/base/pb/

cd TeamTalk/pb
export PATH=$PATH:/usr/local/protobuf/bin
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/protobuf/lib
sh create.sh
sh sync.sh

8.3安装依赖

cd ../server/src

8.3.1修改 make_log4cxx.sh

原有下载地址已经无效，需要修改一下文件下载地址

vim make_log4cxx.sh

LOG4CXX_PATH=http://mirror.bit.edu.cn/apache/logging/log4cxx/0.10.0/$LOG4CXX.tar.gz

改成

LOG4CXX_PATH=https://archive.apache.org/dist/logging/log4cxx/0.10.0/$LOG4CXX.tar.gz

 8.3.2开始安装

sh make_log4cxx.sh
sh make_hiredis.sh

8.4编译server

8.4.1修改代码

        1）因为mysql不是默认路径，所以修改db_proxy_server/CMakeList

vim db_proxy_server/CMakeLists.txt

SET(MYSQL_INCLUDE_DIR /usr/include/mysql)
SET(MYSQL_LIB /usr/lib64/mysql)

改成

SET(MYSQL_INCLUDE_DIR /usr/local/mysql/include)
SET(MYSQL_LIB /usr/local/mysql/lib)

        2）因为是测试环境只开了一个 DBServer 所以修改一下msg_server/msg_server.cpp 86行

vim msg_server/msg_server.cpp

 if (db_server_count < 2) {log("DBServerIP need 2 instance at lest ");return 1;}

改成

 if (db_server_count < 1) {log("DBServerIP need 2 instance at lest ");return 1;}

 8.4.2开始编译

sh build.sh version 1.0.0

8.4.3部署服务

cd ../../auto_setup
cp ../server/im-server-1.0.0.tar.gz im-server-1.0.0.tar.gz
tar -zxvf im-server-1.0.0.tar.gz
cd im-server-1.0.0
sh sync_lib_for_zip.sh

8.4.4导入mysql

mysql -uroot -p12345

source /TeamTalk/auto_setup/mariadb/conf/ttopen.sql;
show tables;



退出mysql

exit

8.4.5部署web

cd /home/wwwroot/default
/bin/cp -rf /TeamTalk/php/* /home/wwwroot/default

 修改config.php

vim application/config/config.php

修改18、19行

$config['msfs_url'] = 'http://127.0.0.1:8700/';
$config['http_url'] = 'http://127.0.0.1:8400';

修改database.php

 vim application/config/database.php

$db['default']['hostname'] = '127.0.0.1';
$db['default']['username'] = 'root';
$db['default']['password'] = '12345';
$db['default']['database'] = 'teamtalk';



8.4.6测试web

浏览器输入http://localhost/ 出现登录窗口说明部署成功，用户名：admin 密码：admin

登录可进行用户管理，注意：先创建组织架构，部门名称、部门优先级为必填项，接着再创建用户

8.4.7运行服务

cd /TeamTalk/auto_setup/im-server-1.0.0

        1）修改 restart.sh

vi restart.sh

 db_proxy_server后添加

msfs)restart $1;;

复制配置文件

cp ../im_server/conf/msfs.conf msfs/msfs.conf

        2）修改 db_proxy_server/dbproxyserver.conf 配置

vim  db_proxy_server/dbproxyserver.conf

#teamtalk_master
teamtalk_master_host=127.0.0.1
teamtalk_master_port=3306
teamtalk_master_dbname=teamtalk
teamtalk_master_username=root
teamtalk_master_password=12345
teamtalk_master_maxconncnt=16#teamtalk_slave
teamtalk_slave_host=127.0.0.1
teamtalk_slave_port=3306
teamtalk_slave_dbname=teamtalk
teamtalk_slave_username=root
teamtalk_slave_password=12345
teamtalk_slave_maxconncnt=16

        3）局域网访问

修改 msg_server/msgserver.conf 最后的IpAdd1/IpAdd2 改成主机IP

vi msg_server/msgserver.conf

        4）启动服务

./restart.sh login_server
./restart.sh route_server
./restart.sh msg_server
./restart.sh file_server
./restart.sh msfs
./restart.sh http_msg_server
./restart.sh push_server
./restart.sh db_proxy_server

        5）查看服务运行情况

ps -ef|grep server && ps -ef|grep msfs



服务日志保存在每个服务文件夹下的log目录，如查看login_server的日志：

cat /TeamTalk/auto_setup/im-server-1.0.0/login_server/log/default.log

        6）服务说明

服务	端口	服务类型	说明
login_server	8080/8008	http	登录服务器，提供msg_server,msfs服务地址以及端口号的，每次都会返回client连接数少的msg_server。具有负载均衡的作用，每次客户端打开都会向login_server发起一次请求获取msg_server的ip以及port，以此来连接msg_server，可以部署多个
msg_server	8000	tcp	消息服务器，维护所有的client连接 可以部署多个 将客户端发来的的行为消息转发给db_proxy_server 每个msg_server都得连接到db_proxy_server。提供客户端大部分信令处理功能，包括私人聊天、群组聊天等
db_proxy_server	10600	tcp	数据库代理服务器，即时通讯中大部分的业务逻辑都是在db_proxy_server中实现的 它主要是对mysql，redis数据库进行业务上的行为。可以部署多个，本身能并发处理业务。
route_server	8200	tcp	路由服务器，连接所有的msg_server 充当路由中转的服务 解决不同的msg_server之间client直接的通讯。
http_msg_server	8400	http	API服务，直接连接db_proxy_server 去进行业务上的处理，参考基本API的实现可以拓展一些其他的API，共业务上使用。
push_server	8500	tcp	消息推送服务，msg_server都会连接它，它配置并连接apple的推送接口以此来对ios设备进行消息推送
file_server	8600	tcp	文件服务器，提供客户端之间得文件传输服务，支持在线以及离线文件传输
msfs	8700	http	图片存储服务器，提供头像，图片传输中的图片存储服务

8.4.8 redis,php,nginx,mysql 服务管理

/etc/init.d/redis {start|stop|restart}
/etc/init.d/php-fpm {start|stop|force-quit|restart|reload}
/etc/init.d/nginx {start|stop|force-quit|restart|reload|status|configtest}
/etc/init.d/mysql {start|stop|restart|reload|force-reload|status}  [ MySQL server options ]

8.4.9win客户端编译

win客户端项目是使用 Visual Studio 2013 开发的，项目位置是teamtalk/win-client/solution/teamtalk.sln

我使用的是 Visual Studio 2019版本的，需要改一些些代码才可以编译通过。还有编译的时候要用管理员方式运行vs否则会提示出错：

8.4.10win客户端登录

 本文服务端部署参考TeamTalk部署详细教程（最全最新TeamTalk部署教程助你一次部署成功）https://blog.csdn.net/siyacaodeai/article/details/114982897
