目录
0、前言
一、动态数组数据结构
二、动态数组增删改查函数声明
三、数组创建
1、头部动态创建
2、头部静态创建
四、元素添加
五、元素删除
1、根据元素值删除
2、根据元素位置删除
六、元素修改
七、元素查找
八、数组清空
九、数组销毁
十、验证程序
0、前言

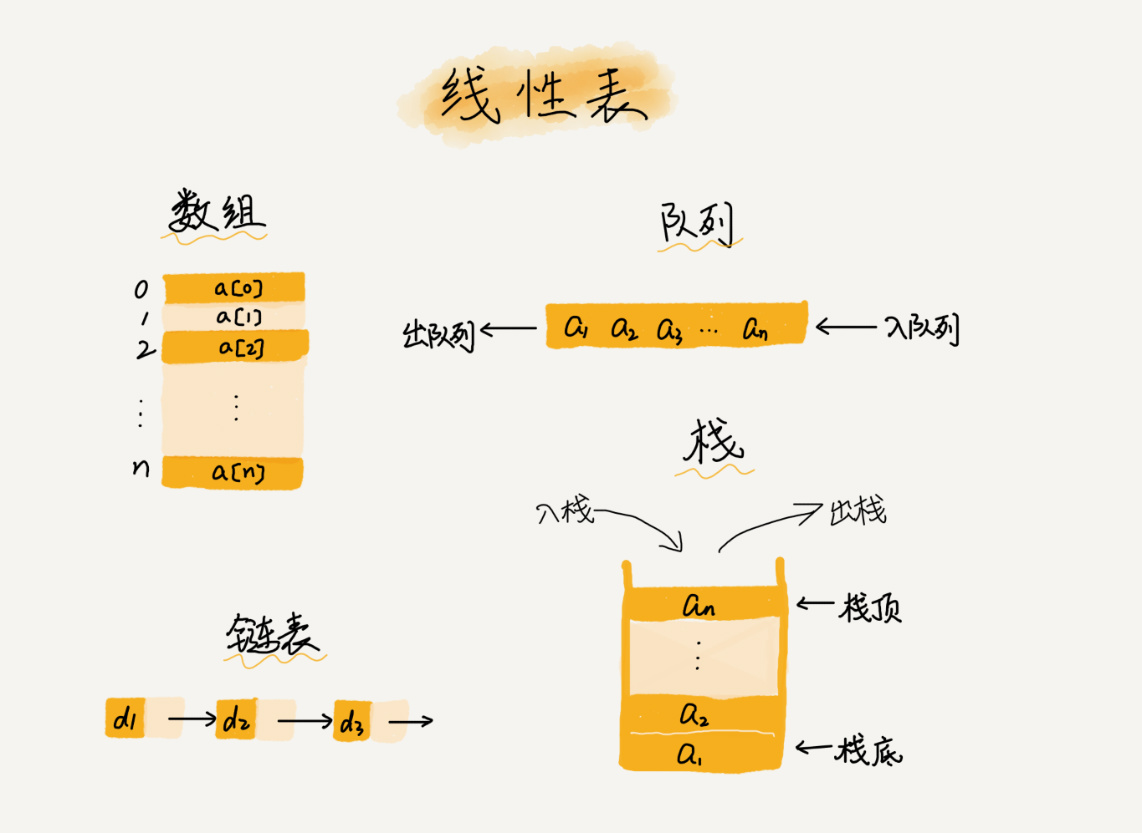

线性表（Linear List）。顾名思义，线性表就是数据排成像一条线一样的结构。每个线性表上的数据最多只有前和后两个方向。其实除了数组，链表、队列、栈等也是线性表结构。
非线性表。在非线性表中，数据之间并不是简单的前后关系
数组（Array）。是一种线性表数据结构。它用一组连续的内存空间，来存储一组具有相同类型的数据。最大的特点就是支持随机访问，但插入、删除操作也因此变得比较低效，平均情况时间复杂度为 O(n)
一、动态数组数据结构
struct dstrct_array
{unsigned int size; /* array total size */unsigned int used; /* array used size, from 1 to size */unsigned int tpsz; /* data type size */void *p; /* array, dynamically applied by array_init()*/
};二、动态数组增删改查函数声明
extern struct dstrct_array* array_creat(unsigned int size, unsigned int tpsz);
extern int array_init(struct dstrct_array *array, unsigned int size, unsigned int tpsz);
extern int array_insert (struct dstrct_array *array, unsigned int pos, void *const value);
extern int array_del_value (struct dstrct_array *array, void *value);
extern int array_del_pos (struct dstrct_array *array, unsigned int pos);
extern int array_modify (struct dstrct_array *array, unsigned int pos, void *const value);
extern int array_search_pos(struct dstrct_array *array, void* const value);
extern int array_empty (struct dstrct_array *array);
extern int array_destroy(struct dstrct_array *array);extern unsigned int array_used(struct dstrct_array *array);
extern unsigned int array_size(struct dstrct_array *array);extern void algo_array_test(void);三、数组创建
1、头部动态创建
/*** dynamically create a dynamic array, including the array header and data space.* * @param size: array size* @param tpsz: array data type length* @return NULL:malloc fail* !NULL:success*/
struct dstrct_array* array_creat(unsigned int size, unsigned int tpsz)
{struct dstrct_array *array = NULL;if (size <= 0 || tpsz <= 0)return NULL;/* malloc an array control struct */array = ARRAR_MALLOC(sizeof(*array));if (array == NULL){return NULL;}/* calloc an array */void *p = ARRAR_CALLOC(1, (size * tpsz));if (p == NULL)return NULL;array->used = 0;array->size = size;array->tpsz = tpsz;array->p = p;return array;
}2、头部静态创建
/*** init a dynamic array, malloc a data space.* * @param array: * @param size: array size* @param tpsz: array data type length* @return -1:array is null or malloc fail* 0:success*/
int array_init(struct dstrct_array *array, unsigned int size, unsigned int tpsz)
{if (array == NULL)return -1;/* calloc an array */void *p = ARRAR_CALLOC(1, (size * tpsz));if (p == NULL)return -1;array->used = 0;array->size = size;array->tpsz = tpsz;array->p = p;return 0;
}四、元素添加
/*** insert a value to an array.* @note The array cannot be inserted after it is full, * and can only be inserted when the used is less than the size* The purpose is to leave at least one space for carrying* @param array: * @param pos: 1 - size* @param value: data* @return -1:array is null* -2:pos overstep the boundary of array* -3:used is greater than size* 0:success*/
int array_insert(struct dstrct_array *array, unsigned int pos, void *const value)
{char *pbegin = NULL;void *pnew = NULL, *pold = NULL, *pinsert = NULL;unsigned int i = 0;if (array == NULL)return -1;/* adjust the pos did cross the array*/if (pos > array->size || pos <= 0)return -2;/* adjust used is not greater than size */if (array->used >= array->size)return -3;/* move the array data back one cell */pbegin = array->p;for (i=array->used; i>=pos; i--){pnew = pbegin + i * array->tpsz;pold = pbegin + (i - 1) * array->tpsz;memcpy(pnew, pold, array->tpsz);}/* insert the data*/pinsert = pbegin + (pos - 1) * array->tpsz;memcpy(pinsert, value, array->tpsz);array->used++;return 0;
}五、元素删除
1、根据元素值删除
/*** delete the array data by value.** @param array: delete array* @param value: delete value* @return -1:array is null* -2:value is not matched* 0:success*/
int array_del_value(struct dstrct_array *array, void *value)
{char *pbegin = NULL;void *pnew = NULL, *pold = NULL;int i = 0, res = 0;int check_flag = 1, check_succ = 0;if (array == NULL)return -1;pbegin = array->p;for (i=0; i<array->used; i++){/* Check the match value */if (check_flag){res = memcmp(pbegin + i * array->tpsz, value, array->tpsz);if (res == 0){check_flag = 0;check_succ = 1;}}/* delete the check value and move one cell forward*/else{pnew = pbegin + (i - 1) * array->tpsz;pold = pbegin + i * array->tpsz;memcpy(pnew, pold, array->tpsz);}}/* match and deleat success*/if (check_succ){array->used--;return 0;}return -2;
}2、根据元素位置删除
/*** delete the array data by pos.** @param array: delete array* @param pos: the array data pos* @return -1:array is null* -2:pos overstep the boundary of array* 0:success*/
int array_del_pos(struct dstrct_array *array, unsigned int pos)
{char *pbegin = NULL;void *pnew = NULL, *pold = NULL;int i = 0;if (array == NULL)return -1;if (pos <= 0 || pos > array->used)return -2;pbegin = array->p;for (i=pos; i<=array->used; i++){pnew = pbegin + (i - 1) * array->tpsz;pold = pbegin + i * array->tpsz;memcpy(pnew, pold, array->tpsz);}array->used--;return 0;
}六、元素修改
/*** modify a value.** @param array: * @param pos: 1 - size* @param value: data* @return -1:array is null* -2:pos overstep the boundary of array* 0:success*/
int array_modify(struct dstrct_array *array, unsigned int pos, void *const value)
{char *pbegin = NULL;void *pmodify = NULL;if (array == NULL)return -1;/* adjust the pos did cross the array*/if (pos > array->size || pos <= 0)return -2;pbegin = array->p;pmodify = pbegin + (pos - 1) * array->tpsz;memcpy(pmodify, value, array->tpsz);return 0;
}七、元素查找
/*** search the value pos.** @param array: * @param value: data* @return -1:array is null* -2:pos overstep the boundary of array* 1 - size: the value pos*/
int array_search_pos(struct dstrct_array *array, void* const value)
{char *pbegin = NULL;void *psearch = NULL;unsigned int i = 0, pos = 0;if (array == NULL)return -1;/* adjust the pos did cross the array*/if (pos > array->size || pos <= 0)return -2;pbegin = array->p;for (i=0; i<array->used; i++){psearch = pbegin + i * array->tpsz;if (!memcmp(psearch, value, array->tpsz)){pos = i + 1;break;}}return pos;
}八、数组清空
/*** delete the array space.** @return -1:array is null* 0:success*/
int array_empty(struct dstrct_array *array)
{if (array ==NULL)return -1;ARRAY_FREE(array->p);array->p = NULL;return 0;
}九、数组销毁
/*** delete the array space and array control struct.* @note The array space to be empty before destroy array* @param array: delete array* @return -1:array is null* 0:success*/
int array_destroy(struct dstrct_array *array)
{if (array_empty(array) != 0)return -1;ARRAY_FREE(array);array = NULL;return 0;
}十、验证程序
struct array_struct_test
{int a;int b;
}array_struct_test[10];int array_test[10] = {0};
void algo_array_test(void)
{struct dstrct_array *array_int = NULL;struct dstrct_array *array_str = NULL;unsigned int i = 0;unsigned int insert_value = 0x55, del_value = 0x55, mdy_value = 0x66;struct array_struct_test struct_test;/* int type test*/array_int = array_creat(10, sizeof(int));// int p[10]for (i=0;i<5;i++){array_insert(array_int, i+1, (void*)&i); }for (i=0;i<5;i++){array_insert(array_int, 1, (void*)&insert_value);}for (i=0;i<array_int->used;i++){array_test[i] = ((int*)array_int->p)[i];//1、((int*)array->p) 2、p[i]}array_del_value(array_int, (void*)&del_value);array_del_pos(array_int,2);array_del_pos(array_int,5);array_del_pos(array_int,6);array_modify(array_int, 5, (void*)&mdy_value);memset(array_test, 0, sizeof(array_test));for (i=0;i<array_int->used;i++){array_test[i] = ((int*)array_int->p)[i];//1、((int*)array->p) 2、p[i]}/* srtruct type test*/array_str = array_creat(10, sizeof(struct array_struct_test)); // struct array_struct_test p[10]);for (i=0;i<5;i++){struct_test.a = i;struct_test.b = i + 1;array_insert(array_str, i+1, (void*)&struct_test); }for (i=0;i<5;i++){array_insert(array_str, 1, (void*)&struct_test);}for (i=0;i<array_str->used;i++){array_struct_test[i] = ((struct array_struct_test*)array_str->p)[i];//1、((struct array_struct_test*)array->p) 2、p[i]}
}
