flatMap底层实现

article/2025/10/18 10:03:40

上篇：Transformation的map使用

第一种方式重写flatMap方法实现

实现需求：根据字符串在nc -lk 8888的窗口命令下输入的数据，在控制台打印输出发现：在同一行数据输入的单词字符串自动换行，按每个单词独立换行并且若输入有重复的单词时，它不会再次输出

package cn._51doit.flink.day02;
import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.operators.AbstractStreamOperator;
import org.apache.flink.streaming.api.operators.OneInputStreamOperator;
import org.apache.flink.streaming.runtime.streamrecord.StreamRecord;
import org.apache.flink.util.Collector;/*** Transformation的flatMap底层实现[无界流]*/
public class FlatMapDemo3 {public static void main(String[] args) throws Exception {//    StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();//查看本地的并行度StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(new Configuration());DataStreamSource<String> lines = env.socketTextStream("Master", 8888);SingleOutputStreamOperator<String> words = lines.flatMap(new FlatMapFunction<String, String>() {//重写flatMap方法@Overridepublic void flatMap(String value, Collector<String> out) throws Exception {//输入数据String[] words = value.split(" ");for (String word : words) {if (!"error".equals(word)) {out.collect(word);}}}});words.print();env.execute();}public static class MyStreamMap extends AbstractStreamOperator<Integer> implements OneInputStreamOperator<Integer,Integer>{//重写processElement方法@Overridepublic void processElement(StreamRecord<Integer> element) throws Exception {//输入方法Integer i = element.getValue();Integer j = i * 2;//将要输出的数据放入到element【但是没有输出】element.replace(j);//输出数据output.collect(element);}}
}

打印输出

第二种方式重写processElement方法实现

编码：无界流

package cn._51doit.flink.day02;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.operators.AbstractStreamOperator;
import org.apache.flink.streaming.api.operators.OneInputStreamOperator;
import org.apache.flink.streaming.runtime.streamrecord.StreamRecord;/*** Transformation的flatMap底层实现* 第二种方式重写processElement方法实现*/
public class FlatMapDemo02 {public static void main(String[] args) throws Exception {//    StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();//查看本地的并行度StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(new Configuration());DataStreamSource<String> lines = env.socketTextStream("Master", 8888);SingleOutputStreamOperator<String> words = lines.transform("MyFlatMap",TypeInformation.of(String.class),new MyStreamFlatMap());words.print();env.execute();}public static class MyStreamFlatMap extends AbstractStreamOperator<String> implements OneInputStreamOperator<String,String>{//重写processElement方法@Overridepublic void processElement(StreamRecord<String> element) throws Exception {//拿到一行数据String lines = element.getValue();String[] words = lines.split(" ");for (String word : words){if (!word.equals("error")){//StreamRecord<String> record = new StreamRecord<>(word);output.collect(element.replace(word));}}}}
}

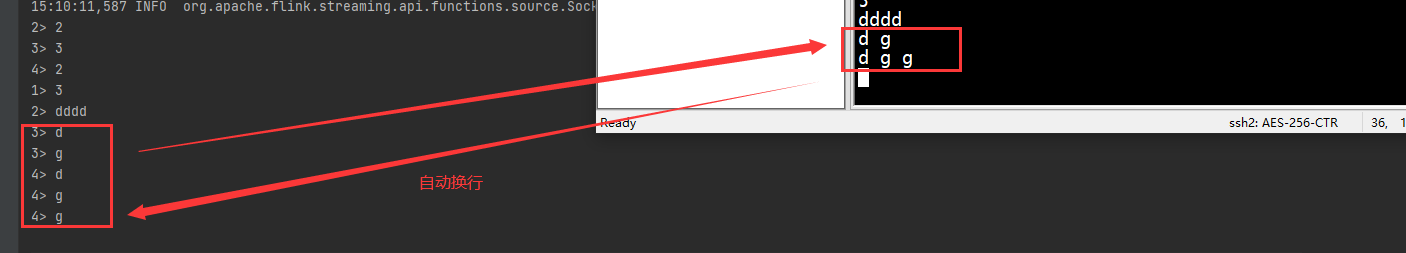

控制台打印输出：
